Outdoor Fixed Advertising LED Display

IP65, High brightness, Ornamental and Fast Content Update

Outdoor LED displays

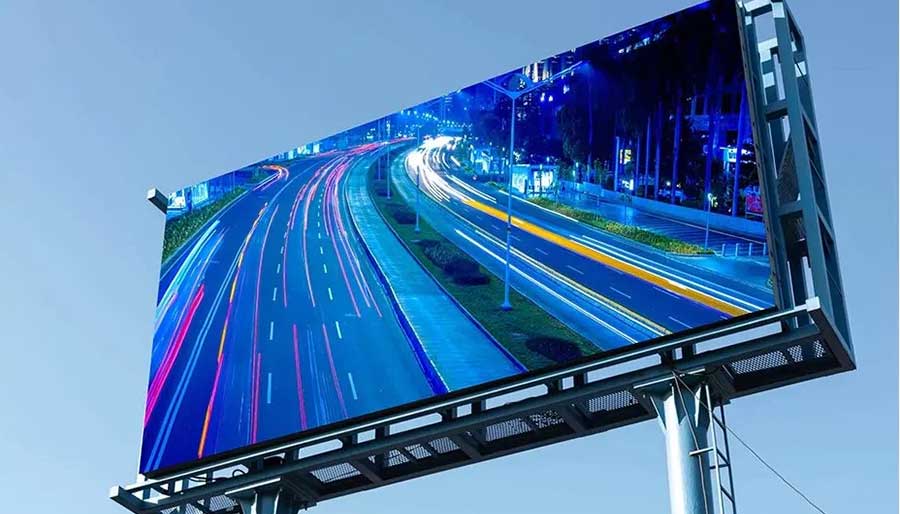

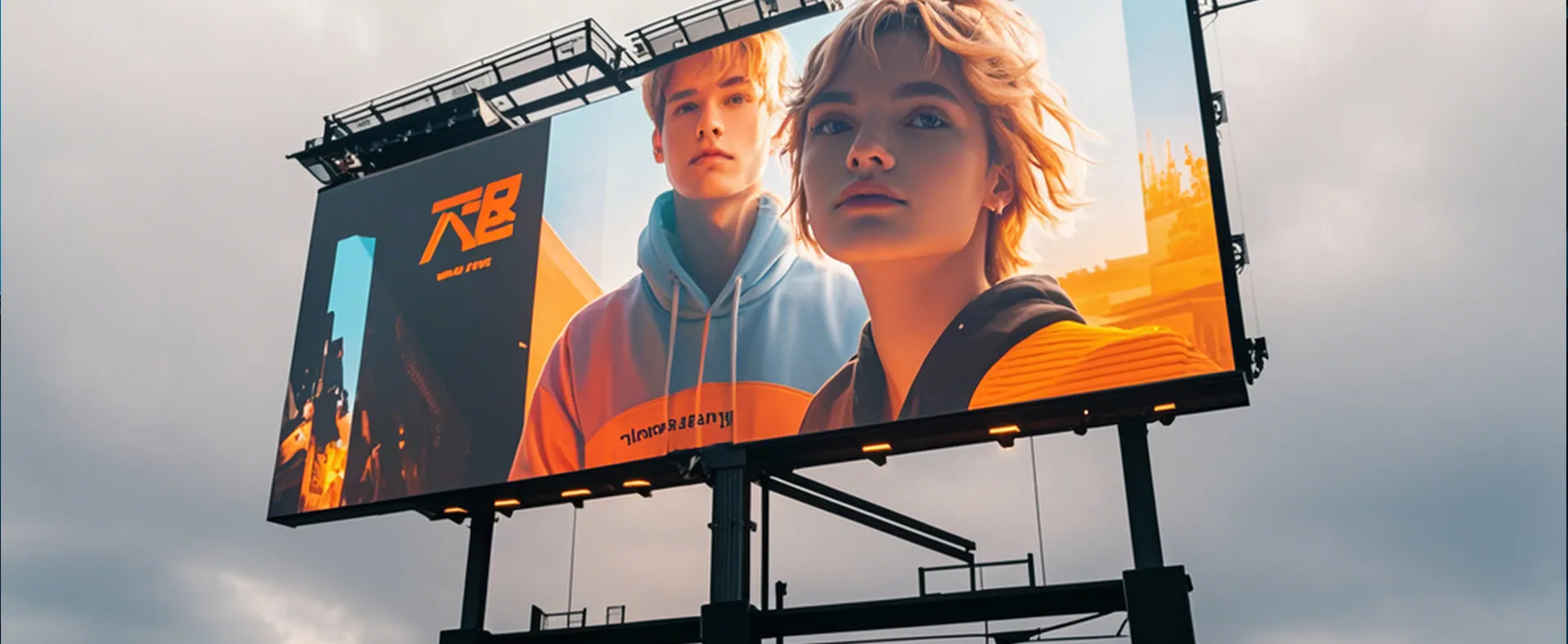

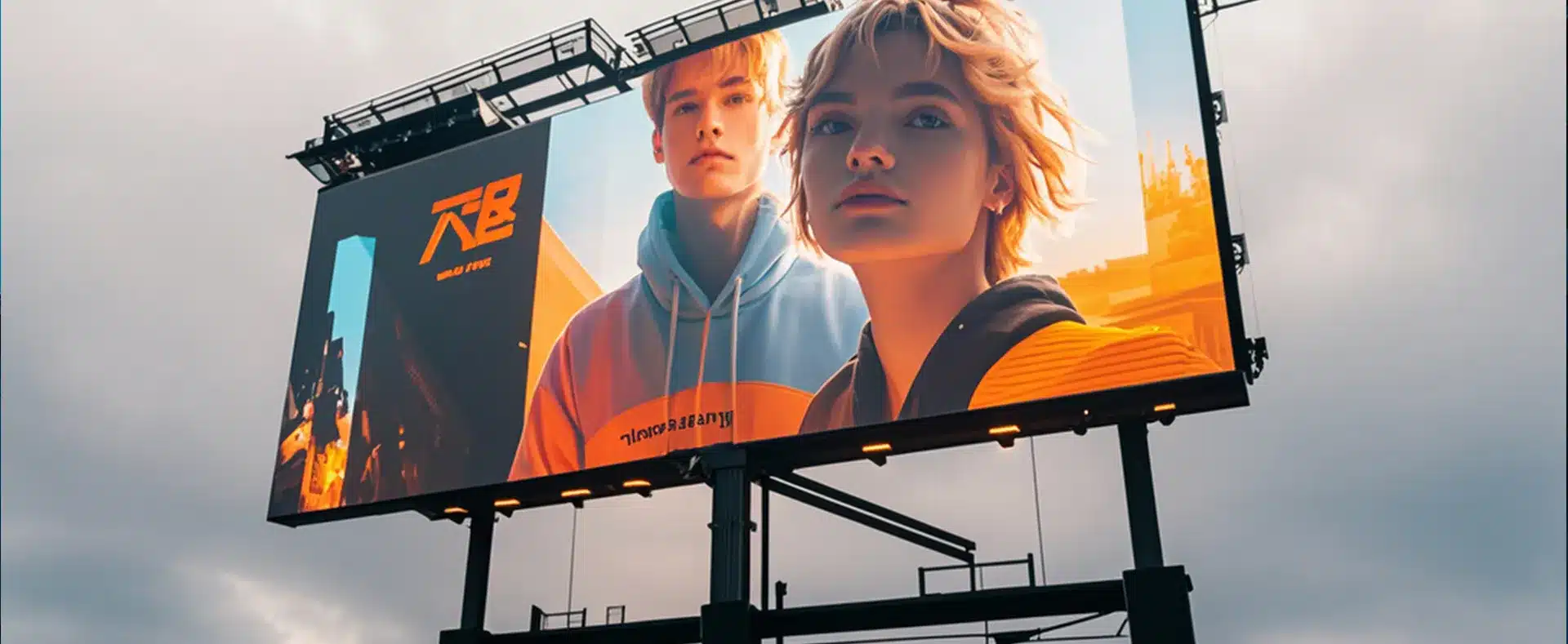

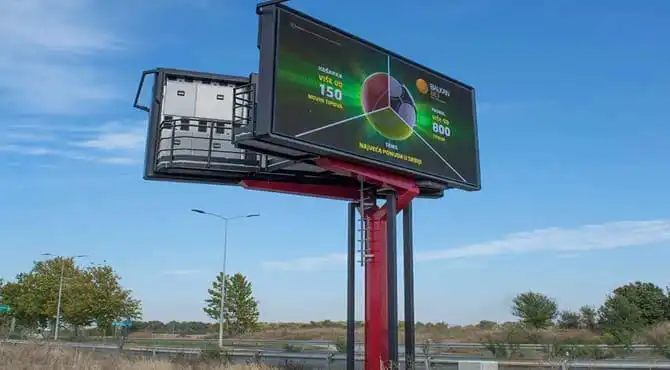

OF – Outdoor LED billboards

Reissdisplay is the world’s top ten manufacturers of large outdoor LED displays. We strive to provide a good waterproof IP65-67 LED display, which can work normally in bad weather and climatic conditions, and easily attract the audience. And you can customize the size or shape, it can help your outdoor display become a reality. From the initial idea to the final installation, we have a professional level and rich experience in cooperating with all types of customers. Our strong team will seamlessly add LED video displays to your field of vision.

1. Quiet fan design, efficient heat dissipation, no noise.

2. Full waterproof solution, waterproof level IP65.

3. The vertical viewing angle can reach 50 degrees, the horizontal viewing angle can reach 120 degrees, and the surface tolerance is less than 0.2mm, which effectively eliminates the mosaic phenomenon.

4. Anti-ultraviolet, anti-oxidation, non-flammable, the screen body has high flatness and will not be deformed.

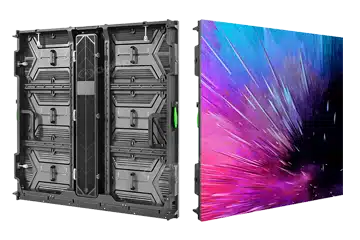

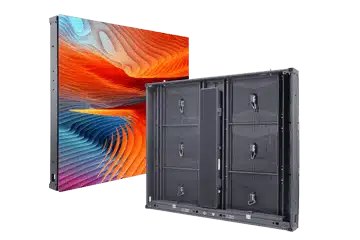

5. High-performance metal plate cabinet, simple cable and spacious internal space.

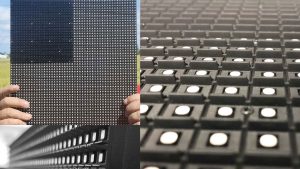

SMD LED module pixel pitch:

OF30, OF40, OF50, OF60, OF60, OF80, OF100, OF120, OF160

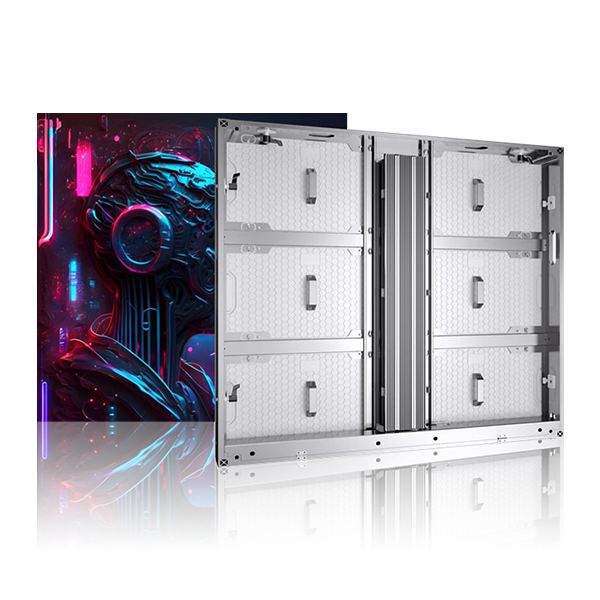

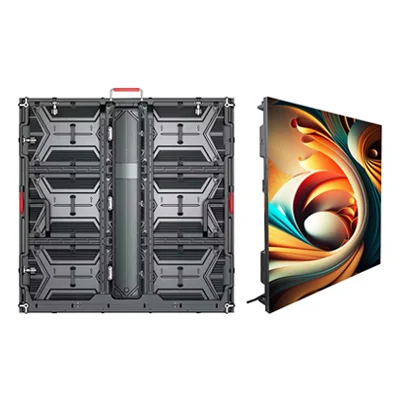

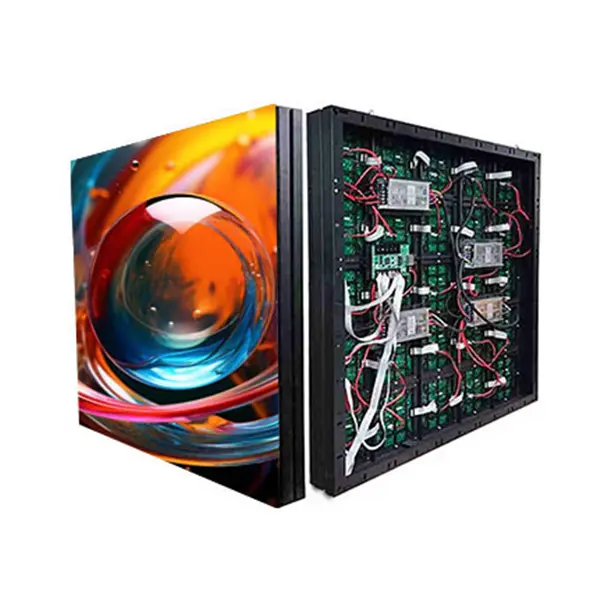

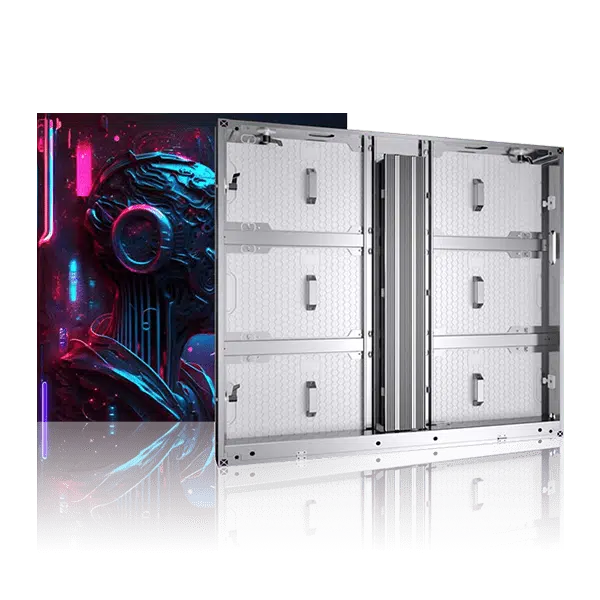

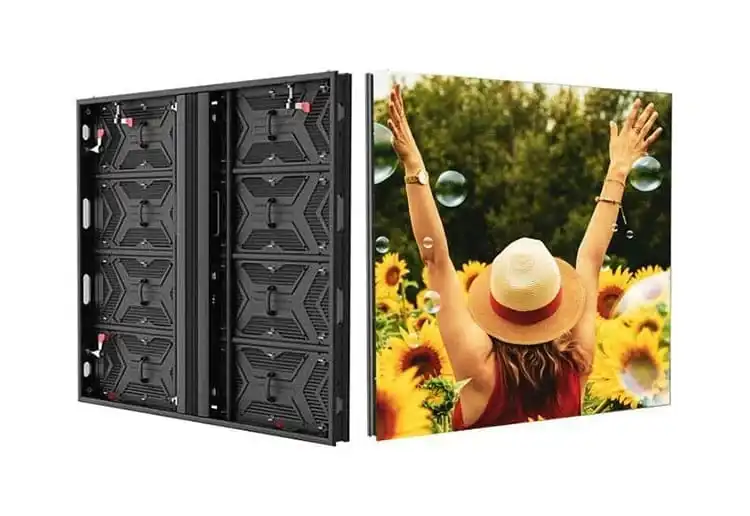

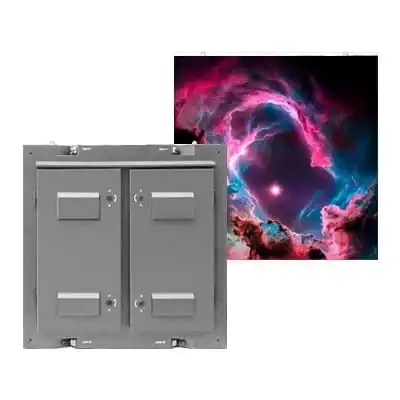

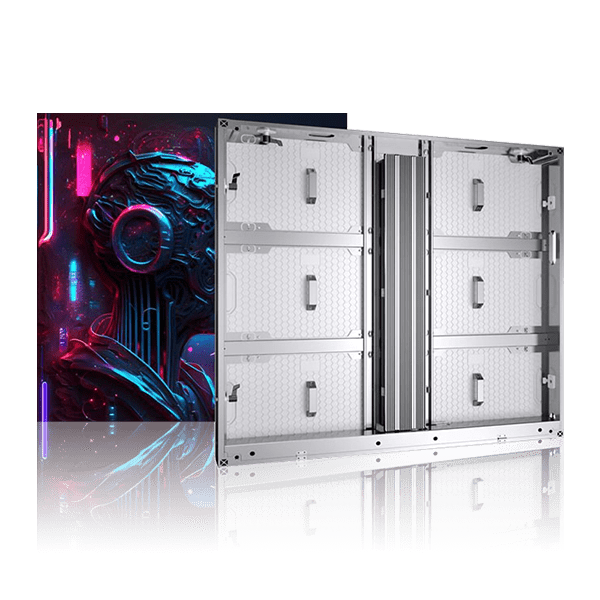

OF Series

REISSdisplay Outdoor LED billboards. excellent seamless effect. OF series includes all the necessary functions to maximize the stability and reliability of the fixed LED displays.

Visual Performance

Resolution: Fine pixel pitches form high resolution, which can capture and hold the attention of passersby.. The surface tolerance is less than 0.2mm, efficiently eliminating the mosaic phenomenon.

High Refresh Rate: 3840Hz refresh rate for high dynamic range pictures eliminates scan lines and flicker on the display when we capture the display. High gray scale ensures the premium vision and the LED display has vivid visual performance.

Contrast: The contrast ratio of the LED screens gives a sharp image quality.

High Brightness: The brightness of the LED displays can be up to 10000nits. Even the screen is facing direct sunlight, the image still looks clear.

High Performance

Sheet metal cabinet with concise cable, inside space is roomy

IP65 Rating

IP65 ensures stable operation of the screen even in extreme weather as below: high temperature, low temperature and high humidity, with special technical treatment.

Installation Methods:

Outdoor front service back service LED Display screen fixed on the wall, on pillars, standing etc all available, and system hardware included sending cards sending box, processor, receiving cards etc.

Convenient Maintenance

Available to operate the module and power box separately

Low gray

OF Series LED Dipalys

Ordinary LED displays

High refresh

OF Series LED Dipalys

Ordinary LED displays

High contrast

OF Series LED Dipalys

Ordinary LED displays

OFO1

Seamless Display and Visual Effects

The advanced assembled structure produces seamless display and visual effects, offering you the perfect visual performance you desire from your LED display.
The picture quality remains high due to best quality display material.

Wider Viewing Angle, More Eyeballs Covered

Super-wide 160° viewing angle captures more attention from viewers to maximize the advertisement value.
Seeing from five directions, it would be still the natural and clear image in an LED display.

Ultra lighweight, Slim design

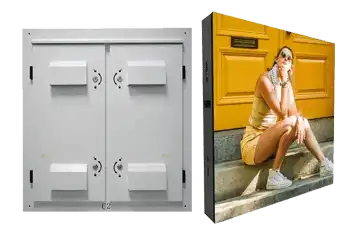

Iron cabinet , the cabinet weight is only 35kg

Three Layers Coating Protection

Three layers of high quality conformal coating protects the driving IC and other electron components from dust and humidity.

High Performance

High-performance sheet metal cabinet with concise cable, inside space is roomy

PERFECT STRUCTURE,MORE MUTURE

It is Iron cabinet, very strong and precision is very high, tolerance can be controlled in 0.2mm so the surface is very smooth, almost no gap between cabinets. Seamless connection. The cabinet is die-casted by high precision CNC machine, when we set up the panels for a big screen, there will be no gaps between two contiguous panels.

Fine standard cabinet with no obvious gaps between the cabinets. Non-deformability function keep the screen in a good shape and smoothly.

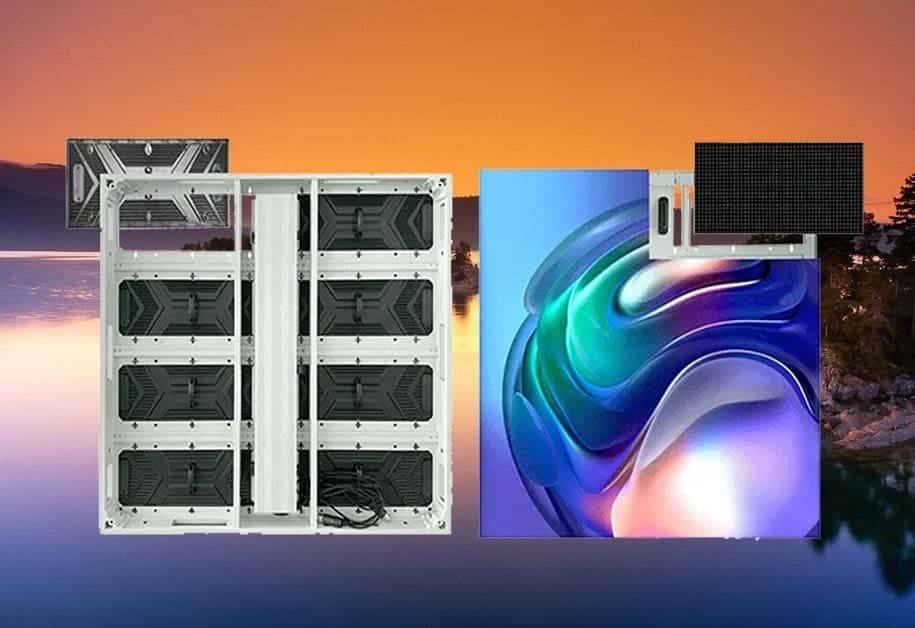

Easy Maintenance

Front-service LED display-born to solve pain points!

With fully front access design, all components, such as the power box, the receiving card, and other accessories, Remove any faulty parts from the front of the LED cabinet easily and quickly.

Module with mechanical lock support both front and rear service. Easier and faster for assembly and dismantle. Save cost for installation and maintenance
Rear service, using keys to open the door to maintenance,quickly and convenient

Multiple Protections, Super High Stability

IP65 ensures stable operation of the screen even in extreme weather as below: high temperature, low temperature and high humidity.All-weather for outdoor environment. With ReissDisplay unique protection technology to make the display reache the level of IP65, can work normally in any weather condition! High protection grade of IP65 guarantees, durability, reliability, Anti-ultraviolet and steady.

IP65 ensures stable operation of the screen even in extreme weather as below: high temperature, low temperature and high humidity.

Energy Saving

We use customized PCB and power supply, so average power consumption is less than 150W/㎡. Compared with the similar products in the market, our OF series LED display saves 20% energy.

Intelligent and dynamic low power consumption under low brightness and gray level

Installation Methods:

Basically, there are three ways to do it, depending on how it will be used.

It can either be installed by hanging, wall mount, or standing on the floor.

If you see other methods of installing it, you don’t need to worry, they are just a variant of these three main methods.

Here’s how they are done.

LED displays input media function

1. DVI interface

DVI interface, namely digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is High-Definition Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

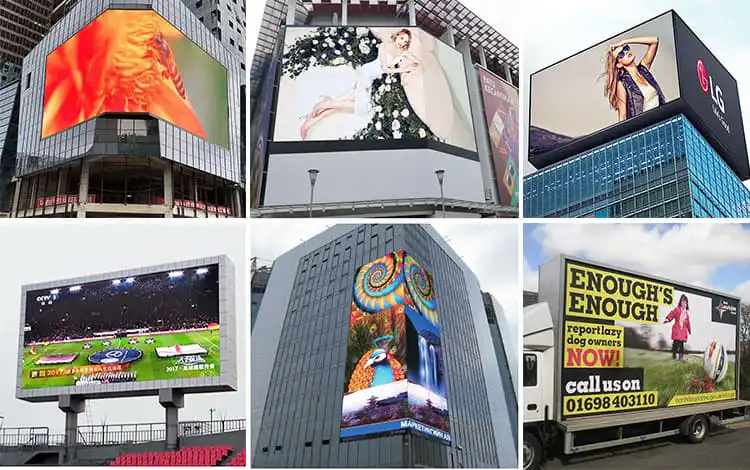

Application Fields

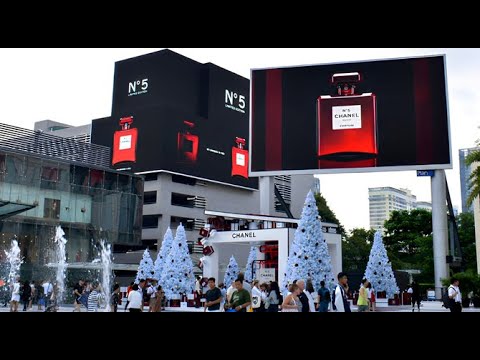

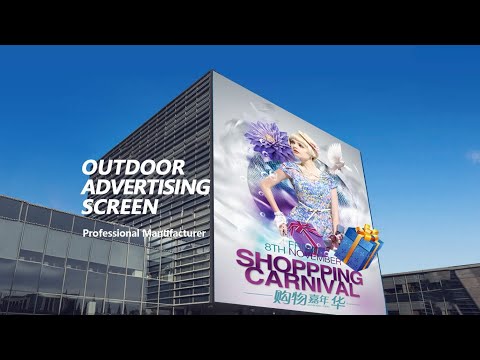

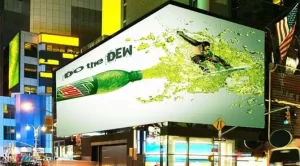

Full color LED displays are mainly for outdoor advertising. They have been sold to many countries,including Australia, Qatar, Saudi, Thailand, etc. Those countries have very strong sunlight or high humidity. This product is usually used in:Mall Advertisement; pedestrian streets; banks; shopping centers; which has high traffic areas; Road billboard etc.

LED DISPLAY Product Parameter Description

Pixel pitch (mm): 3
Cabinet pixel points: 256 x 256 pixels
Module size: :192 x 192 mm
Cabinet size: 768 x 768 mm
material: Aluminum or iron
weight ( kg ): 20 KG
Contrast: 3000:1
Refresh frequency (Hz): ≥3840HZ
Brightness (cd/㎡): >7000
Horizontal viewing angle (°): >140
Vertical viewing angle (°) :>140
AC input power (W/square meter): 550W
Protection grade: IP65
Certifications: CE/EMS/ROHS/FCC/ULC

Pixel pitch (mm): 3.91
Cabinet pixel points: 256*256
Module size: 250*250
Cabinet size: 1000*1000
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6800CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip67
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 4
Cabinet pixel points: 256*256
Module size: :256*256
Cabinet size: 1024*1024
material: Aluminum or iron
weight (kg): 35KG
Contrast: 3000:1
Refresh frequency (Hz): ≥3840HZ
Brightness (cd/㎡): >6000
Horizontal viewing angle (°): >140
Vertical viewing angle (°) :>140
AC input power (W/square meter): 450W
Protection grade: IP65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 4.81
Cabinet pixel points: 208*208
Module size: 250*250
Cabinet size: 1000*1000
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip67
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 5
Cabinet pixel points: 256*256
Module size: :256*128
Cabinet size: 1024*1024
material: Aluminum or iron
weight (kg): 35KG
Contrast: 3000:1
Refresh frequency (Hz): ≥3840HZ
Brightness (cd/㎡): >6500
Horizontal viewing angle (°): >140
Vertical viewing angle (°) :>140
AC input power (W/square meter): 100W
Protection grade: IP66
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm):6
Cabinet pixel points: 160*160
Module size: 320*160
Cabinet size:960*960
material:Aluminum or iron
weight ( kg ):35 KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 6
Cabinet pixel points: 150*150
Module size: 250*250
Cabinet size: 1000*1000
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level:Ip67
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 8
Cabinet pixel points: 120*120
Module size: 320*160
Cabinet size: 960*960
material:Aluminum or iron
weight ( kg ): 33KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 450W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 6
Cabinet pixel points: 120*120
Module size: 320*320
Cabinet size: 960*960
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip67
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 10
Cabinet pixel points: 96*96
Module size: 320*160
Cabinet size: 960*960
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 450W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 10
Cabinet pixel points: 96*96
Module size: 320*320
Cabinet size: 960*960
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 16
Cabinet pixel points: 64*64
Module size: 256*256
Cabinet size: 1024*1024
material:Aluminum or iron
weight ( kg ): 40KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥7500CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 650W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL
