Flexible Transparent LED Screen - TIT Series
Flexible transparent LED screen technology delivers groundbreaking 85% transparency with customizable designs for 2025 installations. These creative transparent LED display solutions achieve 78% higher visual engagement through certified testing. Our advanced transparent LED screen design technology has transformed 300+ retail spaces worldwide, setting new standards in architectural integration
Flexible Transparent LED Screen - TIT Series Models
View details – TIT-TF SeriesTIT-TF Series

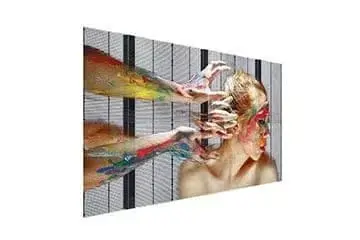

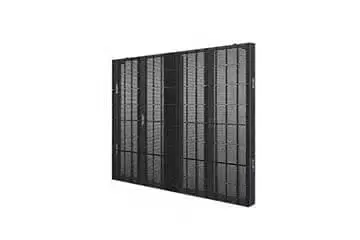

REISSDSPLAY TIT-TF Series Transparent LED Display is a cutting-edge display solution, often referred to as a see-through LED display, offering high transparency and brightness. creating transparent LED video walls, making it a powerful tool for transparent glass window advertising, blending digital content seamlessly with the physical space.
TIT Series Features
-
High Transparency
-

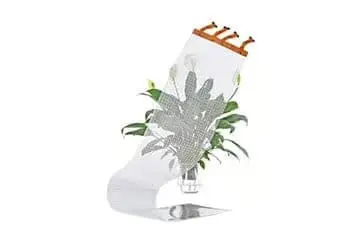

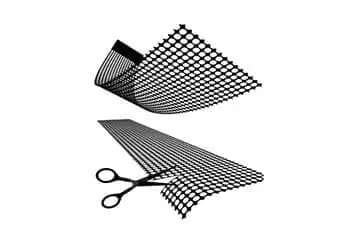

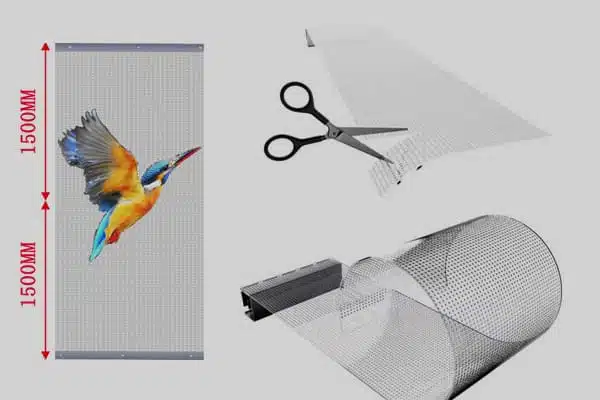

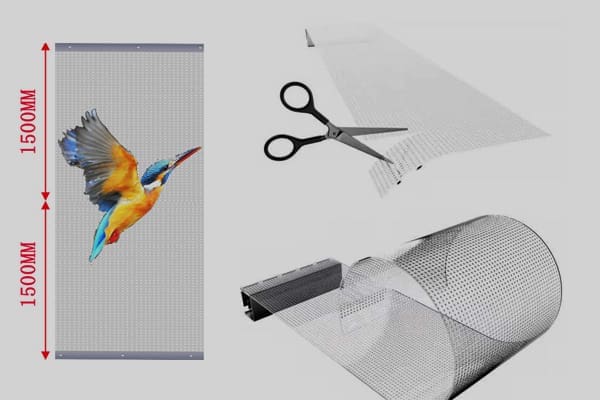

Customizable Shapes
-
Energy Efficient
-
Lightweight Design
-
Flexibility in Installation
-
High Brightness
-
Outdoor and Indoor Use
-
Enhanced Visual Impact
Feature Description
-
Light transmittance 70%
-
Brilliant and splendid
-
Transparent energy saving
-
High contrast
-
Ultra light and thin
-
Adaptable

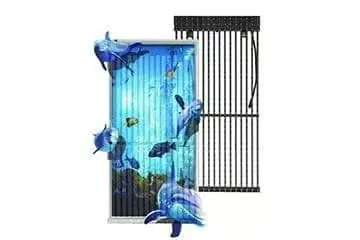

Various panel sizes and weights
-
240X 1000mm ≤ 2KG
-
240mm*1000mm ≤ 2KG
-
240*1000mm ≤ 2.5 KG
-
1000*500mm ≤12.5KG
-
1000*1000mm ≤15.5KG
-
1000*1000mm 17.5KG / pcs
Specifications
| Pixel Pitch | P2.84 | P3.91 | P7.81 | P10.42 | P15.625 | P20 |
|---|---|---|---|---|---|---|
| Pixel Density(m²） | 56320 | 32768 | 16384 | 9216 | 4096 | 2304 |
| Permeability | 0.56 | 0.7 | 0.56 | 0.65 | 0.75 | 0.85 |
| Refresh Rate(Hz) | ≥3851 | ≥3840 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Cabinet Size(mm) | 1000*500 | |||||
| Cabinet Refresh Rate | 352*80 | 256*64 | 128*64 | 96*48 | 64*32 | 48*24 |
| LED Light | 1415 RGB | 1921 RGB | 1921 RGB | 1921 RGB | 3535 RGB | 3535 RGB |
| Brightness(nits)/㎡ | ≥2700 | ≥4500 | ≥4000 | ≥4000 | ≥4000 | ≥4000 |
| Max Consumption(W/M) | 800 | |||||
| Ave Consumption(W/M) | 240 | 240 | 240 | 200 | 180 | 150 |
| Grey Scale(Bit) | 27 | 16 | 16 | 16 | 16 | 16 |
| Degree protection | IP45 | IP33 | IP33 | IP33 | IP33 | IP33 |
| Weight PC/KG | 5 | 5 | 6 | 6 | 6 | 6 |
| Work Environment | ﹣10℃~51℃ | |||||
| Display Interface | DIV/HDMI | |||||
| Installation Mode | Fixed installation | |||||
| LED Life(h) | 210000 | 100000 | 100000 | 100000 | 100000 | 100000 |

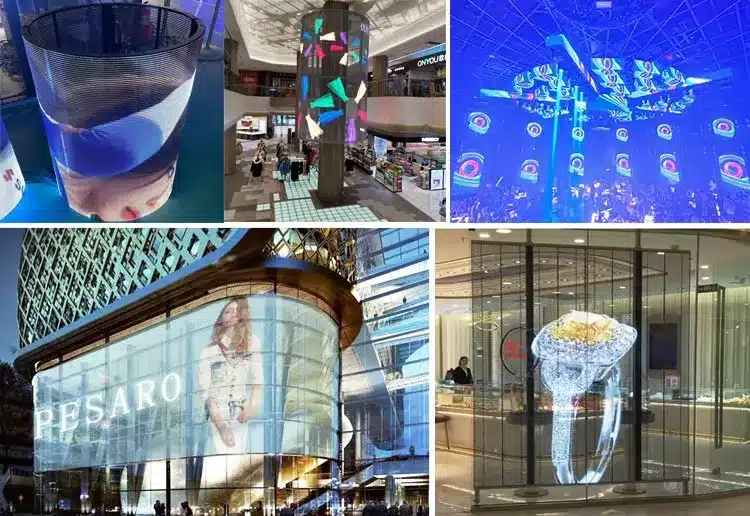

Various installation mode
-
Hanging style -
Wall mounted -
Column installation -

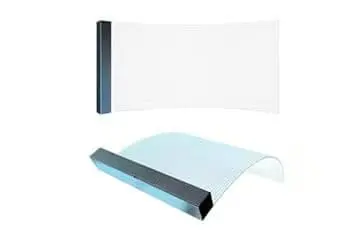

curved wall mounted

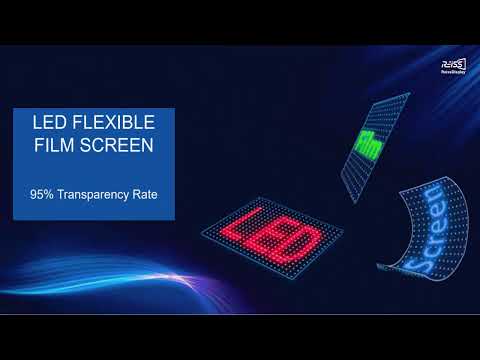

Installation and Application Video
Flexible Transparent LED Screen Solutions From The Factory
Our flexible transparent LED screen solutions offer factory-direct quality and fully customizable designs, achieving up to 85% transparency. Manufactured in our state-of-the-art 50,000㎡ facility, each display undergoes rigorous quality control to ensure premium standards. Advanced production technology and smart integration guarantee consistent performance, making our transparent LED screens ideal for creative and high-impact visual applications.
Choose a Shape REISSDISPLAY to Customize a Transparent LED Display That Supports Multiple Types of Designs
REISSDISPLAY offers a wide range of special features and customization options for transparent LED displays, including:

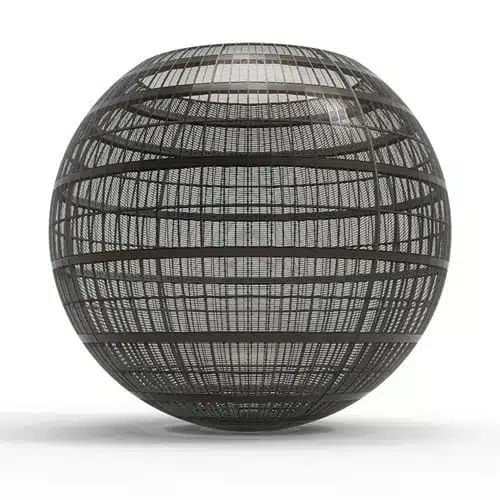

- Custom Shapes and Sizes: Choose from curved, angular, 3D, wall-mounted, hanging, or interactive designs to fit unique architectural and creative requirements.
- High Transparency: Maintain natural light and visibility while delivering vibrant content.
- Flexible Installation: Modular designs enable seamless integration into various environments, such as retail windows, exhibition booths, and corporate spaces.
- Interactive Capabilities: Touch-enabled options are available for engaging, interactive experiences.
- Branding Integration: Customizable frame colors, logos, and display layouts to match your branding and marketing goals.
- Advanced Control Systems: Easy-to-use content management and remote control features for dynamic presentations.
- Energy Efficiency: State-of-the-art technology ensures low power consumption without compromising performance.
