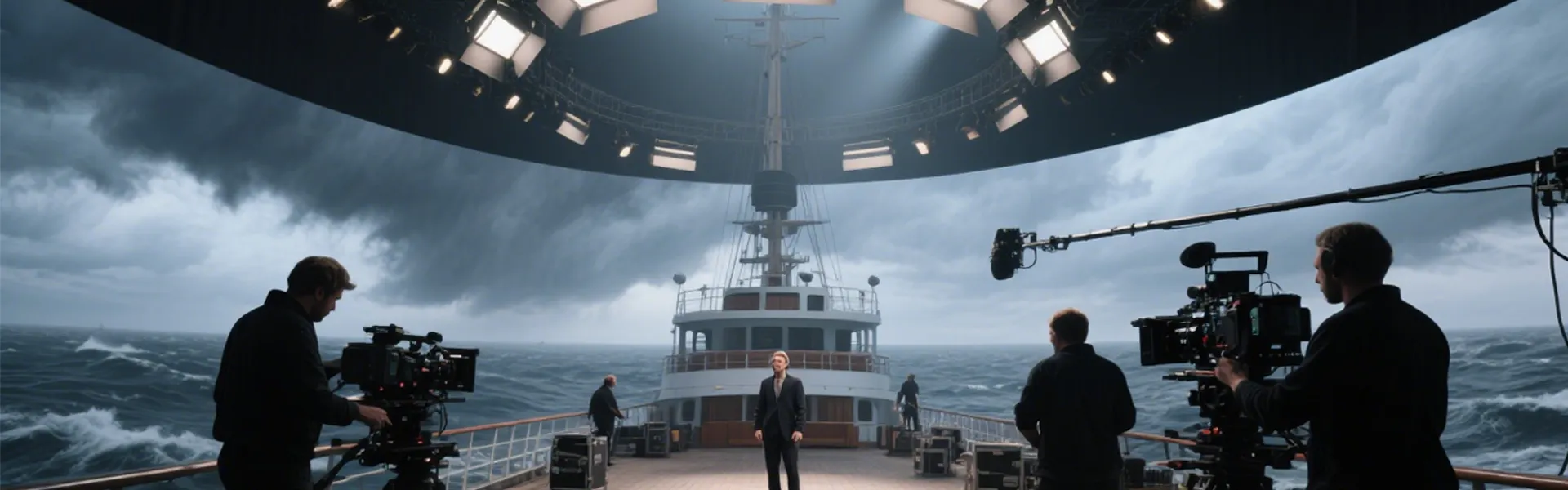

XR Virtual LED Stage Wall An Immersive Experience
XR virtual LED stage wall are a powerful tool for enhancing live performances and events. With their high resolution, brightness, and versatility, these screens create unforgettable experiences that captivate audiences.

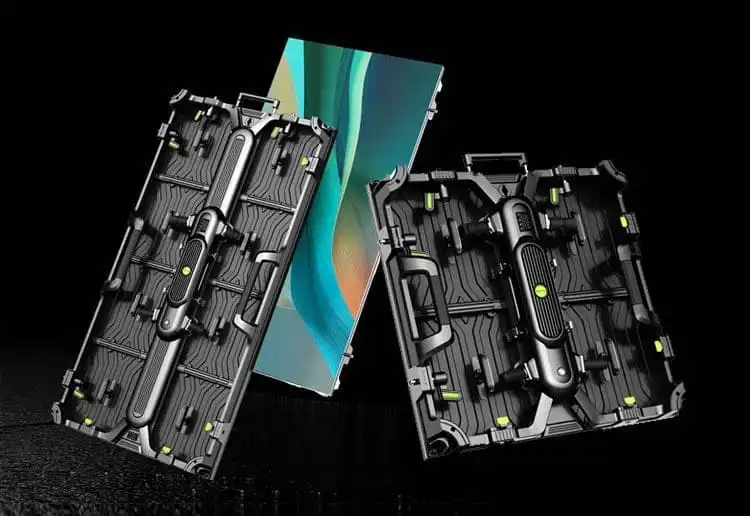

XR Virtual LED Stage - RXR Series Models

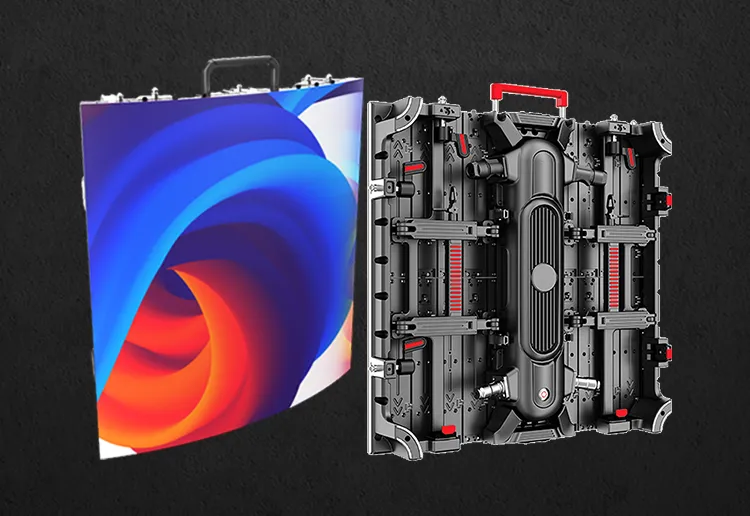

View details – RXR-RF SeriesRXR-RF Series
The RXR-RF flexible rental LED display is a curved-capable LED screen with 500×500mm die-cast aluminum cabinets that adjust into C, D and S shapes via a 45° quick-lock system. Unlike fixed LED walls, it builds a seamless 1.27m curved cylinder from just 8 panels, with <0.2mm splicing gaps. It delivers a 3840Hz–7680Hz refresh rate, GOB…
View details – RXR-RC SeriesRXR-RC Series
Discover the RXR Series LED Wall for XR Stage, perfect for immersive visuals in studios, events, and live productions.
RXR Series Features
-
Immersive Experience
-
High Resolution
-
Real-Time Scene Switching
-
Space and Time Efficiency
-
Content Flexibility
-
Strong Interactivity
-
Cost Reduction
-
Flexible Adaptation to Various Scenarios
Feature Description
-
Color Magic
HSV-based color tuning lets you fine-tune any color's hue, saturation, and brightness independently — without affecting the rest of the image.
-
Color Curve
Independently customize the response curves for red, green, blue, and white — fine-tune highlights to prevent overexposure and recover shadow detail at low grayscale, compensating for ambient light and camera variance.
-
3D LUT
3D LUT color management — the same technology used in film and professional production — delivers precise full-spectrum color accuracy across the entire 3D color space.
-
High Frame Rate
Up to 240Hz — ultra-smooth, crystal-clear visuals.
-
SHUTTERLOCK
SHUTTERLOCK syncs the LED refresh rate to your camera's shutter speed — eliminating flicker for a perfect capture every time.
-
HDR
Wide color gamut, high dynamic range, high contrast — vivid, lifelike images with every detail intact.
Various panel sizes and weights
-

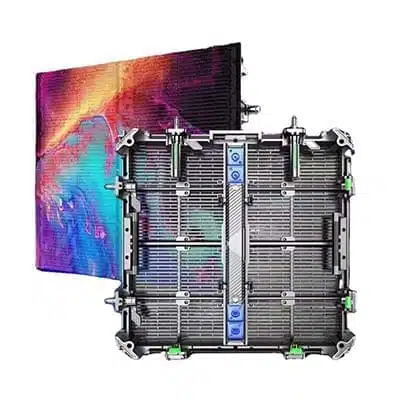

500*500mm 7.5KG
-

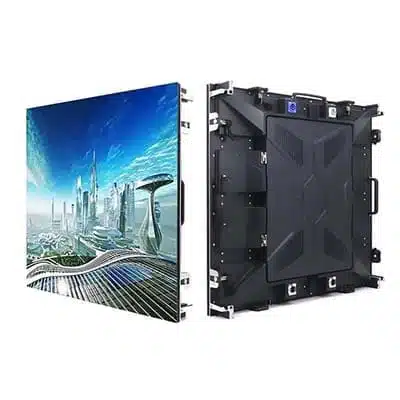

640*640mm 10.5KG
-
500*500mm 7KG
-

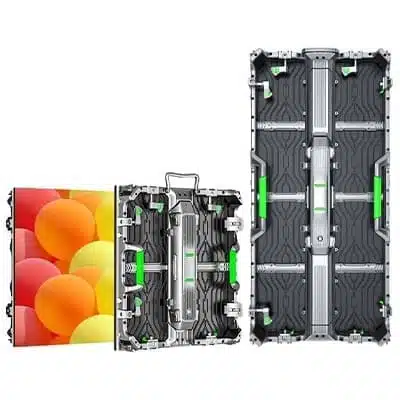

500*1000mm 12.5KG
-

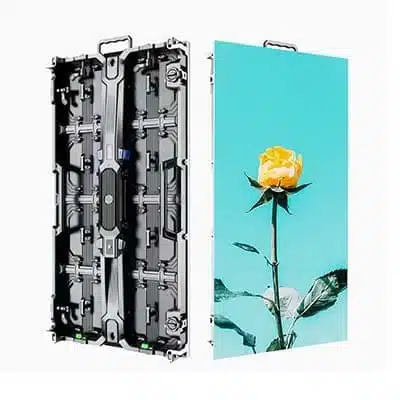

500*1000mm 13.5KG
-

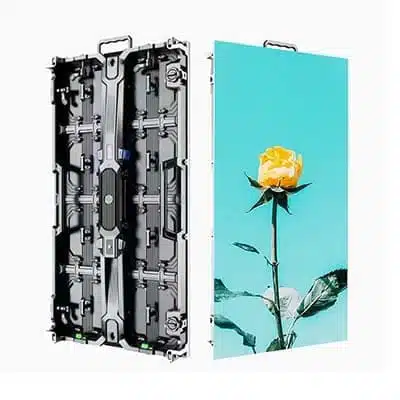

500*1000mm 12KG / pcs
Specifications
| Pixel Pitch (mm) | 0.937 | 1.25 | 1.5625 | 1.95 | 2.604 | 2.976 |
|---|---|---|---|---|---|---|
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size (mm) | 300*168.75 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 600*337.5*65 | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 |
| Cabinet Resolution (W×H) | 640*360 | 400*400 | 320*320 | 256*256 | 192*192 | 168*168 |
| IP Grade | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP65 Rear IP54 |
| Weight (kg/cabinet) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| White Balance Brightness (nit) | 600-1000 | 800-1200 | 600-1200 | 600-1200 | 800-1200 | 800-1200 |
| Horizontal / Vertical Viewing Angle | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Power Consumption(W/㎡) | 400±15%/120±15% | 450±15%/150±15% | 400±15%/120±15% | 450±15%/150±15% | 450±15%/150±15% | 450±15%/150±15% |
| Refresh Rate(Hz) | ≥7680 | ≥7680 | ≥7680 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova | Nova | Nova |
| Certification | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL |

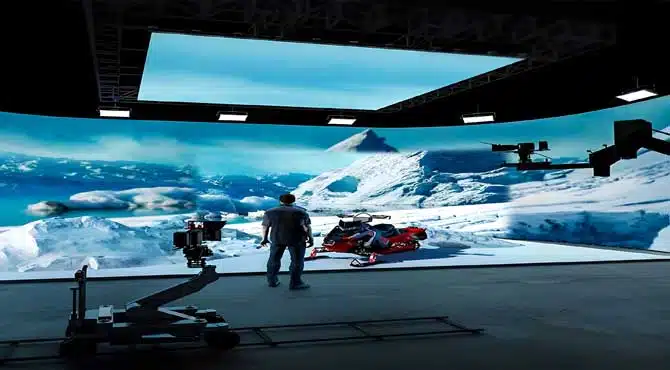

Applications of XR Virtual LED Stages
-

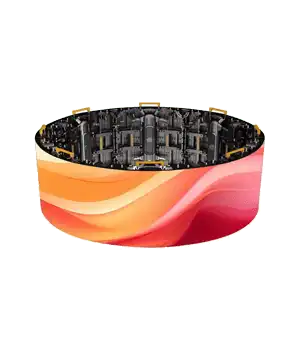

Outer curve -

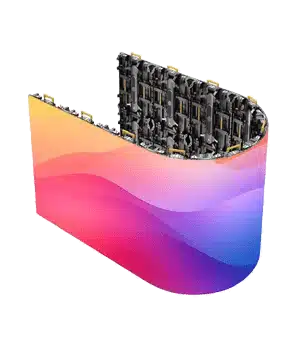

Multifunctional Arc -

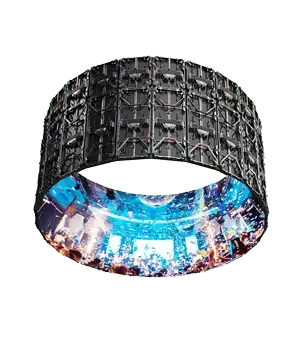

Internal curved -

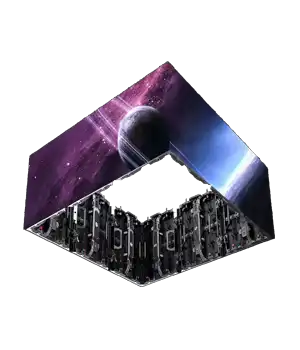

Square
Installation and Application Video of XR Virtual LED Screen

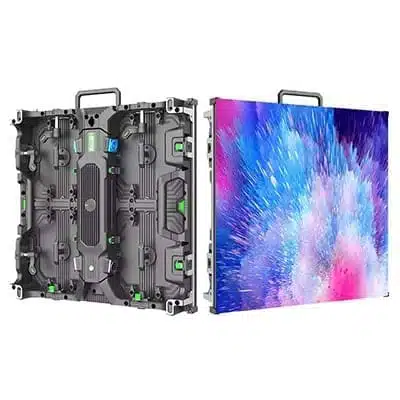

XR Rental LED Displays
XR rental LED displays refer to high – quality LED screens specifically designed for extended reality ( XR ) applications, including virtual reality ( VR ), augmented reality ( AR ), and mixed reality ( MR ). These displays are often used in rental scenarios for events, exhibitions, and productions, providing immersive experiences that captivate audiences.
How to Choose High Quality XR Virtual LED Stage Screen
Choosing a high – quality XR virtual LED stage screen involves careful consideration of various factors, including resolution, brightness, color quality, and vendor support. By taking the time to evaluate these aspects, you can ensure that your chosen display will deliver an immersive and memorable experience for your audience.
LED display user guide

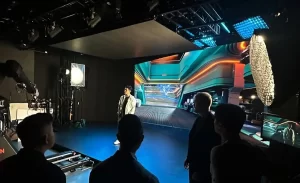

The XR Series LED display screens offer superior clarity and vibrant visuals in conference rooms, enhancing presentations, video conferencing, and collaboration with seamless, high-quality display.
