MIP LED Display Module
MIP LED display stands for “Micro LED in Package”, a next-generation packaging technology designed to enhance the performance and reliability of LED screens. Based on advanced Nationstar Mini LED or Micro LED panels (such as P0.78125, P0.9375, P1.25, and P1.5625), MIP technology delivers superior visual quality and durability. The standard LED cabinet for MIP displays measures 600mm x 337.5mm, following a 16:9 aspect ratio. This format ensures seamless integration for high-resolution video walls and is ideal for applications requiring precise image reproduction and modern design.
MIP Series Models
View details – MIP SeriesMIP Series
MIP LED display. This is a bright and energy-efficient option. It has wide viewing angles and a high refresh rate. It has the best contrast so far.
MIP Series Features
-

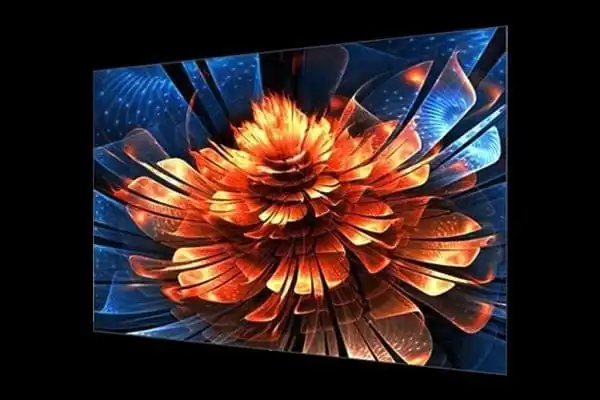

High Contrast Ratio
-
High Brightness
-

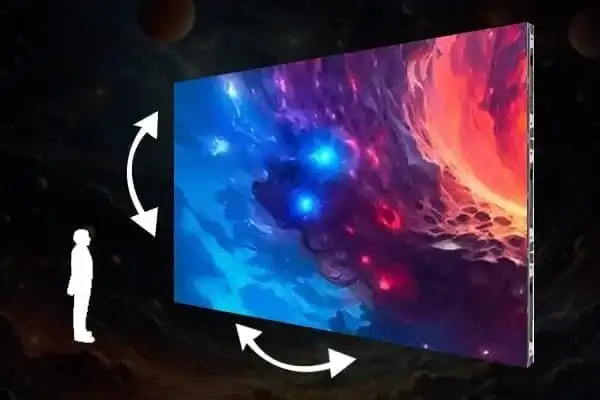

Wide Viewing Angle & Color Uniformity
-
Low Power Consumption
-
High Reliability & Durability
-
Micro Pitch Display
-

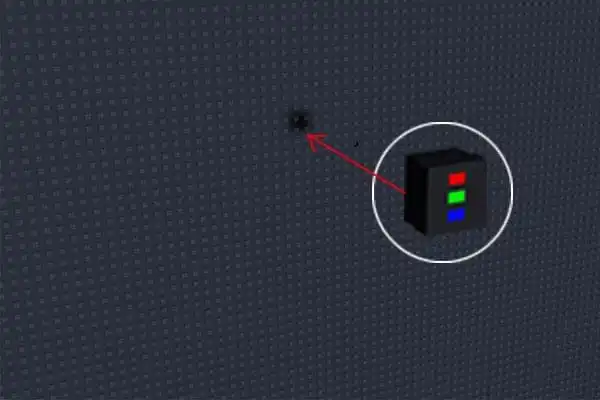

Easy Repair & High Yield
-
Compatibility with Multiple Substrates
-
Technological innovation
-

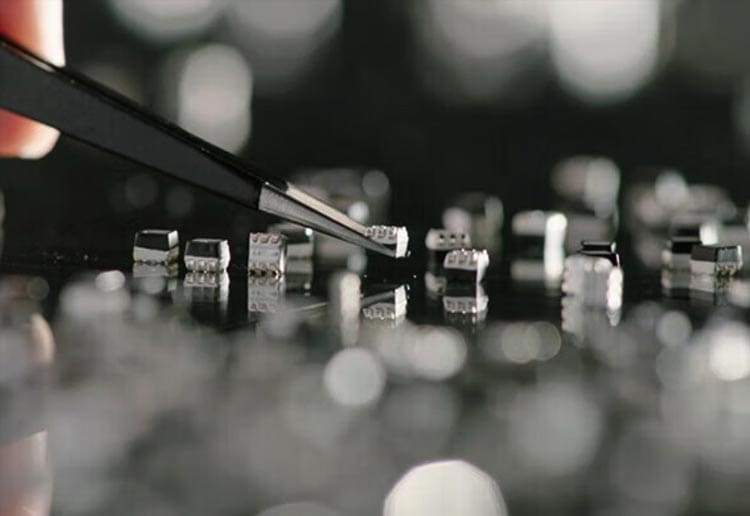

High-quality lamp beads
-
Auto brightness adjustment
-
Energy saving
-

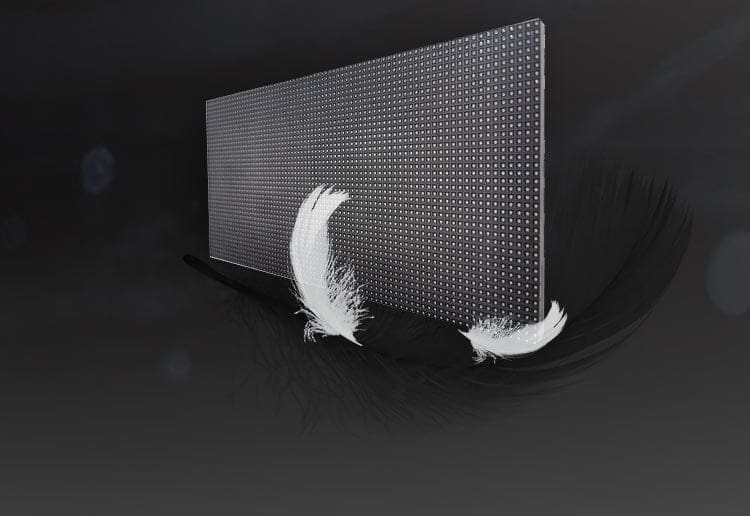

Ultra-light and thin
-

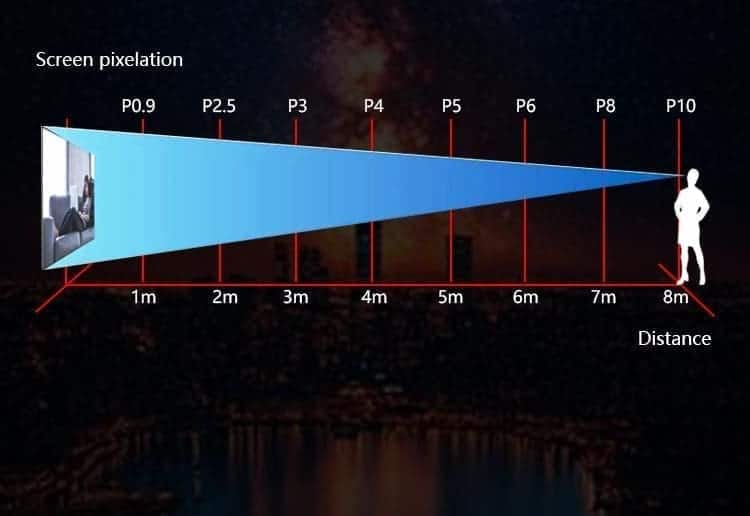

Multiple choices
Various panel sizes and weights
-
Lower power consumption and higher contrast
-
MIP technology and low rework costs
-
Optional higher brightness and wide viewing angle
Specifications
| Pixel Pitch | 0.625 mm | 0.9375 mm | 1.25 mm | 1.5625 mm |
|---|---|---|---|---|
| LED Type | MIP | MIP | MIP | MIP |
| Pixel Density | 2,560,000 dots/m2 | 1,137,777 dots/m2 | 640,000 dots/m2 | 409,600 dots/m2 |
| Cabinet Size (W x H x D) | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. |
| Cabinet Resolution | 960 (W) x 270 (H) | 640 (W) x 360 (H) | 480 (W) x 270 (H) | 384 (W) x 216 (H) |
| Cabinet Weight | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. |
| Calibrated Brightness (nits) | 600 nits | 1000 nits | 1000 nits | 1000 nits |
| Viewing Angle | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Contrast Ratio | 10,000:1 | 12,000:1 | 12,000:1 | 12,000:1 |
| Input Voltage | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz |
| Maximum Power | 70 W/Cabinet; 346 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 |
| Average Power | 25 W/Cabinet; 123 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 |
LED Display Module Components
-

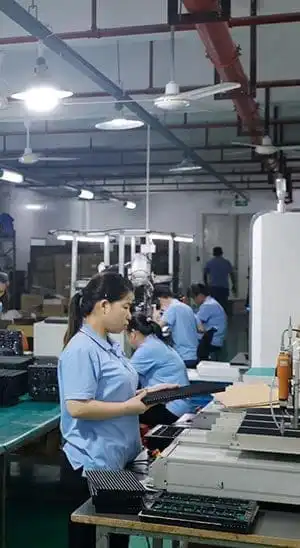

LED Module Workshop -

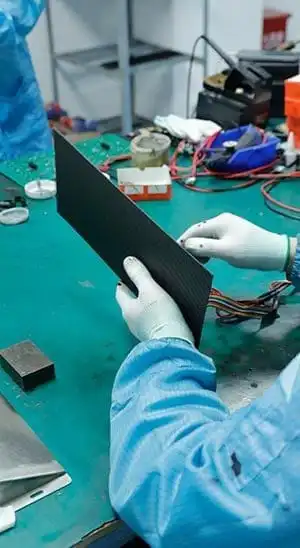

LED Module Sample Debug -
LED Module Test -
LED Module Packaging
Installation and Application Video
What is a MiP LED Display?

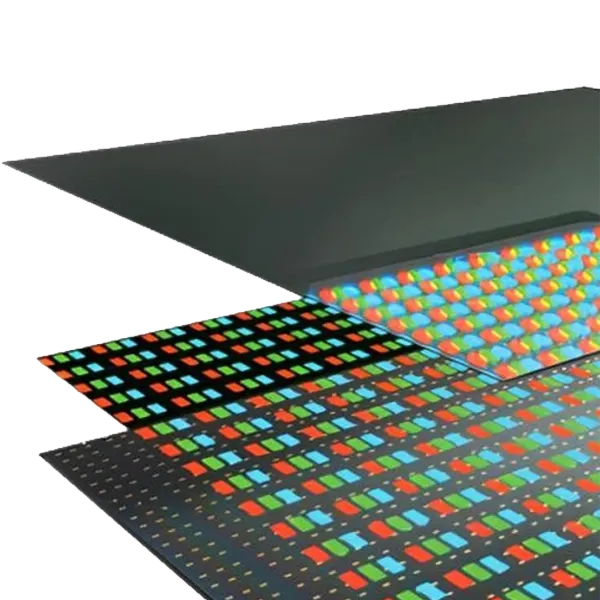

MiP stands for Micro LED in Package, a cutting-edge LED packaging technology based on Micro LED. With MiP technology, Mini or Micro LED panels are divided into small segments, and each piece is individually packaged. This approach increases manufacturing yields and significantly reduces production costs for LED displays.
Key Benefits of MiP Technology:
- Improved Yield: Individual packaging of small LED segments minimizes defects and boosts overall production efficiency.
- Cost Reduction: The segmented process lowers manufacturing costs, making high-resolution LED displays more accessible.
- Enhanced Performance: MiP enables the production of ultra-fine pitch LED displays with superior brightness, contrast, and reliability.
Advantages of MIP LED Display Modules?
MIP (Micro LED in Package) LED display modules offer several significant benefits that set them apart from traditional display technologies:
1. Power Efficiency
- MIP modules utilize energy-saving technology, resulting in lower power consumption.
- Bistable, matrix-addressed design helps maintain images with minimal energy use, making them ideal for long-term operation and sustainable installations.
2. High Visibility
- Delivers excellent brightness and contrast, ensuring clear visibility even in well-lit environments.
- Supports high pixel density for ultra-fine image quality and superior color accuracy.
3. Simplified Design
- The modular nature of MIP allows for simplified assembly and maintenance.
- Compact and lightweight modules facilitate easy installation and flexible configurations.
4. Versatility
- Suitable for a wide range of applications, from control rooms and broadcast studios to retail displays and conference venues.
- Supports various pixel pitches for different viewing distances and environments.
5. Enhanced Reliability
- The individual packaging of micro LEDs increases yield rates and reduces the risk of defects.
- Robust design ensures long-lasting performance and lower failure rates.
