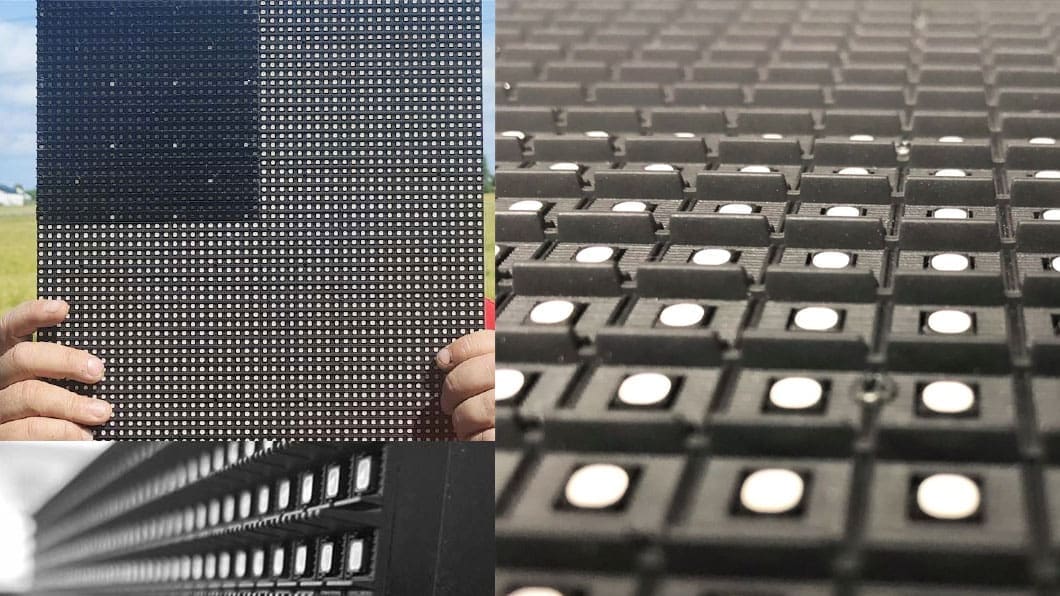

LED Display Module
Classification of LED display module
From the luminous color
LED display modules are divided by color.
One: Monochrome modules, such as single red, single green, single blue, single yellow, and single white modules.
Two: Two-color modules such as red and green, red and blue. Three: The full-color module mainly uses the three primary colors of red, green and blue to be placed on an LED module.
LED Display Module Supplier & Manufacturer
REISSDISPLAY LED DISPLAYS is a leading company dedicated to the design, development, and production of high-quality LED display solutions.
All of our dynamically SMD LED Display Module have passed CE and RoHS certifications, ensuring high performance and long lifespan. We provide customized solutions, OEM, and ODM services. Wholesalers, distributors, traders, and agents are welcome to bulk purchase with us.
Catalog Of LED display Moudule

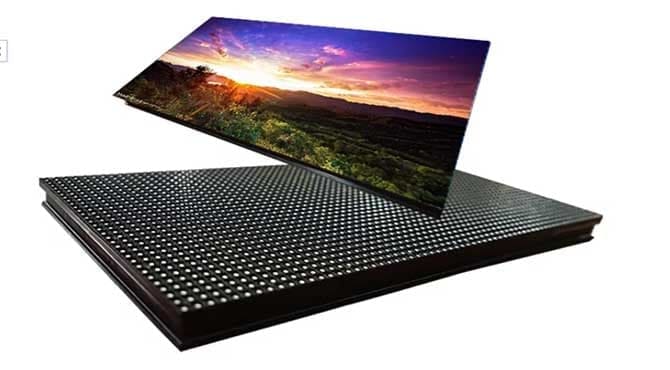

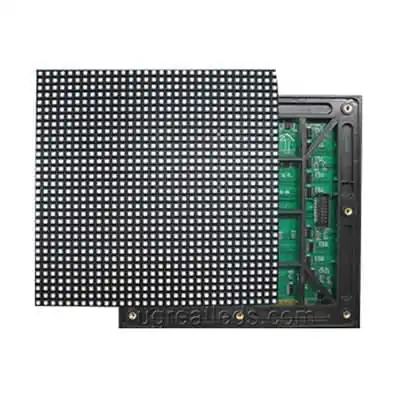

What is SMD LED display module？
The SMD LED display module is an electronic device that employs surface-mount technology (SMT) to mount light-emitting diodes (LEDs) onto printed circuit boards (PCBs). This compact and densely packed device is a highly efficient and effective solution for a variety of display and lighting applications. It emits high brightness and offers a wide range of color options. The SMD LED display module is ideal for use in indoor and outdoor environments due to its durable and robust design, which make it suitable for harsh and demanding applications. This module is frequently used in large-scale displays, advertising billboards, traffic signs, and commercial and Rental Stage applications.
What are the main components of an LED display module?
LED display modules come in various sizes to build LED cabinets and are essential for LED displays. Sizes include 320*160mm, 250*250mm, 192*192mm, and 320*320mm. Pixel pitch is the distance between adjacent LED display wicks in millimeters and affects resolution and pixel density. Smaller distances mean higher pixel density and resolution, but pixel pitch is different for indoor and outdoor displays. LED screens consist of PCB boards, LED lamp beads, IC drivers, module frames, cables, rubber bands, and masks. Choose reliable and high-quality brands and models of LED lamp beads, IC drivers, and IC driver manufacturers for optimal performance and longevity.
LED Display Module Come in a Variety of Pixel Pitch
Indoor LED displays come in various pixel pitches for different viewing distances and application requirements. Choices include Fine Pixel Pitch (below 2mm), Standard Pixel Pitch (2mm to 4mm), Medium Pixel Pitch (4mm to 10mm), and Coarse Pixel Pitch (above 10mm). Fine Pitch displays are for close-up viewing, Standard for retail and conference rooms, Medium for moderate image clarity at moderate viewing distances, and Coarse for affordable displays viewed from a distance. Choosing the right pixel pitch is essential and should consider factors such as budget and content. Experienced LED providers can advise on the best option for your project.
Pixel Pitch: 0.9 mm
Module Size: 150 x 168.75 mm
Resolution: 166 x 187 pixels
LED: COB
Brightness: ≦ 800cd
Max Current: ≤4 A
Pixel Density: 1234567 dots/㎡
Refresh Rate: ≥3840 Hz
Pixel Pitch: 1.25 mm
Module Size: 300 x168.75 mm
Resolution: 240 x135 pixels
LED: SMD1010
Brightness: ≥450 nits
Max Current: ≤5 A
Pixel Density: 640000 pixels / m2
Refresh Rate: ≥3840 Hz
Pixel Pitch: 1.53 mm
Module Size: 320*160 mm
Resolution: 208*104 dots
LED: SMD1515
Brightness: ≥550 nits
Max Current: ≤5 A
Pixel Density: 427716 dots/㎡
Refresh Rate: ≥3840 Hz
Port: HUB75E
Pixel Pitch: 2 mm
Module Size: 320*160 mm
Resolution: 160*80 dots
LED: SMD1515
Brightness: ≥600 nits
Max Current: ≤5 A
Pixel Density: 250000 dots/㎡
Refresh Rate: ≥3840 Hz
Port: HUB75E
Pixel Pitch: 2.5 mm
Module Size: 320*160 mm
Resolution: 128*64 dots
LED: SMD1515
Brightness: ≥800 nits
Max Current: ≤5.2 A
Pixel Density: 160000 dots/㎡
Refresh Rate: ≥1920 Hz
Port: HUB75E
Pixel Pitch: 3.0 mm
Module Size: 320*160 mm
Resolution: 104*52 dots
LED: SMD2020
Brightness: ≥800 nits
Max Current: ≤4.7 A
Pixel Density: 105625 dots/㎡
Refresh Rate: ≥3840 Hz
Port: HUB75E
Pixel Pitch: 4 mm
Module Size: 320*160 mm
Resolution: 80*40 dots
LED: SMD2020
Brightness: ≥800 nits
Max Current: ≤4.7 A
Pixel Density: 62500 dots/㎡
Refresh Rate: ≥1920 Hz
Port: HUB75E
Super high resolution: 40,000 pixel/sq.m.
High color uniformity.
High reliability. MTBF 10,000 hours. Up to 100,000 hours lifetime.
High contrast ratio.Up to 5000:1
Shorter lead time. Usually less than 15 working days.
High brightness. 1,500 nits.
Black LEDs.
Super high resolution: 27,777 pixel/sq.m.
High color uniformity.
High reliability. MTBF 10,000 hours. Up to 100,000 hours lifetime.
High contrast ratio.Up to 5000:1
Shorter lead time. Usually less than 15 working days.
High brightness. 1500 nits.
Black LEDs.
Ordinary Module
Three anti-paint
Moisture-proof, Anti-oxidation, Dustproof
Fence
Convenient installation can also prevent row needles from getting wrecked during the transportation process.
Terminal
“More stable and convenient, fast and rational design, durable and more user-friendly.”
What are the main components of LED display module ?
LED module circuit design: Utilizing higher-end ICs and components, our leading circuit design produces more vivid colors, improved refresh rate, and reduced grayscale effect.
The low power consumption and long lifespan also enhance product stability. The Lamp chip happens to be a core part of the LED display, and its requirements should meet international standards while meeting the quality requirements of brand suppliers.
Our factory uses high-end chips to satisfy this requirement. Cabinet design: High-precision die-cast aluminum cabinets are used, simplifying installation and enhancing the flatness of an LED display wall – resulting in a perfect visual effect. System and power supply: Our product uses dual power supply and dual system backup to ensure that there is no failure during long-term use.
5
Years
Warranties
Aluminum kit LED module and ordinary LED display module
Physical characteristics of aluminum kit LED modules and regular LED display modules to determine optimal application. The experiment analyzed durability, thermal conductivity and electrical performance.
What Types of Outdoor LED Display Module are Classified by Pixel?
Fine Pixel Pitch (Small Pixel Pitch): P1.9, P2.0, P2.5, P2.6, and P2.8.
Standard pixel pitch includes P3.0, P4.0, and P5.0.
Coarse Pixel Pitch models are P6.0, P7.0, P8.0, P8.9, P10, and P16.
These models feature larger pixel pitch, typically ranging from 6.0mm to 16mm. They are more cost-effective and commonly used for large-scale outdoor displays such as LED billboards, building facades, and outdoor screens with longer viewing distances.
Pixel Pitch: 2 mm
Module Size: 320*160 mm
Resolution: 160*80 dots
LED: SMD1515
Brightness: ≥450 nits
Max Current: ≤5 A
Pixel Density: 250000 dots/㎡
Refresh Rate: ≥3840 Hz
Port: HUB75E
Pixel Pitch: 2.5 mm
Module Size: 320*160 mm
Resolution: 128*64 dots
LED: SMD1515
Brightness: ≥450 nits
Max Current: ≤5.2 A
Pixel Density: 160000 dots/㎡
Refresh Rate: ≥1920 Hz
Port: HUB75E
Pixel Pitch: 3.0 mm
Module Size: 320*160 mm
Resolution: 104*52 dots
LED: SMD2020
Brightness: ≥600 nits
Max Current: ≤4.7 A
Pixel Density: 105625 dots/㎡
Refresh Rate: ≥3840 Hz
Port: HUB75E
Pixel Pitch: 4 mm
Module Size: 320*160 mm
Resolution: 80*40 dots
LED: SMD2020
Brightness: ≥450 nits
Max Current: ≤4.7 A
Pixel Density: 62500 dots/㎡
Refresh Rate: ≥1920 Hz
Port: HUB75E
Pixel Pitch: 4 mm
Module Size: 320*160 mm
Resolution: 80*40 dots
LED: SMD2020
Brightness: ≥450 nits
Max Current: ≤4.7 A
Pixel Density: 62500 dots/㎡
Refresh Rate: ≥1920 Hz
Port: HUB75E
Super high resolution: 40,000 pixel/sq.m.
High color uniformity.
High reliability. MTBF 10,000 hours. Up to 100,000 hours lifetime.
High contrast ratio.Up to 5000:1
Shorter lead time. Usually less than 15 working days.
High brightness. 1,500 nits.
Black LEDs.
Super high resolution: 27,777 pixel/sq.m.
High color uniformity.
High reliability. MTBF 10,000 hours. Up to 100,000 hours lifetime.
High contrast ratio.Up to 5000:1
Shorter lead time. Usually less than 15 working days.
High brightness. 1500 nits.
Black LEDs.
Super high resolution: 27,777 pixel/sq.m.
High color uniformity.
High reliability. MTBF 10,000 hours. Up to 100,000 hours lifetime.
High contrast ratio.Up to 5000:1
Shorter lead time. Usually less than 15 working days.
High brightness. 1500 nits.
Black LEDs.
Why Choose LED Screen Module ?
When choosing an LED display module, consider factors such as the resolution (determined by pixel pitch), brightness, energy efficiency, and the total cost of ownership (including purchase, installation, and maintenance costs).
LED display modules are highly versatile. They can be assembled in various configurations to create screens of different sizes and shapes, accommodating a wide range of display needs.
LED displays are designed to be robust and durable. Outdoor LED modules are often weather-resistant, making them suitable for various environmental conditions.
LED display modules are highly versatile. They can be assembled in various configurations to create screens of different sizes and shapes, accommodating a wide range of display needs.
LED displays offer high brightness levels, making them visible even in direct sunlight. They also have excellent contrast ratios, providing clear, vibrant images and videos.
Compared to other types of displays, LED displays are more energy-efficient, which can save on power costs over time.
LED display modules, when connected to a suitable control system, can display real-time content updates. This is beneficial for applications like digital signage, scoreboards, and stock exchange displays.
LED displays are durable, low maintenance, and cost-effective for long-term use with a long lifespan.
LED displays show dynamic content, making communication more engaging and effective than traditional billboards.
LED displays can be easily updated with software from anywhere, which is great for frequently changing advertising or informational content.
How to Produce LED display modules?
To make LED display modules, master the core components: PCB board, LED chips, and control circuits. Design and engineer a durable PCB board, select high-quality LED chips, and integrate with control circuits. Analyze performance to meet technical specs before incorporating into a larger display system for high-quality output.
Why Do You Need LED Display Module?
The use of LED Modules has become increasingly popular in a variety of settings such as shopping malls, classrooms, hospitals, conference rooms, and exhibitions. The following are reasons why people are choosing LED screens over other types of display technology, for example, LCD displays:
(1) The use of LED technology is globally recognized as a reliable technology. It has been used extensively in panels, TV screens, mobile phones, and many other fields since it was invented in the 20th century.
(2) LED screens offer high-quality visual performance, displaying images, videos, and any other information in high definition. They have a wide color range and viewing angles, making them ideal for almost any type of display content.
(3) LED modules are incredibly durable and have a longer lifespan compared to competitors. For instance, they can last between 50,000 to 100,000 hours compared to fluorescent tubes (3,000 hours) or neon tubes (30,000 hours).
(4) LED displays can be remotely controlled and programmed, allowing for easy management and information updates. This feature is a cost-effective, practical solution compared to traditional signage.
(5) Finally, LED screens are energy efficient, reducing power consumption and are environmentally friendly as they emit only light and some heat, without infrared or ultraviolet radiation.
Product Testing
All of our indoor outdoor LED displays undergo a series of rigorous testing in our laboratory equipment before they are mass-produced. This meticulous process guarantees high performance, stability, and longevity of the final product. Our commitment to quality assurance is paramount, and we go above and beyond to ensure that our LED displays meet the highest standards for our clients. Thank you for considering our products, and we look forward to exceeding your expectations with our LED displays.
SMD Machine
Assembling Line
Glue Machine
Cabinet Production Workshop
Finished Product

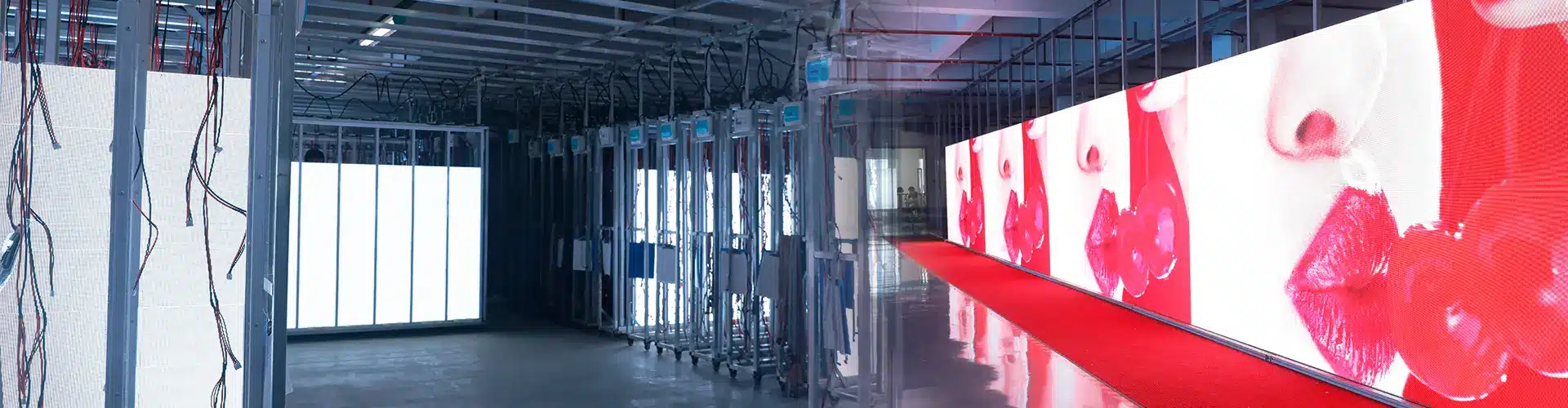

LED Module Aging Test
Why Choose REISSDISPLAY LED Display Module?
Our REISSDISPLAY LED display module has top-notch technology, is extremely durable, flexible, and priced competitively. Contact us for more information on how it can improve your display needs.
Shared Hosting
Our organization sources data from previous contractual agreements and recent inspection reports, which have been analyzed by an impartial third party. This data pertains primarily to the customization of logos, packaging, and graphics.
Customer Service
We offer a complete customer experience: expert guidance, installation, ongoing support & maintenance; comprehensive warranty programs & flexible leasing options for small businesses.
Quality Standards
We deliver top-quality products by using high-grade materials and maintaining strict quality standards. Our experts oversee the entire process, from LED plotting to installation, with great attention to detail to set new standards for electronic signs.
Eco-Friendly Solutions
REISSDISPLAY is an eco-friendly business with accredited certifications like ISO9000-9001. Our products are energy-efficient and meet environmental safety standards.
Strategic Alliances
We partner with reputable suppliers who share our passion for quality and innovation. Our extensive network provides affordable, high-quality components. This allows us to deliver cost-effective digital signage solutions to our customers.
We Bring The Solutions
REISSDISPLAY provides personalized solutions to serve demanding and evolving industries. We provide a variety of indoor LED displays to provide you with solutions.
