• IP68
  • High stability
  • Fast interaction
  • High load-bearing capacity
  • Various installation
  • Simple and Easy Maintenance
  • 5 Years Warranty and 5% Spare Part

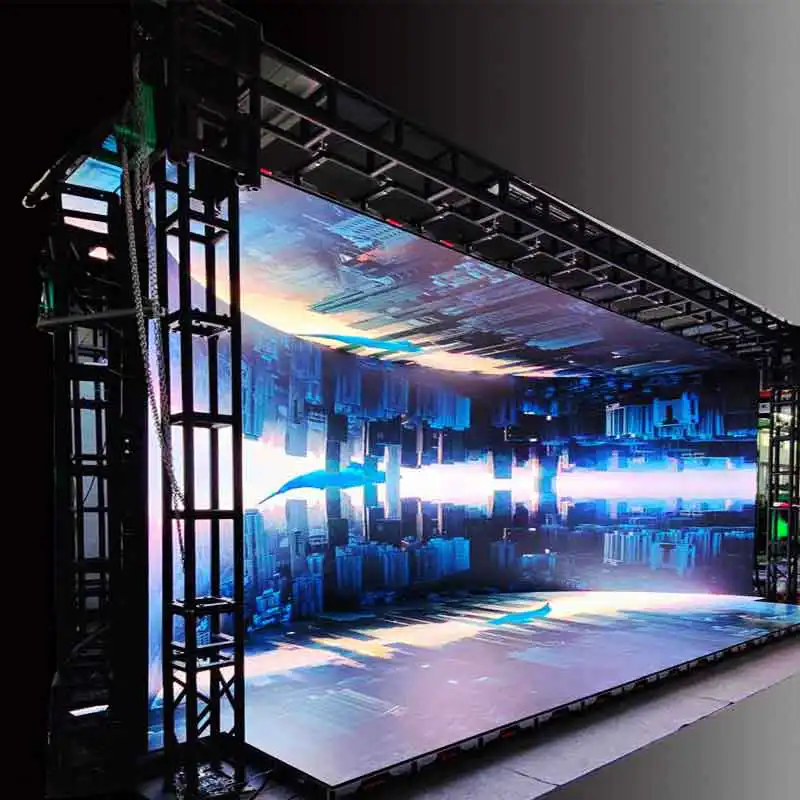

LDF LED Dance Floor Screens

Dance Floor LED Screen Supplier & Manufacturer

REISSDISPLAY LED DISPLAYS is a leading company dedicated to the design, development, and production of high-quality LED display solutions.

All of our dynamically Dance Floor LED Screen have passed CE and RoHS certifications, ensuring high performance and long lifespan. We provide customized solutions, OEM, and ODM services. Wholesalers, distributors, traders, and agents are welcome to bulk purchase with us.

LDF 12 LED Dance Floor Screens

What Are Dance Floor LED Display?

LED dance floors are custom flooring systems incorporating LED panels or tiles, adding a dynamic and engaging display to events or venues. They function like traditional dance floors but with added features like dazzling visual effects, animations, and graphics. LED panels or tiles are modular, durable, and capable of displaying vibrant colors and transitions. The flooring can be designed to match event themes or brands, and safety is ensured with non-slip surfaces. Installation and maintenance are easy due to the modular design and efficient power consumption. They can be found mainly in nightlife settings like nightclubs, discos, and weddings, among others. LED dance floors create visually stunning and captivating experiences and are a great way to enhance the atmosphere and energy of any event or venue.

LDF 15 LED Dance Floor Screens
LDF 16 LED Dance Floor Screens

LED Floor Tile Screen

REISSDISPLAY Dance Floor LED Screens use the best technology for amazing visuals at your event. They can hold heavy weight and can be used as tables, a dance floor, podium, or anything else you can think of. These LED Floors are great for concerts and dance events. With our LED floor screens, you can interact with them on the ground or on a wall for even more special effects. The interactive feature is a combination of two parts, the LED screen and interactive background screen. The special effects are top of the line and the image display is high-tech.

LDF 01 LED Dance Floor Screens

LDF260 Series

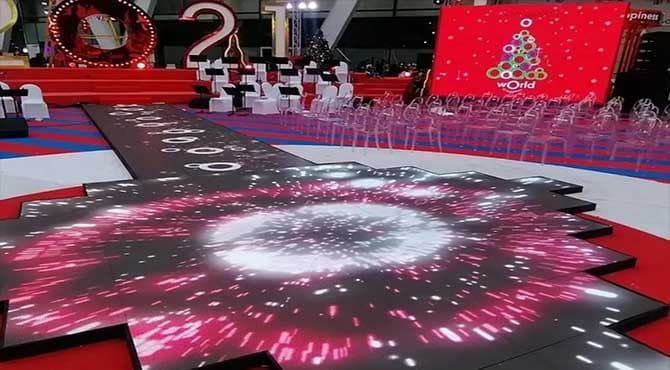

Dance floor LED screen in Party
LDF 04 LED Dance Floor Screens

LDF391 Series

Fashion Show Floor tile screens
LDF 08 LED Dance Floor Screens

LDF781 Series

Interactive LED Floor Screen
LDF 06 LED Dance Floor Screens

LDF481 Series

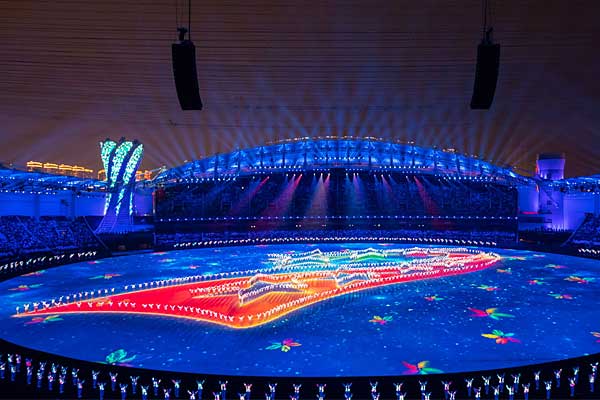

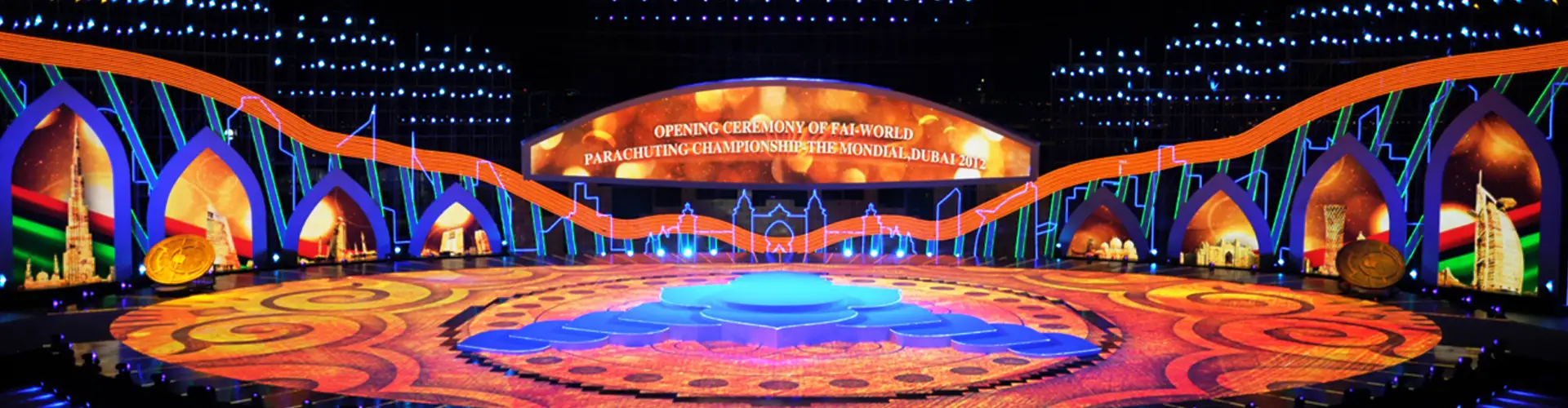

Stage Floor Led screen

REISSDISPLAY Dance Floor LED Screen Display

REISSDISPLAY interactive floor tile screen is a powerful tool for transforming any space into an engaging, dynamic environment. With advanced sensing and interactive functions, this LED display is equipped with pressure sensors, capacitive sensors, or infrared sensors to detect movement and trigger compelling display effects.

Utilizing cutting-edge infrared sensors, this device captures real-time images of human movement, adding an exciting new dimension to any visual experience. Our LED floor tile screen is easy to install, and made from lightweight yet durable materials that can hold up to an impressive 1.5 tons per square meter.

Our design boasts a high-contrast display and excellent low-light performance, ensuring clear, consistent, and engaging visuals in any environment. Maintenance is a breeze, with easily replaceable modules that don't require the removal of adjacent cabinets.

Experience the future of interactive displays with REISSDISPLAY.

LDF 17 LED Dance Floor Screens

Why Choose Floor Tile LED Screens?

LED floor tiles offer a visually striking and interactive element that adds excitement to any space or event. With their versatile design options, high image quality, and durability, they are an excellent choice for creating captivating visual experiences and leaving a lasting impression on the audience.

Floor tile LED screens provide an interactive and engaging experience for viewers. By displaying dynamic visuals, animations, and patterns on the floor, they capture attention and create an immersive environment. This interactive element enhances the overall experience and leaves a lasting impression on the audience.

Floor tile LED screens come in various shapes, sizes, and configurations, allowing for versatile design options. The modular nature of the tiles enables flexibility in creating different floor layouts and shapes to suit specific event requirements or venue spaces. They can be arranged in straight lines, curves, or even customized shapes, providing creative freedom for designers.

LED floor tiles are designed to seamlessly integrate with the surrounding environment. They can be installed flush with the floor surface, creating a smooth and uninterrupted visual display. This seamless integration ensures that the LED screen becomes a part of the overall design without causing any tripping hazards or disruptions.

Floor tile LED screens offer high brightness levels and excellent image quality. They are designed to withstand ambient lighting conditions, including daylight, ensuring clear and vibrant visuals even in well-lit environments. This feature is crucial for venues or events where maintaining visibility is essential.

Floor tile LED screens are built with durability and safety in mind. They are constructed using robust materials that can withstand foot traffic, impacts, and spills. LED floor tiles are often designed to be slip-resistant, providing a secure surface for people to walk on without compromising safety.

LED floor tiles are designed for easy installation and maintenance. They typically feature a modular design that allows for quick assembly and disassembly. This modularity also simplifies maintenance tasks as individual tiles can be easily replaced if needed, minimizing downtime and costs.

Floor tile LED screens find applications in various settings and events. They are commonly used in concerts, stages, exhibitions, trade shows, retail displays, museums, nightclubs, and other entertainment venues. Their versatility allows for integration into different environments, enhancing visual experiences and creating memorable moments.

Floor tile LED screens offer a unique platform for brand promotion and advertising. They can display logos, messages, and advertisements, effectively capturing the attention of viewers. This feature is particularly useful in retail environments or events where brand visibility and communication are important.

LDF 18 LED Dance Floor Screens
LDF 19 LED Dance Floor Screens

The Sensing Principle of Interactive Floor Tile LED Display

LED floor tile screens are beneficial to stage performances, exhibitions and other occasions. It stems from the expansion of the LED display market and the refinement of people's demand for LED display products. The use of LED floor tiles in stage performances is very eye-catching.

It can broadcast live, replay highlight clips and slow motion, show close-ups, and create different background environments based on the performance content. Realistic graphics and powerful music combine to create powerful modern scenes. Gives people an immersive feeling.

However, the LED floor tile screen can only play fixed images according to the scheduled program to coordinate with the performance. And it is difficult to achieve the best dance effect. Therefore, interactive LED floor tile screens came into being.

Sensors are necessary hardware facilities for interactive LED floor tile screens to have sensing and interactive functions. When someone moves on the floor tile screen, the sensor can track his/her position and feed back relevant information signals to the main controller.

Then the main controller outputs the corresponding display effect after logical judgment. There are various interactive effects such as water ripples, broken glass, blooming flowers, etc. Manufacturers can generally provide relevant interactive effect materials. If you have special requirements, you can communicate with your floor-standing LED display supplier.

Interactive LED floor tiles are a new type of ground digital display device with interactive special effects. And has excellent display performance. Compared with ordinary floor tile screens, their differences are obviously as follows.

Product Parameter Description

Available in pixel pitch indoor or outdoor 2.604mm/2.976mm/3.91mm/4.81mm/6.25mm for diferent size led display need
P65 Surface water proof and well heat dissipation cabinet

Pixel pitch (mm): 2.976
Cabinet pixel points: 168*168
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥1400CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 400W
Protection level: Ip33
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 3.91
Cabinet pixel points: 128*128
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥1300CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 400W
Protection level: Ip33
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 4.81
Cabinet pixel points: 104*104
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥1300CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 550W
Protection level: Ip33
Certifications: CE/EMS/ROHS/FCC/UL

6.25 Waterprooof Led Dance Floor Screen, Pixel pitch 6.25mm,Pixel density 256,00 dots /sq.m, Module size 250 mm(Width)*250 mm(height) , Module pixels 40 dots *40 dots, Cabinet size 500mm* 500mm/500mm* 1000mm,LED control system LINSN / Nova-star / Colorlight

The Difference Between LED Floor Tile Screen and Interactive LED Floor Tile

With the assistance of corresponding sensing equipment, the interactive floor tile screen has the ability to track individuals' movement trajectories, with resulting picture effects representing their activities in time. For instance, during the opening ceremony of the 2022 Beijing Winter Olympics, snowflake traces were visible wherever the performers walked. The exhibition of interactive functions is the most significant contrast between both display types. Conventional LED screens exclusively have a display role, whereas the inductive LED floor tile screen requires audience involvement coordinate information to identify and determine interaction points. This unique and innovative feature provides an experience that instills in individuals a sense of technological empowerment. Additionally, conventional LED floor tile screens only require basic playback software while interactive LED displays necessitate control software that collects interaction point coordinate information from the display panel. Subsequently, the received information selects different program and video files to enact real-time interaction. The data of regular floor tile screens is unilateral, moving signals mainly from the control end to the display end; however, one-way transmission is added to the interactive LED floor tile screen, resulting in bidirectional data transmission.

LDF 11 LED Dance Floor Screens

Advantages of LED Floor Tile Screen

The REISSDISPLAY floor tile screen is a practical and versatile option for your display needs. This display is convenient, flexible, and easy to install and maintain, making it a popular choice in various fields, including stages, concerts, shopping malls, and exhibition halls. The screen's unique advantages include excellent display effect, good carrying capacity, and super protection ability. REISSDISPLAY uses high-quality, high-contrast Nationstar and Jinlai lamp beads, ensuring that their full-color LED floor tile screen has excellent stability and good color consistency. These LED floor tile screens have a variety of pixel pitches to choose from, providing high-definition quality. With a maximum load-bearing capacity of 2T/m², these LED floor tiles can easily cope with load-bearing problems. Additionally, waterproof, anti-slip, wear-resistant, and scratch-resistant materials make the REISSDISPLAY dance floor LED display highly durable. It also supports multiple installation methods and has an adjustable cabinet support feet height for easy operation and maintenance.

LDF 13 LED Dance Floor Screens
LDF 14 LED Dance Floor Screens

Specification Download

LED display specifications can appear to be complex and may pose difficulties in understanding. As a professional, I am pleased to provide a reliable guide to help you make an informed decision. Pixel pitch refers to the distance between the pixels, and the smaller the pitch, the better the image quality. Module size, on the other hand, varies depending on the LED display model, and it describes the size of each individual module. Resolution refers to the number of pixels displayed, while brightness measures the brightness of the pixels. The viewing angle enables you to know how off-center you can be and still view the display clearly. Refresh rate ensures a smooth display, while color reproduction indicates how precise the display's colors are. Finally, the contrast ratio determines how dynamic and vibrant the images will appear. Consider the above information for a more knowledgeable purchase.

Specification Name





LED Floor Tile Screen Application Solutions

The growth of the entertainment economy has resulted in an increased emphasis on performance quality in the performing arts market. The audience demands higher standards for stage presentations, which has popularized LED floor tiles. These tiles have received widespread acclaim for their visual effects and have become a preferred choice for stage designers. They have also gained prominence in other industries. For example, LED floor tiles are now commonly used in large shopping malls and serve as an effective promotional tool with interactive features to attract potential customers. Visitors to museums and modern exhibition halls can witness the novel interactive LED floor tiles, which hold their attention better and provide a unique experience. In the field of healthcare and education, LED interactive induction floor tiles add an entertaining and interactive dimension to therapy and teaching. Furthermore, nighttime entertainment venues such as runways, bars, and nightclubs have also adopted LED floor tiles to create an electrifying atmosphere.

LDF 03 LED Dance Floor Screens
LDF 07 LED Dance Floor Screens
LDF 05 LED Dance Floor Screens
LDF 10 LED Dance Floor Screens
LDF 09 LED Dance Floor Screens
LDF 02 LED Dance Floor Screens

LED Floor Tile Screen Solve Pain Points

LED floor tile screens can be an effective solution to address an array of challenges and pain points across a variety of applications. The numerous benefits of LED floor tile screens include providing dynamic visual displays for engagement and attention, enhancing brand promotion and advertising, and creating visually stunning environments. The modular design of LED floor tile screens facilitates versatile design options, allowing for creative and customized installations that can accommodate various space configurations or event requirements. Safety, durability, and ease of installation and maintenance are also essential features of LED floor tile screens. This adaptable technology can be utilized in a wide range of environments, both indoor and outdoor. By addressing these pain points, LED floor tile screens offer innovative solutions that can enhance audience engagement, branding, and visual experiences, making them a valuable addition to events, venues, and public spaces.

LDF 20 LED Dance Floor Screens

LED Floor Tile Screen FAQs

These are some common FAQs about LED floor tile screens. The specific questions may vary depending on the customer's needs, installation requirements, and familiarity with the technology.

LED floor tile screens are designed to be safe for walking on. The panels or tiles are constructed using durable and slip-resistant materials. They are engineered to withstand foot traffic and provide a secure surface. Additionally, safety features like anti-slip coatings or textured surfaces are often incorporated.

LED floor tile screens are designed to withstand the weight of people walking or dancing on them. However, there are load capacity limits specified by manufacturers that should be followed to ensure the longevity and performance of the screens. It is recommended to consult the product specifications for load capacity information.

LED floor tile screens are typically installed by interlocking the modular LED panels or tiles together to form a seamless display surface. The tiles are connected using a locking mechanism or fasteners to ensure stability. The installation process may vary depending on the specific product and manufacturer.

Yes, there are LED floor tile screens designed for outdoor use. These screens are built with weatherproof features to withstand environmental conditions. However, it is important to ensure that the specific product is explicitly designed and rated for outdoor use.

Yes, floor LED displays can support interactive functionalities. They can be integrated with sensors or touch-sensitive technology to detect movement or touch. This enables interactive features like games, motion-activated visuals, or interactive floor experiences, enhancing engagement and interactivity.

Floor LED displays offer several advantages, including immersive visual experiences, enhanced engagement, brand promotion, and interactivity. They can captivate audiences, create memorable moments, and effectively convey messages. Additionally, they provide versatility in design, easy installation, and maintenance.

Yes, floor LED displays can be customized with specific content or branding. They can display logos, messages, graphics, or advertisements, allowing for personalized and branded experiences. The content can be tailored to match specific events, themes, or marketing campaigns.
