REISSDISPLAY TIT-TF flexible transparent LED screen delivers up to 80% transparency, letting natural light and views pass through while displaying vivid HD full-color content. This see-through LED display is ideal for glass facades, retail windows, car showrooms and events. With a lightweight aluminum cabinet (12–15kg), low power consumption and custom shapes, it turns any glass surface into a transparent LED video wall without blocking the space behind it.
These screens serve multiple fields, including shopping mall displays, information screens, smart homes, car dashboards, and electronic products. Its unique transparency allows it to blend seamlessly into the environment, providing a more immersive visual experience.
TIT-TF series products have a light transmittance of over 85%, which greatly reduces the blocking of sunlight. This excellent light transmittance enhances the customer’s visual experience and constantly brings positive feedback to our products.
Flexible LED Transparent Screen High Transparency
The high transmittance of 80%+ is one of the main features of the TF series, which takes transparency to the extreme.
Wider Color Range
The wider color range ensures accurate color reproduction and rich colors, making the picture more vivid and the video playback more moving.

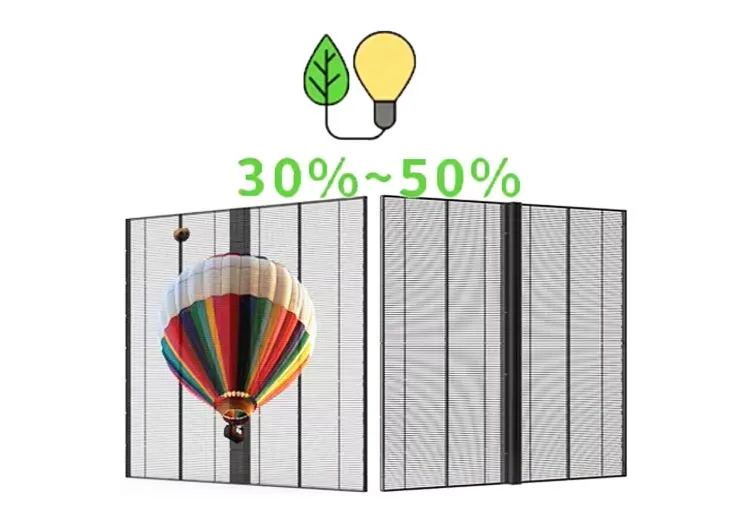

Quick Heat Dissipation and Energy Saving
The TIT-TF series is designed with energy-efficient LED technology, consuming less power while still delivering high brightness and excellent visual quality.
30%-50% lower in power consumption than traditional led displays.

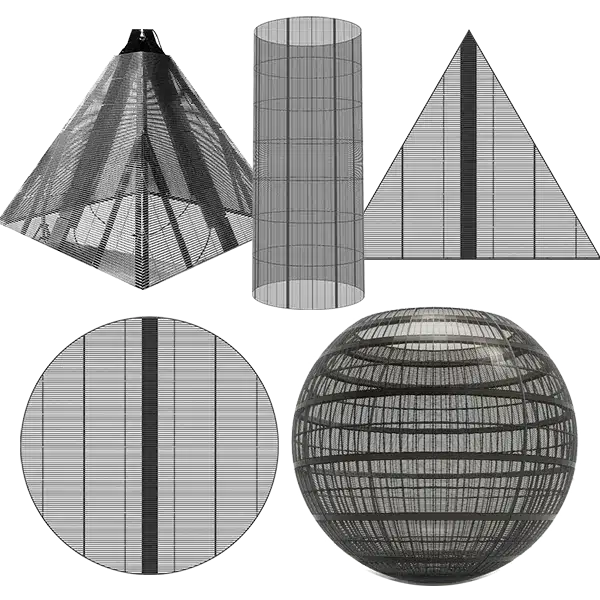

Arbitrary Customization Flexible LED Display Transparent

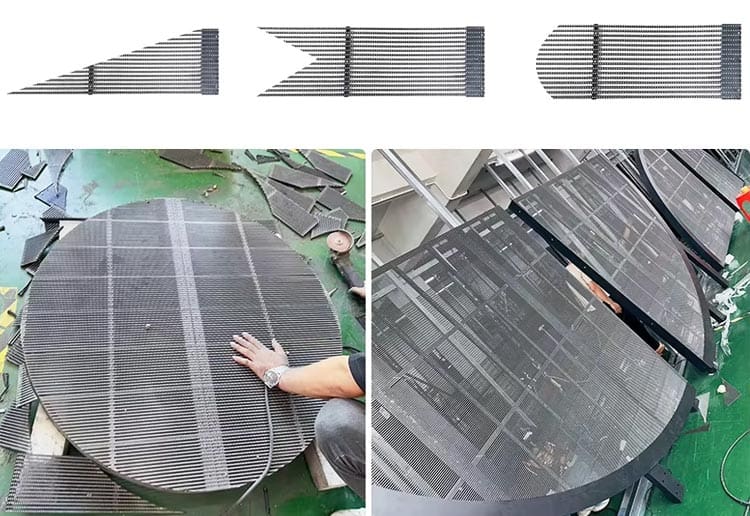

Customized into square, triangle, circle, cylinder(allow bending into arc) and other irregular shapes.
Creative Shapes and Flexible Sizes
The REISSDISPLAY TIT-TF series transparent LED display offers custom shapes and flexible sizes (0.8m, 1m, 1.4m, 1.5m, 2m, 6m diameter for round shapes). Its versatility makes it ideal for creative designs in retail, building facades, and events, allowing seamless integration into any space.

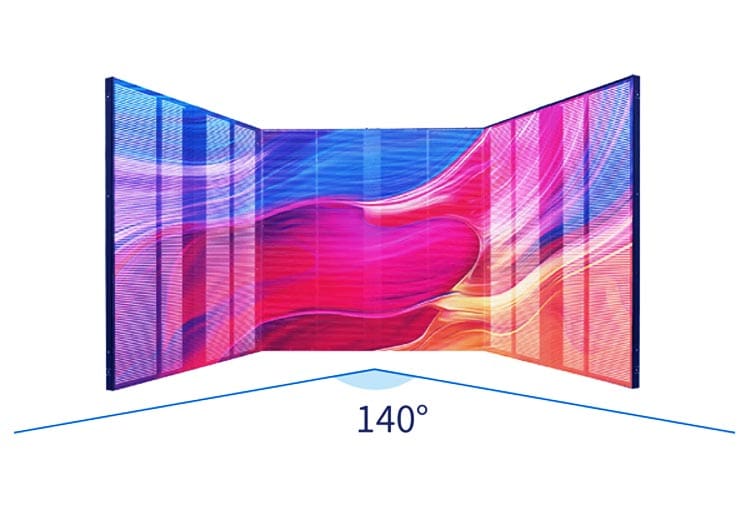

Ultra-wide Viewing Angle
The REISSDISPLAY TIT-TF series features a H140°V140° viewing angle, ensuring clear and vibrant displays from all perspectives, perfect for see-through video in high-traffic areas.

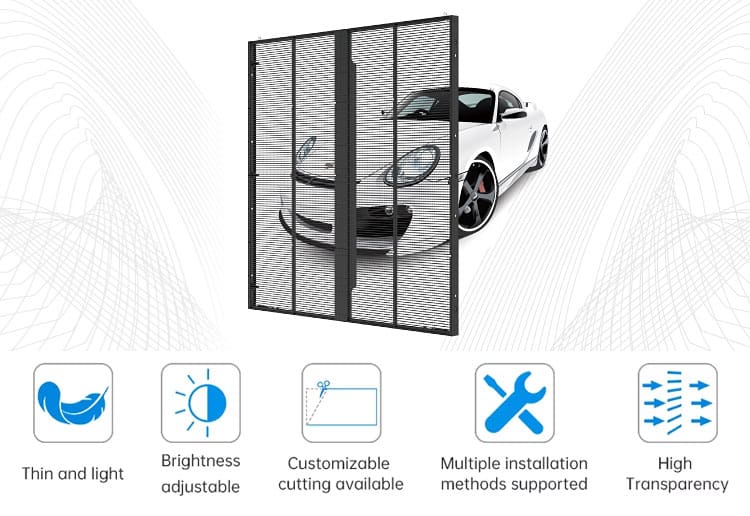

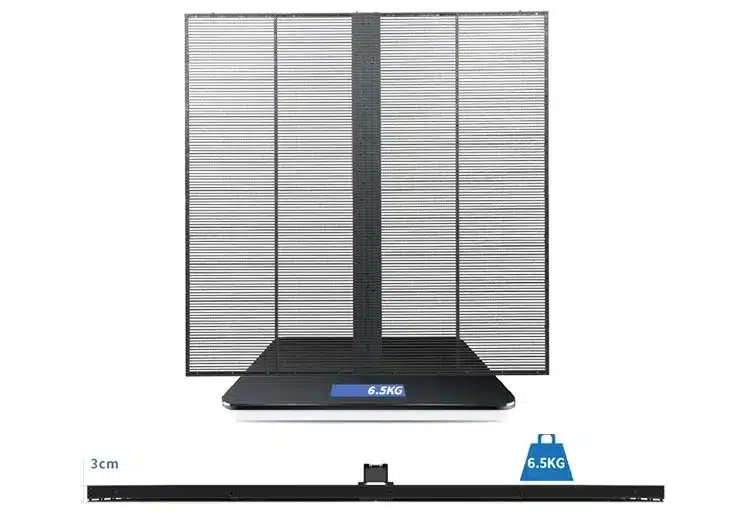

Super Lightweight and Thin LED Transparent Screen
500*500mm approx.6.5KG/㎡ and thinnest part is only 3cm, optimal packed to save shipping cost.

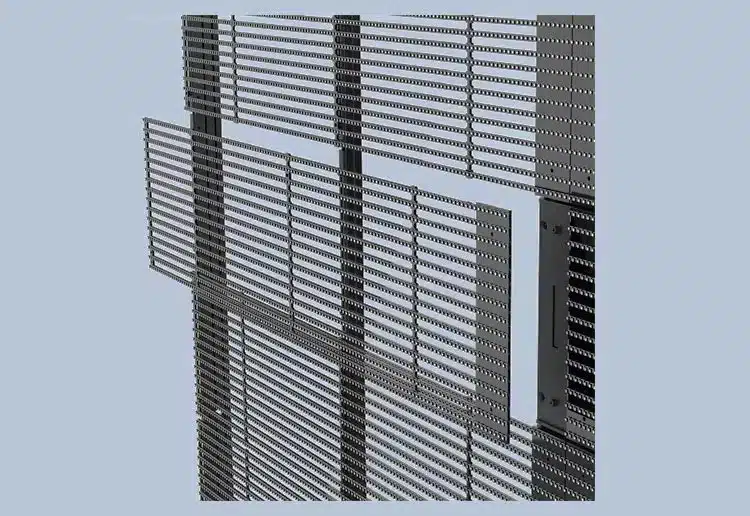

Maintenance Convenient LED Transparent Screen
Modular design, replace only defective lamp modules, fast and cheap.

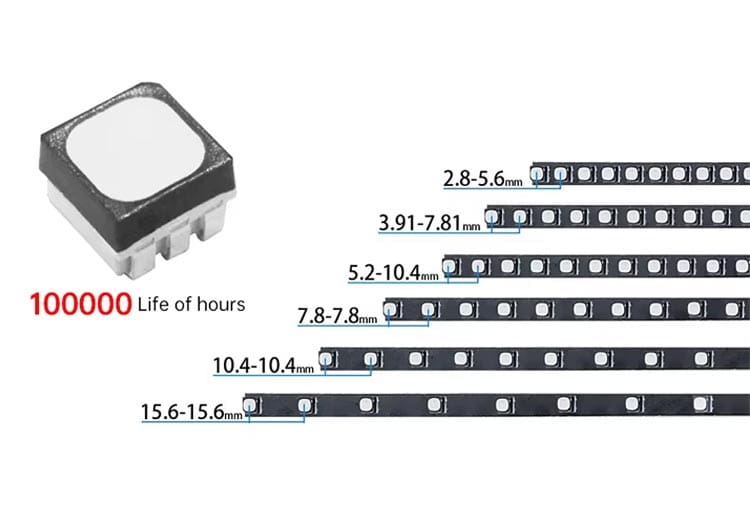

High Quality LED Lamp Beads
The REISSDISPLAY TIT-TF series features high-quality LED lamp beads for superior brightness and clarity. It also offers diversified pixel pitch options, allowing for flexible spacing to meet different resolution and viewing distance needs. This ensures optimal performance in various settings, from close-up displays to large-scale installations.

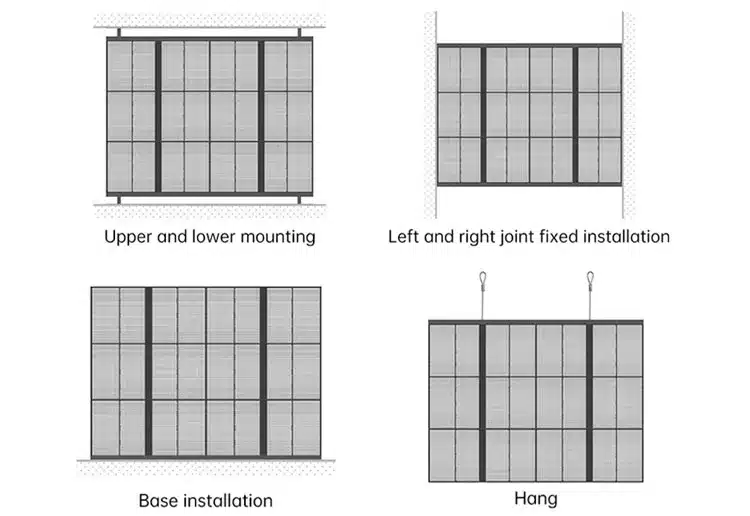

Transparent LED Display Installation Mode
The REISSDISPLAY TIT-TF series offers customizable installation options to suit any space, including wall-mounted, suspended, or freestanding setups.

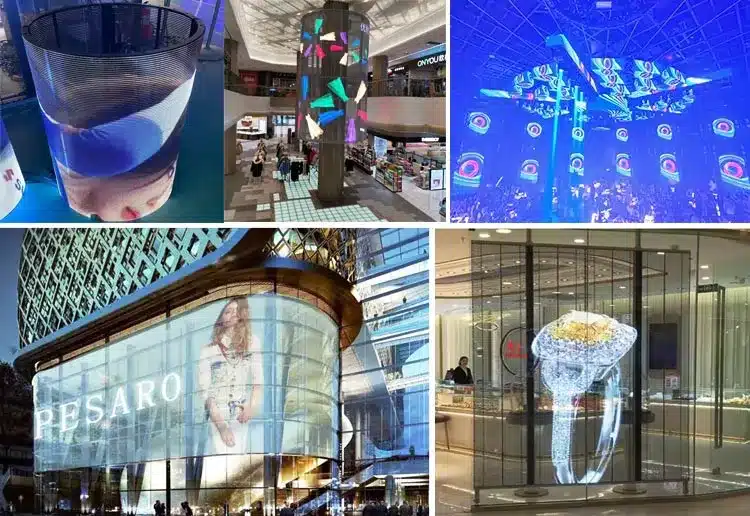

Flexible LED Transparent Screen Is Suitable For Various Occasions
The flexible LED transparent screen is ideal for various settings, including shopping malls, waiting rooms, car showrooms, office building glass curtain walls, and more, offering a sleek and modern solution for dynamic displays in both indoor and outdoor environments.

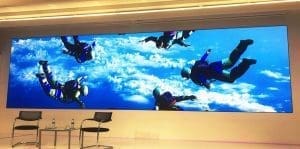

Application Cases
Transparent LED Wall,A New Standard for Modern Visual Displays
" Customer Testimonials:
In recent years, the transparent LED wall has become a stunning symbol of innovation in architecture, retail, entertainment, and corporate...

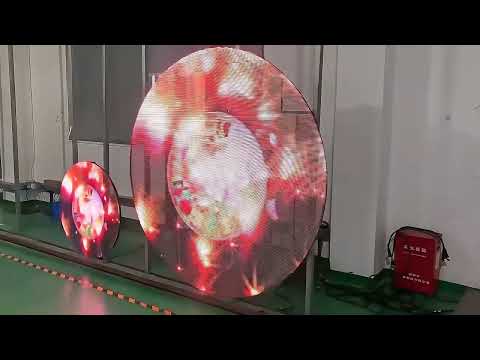

Application and Installation Videos
Specifications
| Specification | P31 / P31-Pro | P39 / P39-Pro | P3 | P3-Pro |
|---|---|---|---|---|
| Pixel Pitch | 3.125 / 3.125mm | 3.9 / 3.9mm | 3.91 / 7.8mm | 3.91 / 7.8mm |
| Pixel Density (dots/㎡) | 102,400 | 65,536 | 32,768 | 32,768 |
| LED Configuration | SMD1515 / SMD1415 | SMD2020 / SMD1921 | SMD2121 | SMD1921 |
| Brightness | 1,000 / 4,000 nits | 1,000 / 4,200 nits | 800 nits | 4,200 nits |
| Transparency Rate | 65% | 70% | 75% | 80% |
| Power Consumption (Max / Avg per ㎡) | 600W / 150W | 600W / 150W | 600W / 150W | 600W / 150W |
| Module Dimension (mm) | 500 × 75 | 500 × 125 | 500 × 125 | 500 × 125 |
| Module Resolution (W × H) | 160 × 24 | 128 × 32 | 128 × 16 | 128 × 16 |
| Panel Dimension (mm) | 1000 × 750 | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 |
| Panel Resolution (W × H) | 320 × 240 | 256 × 256 | 256 × 128 | 256 × 128 |
| Panel Weight | 12 kg | 15 kg | 15 kg | 15 kg |
| Refresh Rate (Hz) | >3,840 | >3,840 | >3,840 | >3,840 |
| Viewing Angle (H / V) | 140° / 140° | 140° / 140° | 140° / 140° | 140° / 140° |
| IP Grade | IP31 | IP31 | IP31 | IP31 |
| Input Voltage (AC) | 110V / 240V, 50/60Hz | 110V / 240V, 50/60Hz | 110V / 240V, 50/60Hz | 110V / 240V, 50/60Hz |
| Operating Temperature | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C | -20°C ~ 60°C |
| Grayscale (bit) | 14–22 | 14–22 | 14–22 | 14–22 |
| Lifespan (hrs) | >100,000 | >100,000 | >100,000 | >100,000 |
| Service Access | Rear | Rear | Rear | Rear |
| Control System | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
*All specifications are subject to change without notice. Other pixel pitches available upon request.
Frequently Asked Questions
1 What is a flexible transparent LED screen?
A flexible transparent LED screen is a see-through LED display built on a bendable, lightweight structure. It shows HD full-color content while keeping up to 80% transparency, so viewers can still see through the screen to the space or products behind it.
2 How transparent is the TIT-TF series?
The TIT-TF series offers a transparency rate from 65% up to 80% depending on the pixel pitch model (P31, P39, P3, P3-Pro). Higher transparency lets in more natural light, making it ideal for glass windows and building facades.
3 How much power does a transparent LED screen consume?
The TIT-TF series is engineered for low energy use, with average power consumption around 150W/m² and a maximum of 600W/m². Because it uses energy-efficient LED technology, it runs 30%–50% lower in power than traditional LED displays, which lowers long-term operating costs for large glass-facade installations.
4 Can the transparent LED screen be used outdoors?
Yes. The TIT-TF series reaches up to 4,200 nits brightness and operates from -20°C to 60°C, so it stays clearly visible in bright daylight. With an IP31 rating it is best suited to indoor and semi-outdoor glass environments such as storefront windows, curtain walls and covered facades rather than fully exposed outdoor sites.
5 What pixel pitch and sizes are available?
The series covers pixel pitches from P3.125 to P7.8, with panel resolutions up to 320×240 per 1000×750mm module. It can be customized into square, triangle, circle and cylinder (bendable arc) shapes, with round diameters of 0.8m, 1m, 1.4m, 1.5m, 2m and 6m, giving designers full flexibility for creative installations.
6 How is a flexible transparent LED screen installed and maintained?
It supports wall-mounted, suspended and freestanding installation to fit any space. The modular design allows front or rear service by replacing only the defective lamp module, making maintenance fast and low-cost. At about 6.5kg/m² and 3cm thin, it is light enough to mount directly onto existing glass structures.
