Transparent LED Window Display: The Future of Visual Technology
The REISSDISPLAY transparent LED display is a see-through LED screen engineered for glass windows, curtain walls and retail façades. With 60–85% transparency, an 8cm ultra-slim profile and just 6kg/m², this LED window display integrates directly onto glass without bulky steel frames—preserving natural light and outward views. Built on SMD technology with Nationstar LEDs, it delivers HD full-color visuals, a 140° viewing angle and 30–50% lower power consumption than conventional LED walls, making it a high-impact yet energy-efficient transparent LED video wall solution.
Transparent LED screens have become increasingly popular in recent years, thanks to their unique ability to display high-quality images and videos while remaining virtually invisible. With their ability to blend seamlessly into any environment, transparent LED screens have revolutionised the way businesses and organisations communicate with their audiences. Transparent LED screens deliver powerful benefits, creating captivating visual displays that grab attention and make lasting impressions.
ReissDisplay indoor transparent LED display is the standard SMT technology and uses Nationstar LED lamps that are highly consistent in brightness and color.

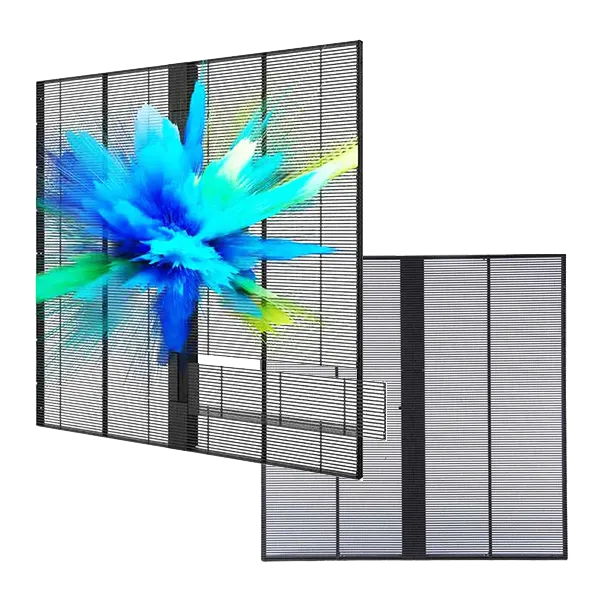

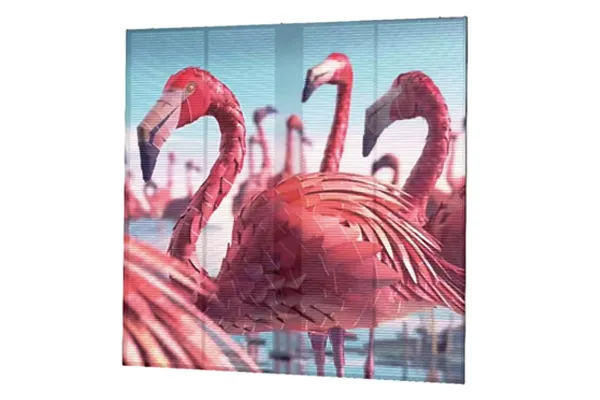

Transparent LED Window Display Screen

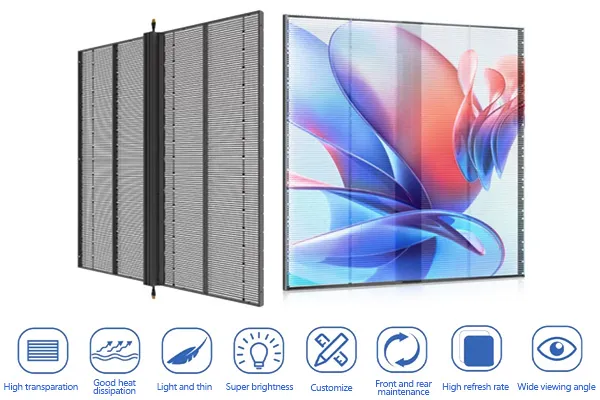

Simple operation, New configuration, High Contrast ratio, Smart control, Super transparent
High Transparency: 60-85% permeability ensures lighting requirements and viewing angles are maintained, preserving the original glass curtain wall function.
Seamless Integration: Ultrathin design allows direct installation into the glass curtain wall without bulky steel frames, saving space and costs.
Unique Aesthetics: The transparent background creates a captivating “suspended” advertising effect with high visual impact.
Easy Maintenance: Indoor access enables fast and safe servicing, optimizing resources.
Energy Efficiency: 30-50% energy savings compared to traditional LED displays, with no need for cooling systems.
This cutting-edge technology from REISSDISPLAY redefines digital signage, delivering unparalleled transparency, integration, and performance for transformative visual experiences.

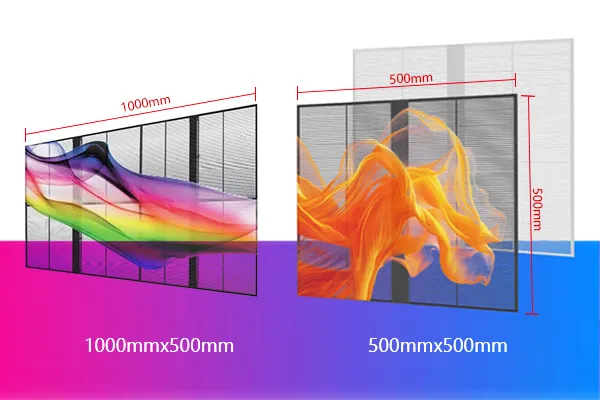

Transparent LED Screen Size
Transparent LED window display screen Light transmission, light and thin, transparent, high definition, easy installation etc. 1000*1000mm, 1000*500mm, 500*500mm cabinet.

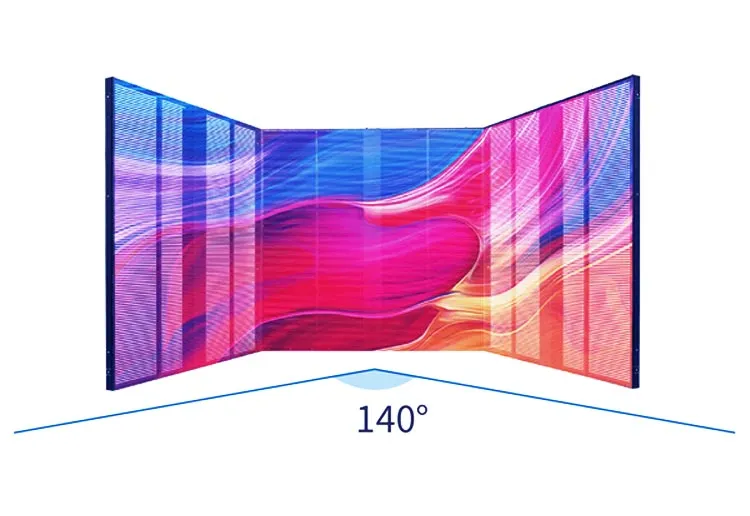

Ultra Wide Viewing Angle
Wide Horizontal and Vertical Angles
140° ultra-wide viewing angle, perform the same wonderful effect from different angles
Quick Heat Dissipation and Energy Saving
30~50% lower in power consumption than traditional led displays.

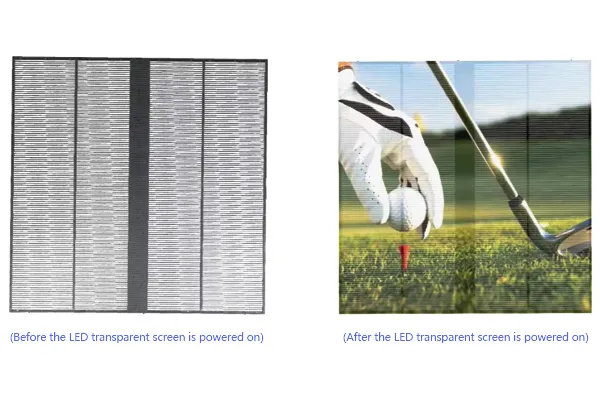

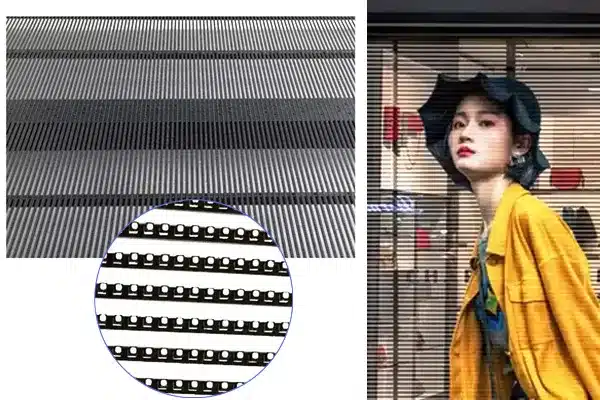

Transparent LED Window Display High Permeability
Professionally desiqned box structure and size, with a transparency rate of 85%, load-bearing performance and reinforcement design and consistency.
Maintenance Convenient
Modular design, replace only defective lamp modules, fast and cheap.

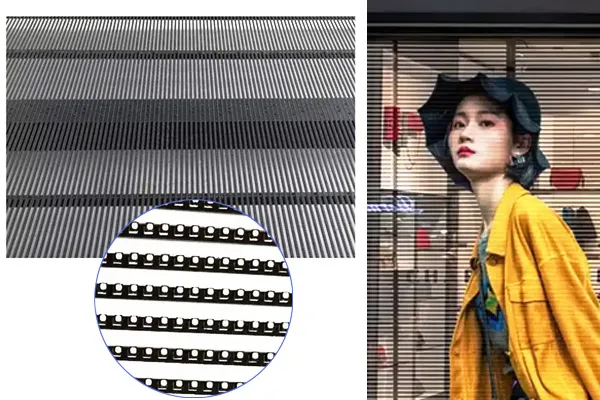

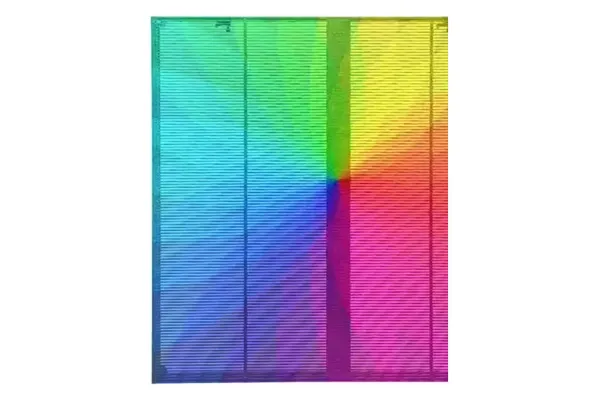

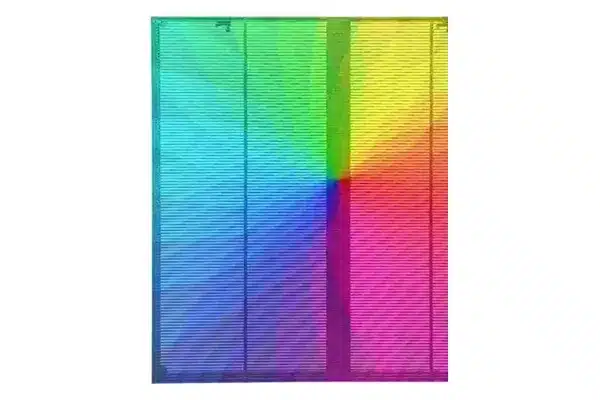

HD Full Color Display
The display resolution is 256*64, and each pixel is a high-definition full-color display composed of 1R1G1B, bringing a better visual experlence.
Wire Rod Design, Simple But Beautiful!
The connecting line between the cabinet can be hidden in the box, the appearance is simple 、elegant and beautiful.

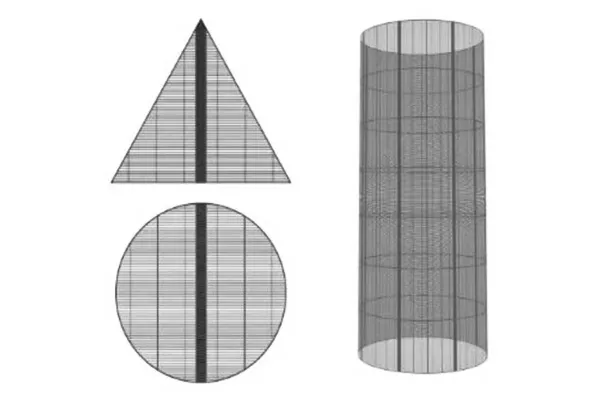

Transparent LED Displays Arbitrary Customization
Customized into square, triangle, circle, cylinder(allow bending into arc)and other irregular shapes. (Detailed introduction on TIT-TF series customizable transparent LED displays)
High Speed Transmission
HD transmission interface, fast transmission and clear image quality.
Quick and Easy Maintenance

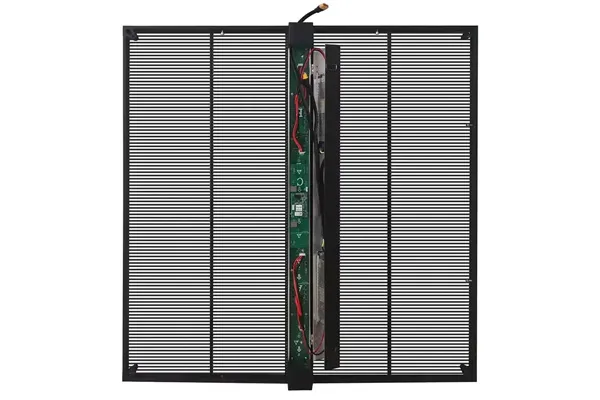

With no complex components, our screens can be repaired quickly and efficiently, maintenance and repairs can be performed with minimal disruption to your operations, and the streamlined maintenance process can result in significant cost savings over time. The power and HUB board is accessible at the back.

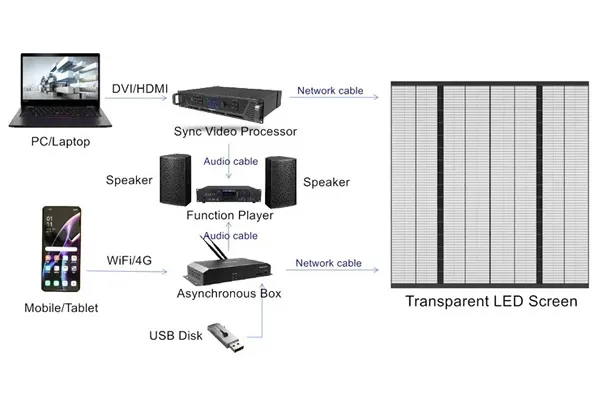

Intelligent Control Remote Cut
Transparent LED smart glass LED display can realize mobile phone playing.

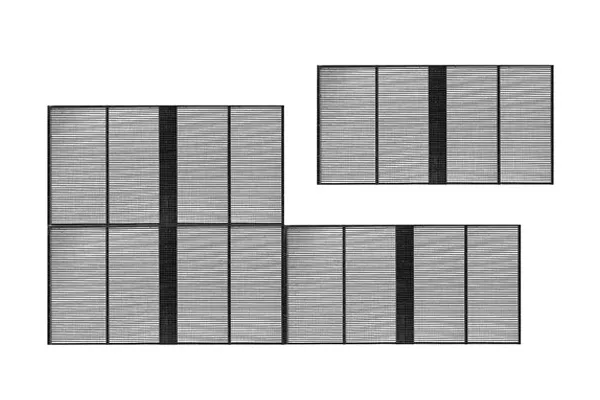

Unlimited Splicing Transparent LED Wall
The REISSDISPLAY transparent LED wall offers unlimited splicing for expansive, seamless installations, revolutionizing digital experiences across diverse settings with exceptional visual quality and transparency.

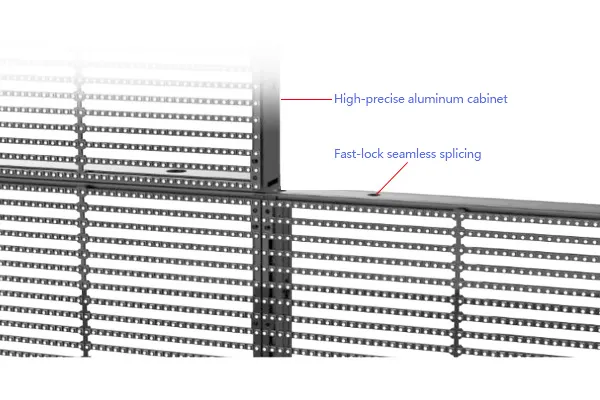

Easy Installation

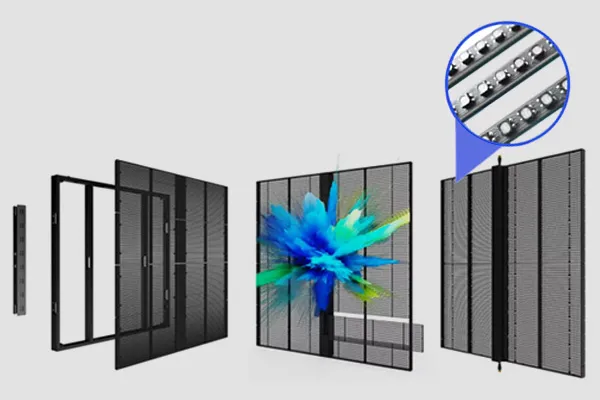

High-precise aluminum cabinet, plug-in led lamp board, fast-lock seamless splicing, secure and reliable.

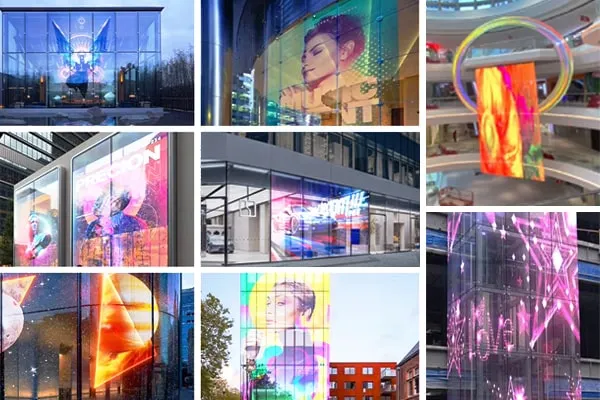

Application Areas
Wide range of scene applications to meet a variety of needs
- Windows, glass walls and facades
- Corporate buildings and offices
- Retail stores and shopping malls
- Stadiums and arenas
- Hotels and airports
- Car showrooms
Application Cases
Transparent LED Wall,A New Standard for Modern Visual Displays
" Customer Testimonials:
In recent years, the transparent LED wall has become a stunning symbol of innovation in architecture, retail, entertainment, and corporate...
Application and Installation Videos
Specifications
| Specification | PH2.9 | PH3.125 | PH3.91 | PH7.82 | PH7.82 | PH10.4 |
|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 2.9–6.25 | 3.125–3.125 | 3.91–7.82 | 7.82–7.82 | 7.82–15.64 | 10.4–10.4 |
| Module Size (mm) | 500 × 125 | 500 × 125 | 500 × 125 | 500 × 125 | 500 × 125 | 500 × 125 |
| Cabinet Size (mm) | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 |
| Pixel Density (px/㎡) | 53,760 | 102,400 | 32,768 | 16,384 | 8,192 | 9,216 |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Optimal Viewing Distance (m) | 5–100 | 5–100 | 8–100 | 10–100 | 10–100 | 15–120 |
| Transparency (%) | 60 | 70 | 75 | 85 | 85 | 85 |
| Weight (kg/㎡) | 6 | 6 | 6 | 6 | 6 | 6 |
| Viewing Angle (°) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| Thickness (cm) | 8 | 8 | 8 | 8 | 8 | 8 |
| Average Power (W/㎡) | 100–200 | 100–200 | 100–200 | 100–200 | 100–200 | 100–200 |
| Max Power Consumption (W/㎡) | 300–800 | 300–800 | 300–800 | 300–800 | 300–800 | 300–800 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Drive Mode | 1/14 | 1/16 | 1/8 | 1/4 | 1/2 | 1/2 |
| White Balance Brightness (nit) | ≥800–4500 | ≥800–5000 | ≥4500 | ≥4500 | ≥4500 | ≥4500 |
| MTBF (h) | ≥6500 | ≥6500 | ≥6500 | ≥6500 | ≥6500 | ≥6500 |
| Lifespan (h) | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 | 100,000 |
| Installation | Glass adhering, hanging, or fixed installation | |||||
| IP Grade | IP43 | IP43 | IP43 | IP43 | IP43 | IP43 |
| Control System | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
Frequently Asked Questions
1 What is a transparent LED display?
A transparent LED display is a see-through LED screen with 60–85% transparency that mounts onto glass windows and curtain walls, showing HD video while people still see through it and daylight still passes.
2 How transparent is the REISSDISPLAY window LED screen?
Transparency ranges from 60% to 85% depending on pixel pitch—finer pitches (PH2.9) give 60%, while larger pitches (PH7.82 and above) reach 85% for maximum see-through.
3 Where are transparent LED displays typically used?
They are most used on retail storefronts, shopping-mall glass, corporate lobbies, car showrooms, hotels, airports and stadium façades—any glass surface where brands want dynamic content without blocking light or views.
4 Do transparent LED screens save energy?
Yes. REISSDISPLAY transparent LED displays consume 30–50% less power than conventional LED walls, run at 100–200W/m² average, and need no active cooling, lowering both energy bills and installation cost.
5 How are transparent LED displays installed and maintained?
Panels are only 8cm thick and 6kg/m², so they adhere directly to glass or hang without heavy steel frames. Modules are serviced from indoors—only the faulty module is swapped, minimizing downtime and cost.
6 Can the transparent LED display be customized in size and shape?
Yes. REISSDISPLAY offers cabinets in 1000×1000mm, 1000×500mm and 500×500mm, plus custom square, triangle, circular, cylindrical and curved shapes for unlimited splicing into large transparent LED walls.
