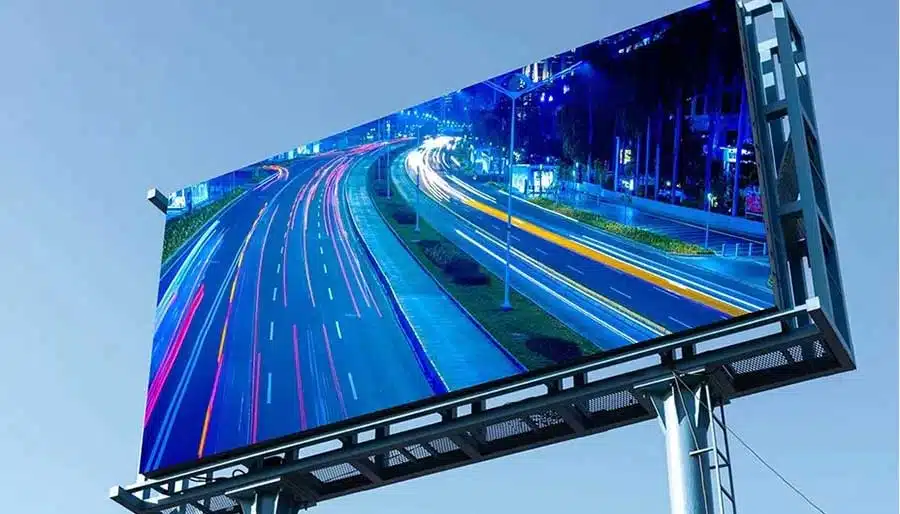

OF-FX series outdoor LED screen display ensures your message remains bright and impactful, regardless of the outdoor environment. Designed specifically to handle challenges like extreme weather conditions, sunlight exposure, and fluctuating temperatures, this robust display provides reliable performance for a wide range of outdoor applications.
Whether you’re targeting outdoor advertising, public signage, or event displays, the OF-FX Series offers the perfect solution to meet your needs.
Why Choose the OF-FX Outdoor LED Screen Display?
1. Versatile Outdoor LED Models
To cater to different project requirements, the OF-FX series offers a wide range of pixel pitches, including P2.5, P3, P4, P3.91, P4.81, P5, P6, P8, P10, P16, and P20. This flexibility ensures that you can select the most suitable model for your specific application.

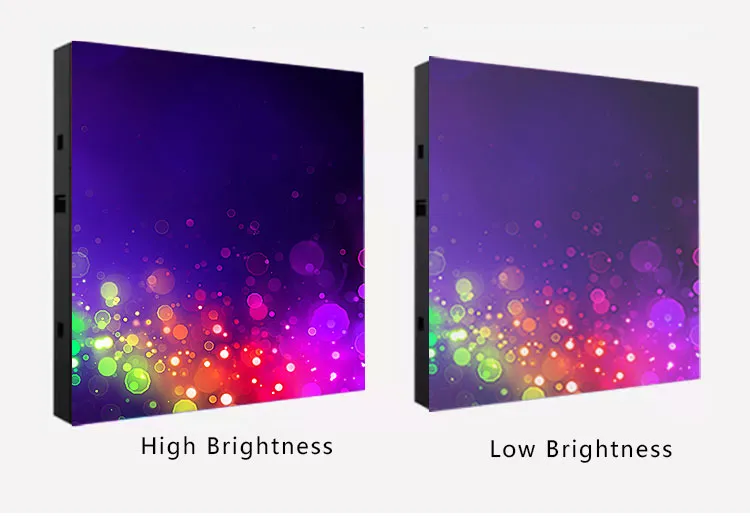

2. Exceptional Brightness and Visibility
With brightness levels ranging from 5000 to 10,000 nits, these displays guarantee excellent visibility even under direct sunlight. This makes them ideal for high-traffic outdoor areas where capturing attention is critical.
3. Advanced Waterproof and Dustproof Design
Outdoor environments can be unpredictable, which is why durability is crucial. The IP65 to IP67 waterproof rating ensures that these LED screens are protected from water, dust, and other environmental elements, delivering consistent performance no matter the weather.
Cost-Effective and Customizable Solutions
Customizable Sizes for Every Need
The OF-FX Series supports both standard sizes (960×960mm) and highly customizable dimensions. Whether you require a small digital sign or a large-scale billboard, this series can be tailored to fit seamlessly into your project.
Efficient Module Design
Thanks to universal module sizes such as 320×160mm, 256×128mm, and 192×192mm, the system supports easy upgrades and maintenance. You can even switch to different pixel pitches without replacing the entire steel structure, simplifying future expansions or updates.
Outstanding Display Performance

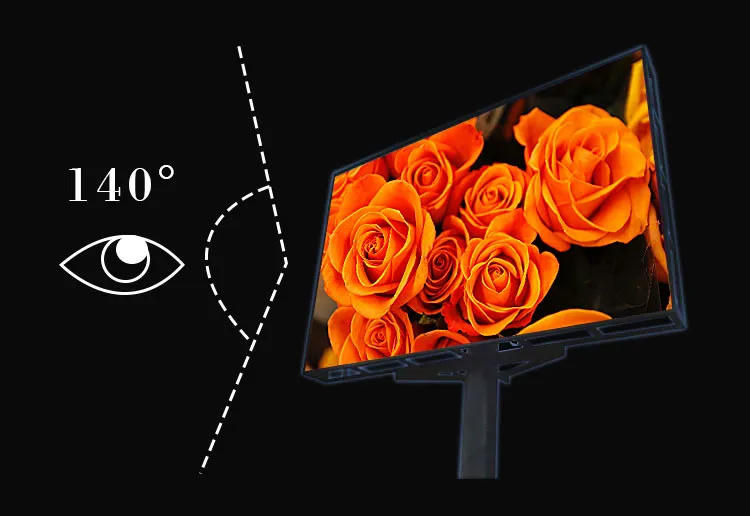

Wide Viewing Angle
Providing a 140° horizontal and vertical viewing angle, the OF-FX Series ensures that audiences enjoy clear and vibrant visuals from virtually any perspective. This ultra-wide angle maximizes the screen’s impact, especially in busy outdoor locations.
Vivid Colors and High Refresh Rate
The use of SMD 3-in-1 LED technology, combined with a high refresh rate and high contrast, delivers vivid color performance and stunning image clarity. These features make the OF-FX Series a perfect choice for dynamic advertisements and immersive audience experiences.
Energy Efficiency
Compared to traditional DIP products, the OF-FX Series reduces energy consumption by up to 45%, leading to lower operational costs and a higher return on investment. This energy-saving capability is further enhanced by the four-fan cooling design, which ensures excellent heat dissipation.

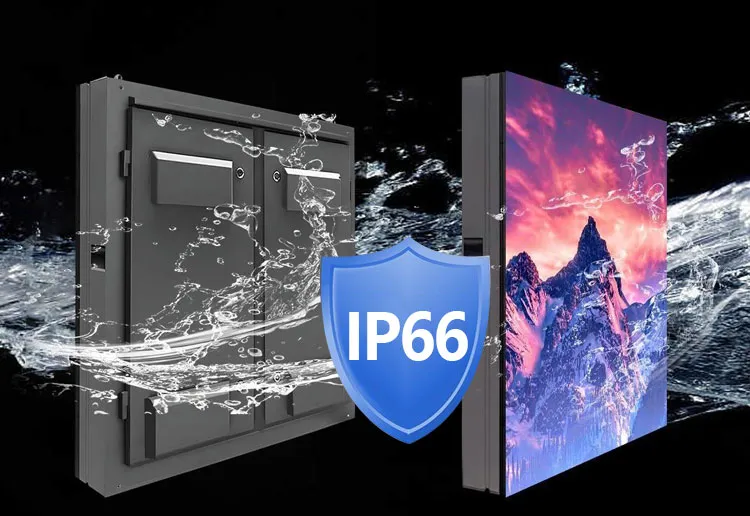

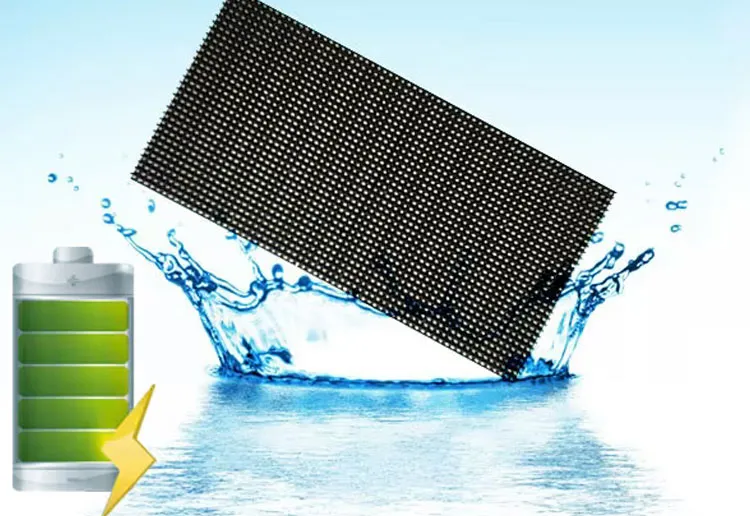

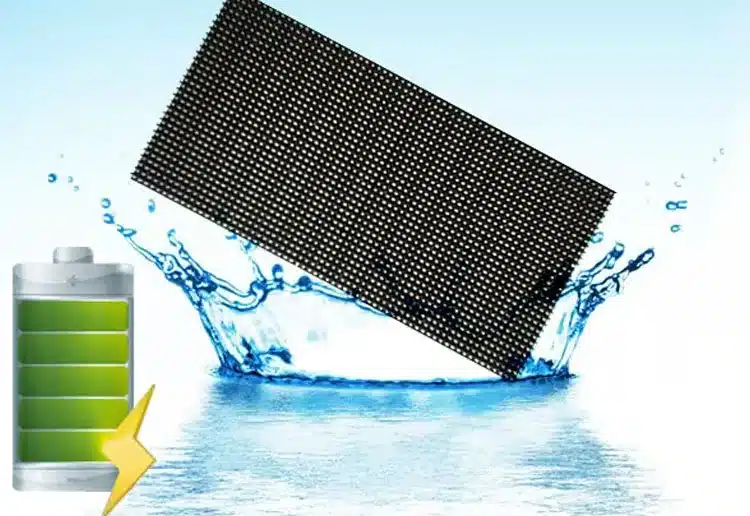

High IP Rating IP66- Safe and Reliable
The special waterproof design of LED screen protects it from water and dust. When installed in outdoor areas, protection is a serious matter. Special guard protects it from environment dangers. High IP Rating lP66 ensures great quality outputs in every condition.
Compared to other DIP products, our product saves energy by 45%, leading to lower operational costs and higher ROI.

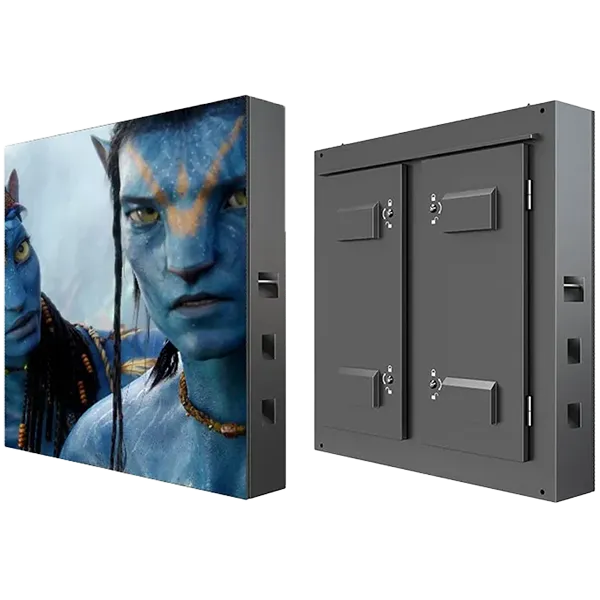

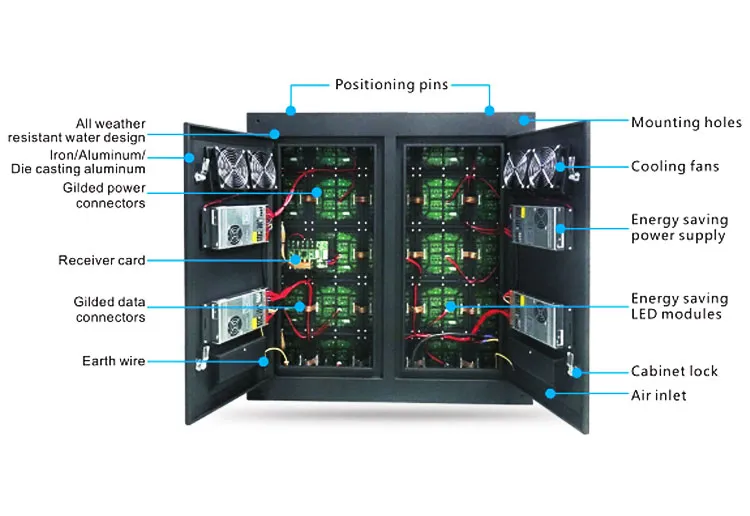

Outdoor LED Screen Display Panel Structures

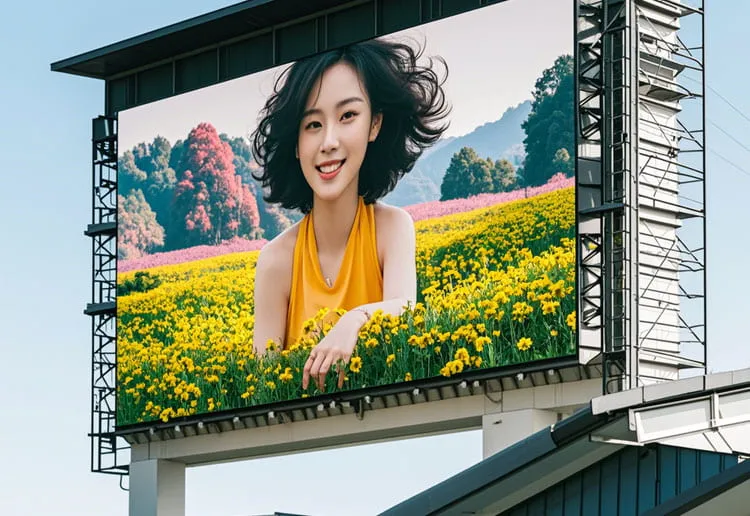

Outdoor LED Screen Display Excellent Display Effect
Amazing dynamic LED screen display
OF-FX series provides vivid display effects and realistic color performance with SMD technology, high brightness, high refresh rate, and high contrast.

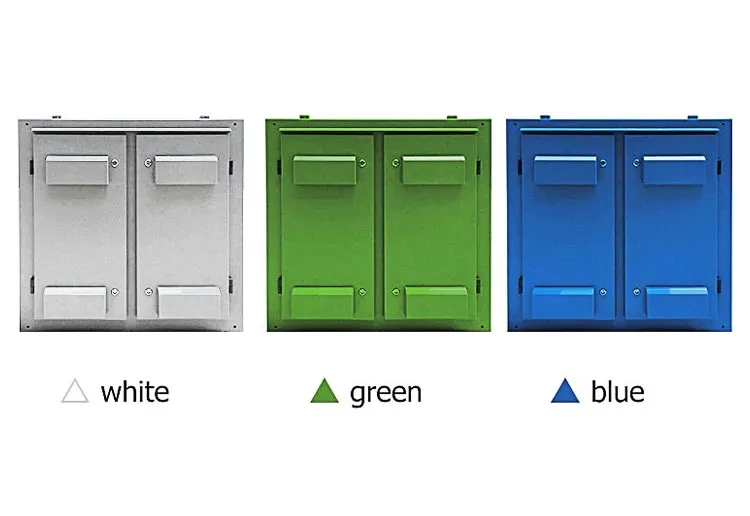

Outdoor LED Panel Color Customization
Personalized customization, multiple colors can be selected.

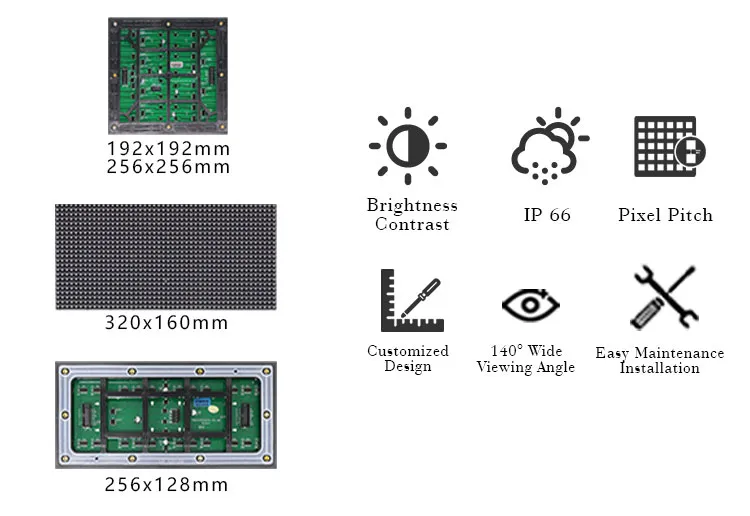

Support Various Modules, Easy Upgrade
Based on 320×160mm 256×128mm192 ×192mm 256 ×256mm universal module design, you can easily upgrade the screen with different pixel pitches without replacing the steel structure; bilateral door design leaves more operating space, can reach convenient and fast maintenance.

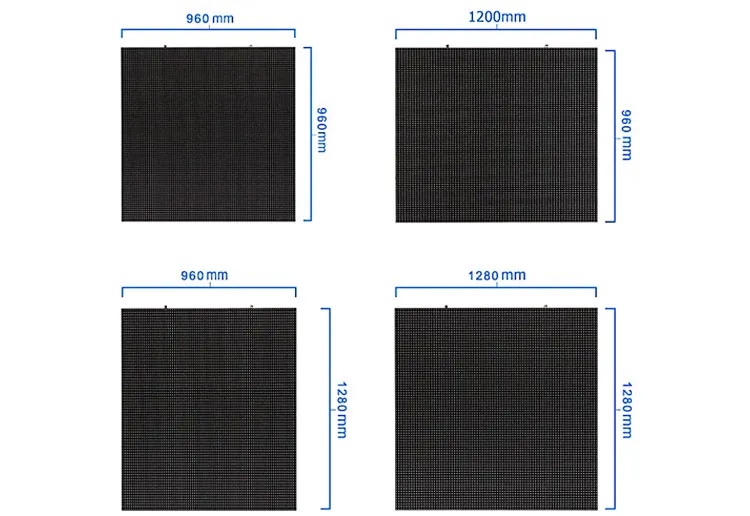

Customized Size
Outdoor fixed LED display video wall has high brightness, high refresh rate, high contrast, P2, P2.5, P3.076, P3.91, P4, P4.81, P5, P6, P8, P10. Various sizes are available 960*960mm, 960*1280mm, 1280*1280mm, 1280*960mm, 960*800mm, 800*960mm, etc.

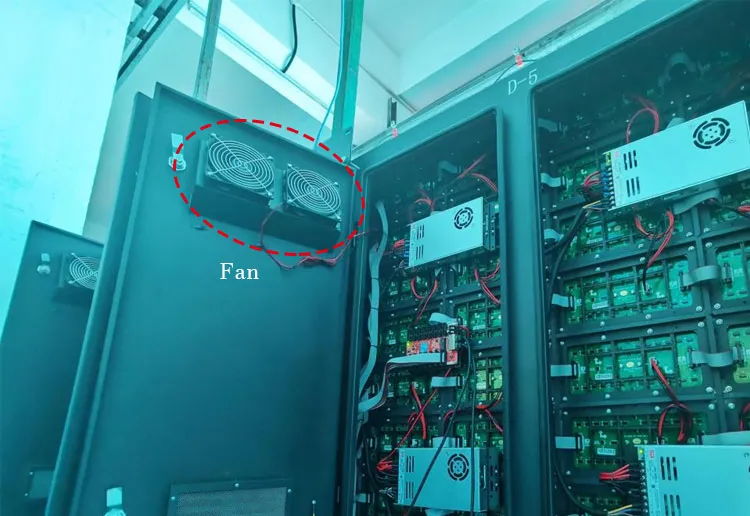

Excellent Heat Dissipation Design

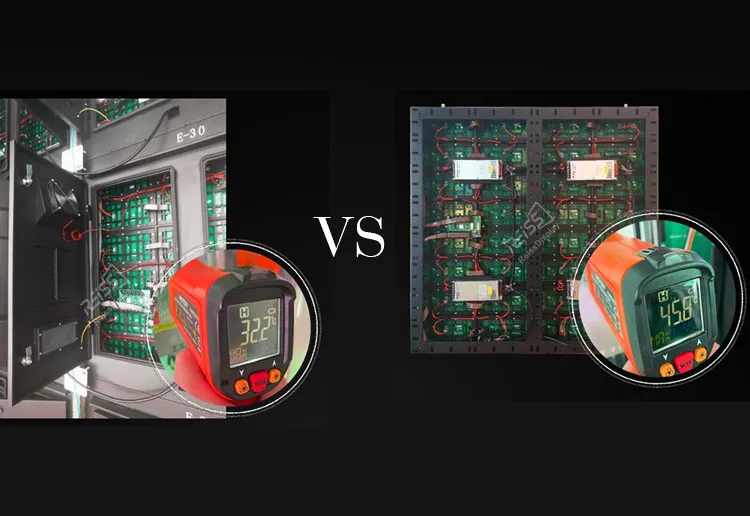

Low Temperature Technology
High Definition
All Weather Durability

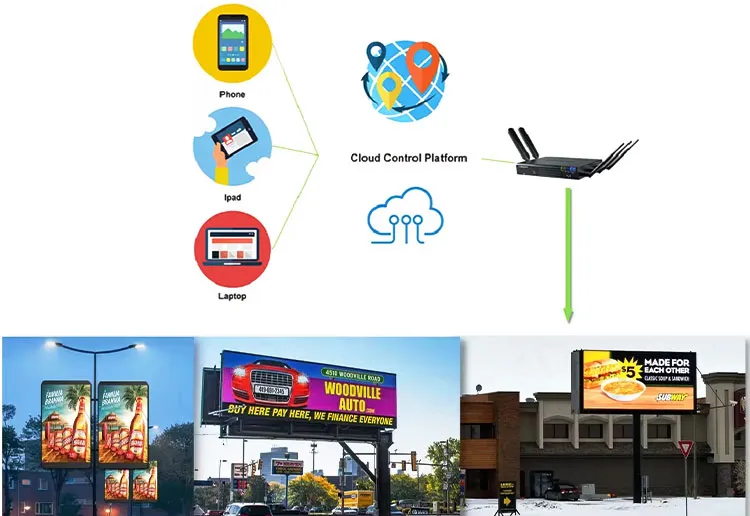

Intelligent Control Systems

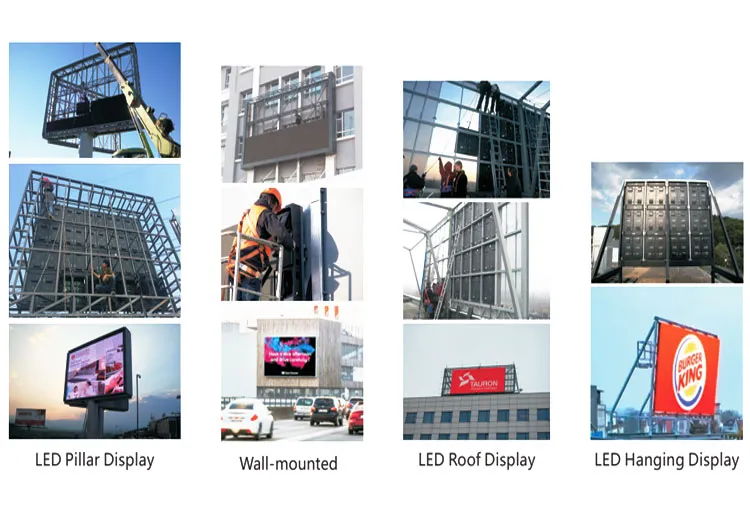

Outdoor LED Screen Display Multiple Installation Types
There are 5 main installation methods for outdoor LED displays, namely:
· Wall mounting
· Column mounting
· Ground mounting
· Suspension mounting
· Vehicle mounting

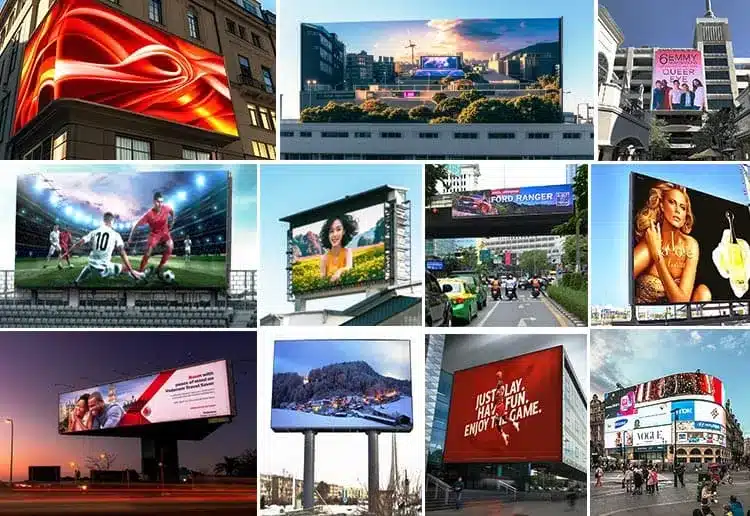

Outdoor LED Display for Different Scenes
Application Cases

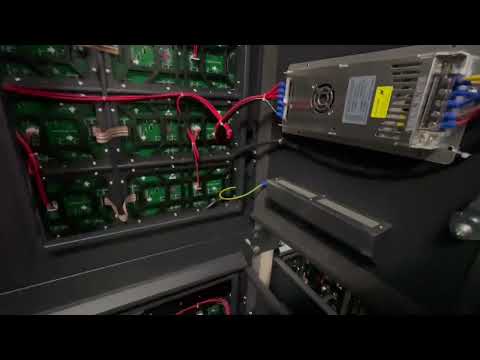

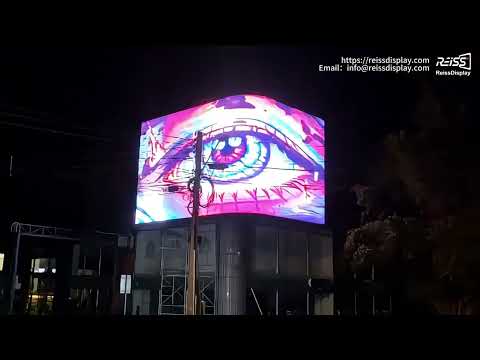

Application and Installation Videos
Specifications
| Model | P2.5 | P2.976 | P3 | P3.91 | P4 | P4.81 | P5 | P6 | P8 | P10 |
| Module size(mm) | 320×160 | 250×250 | 192×192 | 250×250 | 320×160 | 250×250 | 320×160 | 192×192 | 320×160 | 320×160 |
| Module resolution (dot) | 64×64 | 84×84 | 64×64 | 64×64 | 80×40 | 80×40 | 64×32 | 32×32 | 40×20 | 32×16 |
| Scanning | 1/16S | 1/21S | 1/16S | 1/16S | 1/20S | 1/13S | 1/8S | 1/8S | 1/5S | 1/2S |
| SMD | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B | 1G1R1B |
| Maintenance | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front | Rear/Front |
| Installation | Back | Back | Back | Back | Back | Back | Back | Back | Back | Back |
| Cabinet size(mm) | 960×960 | 1000×1000 | 960×960 | 1000×1000 | 960×960 | 1000×1000 | 960×960 | 960×960 | 960×960 | 960×960 |
| Density(dot/㎡) | 160000 | 112896 | 111111 | 65410 | 62500 | 62500 | 40000 | 27777 | 15625 | 10000 |
| Brightness(cd/㎡) | 4200-4500 | 3500 | 4200-4500 | 3500 | 5000-6500 | 5000-6500 | 5000-6000 | 5000-6000 | 4000-5000 | 6000-7500 |
| Max. Power Consumption | 1000 | 1000 | 1000 | 1000 | 900 | 900 | 800 | 800 | 800 | 1000 |
| Average Power Consumption | 350 | 350 | 350 | 350 | 300 | 300 | 400 | 300 | 300 | 500 |
| Cabinet weight (kg/m²) | 35kg | |||||||||
| Cabinet material | Iron | |||||||||
| IP rate | IP 66 | |||||||||
| Grayscale | 10000:1 | |||||||||
| Refresh rate(hz) | 1920 / 3840 optional | |||||||||
| Frame change frequency | 50/60hz | |||||||||
| Horizontal viewing angle | >140° | |||||||||
| Vertical viewing angle | >140° | |||||||||
| Best viewing distance | >2.5m | >3m | >3m | >3m | >4m | >4m | >5m | >6m | >8m | >10m |
| Input Voltage | AC110V – AC220V | |||||||||
| Module Max. current | 4.5-5.5 | 4.5-5.5 | 4.5-5.5 | 4.5-5.5 | 5.5-7.5 | 5.5-7.5 | 5.5-7.5 | 3.5-5.5 | 5.5-7.0 | 8.0-10 |
| Temperature-operating | ﹣10℃～60℃ | |||||||||
| Humidity-operating | 10%～90% | |||||||||
| Life span (H) | ≥100,000 | |||||||||
| MTBF (H) | >10,000 | |||||||||

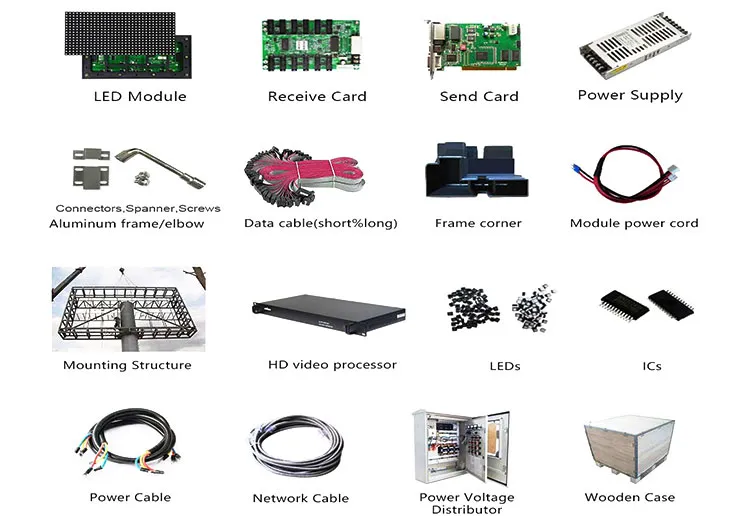

Configuration
