Front Service Double Sided LED Display Cabinet
Pixel Piitch :2.5mm 3mm 4mm 5mm 6mm 8mm 10mm
√ Easy to maintain
√ Saving Space
√ IP-65 Waterproof
√ Fixed or Rental Use
√ Size Customized
High-quality Double Sided LED Display Manufacturers

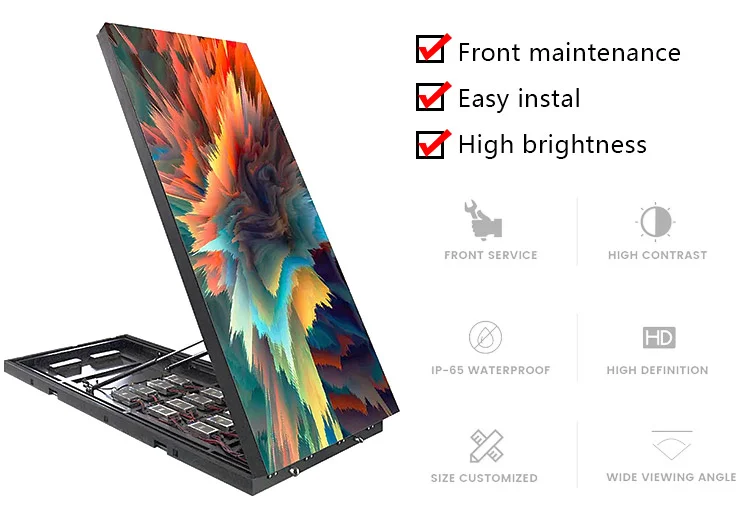

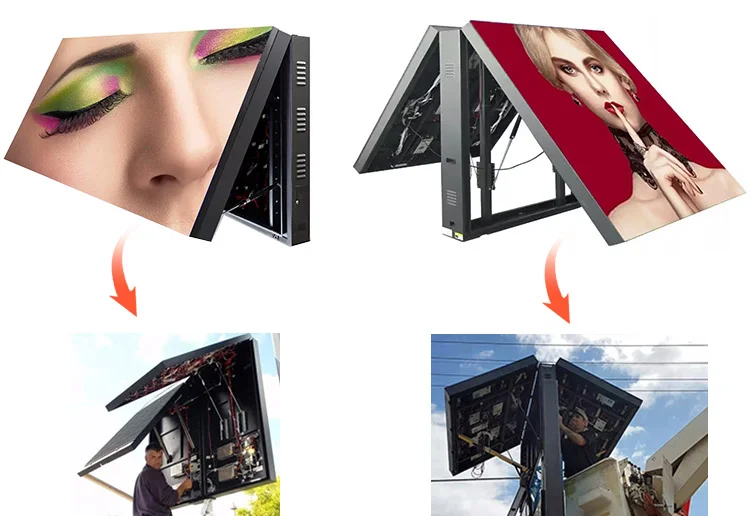

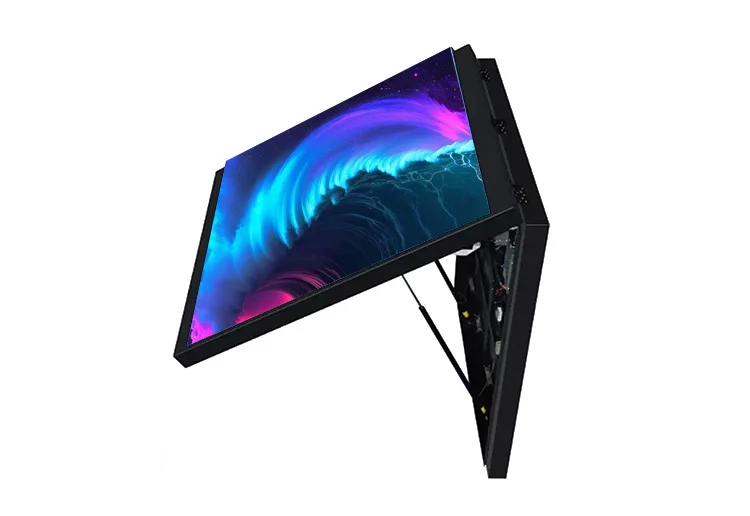

This cabinet provides a flexible way to access your screen, module, control system, power supply or any other component. double-sided LED screen can access it from the front. It facilitates your maintenance and helps to make full use of the installation space.
Although the double-sided front opening LED display brings many possibilities to different projects. But the thickness of the cabinet and the requirements for the installation environment also violate the demand of some projects. So a front maintenance module is produced to achieve the full front maintenance of the LED screen.
The double-sided transparent LED screen adopts a new structural design, and the common installation methods are wall-mounted or embedded. Usually, the average weight of a single box is only 10KG, which is light and portable and can be easily installed by one person. Within the load-bearing range, the two sides can display the same picture or different pictures.
140-degree Wide Viewing Angle
The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

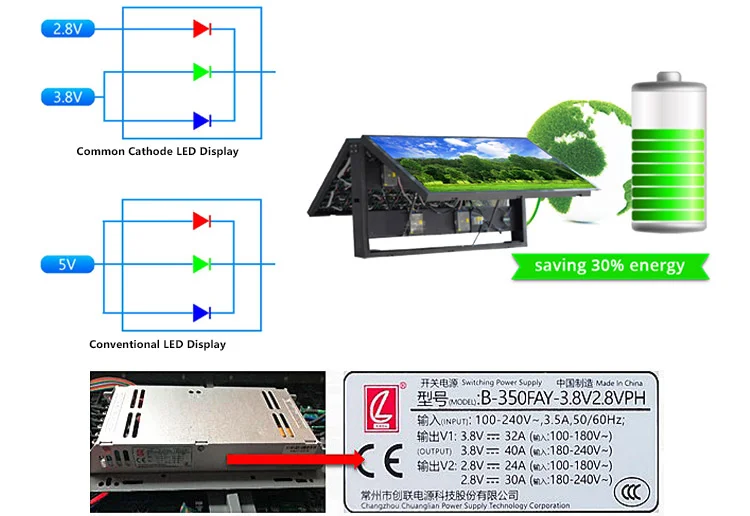

Outdoor Double-sided LED Display Energy Saving Cabinet
The double-sided LED screen, Advanced common cathode technology with highly efficient ICs can reduce 30%~60% power consumption than conventionalpanels.

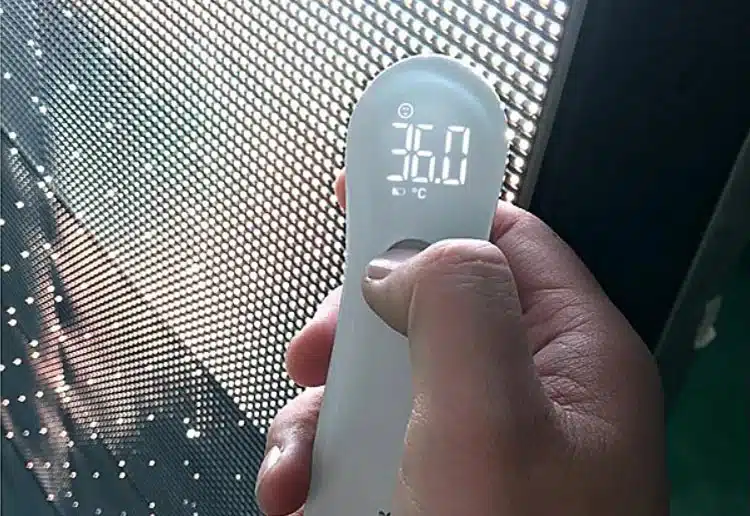

Super Cold and Heat Resistant
It will also greatly reduce the surface temperature lower to 36°, protecting all components from failure caused by high temperature.
Double Sided LED Display Lighter & Thinner
45~60kg/sqm, Lightweight design and safe on the wall no matter brick or cement wall.

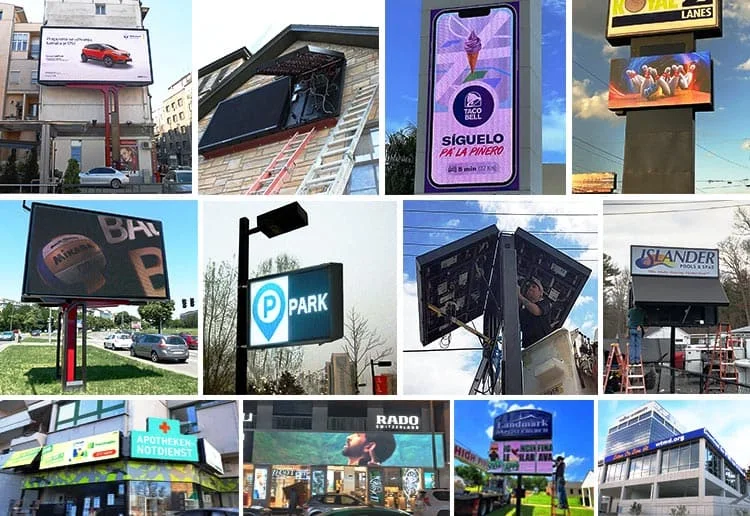

Outdoor Double Sided LED Display Wide Applcations
Seamless Splicing Outdoor LED Video Panels

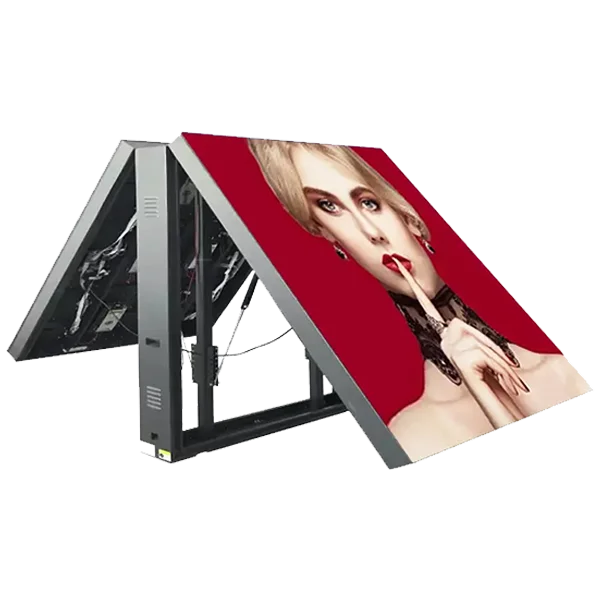

There wil be single front open and double-sided for options. Single one mainly for wall mounted, and double sided is best for billboard on poles.

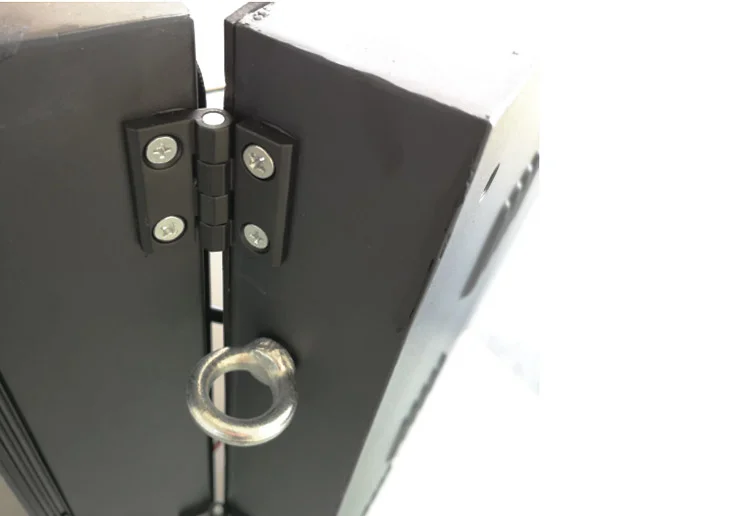

Solid Reliability
Reinforcing ribadditional design to greatly improve the loading capacity.

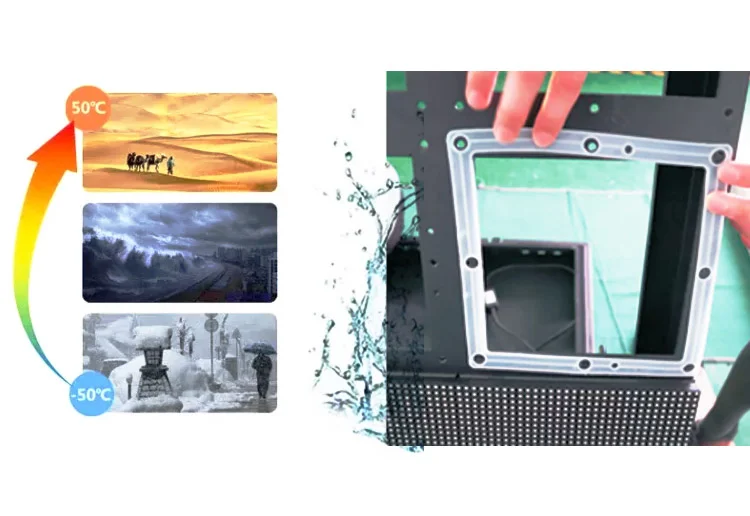

IP-65 Weather Rating
Special treatment of protection rating with IP65/lP54, fully waterproof panel. The ability to adapt to the environment is very strong, and it can work outdoors all day long.
Superb Visuals Outdoor Screen
P4 and p6 are recommended with more pixel density per sqm with outstanding image quality. Stunning full color video screens with high resolution.

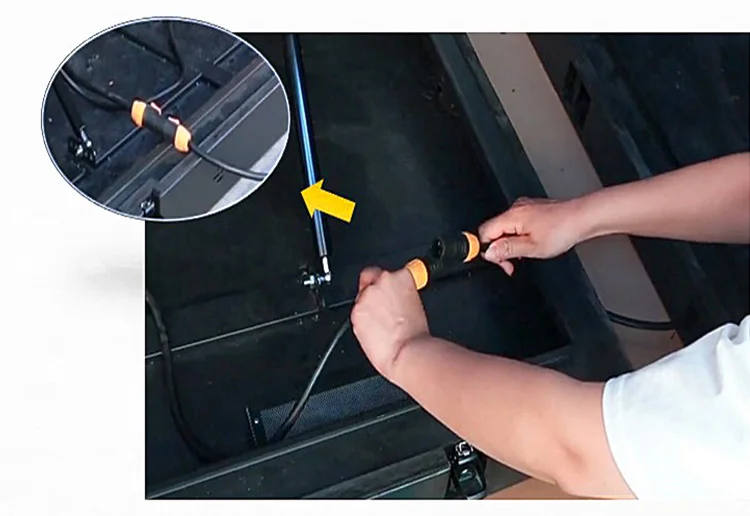

Outdoor Double-sided LED Display Fast Assembly
Power cable connector replacing the traditional power cable terminal connections. Fast assembly and will be safe from electric shock caused by improper operation.
Adjustable Auto-brightness
√ matic adjustable brightness with light sensor, money-saving.
√ Offer comfortable vision experience.
√ Offer comfortable vision experience.

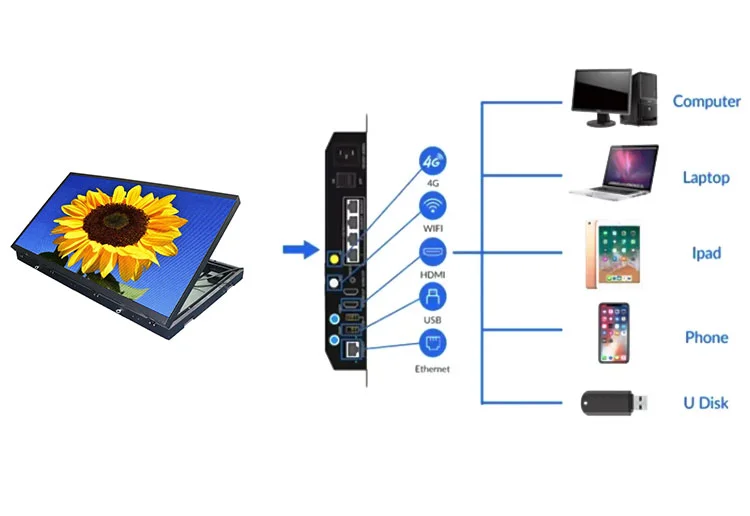

Easy Control Via WlF
Support PC, mobile phone, laptop, USB drive. Can be controlled wirelessly, easily configure your screen.
Applications
Allow customizing different sizes & right-angle splicing
OES-DS series LED panels support right-angle installation.
With the OES-DS series LED rounded corner panels, users can easily build outdoor 3D screens and deliver stunning video content to their audiences.
OES-DS series LED panels support right-angle installation.
With the OES-DS series LED rounded corner panels, users can easily build outdoor 3D screens and deliver stunning video content to their audiences.
Application Cases
Cleaning the outdoor advertising LED display
" Customer Testimonials:
Cleaning Outdoor Advertising LED display Why it is important to clean the outdoor LED display screen? It is important to clean the outdoor LED display screen regularly after screen installation. In outdoor environment, weather is always changing with day and night, rainy and sunny day. With changing environment makes changing temperature which also carry dust, […]
Application and Installation Videos
Specifications
| Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Module Size | 320*160mm | 192*192mm | 256*128mm | 320*160mm | 192*192mm |
| Module Resolution | 128*64 | 64*64 | 64*32 | 64*32 | 32*32 |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Brightness | 5000 Nits | 5500 Nits | 5500 Nits | 6000 Nits | 7000 Nits |
| Pixel Density/m2 | 160000 | 111111 | 62500 | 40000 | 27777 |
| Driving Method | 1/16 Scan | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/4 Scan |
| Optimal View Distance | 2-8m | 3-10m | 4-13m | 5-16m | 6-20m |
| Avg. Power | 430W/m2 | 460W/m2 | 500W/m2 | 310W/m2 | 350W/m2 |
| Max. Power | 950W/m2 | 980W/m2 | 1100W/m2 | 700W/m2 | 780W/m2 |
| IC | MBI5124 / ICN2153 | ||||
| Refresh Rate | 1920-3840Hz | ||||
| Brightness Control | 256 Grade/Each Color | ||||
| View Angle | 140° | ||||
| Ingress Protection | IP65 | ||||
| Input Voltage | AC110/220V, 50/60Hz | ||||
| Operating Temp. | -30℃~60℃ | ||||
| Gross Weight | 50Kg/m2 | ||||
| Life Span | 100000 Hours | ||||
