Outdoor Fixed and Rental Advertising Digital Signage Signs Display Installation Solution
REISSDISPLAY OES-640D series advertising digital signage signs display has a standard size of 640x640mm, a high-performance display solution designed for indoor and outdoor rental applications. It has high resolution, clear visual effects. The OES-640D Series aluminum cabinet is not only light and robust, but also easy to transport and set up. This screen is at least ideal for various wishes and advertising needs, providing a vibrant and dynamic visual presentation.

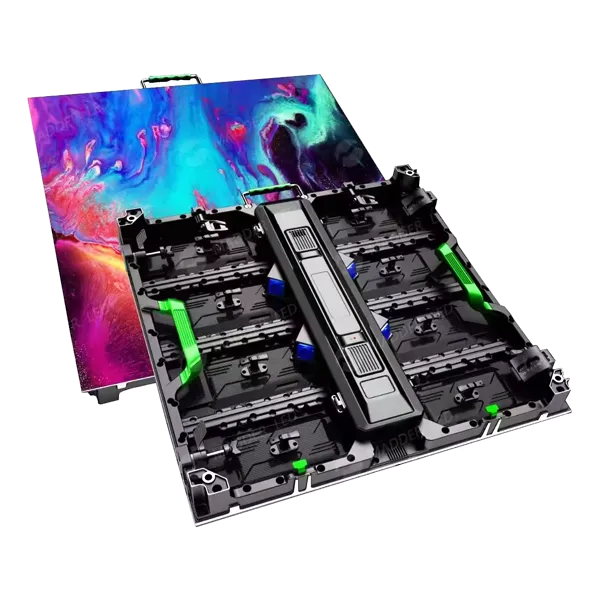

OES-640D Series LED Billboard Advertising Digital Signage Signs Display Solution
Providing you with excellent performance and durability.
√ High refresh rate and brightness
√ Front & rear maintenance supported
√ Lightweight design
√ All-in-one power unit
√ Maintenance channel free, quick replacement of modules and power supply
√ 16-bit grayscale processing,
√ Super viewing angle
Perfect Cabinet Of Advertising Digital Signage Signs Display
● Indoor and outdoor use
● Thoughtful corner protectors and handles designed for a better experience
● Excellent appearance for a better visual experience
● 99.9% universal 320mm module provides a good economic return

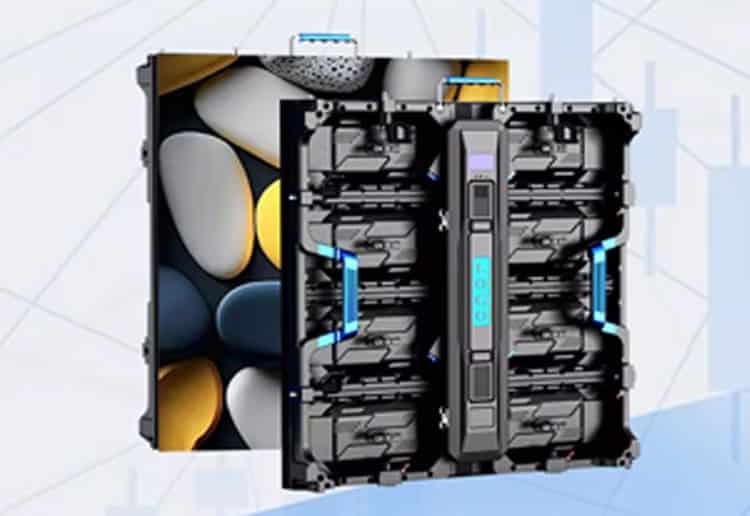

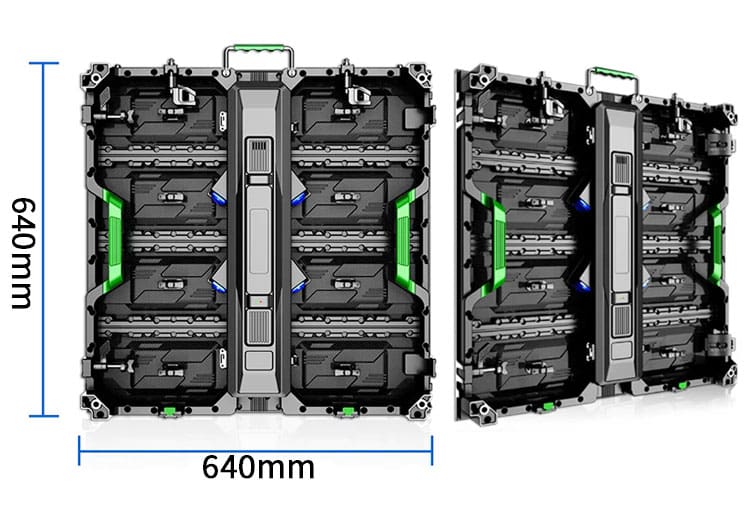

640×640 Die-Cast Aluminum Cabinet
●P1.25/p1.538/p1.667/p1.86/p2/p2.5/3/p3.076/p4/p5/p5/p6.67/p8
● Module size: 320*160mm/160*160mm
●Maintenance: front maintenance with hub plate
●Function: clever design supports 99.9% of 320*160mm modules on the market
Reficite rate

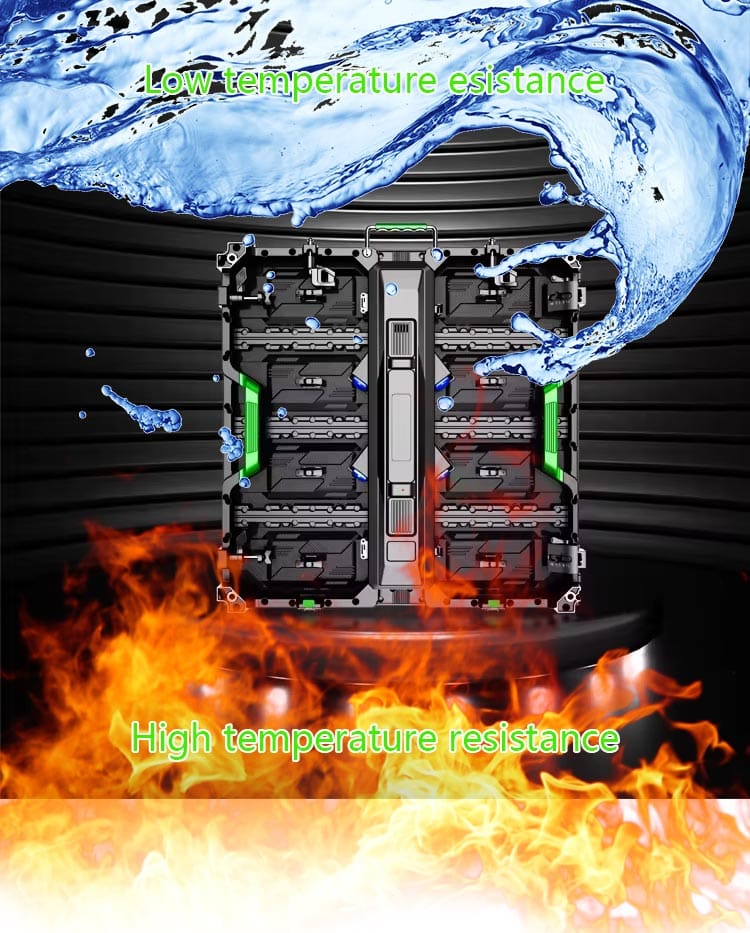

Fully Waterproof Design Function in Outdoor Displays
Ensuring its durability and reliability in a variety of environmental conditions is critical. This feature protects internal components from water ingress, dust, and other environmental factors, making it ideal for outdoor applications.
Strong adaptability

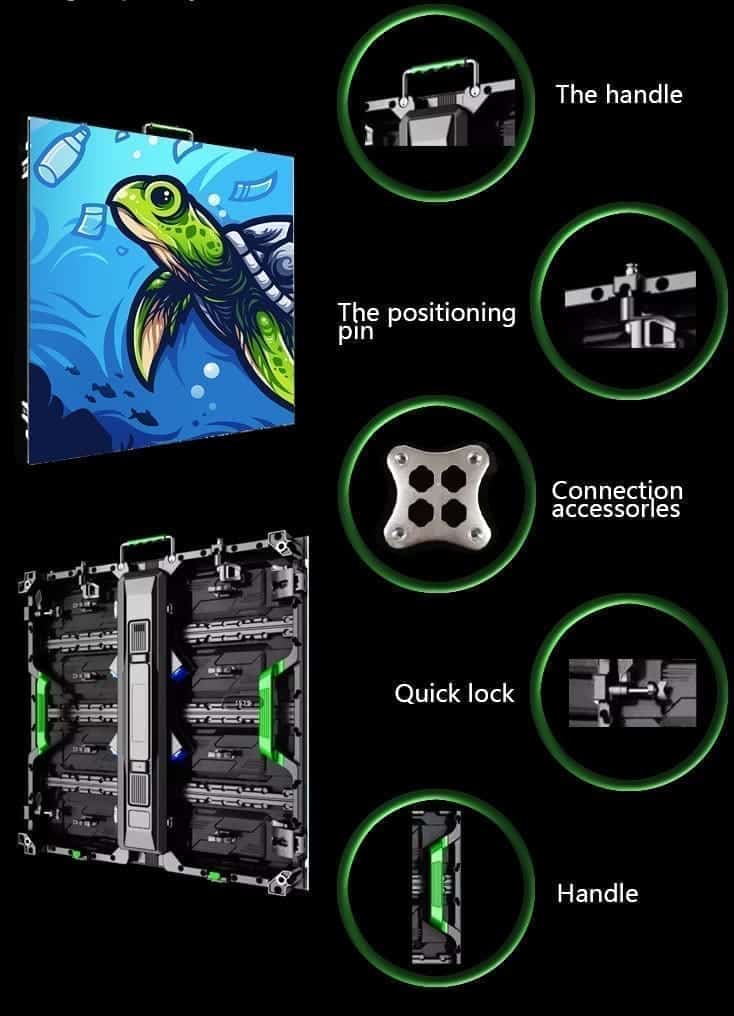

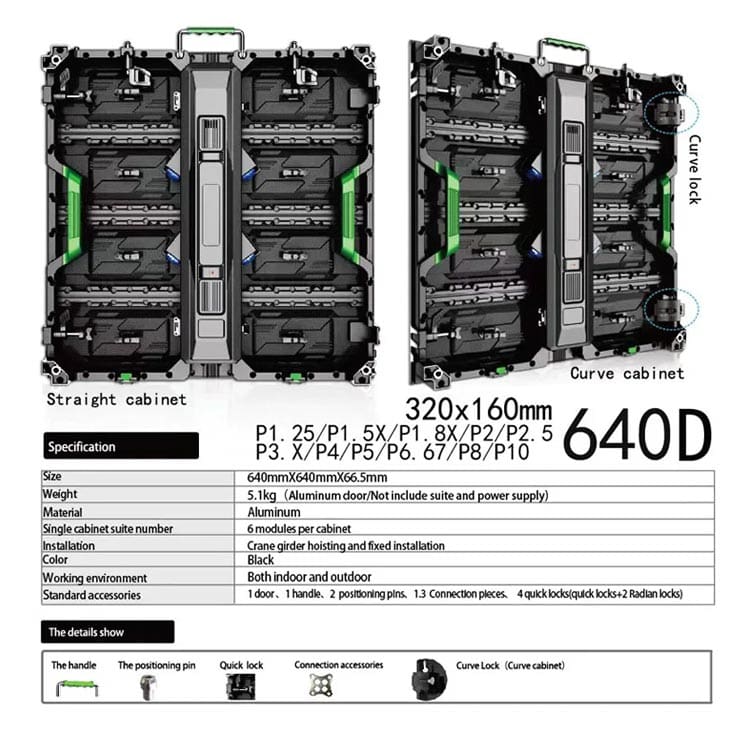

Details Show

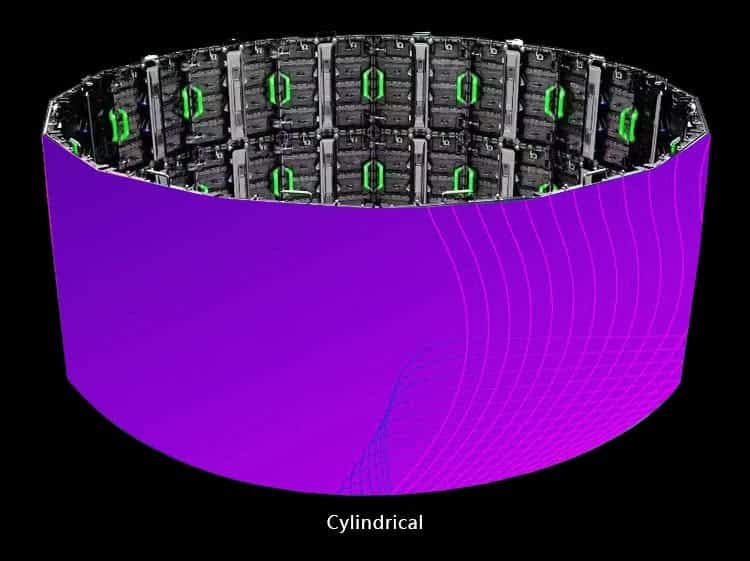

Cylindrical

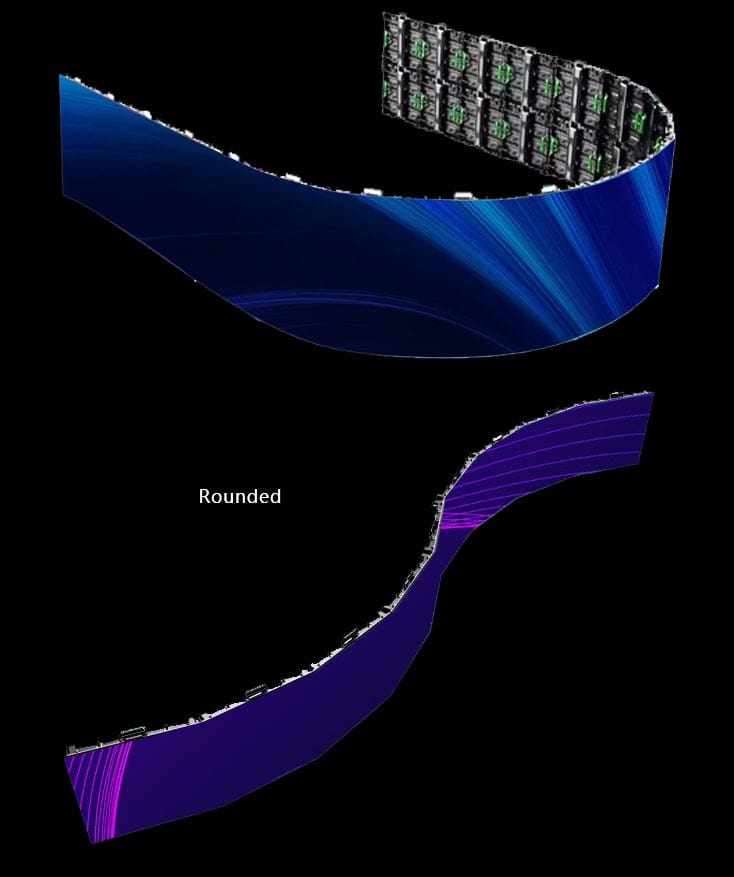

Rounded
High brightness Advertising Digital Signage Signs Display
Various Installation Methods for Advertising Digital Signage Signs Display
Advertising digital signage signs display offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.
· Billboard
· Gas Station
· Shopping Mall
· DOOH (Sports)
· Spectacular
· Transit Area
· Street furniture
· Events

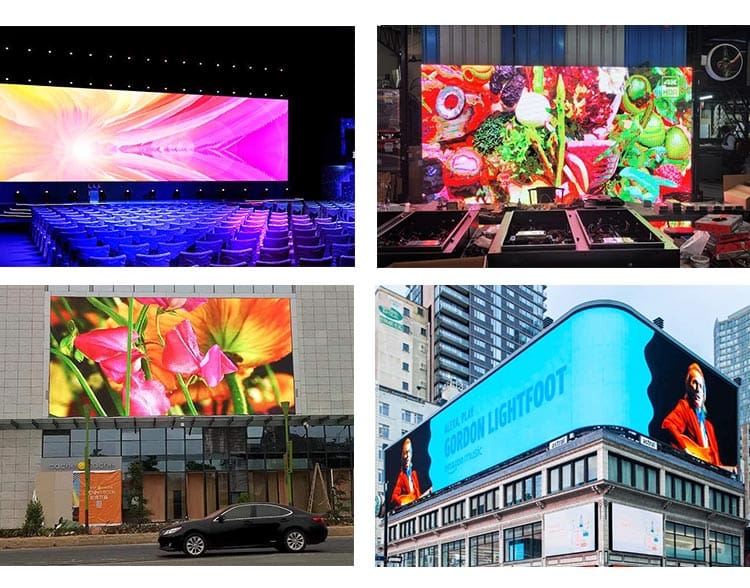

Application Cases
Application and Installation Videos
Application Videos
Application Videos
Specifications
| Outdoor Fixed and Rental Installation Solution | ||||||||
| OES-640D Series | ||||||||
| Pixel Pitch | P3.076 | P4 | P5 | P6.67 | P8 | P10 | ||
| LED Type | SMD1921 | SMD1921 | SMD1921 | SMD2727 | SMD2727/3535 | SMD2727/3535 | ||
| Physical Density (dots/m²) | 105625 | 62500 | 40000 | 22500 | 15625 | 10000 | ||
| Module Resolution | 104×52 | 80×40 | 64×32 | 48×24 | 40×20 | 32×16 | ||
| Module Size(WxH) | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | 320×160 | ||
| Cabinet Size(mm) | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | 640×640×66.5 | ||
| Cabinet Resolution | 208×208 | 160×160 | 128×128 | 96×96 | 80×80 | 64×64 | ||
| Cabinet Weight(kg) | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | 13.5 | ||
| Maintenance Mode | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | Front&Back maintenance | ||
| Cabinet Material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | ||
| Brightness | ≥5500cd | ≥5500cd | ≥5500cd | ≥5500cd | ≥5500cd | ≥5500cd | ||
| Color Temperature(K) | 5000-9300 Adjustable | 5000-9300 Adjustable | 5000-9300 Adjustable | 5000-9300 Adjustable | 5000-9300 Adjustable | 5000-9300 Adjustable | ||
| Viewing angle(H/V) | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | 140°/140° | ||
| The best viewing distance | ≥3m | ≥4m | ≥5m | ≥6.6m | ≥8m | ≥10m | ||
| Drive Mode | Static,1/13 Scan | Static,1/10 Scan | Static,1/8 Scan | Static,1/6 Scan | Static,1/5 Scan | Static,1/2 Scan | ||
| Grey Level | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | 16 bit | ||
| Refresh Rate(Hz) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | ||
| Max Power Consumption(W/m²) | 900 | 900 | 900 | 900 | 900 | 900 | ||
| Average Power Consumption(W/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | ||
| IP Grade | IP65 | IP65 | IP65 | IP 65 | IP65 | IP65 | ||
| Input Power | AC90-264V,47-63 Hz | |||||||
| Working Temperature/Humidity (℃/RH) | -20-60℃/10%-90% | |||||||
| Storage Temperature/Humidity (℃/RH) | -30-70℃/10%-90% | |||||||

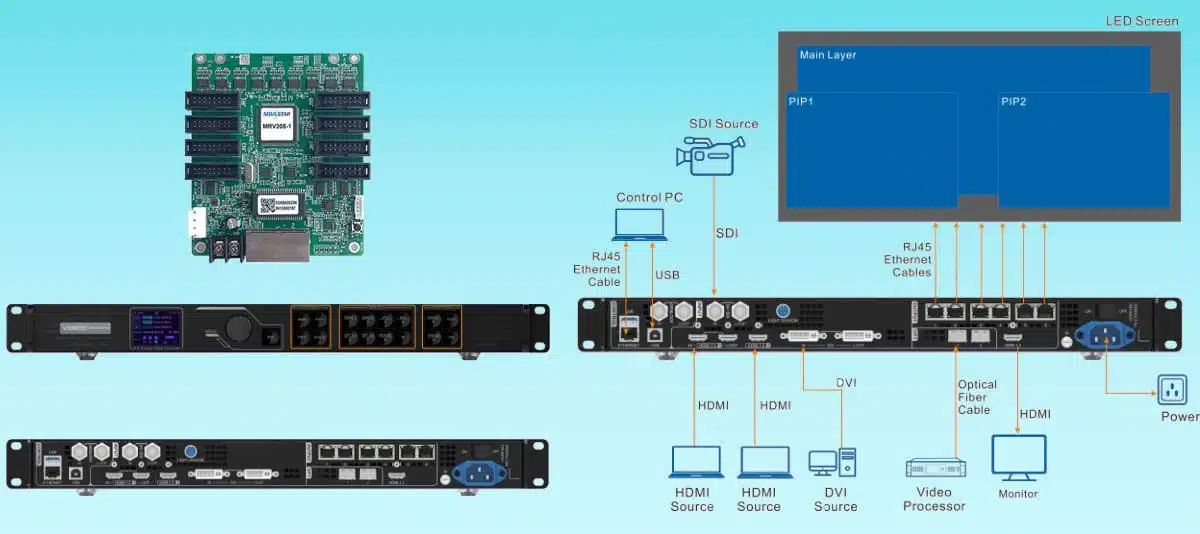

Configuration
