Perfect Design for LED Advertising Billboard

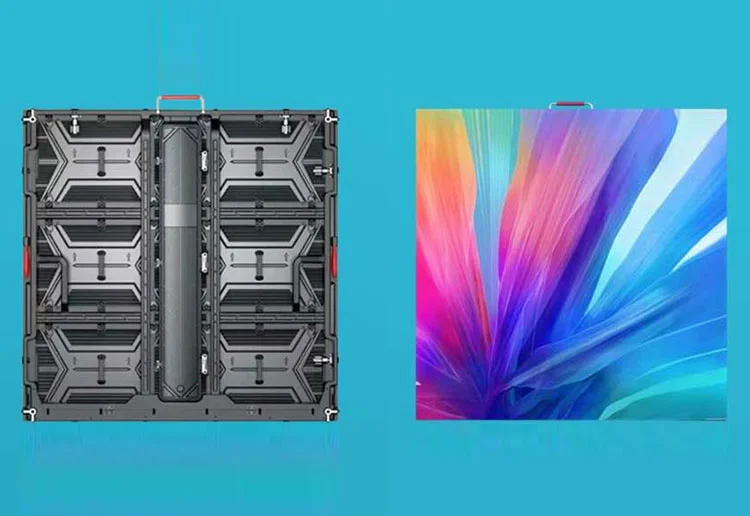

Cabinet Design:
960×960mm aluminum cabinet, with magnesium alloy for lightweight construction.
Modules and shells are designed with high-precision aluminum alloy for seamless assembly.
Efficient Installation:
Quick-lock systems enable fast installation, saving time and manpower.
Easy front and rear maintenance, reducing installation and service costs.
Durable and Reliable:
Excellent heat dissipation ensures long-lasting performance for circuits and modules.
Fully waterproof with IP66 protection, shielding components from dust, water, and other environmental factors.
Ultra-Thin and Lightweight:

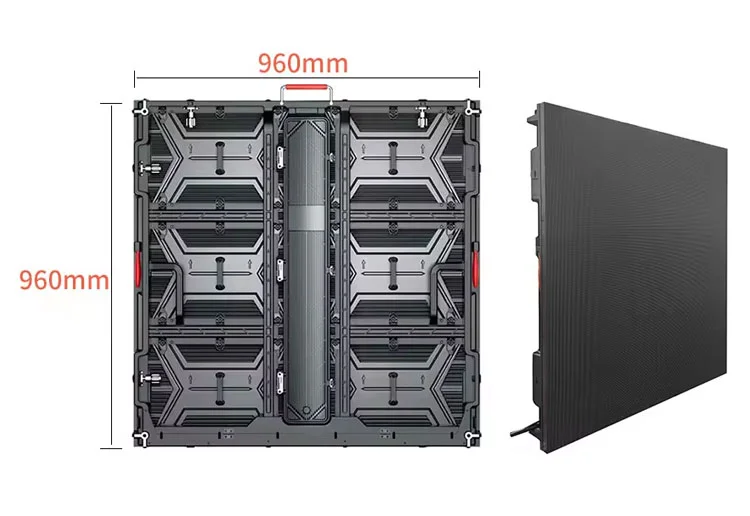

Cabinet dimensions: 960×960×94mm.
Lightweight design enhances usability and simplifies installation, especially for outdoor environments.
Wide Viewing Angle and Seamless Display

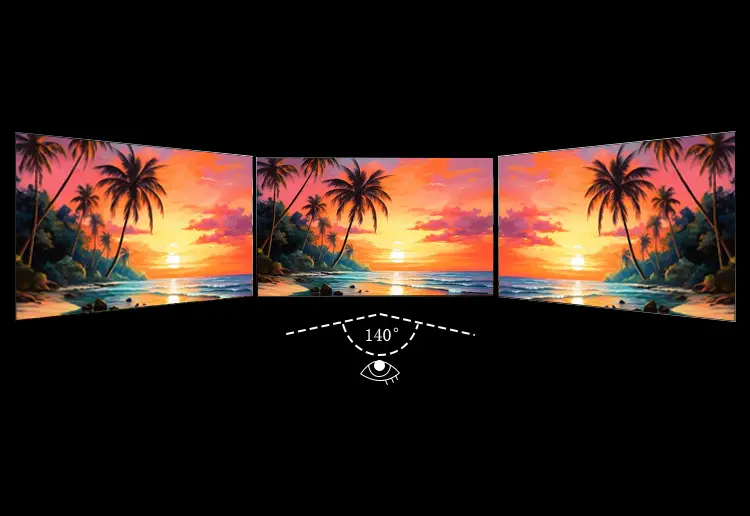

140° Viewing Angle:
Both vertical and horizontal viewing angles ensure clear and natural images from all directions, maximizing audience engagement.
Flawless Alignment:
High-precision engineering ensures seamless connections and perfectly flat displays, minimizing visual distortions.

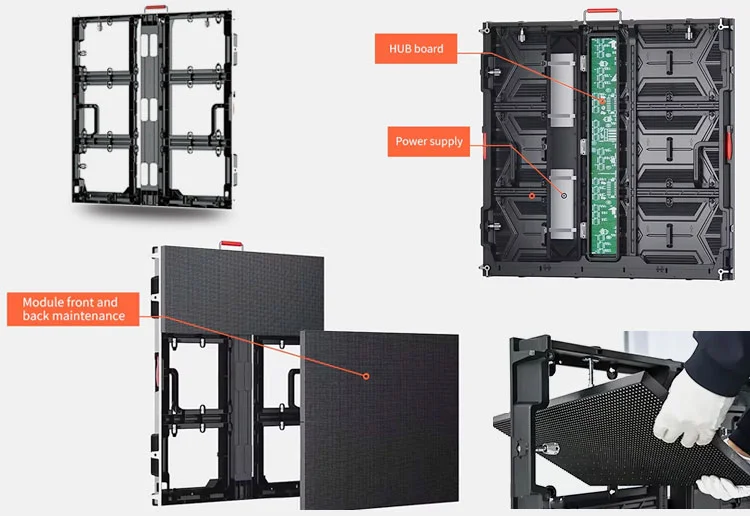

Effortless Maintenance with Front and Rear Access
Dual Maintenance Options:
Fully sealed modules support both front and rear access, making assembly, disassembly, and repairs simple and efficient.
Modular Design:

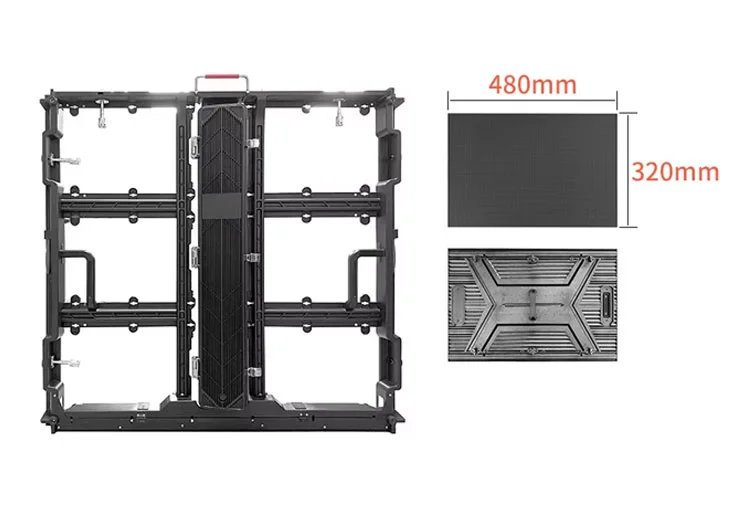

Modules (480×320mm) with pin connections are more stable than ribbon cables, ensuring reliable performance.
Power boxes and modules are designed for quick removal and replacement to reduce downtime.
Ultra-thin and Lightweight Design Features

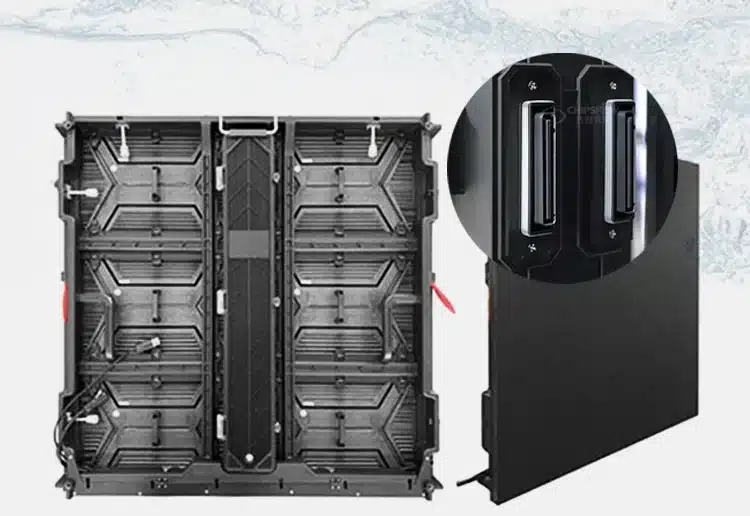

Fully Waterproof Design Function in LED Advertising Billboard
Ensuring its durability and reliability in a variety of environmental conditions is critical. This feature protects internal components from water ingress, dust, and other environmental factors, making it ideal for outdoor applications.

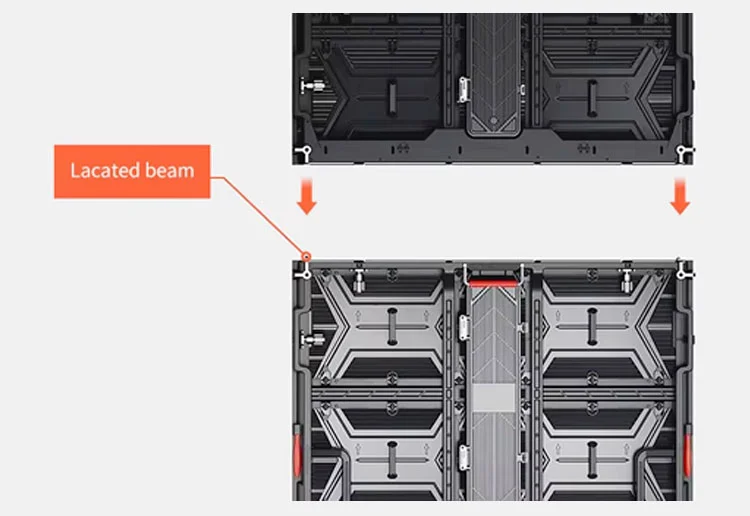

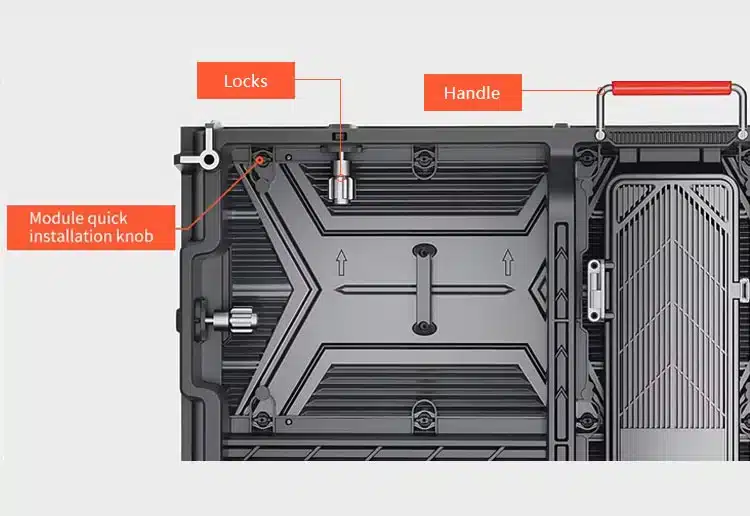

Quick Connection Design Function
LED Module With Hub Pin Design

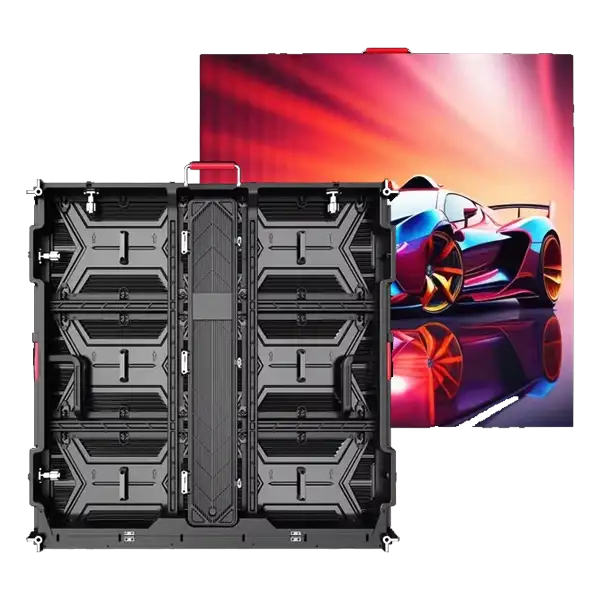

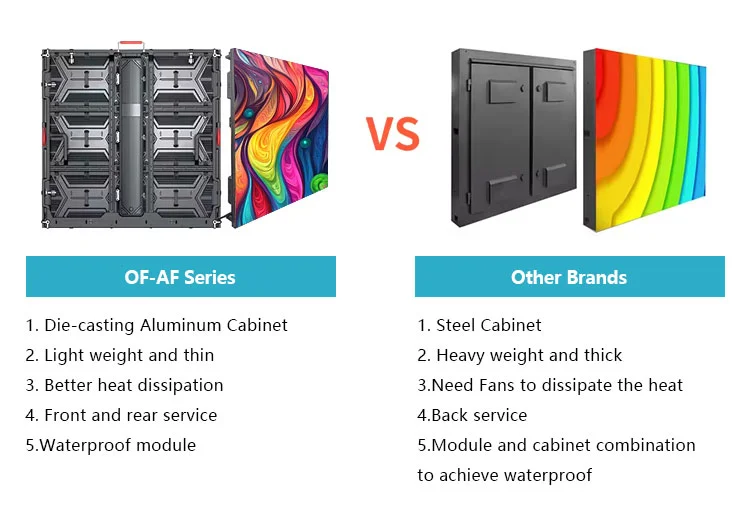

LED Advertising Billboard OF-AF Series Product Features
2.Cable-free connection,the entire control box can be separated, and any panel issue can be quickly replaced without delaying your project;
3.
4.Ladder-style led module back shell design,provides precise locating and evenly distributed pressure to prevent plastic frame deformation, keep stable flatness;
5.The PCB uses an anti-collision design, so the LEDs are not easily damaged during installation and disassembly;
6.The product is easy to maintain; rear and front maintenance; curved joint.
Energy-Saving 30-60%
Energy Efficiency:
Outdoor LED billboards consume 30-60% less energy, making them sustainable for long-term use in advertising, events, and public information systems.
High Grayscale Capability:
Advanced grayscale technology enhances image quality and realism, ensuring vivid and detailed visuals even in challenging lighting conditions.
High-Quality Components:
Equipped with premium LEDs and the latest driving IC technology for stable performance and superior visual output.
High Grayscale in LED Advertising Screen
Flawless Display for LED Advertising Billboard

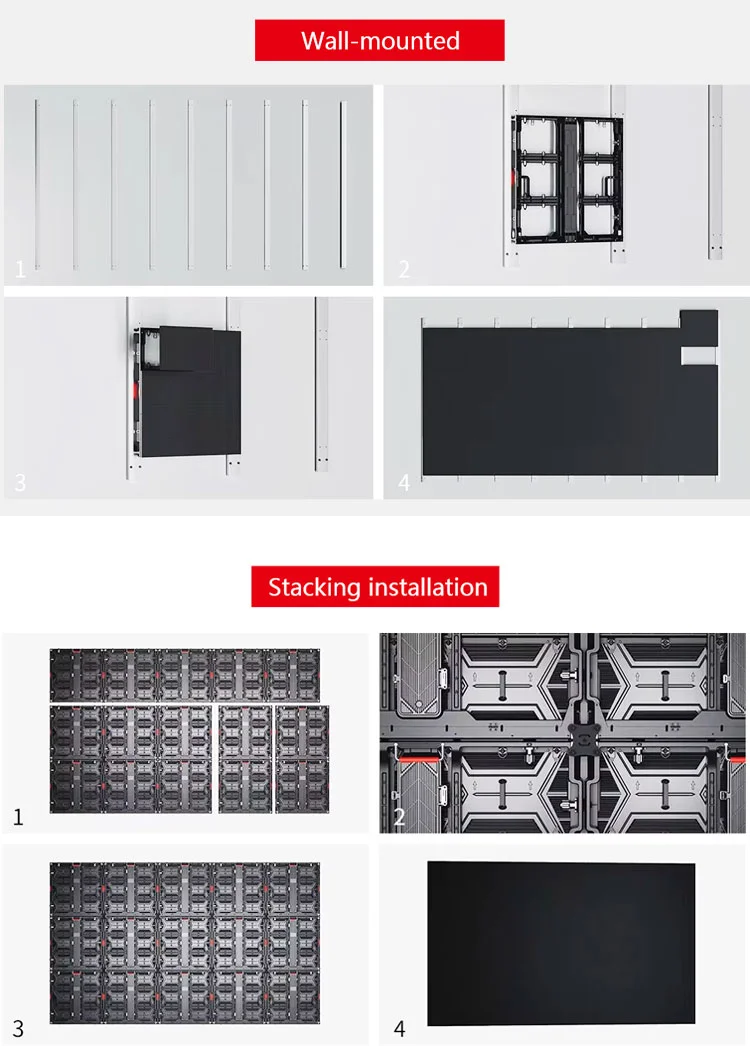

Various Installation Methods

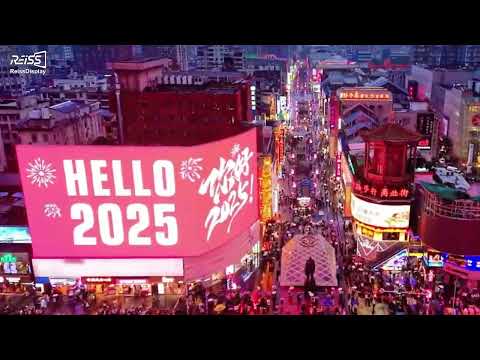

Application Cases
Outdoor LED Screen Price: A Comprehensive Guide
" Customer Testimonials:
Outdoor LED Screen Price Guide 2026: Costs, Features & Buying Tips Outdoor LED screens have revolutionized advertising, sports arenas, and public events. Offering high brightness (5,000+ nits) and weather resistance, these digital displays ensure your message is seen day and night. However, the price of an outdoor LED display varies significantly based on technical specifications. […]
Application and Installation Videos
Specifications
| Specification | P10 | P8 | P6.67 | P4 |
|---|---|---|---|---|
| Pixel Structure | 3in1 SMD | 3in1 SMD | 3in1 SMD | 3in1 SMD |
| Pixel Density (dots/㎡) | 10000 | 15625 | 22545 | 40000 |
| Module Size (mm) | 480 × 320 | 480 × 320 | 480 × 320 | 480 × 320 |
| Module Resolution (dots) | 48 × 32 | 60 × 40 | 72 × 48 | 120 × 80 |
| Cabinet Size (mm) | 960 × 960 | 960 × 960 | 960 × 960 | 960 × 960 |
| Cabinet Resolution (dots) | 96 × 96 | 120 × 120 | 144 × 144 | 192 × 192 |
| Brightness | ≥5500 cd/㎡ | ≥5500 cd/㎡ | ≥5500 cd/㎡ | ≥5500 cd/㎡ |
| Color Temperature | 2000–12500K | 2000–12500K | 2000–12500K | 2000–12500K |
| Viewing Angle (H / V) | 140° / 140° | 140° / 140° | 140° / 140° | 140° / 140° |
| Optimal Viewing Distance | ≥10m | ≥8m | ≥7m | ≥5m |
| Contrast Ratio | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Gray Scale | 14–18 bit | 14–18 bit | 14–18 bit | 14–18 bit |
| Refresh Rate (Hz) | 3840–7680 | 3840–7680 | 3840–7680 | 3840–7680 |
| Lifespan | 100,000h | 100,000h | 100,000h | 100,000h |
| IP Grade | IP66 | IP66 | IP66 | IP66 |
| Working Voltage | DC 4.2–5V | DC 4.2–5V | DC 4.2–5V | DC 4.2–5V |
| Max. Power Consumption (W/㎡) | 800 | 800 | 800 | 800 |
| Min. Power Consumption (W/㎡) | 300 | 300 | 300 | 300 |
| Control System | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
Frequently Asked Questions
1 What is the pixel pitch range of the OF-AF series LED advertising billboard?
The OF-AF series offers P4, P5, P6.67, P8, and P10 pixel pitches, with brightness ≥5500 cd/m² and pixel density up to 40,000 dots/m², suitable for viewing distances from 5m to over 10m.
2 Is the outdoor LED billboard waterproof?
Yes. The cabinet has an IP66 waterproof rating, fully protecting internal components from rain, dust, and other environmental factors, making it reliable for permanent outdoor installation.
3 How is the LED billboard maintained?
The OF-AF series supports both front and rear maintenance. Fully sealed 480×320mm modules with pin connections and detachable power boxes allow quick removal and replacement, minimizing downtime.
4 How much does an outdoor LED advertising billboard cost?
Pricing depends on pixel pitch, total size, and installation method. As a direct factory, REISSDISPLAY provides cost-effective, customized quotes—contact us with your size and location for a fast estimate.
5 What is the lead time and warranty?
Standard lead time is typically 7–15 days depending on order size, and every OF-AF series billboard comes with a 5-year quality warranty and a 100,000-hour lifespan.
6 What installation methods are supported?
The billboard supports multiple installation methods including wall-mounted, pole-mounted, and steel-structure standing frames, selected based on your venue, size, and safety requirements.
