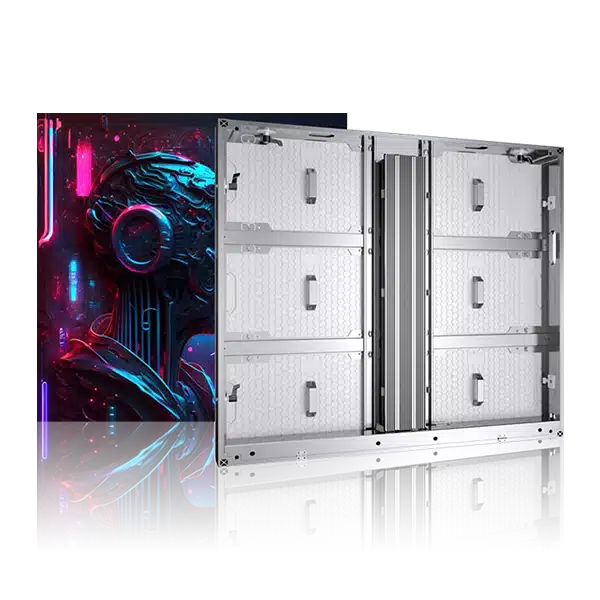

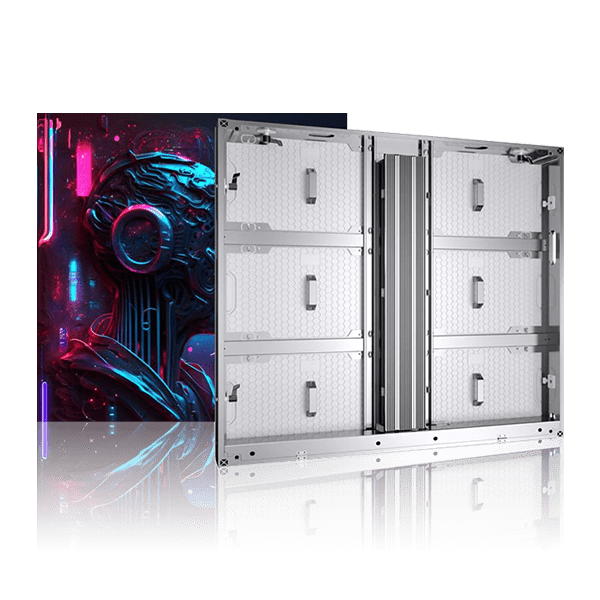

Outdoor LED Video Wall

OF-FC Series

OF-FC series outdoor LED video wall is a game-changer in the industry. Its high brightness, lightweight design, easy maintenance, and outdoor durability make it the perfect solution for transformative outdoor advertising and signage.

Pixel Pitches for Option:

4.44mm/5.7mm/6.67mm/8mm/10mm

Panel Sizes: 960x960x75mm

Panel Material: aluminum

Refresh Rate: 3840Hz high refresh rate

Installation: wall-mounted / pillar-mounted / truck-mounted / rooftop-mounted

Outdoor LED Video Wall

Your current location:

Outdoor LED Video Wall: Revolutionizing Outdoor Advertising and Signage

OF-FC series outdoor LED video wall represents a new benchmark in outdoor advertising and signage. The OF-FC series common cathode LED display redefines outdoor advertising with its exceptional performance, energy efficiency, and versatility. This display boasts an IP68 waterproof rating, seamless splicing capabilities, and a unique energy-saving design, a high-precision aluminum profile cabinet, full-sealed design, making it ideal for outdoor display applications.

Higher structural strength, higher flatness, strongly dissipate heat, corrosion resistance, long service life.

The outdoor LED displays are used to meet the diverse needs of outdoor environments. They are perfect for advertising, displaying traffic information, and attracting a large audience. With their high brightness and full-color visual capabilities, they ensure that your content stands out even in bright sunlight.

Outdoor LED Video Wall

FC Series LED Display Highlights:

✓ Ultra-light 23kg cabinet (960×960×75mm) with wireless connectivity for easy installation
✓ 35-65% energy savings through advanced power-efficient design
✓ All-weather durability featuring IP68 waterproofing and 5VB fireproof aluminum construction
Perfect for demanding outdoor displays.

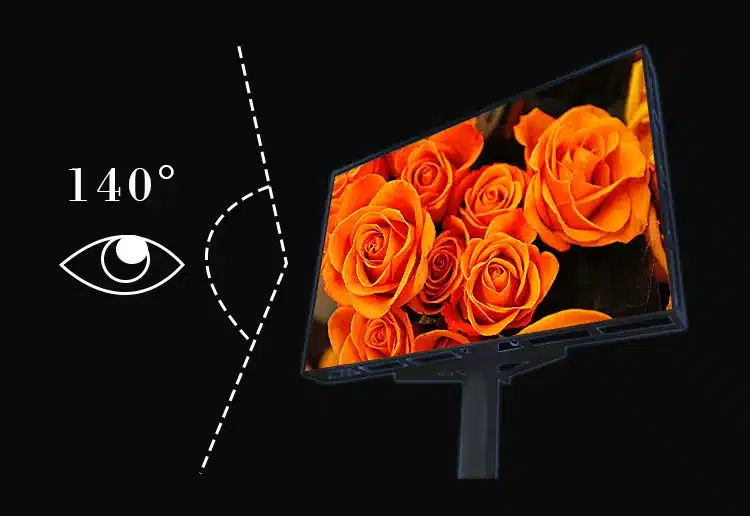

140-degree Wide Viewing Angle

The vertical and horizontal viewing angles are up to 140 degrees, providing a wide viewing angle. Ultra-wide viewing angle gives you the largest screen viewing area. It provides you with clear and natural images in all directions.

Outdoor LED Screen Display
Outdoor LED Video Wall

Outdoor LED Video Wall Super Energy Saving Cabinet

Considering the energy consumption of outdoor advertising LED video wall, thanks to the latest PCB, lCS and power supply design, it is 35%~65 more energy-efficient than traditional outdoor screens. The design of outdoor advertising display screens focuses on energy saving and environmental protection. They have low power consumption, reduce energy costs and minimize carbon footprint.

Self-Cooling Technology

The fan has strong heat dissipation, no noise, and low power. Both the front and back sides have reached IP68 waterproof level. Full aluminum module chassis and Power box with heat sink.
Outdoor LED Video Wall
Outdoor LED Video Wall

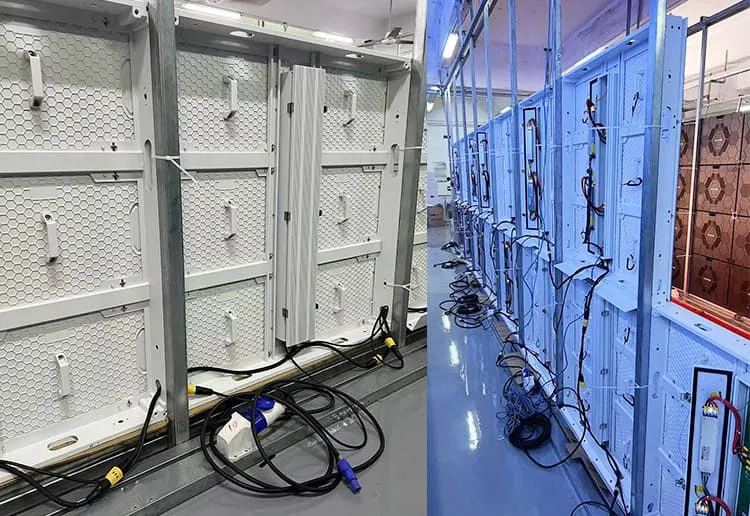

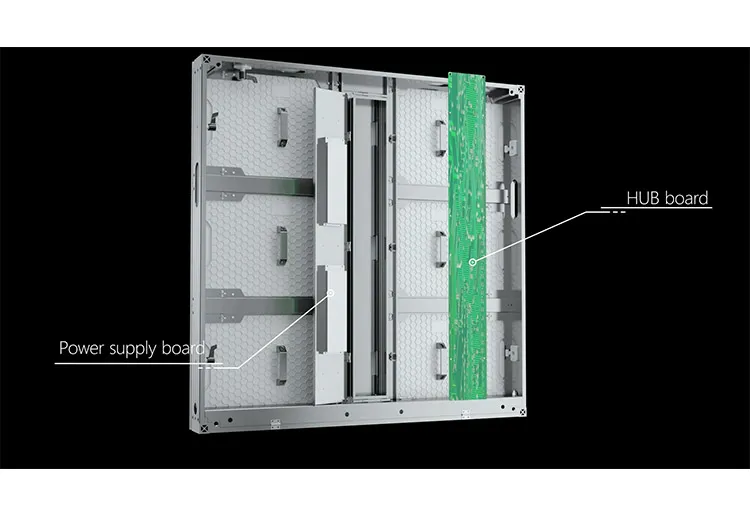

HUB Design Safe And Stable

Full rear power box easy maintenance

REISSDISPLAY outdoor LED video wall reduces the possibility of cable-induced failures and also makes the entire screen neat and beautiful.  The modules and power boxes can be quickly assembled and maintained from the front.

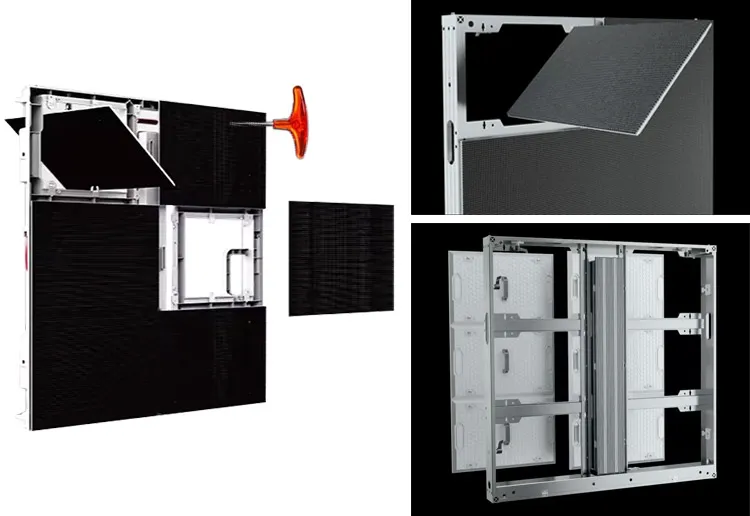

Front and Rear Double Maintenance Outdoor LED Video Wall

In order to help customers better maintain outdoor LED display billboards, the dual service mode designed on the front and back can save you maintenance costs. The LED panels can be assembled and disassembled easily and quickly.

Outdoor LED Video Wall
Outdoor LED Video Wall

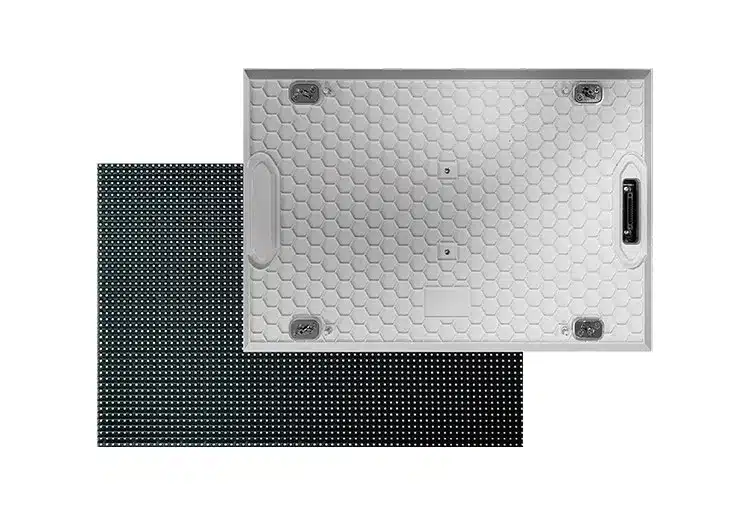

Front or Rear Maintenance Is Optional

High modular design, easy maintenance

This design does not require ribbon cables, so the signal connection of the module is much better than the common designs on the market. In addition, we use single-row pin sockets, which are characterized by: High precision: precise pin spacing ensures stable connection between electronic components and improves the overall performance of the circuit board. High reliability: Made of high-quality materials, it has good conductivity and corrosion resistance, which can ensure the stable operation of the circuit.

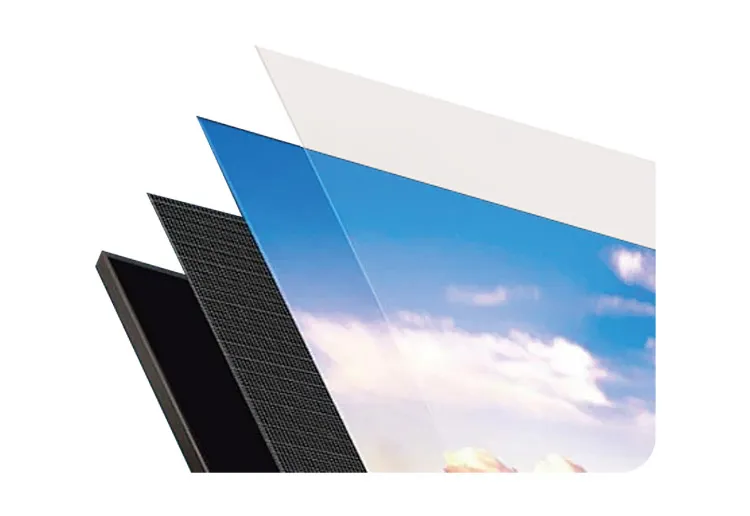

Anti Reflective SMD Mask.

It is worth noting that the pixels and internal components of the LED display must always be protected. This involves a lot of content, especially for outdoor displays. This is extremely important for outdoor equipment, adding a mask to the module to help better protect the pixels and components.
Outdoor LED Video Wall
Outdoor LED Video Wall

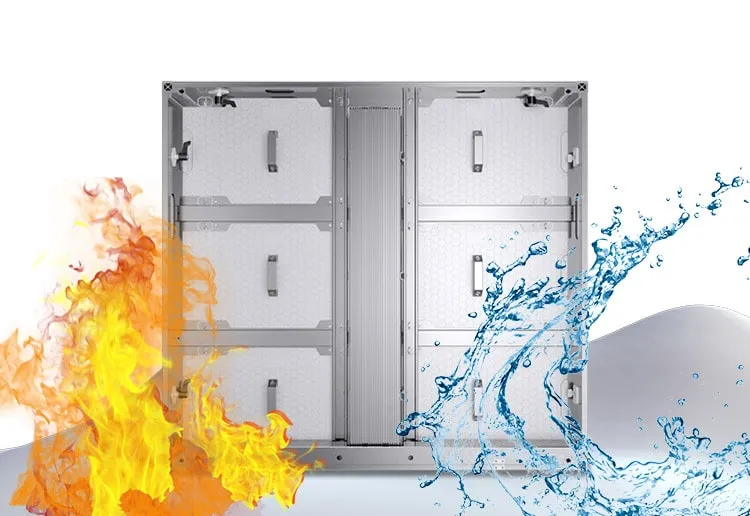

Outdoor LED Video Wall High Protective Performance

Full waterproof, fully-sealed design and die-casting aluminum module chassis, offering high protecting Rating (front and rear) lP68. Aluminum material LED module, high temperature durability, fast heat-dissipation. The whole product can Reach 5VB fireproofing level.

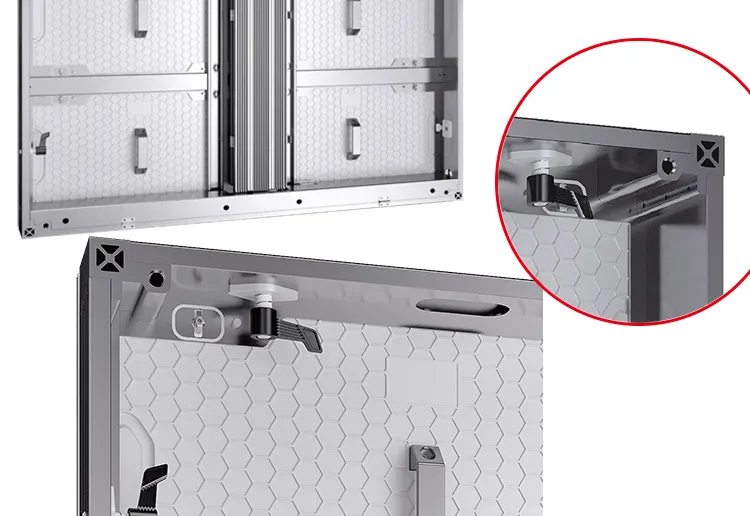

Outdoor LED Video Wall Seamless Splicing

The installation is fast, convenient and flexible, and supports multiple installation methods to achieve seamless splicing.
Outdoor LED Video Wall
Outdoor LED Video Wall

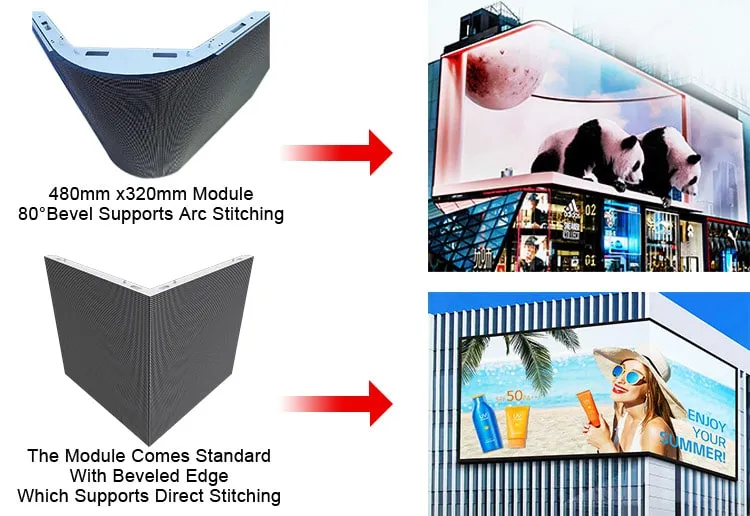

Curved Splicing and Right-angle Splicing

OF-FC series supports right angles and curved angles, the best choice for creating 3D large screens

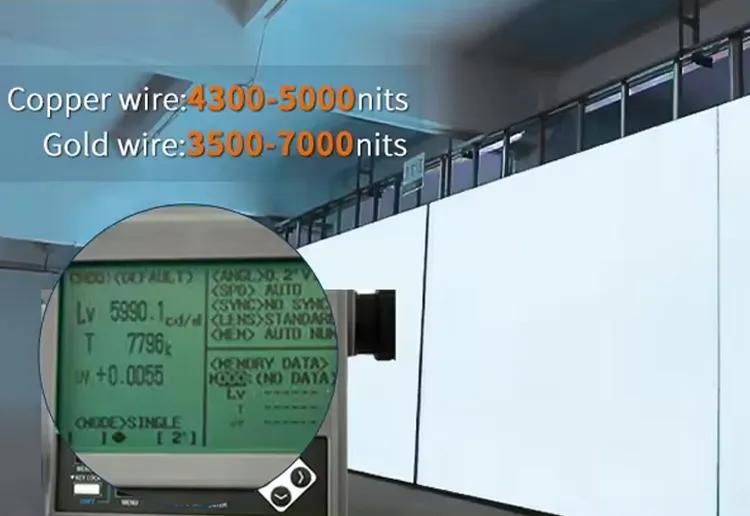

High Brightness Outdoor LED Video Panels

The brightness reaches up to 6000~10000nits, can instantly captivateattention & deliver content even under strong light.
3D Screen LED Display
Outdoor LED Video Wall

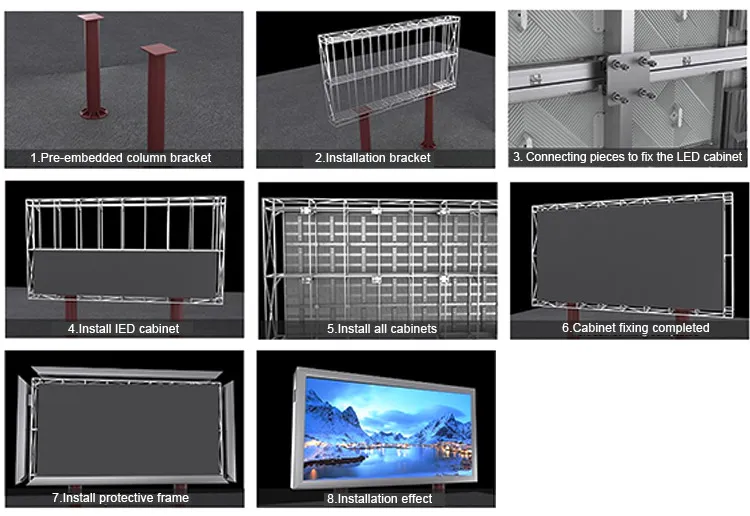

Outdoor LED Video Walls Multiple Installation Methods

OF-FC series LED display screens offer a variety of installation methods to suit different venues and event requirements. Choosing the right installation method is essential to maximize visual impact and ensure stability and safety.

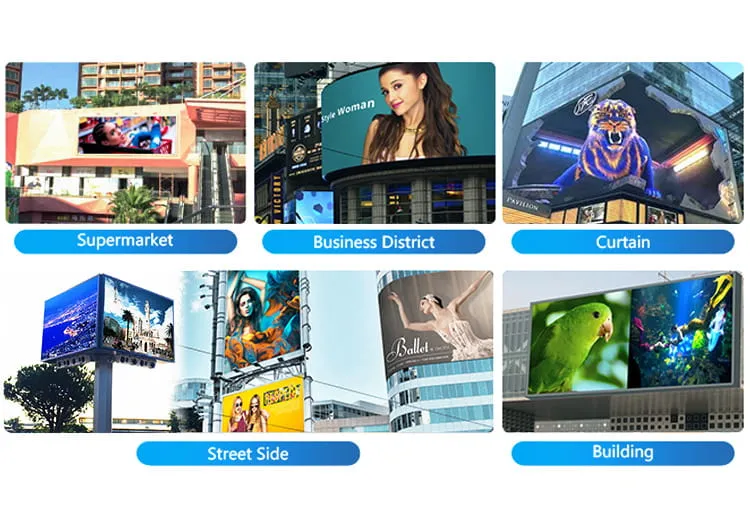

Application Fields

In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.
Outdoor LED Video Wall

Application Cases

How to Choose an Outdoor LED Display Screen?

How to Choose an Outdoor LED Display Screen?

" Customer Testimonials:

How to Choose an Outdoor LED Display Screen?With their high brightness, excellent display quality, and strong adaptability, these screens perform exceptionally well in outdoor environments.

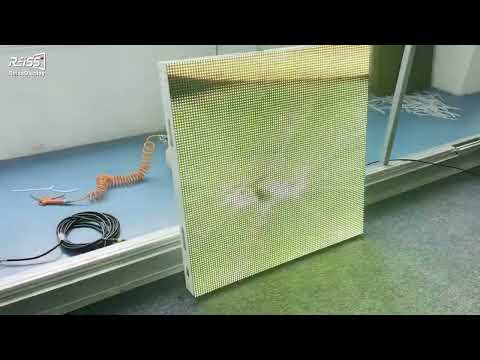

Application and Installation Videos

Outdoor LED Video Wall – OF-FC Series
Outdoor LED Video Wall – OF-FC Series

Specifications

ITEM
P4.4
P5.7
P6.67
P8
P10
Pixel Pitch (mm)
4.4
5.7
6.67
8
10
LED Type
SMD1921
SMD2727
SMD2727
SMD2727
SMD2727 / 3535
Module Resolution (pixels)
108×72
84×56
72×48
60×40
48×32
Module Size (mm)
480x320x25
Cabinet Resolution (pixels)
216×216
168×168
144×144
120×120
96×96
Cabinet Weight (kg/pcs)
23
Physical Density (pixels/㎡)
50625
30625
22500
15625
10000
Optimum Viewing Angle
H:140° V:140°
Optimum Viewing Distance (m)
>4.4
>5.7
>6.67
>8
>10
Input Voltage
110-220V AC±10%
Max. Power Consumption (W/㎡)
500-720
Avg. Power Consumption (W/㎡)
230-360
Brightness (cd/㎡)
≥5000
≥5500
≥6500
≥6000
≥6000
Refresh Frequency (Hz)
1920 / 3840 optional
Frame Frequency (Hz)
50-60
Grayscale (bit)
14-18
Operating Tempreture/Humidity
(℃/RH)
-10℃~50℃ / 10~98%RH

configuration
