Stadium LED Displays LED Solutions, Crafted for You!
Customize The Surrounding Stadium LED Display Solution For You
· Pixel pitch 3mm / 4mm / 5mm / 6.67mm / 8mm / 10mm
· Module size 320 × 160 mm

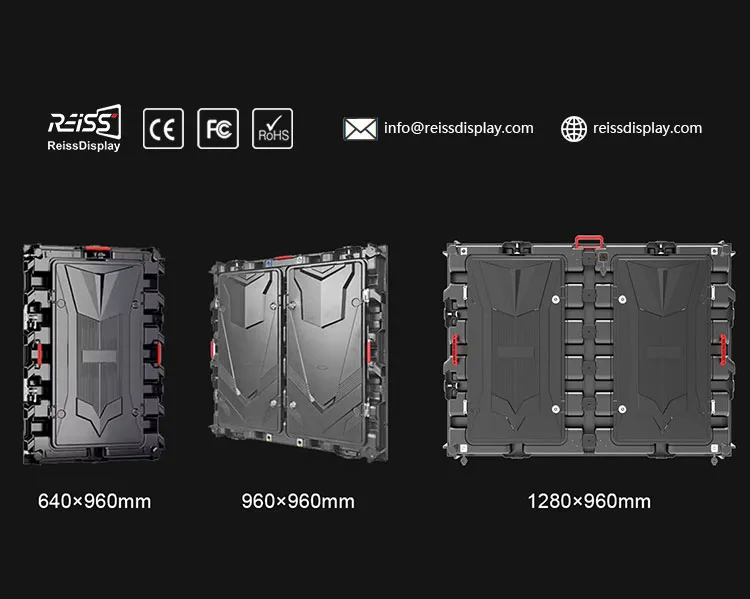

· 1280 × 960 mm / 960 × 960 mm / 640 × 960 mm cabinet
· High brightness, high refresh rate.
· Novastar/HuiDu/Linsn outdoor control system
· Support all signal model inputs such as phone, computer, wireless network, live broadcast, etc.
· Specialized for seamless connection, high contrast, high refresh rate, 16-bit high grayscale.
1. IP65 waterproof, anti-powder, windproof, shockproof
2. Adjustable base structure to ensure viewing of games from different viewing angles
3. MG alloy casting cabinet, thin and lightweight foam, can be used for rental stage LED screen.
4. Soft film protection, protect the athlete’s body from injury, and the LED light will not break

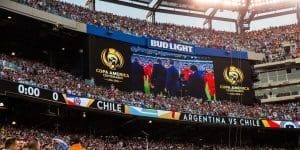

The sports field LED screen is very suitable for crowded places, especially for football or basketball courts. Its high-resolution image and wide viewing angle ensure the best quality pictures and videos with every corner of the stadium LED displays.
Stadium LED Displays High IP Level & Safe & Reliable

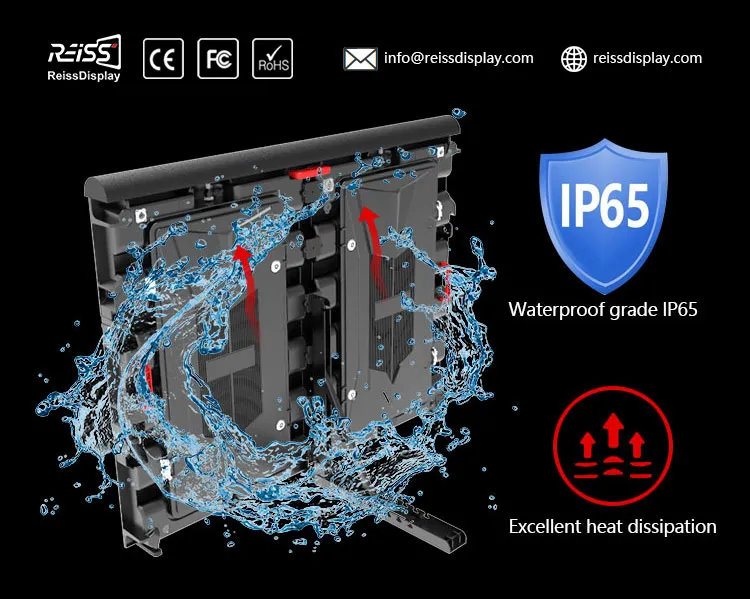

IP65 Waterproof
The fully sealed cabinet has an inlet protection of up to IP65, which is dust, dust and moisture proof, bringing the inlet protection of stadium LED displays to a new level.

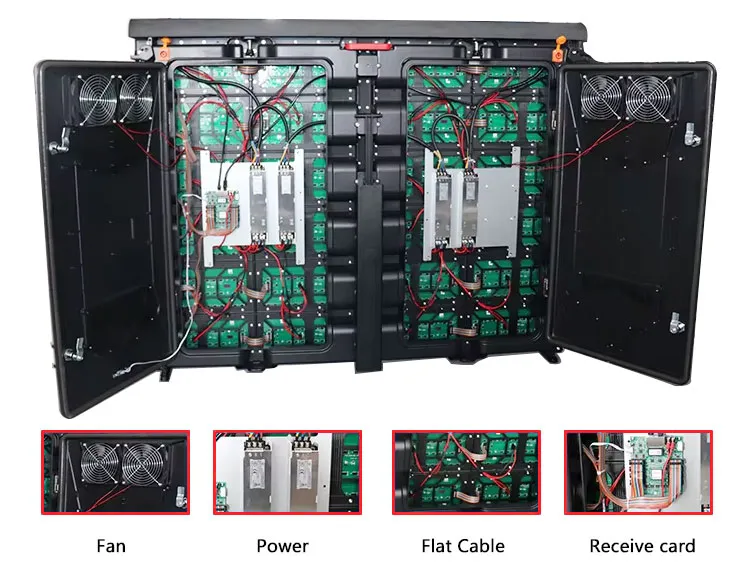

Excellent Heat Dissipation Performance
The new door can dissipate heat with the door or the fan.

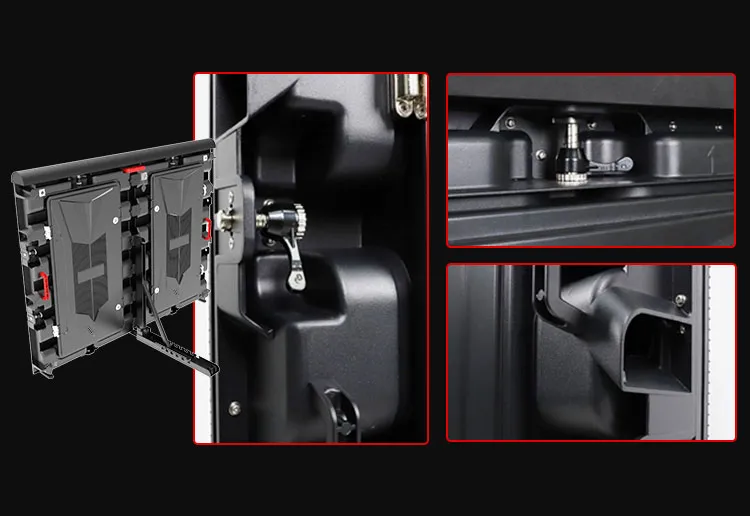

Openable Back Cover
Easy To Install

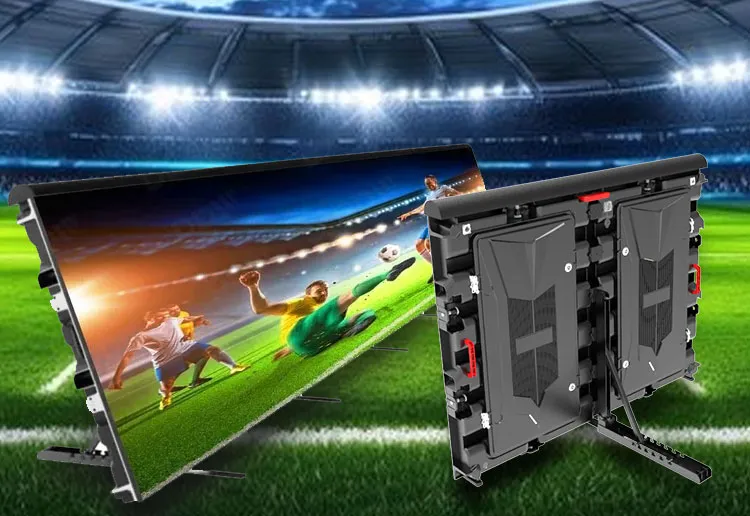

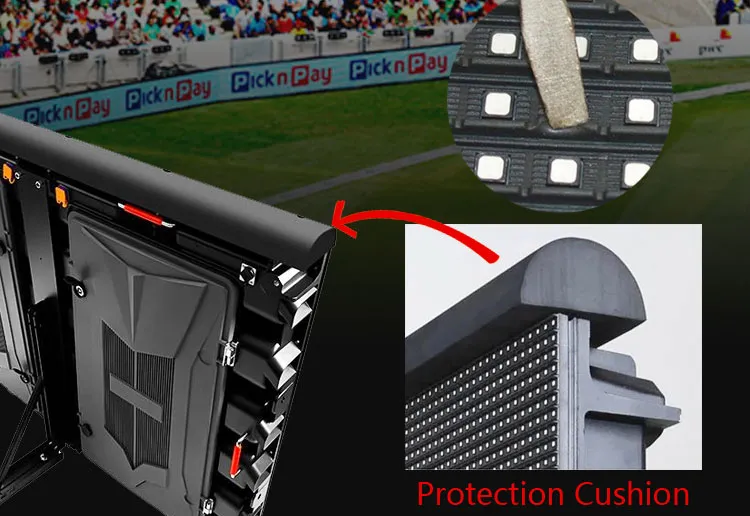

Stadium Perimeter LED Display Safety Cabinet Design
Special EVA protective pads on the top of the ReissDisplay perimeter LED screen cabinet to protect football players from injuries during the game. The silicone rubber mask is soft and flexible to protect players and balls from injuries. The stable body protects the display from any damage, even high-speed balls or footballs.

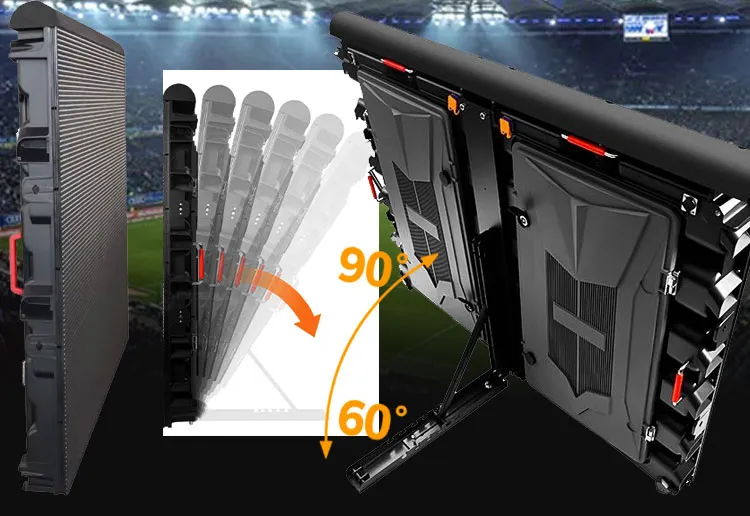

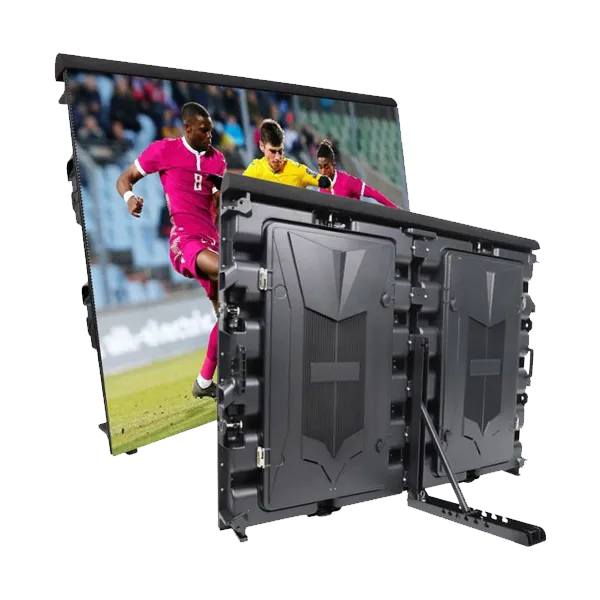

Independent Support Structure Perimeter LED Screen
The OES-MX series features an innovative support structure engineered for exceptional durability. Its robust design absorbs both front and rear impacts while maintaining rock-solid stability. The cabinet support angle adapts to real-world installation conditions, allowing precise adjustments for any environment. This intelligent engineering combines impact resistance with flexible positioning to deliver reliable performance in diverse settings.
The perimeter LED screen can be adjusted to optimize the viewing effect and improve the visibility of the viewer.
Customized For Your Project
Customized For Stadiums
Energy-Saving 30-60%
Automatic Adjustable High Brightness Of Stadium LED Display Screen

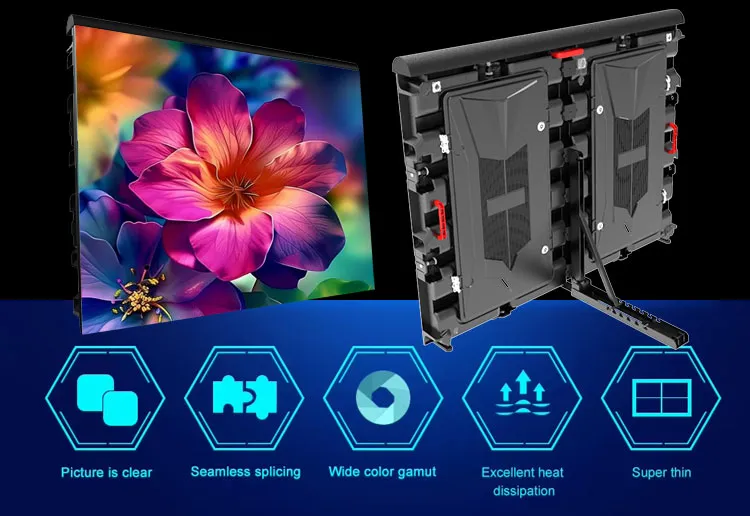

Seamless With Good Alignment Stadium LED Displays
· Back-up solution is available;
· Magnesium alloy cabinet design makes the installation, transportation and maintenance easier:
· All models in OES-MX series, have same cabinets and modules design, so in the future upgrading, only some parts need to be changed.

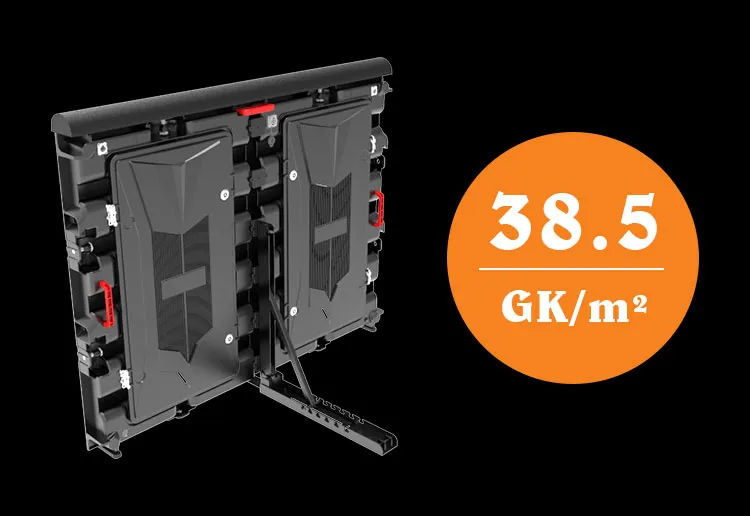

· Magnesium alloy material,ultra lightweight,only 36KG

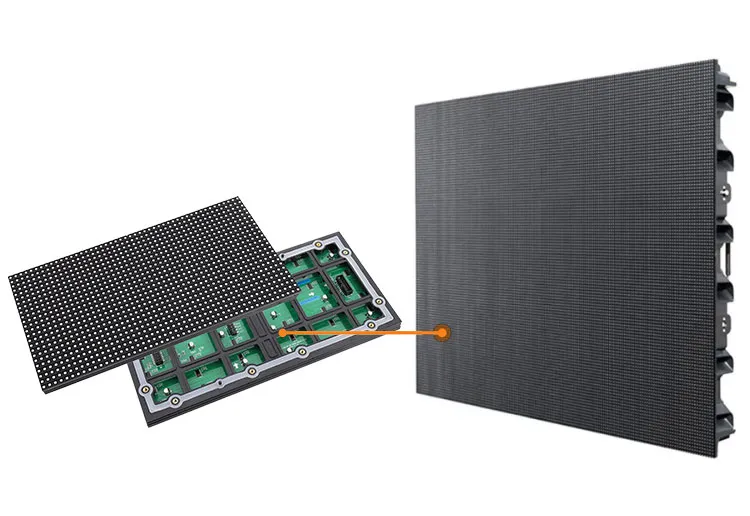

Standard LED Modules

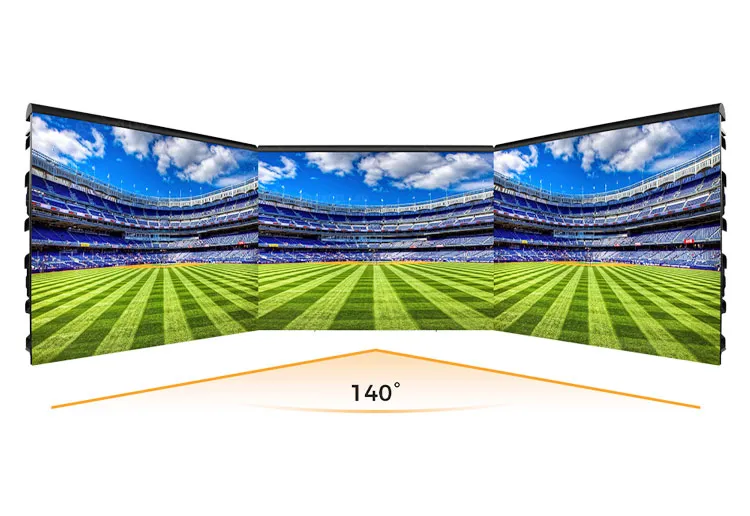

Large Viewing Angle
Application Cases
Perimeter LED Screen: A Comprehensive Guide
" Customer Testimonials:
A perimeter LED screen is a long, horizontal digital display commonly installed around the edges of sports fields or stadiums. These screens are primarily used for dynamic advertising, branding, and sponsor visibility during live matches and events. Their ability to showcase real-time, high-quality visuals and animations makes them an essential tool for modern sports marketing. This […]

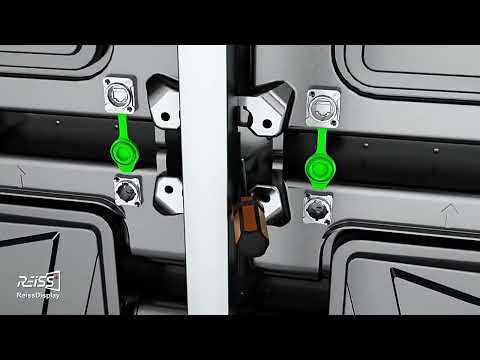

Application and Installation Videos
Specifications
| Specification | P6.67 | P8 | P10 (2S) | P10 (4S) |
|---|---|---|---|---|
| Model | P6.67 | P8 | P10 | P10 |
| Pixel Configuration | SMD3535 | SMD3535 | SMD3535 | SMD3535 |
| Density (Pixels/㎡) | 22,478 | 15,625 | 10,000 | 10,000 |
| Module Resolution (Pixel) | 48 × 24 | 40 × 20 | 32 × 16 | 32 × 16 |
| Module Size (mm) | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Driving Mode (Duty) | 1/6 | 1/5 | 1/2 | 1/4 |
| Cabinet Size (mm) | 1280 × 960 / 960 × 960 | 1280 × 960 / 960 × 960 | 1280 × 960 / 960 × 960 | 1280 × 960 / 960 × 960 |
| Cabinet Weight (kg) | 36 | 36 | 36 | 36 |
| Brightness (cd/㎡) | ≥6500 | ≥6500 | ≥6500 | ≥6500 |
| Viewing Angle (°) | 140 | 140 | 140 | 140 |
| Gray Grade (Bits) | 16 | 16 | 16 | 16 |
| Operation Power | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz | AC100-240V 50-60Hz |
| Max. Power Consumption (W/㎡) | 800 | 600 | 850 | 540 |
| Avg. Power Consumption (W/㎡) | 298 | 200 | 285 | 180 |
| Frame Frequency (Hz) | ≥60 | ≥60 | ≥60 | ≥60 |
| Refresh Frequency (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Working Temperature (°C) | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 | -20 ~ +60 |
| Lifetime (Hours) | 100,000 | 100,000 | 100,000 | 100,000 |
| Protecting Grade | IP66 (front) / IP54 (rear) | IP66 (front) / IP54 (rear) | IP66 (front) / IP54 (rear) | IP66 (front) / IP54 (rear) |
| Control System | Novastar / HuiDu / Linsn | Novastar / HuiDu / Linsn | Novastar / HuiDu / Linsn | Novastar / HuiDu / Linsn |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
Frequently Asked Questions
1 What is a stadium perimeter LED display?
A stadium perimeter LED display is a long, low-height LED board installed along the edge of a football pitch or sports arena, used for dynamic sponsor advertising, live scores and real-time visuals during matches. The ReissDisplay OES-MX Series is a die-cast magnesium alloy perimeter LED board with a soft-mask safety front, engineered for both indoor and outdoor professional venues.
2 What pixel pitch is best for a stadium LED display?
The OES-MX Series offers P6.67, P8 and P10 pixel pitches. P6.67 (22,478 px/m²) is ideal for close-up TV broadcast and premium arenas, while P8 and P10 suit larger perimeter runs viewed from a distance, balancing image clarity with cost per square metre.
3 How does the OES-MX stadium LED board protect players from injury?
The OES-MX Series protects athletes through a soft, flexible silicone rubber mask on the display front plus EVA padding on the cabinet top, absorbing impact from players and high-speed balls. The magnesium alloy cabinet stays rigid on collision, and the LED surface will not shatter — meeting the player-safety requirements of professional football and multi-sport venues.
4 Are ReissDisplay stadium LED displays waterproof and suitable for outdoor use?
es. Each OES-MX cabinet carries an IP66 front and IP54 rear ingress rating, making it dust-tight and resistant to heavy rain for permanent outdoor pitchside installation. With up to 6500 nits brightness and automatic brightness adjustment, it stays clearly visible in direct sunlight, and operates reliably from -20°C to +60°C.
5 Can the stadium LED display be used for live broadcast and TV advertising?
Yes. A ≥3,840 Hz refresh rate and 14-bit grayscale deliver flicker-free, broadcast-grade footage for TV cameras and live streaming. The OES-MX Series is compatible with Novastar, HuiDu and Linsn control systems and accepts phone, PC, wireless and live-broadcast signal inputs, making it ready for real-time scoreboards and dynamic pitchside advertising.
6 What is the warranty, lifespan and installation setup of the OES-MX Series?
The OES-MX Series ships with a 5-year warranty plus 5% spare parts and a rated lifespan of 100,000 hours. Each panel weighs only 36 kg with standard 320×160 mm modules and top/side quick locks, so cabinets lock together in minutes, while an adjustable support foot (60°–90°) optimises the viewing angle for any stadium layout.
