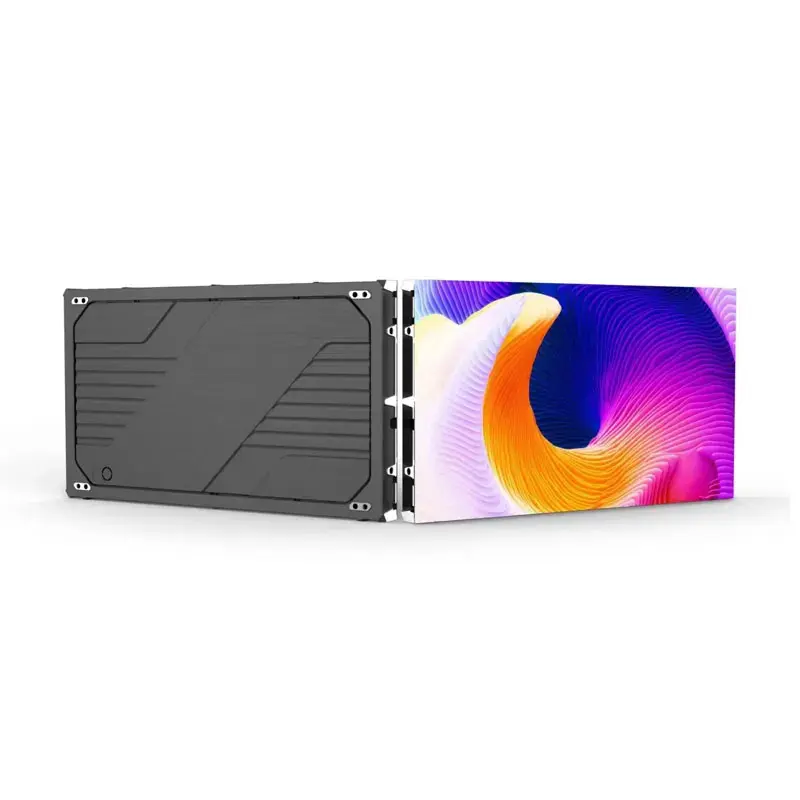

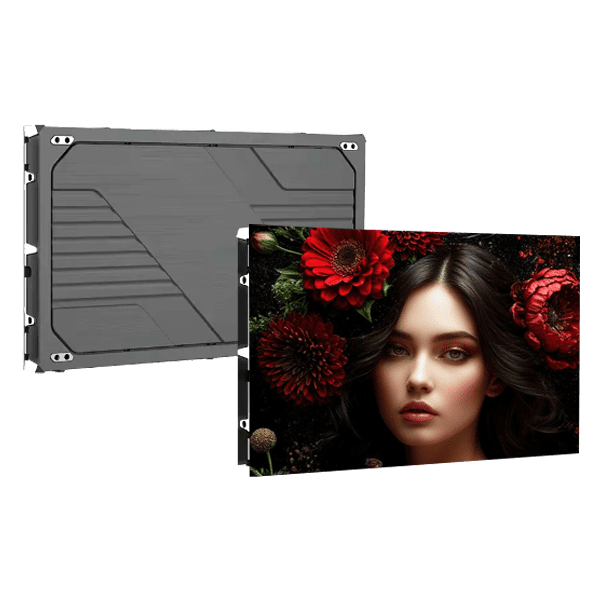

LED Display Indoor

IF-B Series

The IF-B series Indoor LED display features a die-cast aluminum cabinet, CNC machined for precision. It offers low brightness, high grayscale, and detailed image quality with high contrast, reproducing true colors.

Model: P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4

Material: Die Casting Aluminum

Cabinet Size: 960x480/640x480/640x640/320x640x44mm

Service Way: Front maintenance

Waterproof Levle: IP33

Quality Warranty: 5 Years

CE, EMC, RoHS, ISO9001 Approved

LED Display Indoor - IF-B Series

Your current location:

Indoor Small Pitch LED Displays

1. Wide viewing angle, high contrast ratio 6000:1), high brightness (adjustable), high grayscale, high refresh, soft image, vivid display image;

2. No noise, low power consumption, low EMI, long life;

3. 16-24bit broadcast-level grayscale processing, ≥3840HZ refresh rate;

4. Point-by-point brightness and chromaticity correction to maintain the low-gray details and color reproduction of the image;

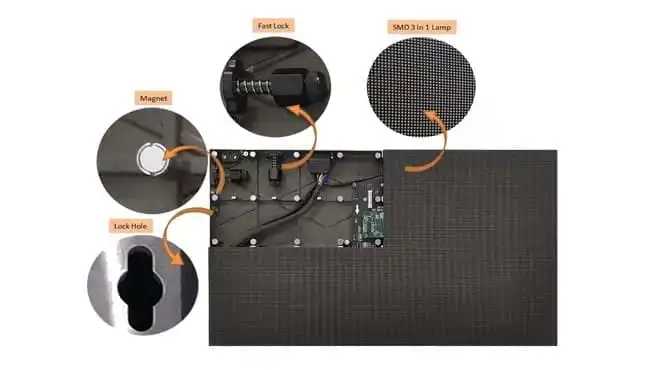

5. The module is fixed by strong magnetic attraction and can be maintained without any tools;

6. Die-casting aluminum structure box body realizes high-precision flat and seamless splicing and good heat dissipation;

7. No fan design, keep quiet;

8. The box is light and thin, occupies a small space, and is easy to transport, load and unload;

9. Connect to professional video splicing processing system, support multi-signal high-fidelity synchronous processor display;

10. The boxes are connected by a special buckle structure, no other tools are needed, and the installation and disassembly are convenient and quick.

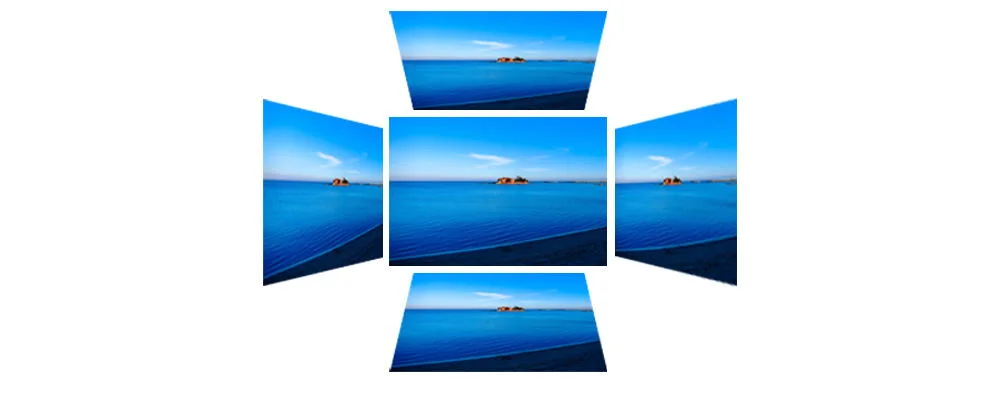

Wide Viewing Angle

Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.
LED Display Indoor - IF-B Series
LED Display Indoor - IF-B Series

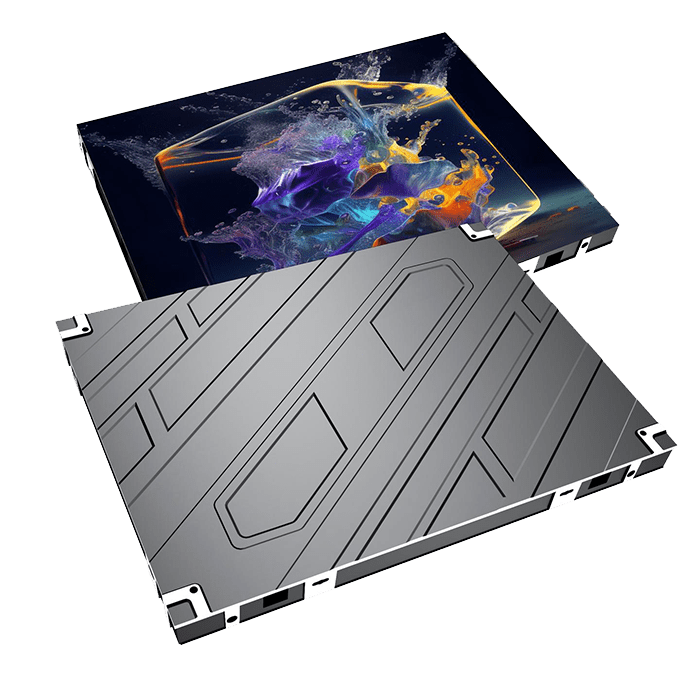

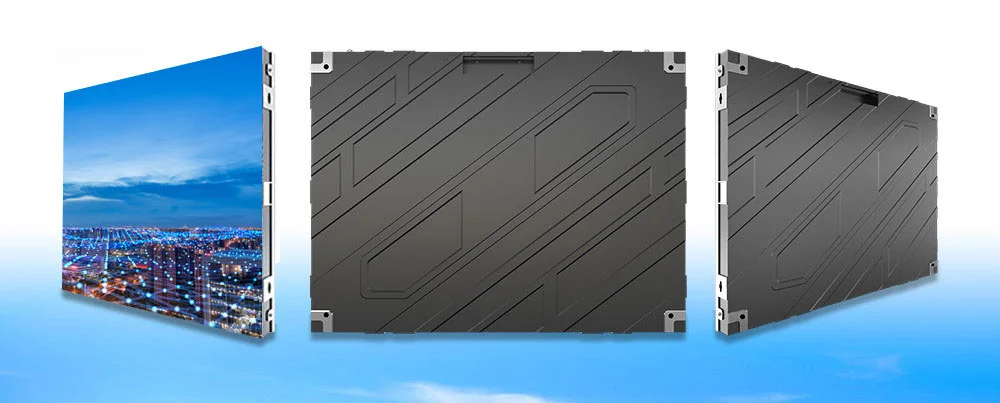

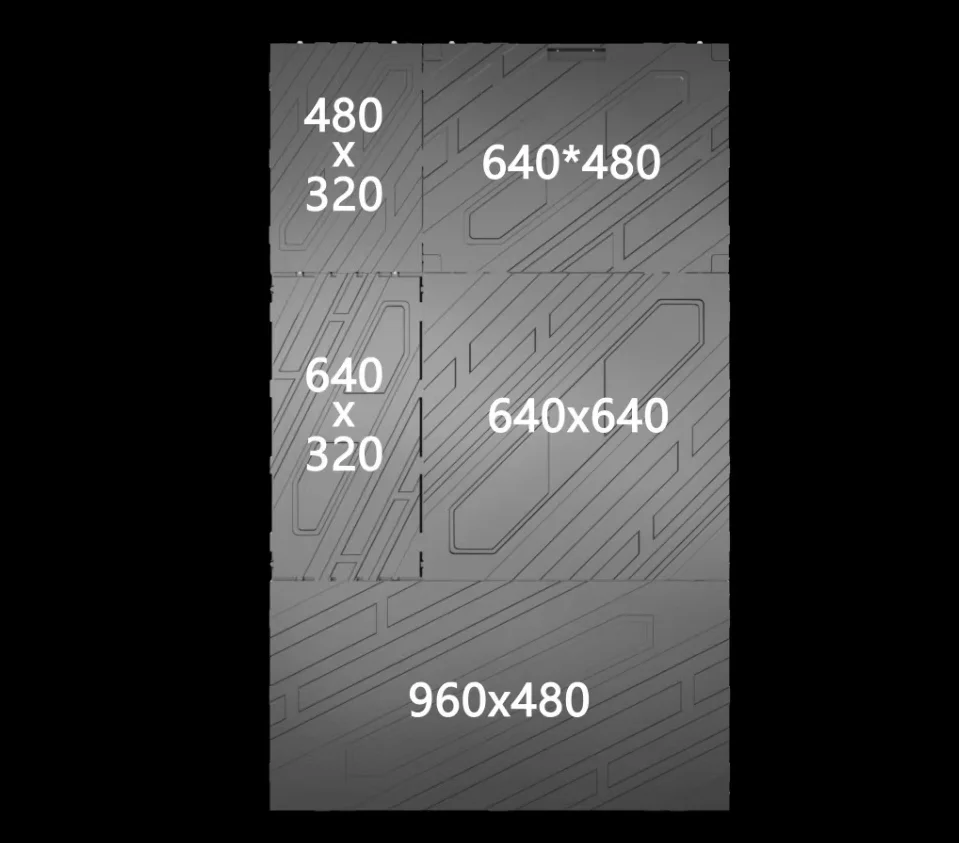

Perfect Dimension Of LED Display Indoor

Different cabinet sizes can be combined to accommodate various LED screen sizes.

Fully front-mounted for indoor use. Available in various cabinet sizes: 960*480mm, 640*480mm, 640*640mm, and 320*640mm. These cabinet sizes can be mixed and combined to accommodate various LED screen sizes.

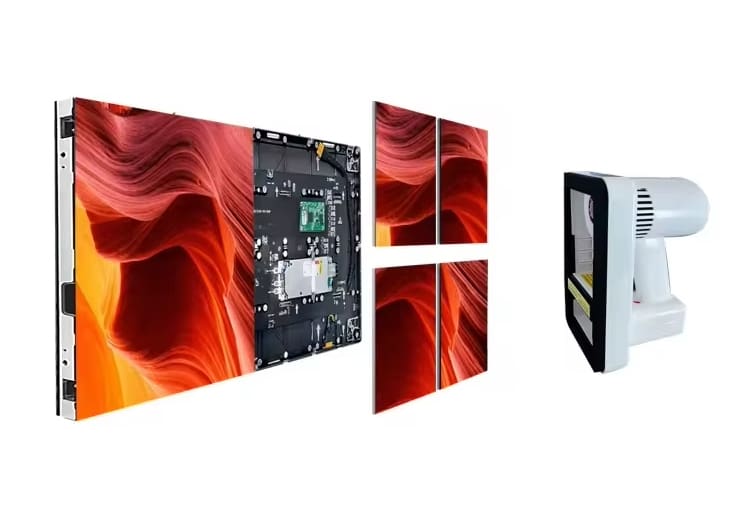

Front Maintenance

Indoor LED Displays OF Front Maintenance

Front maintenance indoor LED displays are designed for easy access and serviceability, allowing for quick maintenance without requiring rear access. This feature is particularly beneficial in environments where space is limited or where installation against walls is common.

LED Display Indoor
Indoor led display

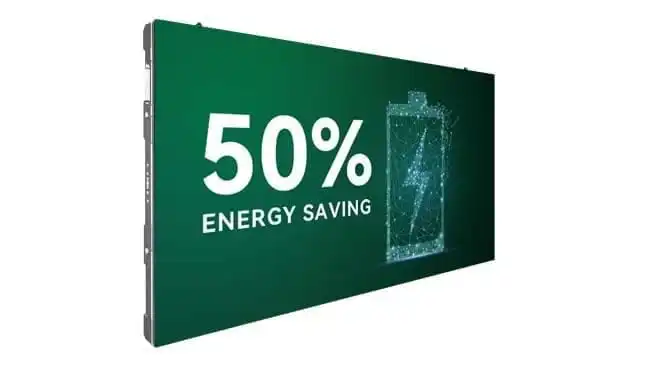

Energy Saving and Environmental Protection

Energy-Saving LED Screens: Common Cathode vs. Common Anode

Energy-saving screens are essential in today’s environmentally conscious market, and they can be categorized into two main types: common cathode and common anode. Among these, common cathode technology has emerged as the most energy-efficient solution, maximizing performance while minimizing energy consumption.

Easy to Install

Key Features of Easy Installation

The ease of installation of indoor LED displays makes them an attractive choice for various applications. With modular designs, lightweight construction, and user-friendly mounting systems, these displays can be set up quickly and conveniently, allowing businesses to focus on delivering impactful visual experiences without extended downtime. This efficiency not only saves time but also enhances overall project productivity.

Indoor led wall
LED Display indoor

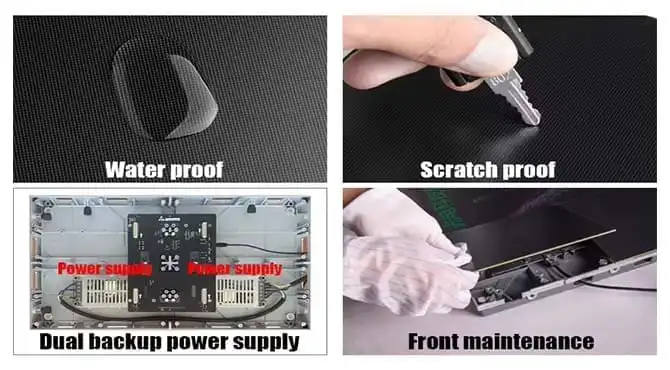

Physical treatment, waterproof and anti-collision

Benefits of GOB, Waterproof, and Anti-Collision Features

Physical treatment through GOB technology, waterproofing, and anti – collision features is essential for the durability and reliability of LED displays. By implementing these protective measures, manufacturers can ensure that their products withstand various environmental challenges and physical impacts, providing users with high – quality visual solutions that last.

Creatively Installed

Applications of Creatively Installed Indoor LED Displays

Creatively installed indoor LED displays offer endless possibilities for enhancing visual experiences in various settings. By adopting unique designs and interactive elements, businesses and organizations can engage their audiences more effectively, making a lasting impression. The combination of innovative installation techniques and advanced technology allows for truly transformative environments.

Indoos led screens
HDR Indoor led Display

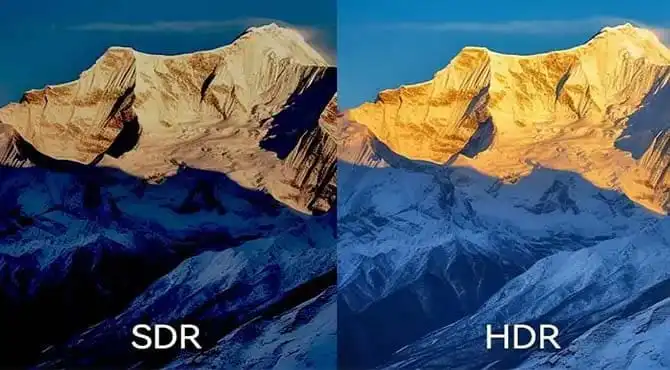

HDR Effect, High Grayscale

Applications of HDR effect

HDR effect and high grayscale capability are pivotal features that elevate the performance of Indoor LED displays. By offering enhanced contrast, vibrant colors, and detailed imagery, these technologies significantly improve the viewing experience across various applications. As demand for high-quality visual content continues to grow, integrating HDR and high grayscale capabilities into LED displays will remain essential for engaging audiences and delivering impactful messages.

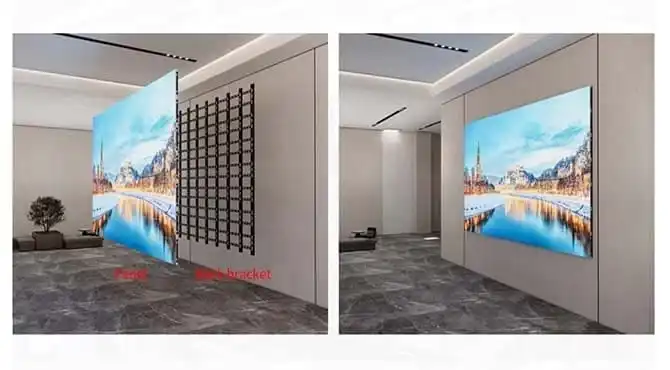

LED Screen Wall on Wall Mounted

Key Features

Wall-mounted LED video walls offer a versatile and effective way to display high-quality visuals in various settings. Their space-saving design, vibrant imagery, and ease of installation make them ideal for corporate, retail, and entertainment applications. By leveraging this technology, businesses can enhance communication, engage audiences, and create memorable experiences.

Indoor led displays

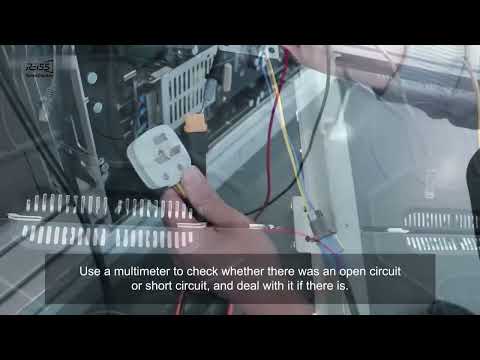

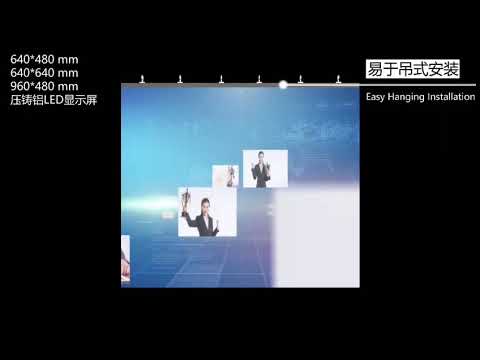

Application and Installation Videos

LED Display Indoor – IF-B Series
LED Display Indoor – IF-B Series

Specifications

Model P1.25 P1.53 P1.667 P1.86 P2 P2.5
Pixel Pitch(mm) 1.25 1.53 1.667 1.86 2 2.5
Pixel Matrix Per Sq.m 640000 422500 360000 288906 250000 160000
Pixel Configuration SMD1010 SMD1212 SMD1212 SMD1515 SMD1515 SMD2121
Brightness (nits) 500-900 500-900 500-900 500-900 500-900 500-900
Scan 1/64 1/52 1/40 1/32 1/24 1/20
Module Dimension 320x160mm 320x160mm 320x160mm 320x160mm 320x160mm 320x160mm
Cabinet Dimension 960x480x44mm

640x480x44mm

640x640x44mm

320x640x44mm

960x480x44mm

640x480x44mm

640x640x44mm

320x640x44mm

960x480x44mm

640x480x44mm

640x640x44mm

320x640x44mm

960x480x44mm

640x480x44mm

640x640x44mm

320x640x44mm

960x480x44mm

640x480x44mm

640x640x44mm

320x640x44mm

960x480x44mm

640x480x44mm

640x640x44mm

320x640x44mm

Cabinet Resolution 512×512/512×384 416×416/416×312 384×384/384×288 344×344/344×258 320×320/320×240 256×256/256×192
Cabinet Material Die-casting Die-casting Die-casting Die-casting Die-casting Die-casting
Cabinet Weight 8kg/6.5kg 8kg/6.5kg 8kg/6.5kg 8kg/6.5kg 8kg/6.5kg 8kg/6.5kg
Power Con. (Max/Avg) 600 / 200 w/sq.m 600 / 200 w/sq.m 600 / 200 w/sq.m 580 / 180 w/sq.m 580 / 180 w/sq.m 580 / 180 w/sq.m
Service Access Front Front Front Front Front Front
Refresh Rate (HZ) ≥3840 ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale (bit) 14-24 14-24 14-24 14-24 14-24 14-24
Viewing Angle (H/V) 160° / 160° 160° / 160° 160° / 160° 160° / 160° 160° / 160° 160° / 160°
IP Rate IP33 IP33 IP33 IP33 IP33 IP33
Operation Temperature -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60° -20° ~ 60°
Input Voltage (AC) 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V 100V or 240V
