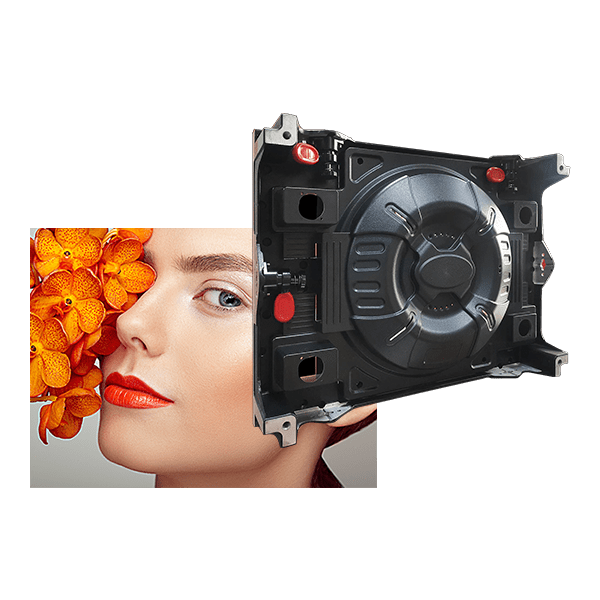

Indoor Small Pitch LED Screen

IF-A Series

Indoor small pitch LED screen is widely used in public transportation,fire stations,metro stations, police safety supervision room, TV station and related areas. Seamless assembly on the whole screen, dot-to-dot fine display, ensuring accurate display of digital signals,graphic signals and text information.

Module size: 200x150mm

Cabinet size: 400x300mm

Cabinet Material: die-casting aluminum

Brightness: 600-2000cd/sqm

Leds: Nationstar/ Kinglight/ Mulinsen/ Hongsheng...

DriverIC: MBI/ ICN/ FM/ SM...

Refresh Rate: 7680Hz

It delivers an image which is super subtle and without getting tired after a longtime watchin.

Super High Refresh Rate, High Frame Frequency, No Ghosting & Twisting or Smear.

Front Serviceable Module allows easy Maintenance, Saving Time & Spac.

16 Bit Grey Grade Processing, the color transition will be more natural.

Anti-collision design & landing protection function which can effectively avoid the damage from collision.

Indoor Small Pitch LED Screen

Your current location:

The REISSDISPLAY 400×300 is a high-definition indoor small pitch LED screen designed for superior visual performance. With 16-bit gray processing technology and a 4:3 cabinet size ratio, it delivers 65,536 grayscale levels, ensuring smooth color transitions and ultra-fine image texture for a natural and comfortable viewing experience. The screen features high flatness, easy installation, and disassembly, making it ideal for professional indoor applications.

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. indoor small pitch LED screen nice appearance and simple structures.

3. Jointed correctly, being installed & dismounted by one person without tool.

4. Humanized operating interface with breakdown indicator lights, easy to maintain.

5. High debygging brightness and no damage to gray scale, a chieving the debygging technoloty fo nice image.

With high refresh rates, excellent color reproduction, and seamless splicing, the REISSDISPLAY 400×300 LED screen offers a premium visual solution for high-end indoor environments.

Indoor Small Pitch LED Screen

Indoor Small Pitch LED Screen Stylish Appearance, Durable

1. Seamless splicing of the entire screen, point-to-point fine display, ensure accurate display of digital signals, graphic signals and text information.

2. Massive video surveillance and key video surveillance trigger, combined with indoor small pitch LED screen, meet daily calls and emergency command needs.

3. The Indoor Small Pitch LED Screen utilizes premium LED light sources, including brands like Jinlite and Guoxing, combined with a patented PCB design to ensure exceptional durability and long-term reliability. This foundation guarantees extended product lifespan and consistent performance.

4. The screen has been specially treated with anti-electromagnetic waves, and adopts distributed scanning and modular design, which makes the work more reliable and stable.

5. Non-linear correction technology makes the LED display image delicate and clear, and the video image lifelike and realistic.

6. The module frame components are precisely designed to control the deviation between adjacent modules within 0.1mm, with excellent flatness and no mosaic.

7. The standard steel box design makes the LED display screen more convenient to install.

8. The same level of imported LED chips, high-quality high refresh rate IC, and low-noise power supply are used to ensure that the LED display screen works stably in an environment of -20℃~40℃.

9. The Indoor Small Pitch LED Screen features adjustable brightness to suit different indoor lighting conditions. Its low-attenuation lamp beads and uniform current distribution ensure energy efficiency and superior image quality with minimal power consumption.

Indoor Small Pitch LED Screen Show The Beauty of Color and Vivid Details

With up to 36% full color gamut coverage—exceeding the NTSC range—it displays richer details and more vibrant colors.

Indoor Small Pitch LED Screen
Indoor Small Pitch LED Screen

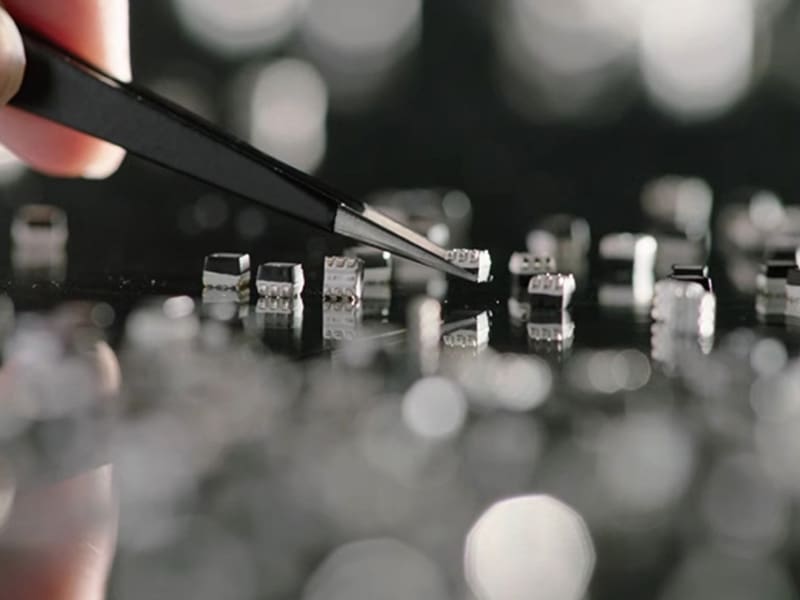

Small Lamp Beads, Big LED Display

Using high-quality lamp beads, the product quality is stable and reliable, ensuring no flicker and no graininess, suitable for long-term screen viewing. Provides 3000:1 contrast ratio, presenting clearer and more colorful images.

High-quality Modules

Modular design, easy to splice.

High-quality PCB boards and lamps
Automatic wave soldering firmly soldered lamp beads will not fall off and have a longer service life.

Indoor Small Pitch LED Screen
Indoor Small Pitch LED Screen

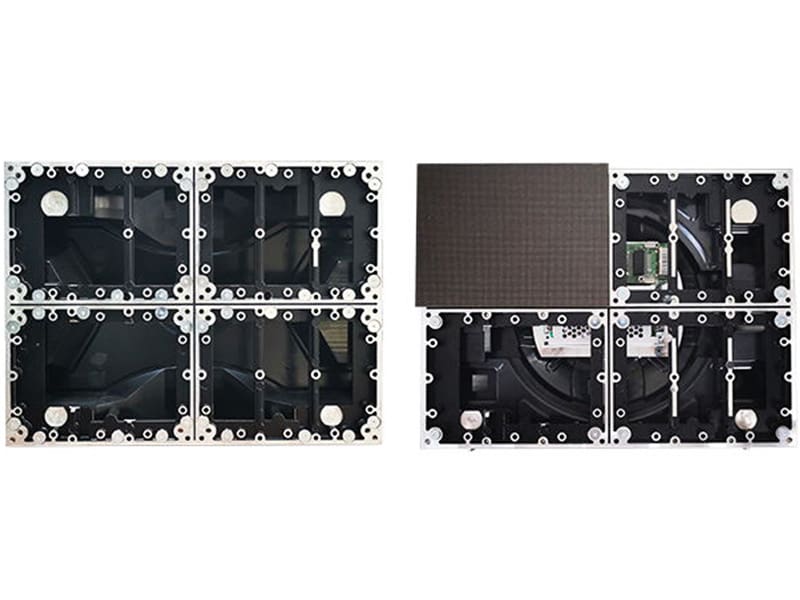

Frontal Service Cabinet Desig

REISSDISPLAY Seamless splicing design with fast locks and simplicity internal wiring, which perfectly realizes the splicing of the cabinet.
the LED display has no gaps and the LED screen is ultra high flatness.

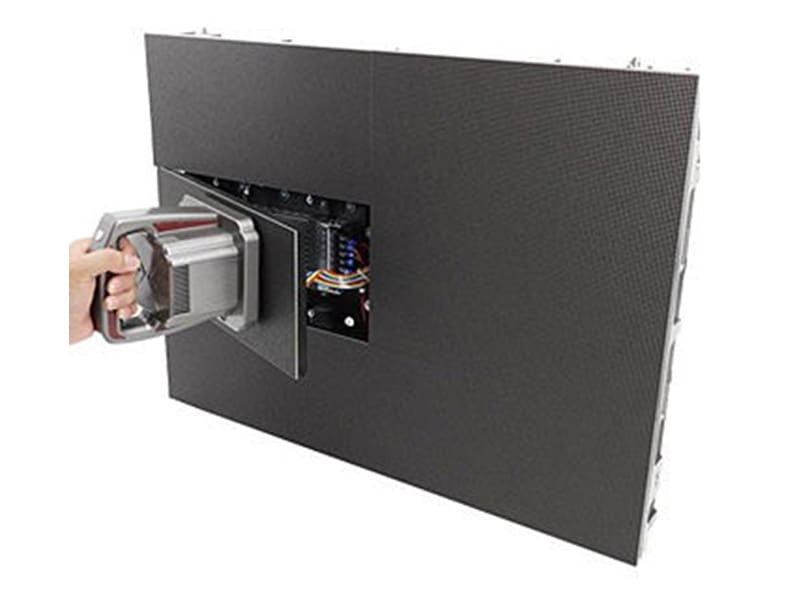

Magnetic module, fast front maintenance, replacement completed in 5 seconds.

Just use a vacuum tool to remove led modulethen you can maintain receiving card and power supply.

Indoor Small Pitch LED Screen Perfect Visual Effect

Indoor Small Pitch LED Screen boasts high brightness, wide viewing angle, and high flatness, ensuring superior visual effects. The maximum brightness reaches 2000 nits, far exceeding other large-screen displays. The viewing angle extends beyond 160°, offering a broader perspective. The lamp beads are mounted directly on the device board, eliminating gaps and splicing marks for seamless flatness. The screen adapts brightness based on ambient light, enhancing user comfort.

Indoor Small Pitch LED Screen
Indoor Small Pitch LED Screen

Indoor Small Pitch LED Screen Lightweight Design

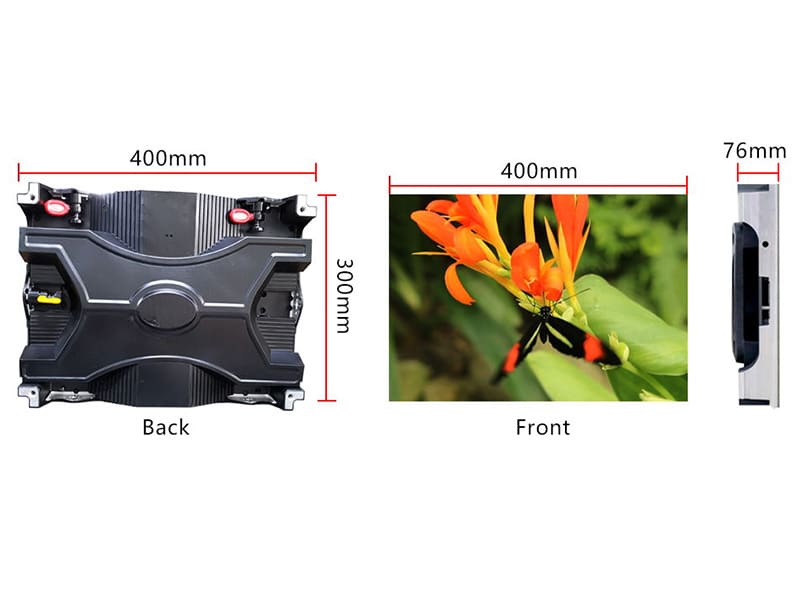

REISSDISPLAY 4:3 design HD LED display. Cabinet’s 4:3 resolution is specialized for command center. Perfect replacement for LCD display. The single weight is only 6.5kg, and the thickness of the cabinet is only 76mm, which is convenient for installation and saves transportation costs. Display box size: 400 * 300 mm.

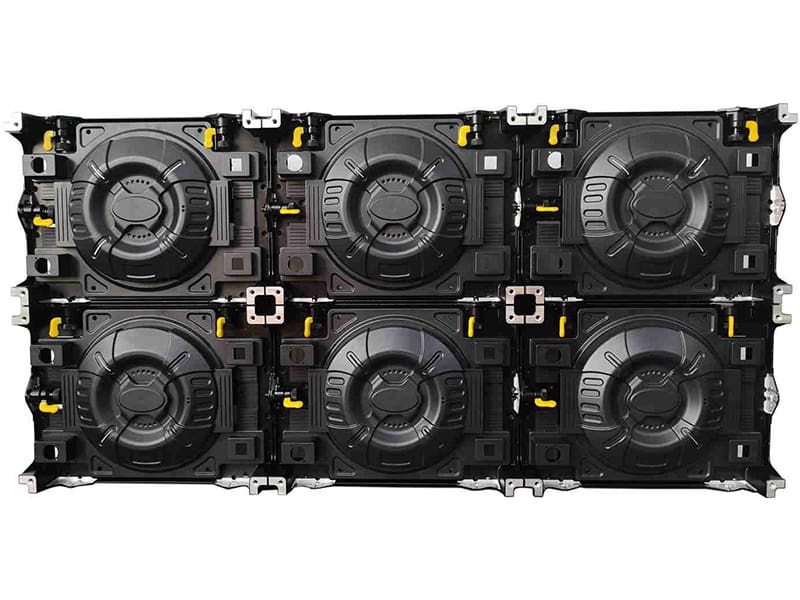

Indoor Small Pitch LED Screen Seamless Splicing, Assemble Screen Freely

REISSDISPLAY Patented connecting piece, and hang pin rotating at 120 degree to lock the case, and gap adjustable to ensure the seamless screen, and rapid installation and removal supported. Only 1/4 of installation time compares with traditional structure.

Indoor Small Pitch LED Screen
Indoor Small Pitch LED Screen 7680HZ

Use the best core raw materials toensure the best quality

The integrated lamp design protects the circuit, reducing lamp damage. It solves color blocks, color deviation, and first-line darkness at low gray levels. Camera shots remain ripple-free, producing realistic, high-quality images.

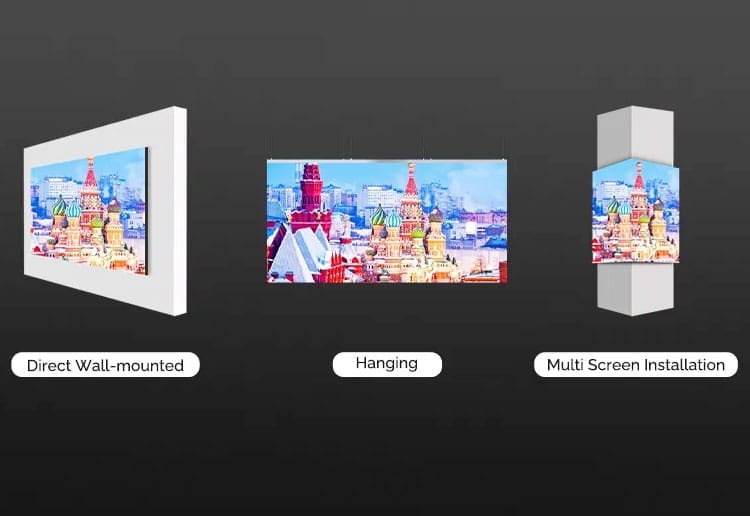

Multiple Installation

Support wall-mounted, frame installation, magnet absorption fast installation and hanging installation. The system supports 90-degree splicing for flexible configuration.

you can doany events with the limited budget.

Indoor LED Wall Panel
Indoor Small Pitch LED Screen

Multi-style Application

To fir every different scene, our products utilized superior materials with the concise and strong structure.This product is usually used in.

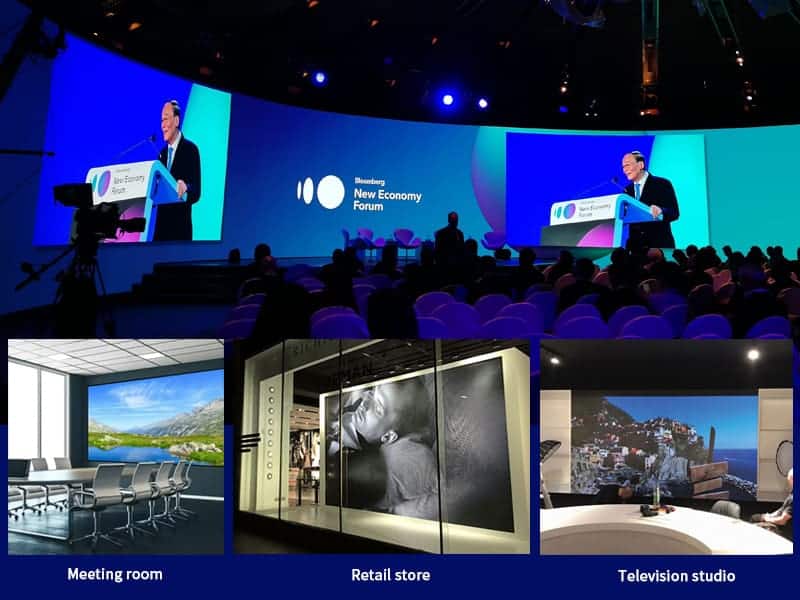

Staging Events, Concerts, Studio, Stores, Entertainment places, Restaurants, Hotel Lobby and Resort, Stadiums, Indoor advertising and film shooting, Banks, Churches, Hospitals, Schools.

Application Cases

Application Case of LED Display Screen in Conference Room

Application Case of LED Display Screen in Conference Room

" Customer Testimonials:

Application of LED Display Screens in Conference Rooms LED display screens have become a central feature in modern conference rooms, offering high-resolution visuals, seamless integration, and enhanced collaboration tools. Their flexibility, durability, and ability to display dynamic content make them an excellent choice for various applications, ranging from corporate meetings to training sessions and presentations. […]

Application and Installation Videos

Indoor Small Pitch LED Screen – IF-A Series
Indoor Small Pitch LED Screen – IF-A Series

Specifications

Pixel Pitch 1.25mm 1.56mm 1.667mm 1.923mm 2.5mm
Application Indoor Indoor Indoor Indoor Indoor
Pixel Density 640000 409600 360000 270400 160000
Pixel Configuration SMD1010 SMD1010 SMD1010 SMD1010 SMD1010
MAX Power Con 680w/Sq.m 640w/Sq.m 620w/Sq.m 600w/Sq.m 580w/Sq.m
AVG Power Con 350w/sq.m320w/sq.m 320w/sq.m 300w/sq.m 280w/sq.m 260w/sq.m
Module Dimension 200x150mm 200x150mm 200x150mm 200x150mm 200x150mm
Module Resolution 160×120 dots 128×96 dots 120×90 dots 104×78 dots 80×60 dots
Cabinet Dimension 400x300x76mm
Cabinet Resolution 320×240 dots 256×192 dots 240×180 dots 208x156dots 160x120dots
Cabinet Weight 5.85kg
Service Access Front
Rotation Angle -10° and +10°
Brightness (nits) ≥1000
Refresh Rate (HZ) 7680
Grey Scale (bit) 16
Viewing Angle (H/V) 160 / 160°
IP Rate IP54
Input Voltage (AC) 110 / 240V

configuration
