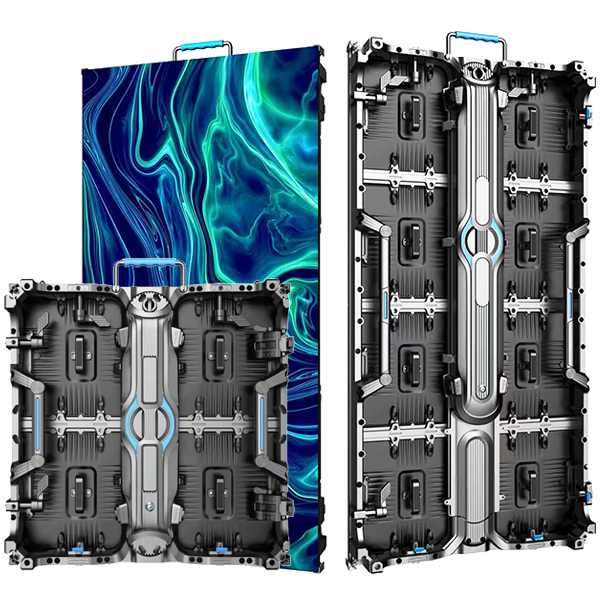

Stage LED Displays

RF-PRO+ Series

RF-PRO+ series innovative LED technology improves stage LED displays effect and enhances customer engagement；The connection line is all integrated in the box in the installation does not need to be connected, only need to plug the box in accordance with the interface can reduce the bondage of the line, installation is also faster, the beauty increased a lot.

- Ultra-thin design

- Removable back cover

- High-precision curve lock, arc installation

- LED corner protection

- Magnetic module modules are arranged regardless of left and right

- High outdoor waterproof

Quick Request

Appointment customization

Stage LED Display Screen

Your current location:

Home » Rental LED Display Screen » Rental LED Stage Screen – RF Series » Stage LED Displays – RF-PRO+ Series

Stage LED Displays – The Creative Possibilities Are Endless!

REISSDISPLAY RF-PRO+ series stage LED displays are engineered to be the ultimate stage solution for large-scale events, offering unparalleled visual impact for any venue. These high-performance screens deliver vibrant colors, exceptional brightness, and seamless imagery, ensuring every performance or presentation makes a lasting impression.

Our dedicated LED screen team partners with you from concept to completion, providing expert guidance and fully customized solutions. We understand that every event has unique requirements, which is why we offer complete flexibility in size, shape, and configuration.

The RF-PRO+ series excels in diverse applications, making it ideal for concerts, fashion shows, music festivals, sports events, and commercial launches.

At REISSDISPLAY, we combine cutting-edge technology with professional service to deliver LED solutions that exceed expectations. Our end-to-end support includes design consultation, technical planning, and flawless installation, ensuring your event runs smoothly from start to finish. Let us help you create unforgettable experiences with LED displays that captivate audiences and elevate your production value. Contact our team today to discuss your next project and discover the RF-PRO+ difference.

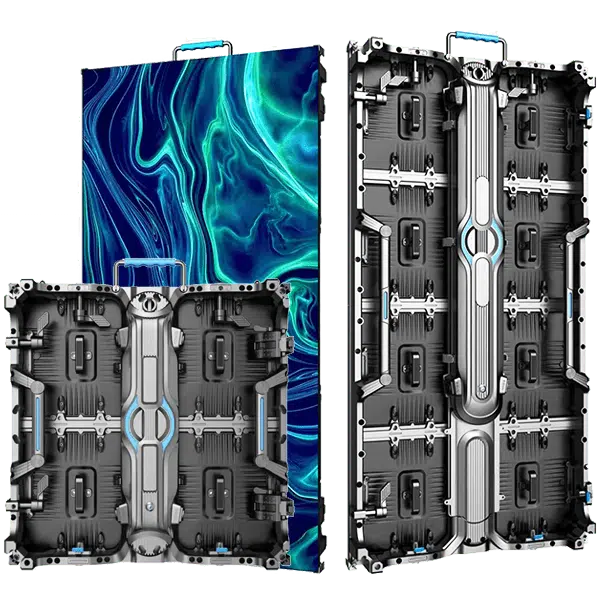

Stage LED Displays

Stage LED Displays Engineered for Flawless Visual Impact

– Stage LED displays available in multiple panel sizes 500x500mm, 500x1000mm die-cast aluminum
– Excellent Performance
– Seamless Display and Better Visual Effects
– Aluminum Cabinet, Lightweight, Safetyand – Reliability, No Distortion
– Easy to Install and Maintain
– High Performance Driving IC
– Ultra-thin design
– Removable back cover
– High-precision curve lock, arc installation
– LED corner protection
– Magnetic module modules are arranged regardless of left and right
– High outdoor waterproof

High Refresh Rate Smoother Stage LED Screen

High refresh rate of 7680Hz, clearer display, no flash screen, no jitter, no drag screen display more smooth and stable.

Stage LED Display

Stage LED Display Screen

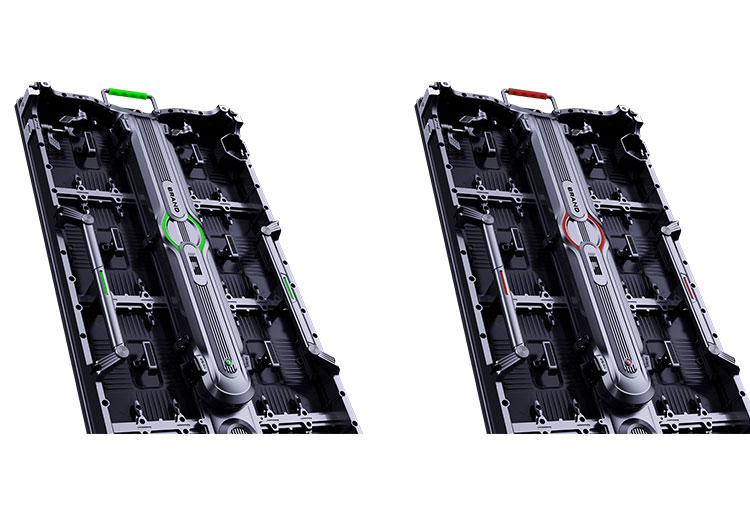

Stage LED Displays Color

Two different color theme for your option.

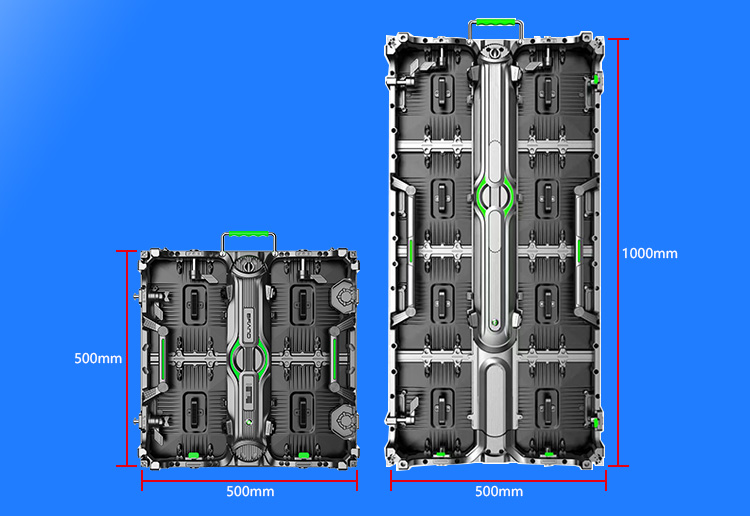

Ultra-light And Slim Design

The standard cabinet size is 500x500mm/500x1000mm (1.64×1.64ft/1.64×3.28ft), suitable for 250x250mm standard size modules, made of ultra-light die-cast aluminum, with a thickness of only 71mm, which is convenient for transportation and carrying.

Stage LED Displays

Stage LED Display Screen

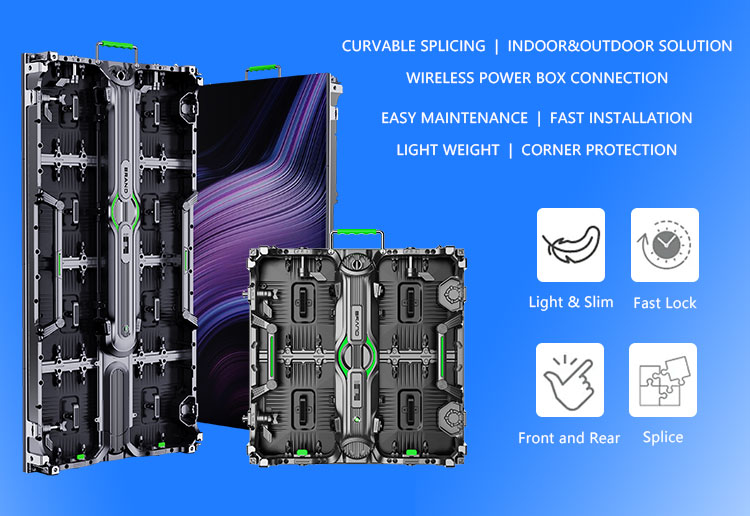

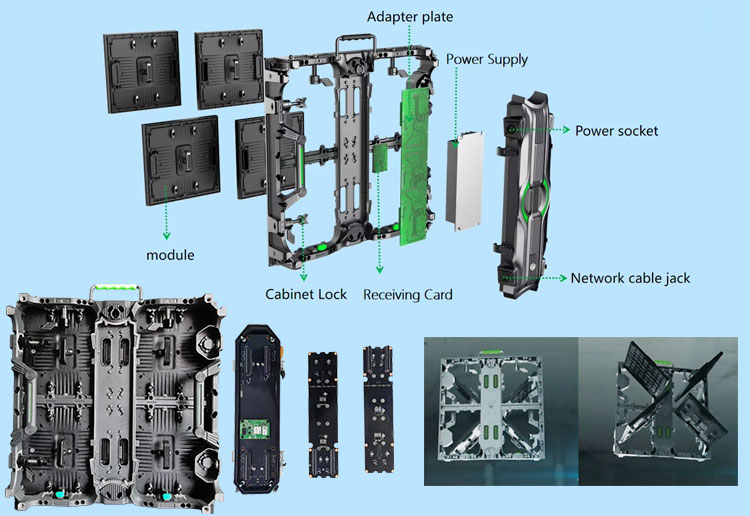

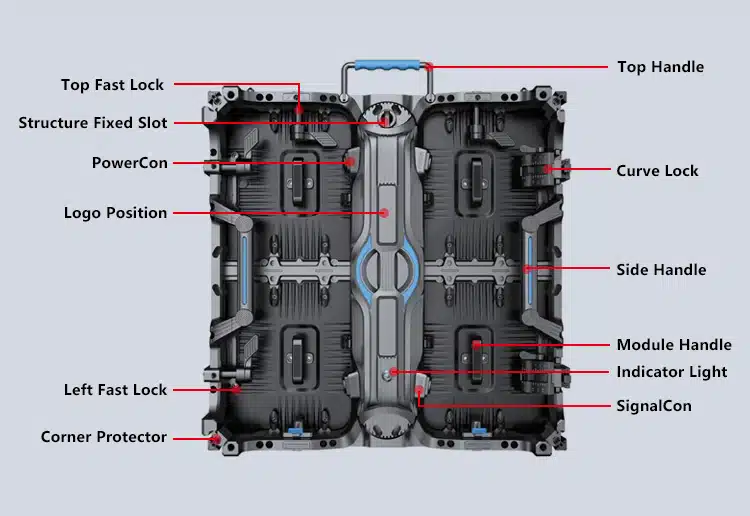

UPerfect Lightweight Cabinet Design

From cabinet handles, fixing slots, to quick locks, magnetic modules, mounting knobs, and removable power supply boxes, every detail reflects excellent design principles.

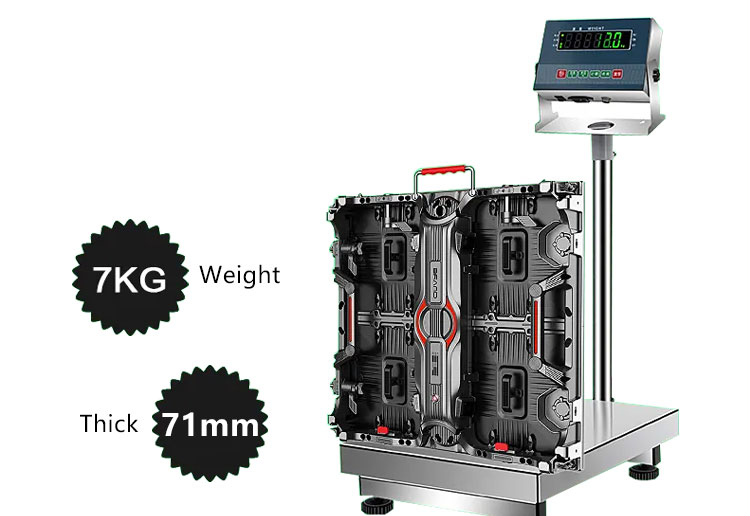

Lightweight, Ultra-thin

As the cabinet uses aluminum material, the weight of the panel is only 7kg/12kg, and it has great heat dissipation.

Stage LED Display Screen

Stage LED Display Screen

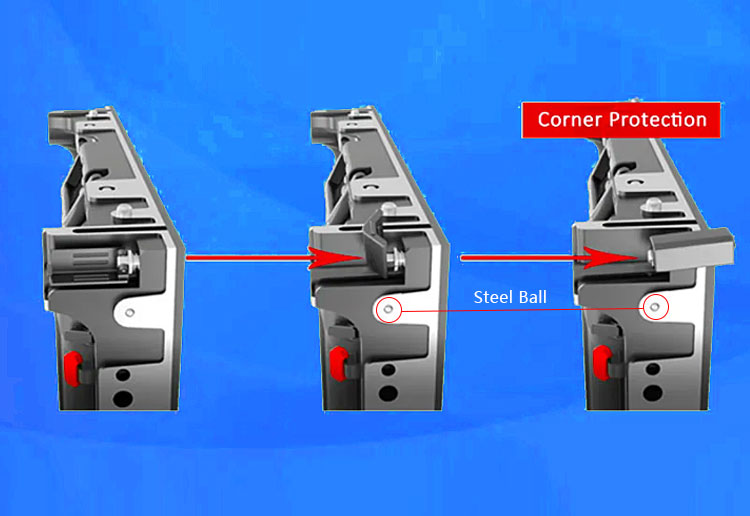

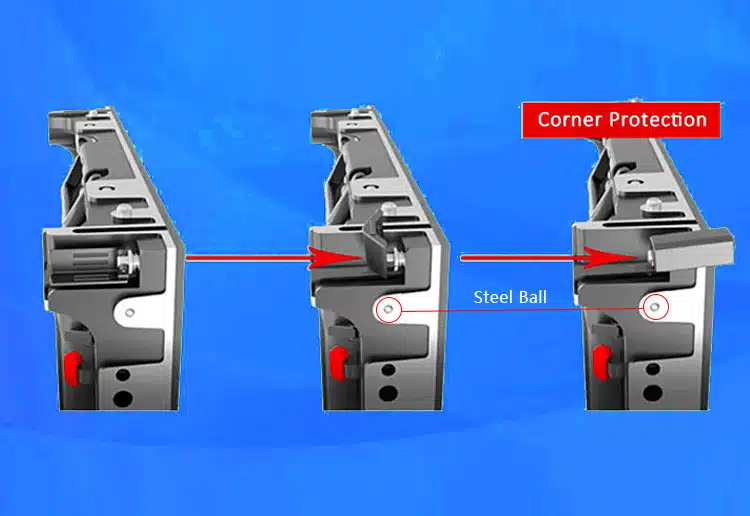

LED Corner Protectors

RF-PRO+ series front service LED signs have four corner protectors at each corner to prevent LED damage, and the foldable design is safer for transportation, installation, operation, and assembly and disassembly, and is easy to use.

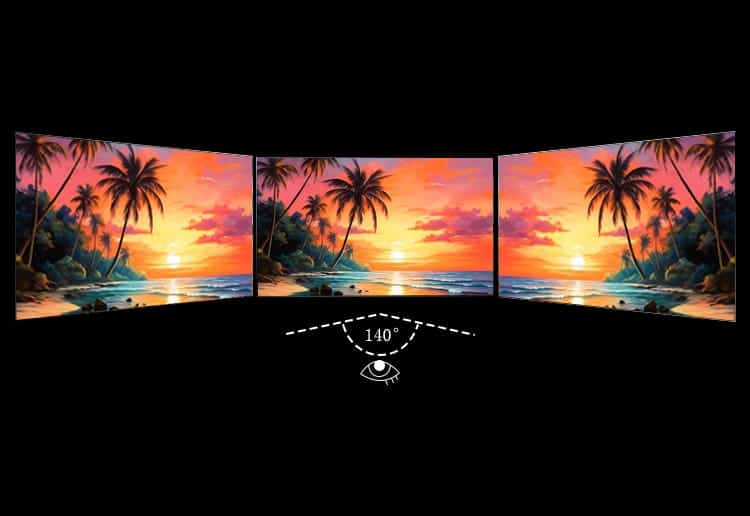

Wide Viewing Angle

With wide viewing angle capability (140° h/V) and wide visual coverage ensure optimal visibility from every vantage point.

Stage LED Display Screen

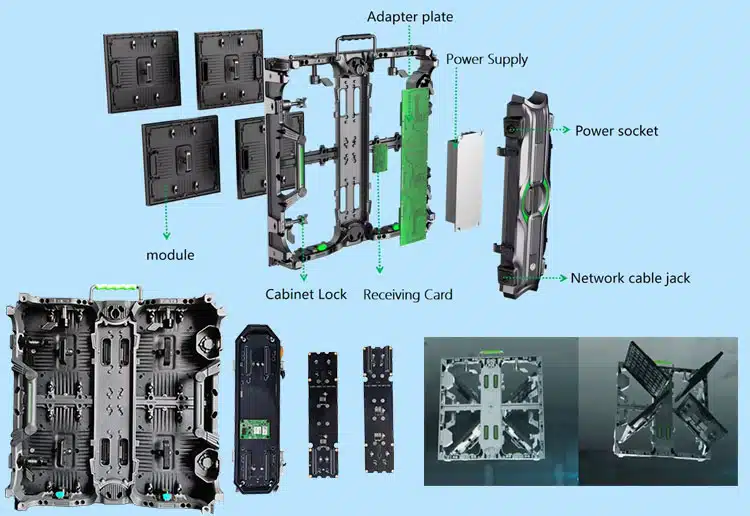

Double Maintenance Design

Front and rear maintenance rental LED display screen uses magnets to absorb LED panels, module installation knobs, power and signal connectors, detachable power supply boxes, etc. The cabinet adopts front and rear design, and the LED panel is easy to install. The power box and HUB board are detachable hard connection design, double sealing rubber ring high IP65 waterproof, and quick installation buckles are used for the installation and removal of the back cover.

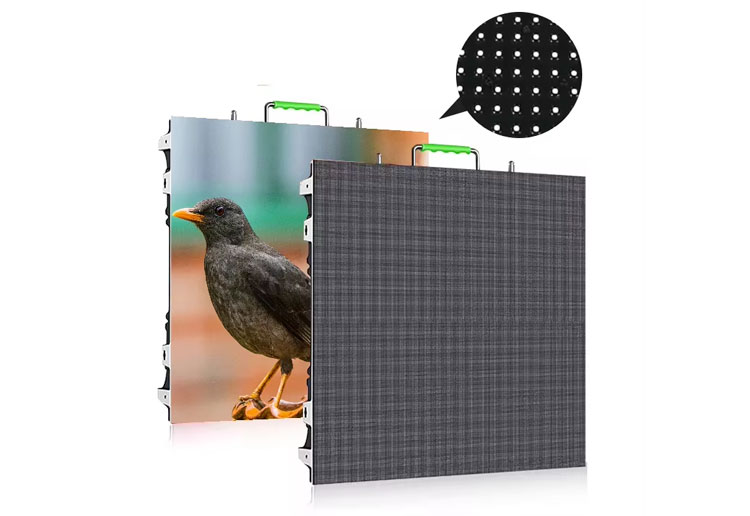

Full Color Stage LED Displays

ReissDisplay stage LED displays, clearer picture, using high-quality lamp beads, high LED chips, longer service life.

Stage LED Display Screen

Stage LED Display Screen

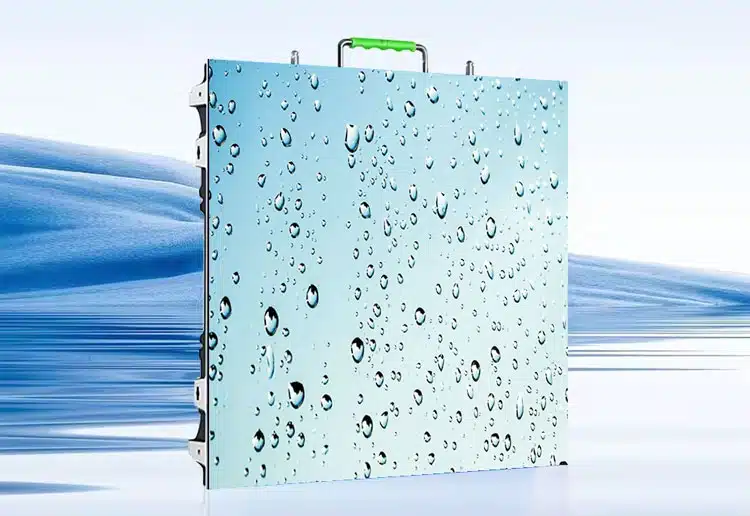

Waterproof Stage LED Displays

Outdoor stage LED displays supports Ip65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

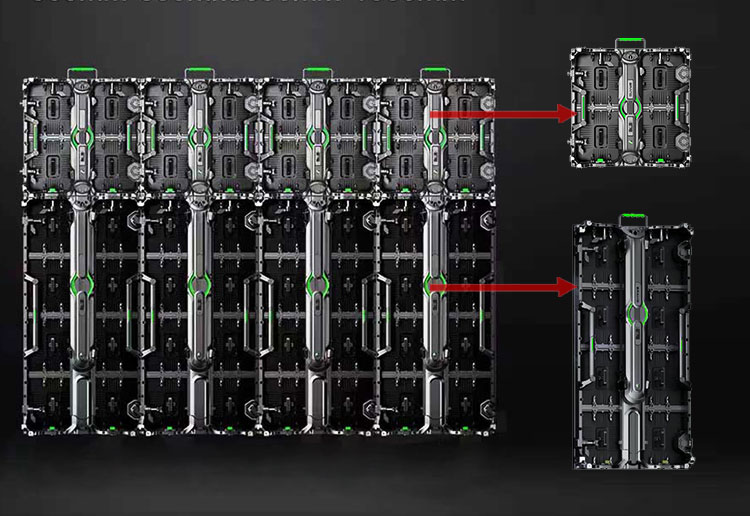

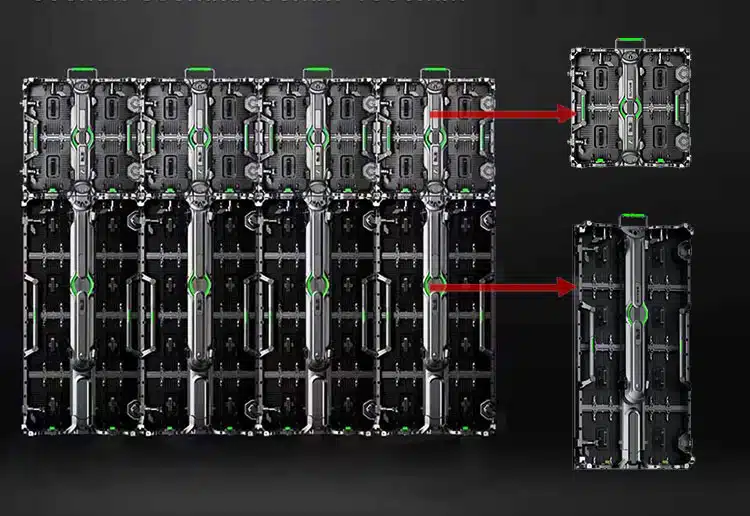

Mixed And Match

500x500mm and 500x1000mm cabinets canbe easily connected horizontally and vertically for different configurations.

Stage LED Display Screen

Stage LED Display Screen

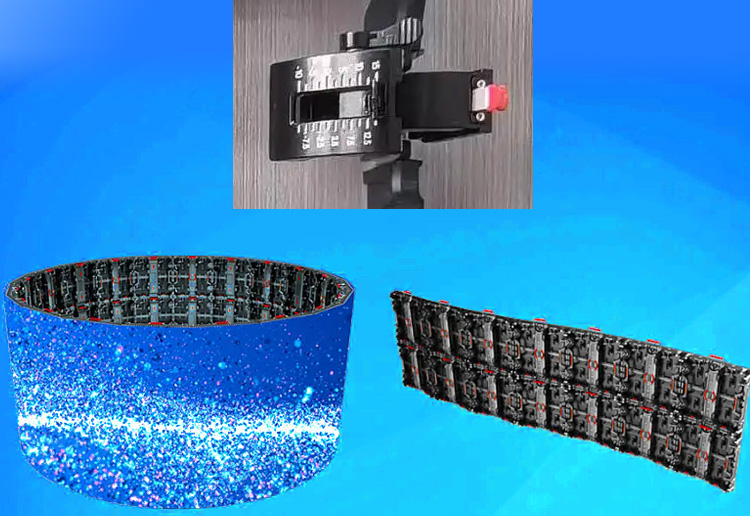

High-precision Curve Lock

High precision curve lock (-10° to +10°) can make curve LED screen seamless. Rotational control makes it easier to faster to adjust curve degree. It can used for curved stage backdrop.

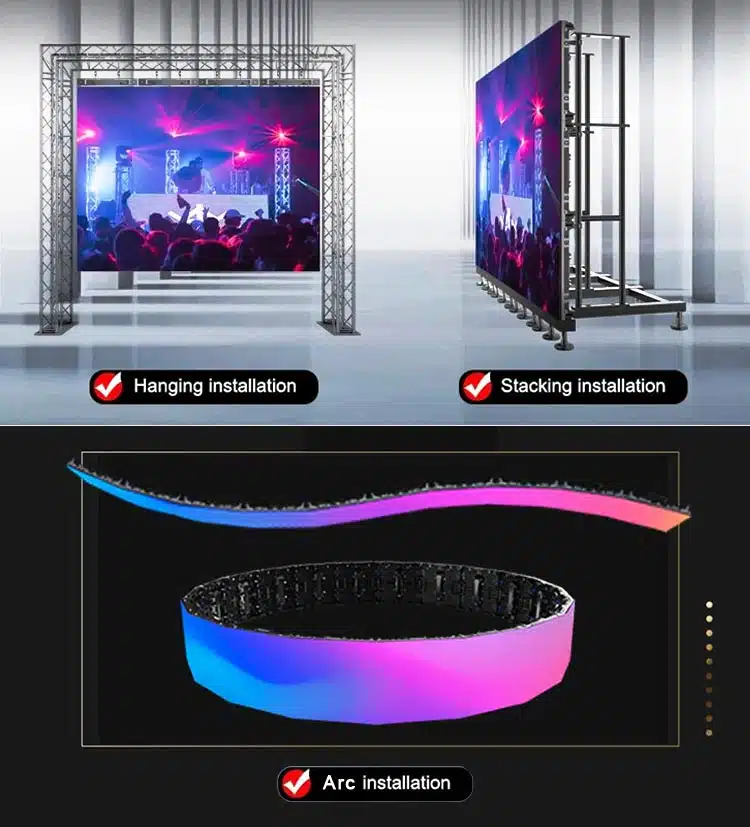

Stacking And Hanging System Optional

Hanging and Stacking Avaiable : can meet the different demands of movable occasions with hanging bar or back bracket.

LED Wall for XR Stage

Application Cases

How to choose high-quality rental LED screens

How to choose high-quality rental LED screens

" Customer Testimonials:

Choosing High-Quality Rental LED Screens Resolution Selecting quality LED Rental Screens requires careful consideration of key factors. Our Display Rental Solutions combine reliability with outstanding performance. Through Professional Rental Technology, we ensure exceptional event experiences. Key Points: Pixel Density: More pixels per inch mean a clearer picture. Minimum Resolution: Aim for Full HD for standard […]

How to configure a large stage LED screen

How to configure a large stage LED screen

" Customer Testimonials:

Learn how to choose the right size and resolution for a large stage LED screen that meets your event's needs and audience viewing distance.

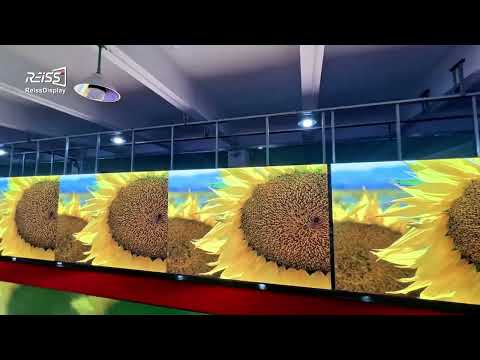

Application and Installation Videos

Stage LED Displays – RF-PRO+ Series

Stage LED Displays – RF-PRO+ Series

Specifications


1. Basic Parameters
Pixel Pitch	1.56	1.953	2.604	2.976	3.91
Module Size	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm
Resolution/Pixels	160*160	128*128	96*96	84*84	64*64
LED (HS/RS/NATIONSTAR)	SMD1212	SMD1515	SMD1515	SMD1515	SMD2020
Driver IC	DP3264S/ICN1065S	DP3153/ICN2153	DP3153/ICN2153	DP3153/ICN2153	DP3153/ICN2153
Driver Mode	1/40	1/32	1/32	1/28	1/16
2. Electricity Parameters
Brightness	550	550	550	550	550
Gray Scale	8bits input, correction with 16bits
Display Color	16.7M
View Angle	140 degree ( horizontal) 140degree(vertical)
View Distance	2m-30m
3. Driver Power Supply
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	1000 W/m2
Average Power Consumption	450 W/m2
4. Control System
Refresh Frequency	7680Hz	7680Hz	7680Hz	7680Hz	7680Hz
Correction Scale Level	16-24bits
Frame Update Frequency	60Hz
Gamma Correction	-5.0—5.0
Color Temperature	5000-9300 adjustable
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
5. Reliability
Operating Temp	-20-60 Celsius Degrees
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Protection Level	IP54
Out of Control Pixel Rate	0.01%
Continuous Working Time	≥48 hours


1. Basic Parameters
Pixel Pitch	2.604	2.976	3.91	4.81
Module Size	250*250mm	250*250mm	250*250mm	250*250mm
Resolution/Pixels	96*96	84*84	64*64	52*52
LED (HS/RS/NATIONSTAR)	SMD1415	SMD1415	SMD1921	SMD1921
Driver IC	DP3153/ICN2153	DP3153/ICN2153	DP3153/ICN2153	DP3153/ICN2153
Driver Mode	1/24	1/21	1/16	1/13
2. Electricity Parameters
Brightness	≥4000cd	≥≥4000cd	≥4000cd	≥4000cd
Gray Scale	8bits input, correction with 16bits
Display Color	16.7M
View Angle	140 degree ( horizontal) 140degree(vertical)
View Distance	3m-30m
3. Driver Power Supply
Operation Power	AC100-240V 50-60HZ Switch-able
Maxim Power Consumption	1000 W/m2
Average Power Consumption	450 W/m2
4. Control System
Refresh Frequency	7680Hz	7680Hz	7680Hz	7680Hz
Correction Scale Level	16-24bits
Frame Update Frequency	60Hz
Gamma Correction	-5.0—5.0
Color Temperature	5000-9300 adjustable
Support Input	Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control Distance	Ethernet cable 100m, optical fiber 5km
Support VGA Mode	800×600,1024×768,1280×1024,1600×1200
5. Reliability
Operating Temp	-20-60 Celsius Degrees
Operating Humidity	10-95% RH
Operating Life	100,000 hours
MTBF	5000 hours
Protection Level	IP65
Out of Control Pixel Rate	0.01%
Continuous Working Time	≥48 hours

Module	250×250 mm
Pixel Pitch	P1.56 / P1.9 / P2.604 / P2.976 / P3.91
Cabinet Size	500x500mm/500mmx1000mm
Cabinet Weight	7kg/12kg
Cabinet Material	Die Cast Aluminum
Applicable Environment	Indoor / Outdoor
Standard Fittings	Power Airplug，Signal Airplug
