Rental LED Stage Screen: What You Need to Know

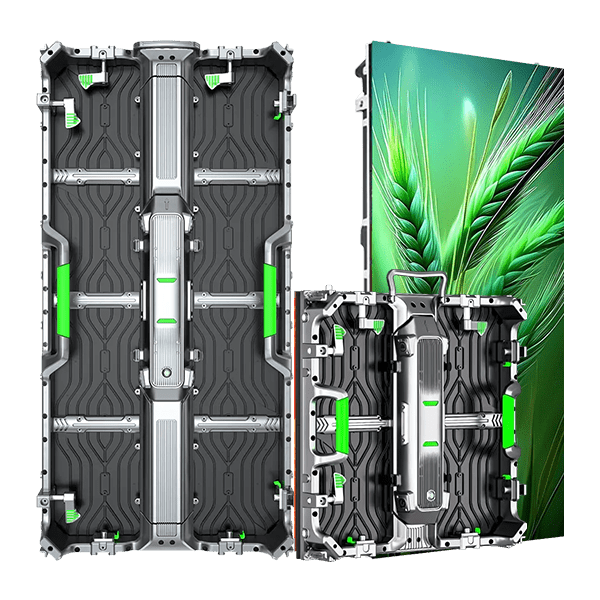

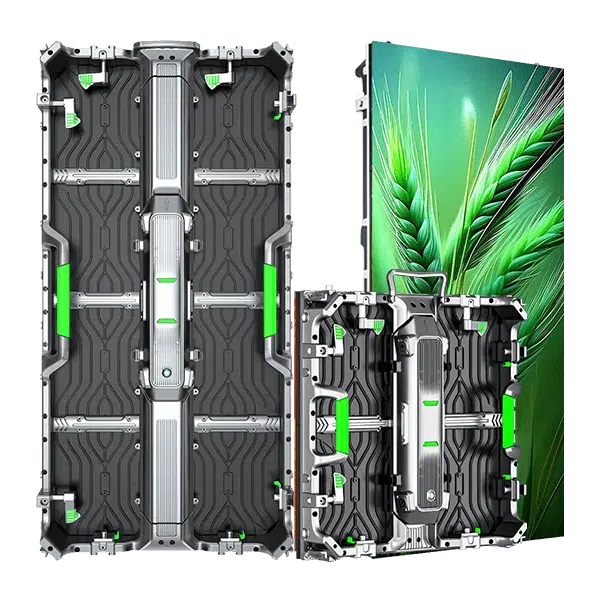

REISSDISPLAY RF-RH series rental LED stage screen cabinets are expertly designed for versatility and high performance. They excel in dynamic environments. Available in two sizes — 500 x 500 mm and 500 x 1000 mm — these cabinets provide flexible solutions. They meet various staging needs.
With a vast knowledge of this field, we are offering an excellent collection of stage LED video background wall for concert /wedding to our respected clients. The offered range of product is designed from best quality basic material. In addition to this, we assure timely delivery of our offered products.

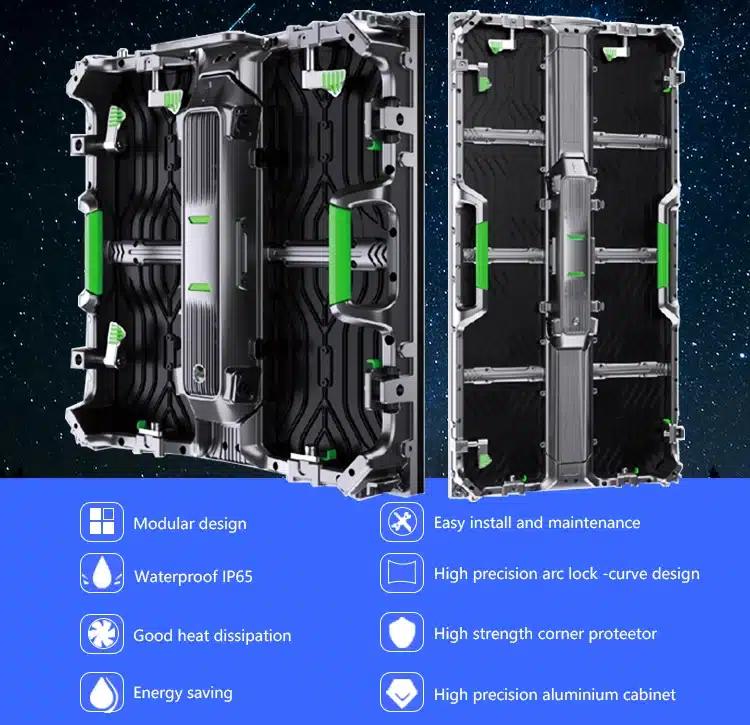

Perfect Dimension Of Rental LED Stage Screen
1: 500*500 and 500*1000mm cabinet design, die-cast aluminum
2: Magnesium alloy material, the lightest, only 7.5kg-13kg
3: High precision, seamless connection
4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof Indoor IP33/Outdoor IP65
8K 4K 2K effects

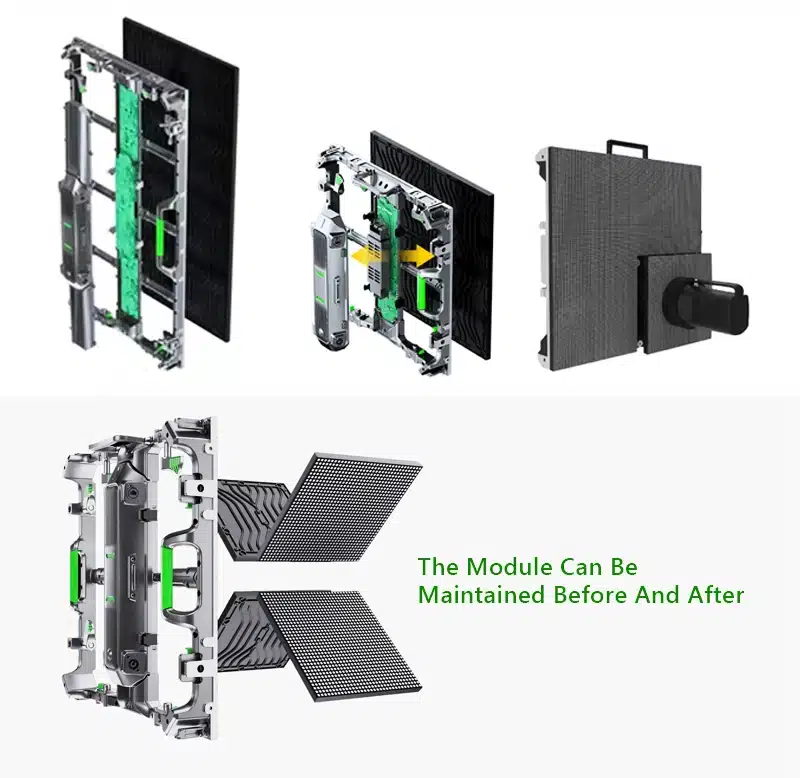

Front maintenance

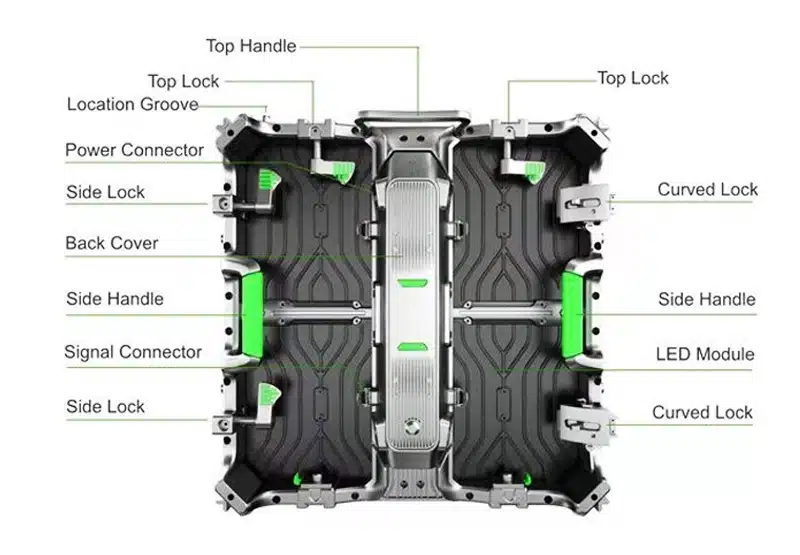

Perfect Display of Details
There is a handle on the top for easy operation; there are protective devices at the corners to protect the LED lights and cabinet; quick lock for quick installation
HUB Connection and Hot-Swappable Features

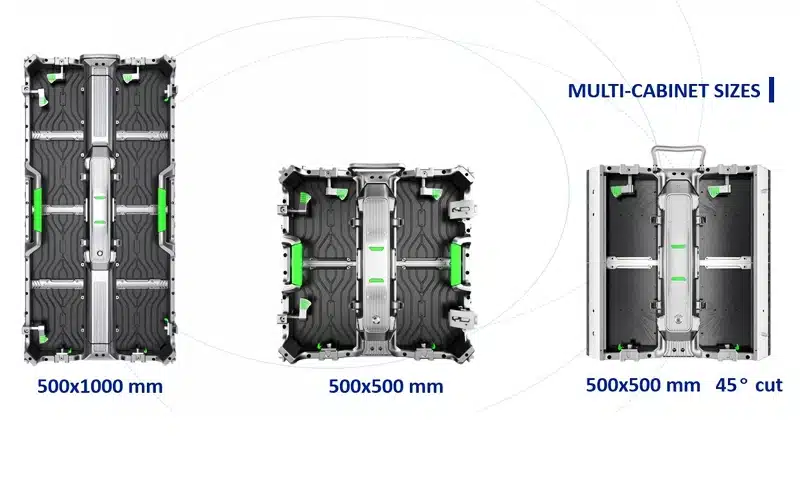

Multi-Cabinet Sizes
The cabinet is made of die-cast aluminum, the panel weight is only 7.5 kg, and the heat dissipation performance is excellent.
Three modes can be selected: size 500*500mm (straight / curved), size 500*1000mm (straight / curved), 500*500mm 45°cut

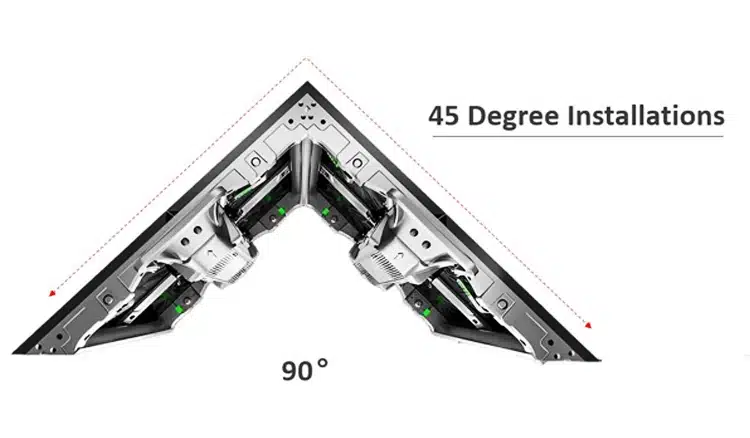

Seamless 90-degree Angle Installation

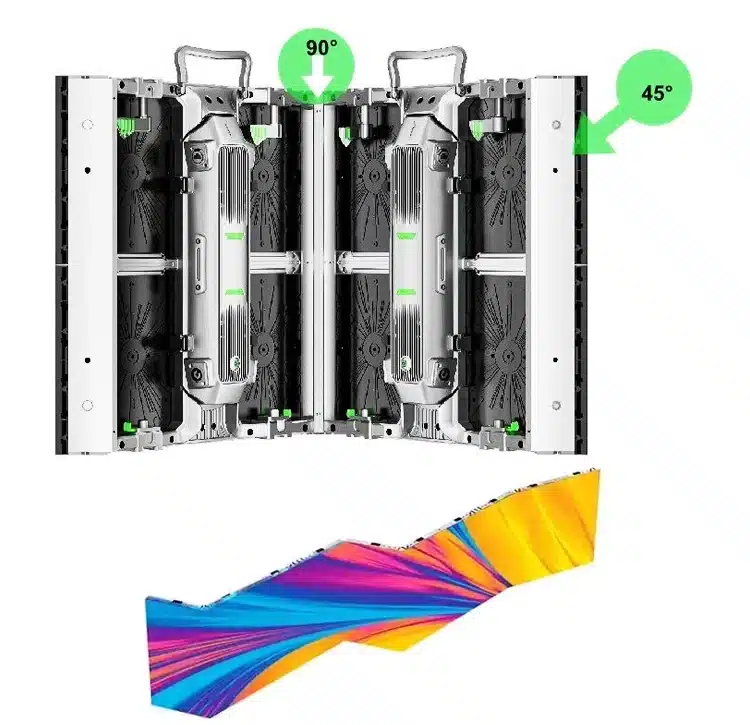

The corner cabinet can be edged at a 45-degree angle to create a seamless 90-degree angle
· 90-degree design
· Single box 45-degree angle
· Special purpose design
· Square corner

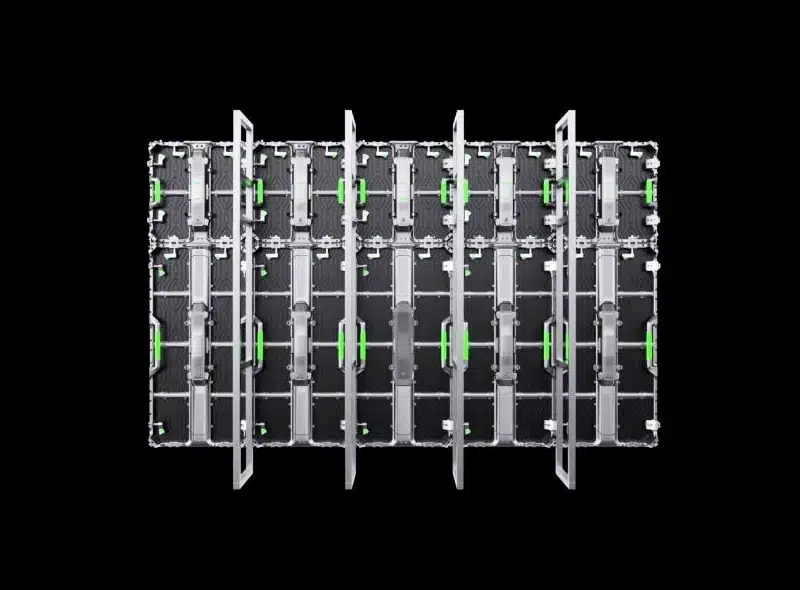

Creatively Installed

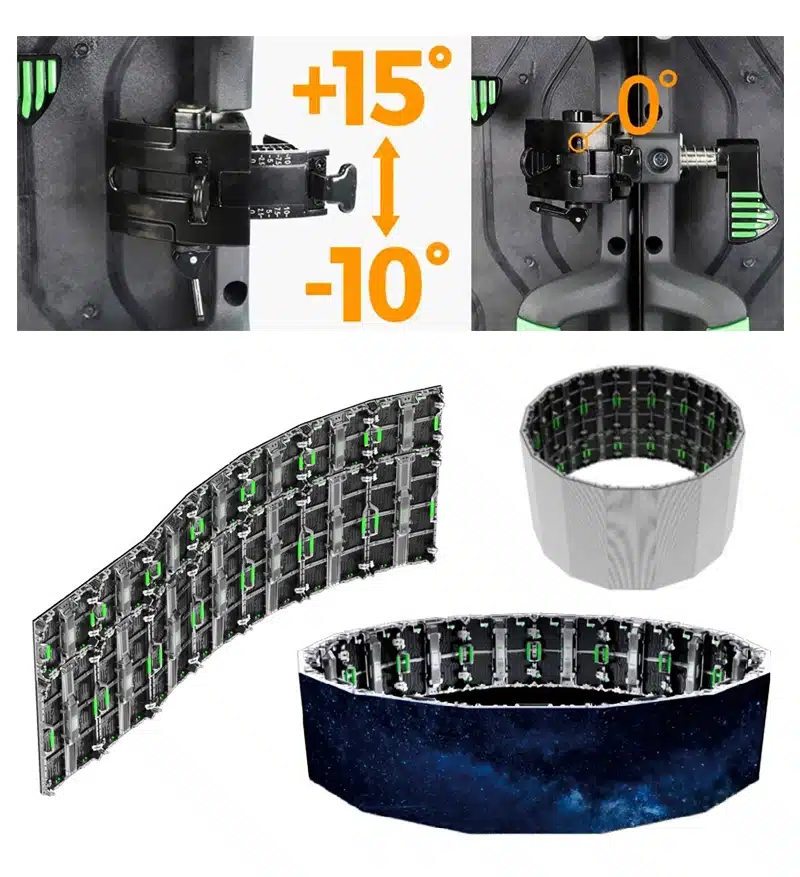

Rental LED Stage Screen Cabinet: Rapid Arc Splicing Function
The fast arc splicing function of the stage LED display cabinet represents a major advancement in display technology. By quickly and accurately connecting panels, this feature improves the overall efficiency and quality of LED installations, making it a valuable tool for events and productions that require high-performance visual solutions.

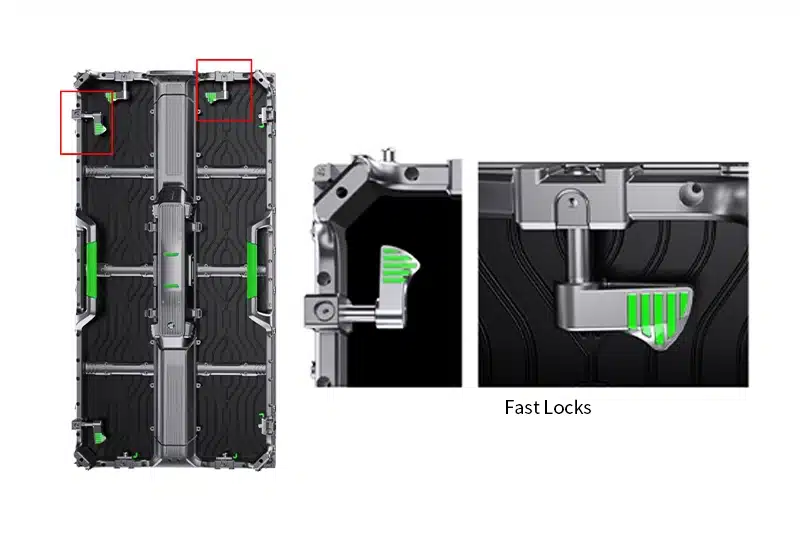

Fast Assembly
There are 2 fast lock each side for panel,quick operation, also ensuring the flatness the whole screen

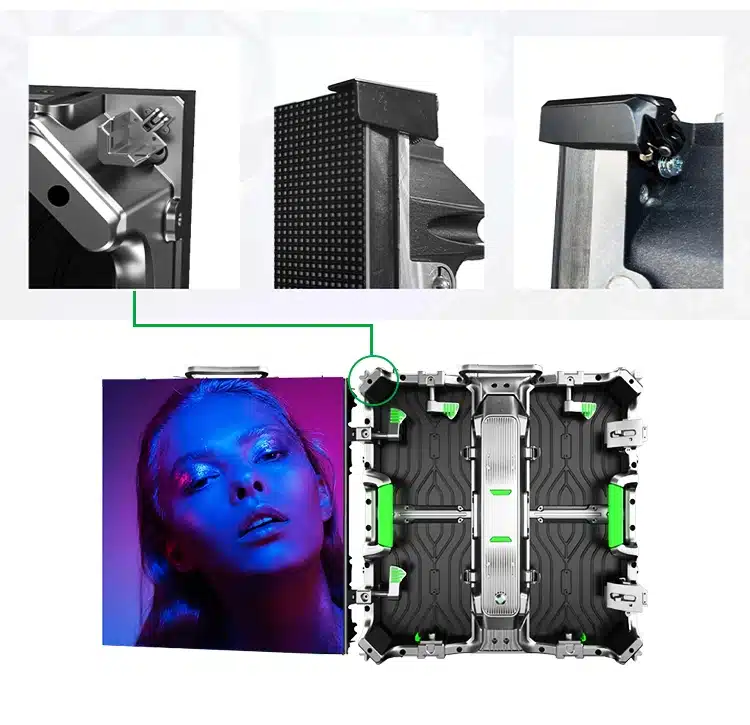

Rental LED Stage Screen Cabinet: Corner Protection Function
HDR Effect and High Grayscale
Mix Use
500x500mm and 500x1000mm cabinet can mix assembling, more flexible to create the exact size customer want

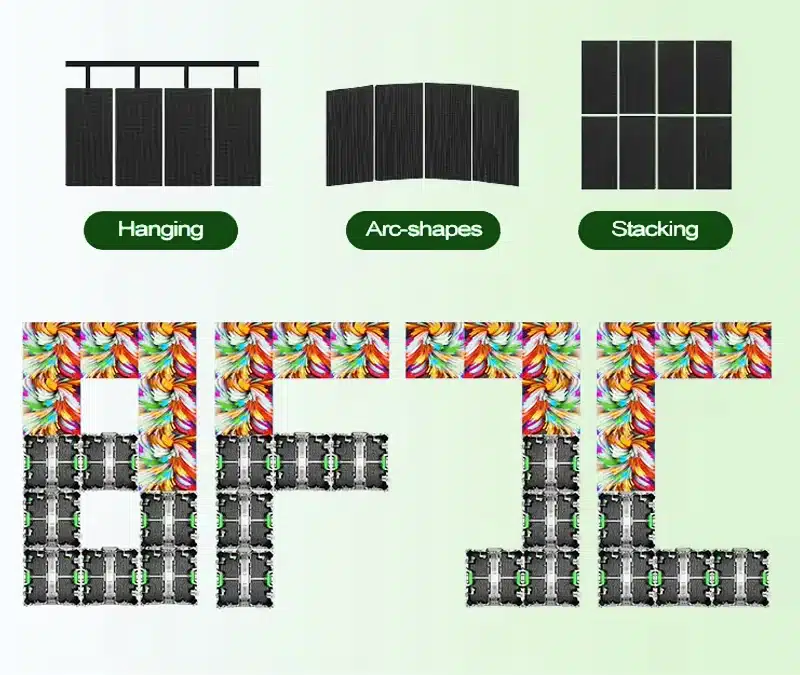

Various Installation Methods for Rental LED Stage Screen

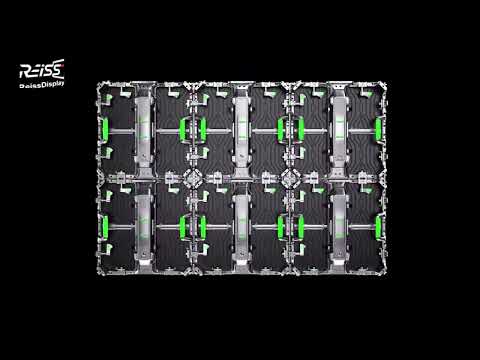

Application and Installation Videos
Specifications
| Pixel Pitch (mm) | 1.5625 | 1.953 | 2.604 | 2.976 | 3.91 | 4.81 |
| Operating Environment | Indoor | Indoor | Indoor&Outdoor | Indoor&Outdoor | Indoor&Outdoor | Indoor&Outdoor |
| Module Size (mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 | 500*500/500*1000 |
| Cabinet Resolution (W×H) | 320*320/320*640 | 256*256/256*512 | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| IP Grade | Indoor IP33 | Indoor IP33 | Indoor IP33/Outdoor IP65 | Indoor IP33/Outdoor IP65 | Indoor IP33/Outdoor IP65 | Indoor IP33/Outdoor IP65 |
| Weight (kg/cabinet) | 7.5/13 | 7.5/13 | 7.5/13 | 7.5/13 | 7.5/13 | 7.5/13 |
| White Balance Brightness (nit) | 800-1200 | 800-1500 | 800-5500 | 800-5500 | 800-5500 | 800-5500 |
| Horizontal / Vertical Viewing Angle (°) | 165/165 | 160/160 | 165/165 | 160/160 | 160/160 | 160/160 |
| Power Consumption(W/㎡) | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% | 150-450±15% |
| Refresh Rate(Hz) | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 | 3840~7680 |
| Control System | Novastar/Linsn/Colorligh | Novastar/Linsn/Colorligh | Novastar/Linsn/Colorligh | Novastar/Linsn/Colorligh | Novastar/Linsn/Colorligh | Novastar/Linsn/Colorligh |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
Related Products

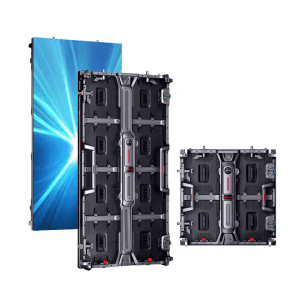

Rental LED Board – RF-RR Series
Experience the excellence of REISSDISPLAY RR series rental LED board cabinets. With flexible sizes, robust construction, and user-friendly features, they are ideal for event organizers.
Rental Outdoor LED Screens – RF-RI Series
The RF-RI Series Rental Pantallas LED Screen sets a new standard for efficiency and performance. From ads to events, these portable screens offer stability and ease of use. While conventional LEDs suit long-term setups, the RF-RI series excels in adaptability. Experience innovation with RF-RI Rental Pantallas LED Screens!
Stage Background LED Display – RF-GK Series
Explore the advantages of stage background LED screens for vibrant events, boosting visual appeal and audience engagement.

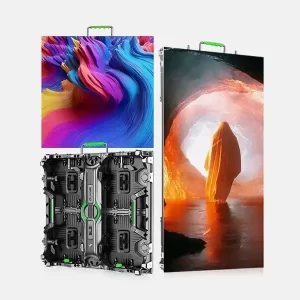

Stage LED Displays – RF-PRO+ Series
Professional manufacturer of fast maintenance and rental high-definition stage LED displays, usually used for large-scale stage events and large screens for World Cup games.
LED Wall for XR Stage – RXR-RC Series
Discover the RXR Series LED Wall for XR Stage, perfect for immersive visuals in studios, events, and live productions.

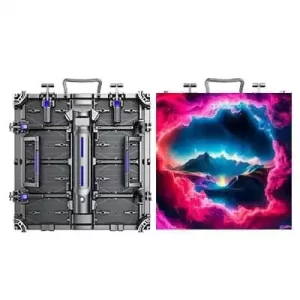

Event LED Rental Screens – RFR-RF Series
Most cost-effective rental screen manufacturer provides you with high-quality product solutions

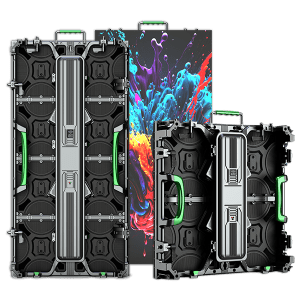

Stage Rental LED Display – RFR-DM Series
