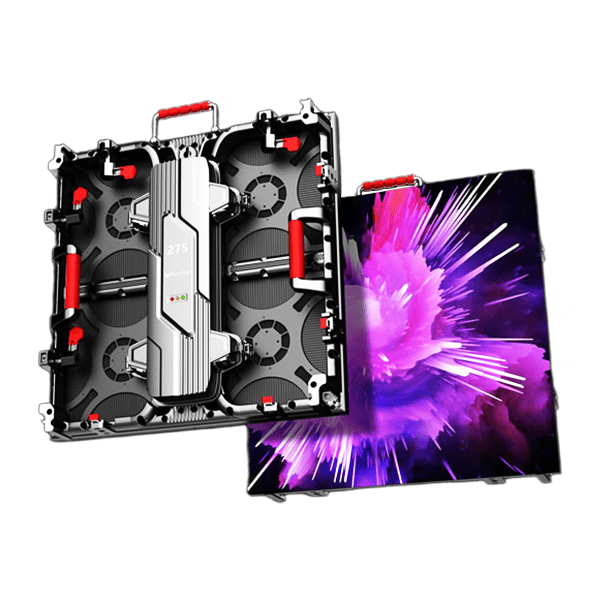

RF-GK Series Stage Background LED Display Advantages and Features
-
High Definition: Built-in PWM constant current chip, 7680Hz refresh rate, no flicker, 65,536 gray levels, and billions of colors.
-
Super Light: One-handed lift, easy installation.
-
Super Thin: Die-cast, high strength, precision, and durability.
-
High Precision: CNC machining, 0.1mm precision, seamless splicing.
-
Compatibility: Unique design for versatile indoor/outdoor installation.
-
Fast & Convenient: Fast locking mechanism, 10-second installation.
-
High Reliability: High strength, hardness, and excellent cooling.
-
Low Cost: Lightweight, reduces labor and transport costs, low energy use.
*Each cabinet can be customized with arc-shaped locks, which can adjust the curvature of the screen to achieve the effect of a curved screen.
Stage Background LED Display With Perfect Display Effect
The stage background led display effect is perfect, its high brightness and high refresh rate provide users with more realistic and vivid visual effects.
Wide Viewing Angle
Full RGB color produces vivid pictures. 178° ultra-wide horizontal and vertical viewing can enable maximum audience participation at a short distance.
Stage Background LED Display Can Be Customized
-
500×1000mm modules: These can be straight or curved for big, seamless displays.
-
500×500mm modules: These come in straight, curved, and flexible options to fit creative layouts.
-
45-degree 500×500mm cabinets: These can be customized with special parts:
-
Curved lock for smooth arcs.
-
Straight screen connection block for flat panels.
-
Right-angle connector for sharp 90° corners.
-
Column support for strong vertical or horizontal setups.
-
Triple Anti-collision Design
Shock-Absorbing Edge Padding, safeguarding internal components;
Extended lifespan, reduced downtime risks, seamless visuals—ideal for dynamic scenarios like performances and exhibitions, ensuring stable display and durability under high-stress conditions.
Advantages Of GOB LED Display Modules
GOB LED Display Modules: Advanced Technology for Superior Performance
GOB LED modules stand out in the LED display industry with cutting-edge design and technology. Key advantages include:
IP68 Waterproofing: Innovative potting and sealing technology, combined with advanced surface materials, ensures exceptional waterproof performance, enabling reliable operation in harsh outdoor environments.
Impact Resistance: Specially designed anti-collision rubber padding enhances durability, protecting against physical damage and extending lifespan in high-traffic or dynamic settings.
Premium Visuals: High-sealing, dust-free panels deliver sharp clarity, high refresh rates, and uniform colors. High-transparency materials ensure vivid, true-to-life displays.
Efficient Heat Dissipation: Superior thermal conductivity improves stability and longevity during prolonged use.
Ideal for outdoor advertising, stadiums, and demanding environments, GOB modules excel in both protection and visual performance, setting a new standard for LED display technology.
Perfect Display Performance
Color Uniformity
Rental LED Display Front and Rear Maintenance

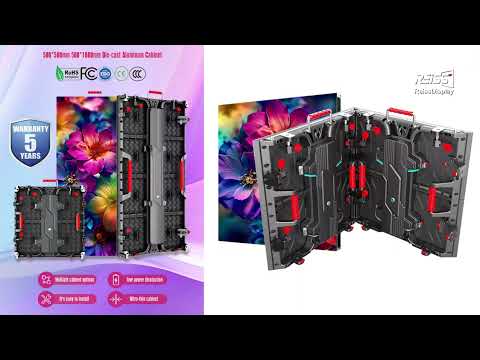

500mm/1000mm Die-cast Aluminum Cabinet
-
Four-in-One Design: The screen can be directly mixed as a straight screen, curved screen, flexible screen, or 45-degree right-angle screen.
-
Self-Adjusting Glass Beads: Left and right glass beads adjust automatically. If the construction site is uneven, the beads shrink to fit the screen, preventing unevenness and jamming. This feature ensures a smooth and stable setup, making it ideal for various installation conditions.
-
Easy Screen Maintenance: The receiving card and power supply are designed with hub connection and plug-in connection
-
Lamp bead protection: In addition, the raised platform at the bottom of the packaging box can keep the lamp beads suspended when the screen is placed on the ground, preventing them from being hit and collided. This design ensures the safety of the lamp beads during handling and storage.
-
Corner Protection: There is a raised platform at the bottom of the cabinet. When the screen is placed on the ground, the cabinet can be suspended in the air to prevent the cabinet from being hit.
45 Degree 500mm Die-cast Aluminum Cabinet Design
-
The 45-degree 500 box fits with a 90-degree right-angle screen. The strip lock also fits with both shaped and straight screens.
-
You can use it with regular straight screen boxes and curved boxes to create all kinds of complex display screens.
-
The clever connector design allows you to switch between straight screen connection and right-angle screen connection without removing the screws, making it very convenient to use.
-
It offers high precision, high strength, seamless joining, and high flatness.
-
You can hoist and stack it.
Various Installation
Uses And Application Scenarios Stage Background LED Display
Application Cases
Stage LED Screens: Your Ultimate Guide to Modern Event Displays
" Customer Testimonials:
A stage LED screen is a key feature of today’s event productions, offering stunning visuals that captivate audiences and elevate performances. Whether it’s a concert, corporate event, theater production, or wedding, these screens deliver dynamic, high-quality content that ensures every moment stands out. This guide explains the essential features, benefits, and tips for selecting the […]
Application and Installation Videos
Specifications
| Specification | P1.95 | P2.604 | P2.976 | P3.91 |
|---|---|---|---|---|
| Pixel Pitch | 1.95 mm | 2.604 mm | 2.976 mm | 3.91 mm |
| Density (dots/㎡) | 262,144 | 147,928 | 123,904 | 65,536 |
| LED Type | SMD1515 / SMD1921 | SMD1515 / SMD1921 | SMD2121 / SMD1921 | SMD2121 / SMD1921 |
| Cabinet Size (mm) | 500 × 500 / 500 × 1000 | 500 × 500 / 500 × 1000 | 500 × 500 / 500 × 1000 | 500 × 500 / 500 × 1000 |
| Cabinet Resolution (W × H) | 256 × 256 / 256 × 512 | 192 × 192 / 192 × 384 | 168 × 168 / 168 × 336 | 128 × 128 / 128 × 256 |
| Cabinet Material | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum | Die-Cast Aluminum |
| Weight (kg/cabinet) | 7.5 / 13 | 7.5 / 13 | 7.5 / 13 | 7.5 / 13 |
| Drive Method | 1/64 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Best Viewing Distance | 1.9–20 m | 2.5–25 m | 2.9–30 m | 4–40 m |
| Brightness (nit) | indoor 600–1500 / outdoor 4500-6500 | indoor 600–1500 / outdoor 4500-6500 | indoor 600–1500 / outdoor 4500-6500 | indoor 600–1500 / outdoor 4500-6500 |
| Input Voltage | AC 110V / 220V ±10% | AC 110V / 220V ±10% | AC 110V / 220V ±10% | AC 110V / 220V ±10% |
| Max Power Consumption | 650 W | 650 W | 650W | 650W |
| Average Power Consumption | 300 W | 300 W | 300 W | 300 W |
| IP Grade | Indoor IP33 | Indoor IP33 / Outdoor IP65 | Indoor IP33 / Outdoor IP65 | Indoor IP33 / Outdoor IP65 |
| Application | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor | Indoor & Outdoor |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Control System | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
Frequently Asked Questions
1 What is the RF-GK Series stage background LED display used for?
The RF-GK Series is a modular stage background LED display built for concerts, live events, conferences, exhibitions, and commercial stages. Its lightweight die-cast aluminum cabinets support straight, curved, flexible, and 90° angled setups, making it adaptable to almost any stage design.
2 What pixel pitches does the RF-GK Series offer?
The RF-GK Series is available in four pixel pitches: P1.95, P2.604, P2.976, and P3.91. Best viewing distances range from 1.9 m (P1.95) up to 40 m (P3.91), so you can match the resolution to your stage size and audience distance.
3 Can the RF-GK Series be used outdoors?
Yes. The RF-GK Series comes in indoor and outdoor versions. The outdoor model reaches IP65 protection with brightness up to 6,500 nits, so it works reliably in strong sunlight and light rain, while the indoor version is rated IP33 for dry environments.
4 How heavy is each RF-GK cabinet?
Each RF-GK cabinet weighs 7.5 kg (500×500 mm) or 13 kg (500×1000 mm). The lightweight die-cast aluminum design allows one-person handling and 10-second locking installation, reducing labor and transport costs for rental and touring use.
5 Can the RF-GK Series create curved or 90° screens?
Yes. With its four-in-one cabinet design, the RF-GK Series switches between straight, curved, flexible, and 45-degree 90° right-angle screens. Arc-shaped locks adjust the curvature, and right-angle connectors form sharp corners without removing screws.
6 What refresh rate and image quality does the RF-GK Series deliver?
The RF-GK Series delivers a 7,680 Hz refresh rate, 65,536 gray levels, and a 178° ultra-wide viewing angle. This produces flicker-free, high-contrast visuals with uniform color, ideal for on-camera broadcast and live stage performances.
