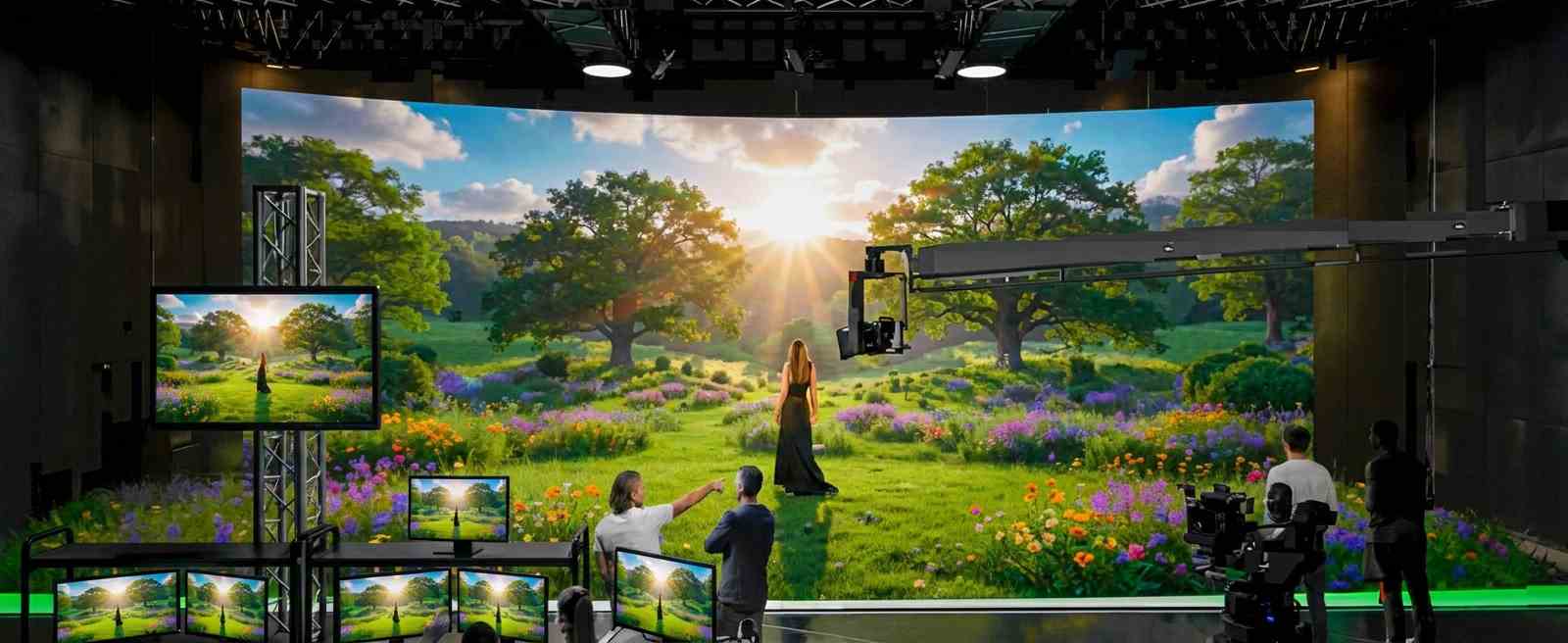

LED Volume Stage & Wall
LED volume stage and wall solutions are purpose-built for virtual production studios, XR applications, and the film and television industry. These advanced displays offer seamless integration with real-time rendering systems, a wide color gamut for lifelike visuals, and ultra-smooth performance in dynamic environments. Whether you need a complete LED volume stage or a flexible LED wall, REISSDISPLAY provides solutions that bring virtual storytelling to life.

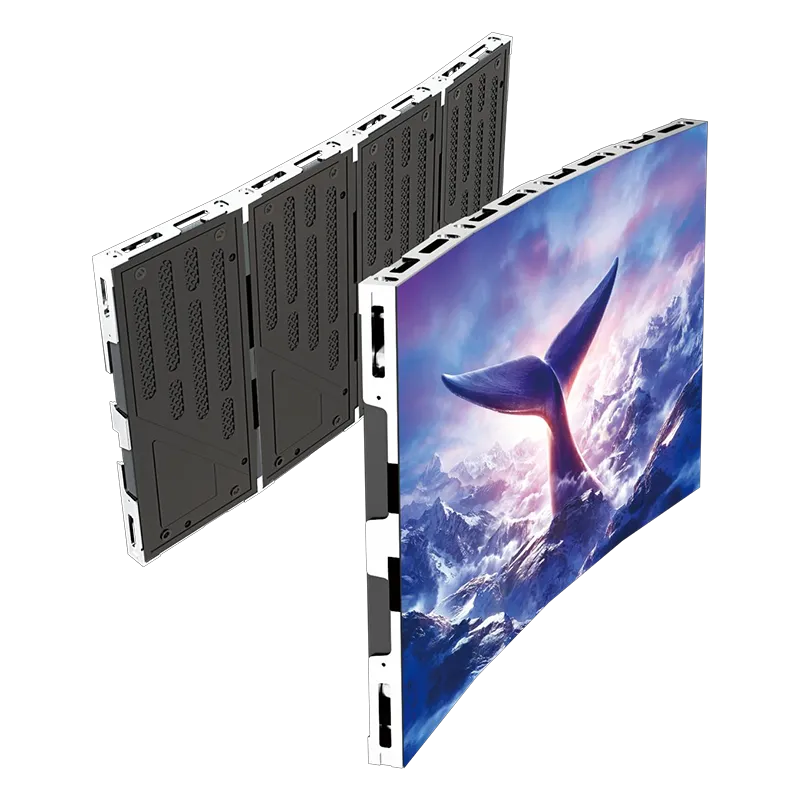

View detailsIXR - C Series
REISSDISPLAY Ultra-Thin Small-Pitch Curved LED Display Solution A fine pitch curve LED display is an indoor curved LED video wall with P0.78–P2.5 pixel pitch, built on 150×168.75mm modules and ultra-light 4.5kg die-cast aluminum cabinets (600×337.5×27.5mm). It supports both inner and outer arc splicing, a 7680Hz refresh rate, 16-bit greyscale, 170° viewing angle and full front […]

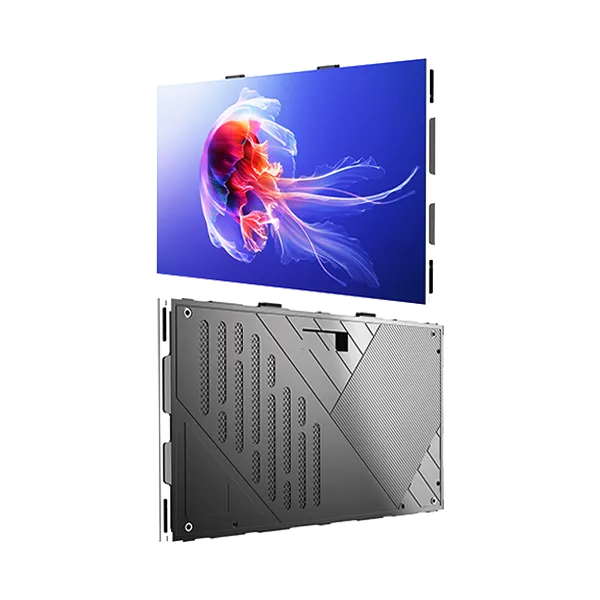

View detailsIXR-F Series
Fine Pixel Indoor LED Display Screen – 16:9 HD Video Wall (IXR-F Series) The IXR-F Series is a fine pixel indoor LED display screen built on a 16:9 golden-ratio cabinet (600×337.5×27.5mm). With pixel pitches from P0.78125 to P1.875, it delivers seamless 2K, 4K, 8K and 16K resolution for control rooms, TV studios, meeting rooms and […]

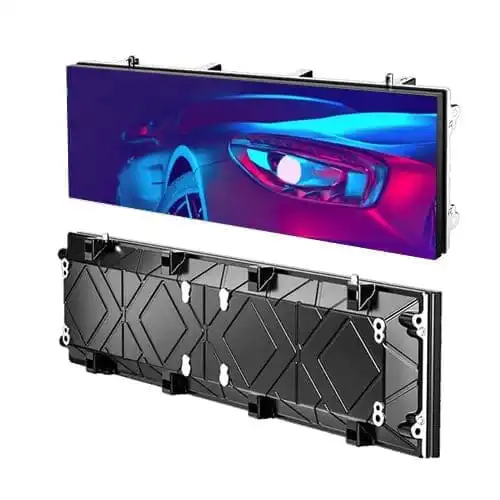

View detailsIXR-V Series
Captivate your audience with our meticulously crafted indoor LED video walls. Achieve exceptional visual quality and lasting impressions.
LED Volume Stage & Wall Features
Designed for next-generation virtual production, our LED volume stage and wall solutions combine advanced engineering with creative flexibility, delivering stunning visuals and structural adaptability to meet the rigorous demands of film, XR, and live production environments.
-
Immersive Visuals
Deliver ultra-realistic backgrounds and 3D depth with vibrant color accuracy and smooth playback—ideal for virtual sets and cinematic storytelling.
-
High Brightness
With high nit levels, our LED panels perform brilliantly even under studio lights, ensuring clarity and contrast in every frame.
-
Customizable Shapes
Create curved, cornered, or large-format volumes with modular panels that adapt to your production space and vision.
-
Ultra-Thin and Lightweight
Slim, lightweight cabinet design makes installation fast and efficient—perfect for mobile stages or tight studio environments.
-
High Resolution
Support for 4K and beyond ensures detailed imagery and seamless backgrounds, ideal for close-up camera work.
-
Interactive Capabilities
Supports real-time tracking systems and engine sync, enabling fully responsive XR and mixed reality content.
-
Energy-Efficient
Advanced power management keeps energy use low without compromising brightness or refresh rate—eco-friendly and cost-saving.
-
Durability
Built for professional use, our LED panels feature rugged construction, long lifespan, and high stability under continuous operation.
Feature Description
-
Color Magic
Precise HSV color control — adjust any single color without touching the rest.
-
Color Curve
Custom RGB+W response curves for precise control at both ends — no blown highlights, no lost shadow detail, regardless of ambient light or source quality.
-
3D LUT
Film-grade 3D LUT technology for precise, professional-level color accuracy across every shade.
-
High Frame Rate
240Hz for buttery-smooth, razor-sharp motion.
-
SHUTTERLOCK
SHUTTERLOCK syncs the LED refresh rate to your camera's shutter speed — eliminating flicker for a perfect capture every time.
-
HDR 10
Wider colors, deeper contrast, truer detail — the world as it really looks.
Various panel sizes and weights
-
480*320mm 3KG
-
640*320mm 5KG
-
640*480mm 7.5KG
-
640*640mm 9.5KG
-
960*480mm 11.5KG / pcs
LED Volume Specifications
| Pixel Pitch (mm) | 0.937 | 1.25 | 1.5625 | 1.95 | 2.604 | 2.976 |
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size (mm) | 300*168.75 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
| Cabinet Size (mm) | 600*337.5*65 | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 | 500*500*75 |
| Cabinet Resolution (W×H) | 640*360 | 400*400 | 320*320 | 256*256 | 192*192 | 168*168 |
| IP Grade | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP44 Rear IP54 | Front IP65 Rear IP54 |
| Weight (kg/cabinet) | 5.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| White Balance Brightness (nit) | 600-1000 | 800-1200 | 600-1200 | 600-1200 | 800-1200 | 800-1200 |
| Horizontal / Vertical Viewing Angle | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Power Consumption(W/㎡) | 400±15%/120±15% | 450±15%/150±15% | 400±15%/120±15% | 450±15%/150±15% | 450±15%/150±15% | 450±15%/150±15% |
| Refresh Rate(Hz) | ≥7680 | ≥7680 | ≥7680 | ≥3840 | ≥3840 | ≥3840 |
| Control System | Nova | Nova | Nova | Nova | Nova | Nova |
| Certification | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL |
Various installation mode
-
Hanging style -
Wall mounted -
Column installation -
curved wall mounted
Installation and Application Video

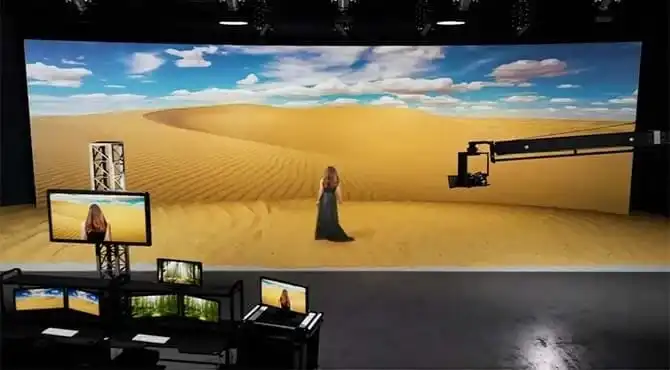

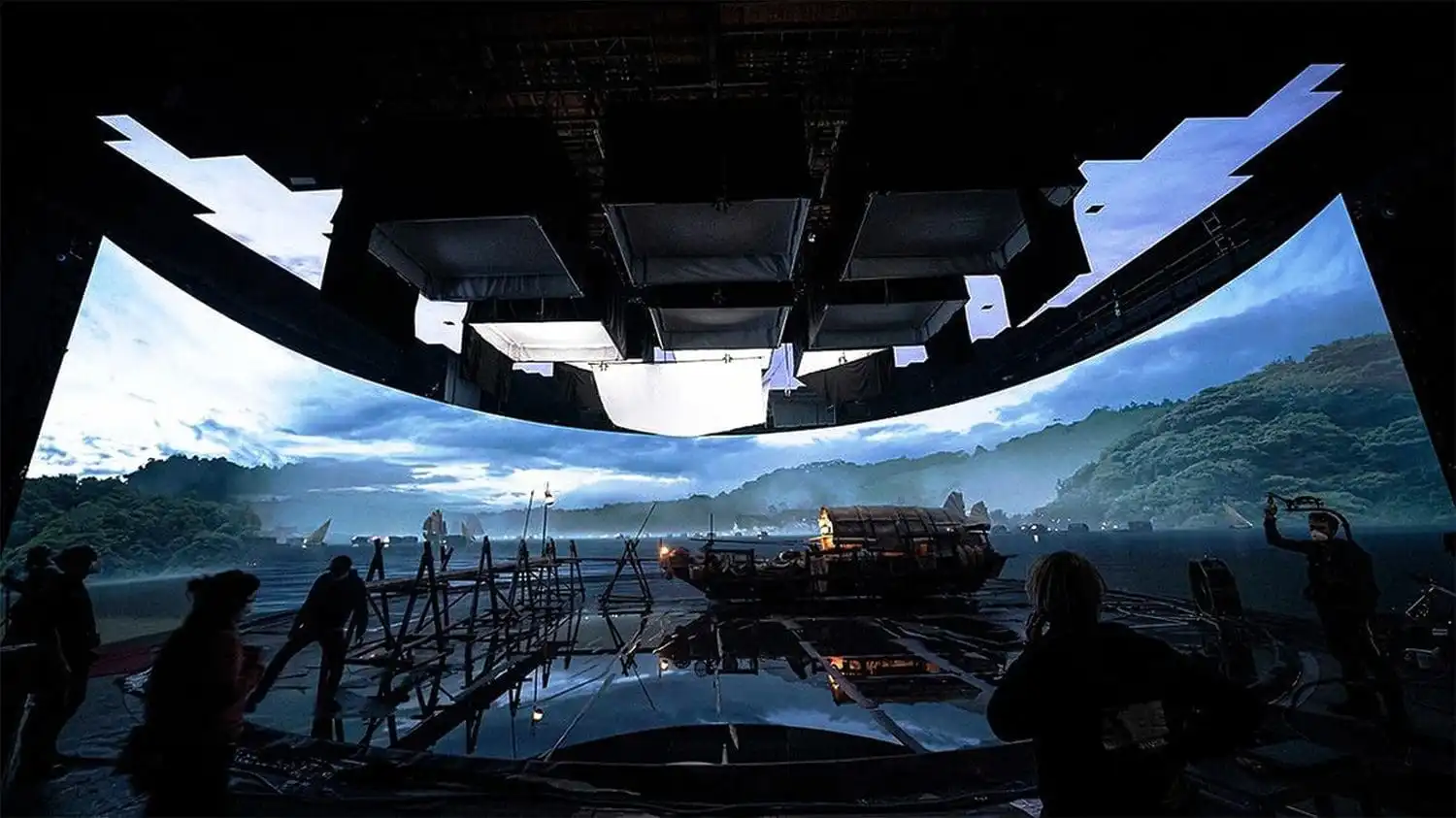

XR Virtual LED Displays Solutions from the Factory
Introducing our XR virtual LED display solutions, engineered for the next generation of visual experiences. Designed for the film, television, and extended reality (XR) industries, these advanced displays deliver exceptional performance and versatility, making them the ideal choice for immersive studios, virtual production sets, and other professional applications.
What is an energy-saving LED displayHow to choose an indoor 4K or high-definition Indoor LED Wall ?
An energy-saving LED display is designed to reduce power consumption without compromising brightness or image quality. These displays use advanced LED chips, efficient power supplies, and intelligent control technologies to minimize energy use, lower operating costs, and extend product lifespan. Energy-saving LED displays are ideal for businesses seeking sustainable and cost-effective visual solutions.
How to Choose an Indoor 4K or High-Definition Indoor LED Wall
Selecting the right indoor LED display—whether 4K or high-definition—requires careful consideration of several key factors:
- Screen Size & Pixel Pitch: Choose a screen size that fits your space and a pixel pitch (distance between LEDs) that ensures sharp images at your typical viewing distance.
- Resolution: Higher resolutions like 4K offer incredible clarity, especially for large screens or close-up viewing.
- Refresh Rate: A high refresh rate (≥3,840Hz) ensures smooth, flicker-free visuals, essential for video content and live events.
- Pixel Density: Greater pixel density results in finer image detail, important for applications demanding high visual quality.
- Viewing Environment: Consider ambient lighting and viewing distance to select the optimal brightness and pixel pitch.
- Service & Support: Compare product quality, after-sales service, and warranty terms.
- Budget: Balance your requirements with your budget to find the best value.
LED display user guide

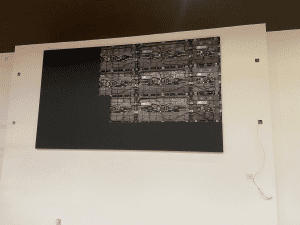

Installing indoor LED display screens on the wall requires careful planning and execution. Here are the general steps to follow for a successful installation.
