Large Concert LED Screen

RFR-RA Series

- Smart Cable Management: Neat, professional cord organization. - Easy Rear Maintenance: Screw-secured LED modules for reliable upkeep. - Custom Color & Size: Multiple cabinet sizes and handle colors to fit your style. - Flexible Cabinet Design: Arc locks and 45° angle options for creative setups.

Model: P1.5625/P1.95/P2.5/P2.604/P2.97P3.91

Module specification: 250mmx250mm

Material: Aluminum cabinet

Maintenance method: front/rear service

Cabinet size: 500*500mm/500*1000mm

Best viewing angle: 160/140°

Recovery bio: 7680Hz/s

Brightness: 600~5000CD/m2

Environment: Indoor-lp43/outdoor-lp65

Large Concert LED Screen

Your current location:

ReissDisplay Large Concert LED Screen Affordable and Reliable Video Wall Rental Solutions

REISSDISPLAY rental large concert LED screen is suitable for every large – scale event stage background led display. Bring different visual effects to the event venue.

LED screen wall team will cooperate better with our customers and provide the best solution.which can be customized in any size and model. To meet your needs.

led screen for events led video wall we provide: We will provide professional customized services.

ReissDisplay every LED display panels applications include party, fashion shows, performance, music festivals, sports events, exhibitions, commercial releases, super parties and other LED display screen solutions.

Large Concert LED Screen

Large-scale Concert LED Screens Are Full Of Glory, And The Aurora Is Colorful



Cost-effectiveness
● Well-thought-out component connections provide secure performance and make maintenance a breeze;

● Modules (4 or 8 pieces) are fixed with M4 screws, which improves durability and achieves IP65 waterproofing;

● Choose your preferred LED brand (HS/RS by default), IC, power supply (CZCL by default) and control system (Novastar by default) to meet your project needs.



Performance advantages
● Colorful and smooth pictures
● Ultra-wide viewing angle
● High refresh rate
● High contrast
● Arc-shape Adjustable
● Special cabinet, light and convenient
● Energy-saving, power-saving and environmentally friendly
● SMD full-color quality lamp beads (GOB optional)
● Quick installation and easy maintenance

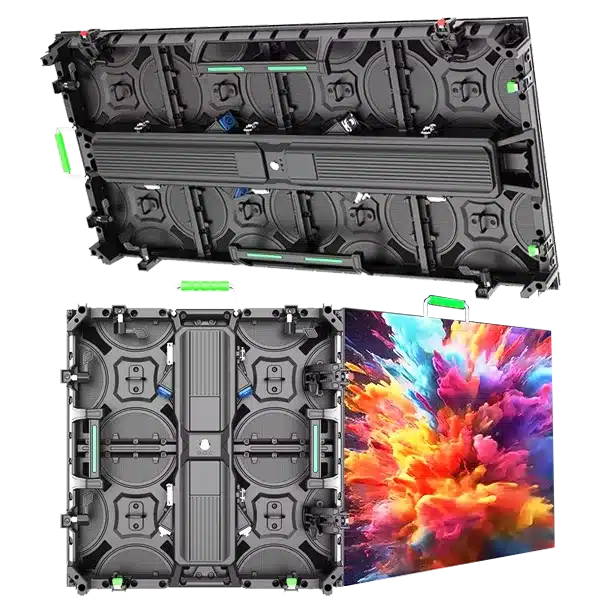

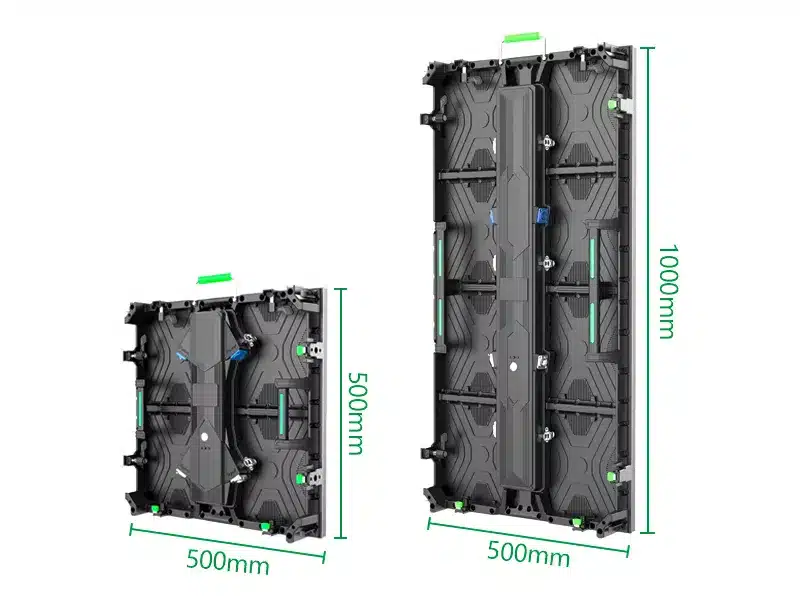

All-in-one Cabinet

Standard sizes of 500x500mm (1.64×1.64ft) 500x1000mm (1.64×3.28ft) use ultra-lightweight die-cast aluminum and are only 71mm (2.8in) thick, making it very easy to carry, transport and install.

Large Concert LED Screen
Large Concert LED Screen

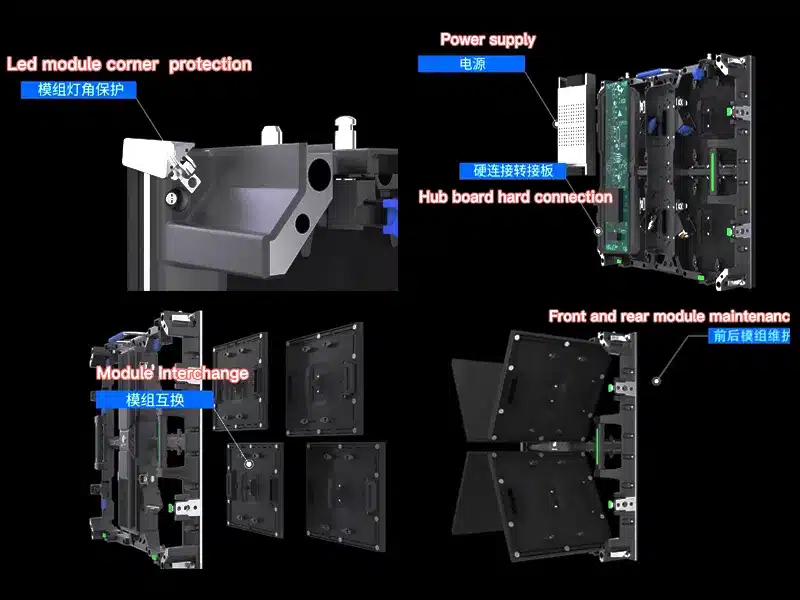

Rental Large Concert LED Screen Cabinet

● Every details, from the cabinet handle (optional colors) and fixed slots to the quick locks and installation knobs;
● The standard cabinet is made from ultra-light die-cast aluminum, easy to transport, install, and carry;
● The cabinet has four foldable corner protectors to safeguard the led display during assembly and transport.

16 Bit Grey Scale

It has almost the perfect gray scale and gives true color of the images, there will have no data loss and you could see every details clearly.

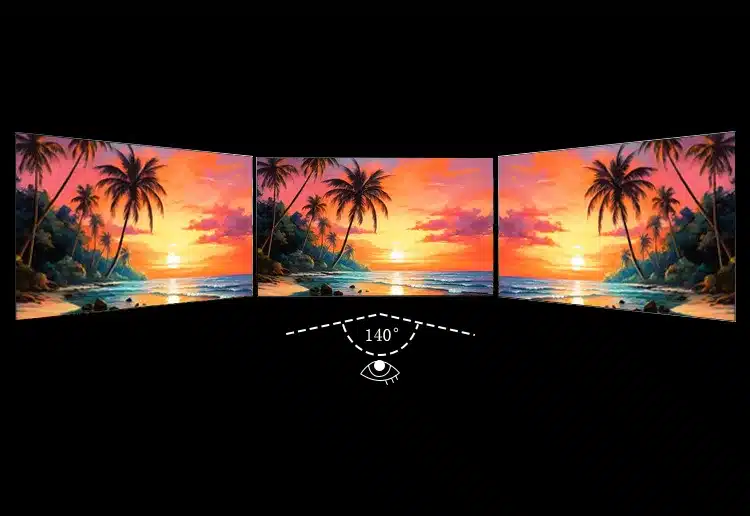

140°Super Wide Viewing Angle

Providing consistent and clear visuals from almost any direction.

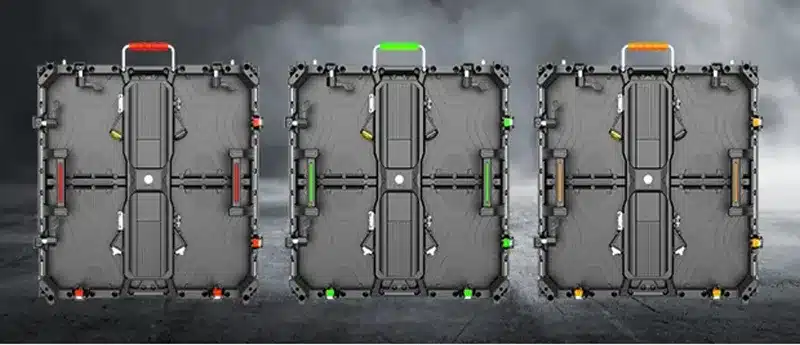

Color

Every detail is purposefully designed – from optional handle colors and fixing slots to quick locks and simple mounting knobs, this cabinet is built for convenience.

The handles color can be customized according to your needs.

Large Concert LED Screen

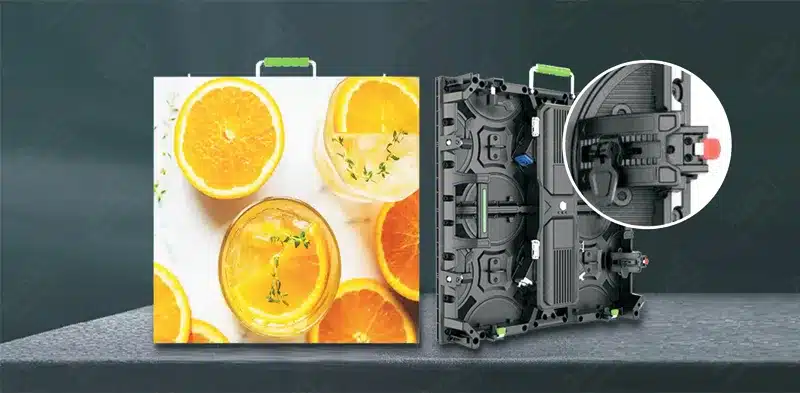

Detachable Back Cover

Indoor outdoor rental LED screen display adopts magnet adsorption LED panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

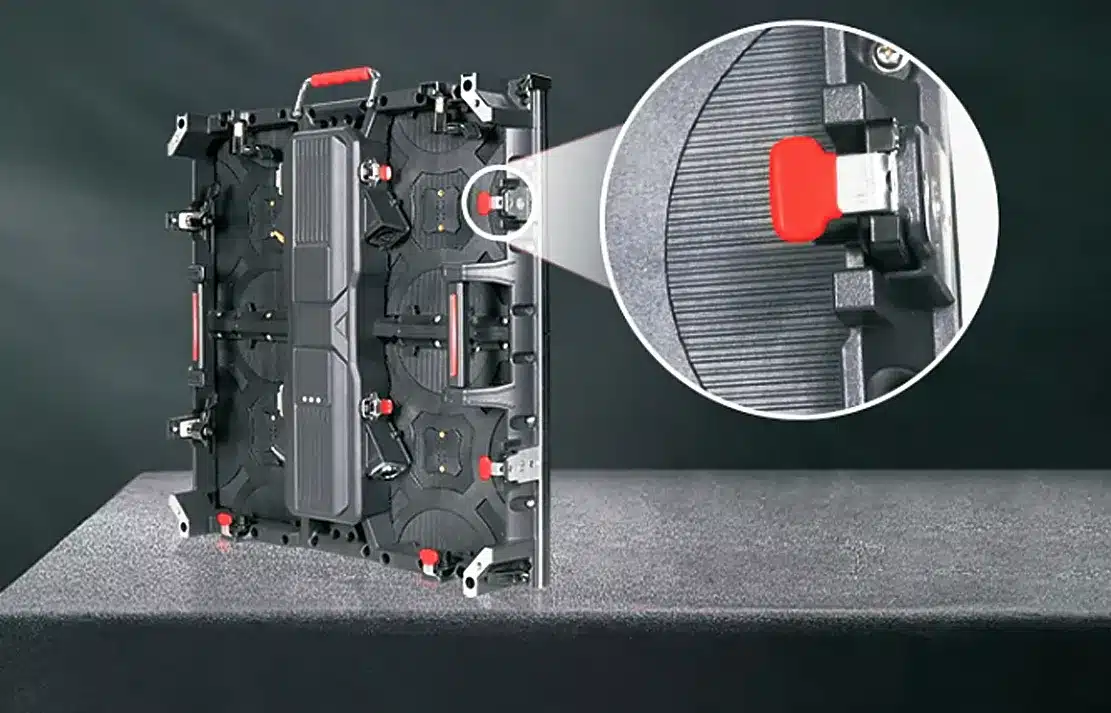

Fast Lock Design

RFR-RA series has 4 fast lock for each panel, quick operation, ensuring the flatness the whole screen, perfect seamless splicing, abutted seam fine tunning, error <0.1mm.

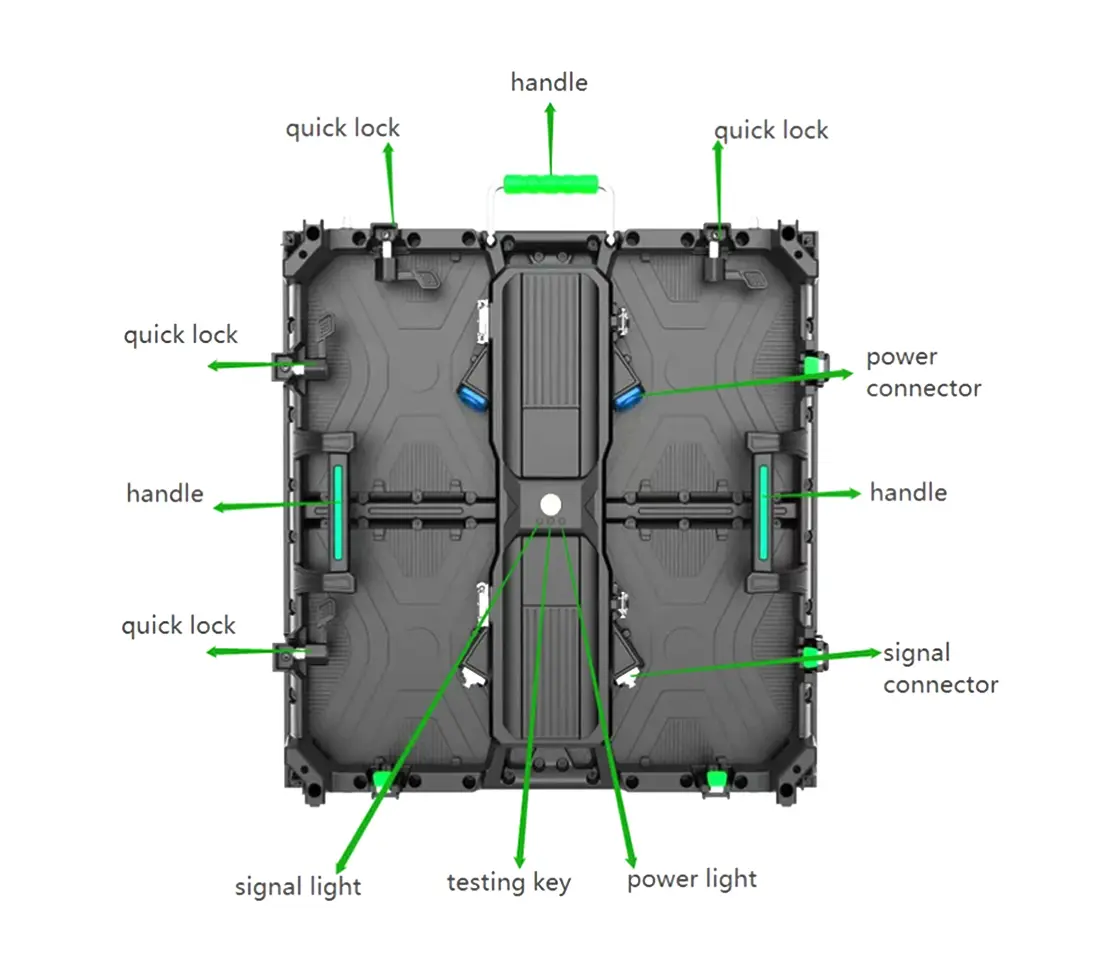

Testing and Troubleshooting
Large Concert LED Screen

Corner Protection

RFR-RA series LED video panel has corner protection equipment, it can protect LED video wall not be damaged during assembly and transportation

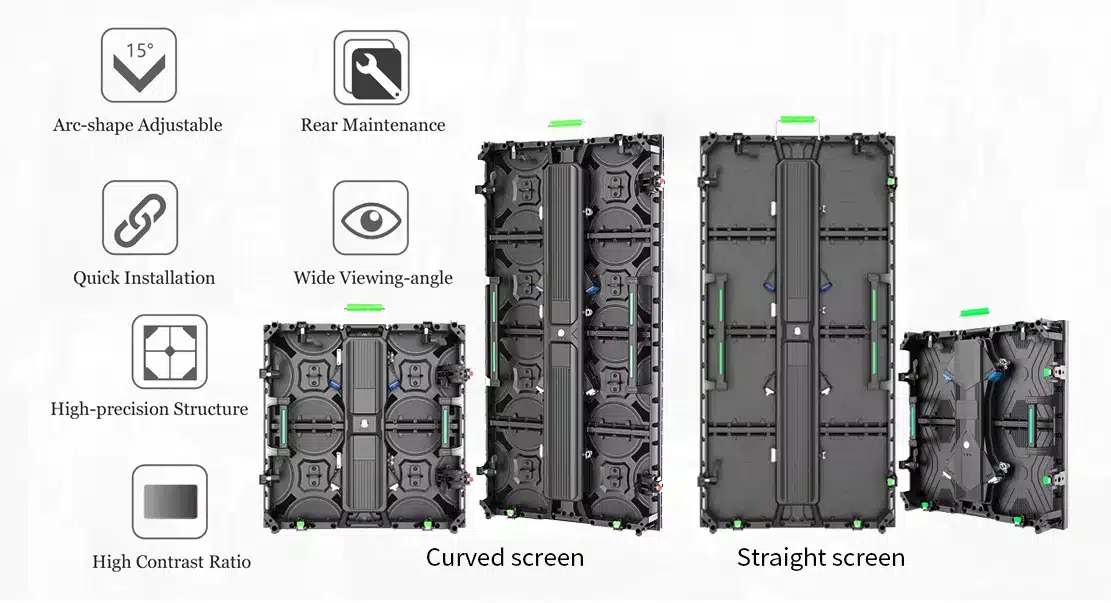

Curved Cabinet

Supports curved splicing via convex or concave curved video walls with angles between 15° and -10° with every 2.5°.

Large Concert LED Screen
Large Concert LED Screen

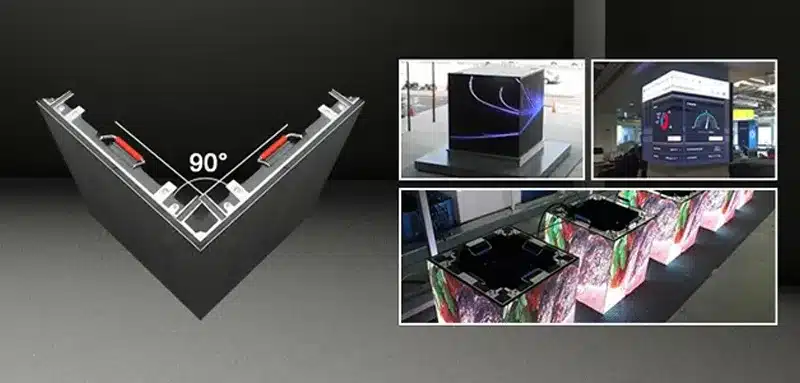

Right Angle Design

RFR-RA series LED panel can make 45° angle, two LED panels will make 90° angle. Besides, cube LED screen also can be achieved with this LED cabinet. It is an exact good product for right angle pillar LED screen.

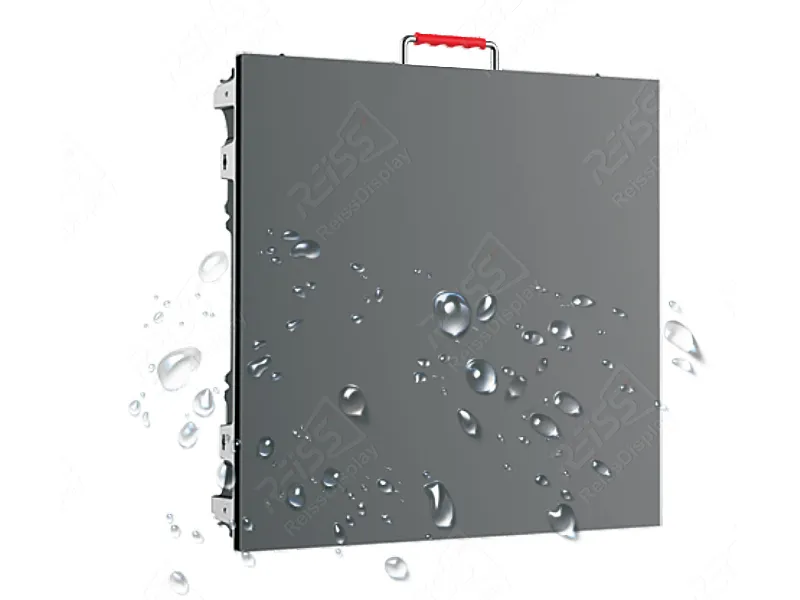

Outdoor High Protection

Outdoor LED display supports IP65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

Large Concert LED Screen
Large Concert LED Screen

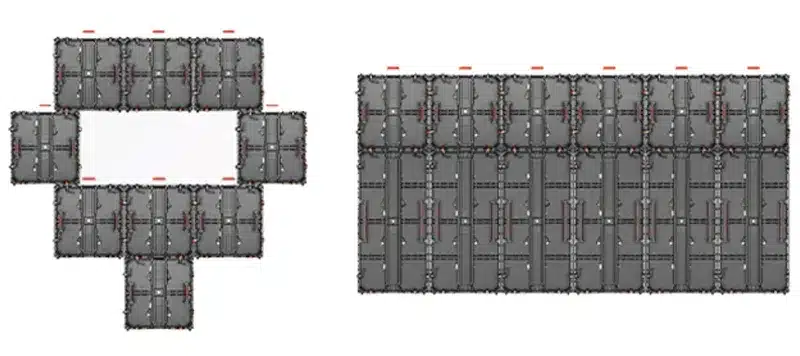

Seamless Splicing

● 500x500mm LED panels and 500x1000mm LED panels can be seamless spliced from top to bottom and from left to right.

● Die-casting Aluminum cabinet structure with CNC high-precision processing;

● Ensures cabinet flatness ≤0.1mm for seamless splicing;

● The cabinet can be equipped with curved locks and rotation control for quick curvature adjustments;

● The led panels can form a 45°angle, two panels can create a 90° angle.

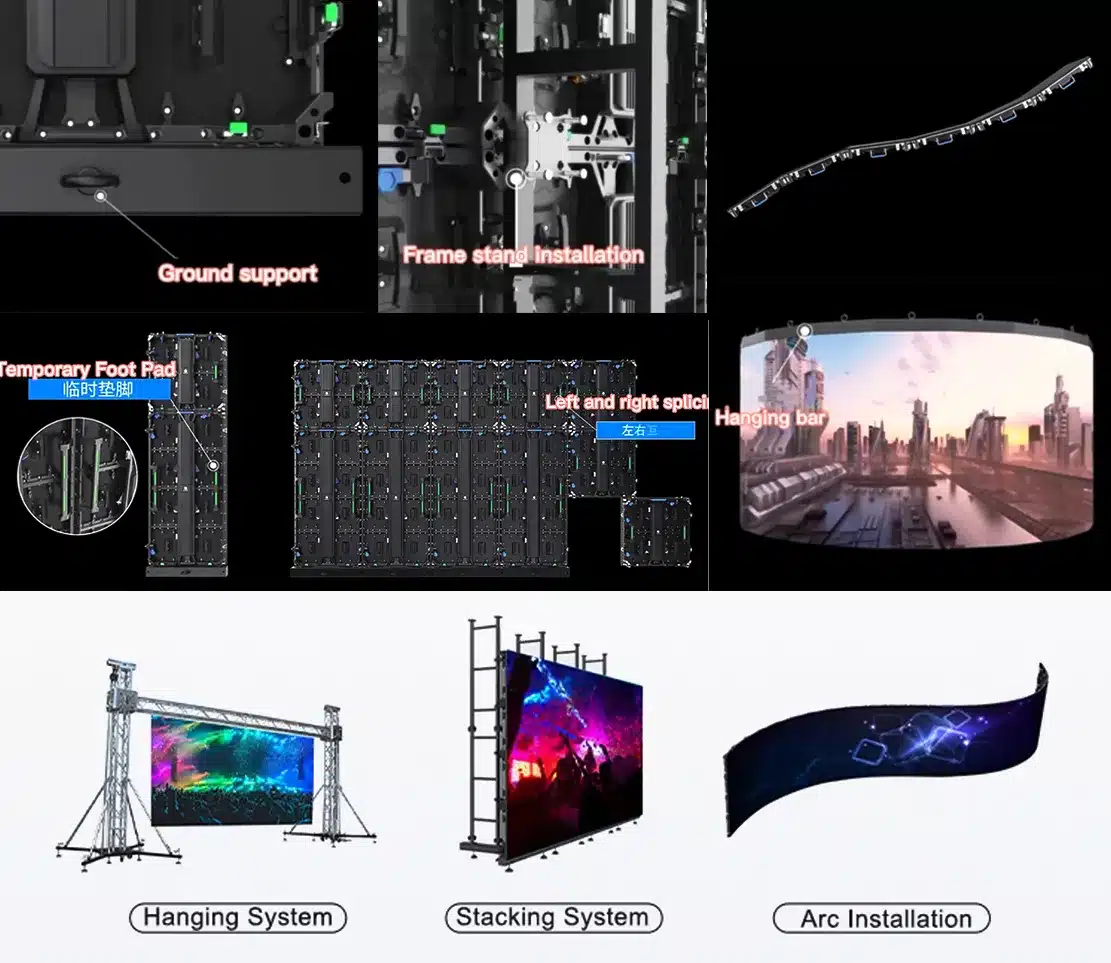

Rental Large Concert LED Screen Variability Installation

As a professional rental large concert LED screen product, the convenience and variability of installation is one of the key points of your rental business. It can be assembled into most standardized sizes and installed in various ways, such as hanging
installation, arc installation, stacking installation, etc.

Large Concert LED Screen

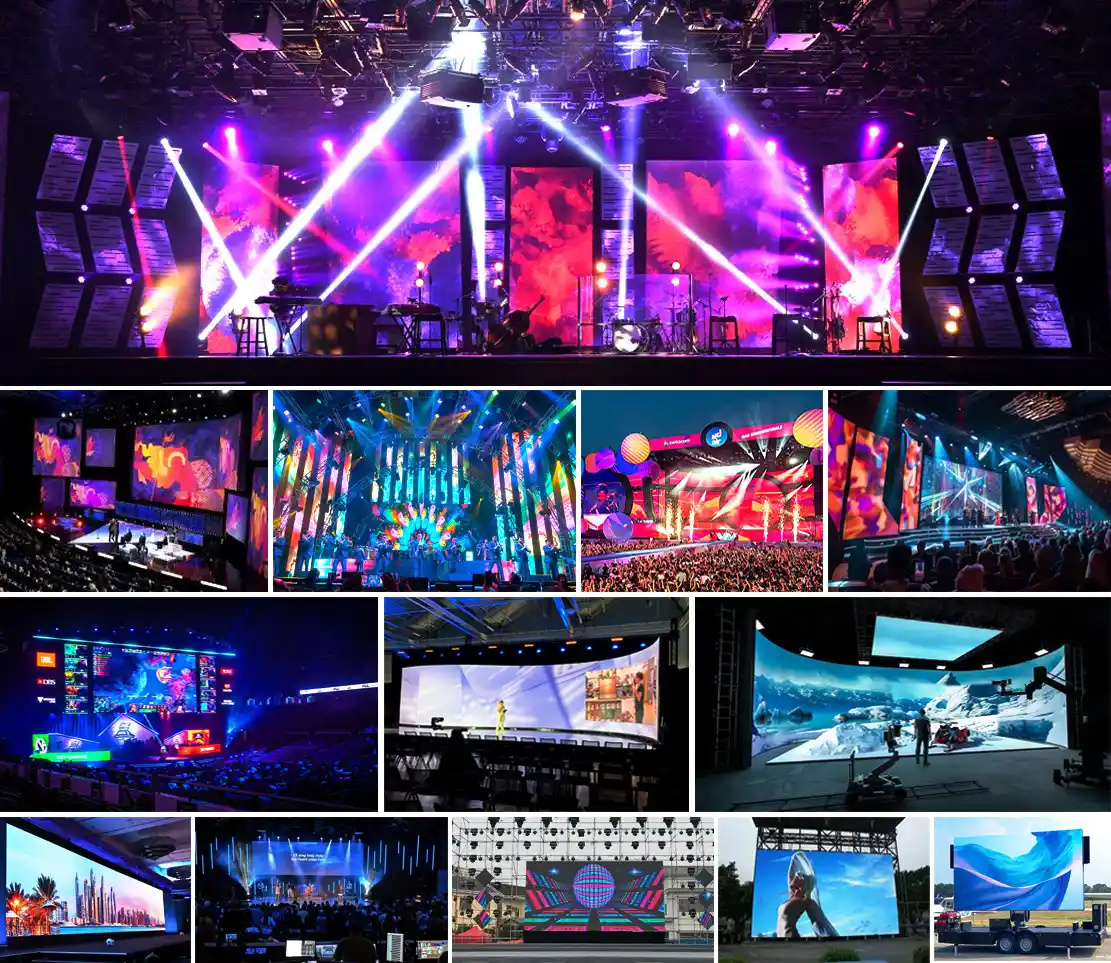

Applications in Various Fields

Meet our RA series rental LED displays – affordable, easy to maintain and quick to set up. Perfect for events such as concerts, weddings, birthday parties, product launches and marketing campaigns indoors or out. Whether it’s a stage backdrop or an exhibition booth, this display provides reliable performance and vibrant visuals for every occasion.

Application Cases

Stage LED Screen – RFR Series

Stage LED Screen – RFR Series

" Customer Testimonials:

Multifunctional splicing stage LED screen manufacturers provide the latest designs, multi-style and multi-shape splicing LED display solutions.

Application and Installation Videos

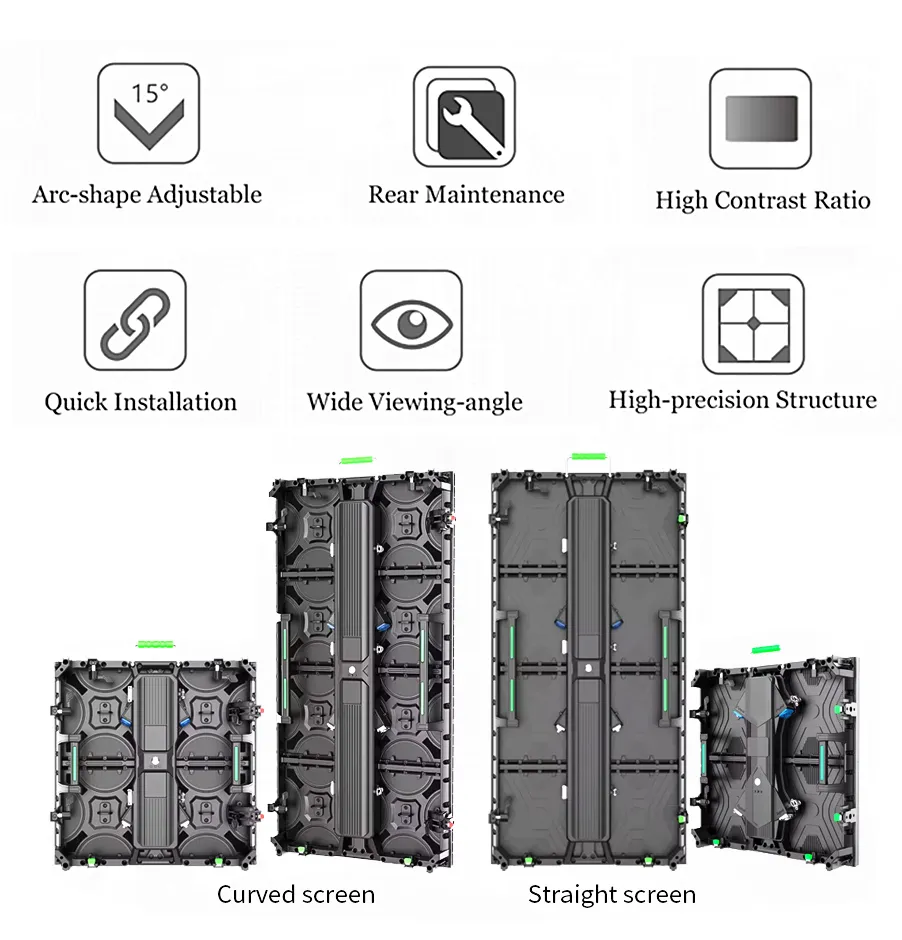

Large Concert LED Screen – RFR-RA Series
Large Concert LED Screen – RFR-RA Series

Specifications

500*500mm / 500*1000mm Type RA Series Event Rental LED Display
Model
P2.604-1/32 scan indoor
P2.976-1/28 scan indoor
P3.91-1/16 scan indoor
P3.91-1/16 scan outdoor
P4.81-1/13 scan outdoor
Pixel configuration
SMD1515 or SMD2121 black led lamp
SMD1515 or SMD2121 black led lamp
SMD2121 black led lamp
SMD1921 black led lamp
SMD1921 black led lamp
Pixel pitch
2.604mm
2.976mm
3.91mm
3.91mm
4.81mm
Scan rate
1/32 scanning, constant current
1/28 scanning, constant current
1/16 scanning, constant current
1/16 scanning, constant current
1/13 scanning, constant current
Module size (W×H)
250*250MM
250*250MM
250*250MM
250*250MM
250*250MM
Resolution per module
W 96 x H 96 pixels
W 84 x H 84pixels
W 64 x H 64pixels
W 64 x H 64pixels
W52 x H52pixels
Standard cabinet dimension(W×H×D)
500×500×71mm/500×1000×71mm
500×500×71mm/500×1000×71mm
500×500×71mm/500×1000×71mm
500×500×71mm/500×1000×71mm
500×500×71mm/500×1000×71mm
Pixel resolution/cabinet (W×H)
192 x 192/192 x 384pixels
168 x 168/168 x 336pixels
128 x 128/128 x 256pixels
128 x 128/128 x 256 pixels
104 x 104/104 x 208pixels
Resolution/sqm
147,456 dots/㎡
112,896 dots/㎡
65,536dots/㎡
65,536dots/㎡
43,264 dots/㎡
Minimum viewing distance
Minimum 2.6 meters
Minimum 2.9 meters
Minimum 3.9 meters
Minimum 3.9 meters
Minimum 4.8 meters
Brightness
900(SMD1515)-1200CD/M2
900(SMD1515)-1200CD/M2
1200CD/M2
4600CD/M2
4500CD/M2
Gray scale
16 bit, 65536 steps
16 bit, 65536 steps
16 bit, 65536 steps
16 bit, 65536 steps
16 bit, 65536 steps
Color Number
281trillion
281trillion
281trillion
281trillion
281trillion
Display Mode
Synchronous with video source
Synchronous with video source
Synchronous with video source
Synchronous with video source
Synchronous with video source
Refresh rate
≥3840HZ/ 7680HZ for XR Panels
≥3840HZ/ 7680HZ for XR Panels
≥3840HZ/ 7680HZ for XR Panels
≥3840HZ/ 7680HZ
≥3840HZ/ 7680HZ
Viewing angle(degree)
H/160,V/140
H/160,V/140
H/160,V/140
H/160,V/140
H/160,V/140
Temperature range
-20℃ to +60℃
-20℃ to +60℃
-20℃ to +60℃
-20℃ to +60℃
-20℃ to +60℃
Ambient Humidity
10%-99%
10%-99%
10%-99%
10%-99%
10%-99%
Service access
front and rear
front and rear
front and rear
rear
rear
Standard cabinet weight
6.5kgs/cabinet/13kgs/cabinet
6.5kgs/cabinet/13kgs/cabinet
6.5kgs/cabinet/13kgs/cabinet
6.5kgs/cabinet/13kgs/cabinet
6.5kgs/cabinet/13kgs/cabinet
Max.Power Consumption
Max: 200w/panel
Max: 200w/panel
Max: 200w/panel
Max: 200w/panel
Max: 200w/panel
Protection Level
Front/rear: IP43
Front/rear: IP43
Front/rear: IP43
Front: IP65 rear:IP54
Front: IP65 rear:IP54
Lifetime to 50% brightness
75,000hr
75,000hr
75,000hr
75,000hr
75,000hr
LED Failure Rate
<0,00001
<0,00001
<0,00001
<0,00001
<0,00001
MTBF
> 10.000 hours
> 10.000 hours
> 10.000 hours
> 10.000 hours
> 10.000 hours
Input power cable
AC110V /220V
AC110V /220V
AC110V /220V
AC110V /220V
AC110V /220V
Signal input
DVI
DVI
DVI
DVI
DVI

configuration
