Fine Pitch Curve LED Display

IXR - C Series

The indoor fine pitch curve LED display is an LED video wall designed for indoor purposes to display images, videos, and others. It offers high greyscale capabilities to ensure smooth transitions and accurate color representation, resulting in stunning visuals. In addition, it provides a high contrast ratio to deliver vibrant and impactful images with deep blacks and bright colors. It has full-color visual capabilities that allow for rich and immersive content that engages the audience.

P0.78/P0.9375/P1.25/P1.56/P1.875 /P2.5

► Ultra-thin, ultra-light;

► Seamless, ultra-high definition, more natural color transition;

► 7680Hz ultra-high refresh rate, no ghosting, enjoy high definition;

► Dual backup design, stable and reliable;

► Full front maintenance, easy and convenient installation and maintenance;

► Support inner arc and outer arc splicing to create a variety of arc shapes.

Quick Request
Appointment customization
Fine Pitch Curve LED Display

Your current location:

REISSDISPLAY Ultra-Thin Small-Pitch Curved LED Display Solution

Indoor fine pitch curve LED display – IXR – C series are essential tools for communication, presentation, and entertainment in modern indoor settings. Unlike traditional displays such as LCDs and projection systems, indoor LED displays stand out due to their full-color, high-resolution display capabilities, seamless visuals, and energy efficiency.

Whether it’s displaying dynamic information, showcasing advertisements, or creating an immersive experience, indoor LED display provide the perfect solution with their high greyscale, high contrast ratio, full-color visuals, and suitability for indoor applications in different settings. Various pixel pitch available: P0.78/P0.9375/P1.25/P1.56/P1.875 /P2.5.

Unlike other indoor series LED display screens, IXR – C series is optimized for extremely high requirements.

High resolution, high grayscale
Wide viewing angle. 170 degree visibility
Multiple control methods: WIFI/LAN/4G/USB
High stability driver IC, more uniform color, more realistic image
Using the latest SMD/COB packaging, providing excellent full-color display effect.
High contrast ratio of over 6000:1, more vivid colors.
High refresh rate of over 3840Hz to 7680Hz, flicker-free.
High-definition visual effects.
Supports multiple display formats, such as text, images, videos, documents, etc.

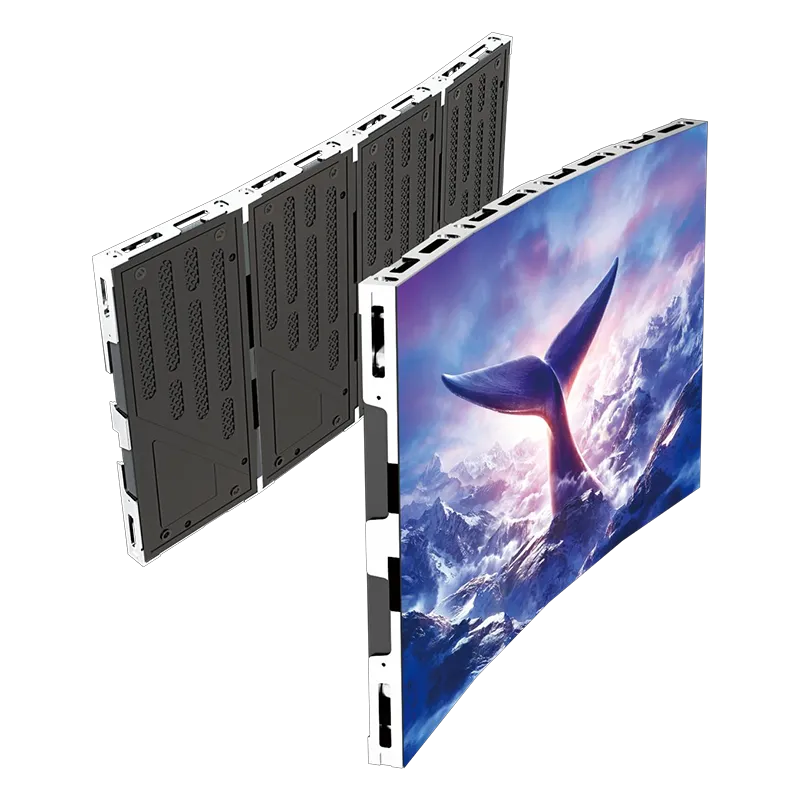

Fine Pitch Curve LED Display

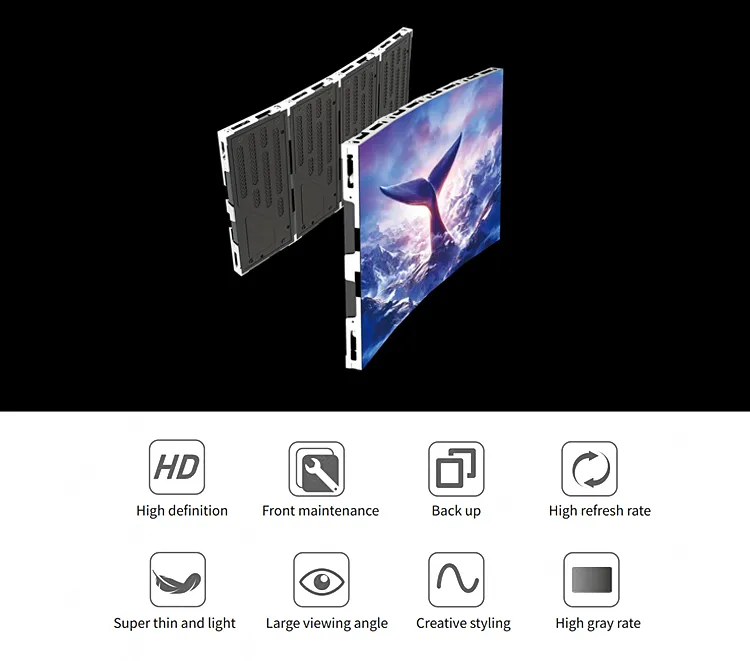

IXR – C Series Ultrathin Fine Pitch Curve LED Display

The ultrathin curve series box has a perfect ratio of 16:9 points, and its powerful refresh is suitable for various high-end scenarios.Compared with similar products on the market, IXR – C series ultrathin curve LED display screen has incomparable outstanding advantages in performance, quality, appearance, etc., and enjoys a good reputation in the market. REISSDISPLAY summarizes the shortcomings of past products and continuously improves them. The specifications of IXR – C series ultrathin curve LED display screen can be customized according to your needs.

Short Description:

✔️ 600×337.5mm Size Cabinet

✔️ 7680HZ High Refresh Rate

✔️ Frontal Service Design for Easy Installation

✔️ High-end Indoor LED Display

✔️ CE, EMC, RoHS, ISO9001 Approved

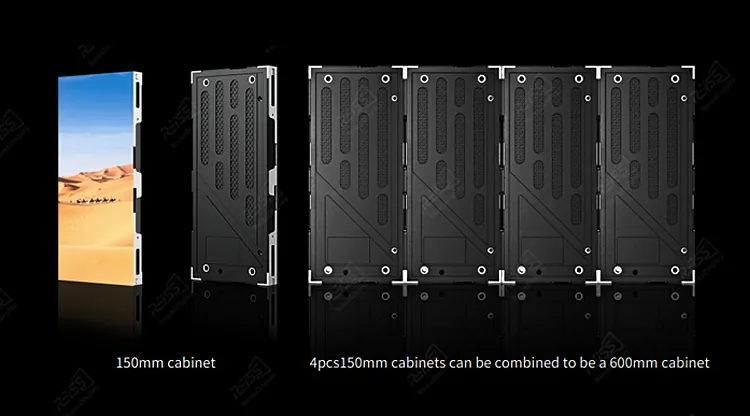

Multifunction

150mm small cabinet, customizable.
4 150mm cabinets can be combined into a 600mm cabinet.

Fine Pitch Curve LED Display
Fine Pitch Curve LED Display

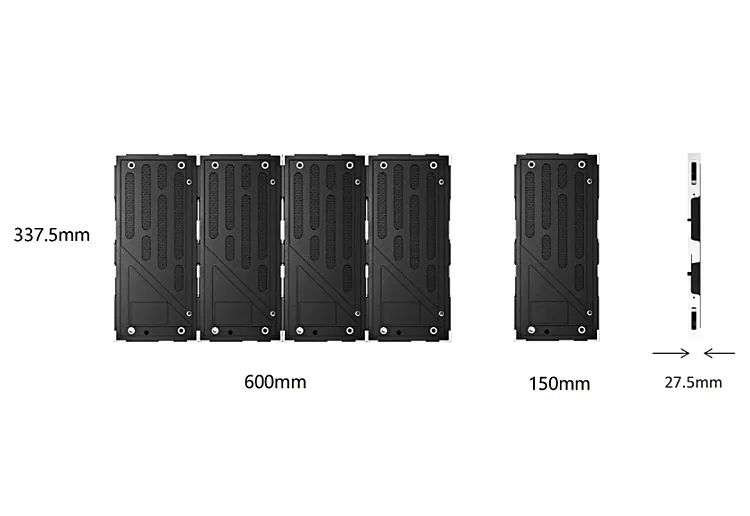

Dimension

One cabinet 150mm*337.5mm/can be combined into 600mm*337.5mm.

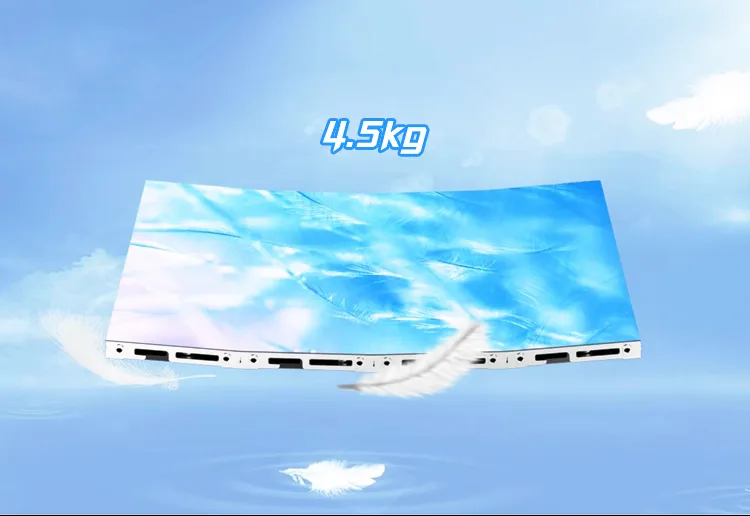

Ultra-Light Cabinet

Each display of the IXR-C series weighs only 4.5 kg, which is ultra-light and easy to transport, assemble and carry.

Fine Pitch Curve LED Display
Small Pixel LED Display Screen

Wide Color Gamut

Professional color management techniques, rich color lavers and more natural color transitions.

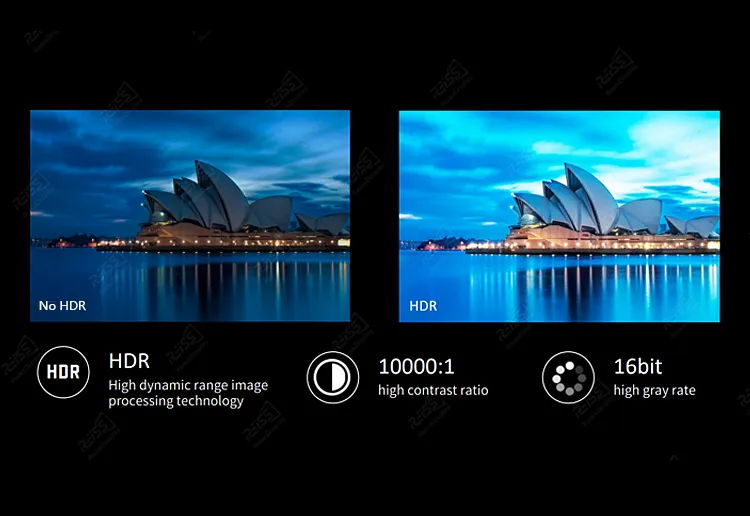

High Brightness and High Gray

High brightness, high grayscale, high refresh rate, no scanning line for taking photos.

Small Pixel LED Display Screen
Small Pixel LED Display Screen

170° Super Wide Viewing Angle

Perfect presentation ofimages from any angle.

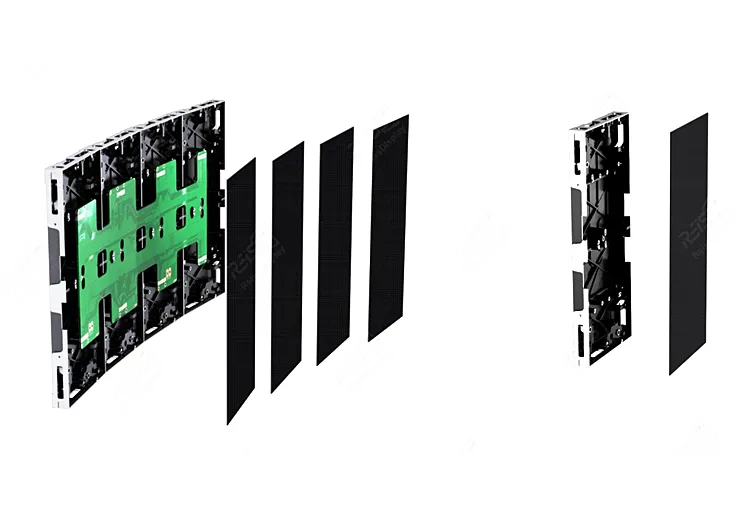

Front Maintenance

IXR-C series and 150mm small cabinet support full front maintenance, easy to install and maintain.

Fine Pitch Curve LED Display
Fine Pitch Curve LED Display

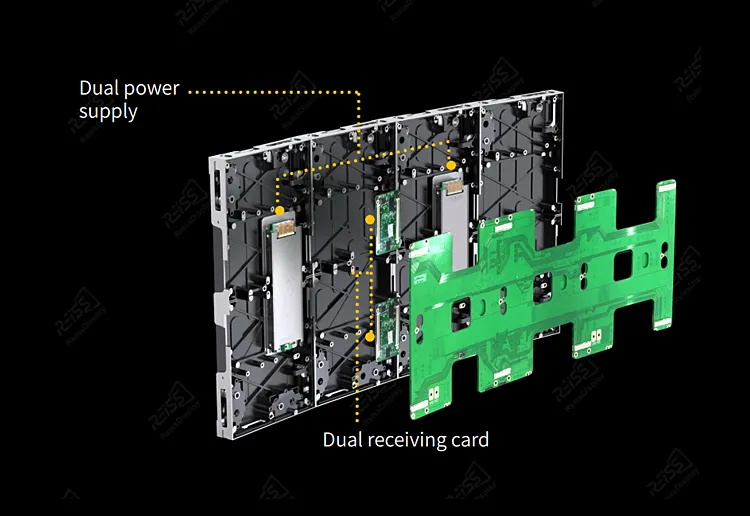

Dual Card Dual Electric

Power supply not interrupted, signal not lost, more stable and reliable.

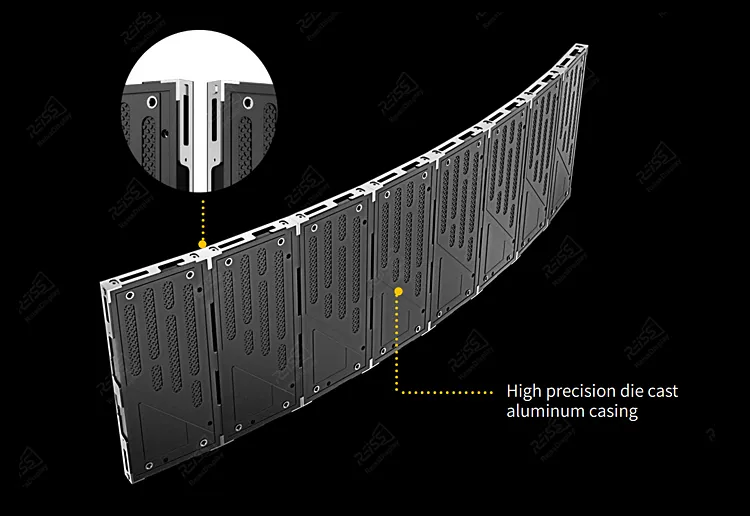

Seamless Splicing

Adopting cNc high-precision die cast aluminum casing, hard link design, anti collision concave and convex platform, multi-dimensional improvement of screen flatness.

Fine Pitch Curve LED Display
Fine Pitch Curve LED Display

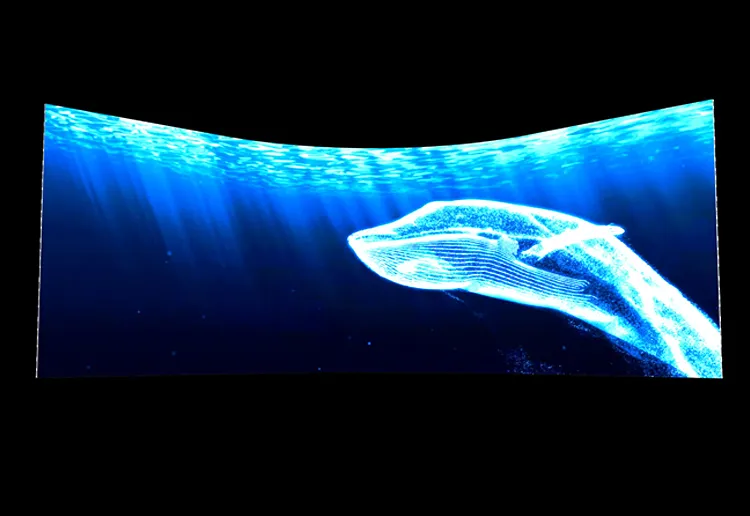

Curve-Shape

Supporting inner and outer arc splicing, creating various curved.

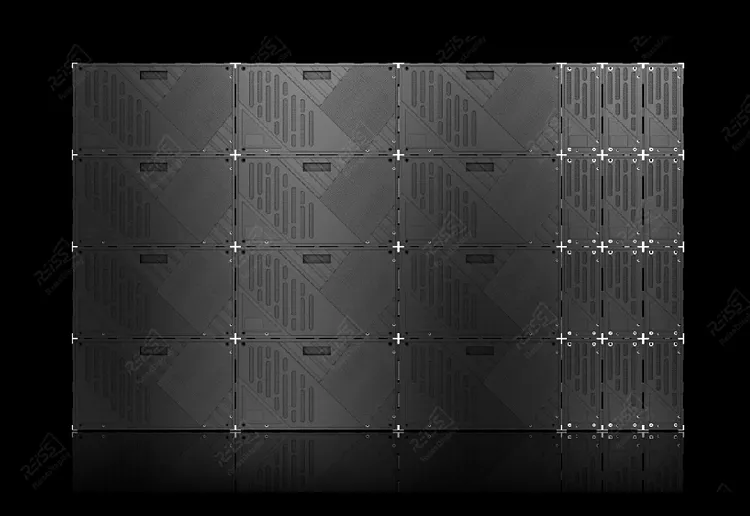

Flat Screen

150mm small cabinet flexibly supplement the size, improve the required size.

Fine Pitch Curve LED Display
Fine Pitch Curve LED Display

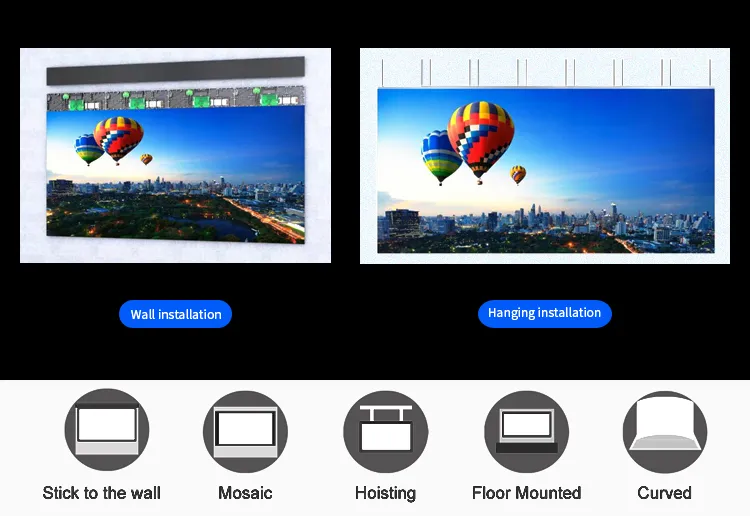

Multiple Installation Modes

Support multiple installation ways such as wall mounted/embedded installation/lifting Floor mounted/curved mounted.

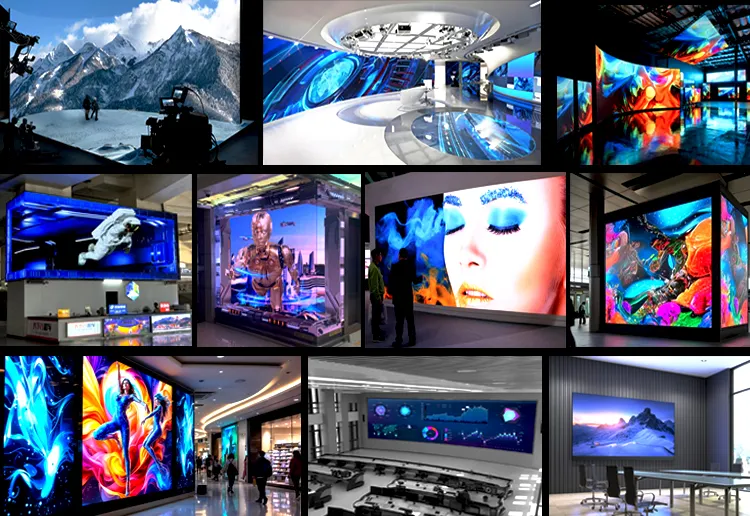

Scene Display

Application place: conference room, command and control center, monitoring room, technology exhibition hall, museum, shopping center, studio, high-end commercial display and other scenarios.

Small Pixel LED Display Screen

Application and Installation Videos

Fine Pitch Curve LED Display – IXR – C Series
Fine Pitch Curve LED Display – IXR – C Series

Specifications

Specification P0.78125 P0.9375 P1.25 P1.5625 P1.875
LED Type Mini4 in 1 Mini4 in 1 SMD1010 SMD1010/1212 SMD1010/1515
Physical density (Dot/sqm) 1,638,400 1,137,778 640,000 409,600 284,444
Module resolution 192×216 320×180 240×135 192×108 160×90
Module size (mm) 150×168.75 150×168.75 150×168.75 150×168.75 150×168.75
Panel Dimension (W×H×D/mm) 600×337.5×27.5 600×337.5×27.5 600×337.5×27.5 600×337.5×27.5 600×337.5×27.5
Panel Resolution 768×432 640×360 480×270 384×216 320×180
Module QTY (W×H) 4×2 2×2 2×2 2×2 2×2
Panel weight (kg) 4.5 4.5 4.5 4.5 4.5
Maintenance Mode Front Front Front Front Front
Cabinet Material Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum Die-casting aluminum
Brightness Calibration Yes Yes Yes Yes Yes
Brightness (Nits) ≥600 ≥600 ≥600 ≥600 ≥600
Color temperature (K) 1000-18500 (Optional)
Viewing angle (V/H) 170°/170°
Brightness/Color uniformity ≥99.8%
Contrast ratio 10000:1
Frame frequency 50/60
Drive mode 1/48 scan 1/46 scan 1/48 scan 1/45 scan 1/45 scan
Grey level 16bit
Refresh rate (Hz) 3840~7680
Max. power consumption (W/sqm) 350
Avg. power consumption (W/sqm) 100
Protection level IP31
Power input AC90-264V, 47-63Hz
Working temperature/humidity (℃/RH) -20~60℃/10%~85%
Storage temperature/humidity (℃/RH) -20~60℃/10%~85%
Certification CE, EMC, RoHS, ISO9001
