LED Wall for XR Stage: The Backbone of Immersive Virtual Productions

LED wall for XR stage revolutionize virtual production by replacing green screens with real-time rendered environments. High-end displays seamlessly integrate with Unreal Engine and advanced tracking technology to create realistic scenes that will revolutionize film, broadcast studios, and live production. The technology simulates natural lighting and depth, allowing performers to interact seamlessly with virtual elements while dramatically reducing post-production work.

They generate convincing 3D environments that immerse actors and audiences alike, boosting creative possibilities while streamlining production workflows.

When the XR LED wall replaces the traditional green screen, the virtual scene is easy to change the time when shooting advertisements, and you can set multiple scenes at the same time to watch the shooting styles of different advertisements..

This helps advertisers and directors deliver creative and interesting content to audiences.

High-Performance Outdoor & Indoor LED Displays for XR Studios

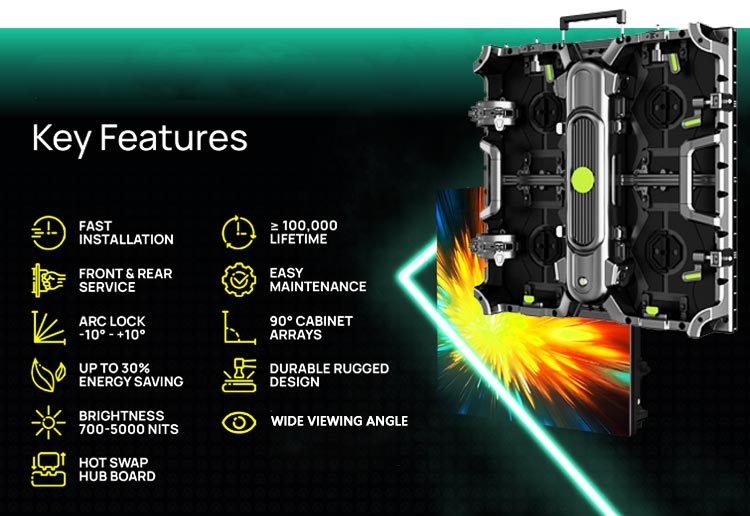

1. Versatile Cabinet Design

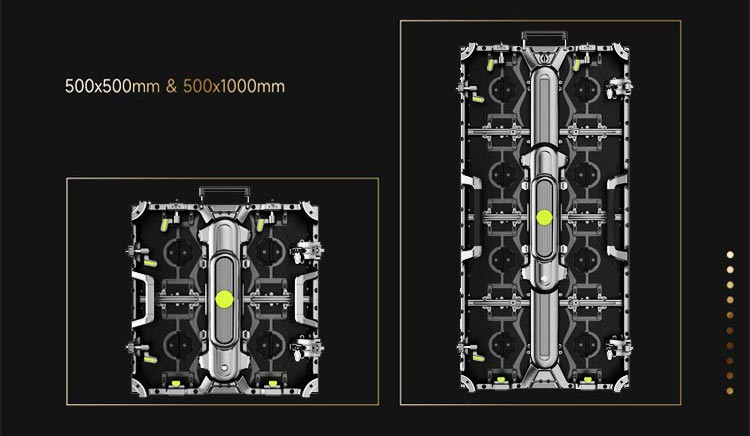

Available in 500x500mm and 500x1000mm cabinet sizes, crafted from die-cast aluminum for lightweight durability.
Supports curved, straight, and 90° installations, adding flexibility to meet diverse creative needs.
Magnesium Alloy Construction: Weighing only 6.5kg, these cabinets are among the lightest in the industry, making transportation and setup more efficient.
Seamless Connection: High-precision engineering ensures a flawless, gap-free display.
2. Quick Installation and Maintenance
Features front and rear maintenance options, allowing for easy access to components.
Fully Waterproof (IP68): Suitable for outdoor use, offering reliable performance in all weather conditions.
Good Heat Dissipation: Protects modules and circuits, ensuring long-term durability and stability.

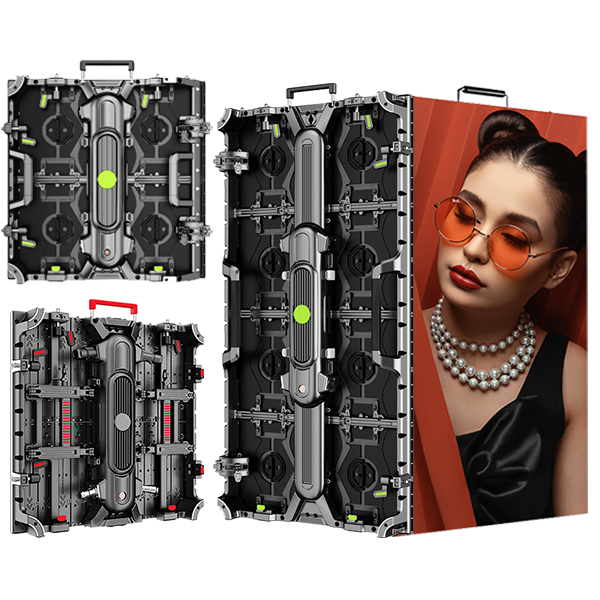

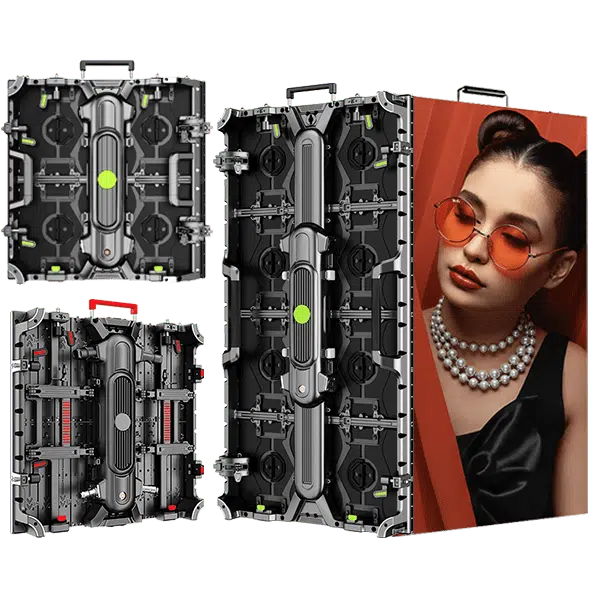

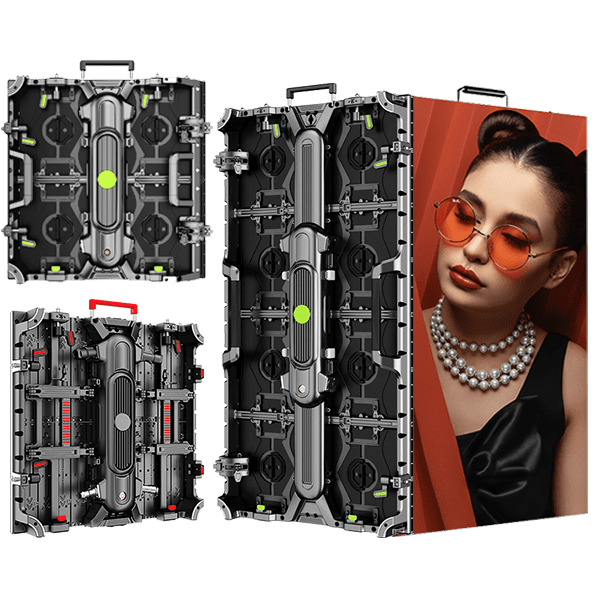

Cabinets Appearance

Available in sizes of 500 x 1000 mm and 500 x 500 mm, these cabinets come in straight, curved, or 45° angled designs. Built with a safety protection design, they offer high reliability and long lifespan, with multiple options for customization to meet diverse needs.

Customizable XR LED Walls for Immersive Visual Experiences
Flexible LED Wall Solutions for Unique Production Needs

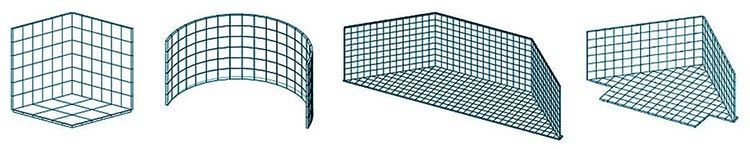

RElSSDlSPLAY XR LED walls can be tailored to meet your specific requirements based on your installation and setup. Common configurations include:

Curved LED Walls: Enhance the immersive experience with seamless, panoramic visuals.
Corner LED Walls: Perfect for creating multi-dimensional environments and dynamic scenes.
Creative LED Screens: Custom shapes and designs to fit unique production needs and artistic visions.
These customizable XR LED walls provide versatile solutions for a wide range of applications in film, television, and extended reality, ensuring your production meets its creative and technical goals.

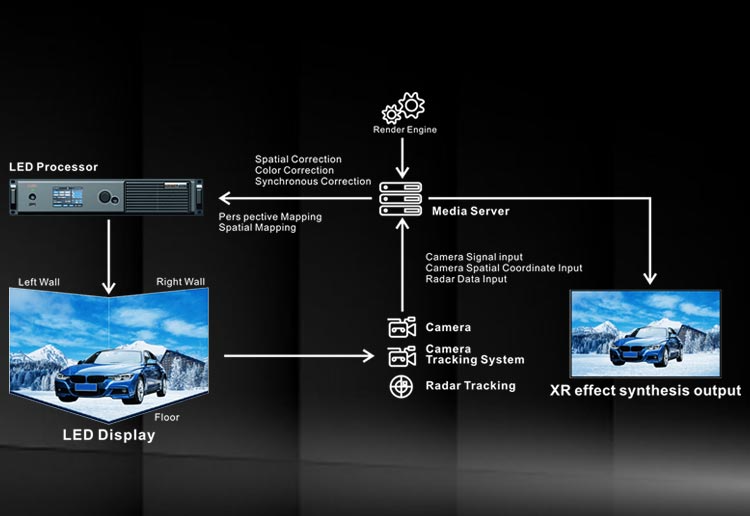

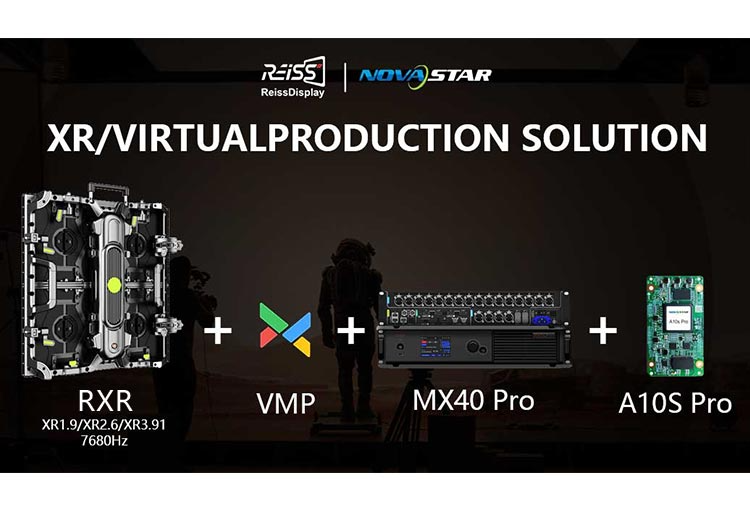

Workflow Of XR Virtual LED Wall Production

The LED wall is the heart of the XR stage, ensuring great image quality with a wider color range and high brightness. However, several other critical components work together to create a seamless and immersive XR experience:

Camera Tracking System: Tracks camera movements in real-time to synchronize virtual and physical elements accurately.
Controller: Manages the various inputs and outputs, ensuring smooth operation of the XR system.
Graphic Engine: Processes and generates the high-quality visual content displayed on the LED wall.
Rendering Server: Handles the complex computations required to render detailed and realistic virtual environments.
Virtual Production Pipeline: Integrates all components, from pre-production to post-production, enabling efficient workflow and collaboration.

These components collectively ensure the XR stage delivers exceptional visual performance and a fully immersive experience for film, television, and extended reality productions.

Frame Multiplexing

Supports frame multiplexing allowing users to reframe multiple video feeds in the same time field. Utilizing the camera’s genlock phase offset, it becomes possible to output multiple effects simultaneously within a single shooting scene, improving work efficiency and reducing cost.

Essential Equipment for Running an LED Wall for XR Stage

LED Wall is the heart of the XR stage. The LED wall helps to ensure great image quality with wider color range and high brightness. Other important components include led processor, camera tracking system, controller, graphic engine, rendering server and virtual production pipeline.

LED Processor
The LED processor is needed to support and deal with different signal inputs,
such as HDMI and DP from sending cards and then send them to receiving cards.

Media Server
The media sever is responsible for the input and output of the material.

It receives the material from the render engine and transmits it to the LED processor. Subsequently, the processor displays the material on the screen. Meanwhile, the media server receives the material from the camera and tracking system and outputs the image. It is like a brain in the LED display system.

Cutting-Edge LED Screens for Virtual Reality Productions Panel Size

500x500mm compatible with 500x1000mm panel size, it can set up together to creative different screen size in events. 500x1000mm receiving card & labor cost can be saved.

Ultra-wide Viewing Angle

A variety ofdifferent angles can show the quality ofthe display effect Best Viewing Angle: H:≥160° V:>160°

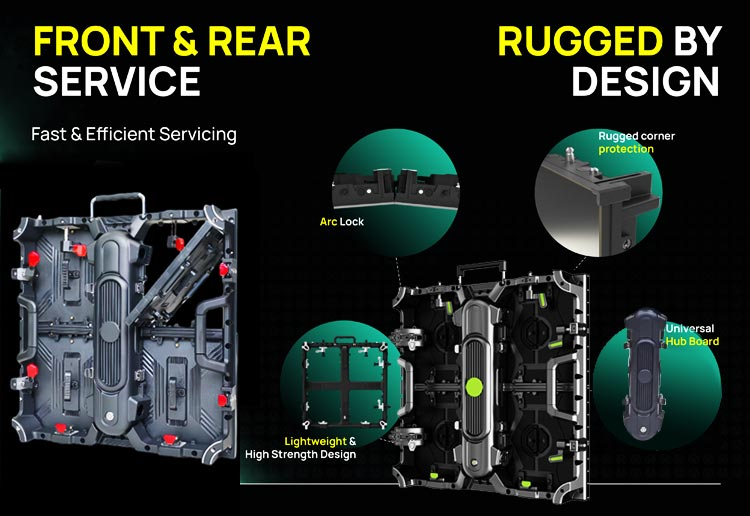

Quick Setup & Teardown, Front Service

One twist to lock or release led modules, making it easy to replace or maintain efficiently, saving operation time and cost.

Seamless Integration & Customizable Designs for Creative Flexibility

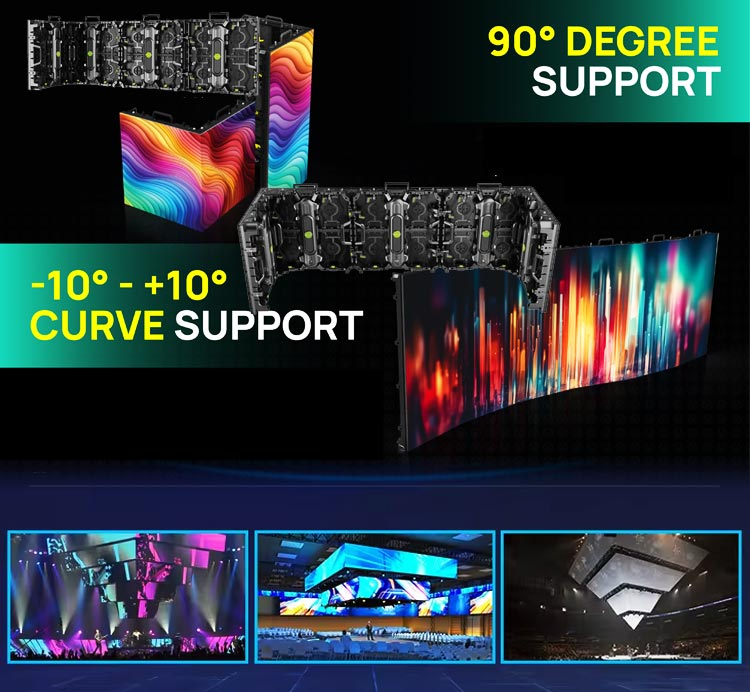

RXR series offers creative freedom through its flexible application options. Whether in straight, curved designs or at 90-degree angles, it can meet various needs.
Unleash your artistic vision with the arc lock feature ofthe RXR series, allowing concave & convex curves.Experience unparaleled creative freedom as you effortlessly craft captivating shapes and designs.

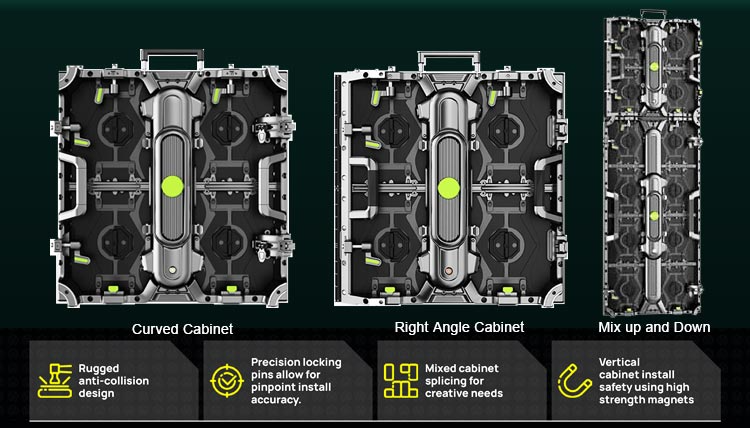

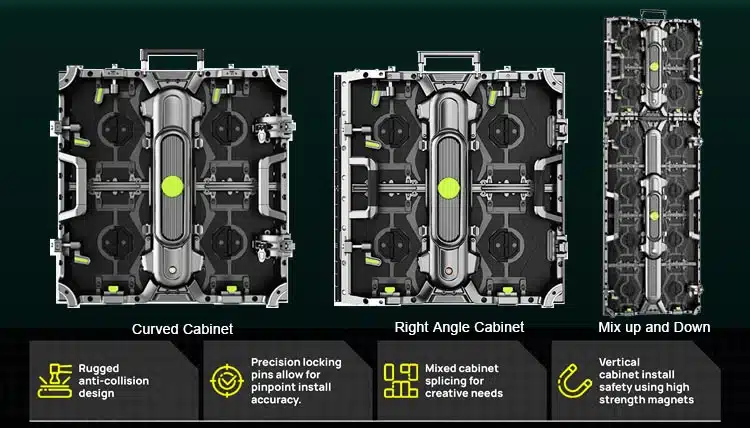

Mixed Cabinets Splicing: Design Without Limits

Unleash your creativity with our mixed cabinets splicing feature, which allows you to seamlessly combine different LED cabinet sizes. This innovative capability enables the creation of unique, custom shapes and sizes, letting you design captivating displays that perfectly align with your vision.

Mounting Methods: Flexible and Efficient Installation

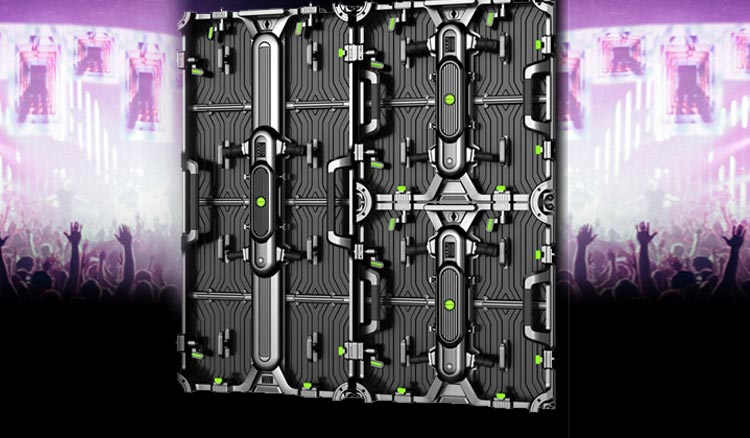

With ground stack and hanging truss fixing options, our LED displays offer quick and efficient installation, making them ideal for live events and rental applications.

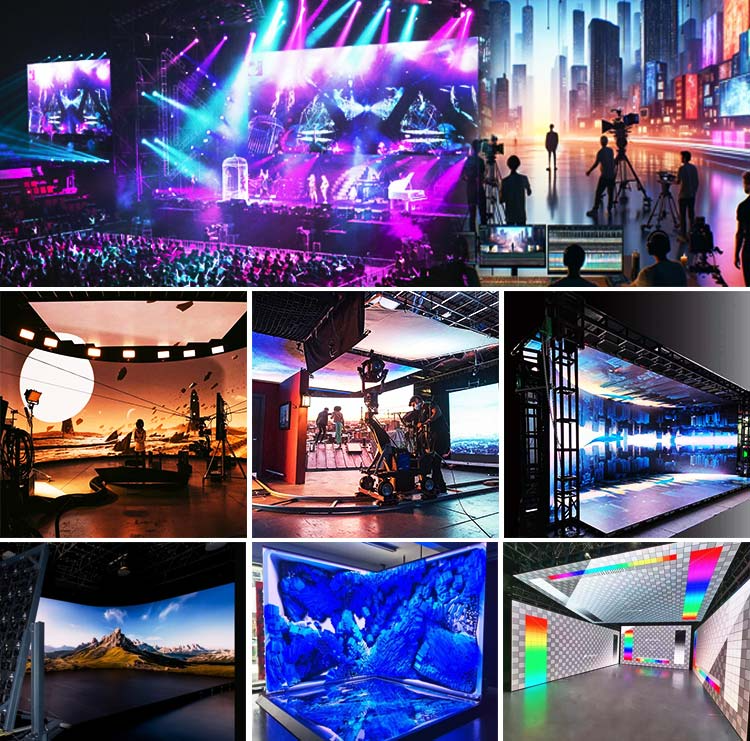

Versatile LED Displays for Live Events and XR Applications

Explore the power of XR technology in action through our XR project case. Designed to elevate virtual and augmented reality environments, this case showcases the exceptional performance of our RXR series LED displays in creating immersive, lifelike experiences for gaming, entertainment, and professional XR production. From concept to execution, our solutions bring your vision to life with stunning clarity and precision.

Application Cases

Comprehensive Guide to Purchasing XR LED Displays

" Customer Testimonials:

Discover how to choose the right XR LED displays for immersive experiences, blending virtual and physical environments seamlessly.

Application and Installation Videos

Specifications

Model	P191	P261	P391
Pixel pitch (mm)	1.953mm	2.604mm	3.91mm
Configurations	SMD1515	SMD2121	SMD2121
Module size(mm)	250*250	250*250	250*250
Cabinet size(mm)	500x500x71	500x500x71	500x500x71
Cabinet material	Die casting aluminum
Scanning	1/16	1/32	1/16
Greyscale	14bit-22bit	14bit-22bit	14bit-22bit
Refresh rate	7680Hz	7680Hz	7680Hz
Brightness	500-1200nits	600-1200nits	600-4500nits
Viewing angle	≥160°/≥140°	≥160°/≥140°	≥160°/≥140°
Max. Power consumption (W/㎡)	650	650	650
Ave. Power consumption (W/㎡)	200	200	200
Installation/maintenance type	front & rear	front & rear	front & rear
