Application Scenarios of Indoor Fixed LED Displays
- Corporate Meeting Rooms & Boardrooms
Deliver crystal-clear visuals for video conferencing, presentations, and corporate communication. - Retail Stores & Showrooms
Attract customer attention with dynamic advertising and product showcases. - Broadcast Studios & Control Rooms
Provide seamless video walls for real-time monitoring, broadcasting, or editing with zero bezel interruptions. - Airports, Train Stations & Transport Hubs
Deliver real-time passenger information and directional signage with vivid clarity. - Exhibition Halls & Museums
Enhance interactive experiences and educational content with immersive visuals. - Hospitality Venues & Event Halls
Offer dynamic backdrops or information panels for events, conferences, or live shows. - Security & Command Centers
Monitor complex data streams with high precision and continuous 24/7 stability.
These LED displays are designed for long-term, low-maintenance operation, ensuring consistent performance and brilliant image quality in demanding indoor environments.

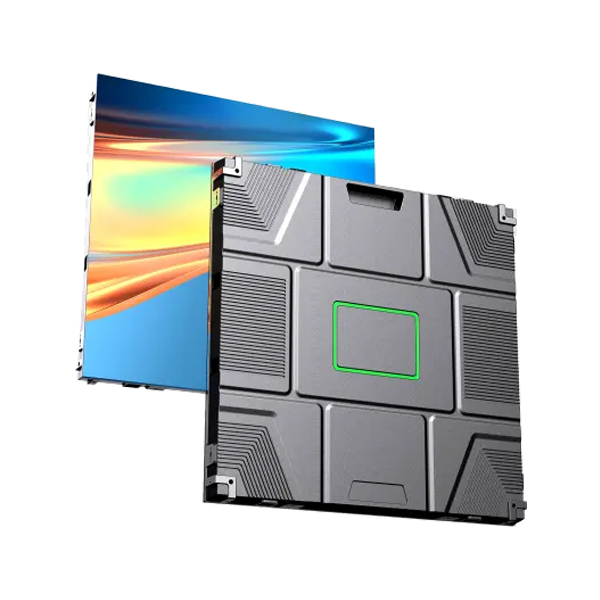

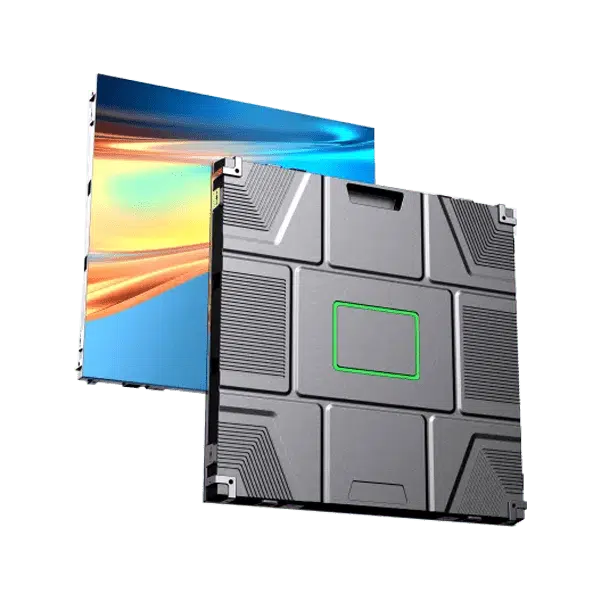

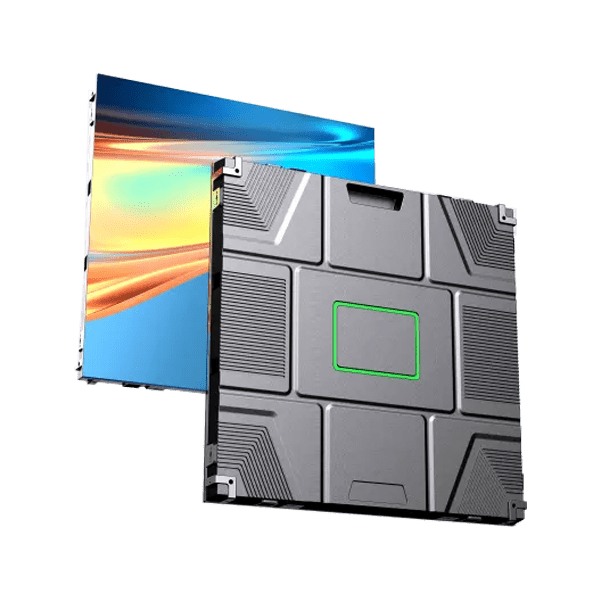

640x480mm Frontal Service Indoor LED Display
4 : 3 Cabinet Design, Die – casting Aluminum Indoor LED Screen
1: Frontal service design

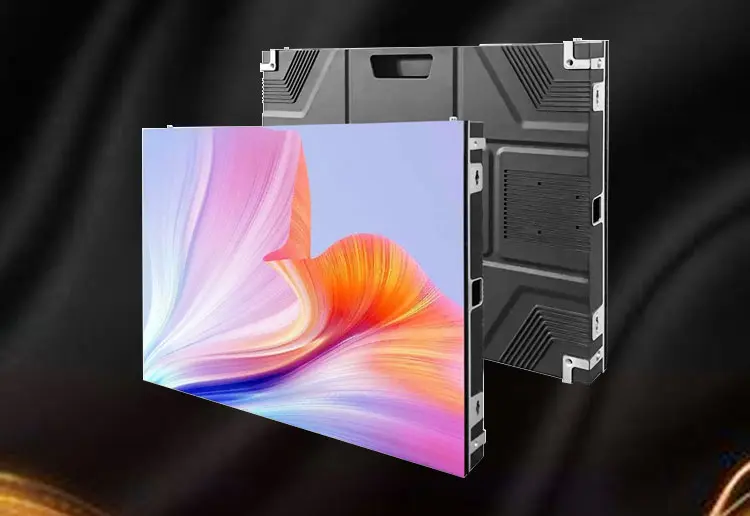

2:Ultra-light and thin design with efficient heat dissipation, only 6kg per cabinet
3: Vivid visual experience
4: Anti-collision design
5: High – flatness screen
6: Easy to install and disassemble

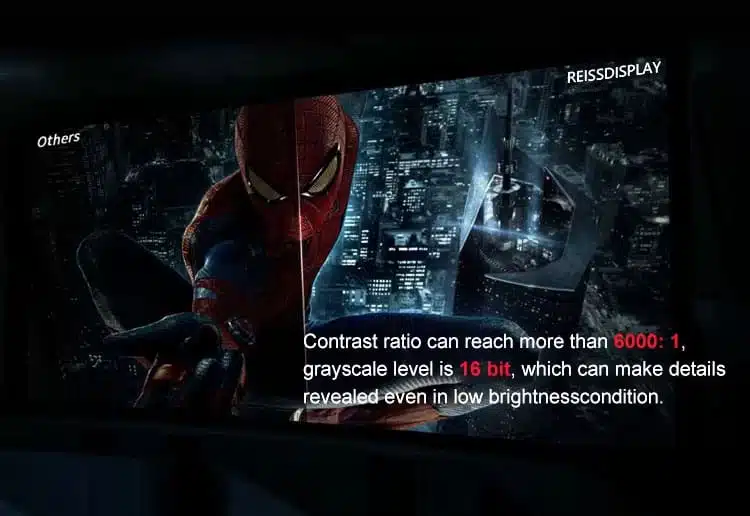

High Grayscale At Low Brightness
Exceptional Contrast and Grayscale Performance
Contrast ratio exceeding 6000:1
24-bit grayscale depth
Reveals details even in low brightness conditions
This indoor LED display offers exceptional contrast ratio of over 6000:1 and 24-bit grayscale depth, delivering exceptional image quality even in low brightness.
The advanced technology maintains fine details, making it ideal for applications requiring visual quality and visibility, such as conference rooms and museums.
The high contrast and deep grayscale provide a visually immersive and comfortable experience, regardless of ambient lighting. This versatility and performance make this indoor LED display a standout choice for discerning indoor applications.

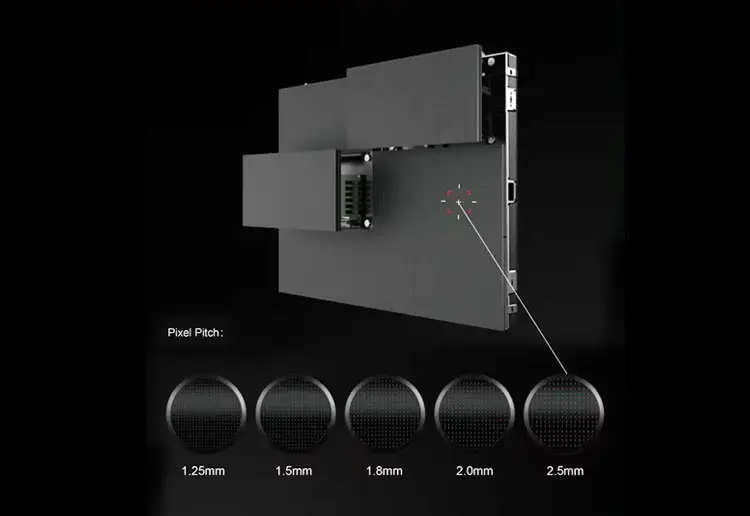

Full Front Maintenance Indoor Led Screen
Indoor LED Screen Offers Exceptional Front – Facing Maintenance
Supporting full front maintenance with vacuum tools,enabling easy operation and assembly, no need special maintenance channels.
Energy Savings Indoor LED Screen
High – Efficiency Indoor LED Display – Balanced Brightness and Energy Savings
High brightness and low energy-consumption,it can boost brightness by 30% or cut power consumption by 30% for better heat dissipation and better contrast.

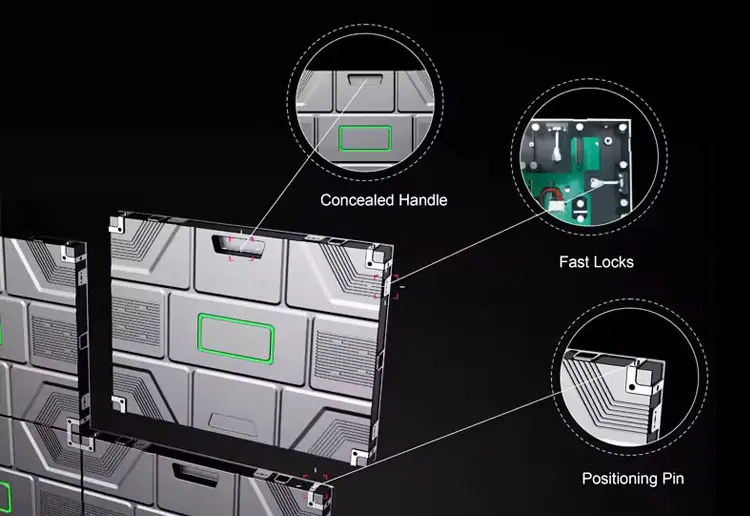

LED Display Installation
Precise Positioning and Effortless Installation
With positioning spring plunger piston design, can reach accurate positioning and convenient installation, save installation time.

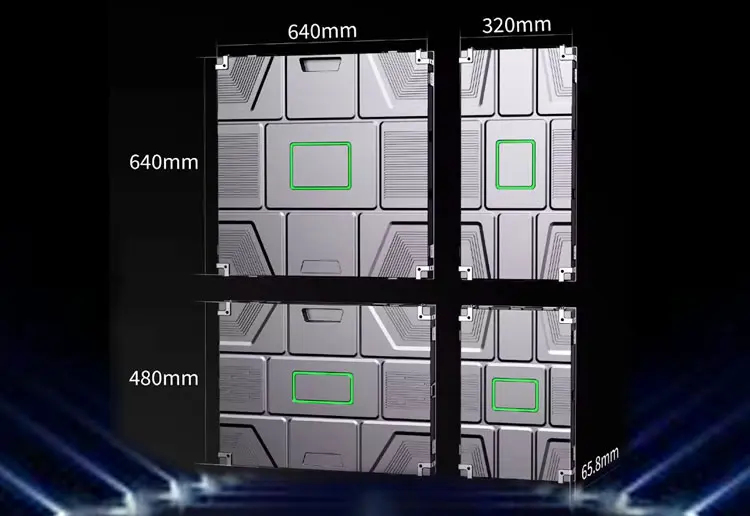

Panels Size Customization
Flexible Panel Configurations with Durable Construction
Based on standard 640*480mm panel size, there are more panel sizes 640*640mm, 320*640mm, 320*480mm for option, which can meet the needs of flexible sizes splicing.
The panel is designed with high-strength alloy material.

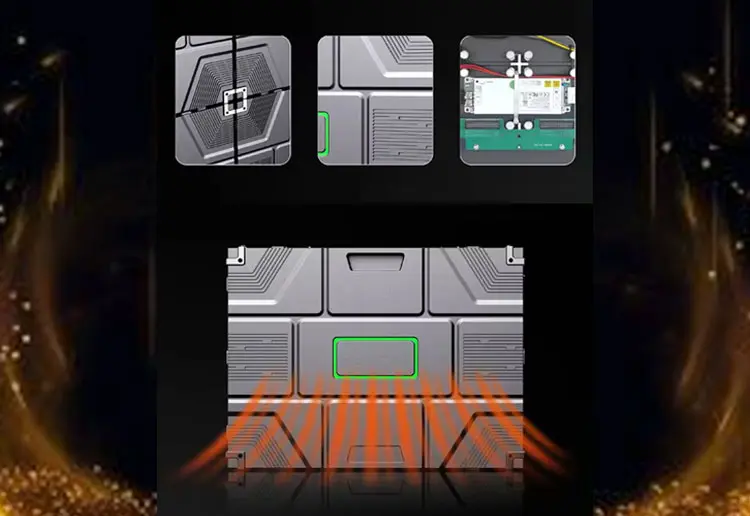

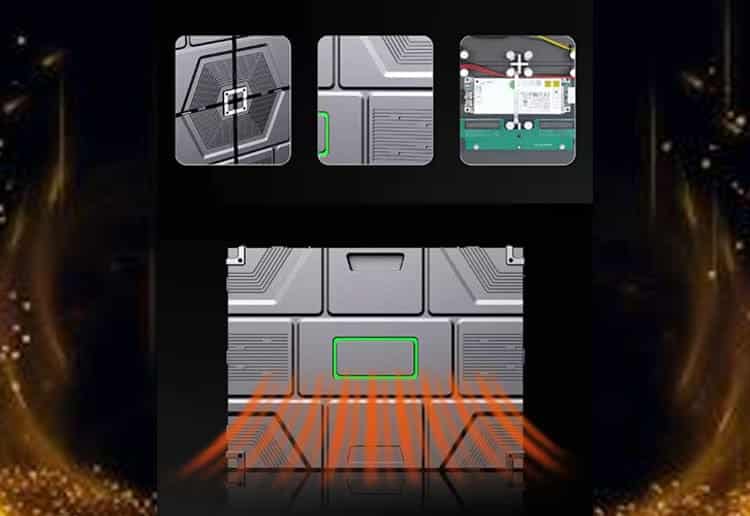

Efficient Heat Dissipation
Advanced Thermal Management for Optimal Performance
Multiple unique heat dissipation designs,which runs 5°C cooler than a conventional LED display;Contact thermal conductance accelerates heat dissipation; hollowed & wave design for bigger heat dissipation area, Textured Heat dissipation rib.

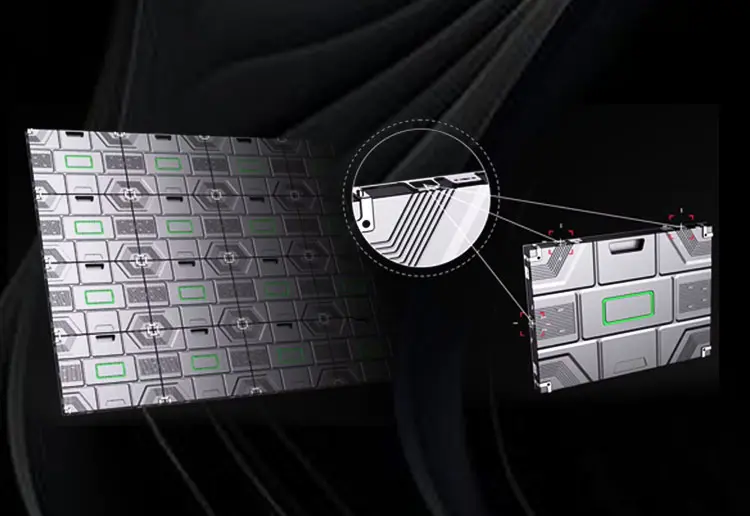

LED Screen Seamless Cabling
Seamless Cabling for Stability and Aesthetics
There are no cables between panels and no apparent cables outside the panel. Inner cable connection will make the transmission of signal and power more stable, and the whole screen looks neater and cleaner.
.
Complete Package Available LED Wall
Seamless Splicing, Excellent display experience
Ready-made brackets,ensuring the whole screen stays flat and seamless,Installation is completed in just 4 steps.
Application Cases
Indoor LED Display Guide: Features, Benefits, and Trends in 2025
" Customer Testimonials:
Indoor LED display have become a mainstream technology. Vivid visuals, versatility and ability to engage audience make essential visual focal point.

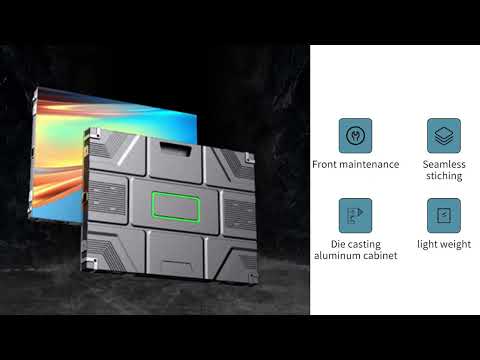

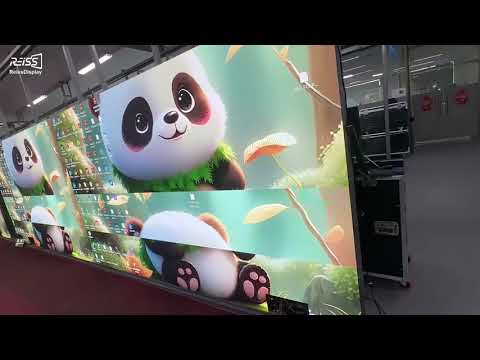

Application and Installation Videos
Specifications
| Specification | P0.937 | P1.25 | P1.538 | P1.86 | P2.0 | P2.5 |
|---|---|---|---|---|---|---|
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size (mm) | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 | 320 × 160 |
| Cabinet Size (mm) | 640 × 480 / 640 × 640 / 320 × 640 × 65.8 | 640 × 480 / 640 × 640 / 320 × 640 × 65.8 | 640 × 480 / 640 × 640 / 320 × 640 × 65.8 | 640 × 480 / 640 × 640 / 320 × 640 × 65.8 | 640 × 480 / 640 × 640 / 320 × 640 × 65.8 | 640 × 480 / 640 × 640 / 320 × 640 × 65.8 |
| Warranty | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years | 5 Years |
| IP Grade | COB GOB IP65 / SMD IP33 | COB GOB IP65 / SMD IP33 | COB GOB IP65 / SMD IP33 | COB GOB IP65 / SMD IP33 | GOB IP65 / SMD IP33 | GOB IP65 / SMD IP33 |
| Weight (kg/cabinet) | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 | 6.0 |
| White Balance Brightness (nit) | 600–1000 | 600–1200 | 600–1000 | 600–1200 | 800–1200 | 800–1200 |
| Horizontal / Vertical Viewing Angle (°) | 170 / 170 | 170 / 170 | 170 / 170 | 170 / 170 | 160 / 160 | 160 / 160 |
| Power Consumption (W/㎡) | 400 / 120 ±15% | 450 / 150 ±15% | 400 / 120 ±15% | 450 / 150 ±15% | 450 / 150 ±15% | 450 / 150 ±15% |
| Refresh Rate (Hz) | 3840 / 7680 | 3840 / 7680 | 3840 / 7680 | 3840 / 7680 | 3840 / 7680 | 3840 / 7680 |
| Control System | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
Frequently Asked Questions
1 What is a front-service (front maintenance) indoor LED display?
A frontal service indoor LED display allows all maintenance and component access from the front side, including module, power supply, receiving card, and cables. This design is ideal for wall-mounted or space-constrained environments where rear access is not available.
2 What are the advantages of the 640×480mm cabinet size?
The 640×480mm cabinet features a 4:3 aspect ratio, which aligns with many standard video formats, making it easier to create content with minimal scaling. It also offers greater flexibility for custom screen sizes and pixel pitch combinations.
3 How much does the cabinet weigh?
Each cabinet weighs only 6kg thanks to its die-cast aluminum construction. Compared with a typical 8–10kg iron cabinet, this reduces total wall load by 30–40%, simplifying installation on drywall or lightweight steel frames and lowering shipping costs.
4 Is this LED display suitable for fixed installation?
Yes. The IF-H Series is purpose-built for permanent indoor installation. It combines front maintenance, a 6000:1 contrast ratio, high screen flatness (≤0.2mm module gap) and a 100,000-hour lifespan, making it suitable for 24/7 operation in control rooms and command centers.
5 Which pixel pitch should I choose for an indoor LED wall?
Yes. The high-precision die-cast aluminum frame achieves ≤0.2mm gaps between cabinets, delivering a truly seamless large-format image. Cabinets are available in 640×480mm, 640×640mm and 320×640mm for flexible mixed-size splicing up to 2K, 4K and 8K resolution.
6 Does it support seamless splicing?
Absolutely. The high-precision die-cast aluminum frame ensures perfect cabinet alignment with minimal gaps between panels, delivering a seamless large-screen display.
7 What is the lifespan of the LED screen?
Under normal operating conditions, the LED screen offers a lifespan of up to 100,000 hours, ensuring long-term use with minimal maintenance.
