COB Mini/Micro LED Displays: Ultra-Fine Pitch & Superior Performance
Making Eco-Friendly Choices EASY!
Pixel Protection Technology
Application Fields
· Home Cinema
· Showroom
· Monitoring Center
· Stage

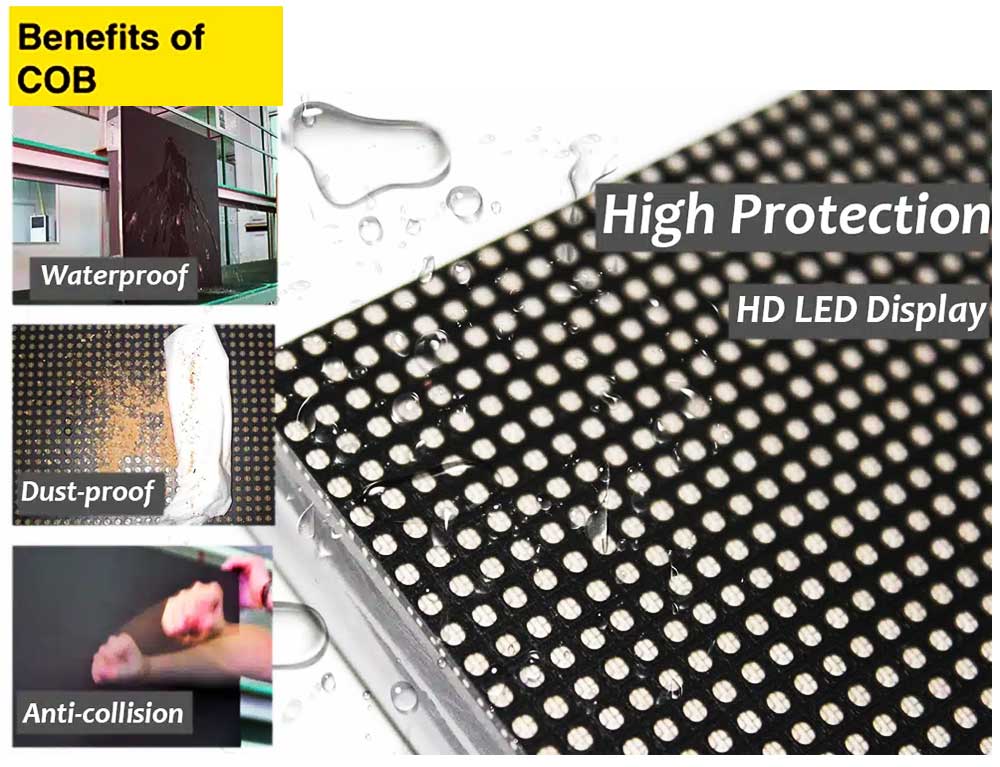

Benefits of Micro COB LED Display
Impact and surface protection
Easy to clean with water
Enables a much higher packing density than SMD
High resolution with better smoothness and higher intensity
Greater heat dissipation, better stability, reliability and longevity

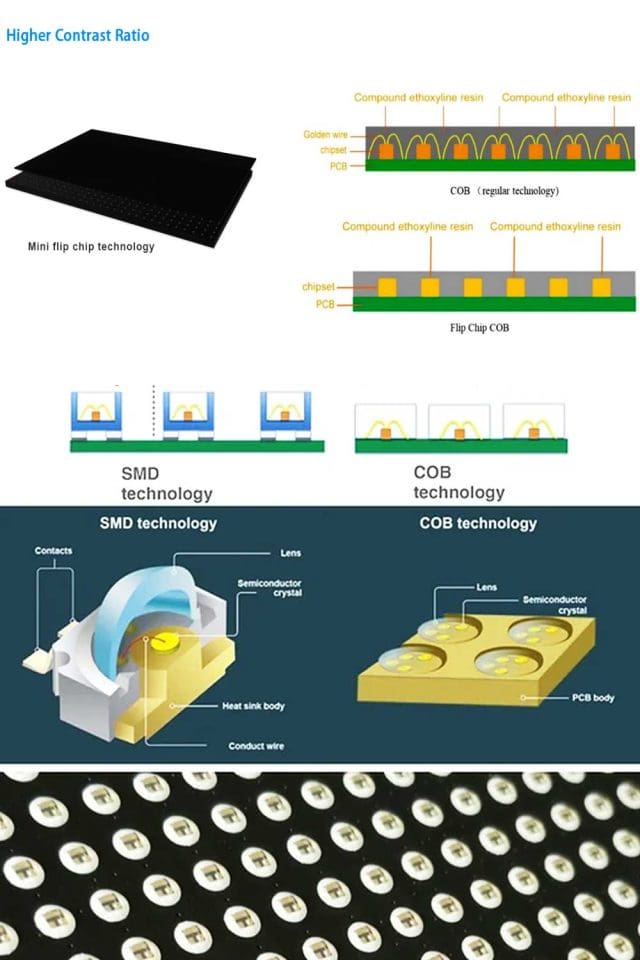

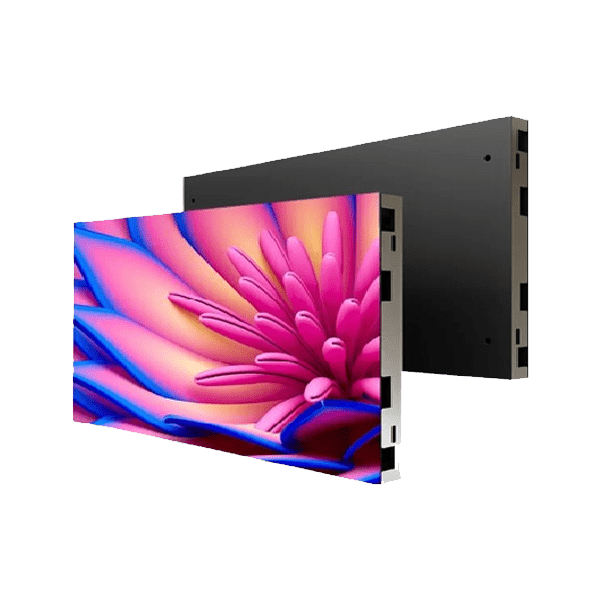

What is Micro COB LED Display
A micro COB (Chips on Board) LED display is an advanced display technology that utilizes a cutting-edge LED packaging method for LED light engines. Specifically, COB technology involves mounting LED chips directly onto the substrate on the back of the circuit board, which enhances durability and performance.
To achieve this, ultrasonic welding technology is used to conduct lead bonding of the LED chip, ensuring strong and reliable electrical connections. Afterward, resin glue is applied to encapsulate the lamp position, thereby protecting the LED chip from environmental factors such as moisture, dust, and physical damage.
As a result, micro COB LED displays offer superior brightness, energy efficiency, and longevity compared to traditional LED displays. Additionally, this technology enables finer pixel pitches, making it ideal for high-resolution applications like indoor screens, control rooms, and high-end commercial displays.
Larger Viewing Angle
COB package adopts the class of surface luminescence, so the viewing angle is wider, so that the COB encapsulated micro-pitch LED display screen has a vertical and horizontal bidirectional 170° wide viewing angle, which ensures that any angle of viewing, no color deviation, the images and videos can always be displayed perfectly.

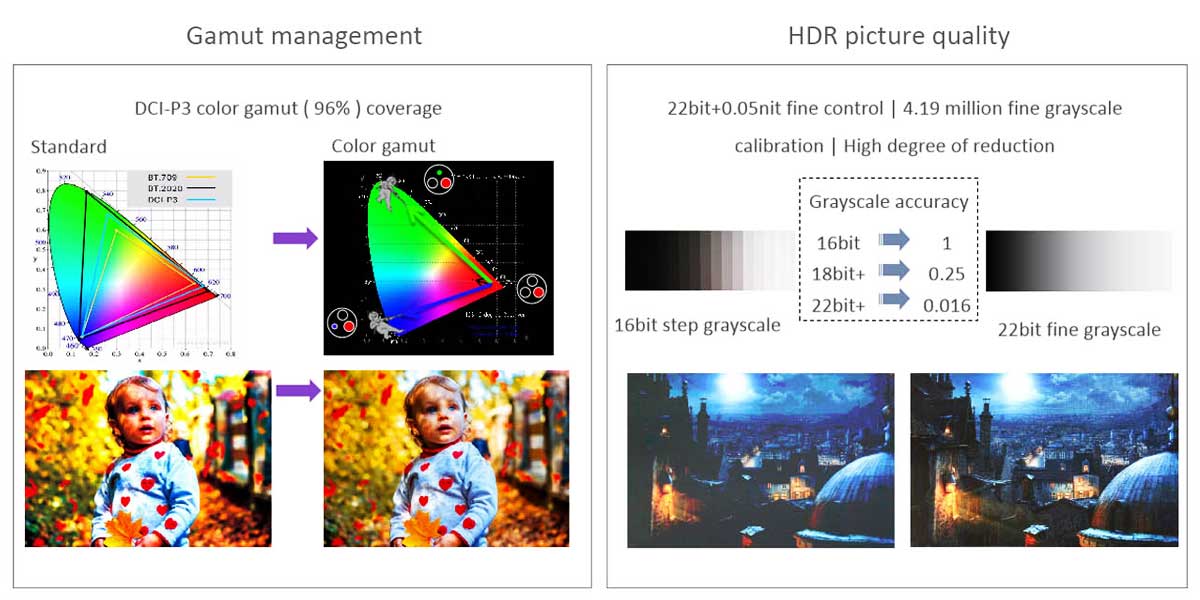

REISSDISPLAY Micro COB LED Displays Stunning Visual Performance
REISSDISPLAY takes visual performance further with a cutting-edge, DCI-P3 compliant LED display. Engineered for unmatched color brilliance and accuracy, it delivers captivating, immersive experiences like never before.
Precise Size To Splice Seamlessly
REISSDISPLAY COB series 16:9 golden ratio, in line with HD TV standards, perfect display of 2k,4K,8K video.

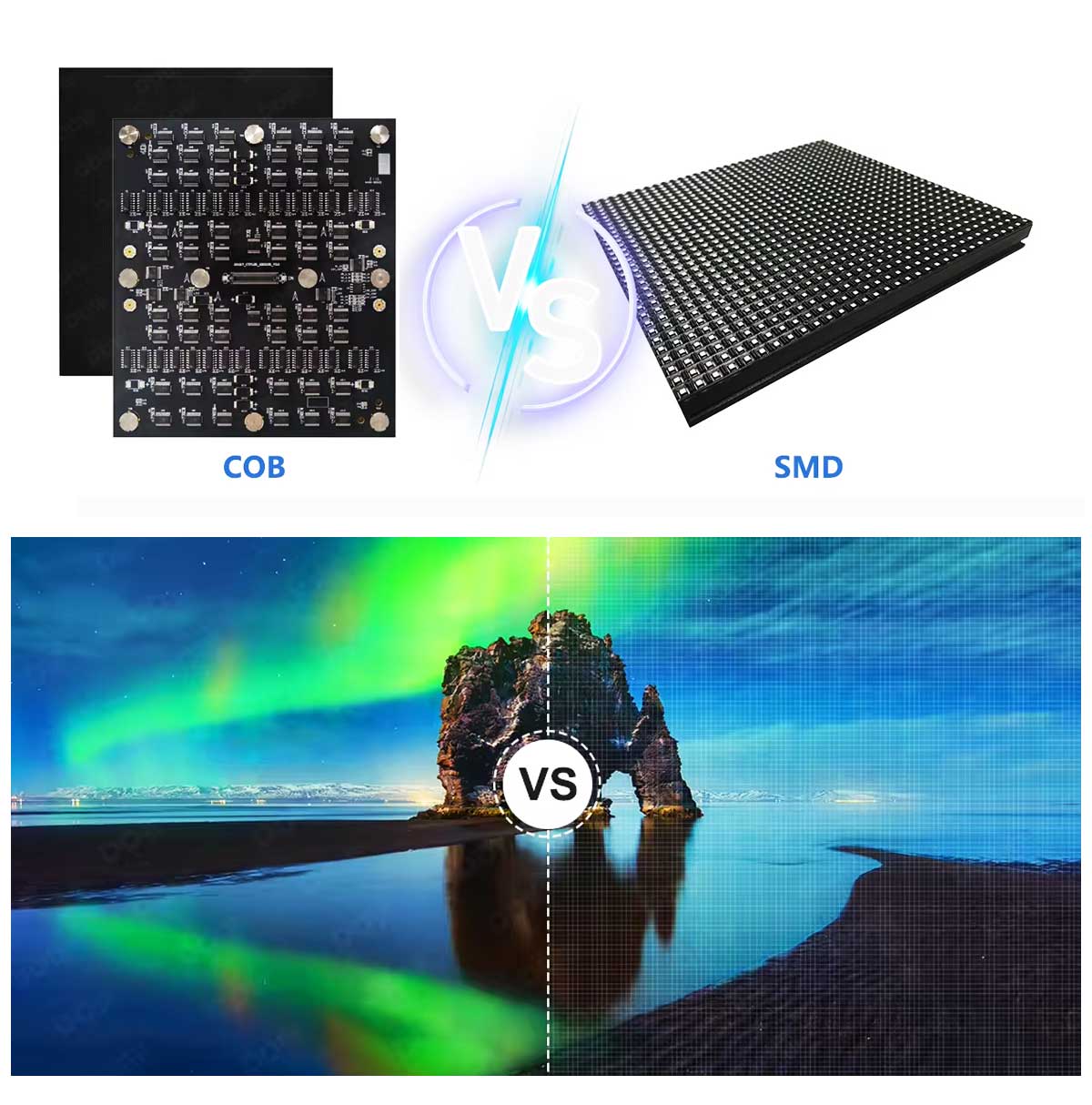

COB LED Screen VS SMD LED Display
Flip chip COB technology boasts an extended lifespan, minimal pixel failures,enhanced contrast ratio, reduced power consumption, and smoother image quality
Great Energy Efficiency
The flip chip COB packaging technology, combined with a common cathode circuit design, enhances display effects while saving 40% energy than conventional LED screens
COB Micro LED Screen Technology
Micro LED screen products based on COB micro display advanced technology adopt self-luminescence, high contrast and high color gamut, long life, high refresh rate, excellent display effect and unlimited size expansion,ultra-high pixel density and other advantages, more energy-saving and efficient, theater-level color management system, reaching 125% NTSC color gamut range and 22Bit color depth, presenting rich details and restoring real display effect

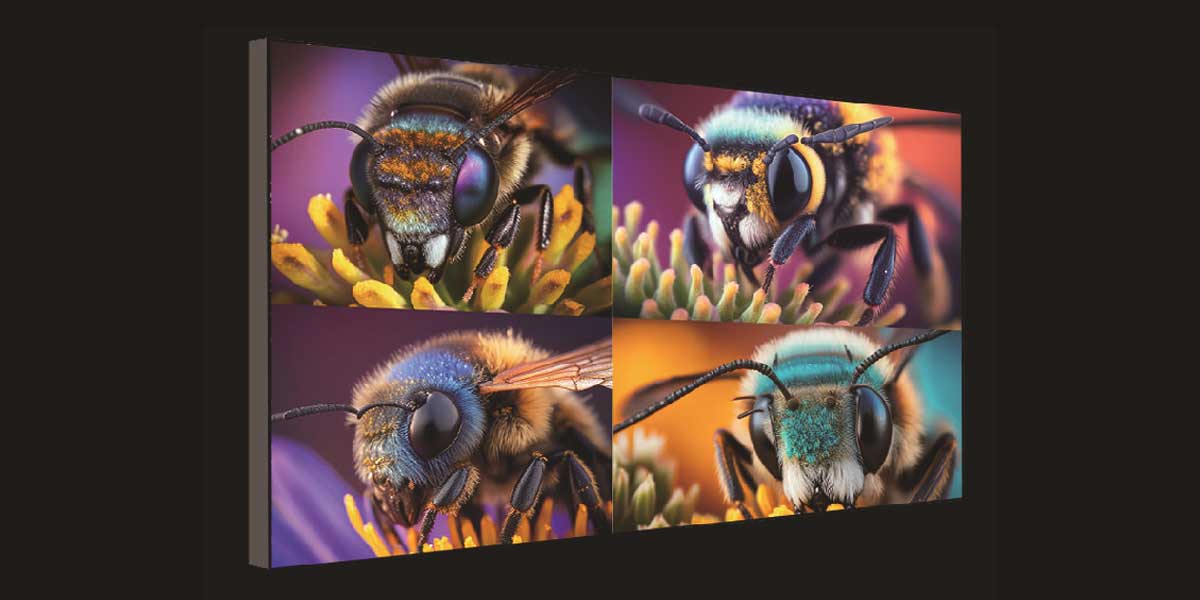

High Contrast, Present More Details
VIVID by design — REISSDISPLAY industry-leading contrast ratios and HDR capabilities transport you to a realm where every image bursts with life, immersing you in a breathtaking tapestry of colors and details. Say goodbye to the ordinary and embrace the extraordinary with the REISSDISPLAY LED display.

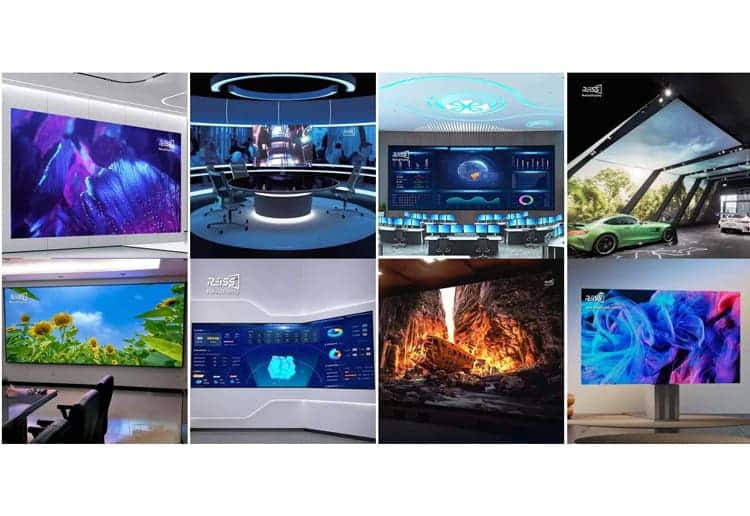

COB LED Display Screen Relative projects
TV station, broadcasting, high-end commercial conference, exhibition, monitoring command center, etc
Application Cases
Mini-LED vs. Micro-LED: Technical Breakdown and Market Trajectory
" Customer Testimonials:
Introduction The display industry is undergoing a seismic shift as Mini-LED and Micro-LED technologies vie for dominance. While Mini-LED powers premium consumer devices like Apple’s iPad Pro and Samsung Neo QLED TVs, Micro-LED is making strides in ultra-high-end applications such as Sony’s 16K commercial displays and augmented reality (AR) headsets. This article leverages 2023–2024 market […]
Application and Installation Videos
Specifications
| Specification | P0.78 | P0.9375 | P1.25 | P1.5625 |
|---|---|---|---|---|
| Module Resolution | 205 × 230 | 160 × 180 | 120 × 135 | 96 × 108 |
| Module Size (mm) | 150 × 168.75 | |||
| Cabinet Resolution | 820 × 460 | 640 × 360 | 480 × 270 | 384 × 216 |
| Cabinet Size (mm) | 600 × 337.5 × 29 | |||
| Cabinet Weight (kg) | 3.8 | |||
| Pixel Density (dots/㎡) | 1,508,800 | 1,137,777 | 640,000 | 409,600 |
| Cabinet Flatness (mm) | ≤ 0.15 | |||
| Single-point Brightness Correction | Yes | |||
| Single-point Color Correction | Yes | |||
| Brightness (nits) | 600–1200 | |||
| Color Temperature (K) | 3000–10000 adjustable | |||
| Viewing Angle (H / V) | 170° / 170° | |||
| Chroma Uniformity | ±0.003 | |||
| Frame Rate (Hz) | 50 & 60 | |||
| Refresh Rate (Hz) | 3840 / 7680 | |||
| Center Distance Deviation | ＜3% | |||
| Brightness Uniformity | ≥97% | |||
| 40°C / RH90% Test | Through testing | |||
| Control System | Novastar / Linsn / Colorlight | |||
| Certification | CE, EMC, RoHS, ISO9001 | |||
Frequently Asked Questions
1 What is a micro COB LED display?
A micro COB (Chip-on-Board) LED display mounts LED chips directly onto the PCB substrate and seals them with epoxy resin, eliminating exposed pins. This delivers finer pixel pitch, higher brightness, and stronger protection than traditional SMD screens.
2 COB vs SMD LED display — what's the difference?
COB encapsulates chips under a flat resin surface for better heat dissipation, contrast, and durability, while SMD mounts discrete packaged LEDs. COB supports finer pitches (below P1.0) with fewer dead pixels and lower power draw.
3 Is a micro COB LED display waterproof and dustproof?
Yes. Because REISSDISPLAY COB panels are fully sealed with epoxy resin and have no bare pins, they reach front-side IP54 protection against dust, water, oil stains, impact, and static electricity, and the surface can be cleaned directly with water — ideal for high-traffic control rooms and studios.
4 What pixel pitches does the REISSDISPLAY micro COB series offer?
The IFM-COB series covers P0.78, P0.9375, P1.25, and P1.5625, with pixel density up to 1,508,800 dots/m². A 600×337.5mm 16:9 cabinet enables seamless 2K, 4K, and 8K video walls with center-distance deviation under 3%.
5 Where are micro COB LED displays typically used?
Common applications include home cinema, broadcast and TV studios, monitoring and command centers, high-end conference rooms, showrooms, and stage backdrops — anywhere fine detail, wide 170° viewing angles, and no color deviation are required.
6 Does COB LED save energy compared to conventional LED screens?
Yes. Flip-chip COB packaging combined with a common-cathode circuit design cuts power consumption by around 40% versus conventional LED screens, while improving brightness efficiency and heat dissipation for a longer service life.
