Transparent Holographic LED Screen: The Future of Visual Technology
The transparent holographic LED screen is an ultra-thin, see-through display that blends invisibly into glass. Also known as a holographic LED film screen, it delivers vivid full-color video with up to 90% transparency and 5000 nits brightness. Flexible, cuttable and only 3mm thick, this transparent LED film is ideal for glass facades, retail windows, showrooms and stages, creating striking 3D holographic effects that engage audiences without blocking natural light.
Indoor & Outdoor Transparent Holographic LED Screen

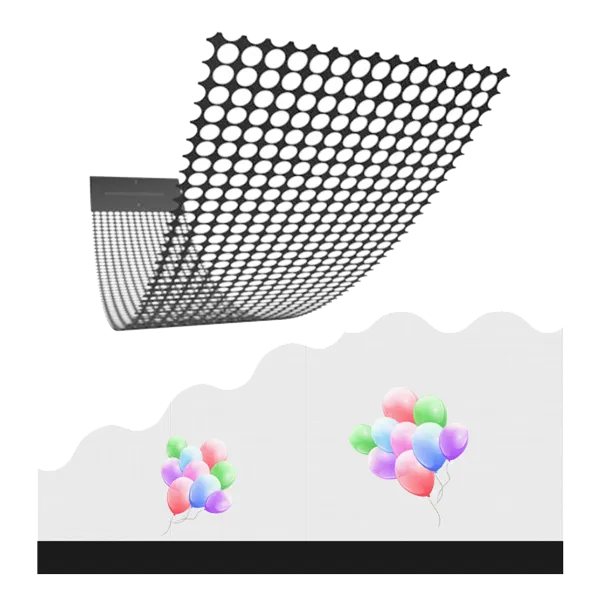

Transparent holographic LED film screen is also called holographic invisible screen, holographic film screen. The screen is in a grid shape and uses a specially designed transparent LED display element, so that light can penetrate the display without causing significant obstruction to the background. It is not only thin and transparent, simple installation, the most important thing is higher definition, the product into a grid, the visual effect is more transparent, there is no PC carrier, the heat dissipation effect is better. The product adopts the integrated design of the lamp area, and the front and back of the module have no other components except the lamp beads, which is very beautiful. The size supports arbitrary customization, can be bent at will, cut at will, can be pasted on the front and back, to meet more applications.
LED Holographic Film Screen Features
Adaptable: Fits any shape or setting.
Ultra-Thin and Light: Easily mounted on glass, simple to install and maintain.
Crystal Clear: 90% transparent with high-definition images (9000:1 contrast ratio).
Easy Configuration: Mix and match 1*1m or 2*2m units as needed.
Excellent Visibility: 90% transmittance, minimal light obstruction.
Brilliant in Sunlight: High 5000cd/m2 brightness for vivid colors, even in direct sunlight.
Transparent Holographic LED Screen Ultra-Wide View
Wide Horizontal and Vertical Angles
The transparent holographic LED screen offers a wide 140° horizontal and vertical viewing angle, providing a truly immersive visual experience.

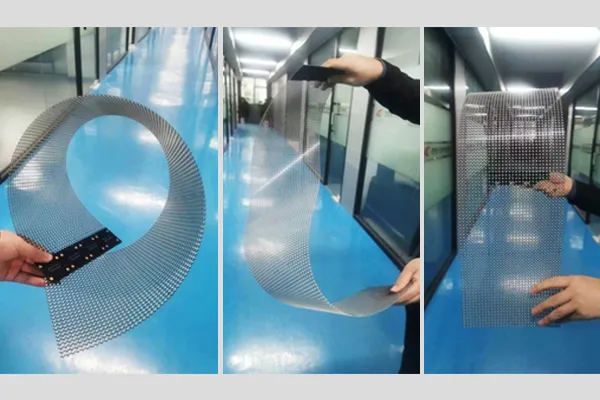

Transparent Holographic LED Screen Customizable

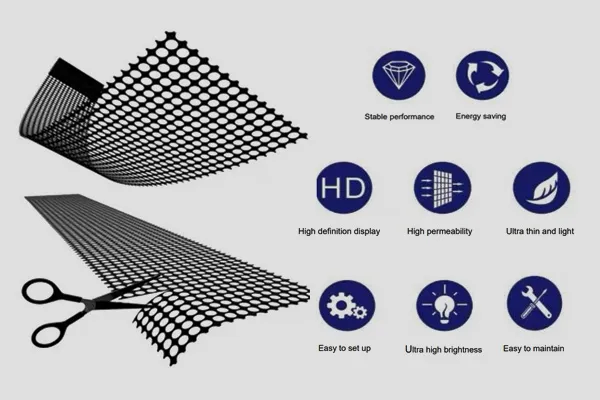

With great flexibility, the panel of hologram film screen can be bent and arbitrarily cut into the desired shape to meet more applications.
Weighing only 3kg/ ㎡, the hologram film screen is easy and quick to install. Just one person can easily install and handle products, save installation time and cost.

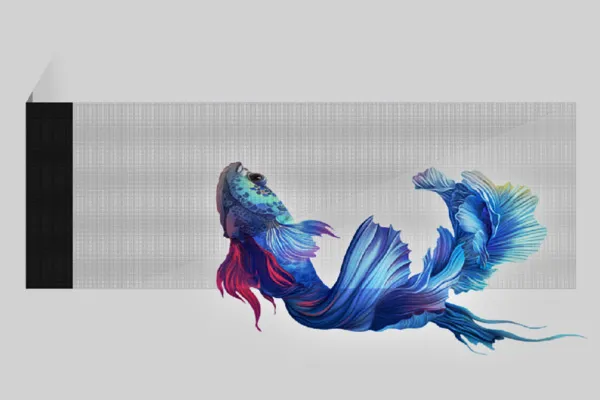

No keel Design, Thin and Transparent
Lightweight(3kg/m2)
Easily installed without a back frame and can be cut or bent to fit any space.
Thin(1-3mm)
Seamlessly integrates with glass and other surfaces.

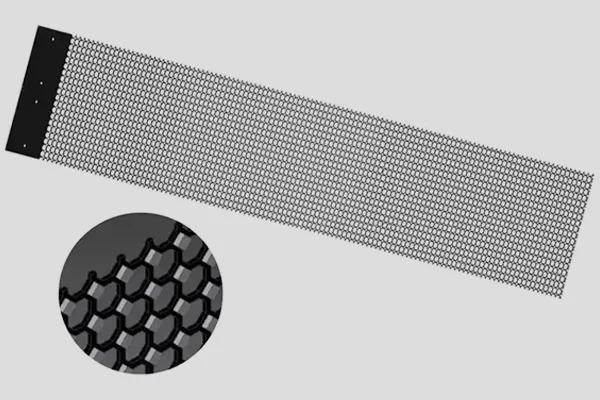

Great heat dissipation effect
Adopting light and driving integrated design, the holographic film screen without PC carrier, showing superb heat dissipation effect.
Up to 90% Transparency
With up to 90% transparency, the holographic invisible screen blends seamlessly into any environment.
Arbitrary cutting, Seamless Spliced Display
Arbitrary cutting, seamless spliced display
The display allows custom screen sizing with seamless splicing – the narrower the bezel spacing, the higher the pixel density for sharper image clarity. And the seamless cropped screen is more flexible to match the installation and regional carrier.

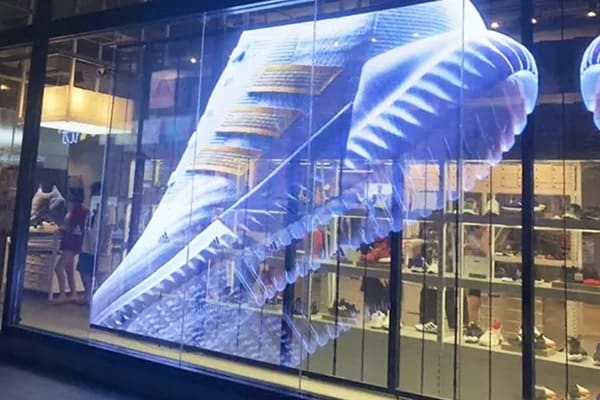

3D Stereoscopic Display
Exquisite structure, immersive “magic” experience
The high-transparency structural design seamlessly blends real-world scenes with on-screen content, creating immersive 3D integration between foreground, background, and digital imagery.
The product can form a strong sense of three-dimensional suspension when displayed, which not only supports traditional videos.
The ultimate 3D rendering capability ensures a large enough lighting angle.
Delicate and Realistic Colors
High-definition image quality–High-definition multi-point high-pixel full-color promotion of various rich pictures-video content.

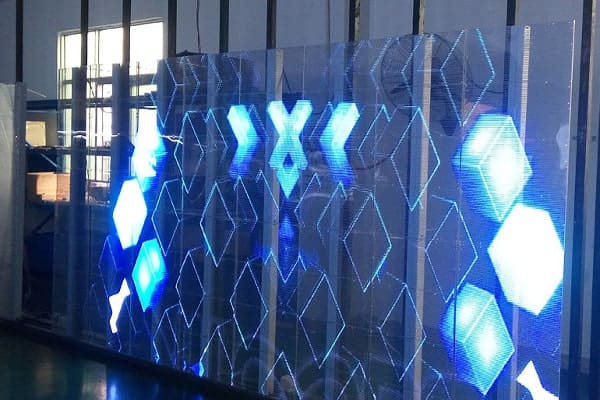

Transparent Holographic LED Screen Seamless Stitching
When viewing images, the images are not deformed, discolored or distorted.

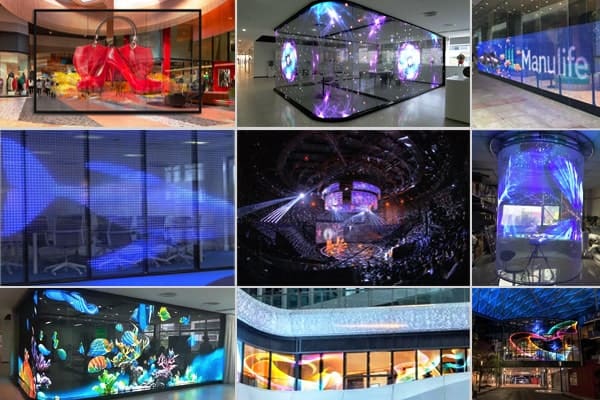

Where Can You Use Transparent Holographic LED Screen?
Main application
Commercial Spaces:
Architectural Elegance: Includes glass curtain walls, atriums, glass guardrails, glass showcases, sightseeing elevators, and more.
Brand Presence: Home to chain brands, encompassing tea and catering, bakeries, fashion and jewelry stores, 3C technology experience shops, and bank business centers.
Advertising Platforms:
High-Traffic Areas: Advertising opportunities at transportation hubs like airports, high-speed rail stations, subways, buses, and more.
Entertainment and Arts:
Cultural Hubs: Hosts bars, nightclubs, stage performances, dance shows, diverse cultural and tourism attractions.
Application Cases
Transparent LED Wall,A New Standard for Modern Visual Displays
" Customer Testimonials:
In recent years, the transparent LED wall has become a stunning symbol of innovation in architecture, retail, entertainment, and corporate...

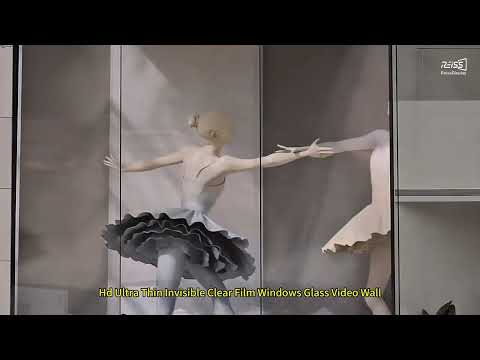

Application and Installation Videos
Specifications
| Specification | PH3.508 | PH3.91 | PH5 | PH6.25 | PH8 | PH10 | PH16 |
|---|---|---|---|---|---|---|---|
| Pixel Pitch (mm) | 3.508 | 3.91 | 5 | 6.25 | 8 | 10 | 16 |
| LED Chip | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Module Size (mm) | 1150 × 225 | 1152 × 125 | 1150 × 160 | 1150 × 200 | 1160 × 256 | 1150 × 320 | 1152 × 256 |
| Pixel Density (px/㎡) | 81,225 | 65,536 | 40,000 | 25,600 | 15,625 | 10,000 | 3,906 |
| Color | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Optimal Viewing Distance | 3–250 m | 4–250 m | 6–250 m | 8–250 m | 10–250 m | 10–250 m | 16–250 m |
| Transparency | 70% | 80% | 85% | 90% | 90% | 92% | 93% |
| Weight (kg/㎡) | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Thickness | 1–3 mm | 1–3 mm | 1–3 mm | 1–3 mm | 1–3 mm | 1–3 mm | 1–3 mm |
| Viewing Angle (H / V) | ≥160° / ≥140° | ≥160° / ≥140° | ≥160° / ≥140° | ≥160° / ≥140° | ≥160° / ≥140° | ≥160° / ≥140° | ≥160° / ≥140° |
| Average Power (W/㎡) | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 | ≤300 |
| Max Consumption (W/㎡) | ≤800 | ≤800 | ≤800 | ≤800 | ≤800 | ≤800 | ≤800 |
| Refresh Rate (Hz) | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Brightness (cd/㎡) | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 | 5000 |
| Waterproof Grade | IP45 | IP45 | IP45 | IP45 | IP45 | IP45 | IP45 |
| Lifespan | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs | ≥100,000 hrs |
| Control System | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight | Novastar / Linsn / Colorlight |
| Certification | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 | CE, EMC, RoHS, ISO9001 |
