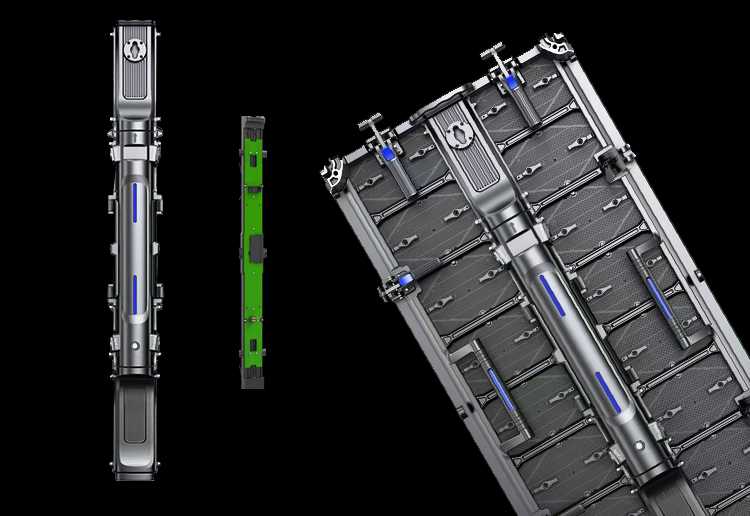

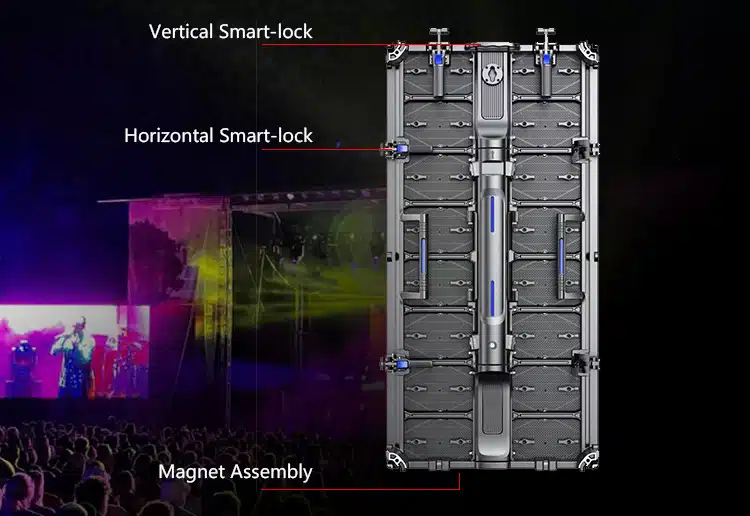

Interchangeable modules. Only one type of module for all positions on the Stage LED Screen Better design, more rigidity. New customized PSU, higher integration and narrower.

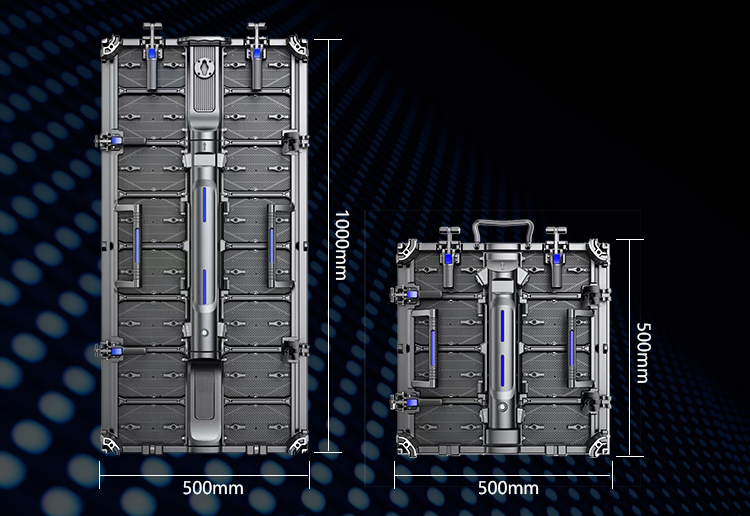

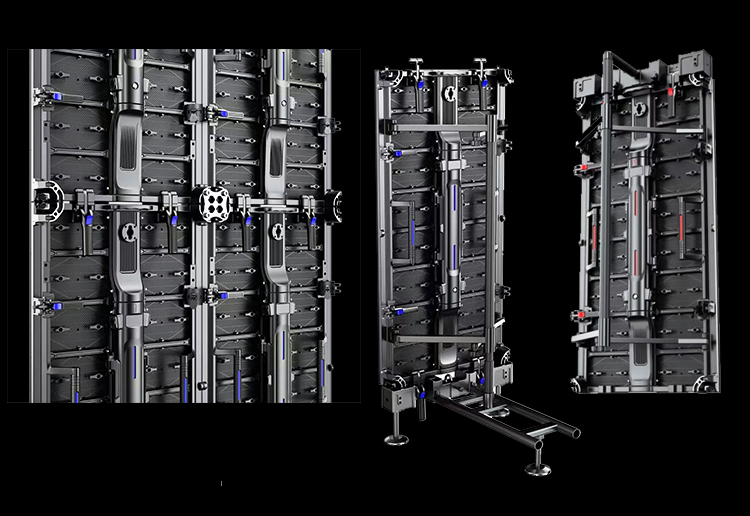

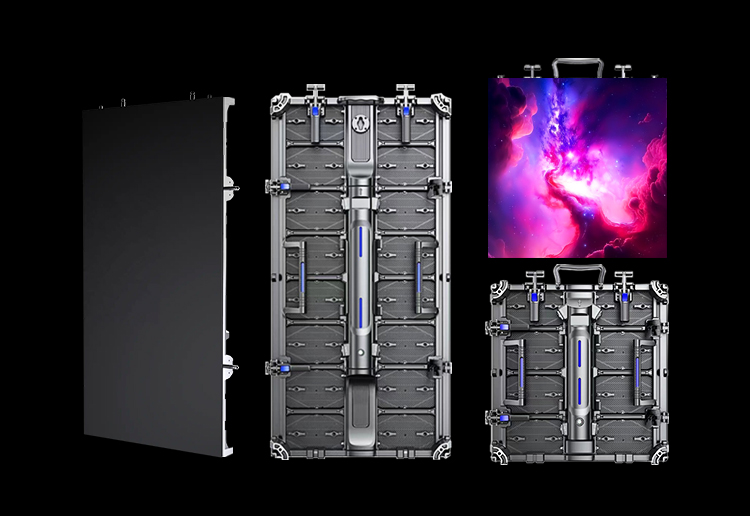

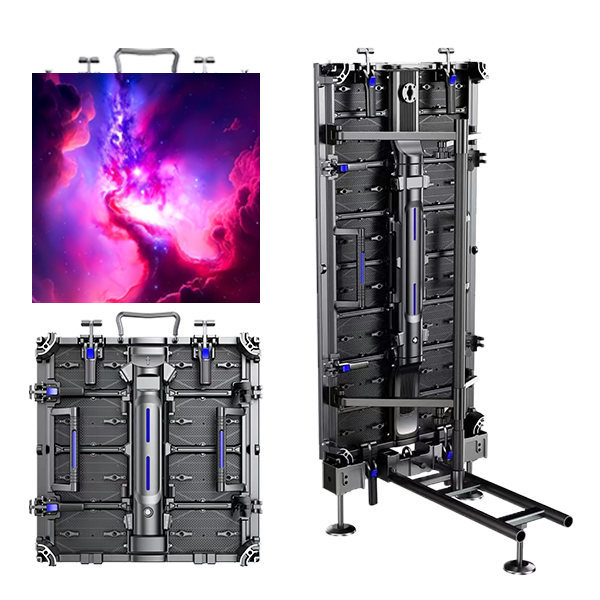

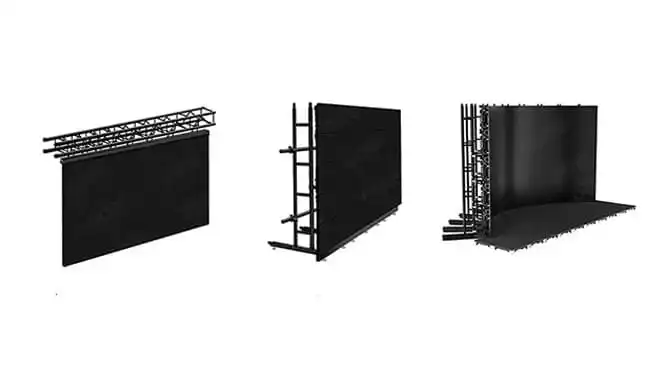

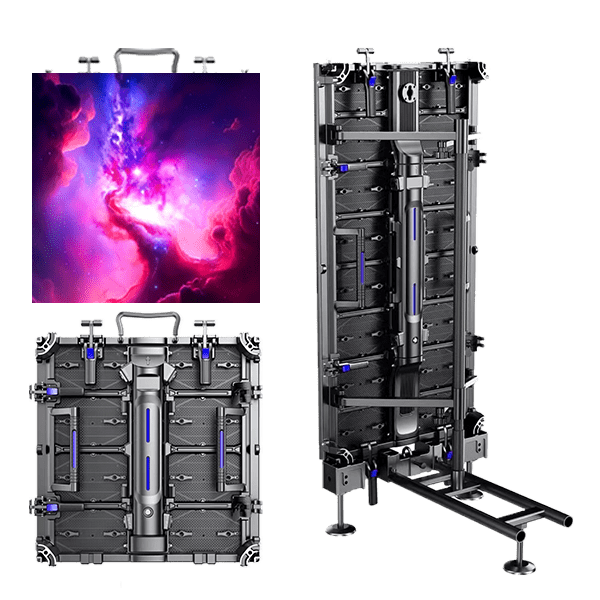

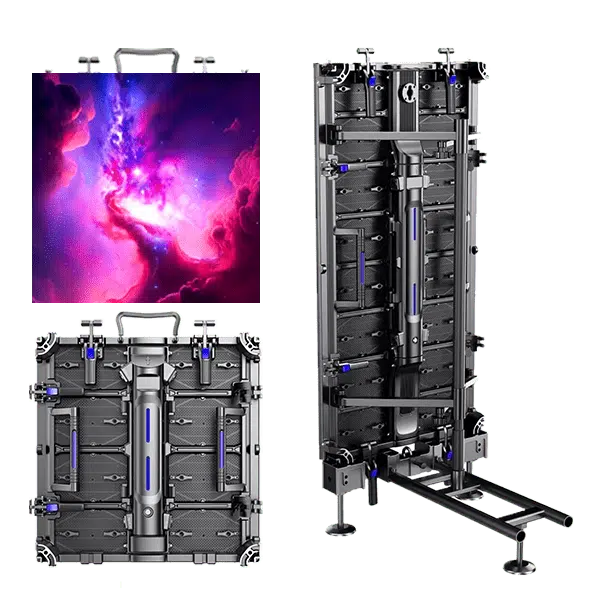

RF series products are designed to be lightweight, with standard box sizes of 500x500mm, 500x1000mm, 250mmx500mm modules, P2.604, P2.976, P3.91, P4.81 models optional, and are an integrated solution that supports seat mounting, hoisting and easy transportation.
No videos available.
Model |
P1.95 |
P2.604 |
P2.976 |
P3.91 |
Pixel Pitch |
1.95mm |
2.604mm |
2.976mm |
3.91mm |
Density |
262,144 dots/m2 |
147,928 dots/m2 |
123904dot/m2 |
65,536dots/m2 |
Led Type |
SMD1515/SMD1921 |
SMD1515/SMD1921 |
SMD2121/SMD1921 |
SMD2121/SMD1921 |
Panel Size |
500 x500mm & 500x1000mm |
500 x500mm & 500x1000mm |
500 x500mm & 500x1000mm |
500 x500mm & 500x1000mm |
Panel Resolution |
256x256dots / 256x512dots |
192x192dots / 192x384dots |
168x168dots / 168x336dots |
128x128dots / 128×256 dots |
Panel Material |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Die Casting Aluminum |
Screen Weight |
7.6KG / 14KG |
7.6KG / 14KG |
7.6KG / 14KG |
7.6KG / 14KG |
Drive Method |
1/64 Scan |
1/32 Scan |
1/28 Scan |
1/16 Scan |
Best Viewing Distance |
1.9-20m |
2.5-25m |
2.9-30m |
4-40m |
Brightness |
900 nits / 4500 nits |
900 nits / 4500 nits |
900 nits / 4500 nits |
900 nits / 5000nits |
Input Voltage |
AC110V/220V ±10% |
AC110V/220V ±10% |
AC110V/220V ±10% |
AC110V/220V ±10% |
Max Power Consumption |
800W |
800W |
800W |
800W |
Average Power Consumption |
300W |
300W |
300W |
300W |
Waterproof (for outdoor) |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Front IP65, Rear IP54 |
Application |
Indoor & Outdoor |
Indoor & Outdoor |
Indoor & Outdoor |
Indoor & Outdoor |
Life Span |
100,000 Hours |
100,000 Hours |
100,000 Hours |
100,000 Hours |
