LED Screen Rental is high resolution and high refresh rate Stage LED Screen , the most distinctive die – cast aluminum cabinet. Stage LED displays for events and large Stage LED Display .
Outdoor rental LED video wall waterproof level is IP 67 outdoor Stage LED display module. Magnetic LED wall Panels module.
Latest designed high – quality Large Stage LED Screen wall rental series. It adopts integrated high-strength frame design, modular cabinet design, and modular power supply.
We support customized services. Customize the brand of led video screen rental series. All series of indoor and outdoor led video wall rental solutions.
pixel pitch：
RSO30, RSO40, RSO50, RSO60, RSO80, RSO100
Stage Led Screen Cabinet 500 x 500mm / 500 x 1000mm LED panel that is designed for the high demands of the touring production world.
Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on – site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.
RSO is the premier rental staging product on the market
Great gray scale, high refresh rate and excellent white balance
LED Display screen used high quality material, the gray scale is up to 14 – 16bits, refresh rate > 3840Hz and excellent white balance.
Angle adjustable
Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.
Test aging
All raw materials pass strict high and low temperature.
Easy Istallation
Equip with auxiliary installation structure, fast connect, single – person installation
Convenient Maintenance
Available to operate the module and power box separately
RSO Series LED Dipalys Ordinary LED displays
RSO Series LED Dipalys Ordinary LED displays
RSO Series LED Dipalys Ordinary LED displays
LED display Screen Rental solution is a professional circuit design, high and low gray, high refresh rate, and good white balance.
Choose good production materials and processes. It is a guarantee of quality.
Die-casting aluminum frame, the cabinet weight is only 7.5kg
Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Stage Led Screen die-cast aluminum cabinet, with very high accuracy, no gaps in splicing, good flatness, and more perfect video effects.
LED screen cabinet. there will be no gaps between the two cabinets when they are installed in the cabinet.
Full Waterproof Process for Outdoor LED Screen Lamp
Waterproof Power and Signal ConnectorWaterproof For PCB Board

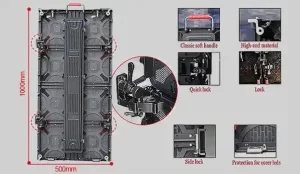

500 * 500mm standard cabinet size Ultra – Light die – casting aluminum. ultra – thin thickness with 75mm.
For easy transport and Portable;
Front and rear module maintenance, independent PSU unit as option
Fast lock design and fast locking device for quick and easy installation
Outdoor Stage led display has a smart lock system, single person can feel free to finish installation and disassemble for the two connected cabinets by hands.
Radian connector can adjust between ± 7.5°, ± 5°, 0°, support arc splicing, 90° corner
1. DVI interface
DVI interface, namely digital video interface.
2. VGA interface
VGA interface is a dedicated interface for computer output data using VGA standard.
3. HDMI interface
HDMI is interface standard.its full name is HD Interface.
4. SDI interface
Adopt coaxial cable, with BNC interface as the cable standard.
5. USB interface
Universal Serial Bus.
6. WIFI function and cloud
WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute
Shopping mall, Traffic command center, conference room, Airport, commercial event,stage backdrop,ect.
Pixel pitch (mm): 2.6
Cabinet pixel points: 192*192
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥5500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL
Pixel pitch (mm): 2.976
Cabinet pixel points: 168*168
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥5500CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 400W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL
Pixel pitch (mm): 3.91
Cabinet pixel points: 128*128
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥5000CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 400W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL
Pixel pitch (mm): 4.81
Cabinet pixel points: 104*104
Module size: 250*250
Cabinet size: 500*500
material: die-cast aluminum
weight ( kg ): 7.5KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥5000CD/㎡
Horizontal viewing angle (°): >120
Vertical viewing angle (°): >120
AC input power (W/square meter): 550W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL
