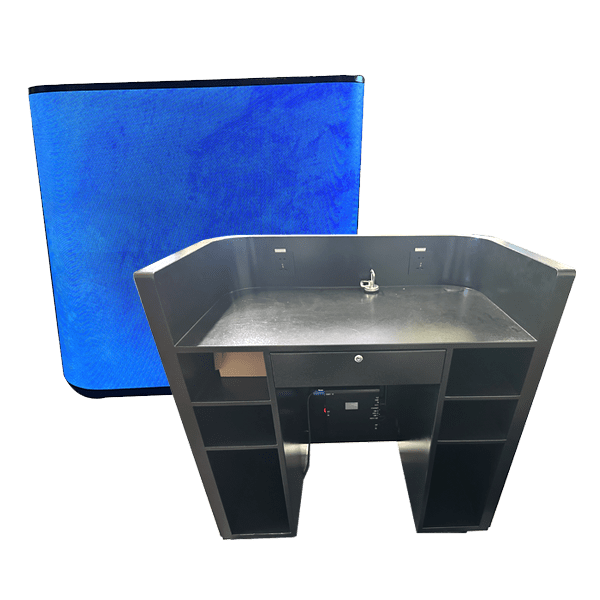

REISSDISPLAY GOB Front Desk LED Display – IFM-Desk Series Is An Ideal Platform Solution For Enhancing Brand Image And Audience Interaction
GOB front desk LED display – IFM-Desk series, a combination of technology and fashion, is an ideal solution for modern advertising. It is designed for displaying brand logos and dynamic videos, equipped with advanced electronic functions and supports content customization. It is very suitable for corporate reception desks, exhibition booths, conferences, parties, clubs and other scenarios.
The multimedia counter is an innovative solution combining advanced technology with elegant design. With its curved design and high quality, it is very suitable for displaying logos, dynamic video materials and personalized content. It is perfect for corporate reception areas, trade shows, conferences and other activities that require impressive and professional presentations.

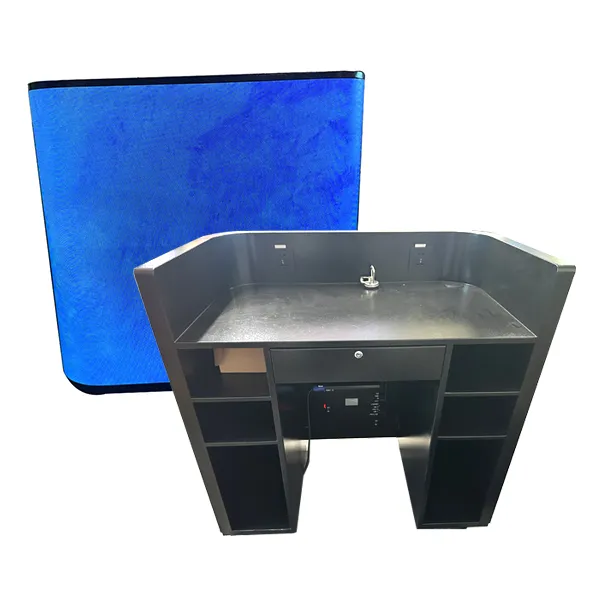

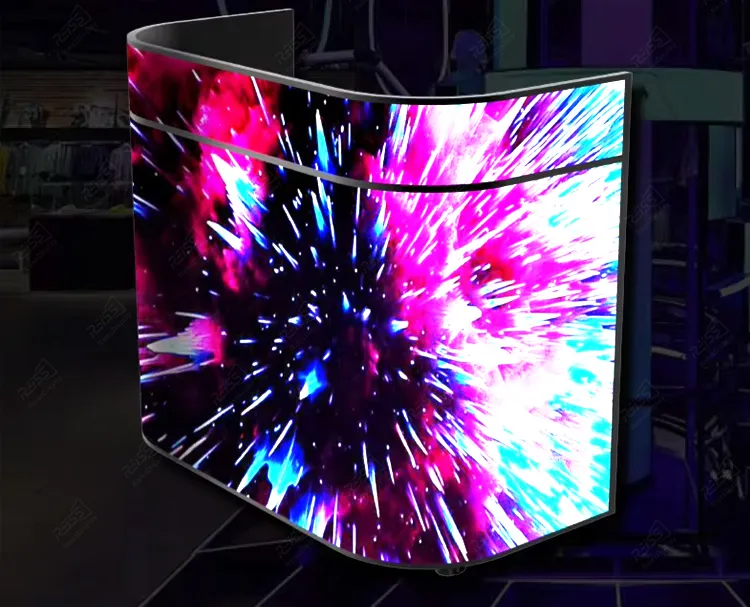

Ellipsetable Edge GOB Front Desk Curved LED Display Table
Not just a desk, but a feast for the eyes.
GOB front desk curved LED display table that combines technology and fashion, an ideal solution for modern adver-tising. lt is designed for displaying logos and dynamic videos, equipped with advanced electronic functions and supports content customization. Ellipsetable Edge is perfect for corporate receptions, trade show booths, conference events, etc.
Silent Wheels
High-quality silent wheels, no noise during movement, with positioning and height adjustment functions.

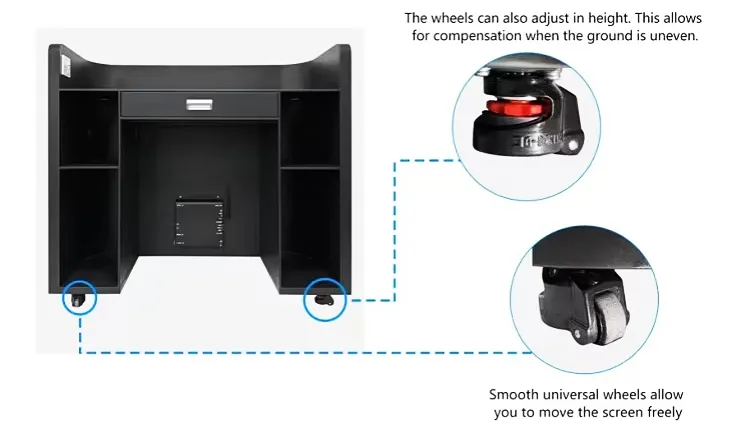

Bottom Wheels Design
The wheels can also adjust in height. This allows for compensation when the ground is uneven.
Smooth universal wheels allow you to move the screen freely.

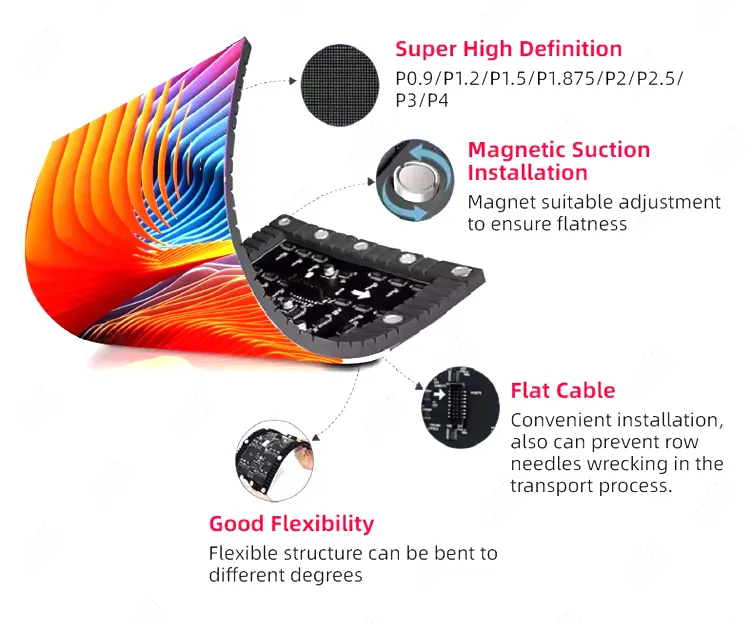

Flexible LED Modules
Crafted with bendable LED panels for smooth curves and creative shapes-flexibility meets function.

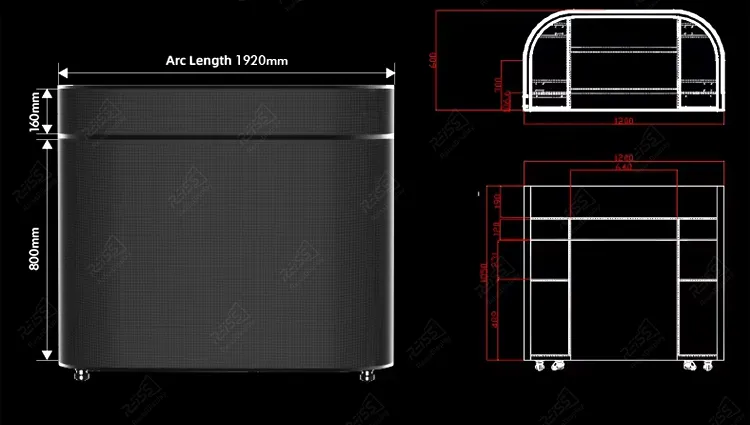

Screen Display Size
Top 160mm*1920mm, bottom 800mm*1920mm, and support custeom size.
Remote Control
Support remote control from computers, mobile phones, and iPads. support USB, SD, Wi-Fi and 4G transmission methord.

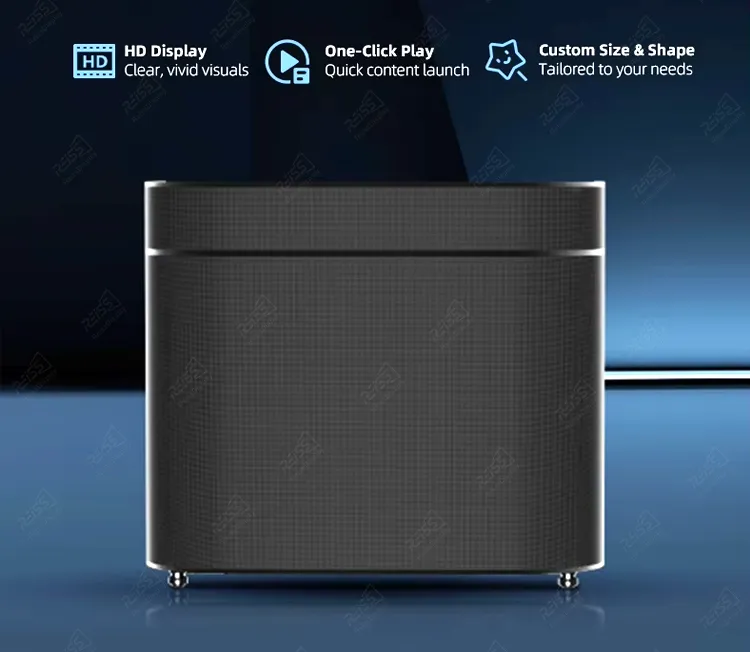

HD LED Display
Delivers vibrant, lifelike visuals with dynamic video and image playback.
Plug and Play
No need for special installa-tion, just plug in and use.

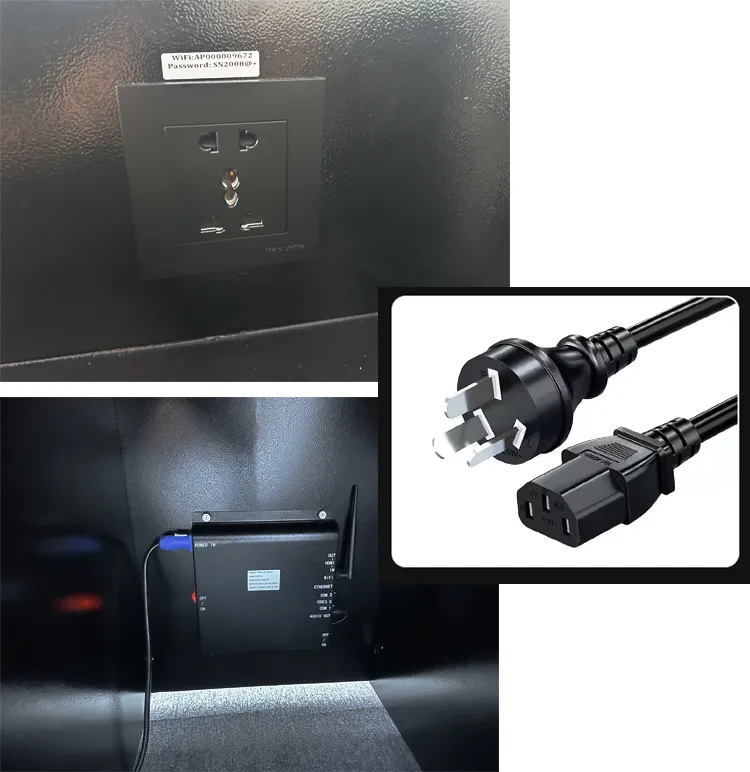

Customized Socket Setup Design
Comes with sockets to meet diverse power needs. Has a hidden installation for aesthetics and safety, and a well – placed layout for cable management.
Storage Function
Equipped with open compartments and drawers for convenient item storage.
Excellent Visual Effect
GOB front desk LED display – IFM-Desk series adopts 3840Hz/7680Hz high refresh rate design to provide smooth and flicker-free images. It achieves an excellent 10,000:1 color contrast ratio, far exceeding the typical 5,000:1 contrast ratio of standard black SMD LEDs, bringing amazing color fidelity.

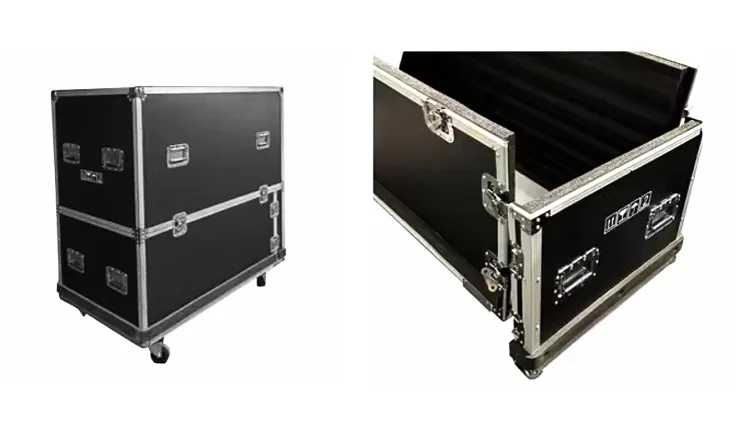

Easy Screen Transportation Design
The side -detachable design of the flight case simplifies packing and mobility for our screen, making every move a breeze.
Flight Case
Packed in a flight box, it is im-pact-resistant, waterproof and insulating to ensure the safety of the product during transportation.

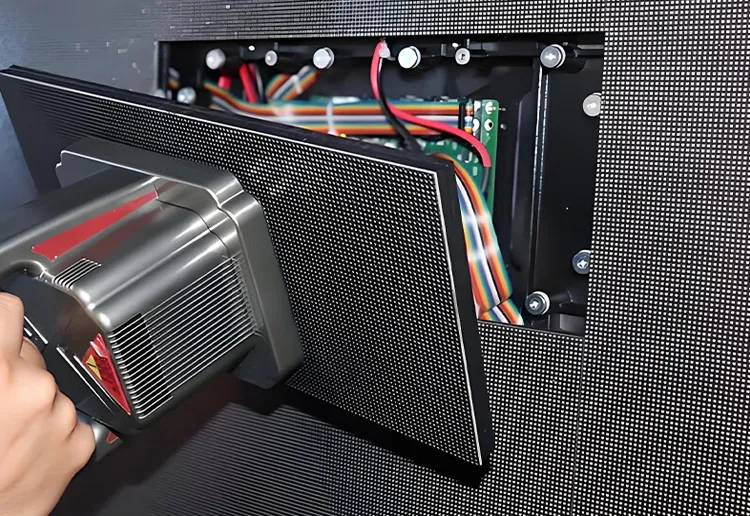

Easy Maintenance
With suction tool, front main-tenance becomes very quick and easy.
Application Cases
Application and Installation Videos
Specifications
|
Item
|
Parameters
|
Parameters
|
Parameters
|
|
Model
|
P1.86 GOB
|
P2 GOB
|
P2.5 GOB
|
|
Pixel Pitch(mm)
|
1.86
|
2
|
2.5
|
|
Physical Density (dot/sqm)
|
532512
|
460800
|
294912
|
|
LED Configuration
|
1RGB
|
1RGB
|
1RGB
|
|
LED Type
|
GOB
|
GOB
|
GOB
|
|
Module Size (mmxmm)
|
320×160
|
320×160
|
320×160
|
|
Module Resolution (PXxPX)
|
172×86
|
160×80
|
128×64
|
|
Brightness(cd/sqm)
|
1000-1100
|
1000-1100
|
1000-1050
|
|
Refresh Rate(Hz)
|
3840/7680
|
3840/7680
|
3840/7680
|
|
Drive Mode
|
Constant Current Drive
|
Constant Current Drive
|
Constant Current Drive
|
|
Horizontal Viewing Angle(Deg)
|
170
|
170
|
170
|
|
Vertical Viewing Angle(Deg)
|
170
|
170
|
170
|
|
Cabinet Resolution(PXxPX)
|
1032×516
|
960×480
|
768×384
|
|
Cabinet Max Power Consumption(w)
|
700
|
700
|
700
|
|
Cabinet Average Power Consumption(w)
|
600
|
600
|
600
|
|
Cabinet Size(mmxmm)
|
1065x585x1100
|
1065x585x1100
|
1065x585x1100
|
|
Cabinet Thickness(mm)
|
60mm
|
60mm
|
60mm
|
|
Cabinet Material
|
Die-casting Aluminum
|
Die-casting Aluminum
|
Die-casting Aluminum
|
|
Color(M)
|
16.7
|
16.7
|
16.7
|
|
Input Voltage
|
AC100V-240V +/-10%
|
AC100V-240V +/-10%
|
AC100V-240V +/-10%
|
|
Refresh Frame Frequency(Hz)
|
50-60
|
50-60
|
50-60
|
|
Protection Level
|
IP54
|
IP54
|
IP54
|
|
Working Environment
|
Indoor
|
Indoor
|
Indoor
|
|
Working Temperature(℃)
|
-40℃-60℃
|
-40℃-60℃
|
-40℃-60℃
|
|
Storage Humidity(RH)
|
40%-60%
|
40%-60%
|
40%-60%
|
|
Life Span(H)
|
100,000
|
100,000
|
100,000
|
Configuration
Related Products
MIP LED Display Screen Technology – IFM-MIP Series
Understanding MIP LED Screen (MicroLED In Package) MIP LED display screen, short for “MicroLED in Package,” is an advanced diode packaging technology that combines RGB diodes smaller than 100 microns into a surface mounted diode (SMD). MIP LED display screen technology demonstrates superior suitability for micro-scale chips, offering greater potential for pixel pitch reduction and […]
Micro COB LED Display – IFM-COB Series
Explore the COB LED Display Screen for outstanding image quality and eco-friendly technology. Upgrade your display experience today.

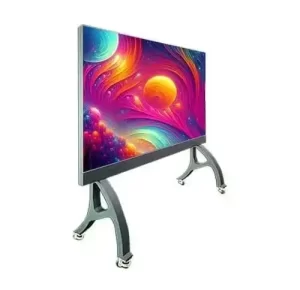

All In One LED Screen – CLP-AO Series
REISSDISPLAY Smart All in One LED Screen REISSDISPLAY get the experience of premium all in one LED screen smart TVs, but on a larger scale. Multiple sizing options are available. All options come in Full HD (1920x1080p) resolution. This display can either be wall-mounted or used on a base with wheels. VisionPro HD is a […]

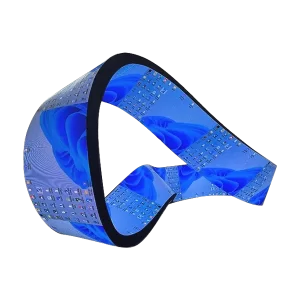

Möbius Ring LED Display – FR-MR Series
