Smart LED TV Display

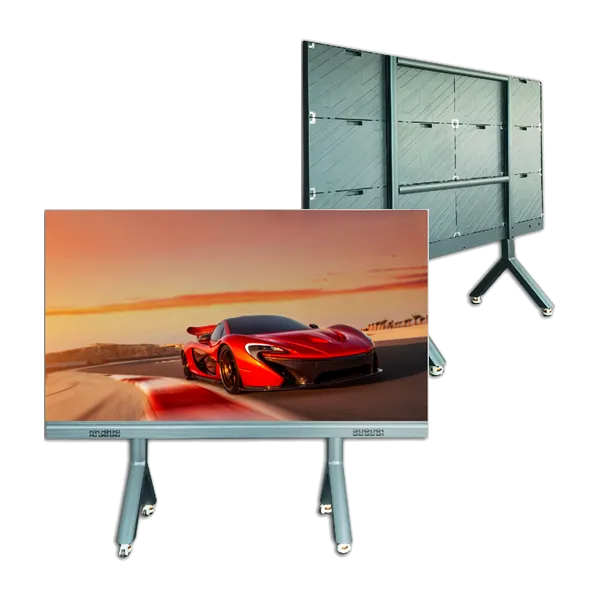

REISSDISPLAY Get the experience of premium smart TVs, but on a larger scale. Multiple sizing options are available. All options come in Full HD (1920x1080p) resolution. This display can either be wall-mounted or used on a base with wheels. VisionPro HD is a combination of dynamic picture quality and versatility at an affordable price.

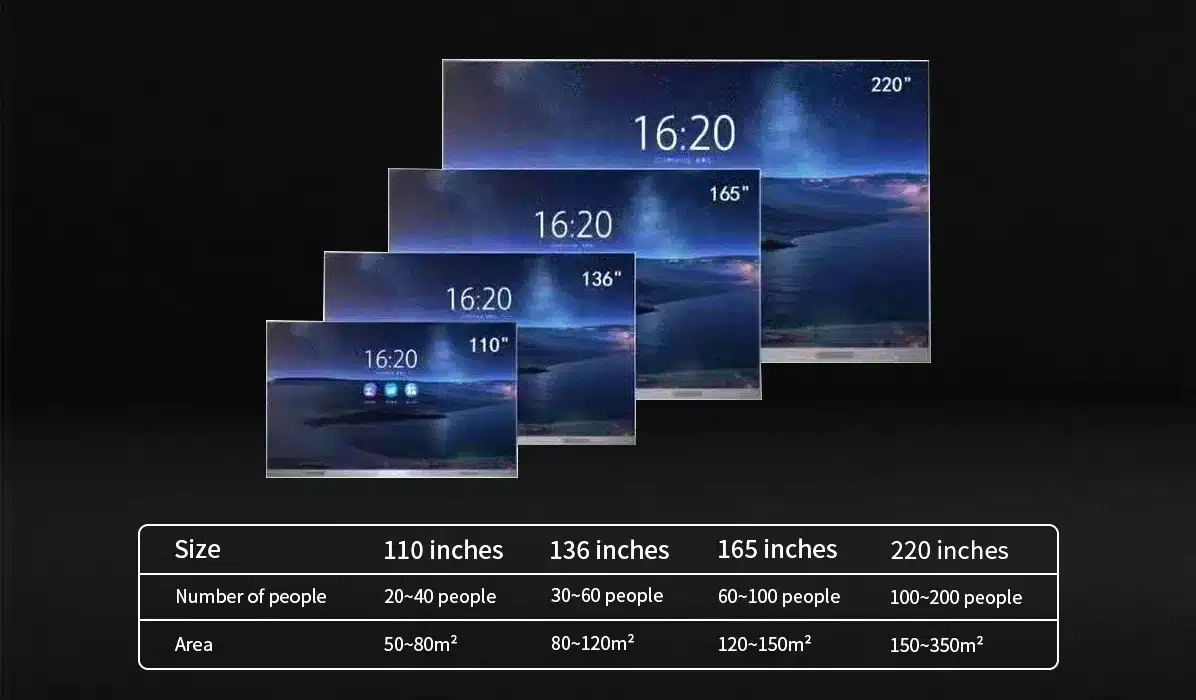

Is available in the following sizing & pixel pitches: 110″ – 1.2mm, 138″ – 1.5mm, 165″ – 1.9mm, 220″ – 2.5mm

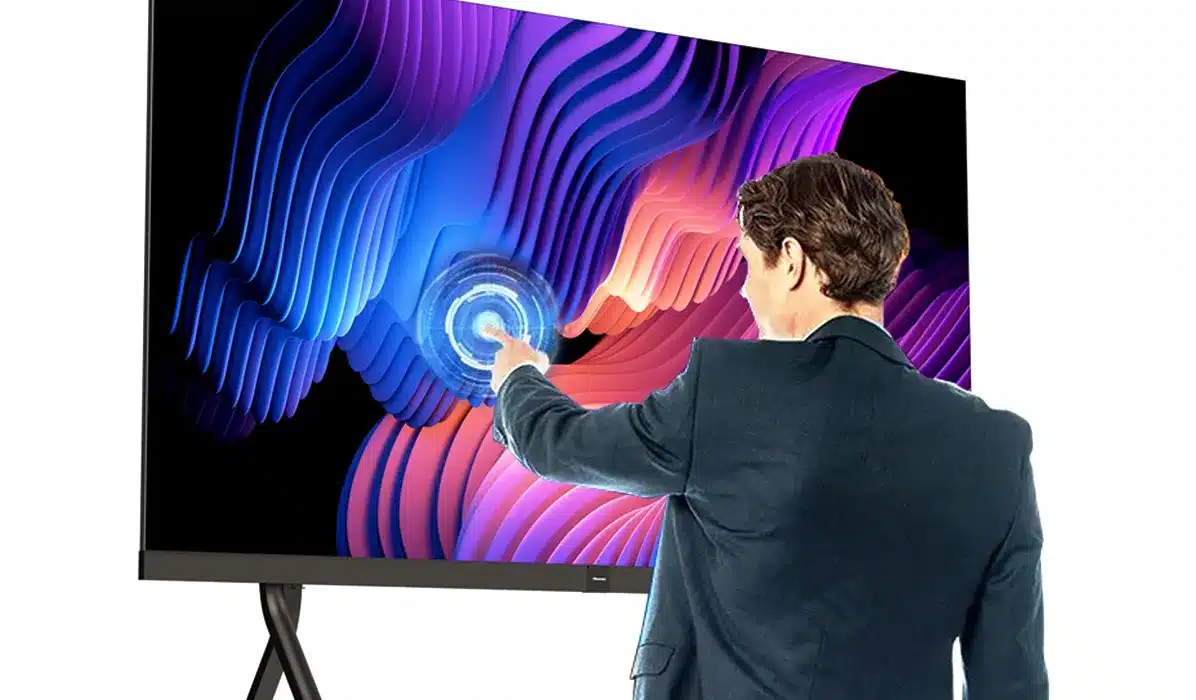

Bold options are available in REISSDISPLAY HD Touch, our touch screen variant.

All In One LED Screen - Indoor LED Display

COB HD Narrow Pixel Pitch P0.9375 , P1.25 , P1.5625 , P1.875LED Screen.

High Refresh Videowall For Command Center / Security / Broadcast Studio……

High contrast and vivid video / flatness and seamless video wall is a good choice to replace LCD or Projector

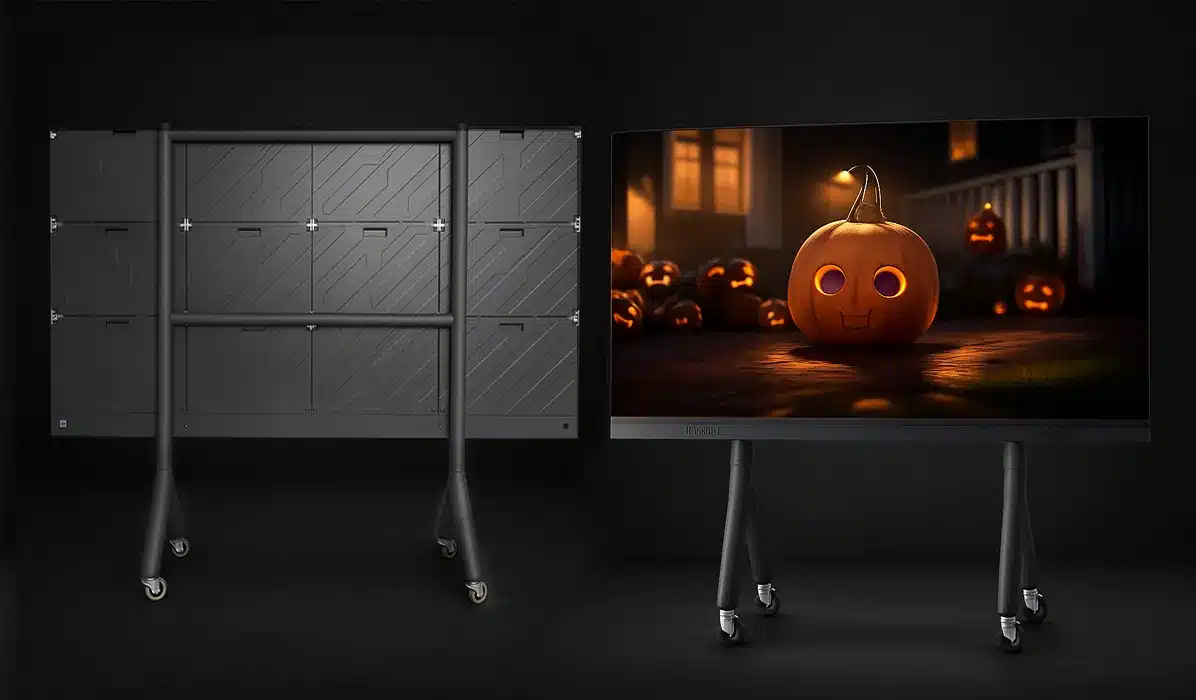

REISSDISPLAY COB HD LED screen with two type of installation option:wal mounting and floor standing

Tailored COB HD LED display system based on the Android system with well waterproof dustproof anti-collision.anti-static

Great gray scale, high refresh rate and excellent white balance

Indoor LED displays used high quality material, the gray scale is up to 14-16bits, refresh rate  > 3840Hz and excellent white balance.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials pass strict high and low temperature.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

A 看图王 All In One LED Screen

FP Series LED Dipalys                    Ordinary LED displays

High refresh

B 看图王 All In One LED Screen

FP Series LED Dipalys                    Ordinary LED displays

High contrast

C 看图王 All In One LED Screen

FP Series LED Dipalys                    Ordinary LED displays

IF04 All In One LED Screen

Highly integration

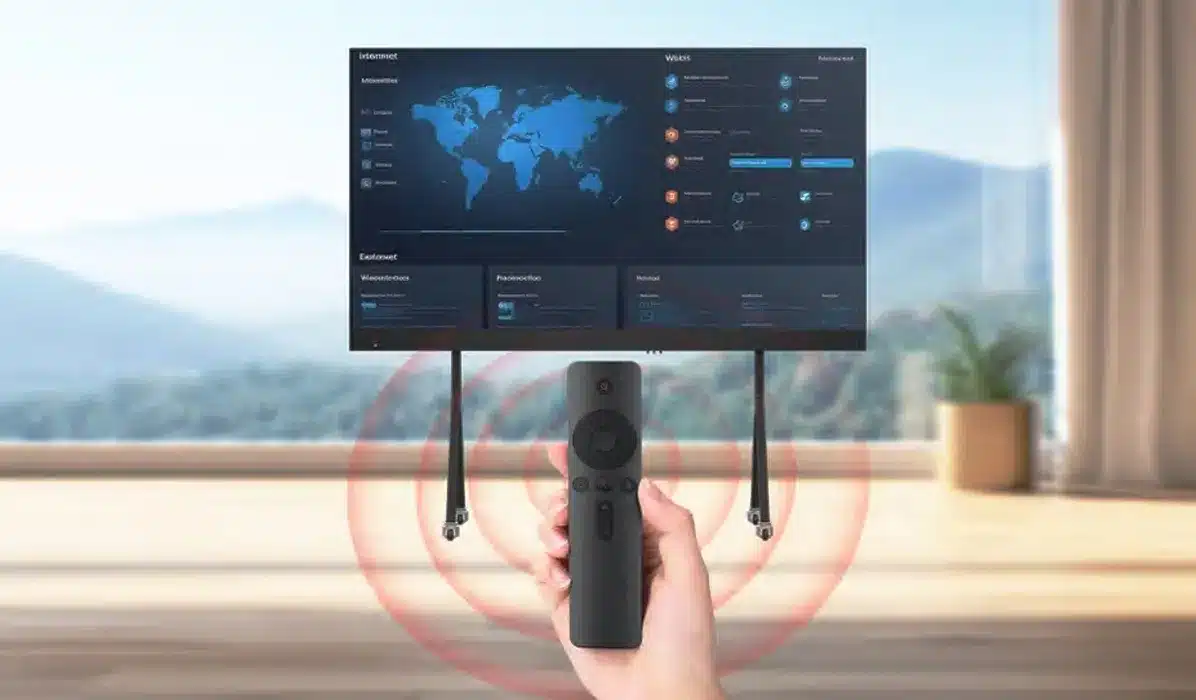

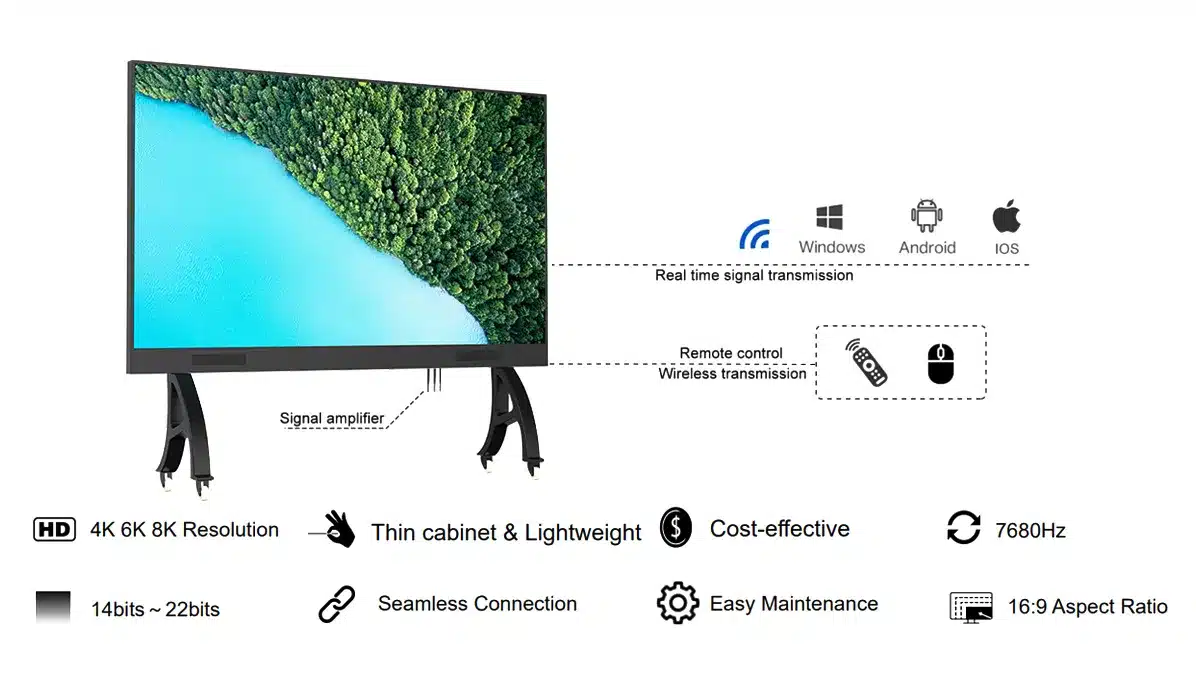

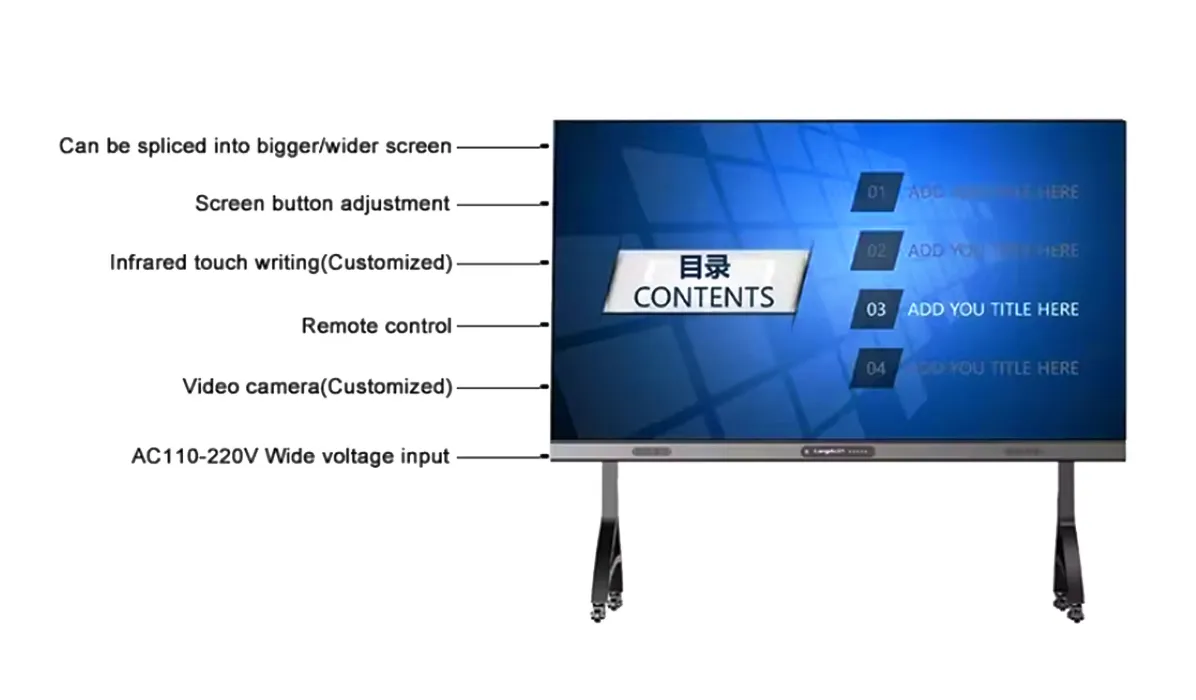

REISSDISPLAY is the all-in-one led screen that highly integrates the UHD fine pitch direct-viewing led display, Android system, Speaker, WiFi, Bluetooth, HDMI, USB, Audio, etc.

On one screen, it has all the functions of large-format TV, whiteboard, and projection screen. It can also connect with other professional AV devices to expand its application.

16:9 Golden Ratio LED Cabinet

REISSDISPLAY 16:9 Golden Ratio LED Cabinet Good For 2K / HD / 4K…… Signal Dot To Dot Display.

Micro LED chips directly connect them on the PCB board surface, which is also known as Chip On Board (COB), alows for the highest pixel density while ensuring a fantastic contrast and a solid screen surface.

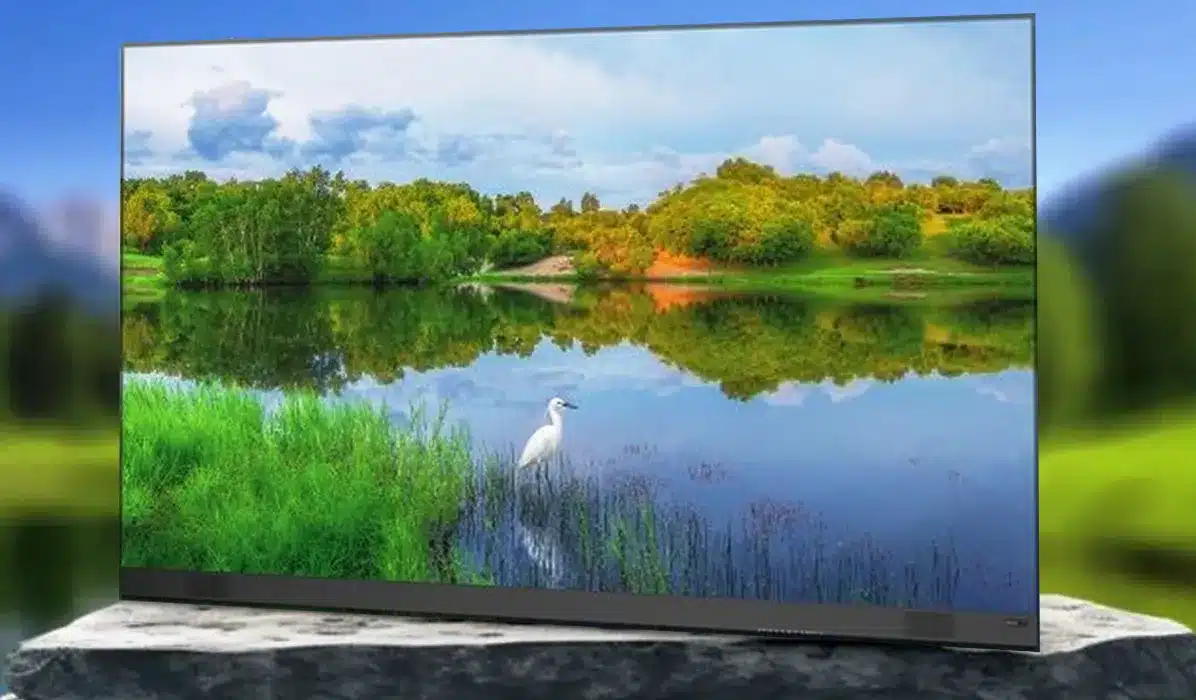

Ultra HD Perfect Picture Quality

REISSDISPLAY High quality LED lamp with black body structure and black lamp mask to provide 3000:1 contrast and clearer and more bright-colored image

Video conferencing

Equipped with a high-definition camera, an all-in-one LED screen with built-in surround sound supports multi-party video conferencing.

People from different places can freely participate in the same meeting via mobile phone or PC.

Ultra High Definition

It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.

Seamless Splicing, Excellent display experience

REISSDISPLAY Seamless splicing design with fast locks and simple interna
ectly realizes the splicing of the cabinet. The LED display has no gaps and the LED screen is ultra-high flatness.

LED Display Screen Advantage

Magnetic suction module front maintenance design Precision die-cast aluminum material, CNC precision machining, ultra-high flatness, the cabinet adopts the front maintenance design, reducing the rear maintenance space, the screen is lighter and thinner, and the module, power supply, and receiving card are all front maintenance.

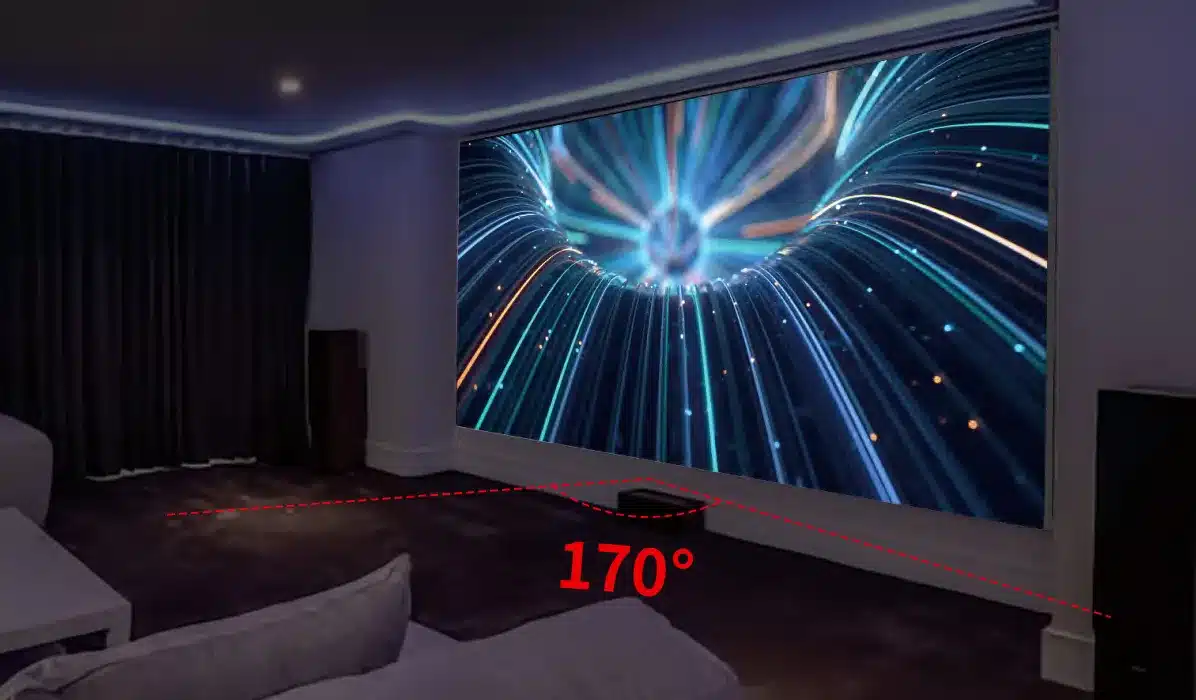

Ultra Wide Viewing Angle

Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.

Optional size available, 500*500mm cabinet can used together with 500*1000mm cabinet.

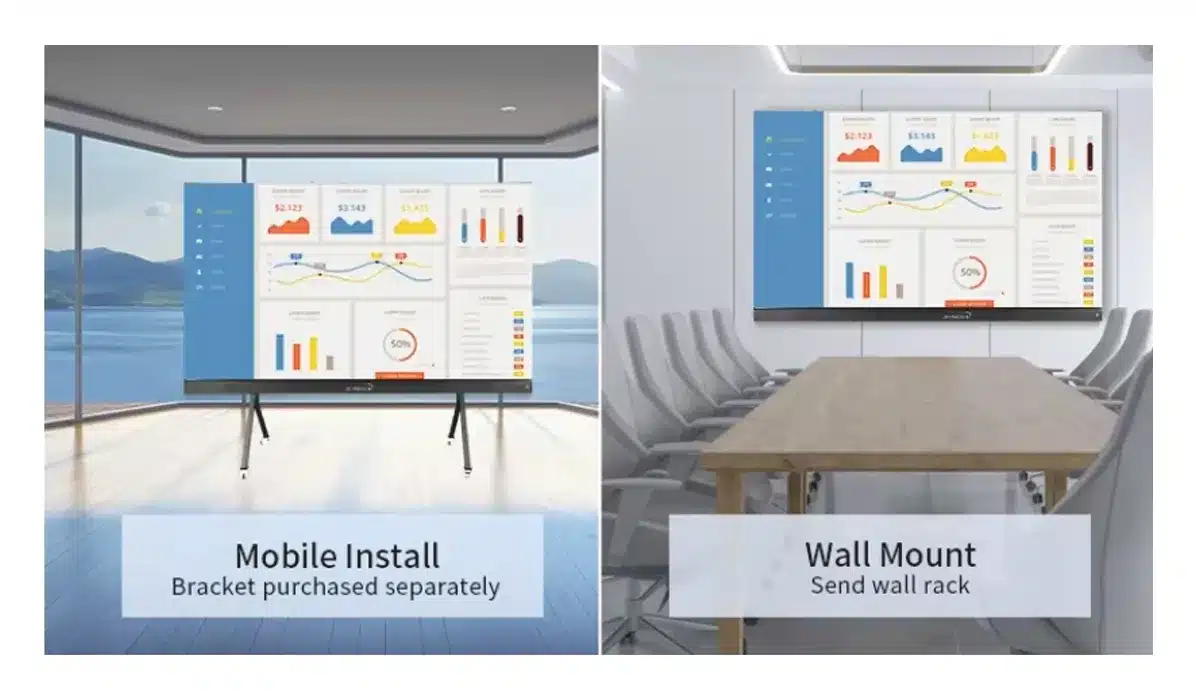

Multiple Installation

Support wall-mounted, frame installation, magnet absorption fast installation and hanging installation. Also, 90 degree splicing is supported to adapt your different demands.

you can doany events with the limited budget.

RSO07 e1632649549562 All In One LED Screen

LED displays input media function

1. DVI interface

LED Processor DVI interface and digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is HD Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Application Fields

To fir every different scene, our products utilized superior materials with the concise and strong structure.This product is usually used in.

Staging Events, Concerts, Studio, Stores, Entertainment places, Restaurants, Hotel Lobby and Resort, Stadiums, Indoor advertising and film shooting, Banks, Churches, Hospitals, Schools

Product Parameter Description




Environmental INDOOR
 Part Number  P1.0P1.25P1.37P1.53P1.67P1.86P2P2.5
Pixel Pitch1.0mm1.25mm1.37mm1.538mm1.667mm1.86mm2.0mm2.5mm
LED Configuration SMD0808SMD1010SMD1010SMD1212SMD1212SMD1515SMD1515SMD1515
Pixel Density 1000000dot/m2640000dot/m2525625dot/m2422500dot/m2360000dot/m2288888dot/m2250000dot/m2160000dot/m2
Module size320X160mm320X160mm320X160mm320X160mm320X160mm320X160mm320X160mm320X160mm
 Module Resolution 320X160dot256X128dot232X116dot208X104dot192X96dot172X86dot160X80dot128X64dot
Cabinet Size640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
640X480X44mm
960X480X44mm
640X640X44mm
320X640X44mm
Cabinet Resolution 640X480dot512X384dot464X348dot416X312
dot
384X288dot344X258dot320X240dot256X192dot
Cabinet Weight 9.8kg9.8kg9.8kg9.8kg9.8kg9.8kg9.8kg9.8kg
IP Rating ( front/back)IP40IP40IP40IP40IP40IP40IP40IP40
Scanning Mode60S6458S52S48S43S40S32S
Brightness Intensity ≥600CD/m≥600CD/m≥600CD/m≥600CD/m≥600CD/m≥600CD/m≥600CD/m≥600CD/m
Viewing Angle 140°140°140°140°140°140°140°140°
View Distance>1m>1m>1m>1.5m>1.7m>2m>2m>2m
Gray Scale16bit16bit16bit16bit16bit16bit16bit16bit
Display Scale16.7M16.7M16.7M16.7M16.7M16.7M16.7M16.7M
Max.Power Consumption 650  W/m²650  W/m²650  W/m²650  W/m²650  W/m²650  W/m²650  W/m²650  W/m²
Ave.Power Consumption200W/m²200W/m²200W/m²200W/m²200W/m²200W/m²200W/m²200W/m²
Refresh Frequency≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ≥3840HZ
Brightness Adjustment0 – 100  levels adjustable
Control ModeSynchronous display with control PC by DVI
Support InputComposite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI
Operation PowerAC100/240 50/60HZ
 Operating Temperature – 20ºC~+50ºC
 Operating Humidity10~90% RH
Operating Life100,000hours
