Front Service LED Display: 960x960mm & Energy Saving.
EV960 (480*320mm Module)
“Reiss Display’s IP66 Outdoor LED Display is the new generation of front-service installation LED displays for outdoor use. It features a high protection chassis panel design, energy-saving LED display, and a standard cabinet size with 960 x 960mm dimensions, as well as a 480 x 320mm module size. With ultra-low heat and power consumption, it provides excellent visual experiences combined with great savings.”
Pixel Pitch：
OF40 ，OF50，OF667, OF80, OF100
FEV960 Series
Outdoor advertising LED displays offer an excellent seamless effect. The FEV960 series includes all the necessary functions to maximize the stability and reliability of the front service outdoor LED advertising screen.
Visual Performance
“3840Hz refresh rate for high dynamic range pictures and up to 10000nits brightness for clear image even in direct sunlight on the LED wall panel.”
Installation Methods:
“Outdoor LED screens are fixed on walls, columns, and vertical surfaces for front and post-service advertising. The system includes hardware such as sending card sending box, processor, and receiving card.”
Convenient Maintenance
We are pleased to inform you that our innovative module and power box system is designed to meet all your operational needs. With our advanced technology, you’ll have the flexibility to operate the module and power box independently, giving you greater control and efficiency in managing your equipment. Whether you need to power up multiple devices or run a complex network of machinery, our system is equipped to handle your diverse operational requirements. From remote locations to harsh environments, our module and power box system is built to perform reliably, even in the most challenging conditions. So, why settle for anything less? Choose our system and experience the power and performance you need to succeed. Contact us today to learn more!

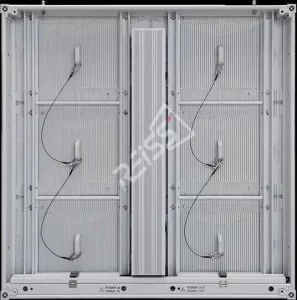

Aluminum panel that is used for creating a profile.
The EV960 energy-saving LED display adopts an aluminum chassis design for its panel. The aluminum chassis uses an edge lock without screwing design and a fully sealed design to protect its internal components.
480*320mm LED Module
The message is corrected as follows:
Unique panel design with a standard-size cabinet with a dimension of 960*960mm, a module size of 480mm*320mm, and an ultra-thin thickness with 80mm design. The weight is 6.3KG/㎡, and the module models include P2.5, P3, P4, P5, P6, P8, and P10.
Design for a cabinet that measures 960*960 mm
Get this sleek and modern 960mm by 960mm display solution for your setting today. With cutting-edge technology and durability, it’s perfect for board rooms, control rooms, or hotel lobbies. Its impressive features include a ultra-thin 75mm design.
Cost of upkeep is low.
“Dual-service mode of front and rear design saves you maintenance costs. The LED panel can be assembled and disassembled easily and quickly.”
LED Display that helps save energy.
The corrected message would read as follows:
The Common Cathode Aluminum Screen adopts a scheme that separates the lamp beads of R, G, and B colors, and supplies power to them separately. This effectively reduces power consumption and generates less heat. With an aluminum bottom shell that provides high heat dissipation, the heat remains naturally low. Under the conditions of ensuring high brightness and high contrast, energy saving is limited to a maximum of 75%.
This product has an advanced technology that keeps the engine cool and stable.
Common cathode energy-saving design, low heat; all-aluminum bottom shell products for good heat dissipation. Using engine principle heat dissipation technology results in high heat dissipation efficiency. The supply of big-brand raw materials undergoes strict high and low-temperature tests to ensure product stability. Wireless connections provide higher stability than 5V cable connections.
Safety Harness Design
Each LED module is equipped with a safety harness to prevent the module from falling and hitting people.
What is the reason for emphasizing "Accuracy"?
The corrected message should read:
“The die-cast aluminum module achieves seamless splicing and high flatness. The metal material makes up to 90% and doesn’t contain any plastic.”
Note: The changes include correcting subject-verb agreement in the second sentence and capitalization of the first letter of each sentence. The third sentence has been revised to improve clarity and concision.
This product is -5VB fire-resistant.
The message should be corrected as follows:
Profile aluminum chassis with a 90% recycling rate for the whole product. It has a long lifetime with a 30% redundancy when used at 7000nits. It can sustain 7000nits using 10000nits and 3000nits for 5 years. It delivers good heat dissipation performance.
How to Install:
Basically, there are three ways to install it, depending on how it will be used: it can be installed by hanging, wall mounting, or standing on the floor. If you need a different installation method, don’t worry – we can provide you with a solution.
LED Screens input media function
1. DVI interface
The DVI interface is namely digital video interface.
2. VGA interface
VGA interface is a dedicated interface for computer output data using VGA standard.
3. HDMI interface
HDMI is interface standard.its full name is HD Multimedia Interface.
4. SDI interface
Adopt coaxial cable, with BNC interface as the cable standard.
5. USB interface
Universal Serial Bus.
6. WIFI function and cloud
WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute
What are the different areas where this application can be used?
| Model name | P6.67 | P8 | P10 |
| Pixel Pitch (mm) | 6.667 | 8 | 10 |
| Pixel Density (dot/m2) | 22500 | 15625 | 10000 |
| LED sealing Type | SMD2727 | SMD3535 | SMD3535 |
| Module Size (mm * mm) | 480*320 | 480*320 | 480*320 |
| Module Resolution (PX* PX) | 72*48 | 60*40 | 48*32 |
| Brightness (cd/m2) | 6000 | 6500 | 6500 |
| Grey Scale（bit） | ≥14 | ≥14 | ≥14 |
| Refresh Rate (Hz) | 3840 | 3840 | 3840 |
| Maximum Cabinet Power Consumption (W) | 550 | 550 | 550 |
| Average Cabinet Power Consumption (W) | 150 | 150 | 150 |
| Cabinet Size (mm * mm) | 960*960 | 960*960 | 960*960 |
| Cabinet Weight (Kg) | 28KG | 28KG | 28KG |
| Cabinet Thickness(mm) | 75 | 75 | 75 |
| Horizontal Viewing Angle (Deg) | 160 | ||
| Vertical Viewing Angle (Deg) | 140 | ||
| Input Voltage (V) | 110-220V/200-240V | ||
| Working Temperature (℃) | -20~ +40 | ||
| Working humidity（RH） | 10%~90% | ||
| Storage temperature range | -40~ +80 | ||
| Operation humidity (RH): | 10%~90% | ||
| Waterproof Level | IP67 | ||
| working life | 50000H | ||
| Working Environment: | Outdoor | ||
| Installtion Method | Fixed Installation | ||
