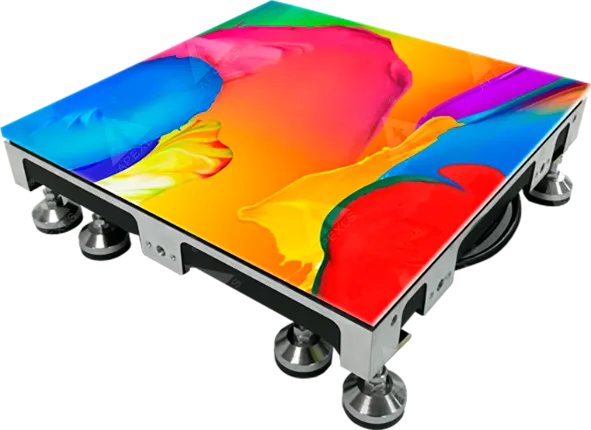

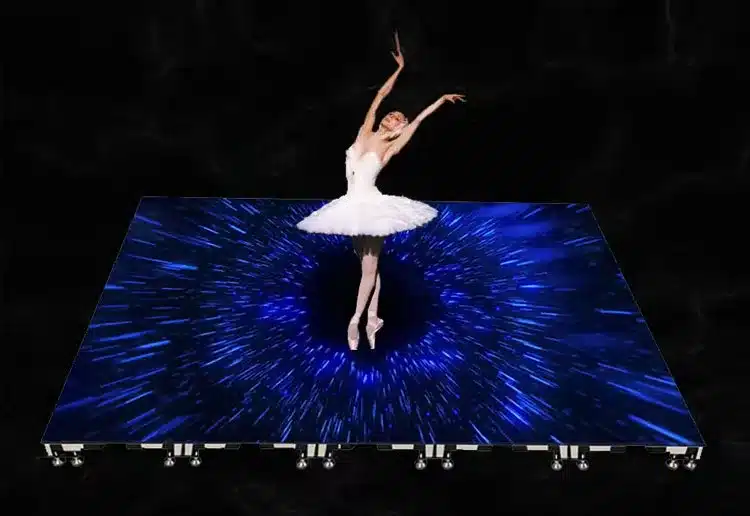

REISSDISPLAY LED floor tile display represent a breakthrough in modern display technology, combining cutting-edge micro-sensor technology with intelligent systems to create an immersive human-computer interaction experience. These displays are engineered to deliver dynamic visual effects while providing touch-sensitive interactivity for users. In this article, we will explore the key features, benefits, and potential uses of interactive LED floor tile display.
Have you ever attended an event with a magnificent colorful dance floor you can groove on? What’s amazing is that they seem to light up when you step on them. These are the popular interactive LED floor tiles. If you haven’t seen one yet, you’re missing a lot!
Considering how “smart” these floor tiles operate, many are curious about how they work. But it takes more than just looking at them to figure things out. To get a grasp on how these devices work, it is vital to define what they are in the first place. First and foremost, yes, it is an LED screen.
① Dance/ Party/Wedding /DJ.
② Toughened glass/acrylic cover.
③ High class appearance.
④ Light Weight.
⑤ Flat and smooth connection.
⑥ Fast and easy installation.
⑦ Strictly pressure testing.
⑧ Can stand pressure 2000kg/m².
⑨ Easily clean.

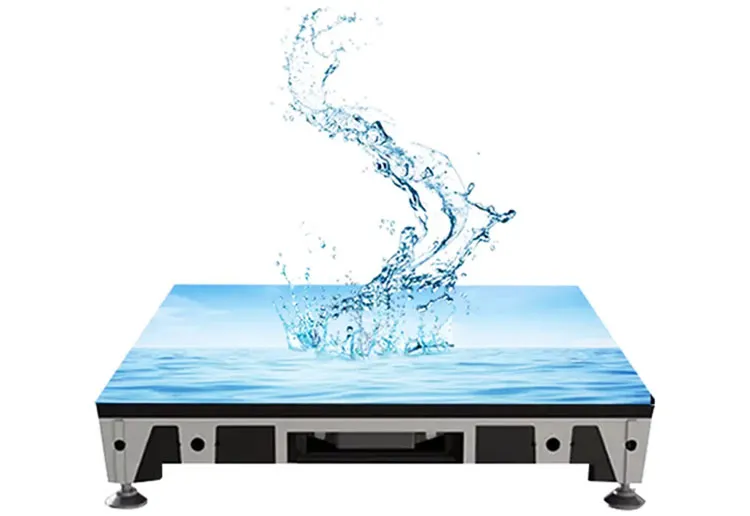

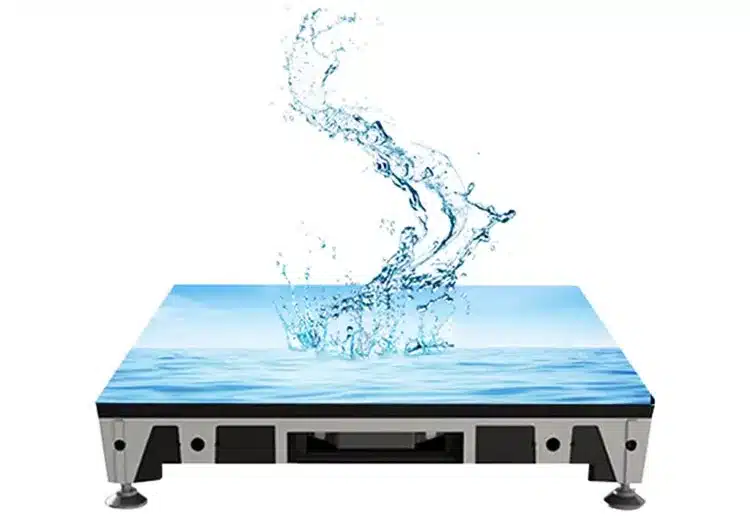

Waterproof and Durable Design
The REISSDISPLAY LED floor tile display, is designed to withstand harsh outdoor conditions. With an IP65 protection rating, these displays are fully waterproof, making them ideal for outdoor installations and various environmental conditions. Whether it’s a festival or a corporate event, these displays meet the demands of both indoor and outdoor settings, offering durability and reliability.
Support cell phone, computer, lPAD tablet, etc.
Robust and Interactive Floor Tiles
These LED tiles are engineered for strength and user interaction. Featuring toughened glass or acrylic covers, the tiles are built to withstand heavy foot traffic, making them perfect for high-traffic environments like dance floors, weddings, parties, and DJ events. The tiles support a weight capacity of up to 2 tons (2000kg/m²), allowing people to move, dance, and interact with the display without any concerns about damage.

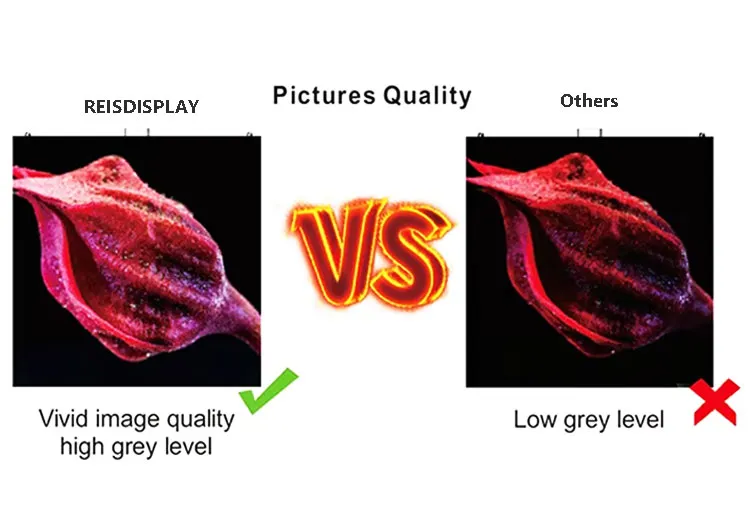

High-Quality Visuals and Durability
REISSDISPLAY LED floor tiles stand out with their high-quality features, including:
High Grayscale: With a grayscale rating greater than 16-bit, these displays ensure smooth and vibrant color transitions.
High Refresh Rate: The refresh rate of 3840Hz ensures smooth, delay-free image rendering for an optimal viewing experience.
Wide Viewing Angle: The tiles offer a 160° viewing angle, ensuring color consistency and clear images from any perspective.
Additionally, the high-transmittance acrylic plate (optional) ensures clear visibility of content while protecting the display from damage. These features make REISSDISPLAY LED floor tile display, an excellent investment for businesses and events looking to offer an engaging experience.

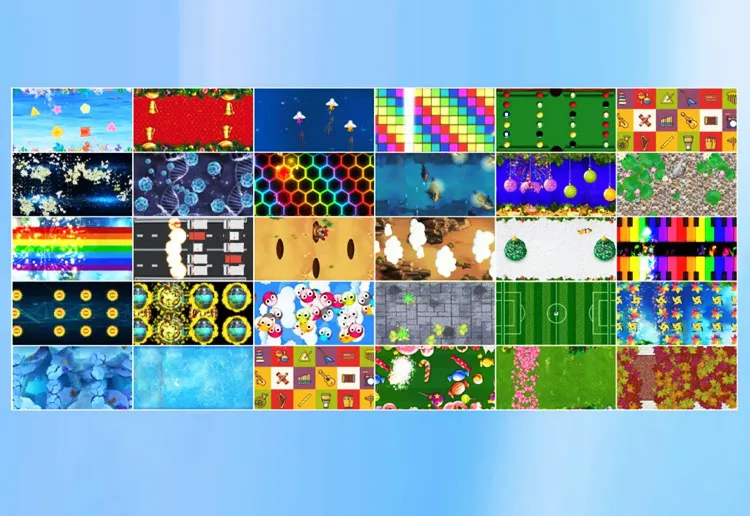

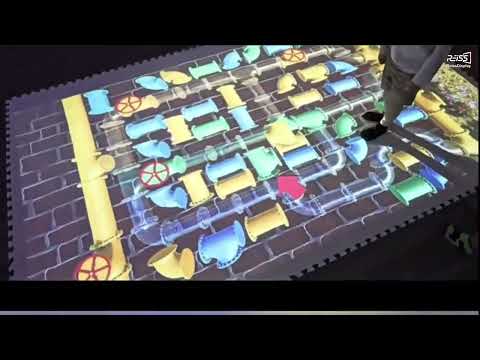

30 sets FREE interactive contents included , another 120 sets optional; we can do customized contents based on your request, even accept your own contents.

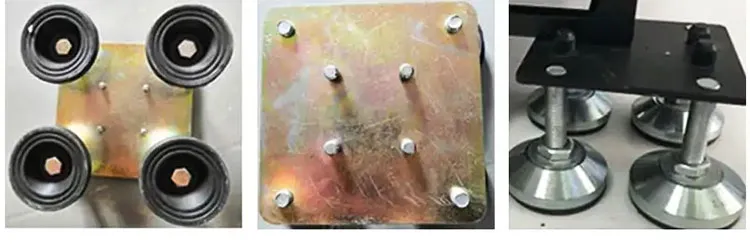

Non-slip rubber under the stainless steel feet.
Thread on the stainless steel feet, it can adjust the hight of screen.

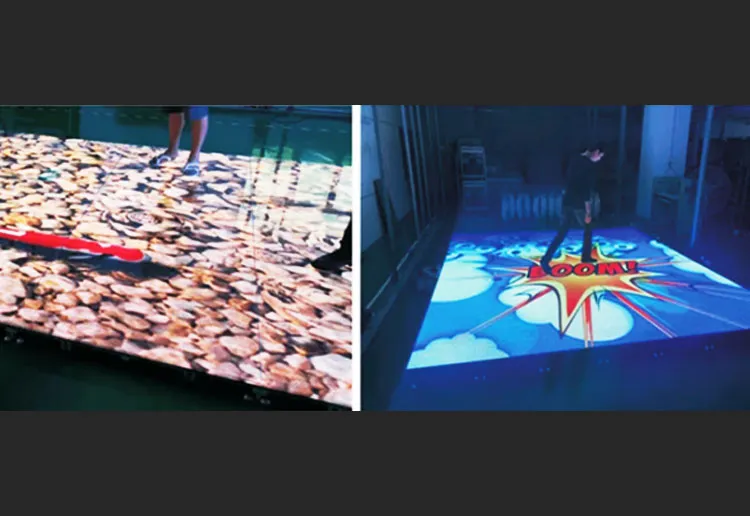

Intelligent Interactive Functionality
The REISSDISPLAY LED floor tiles are equipped with advanced touch-sensitive technology, allowing for seamless user interaction. The system’s special driving IC works in harmony with the interactive control system, making it easy and fast for users to engage with the display, whether through foot movements or gestures.
Benifits of LED Floor Tile Display

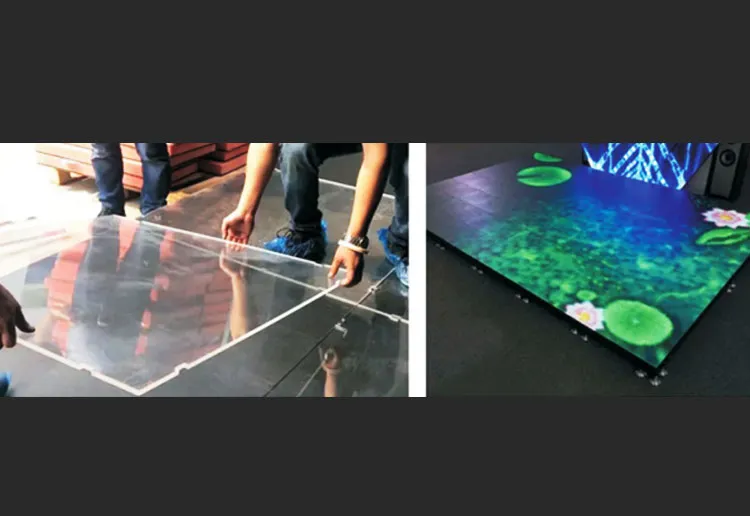

The acrylic plate on the surface of the module is with high transmittance, make sure the contents can be seen clearly, also protect the modules from damage effetely.
Quick Setup and Simple Maintenance

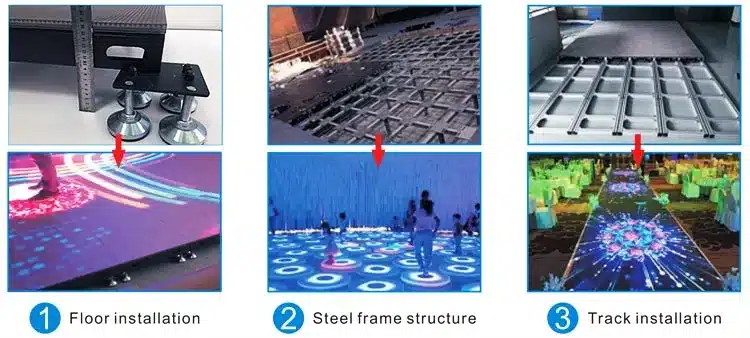

These LED floor tile display are designed for fast and hassle-free installation. The independent cabinet foot design ensures quick horizontal positioning, while the flat and smooth connection makes assembly a breeze. Additionally, maintenance is made simple, with easy cleaning and robust design for long-term use.

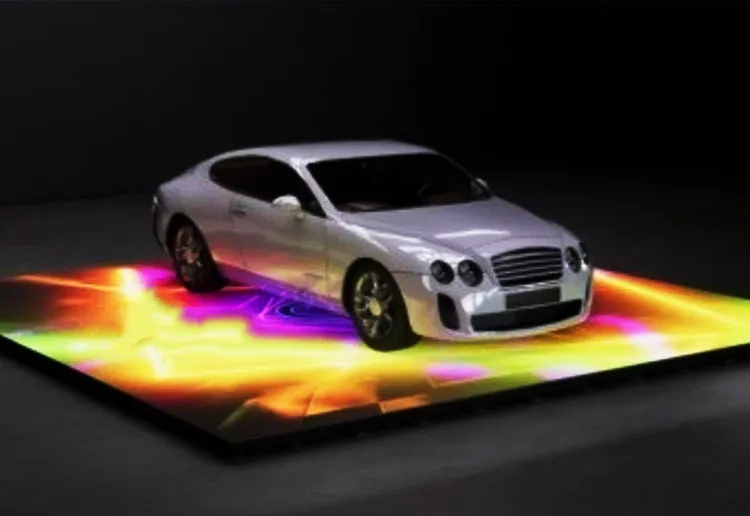

Ideal for Various Venues and Events
LED floor tile displays offer versatility, making them suitable for a wide range of applications, including:
Stage Performances: Enhance concerts, theatre shows, and other live performances with stunning visual effects and interactive elements.
Exhibitions and Expos: Attract attention and engage visitors with dynamic content that complements your brand’s presence.
Retail Spaces: Boost customer engagement through interactive advertising, promotions, or information displays.
Public Events: Create memorable, immersive experiences at festivals, conferences, and more, using interactive floor displays that capture attention.

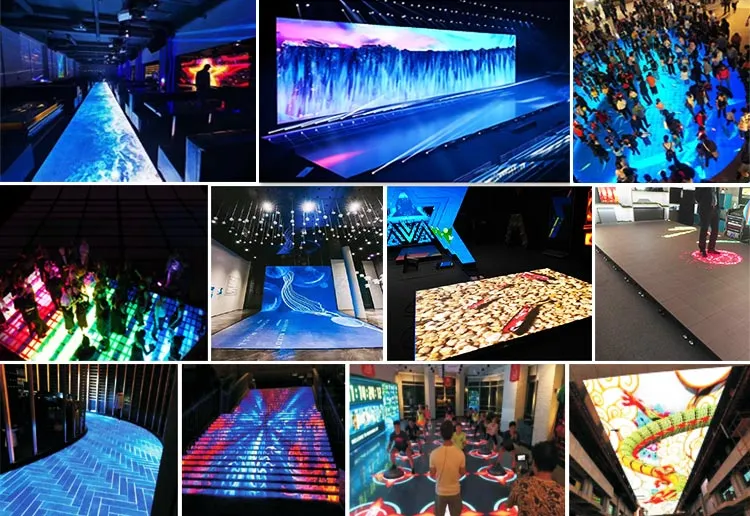

Application Cases
" Customer Testimonials:
Dance floor LED display screens are a revolutionary addition to the entertainment and event industries. These durable, interactive screens turn ordinary floors into dynamic platforms that captivate audiences and enhance performances. From concerts and weddings to exhibitions and nightclubs, customized LED dance floors offer immersive visual experiences while ensuring safety and reliability. This guide provides […]

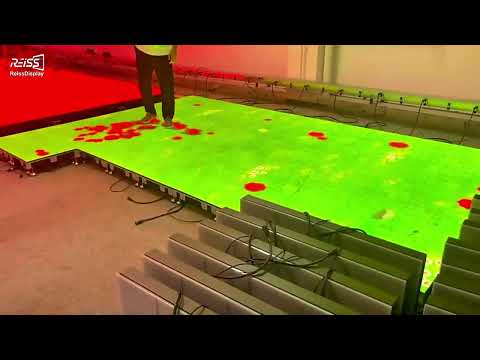

Application and Installation Videos
Specifications
| Pixel Pitch (mm) | P1.524mm | P1.83 | P1.95 | P2.5 | P2.6 | P2.97 | P3.91 | P4.81 | P5.2 | P6.25 |
| Physical Density | 430336 dots/㎡ | 295936dots/㎡ | 26214dots/㎡ | 160000dots/㎡ | 147456dots/㎡ | 112896dots/㎡ | 65536dots/㎡ | 43264dots/㎡ | 36864dots/㎡ | 25600dots/㎡ |
| LED Lamp | 3in1 SMD | |||||||||
| LED Wavelength | R: 615-630nm / G: 512-535nm / B: 460-475nm | |||||||||
| LED Configuration | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Resolution | 164x164pixels | 136x136pixels | 128x128pixels | 100x100pixels | 96x96pixels | 84x84pixels | 64x64pixels | 52x52pixels | 48x48pixels | 40x40pixels |
| Module Dimensions(W x H x D) | 250x250mmx24mm | |||||||||
| Module Quantity | 4pcs | |||||||||
| Module Multi-touch Point | Sensor (Build-in) | |||||||||
| Cabinet Resolution | 26896pixels | 73984pixels | 65536pixels | 200x200pixels | 192x192pixels | 168x168pixels | 128x128pixels | 104x104pixels | 96x96pixels | 80x80pixels |
| Cabinet size (W x H x D) | 500x500x60mm | |||||||||
| Cabinet Weight | 8kg | |||||||||
| Maintain tool | Rechargeable/Hand Sucker | |||||||||
| Adjust feet | Side adjustable | |||||||||
| Cabinet material | Die-cast aluminum | |||||||||
| Load capacity | 1000Kg/㎡ | 1000Kg/ ㎡ | 1000Kg/ ㎡ | 2000Kg/ ㎡ | 2000Kg/ ㎡ | 2000Kg/ ㎡ | 2000Kg/ ㎡ | 2000Kg/ ㎡ | 2000Kg/ ㎡ | 2000Kg/ ㎡ |
| Brightness (adjustable) | 600-900CD | 600-900 CD | 900-1500 CD | 900-1800 CD | 900-1800 CD | 900-1800 CD | 900-1800 CD | 900-1800 CD | 900-3000 CD | 900-3000 CD |
| Grey Level | 0～100% 256 levels | |||||||||
| Viewing Angle | 160°/160° | |||||||||
| Contrast Ratio | >6000:1 | |||||||||
| Color Temperature | 8000K | |||||||||
| Gray Scale | 14bit | 14bit | 14bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
| Max Power consumption | 200W/Panel | |||||||||
| Ave Power consumption | 100W/Panel | |||||||||
| Operating Voltage | ||||||||||
| Frequency | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz | 50-60Hz |
| Refresh Rate | 1920~7680Hz | 1920~7680Hz | 1920~3840Hz | 1920~7680Hz | 1920~7680Hz | 1920~3840Hz | 1920~7680Hz | 1920~3840Hz | 1920~3840Hz | 1920~3840Hz |
| Control Mode | Control methods (Synchronous control by DVI, HDMI etc) | |||||||||
| Signal Input Source | Ether CON 1Gpbs | |||||||||
| Interactive sensor | Customized | |||||||||
| Receiving card | S65；K8S；Nova | |||||||||
| Drive Mode | 1/41Scan | 1/34 Scan | 1/32 Scan | 1/25 Scan | 1/16 Scan | 1/21 Scan | 1/16 Scan | 1/13 Scan | 1/12 Scan | 1/10 Scan |
| Driving IC | 1:10; IC FM6363 | |||||||||
| Control Distance | ≤15km | |||||||||
| Operating Temperature | -10℃~+60℃ | |||||||||
| Operating Humidity | 10-90%RH Non-condensing | |||||||||
| IP Rating (Front/Rear) | IP65/IP45 | |||||||||
| Operation Application | Indoor | |||||||||
| LED Lifespan | ≥100000h;≥7x24h | |||||||||
