Indoor LED Module: Elevating Visual Experiences
The indoor LED module is designed with advanced driver ICs to deliver exceptional performance and stunning visual quality. These highly stable ICs are essential for:
Ensuring Color Uniformity: They regulate the current flowing to each individual LED, eliminating color inconsistencies across the display surface.
Producing Lifelike Images: By maintaining precise control over color and brightness, the display delivers crisp, clear, and vibrant visuals.

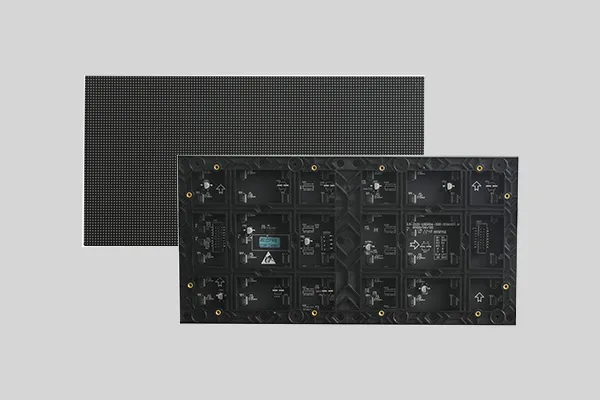

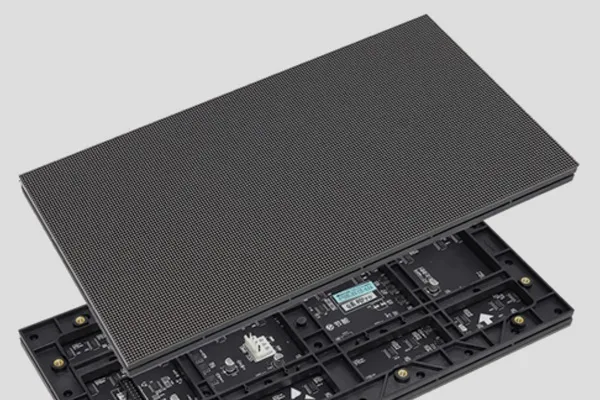

The indoor module is a high-density panel designed for versatile indoor video walls. Using cutting-edge technology, it’s ideal for airports, retail stores, hotels, control centers, event spaces, and more.
High refresh rate LED screen panel, High quality full color SMD LED screen module Including the data power cables and 5 years warranty, all LED modules with best contrast and color uniformity to ensure the LED display has excellent visual effect.
Indoor LED Display Module – HD & High Refresh Rate
Crisp Visuals – Small pixel pitch & high resolution for sharp, lifelike images.
IP54 Rated – Reliable waterproof protection for indoor use.
Vibrant Brightness – Adjustable (500-1,500 cd/m²) for any lighting.
Smooth Performance – Up to 7680Hz refresh rate for flicker-free viewing.
Energy Efficient – Low power consumption & natural cooling for cost savings.
Diverse Pixel Pitch and Standard Sizes
Pixel Pitches and Small Pixel Series
The indoor LED display modules offer a wide range of pixel pitches, including P2mm, P2.5mm, P3mm, P3.91mm, P4mm, P4.81mm, P5mm, P6mm, P6.72mm, and P10mm, catering to various application needs. Additionally, the small pixel series includes P0.9mm, P1.25, P1.56, P1.875mm, P1.25mm, P1.538mm, P1.667mm, and P1.86mm, providing exceptional detail and resolution.

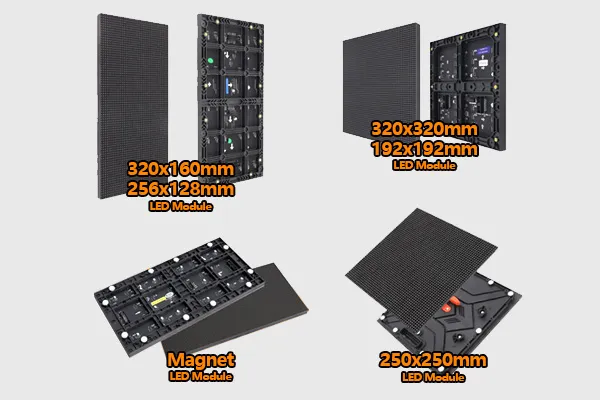

Standard Sizes of LED Modules
The indoor LED display modules come in a variety of standard sizes, including: 320 x 160mm, 256 x 128mm, 320 x 320mm, 250 x 250mm, 192 x 192mm, 160 x 160mm, Additionally, magnetic modules are also available for easy installation and customization.
High Contrast Ratio for Stunning Visuals
The indoor LED display module is designed to provide a high contrast ratio, perfectly suited for indoor environments. This high contrast ratio delivers stunning visuals while protecting the human eyes, making it an ideal solution for various applications.
REISSDISPLAY Indoor LED Display Modules – Superior Performance
High-Brightness – Ultra-vivid visuals even in bright conditions
High-Density PCB – Stable signal transmission for reliable performance
Fully Customizable – Tailored size, pitch & configuration
Durable Build – Long-lasting for demanding environments
Quick Installation – User-friendly setup saves time

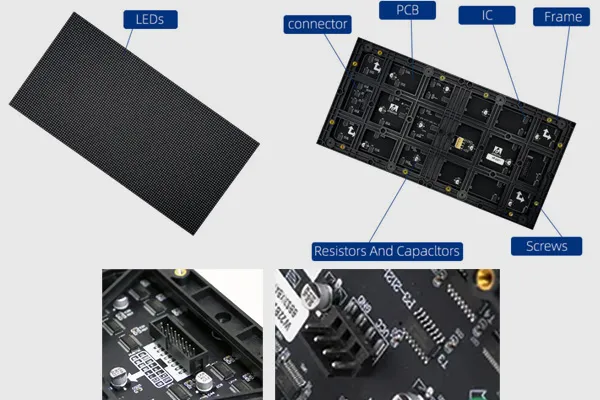

LED Display Module Components

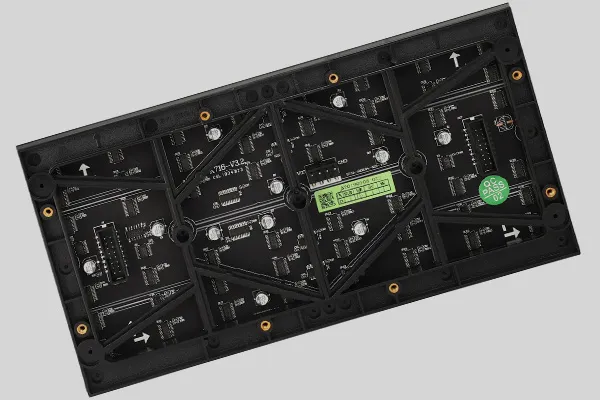

The LED display module is a crucial component of the LED display finished product. It is primarily composed of LED, IC, frame, PCB, connector, cable, screws, resistor, and capacitor, all meticulously engineered to work in harmony and deliver exceptional performance.
High-Quality LED Chips for Unparalleled Color Consistency
The indoor LED display modules are designed with high-quality LED chips from renowned manufacturers such as Kinglight, San’an, Hongseng, and Nationstar, ensuring excellent color consistency and vivid visuals.
Reliable and Stable Driver ICs
Overview of SMD Technology
The implementation of advanced driver ICs, including MBI5124, ICN2053, ICN2038S, and FM6153, ensures high refresh rates, high grayscale levels, and stable operation, eliminating the risk of flickering and guaranteeing a smooth and reliable performance.
Exceptional Refresh Rates for Flicker-Free Viewing
The carefully selected LED driver ICs used in the indoor LED display modules deliver high refresh rates of over 3840Hz, and even up to 7680Hz, effectively eliminating module flicker problems and providing a seamless viewing experience.
Latest SMD Encapsulation for Vivid Color Rendering
Utilizing cutting-edge SMD (Surface-Mount Device) encapsulation technology, the indoor LED display modules combine individual red, green, and blue LED chips (1R1G1B) in each pixel, resulting in vivid and precise color rendering.

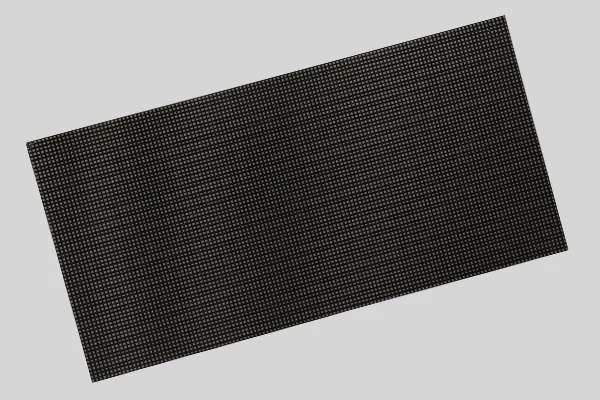

Full Black Technology for Enhanced Contrast and Color Consistency
The integration of black LEDs and a black PCB frame in the indoor LED display module effectively reduces light reflection, enhances contrast, ensures color consistency, and provides a truer color representation, delivering a superior visual experience.
Premium Materials for Uncompromised Quality
By exclusively partnering with top-tier materials suppliers like Kinglight and Nationstar, REISSDISPLAY ensures that its indoor LED modules adhere to the highest quality standards in the industry.

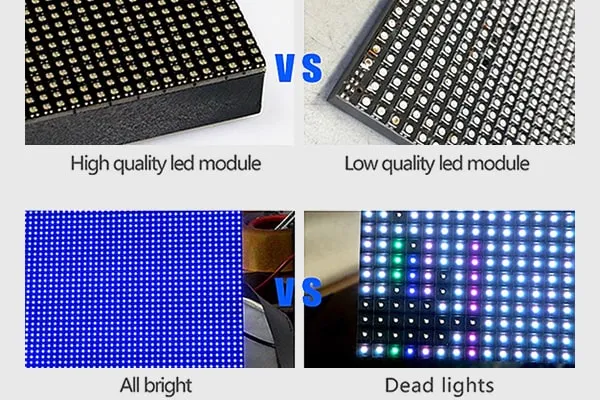

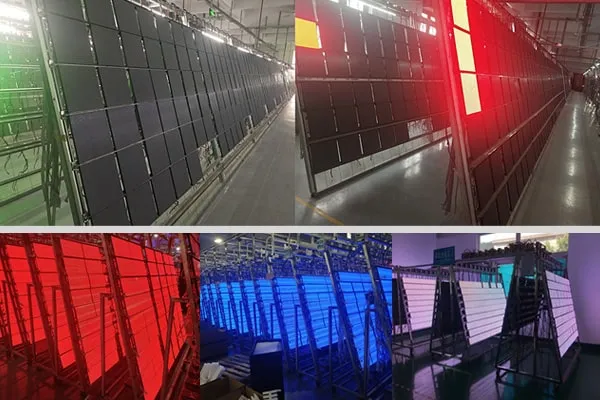

Rigorous Aging Test for Exceptional Reliability

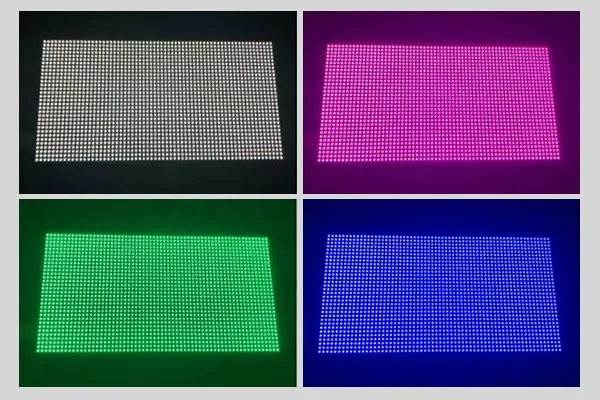

As an additional quality measure, the indoor LED module undergoes a 72-hour continuous aging test, which helps eliminate dead LEDs, low-light LEDs, or abnormal color temperature LEDs, further improving the overall quality and reliability of the product.Choose the Best LED Display Screen for Your Business | ReissDisplay LED Display Supplier

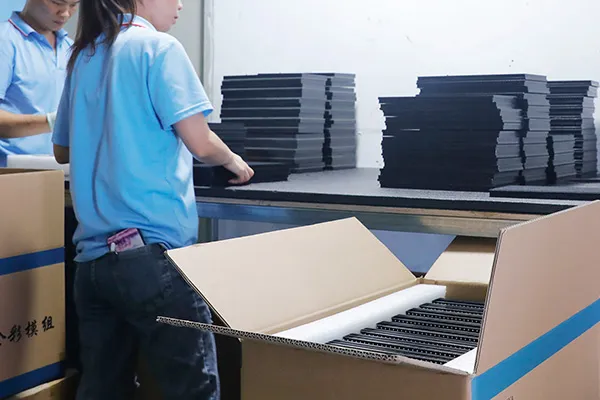

Meticulous Packaging for Safe Delivery
In terms of shipping, high-quality PVC polyethylene foam boards are used to pack each indoor LED screen module, ensuring they are not damaged and protected from impacts that could cause the LEDs to fall out during transportation, guaranteeing the safe arrival of the product.

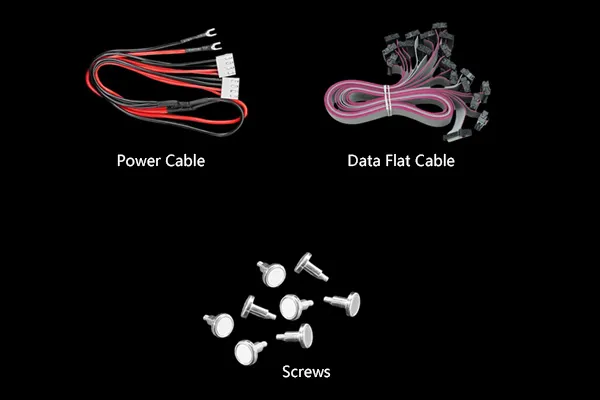

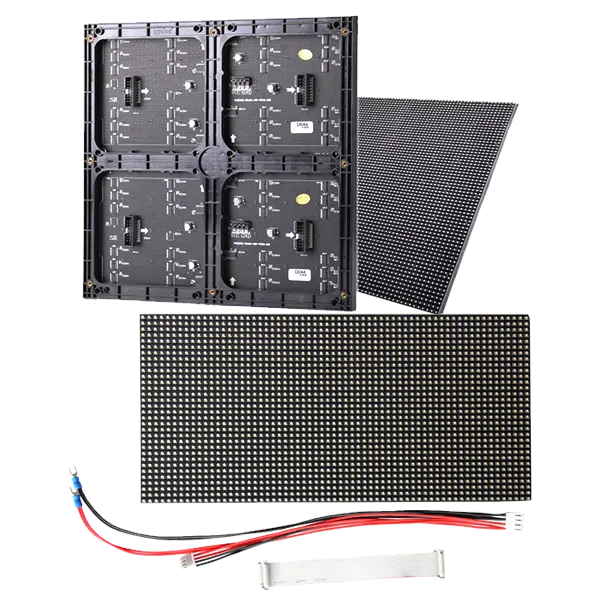

Comprehensive Accessories for Seamless Integration
To ensure a smooth and hassle-free installation process, the Indoor LED Display Module is equipped with a full range of high-quality accessories. These components are designed for seamless integration, providing both reliability and convenience.
1. Power Cable
Comes with a standard 4-pin power cable, enabling secure and efficient connections between the module and the power supply. Designed for stable power delivery, ensuring consistent performance.
2. Data Flat Cable
Includes an industry-standard 16-pin LED flat data cable (signal cable), provided free of charge to reduce costs. This cable ensures smooth and reliable data transmission, enhancing the overall performance of the display.
3. Screws
Equipped with strong and durable fixing screws such as M3 and M4, specifically designed for secure installation of indoor LED display modules. These screws ensure the display is firmly mounted for long-term stability.
Application Cases
Application and Installation Videos
Specifications
320X160mm Series Indoor LED Module
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P1.25mm | 1010 (Black LED) | 256*128 | SMD 3in1 | 600-1000 | 320*160 | 1/64Scan |
| P1.538mm | 1010 (Black LED) | 208*104 | SMD 3in1 | 600-1000 | 320*160 | 1/52Scan |
| P1.667mm | 1010 (Black LED) | 192*96 | SMD 3in1 | 600-1000 | 320*160 | 1/64Scan |
| P1.839mm | 1515 (Black LED) | 174*87 | SMD 3in1 | 600-1000 | 320*160 | 1/58Scan |
| P1.839mm | 1515 (Black LED) | 174*87 | SMD 3in1 | 600-1000 | 320*160 | 1/58Scan |
| P1.86mm | 1515 (Black LED) | 172*86 | SMD 3in1 | 600-1000 | 320*160 | 1/43Scan |
| P2mm | 1515 (Black LED) | 160*80 | SMD 3in1 | 600-1000 | 320*160 | 1/40Scan |
| P2.5mm | 2121 (Black LED) | 128*64 | SMD 3in1 | 800-1500 | 320*160 | 1/32Scan |
| P3.076mm | 2121 (Black LED) | 104*52 | SMD 3in1 | 800-1200 | 320*160 | 1/26Scan |
| P4mm | 2121 (Black LED) | 80*40 | SMD 3in1 | 500-1000 | 320*160 | 1/20Scan |
| P5mm | 2121 (Black LED) | 64*32 | SMD 3in1 | 500-1000 | 320*160 | 1/16Scan |
250X250mm Series Indoor LED Module Panel
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P2.604mm | 1515 (Black LED) | 96*96 | SMD 3in1 | 800-1000 | 250*250 | 1/32Scan |
| P2.976mm | 2121 (Black LED) | 84*84 | SMD 3in1 | 800-1000 | 250*250 | 1/16Scan |
| P3.91mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1000 | 250*250 | 1/16Scan |
| P4.81mm | 2121 (Black LED) | 52*52 | SMD 3in1 | 800-1000 | 250*250 | 1/13Scan |
240x240mm Series Indoor LED Display Panel
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P1.875mm | 1515 (Black LED) | 128*128 | SMD 3in1 | 800-1200 | 240*240 | 1/32Scan |
| P2.5mm | 2121 (Black LED) | 96*96 | SMD 3in1 | 800-1200 | 240*240 | 1/32Scan |
Other Size Such as 256x128mm, 160x160mm, 192x192mm
| Pixel Pitch | LED | Module Resolution | LED Type | Brightness(Nits) | Module Size（MM） | Driving Mode |
| P2mm(MOQ>100) | 1515 (Black LED) | 64*64 | SMD 3in1 | 800-1200 | 128*128 | 1/32Scan |
| P2mm | 1515 (Black LED) | 128*64 | SMD 3in1 | 800-1200 | 256*128 | 1/32Scan |
| P2.5mm(MOQ>100) | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1500 | 160*80 | 1/16Scan |
| P2.5mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1500 | 160*160 | 1/32Scan |
| P3mm(MOQ>100) | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1200 | 192*96 | 1/16Scan |
| P3mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1200 | 192*192 | 1/32Scan |
| P4mm(MOQ>100) | 2121 (Black LED) | 32*32 | SMD 3in1 | 800-1200 | 128*128 | 1/8Scan |
| P4mm | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1200 | 256*128 | 1/16Scan |
| P4mm | 2121 (Black LED) | 64*64 | SMD 3in1 | 800-1200 | 256*256 | 1/32Scan |
| P5mm(MOQ>100) | 2121 (Black LED) | 64*32 | SMD 3in1 | 800-1200 | 160*160 | 1/16Scan |
| P5mm | 3528 (White LED) | 64*32 | SMD 3in1 | 800-1200 | 160*160 | 1/16Scan |
| P5mm | 3528 (White LED) | 64*32 | SMD 3in1 | 800-1200 | 320*160 | 1/16Scan |
Configuration
Related Products

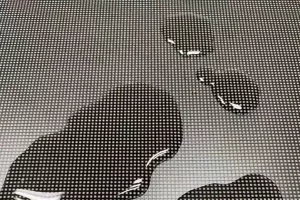

COB LED Display Module
