Transparent Glass LED Screen

REISSDISPLAY transparent glass LED screens are increasingly favored in a variety of applications, particularly excelling in stage environments. This innovative display product is not only lightweight and easier to install and maintain compared to traditional stage LED screens, but also creates unique visual effects, offering more creative possibilities for stage design and live presentations. With high transparency, transparent glass LED screens can display content while maintaining visibility of the background, delivering a modern and high-tech visual experience. Whether used for stages, storefront displays, exhibitions, or building facades, REISSDISPLAY transparent glass LED screens provide customers with a lightweight, stylish, and highly impactful visual solution.

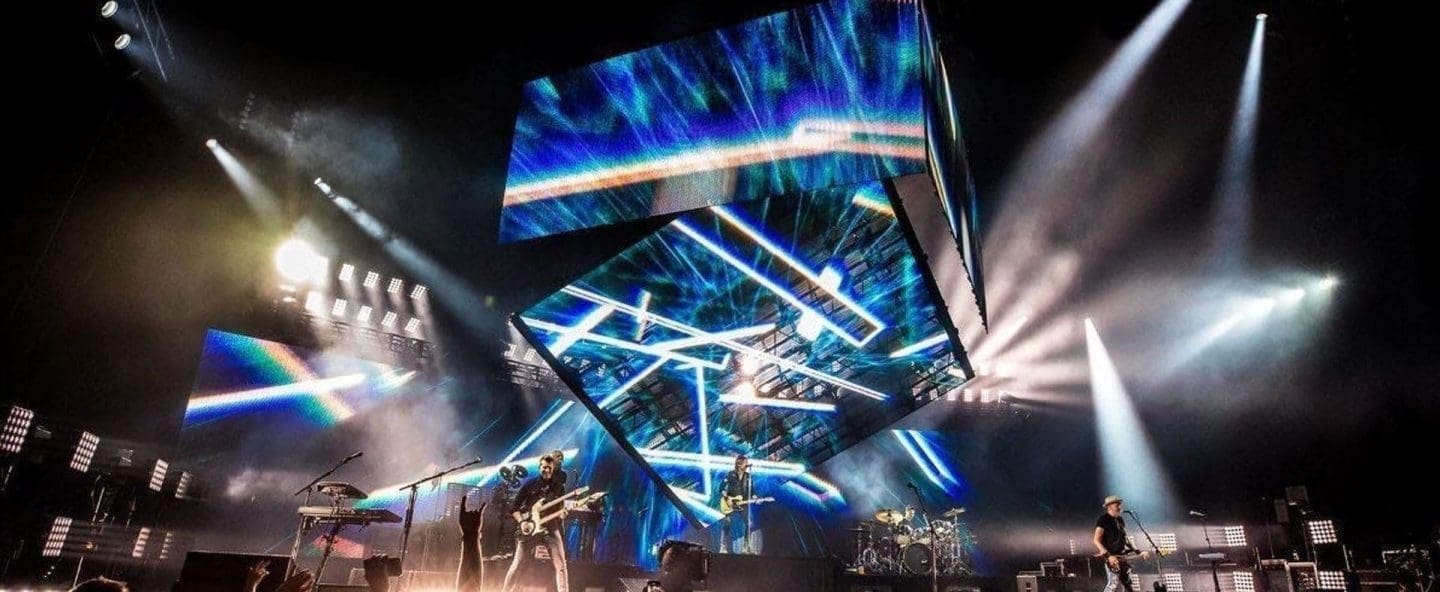

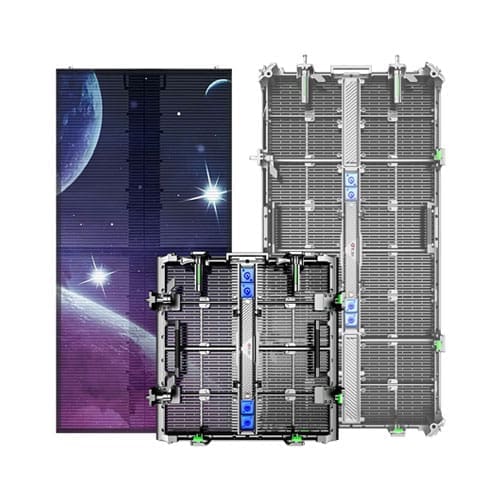

  • Transparent Rental LED Display screen
    RTF-RX Series

    Discover the benefits of Rental Transparent Screens for events and installations, combining technology with stunning design.

    View details

RTF Series Features

  • High Transparency
  • Ultra-Thin Design
  • High Brightness & Contrast
  • Energy-Efficient & Eco-Friendly
  • Seamless Splicing
  • High Refresh Rate
  • Smart Interaction
  • High Durability

Feature Description

  • Light transmittance 70%

  • Brilliant and splendid

  • Transparent energy saving

  • High contrast

  • Ultra light and thin

  • Adaptable

Various panel sizes and weights

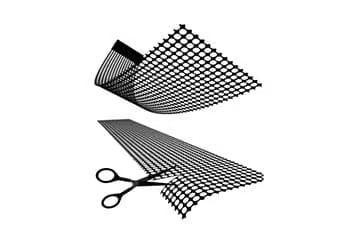

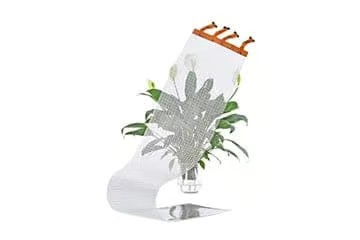

  • Film coated LED screen

    240X 1000mm ≤ 2KG

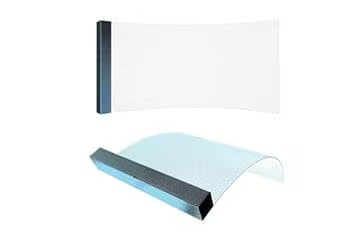

  • Honeycomb LED display screen

    240mm*1000mm ≤ 2KG

  • 960*256mm/1200*256mm 9≤3.5kg/㎡

    240*1000mm ≤ 2.5 KG

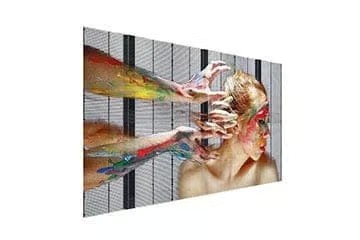

  • 1000*500mm 12.5KG

    1000*500mm ≤12.5KG

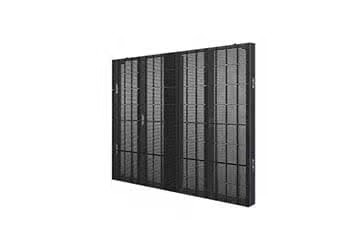

  • Transparent LED display screen

    1000*1000mm ≤15.5KG

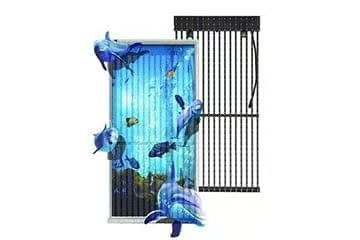

  • Grille LED screen

    1000*1000mm 17.5KG / pcs

Specifications

Pixel Pitch P2.84 P3.91 P7.81 P10.42 P15.625 P20
Pixel Density(m²) 56320 32768 16384 9216 4096 2304
Permeability 0.56 0.7 0.56 0.65 0.75 0.85
Refresh Rate(Hz) ≥3851 ≥3840 ≥1920 ≥1920 ≥1920 ≥1920
Cabinet Size(mm) 1000*500
Cabinet Refresh Rate 352*80 256*64 128*64 96*48 64*32 48*24
LED Light 1415 RGB 1921 RGB 1921 RGB 1921 RGB 3535 RGB 3535 RGB
Brightness(nits)/㎡ ≥2700 ≥4500 ≥4000 ≥4000 ≥4000 ≥4000
Max Consumption(W/M) 800
Ave Consumption(W/M) 240 240 240 200 180 150
Grey Scale(Bit) 27 16 16 16 16 16
Degree protection IP45 IP33 IP33 IP33 IP33 IP33
Weight PC/KG 5 5 6 6 6 6
Work Environment ﹣10℃~51℃
Display Interface DIV/HDMI
Installation Mode Fixed installation
LED Life(h) 210000 100000 100000 100000 100000 100000

Various Installation Mode

  • Hanging style
    Hanging style
  • Wall mounted
    Wall mounted
  • Right angle
    Column installation
  • Bottom bracket
    curved wall mounted

Installation and Application Video

Transparent Glass LED Display Screen Solution for Stage Events

REISSDISPLAY transparent glass LED display screens are engineered with ultra-thin, lightweight panels and high-transparency glass substrates, making them ideal for stage events where both aesthetics and functionality are essential. With panel thicknesses as slim as 10mm and weight as low as 12kg per square meter, these screens are easy to install and integrate seamlessly into stage structures without adding significant bulk.

Featuring pixel pitches ranging from 3.91mm to 7.82mm, REISSDISPLAY screens deliver sharp, vivid visuals, ensuring every detail is visible to the audience. The transparency rate of up to 80% allows stage lighting and backgrounds to remain visible, creating layered and immersive visual effects. Advanced SMD technology ensures consistent brightness and color uniformity, even in challenging lighting conditions, while the modular design supports flexible assembly in various shapes and sizes to suit creative stage layouts.

With an IP65-rated protection level, these displays are resistant to dust and moisture, guaranteeing reliable performance for both indoor and outdoor events. REISSDISPLAY transparent glass LED display screens combine striking visual impact with practical installation and maintenance advantages, delivering a truly innovative solution for modern stage productions.

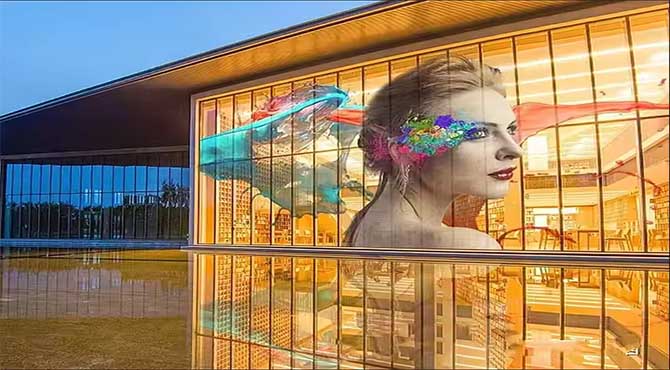

Outdoor Transparent LED Screen -03

REISSDISPLAY High Brightness, Fully Waterproof Stage Transparent Glass LED Screen Solution

The REISSDISPLAY high brightness, fully waterproof stage transparent glass LED screen delivers unmatched visibility and durability for modern stage events. Engineered with advanced LED chips, this display achieves brightness levels exceeding 5,500 nits, ensuring vibrant and clear visuals that remain easily visible even under strong stage lighting or direct sunlight. The high transparency design—up to 80%—allows background elements and lighting effects to interact naturally with digital content, creating immersive, multi-layered stage environments.

Constructed with a robust aluminum frame and precision-sealed glass panels, the REISSDISPLAY transparent screen features an IP65 waterproof rating, making it fully resistant to rain, splashes, and dust. This guarantees stable and reliable operation both indoors and outdoors, regardless of weather conditions. Lightweight panels and modular assembly enable rapid installation and flexible configurations to match any stage design, while seamless splicing technology ensures smooth, uninterrupted visuals.

With its combination of high brightness, waterproof construction, and exceptional image clarity, the REISSDISPLAY transparent glass LED screen is an essential tool for event organizers seeking to deliver visually stunning and dependable performances—rain or shine. This innovative solution not only enhances the audience’s experience but also provides peace of mind, making every event memorable and worry-free.

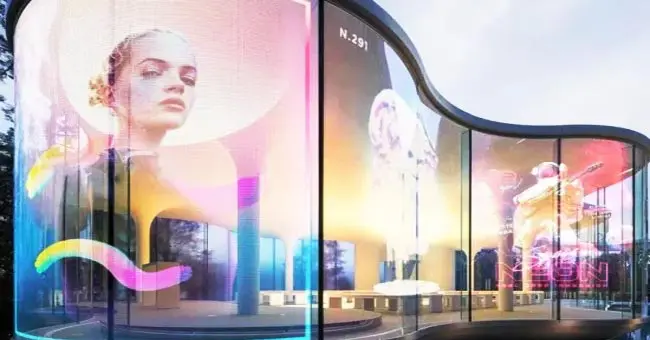

Transparent-LED-screen

LED display user guide

How to install indoor LED display screens on the wall

Installing indoor LED display screens on the wall requires careful planning and execution. Here are the general steps to follow for a successful installation.

LED display common FAQ
