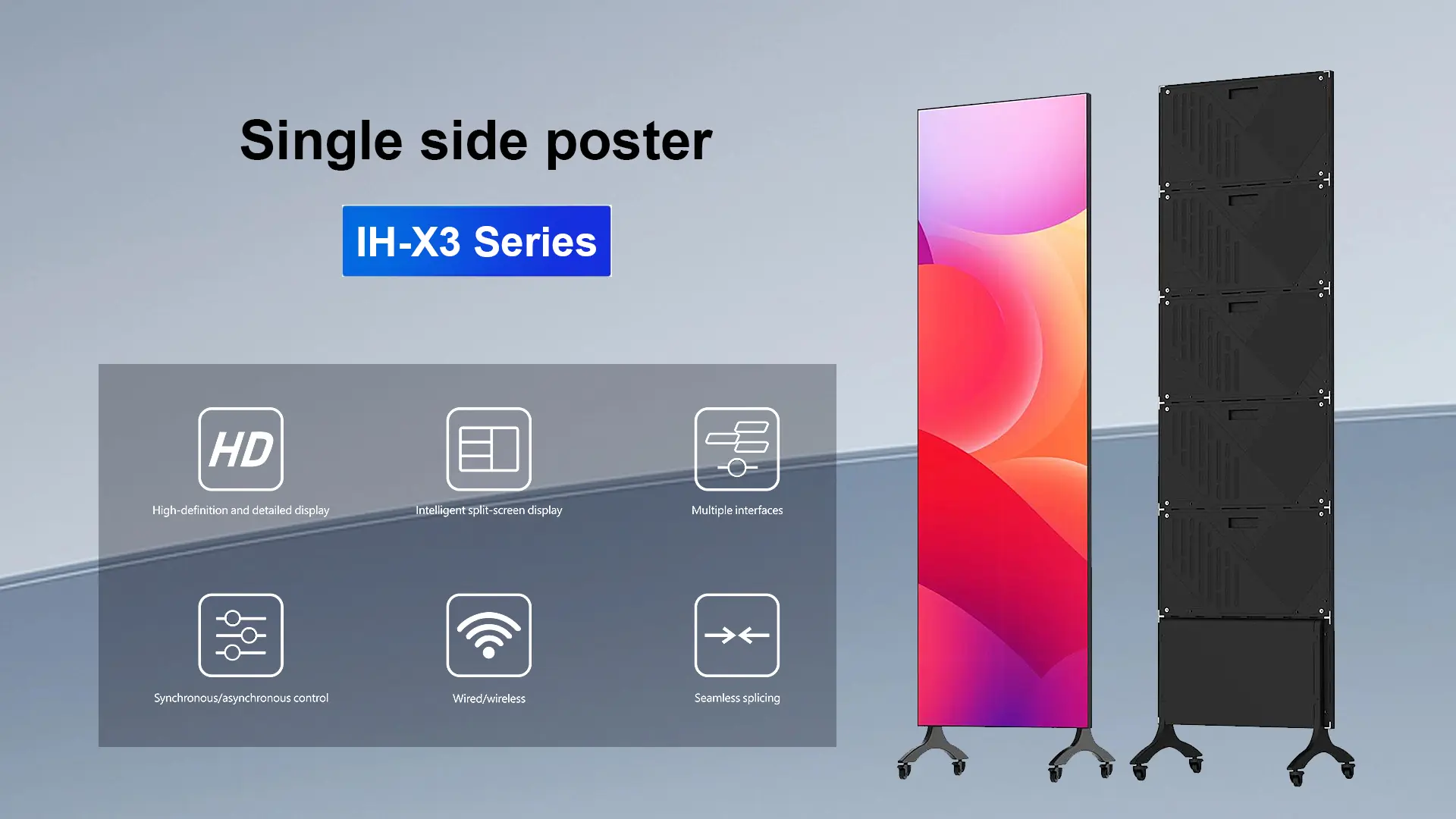

The IH-X3 series single-sided poster LED display supports multiple signal inputs, allowing connection to a variety of devices, including computers, smartphones, and tablets, ensuring compatibility with diverse content formats and signal sources for your convenience.
The IH-X3 series LED poster displays can be assembled to create larger displays. Because each LED poster has a narrow bezel, they can be seamlessly joined together, ensuring uninterrupted image quality on the larger screen. This method, also known as cascading or split-screen mode, allows the same video content to be split and displayed simultaneously on two or more poster screens.

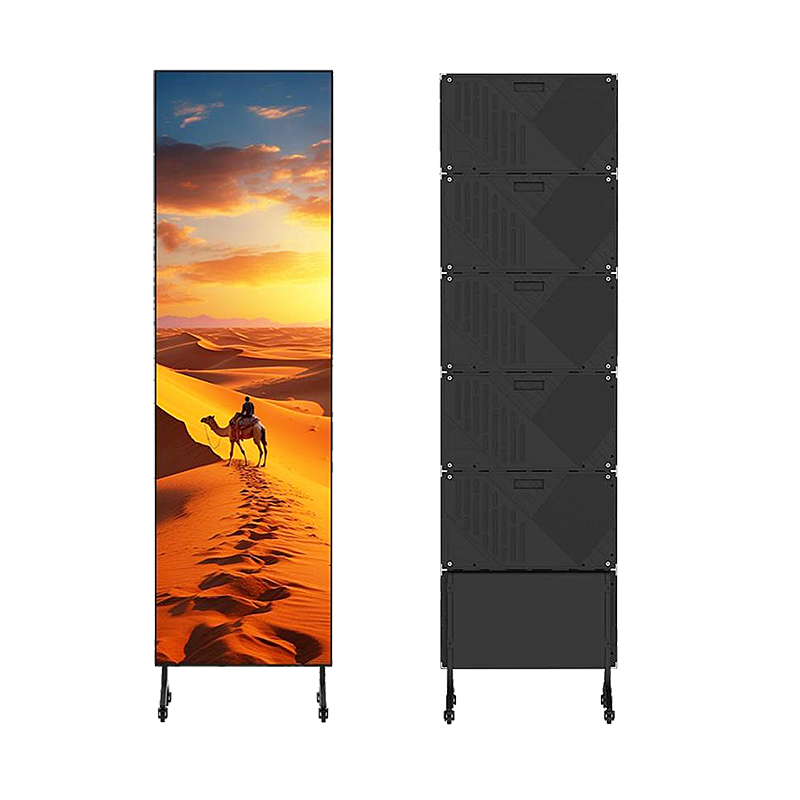

The Single-Side Poster – IH-X3 Series can be placed on the floor or mounted on the wall. It can be easily controlled via various modes including USB, Wi-Fi, 4G, app, and HDMI.
– Ultra Slim and Lightweight Design

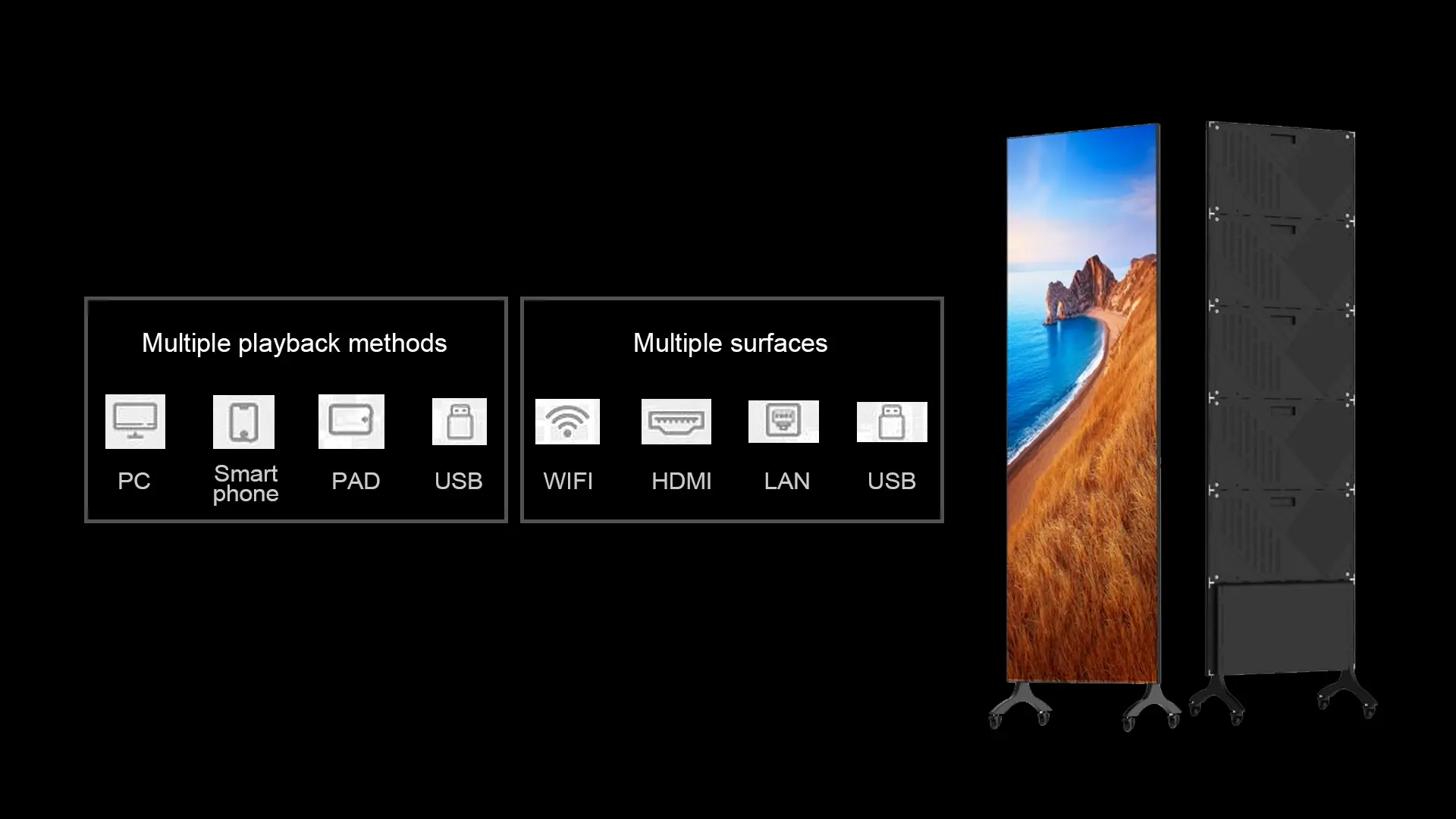

– Multiple Control Modes
– Intelligent Split Display Window
– Intelligent Cluster Management and Control
– Multi-screen Seamless Splicing
– Various Types of Installation

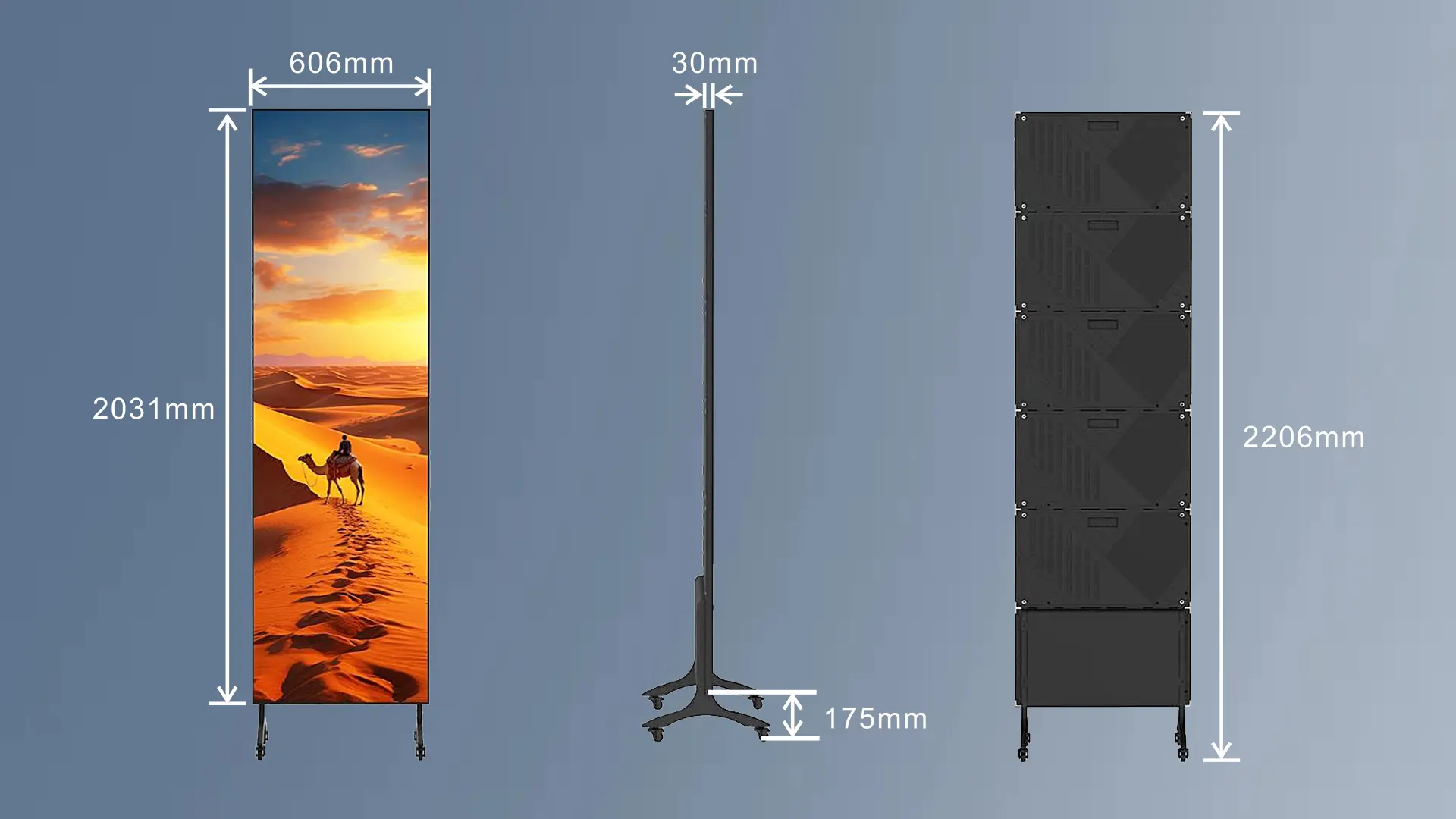

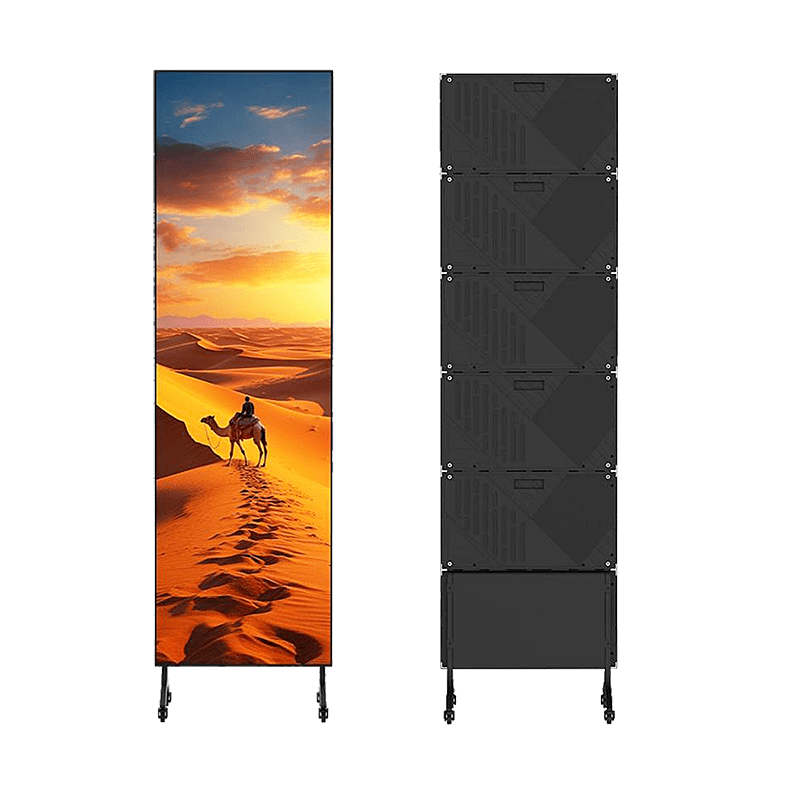

The screen size of the IH-X3 series high-definition LED display poster is 606*2206mm. The base height is 175mm.
Stylish and simple cabinet, simple and convenient control method, high-definition, and delicate display effect.

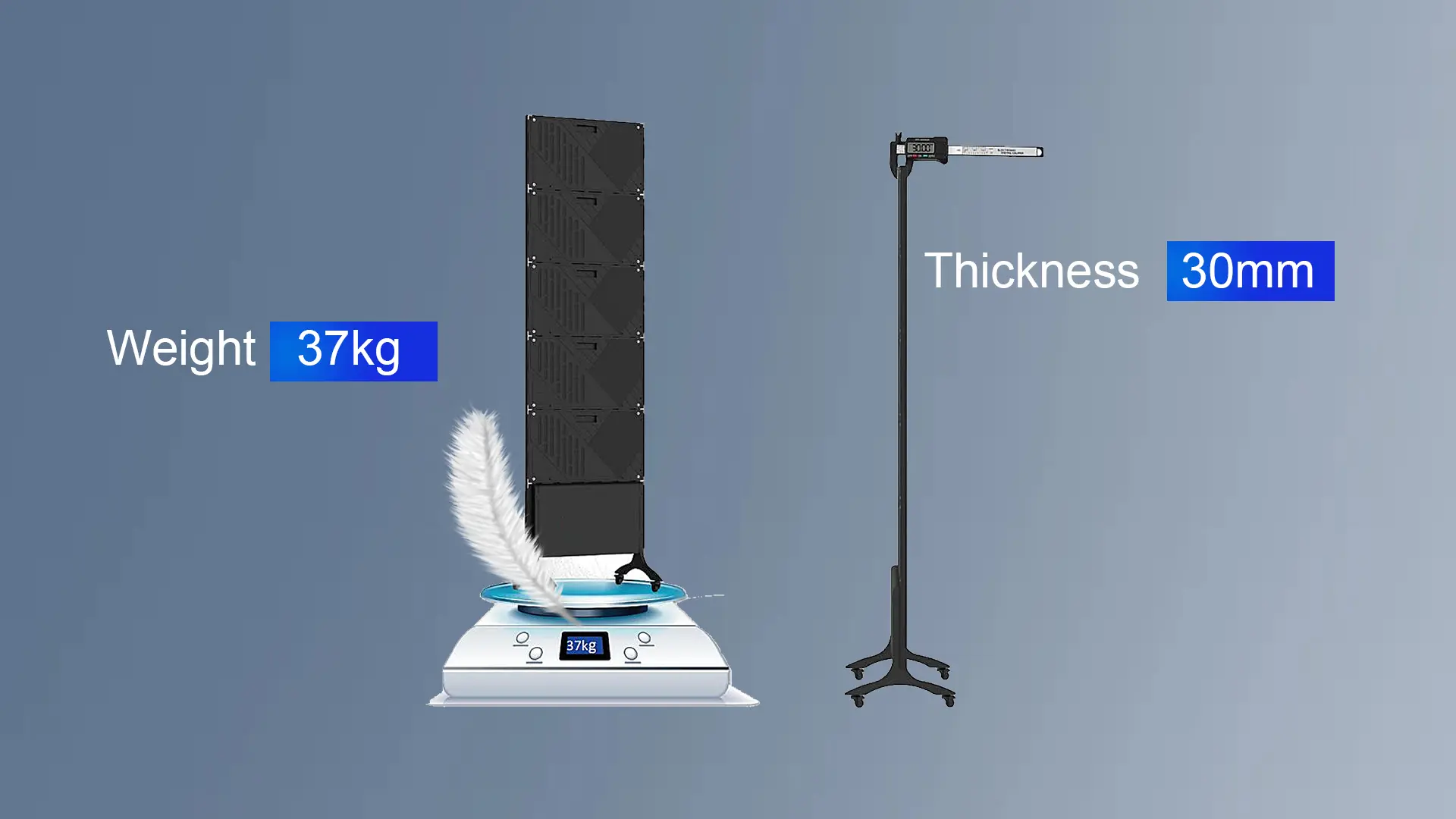

The cabinet design is both thin and lightweight, weighing only 37kg with a thickness of 30mm. Additionally, the base is equipped with wheels, allowing for easy mobility and repositioning.

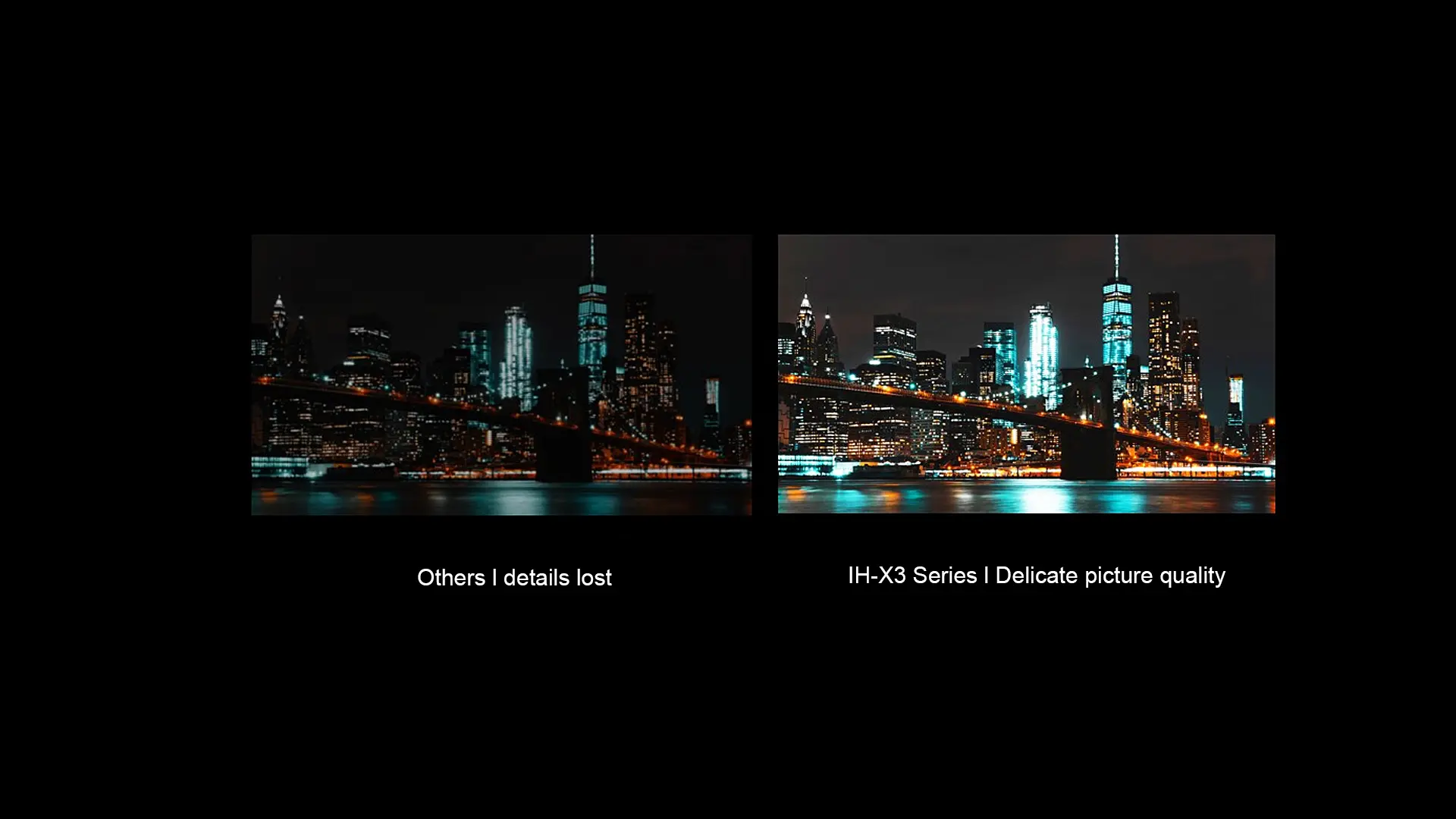

Professional color management techniques, rich color layers and more natural color transitions.
High brightness, high grayscale, high refresh rate, no scanning line for taking photos.
Perfect performance from different viewing angle.

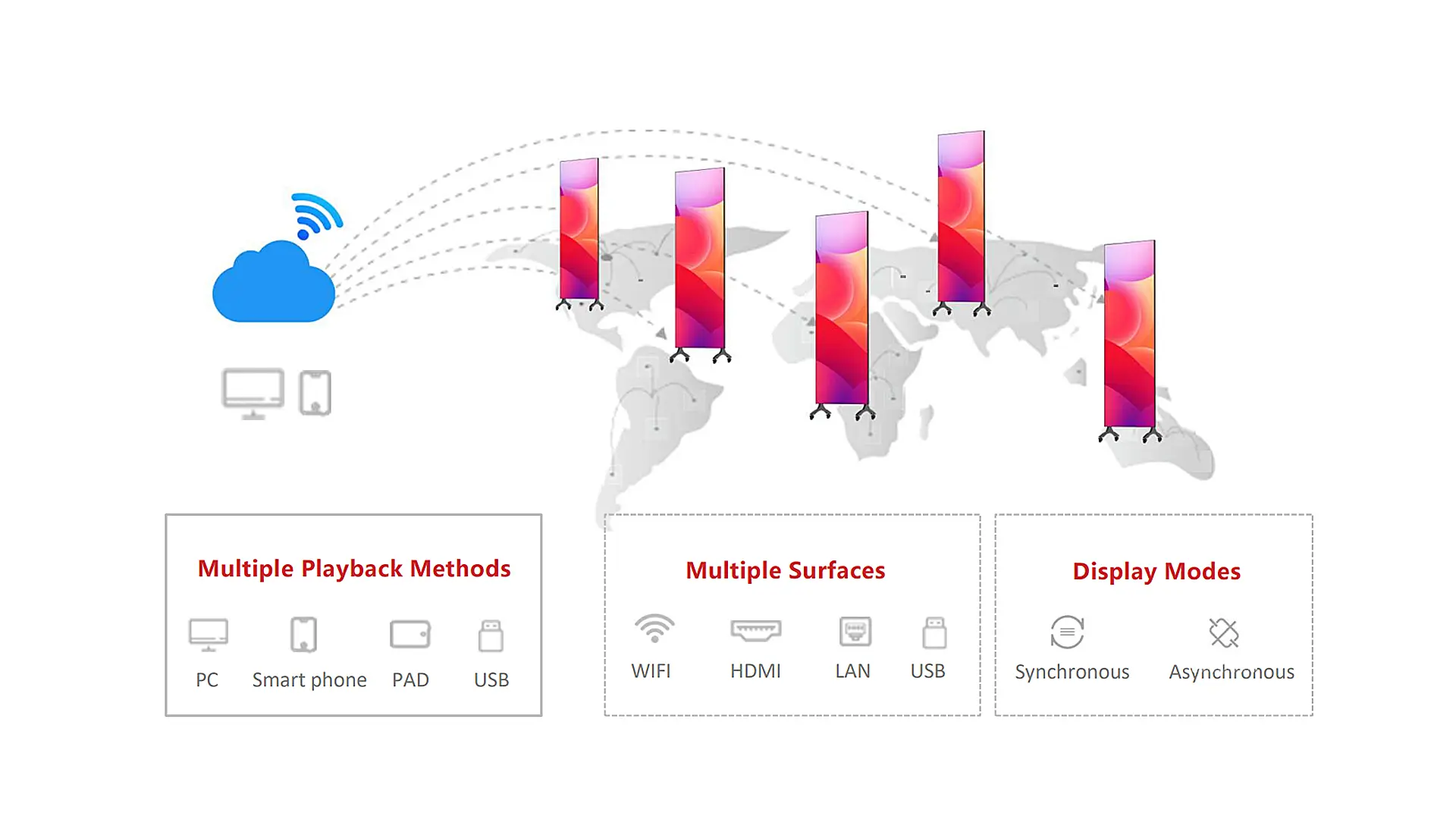

· Support multiple playback methods to adapt to different scenes.
· Support Sync and Async play.
· Multiple surfaces.

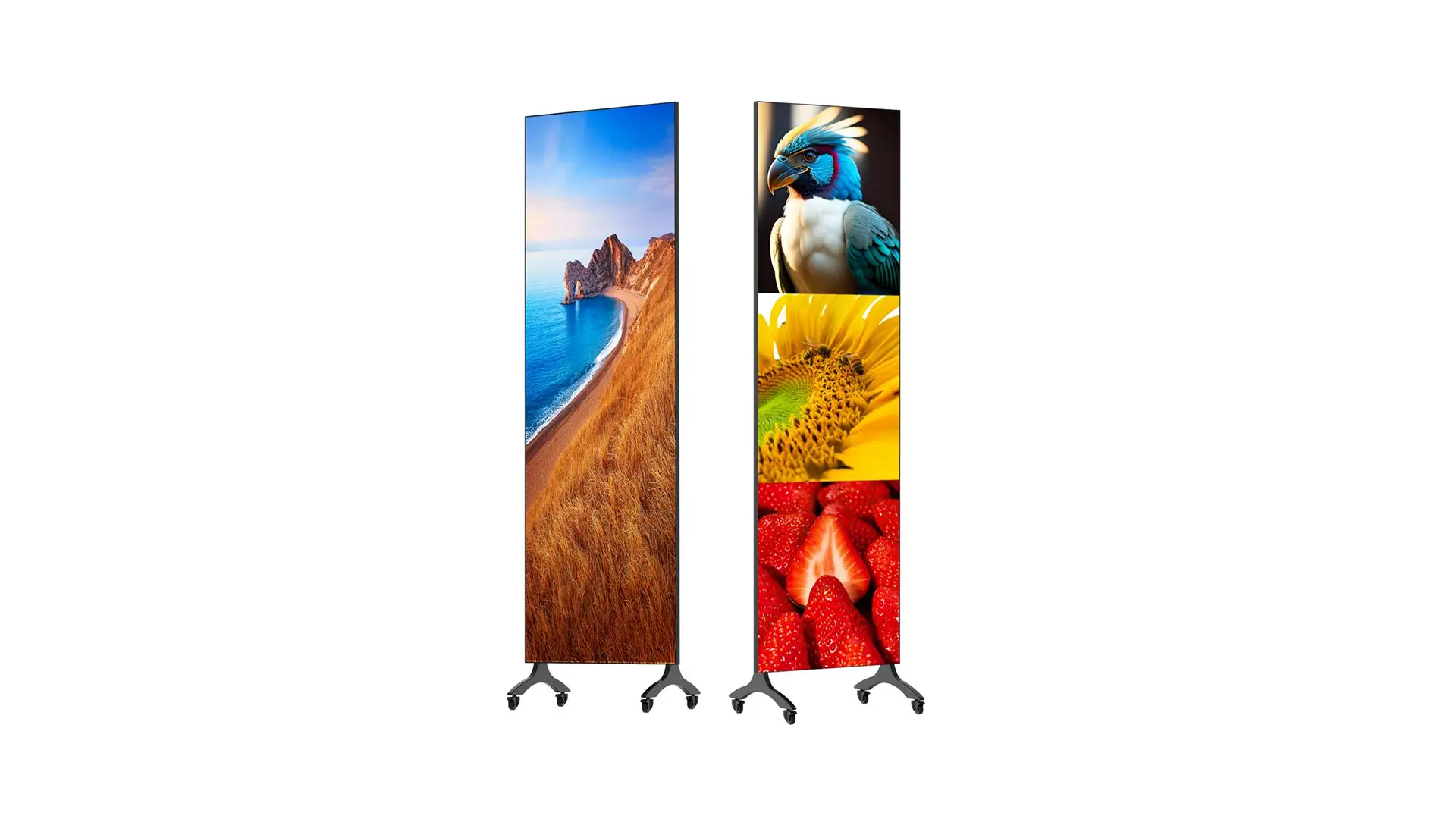

Support multi-window to display differnt contents at the same time.

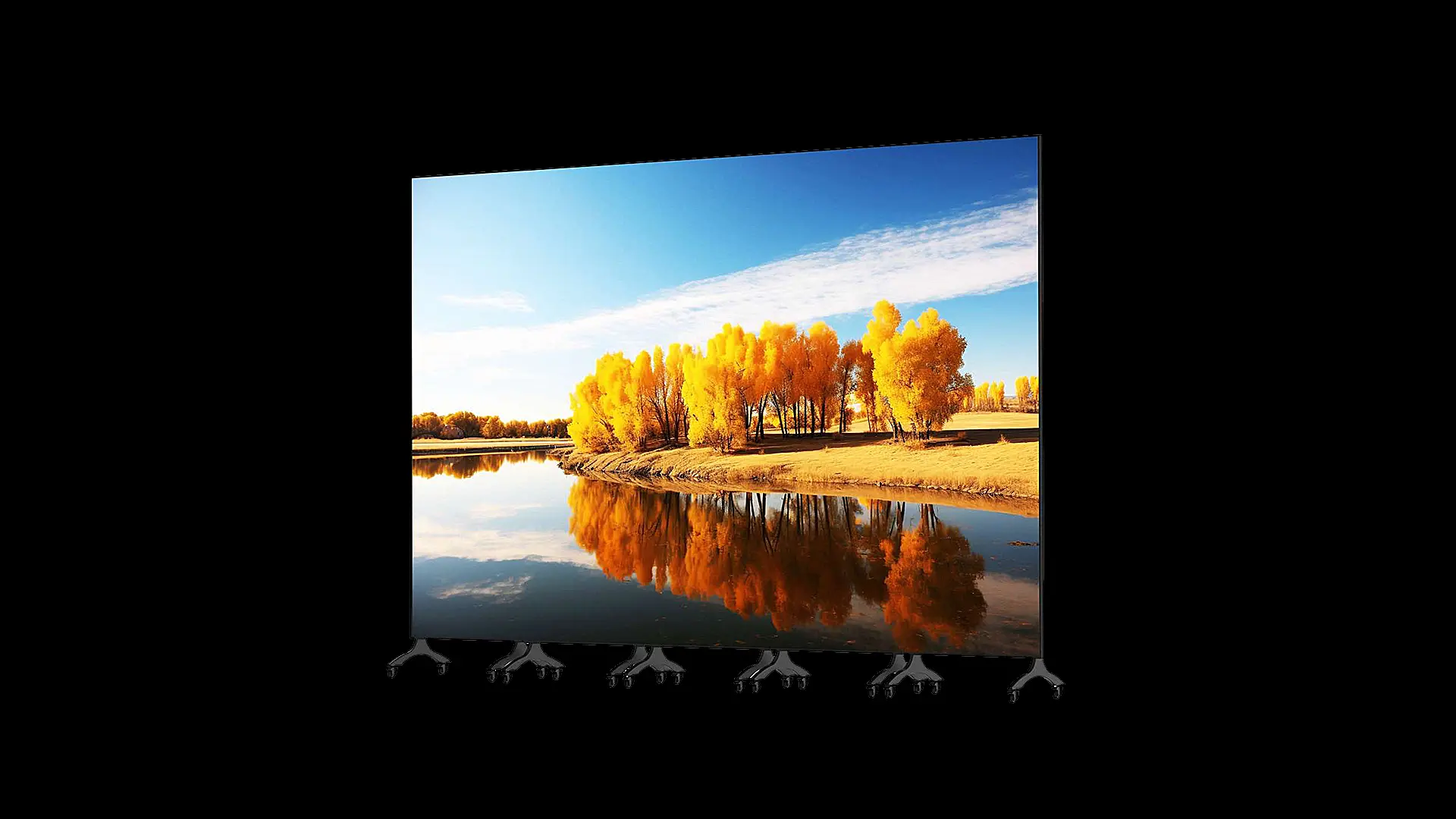

Support multile screens splicing without gap.
Supports remote smart monitoring, remote and scheduled on/off control, and wireless remote interaction via mobile phones and smart devices, offering ultimate control anytime, anywhere.

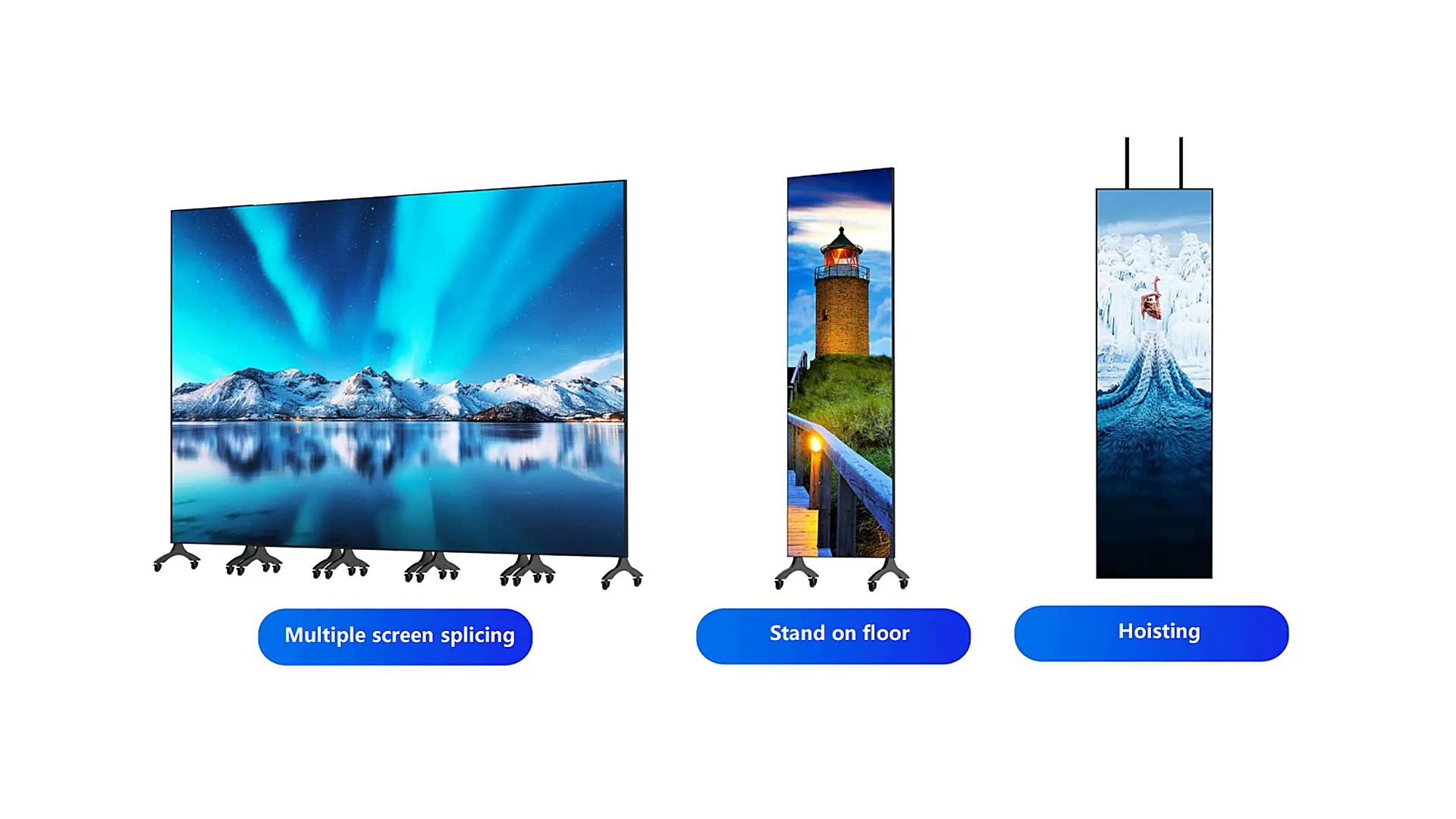

The IH-X3 series offers versatile installation options, including multi-screen splicing, floor-standing, and hanging installations, making it adaptable to various environments and needs.

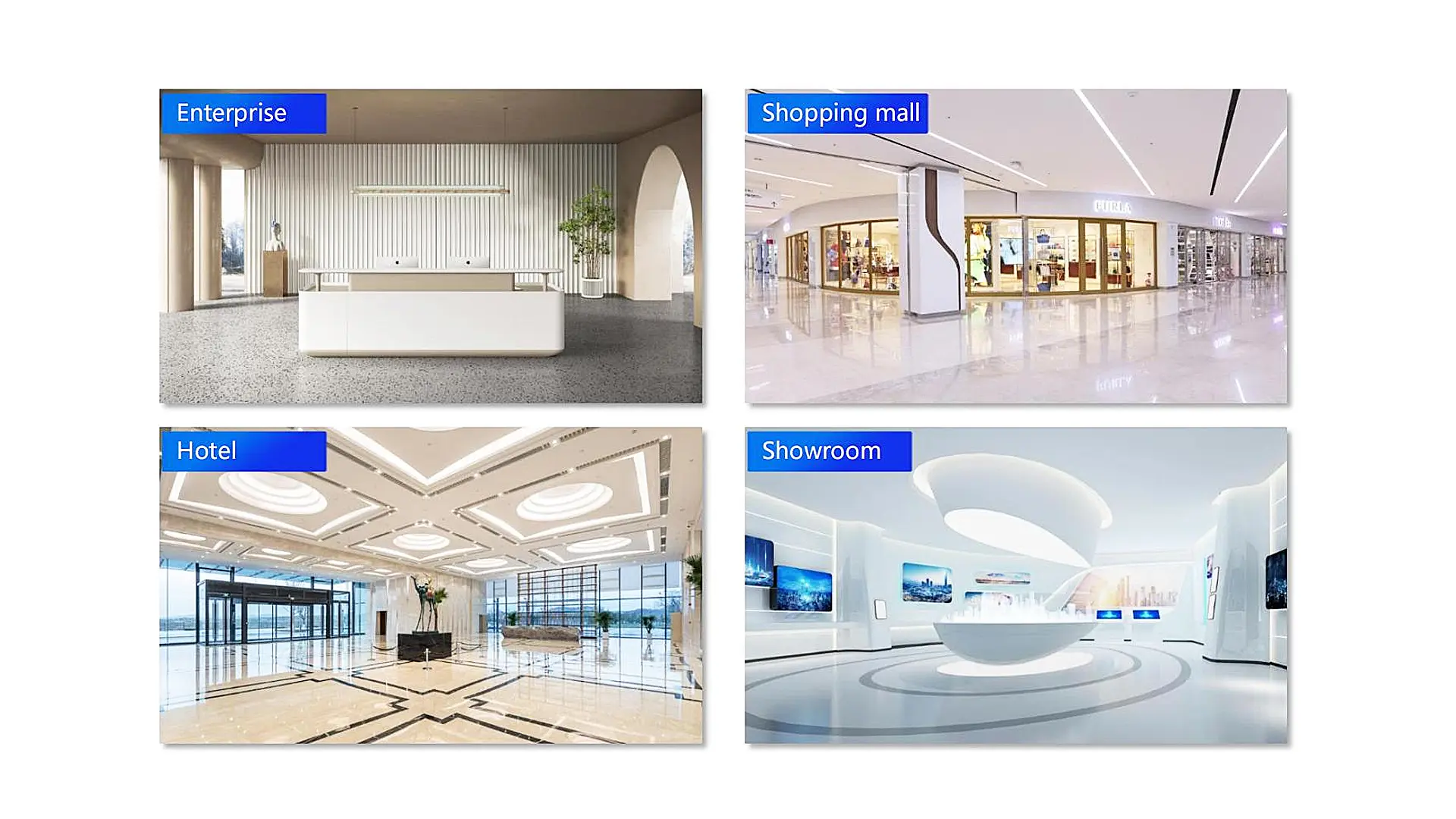

To be adapted for every different scene, our product is made up of superior quality materials with the concise and strong structure. This product is usually used in:
· Stores
· Cinemas
· Banks
· Hotels
· Restaurants
Application and Installation Videos
No videos available.
Specifications
| Pixel Pitch | P1.25 | P1.5625 | P1.875 | P2.5 |
| LED type | SMD1010(GOB)(COB) | SMD1212(GOB)(COB) | SMD1515(GOB)(COB) | SMD1515 |
| Physical Density(Dots/㎡) | 640000 | 409600 | 284444 | 160000 |
| Screen dimension (mm) | 600X2025X30 | 600X2025X30 | 600X2025X30 | 600X2025X30 |
| Dimensions (mm) | 606X2206X30 | 606X2206X30 | 606X2206X30 | 606X2206X30 |
| Physical Density（dots） | 480X1620 | 384X1296 | 320X1080 | 240X810 |
| Weight(kg) | 37 | 37 | 37 | 37 |
| Maintenance mode | Front | Front | Front | Front |
| Materials | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | ≥600 | ≥600 | ≥600 | ≥600 |
| Color temp(K) | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |
| Viewing angle(V/H) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Frequency | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan mode | Constant,1/45Scan | Constant ,1/48scan | Constant，1/45scan | Constant,1/45scan |
| Gray scale(bit) | 14/16 optional | 14/16 optional | 14/16 optional | 14/16 optional |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Max consumption(W/㎡) | 420 | 420 | 420 | 420 |
| Average consumption(W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 |
| Power voltage range | AC90-264V,47-63Hz | |||
| Working temp/humidity(℃/RH) | -20~60℃/10%~85% | |||
| Stock temp/humidity(℃/RH) | -20~60℃/10%~85% | |||
| Ceitificates | CE/RoHS/EMC/ISO9001 | |||
Related Products
REISSDISPLAY Factory Manufacturer – Your Trustworthy LED Poster Display Screen Factory Boost your visual marketing with REISSDISPLAY LED poster display screen. Optional with GOB technology and simple portability, it is perfect for advertising, events and retail. Your trusted chinese factory for premium LED poster display. As an LED display innovator, REISSDISPLAY smart LED posters provide […]
REISSDISPLAY Smart All in One LED Screen REISSDISPLAY get the experience of premium all in one LED screen smart TVs, but on a larger scale. Multiple sizing options are available. All options come in Full HD (1920x1080p) resolution. This display can either be wall-mounted or used on a base with wheels. VisionPro HD is a […]

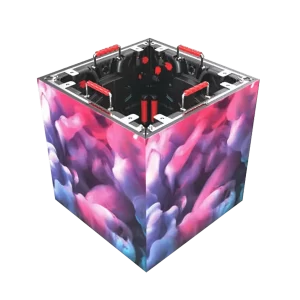

Introducing the REISSDISPLAY Rental cube LED Display 500D Series, a versatile and high-quality LED screen for indoor and outdoor use. With a standard size and customizable options, this LED display offers excellent visual quality and easy installation.
