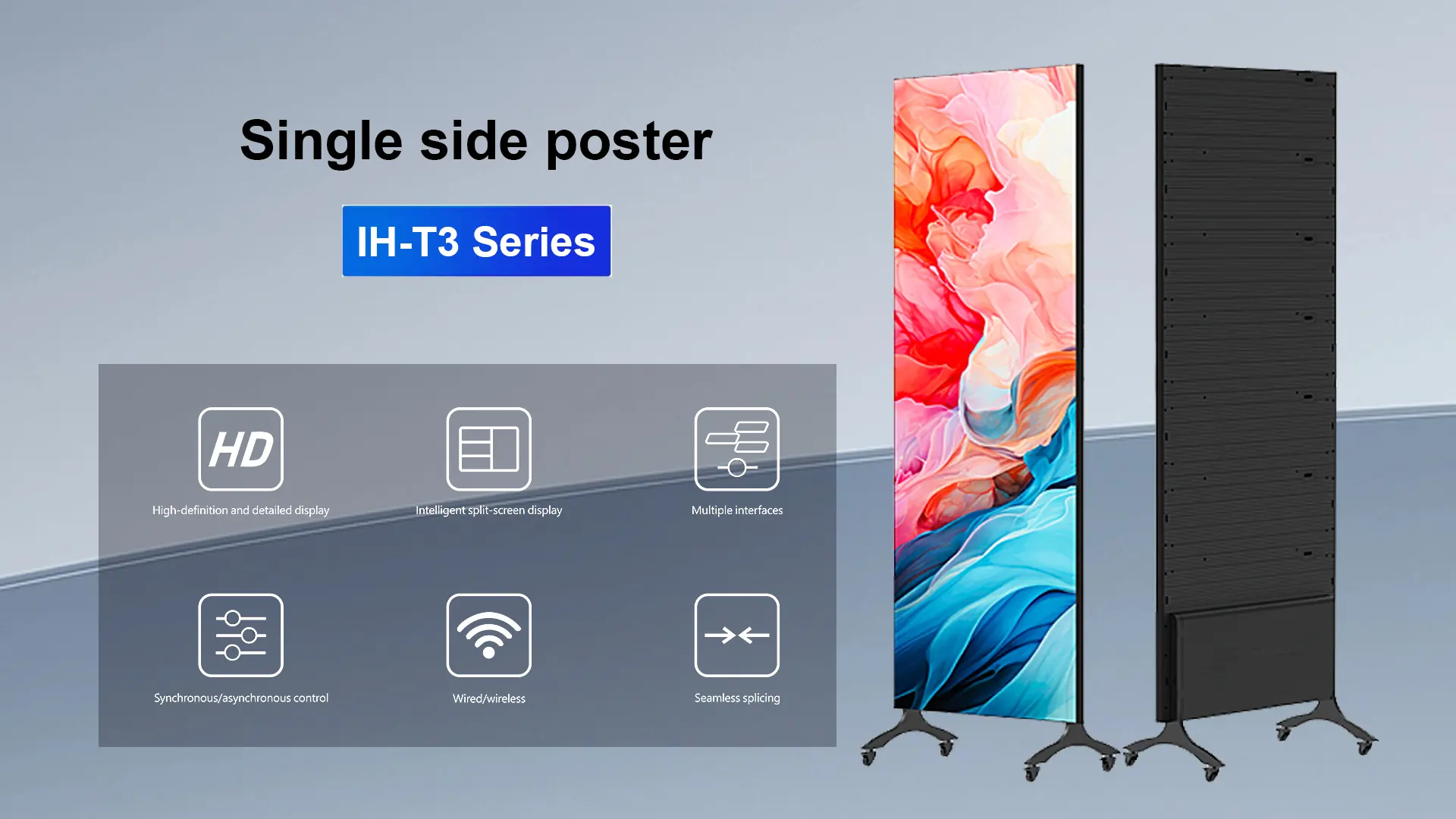

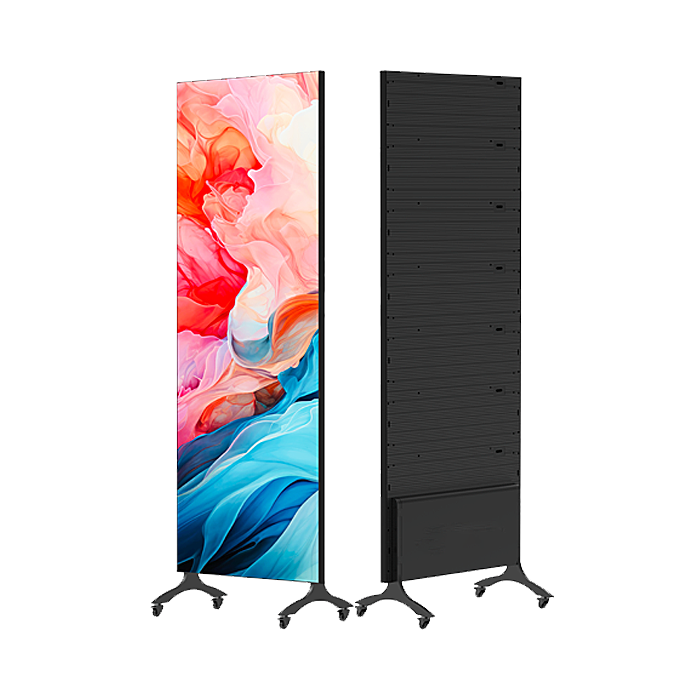

The single side LED poster – IH-T3 series provided by ReissDisplay can attract more attention and is very suitable for retail, theaters, trade exhibitions and other places. It is lightweight and portable, easy to install, and can present amazing interactive content. Whether you are a dealer, installer, designer or business owner, this display has what you need. Easily increase exposure and engagement. Contact us today to learn how this compelling solution is for you!
-Ultra Slim and Lightweight Design

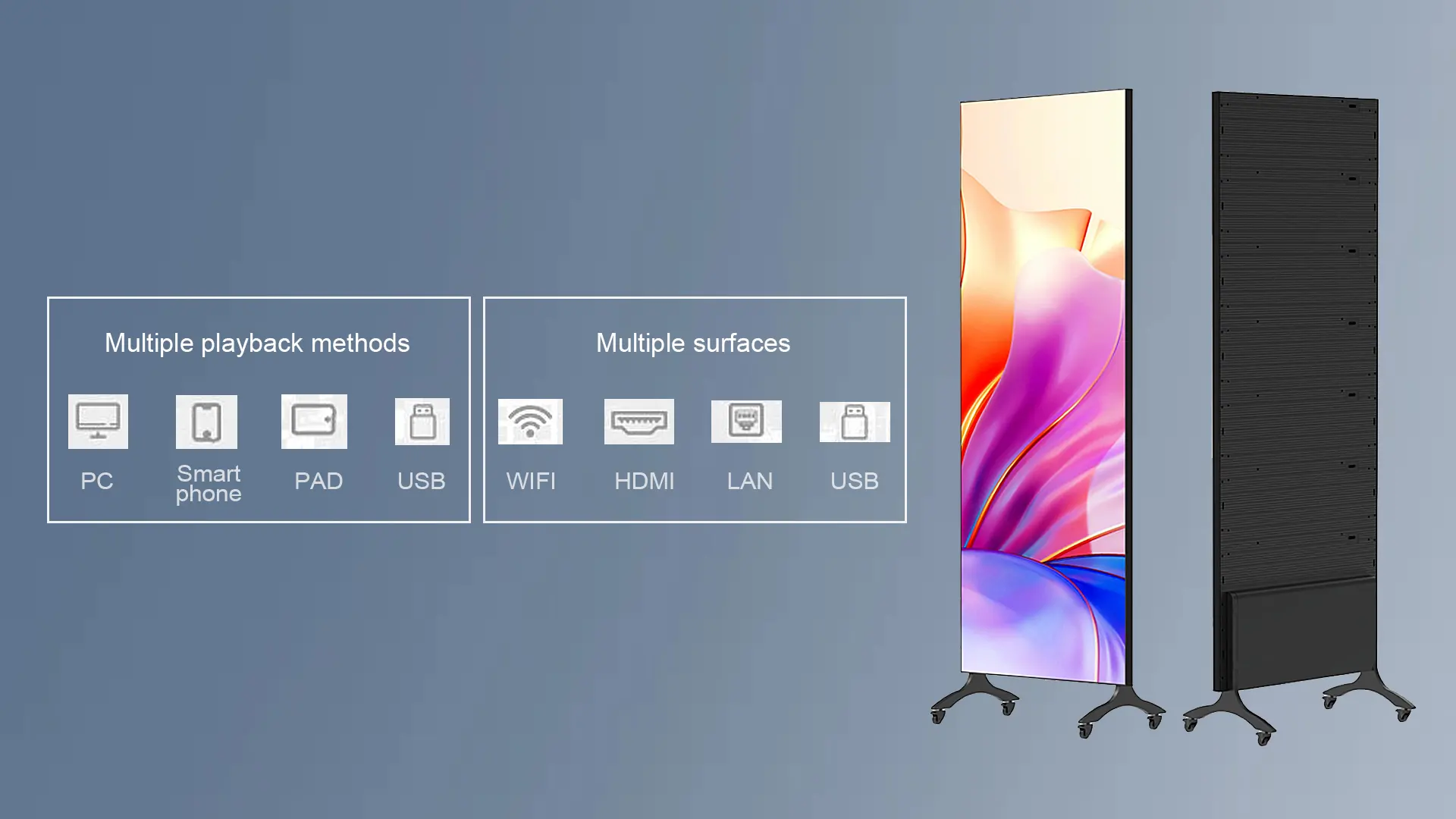

-Multiple Control Modes
-Intelligent Split Display Window
-Intelligent Cluster Management and Control
-Multi-screen Seamless Splicing
-Various Types of Installation
We provide the industry’s latest poster LED display to make your space more vivid and colorful. The poster LED display achieves a perfect balance between picture quality and cost-effectiveness, suitable for a variety of activities.

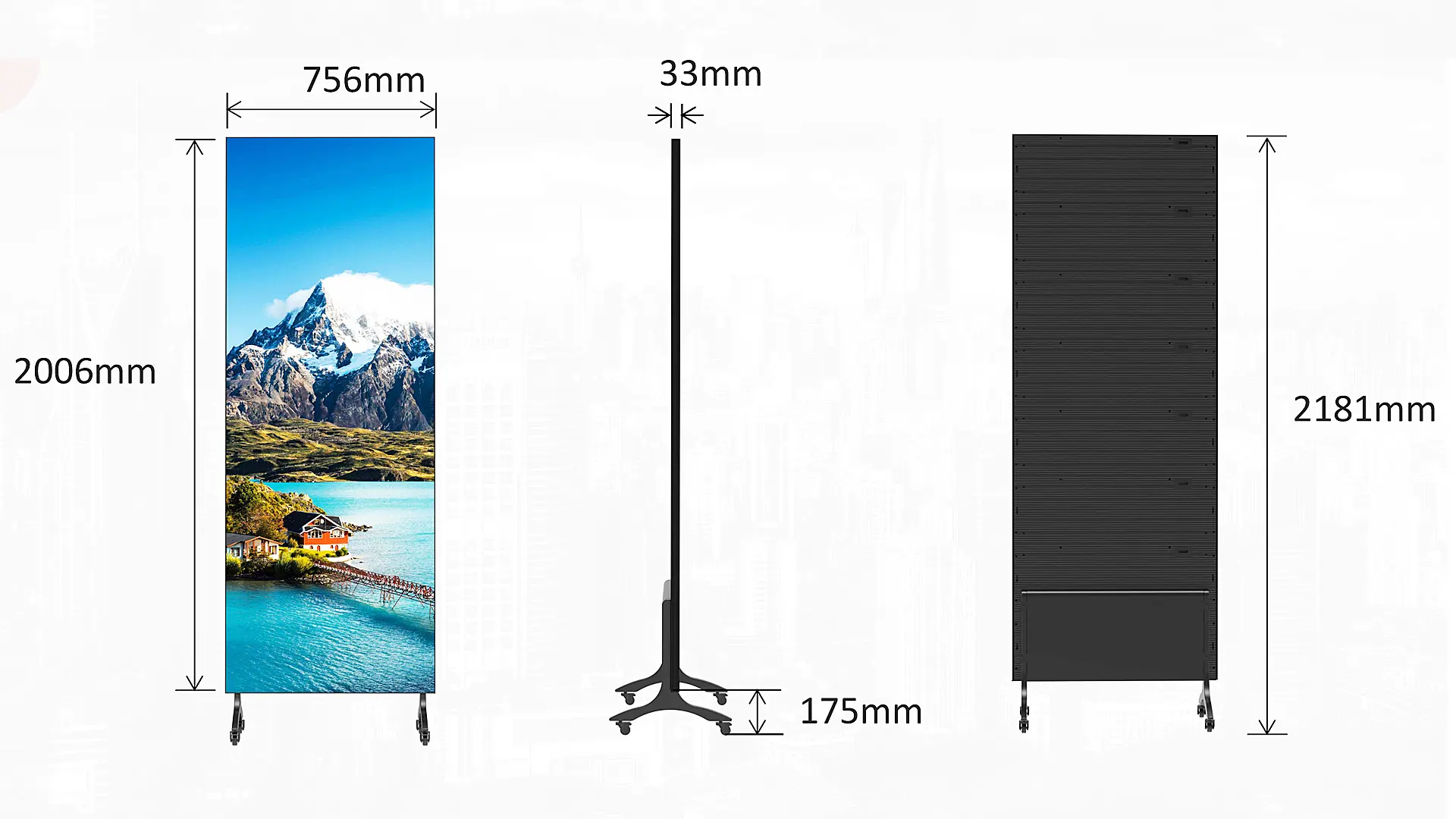

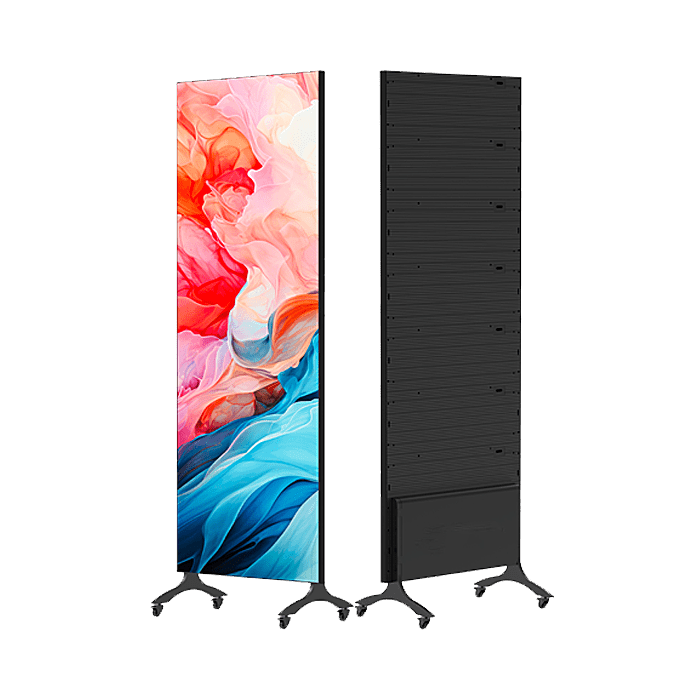

The IH-T3 series high-definition LED poster screen size is 756*2181 mm and the base height is 175 mm.
The box is fashionable and simple, the control method is simple and convenient, and the display effect is high-definition and delicate.

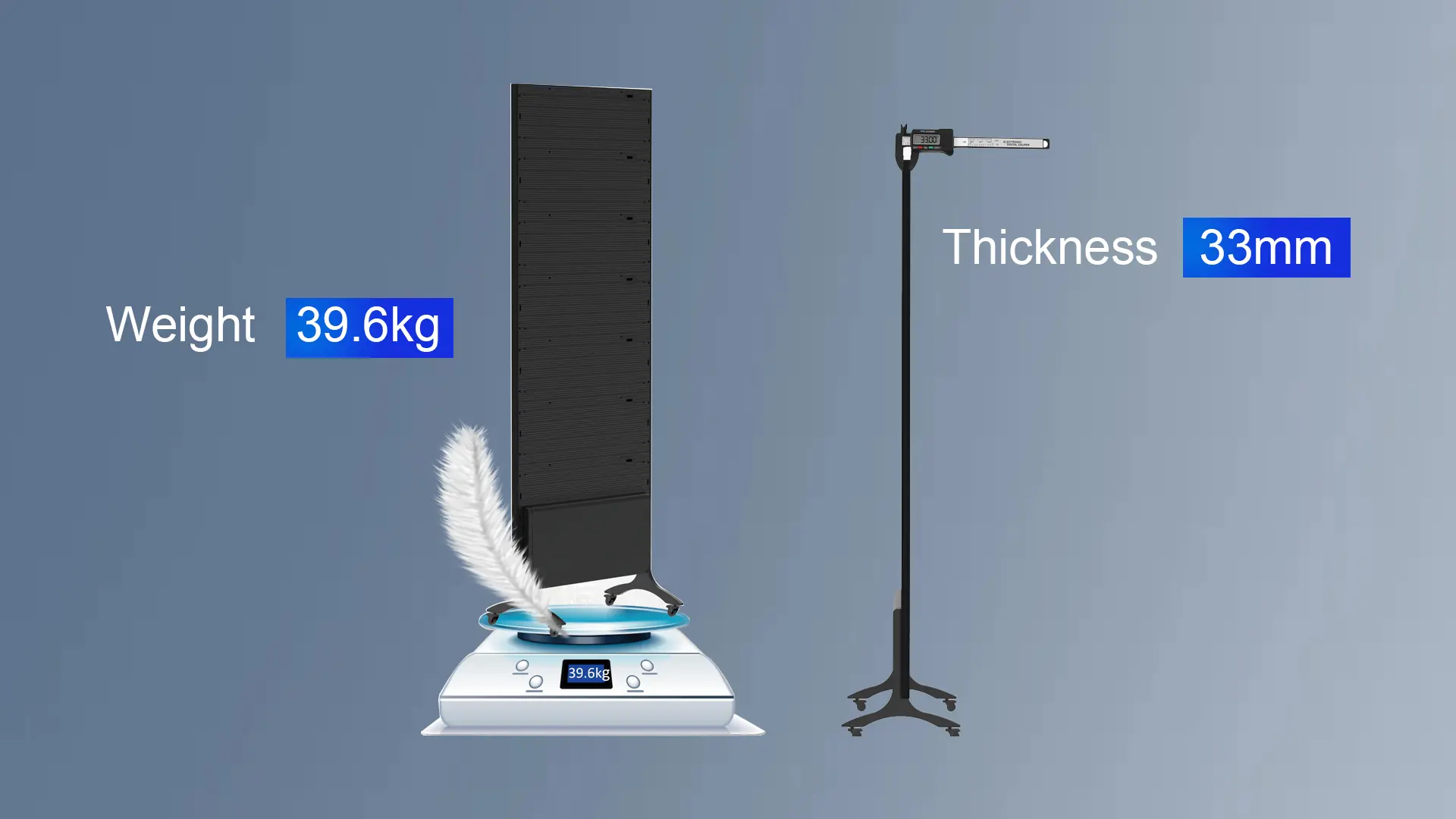

The IH-T3 series cabinet is only 39kg and 33mm thick, enhancing portability and installation flexibility while reducing energy consumption and simplifying maintenance.
High brightness, high grayscale, high refresh rate, no scanning line for taking photos, the display screen is more realistic and delicate, and the colors are more vivid and saturated.
√ Noise Reduction
√ Contrast Enhancement
√ Gamma Correction
√ Interpolation
√ Color Space Manipulation
√ Advanced Algorithms
Perfect performance from different viewing angle

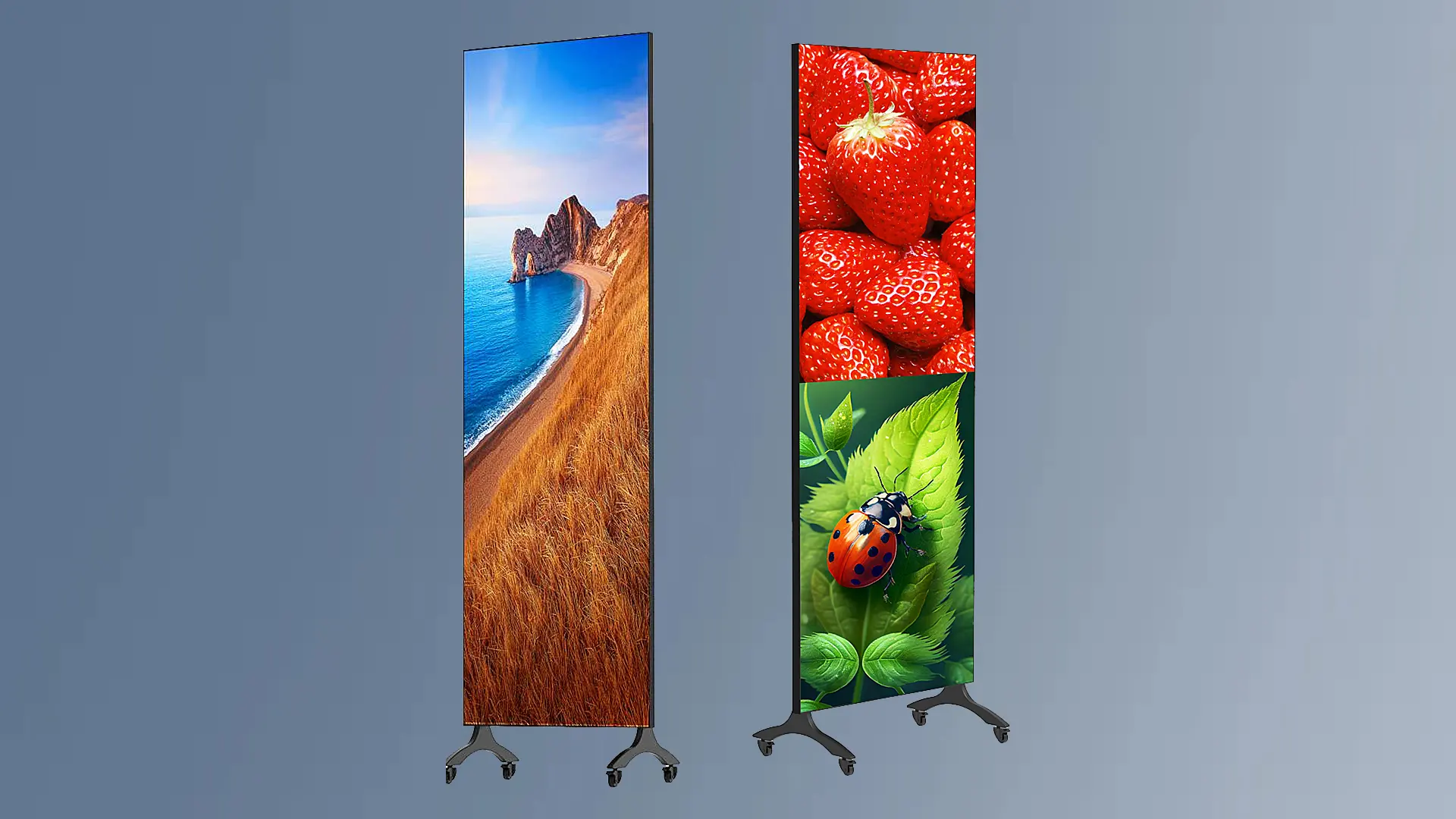

· Supports multiple split-screen options
· Enabling concurrent playback of both images and videos for a diverse
· Engaging display experience.
· Offers the flexibility to switch between synchronous and asynchronous playback modes

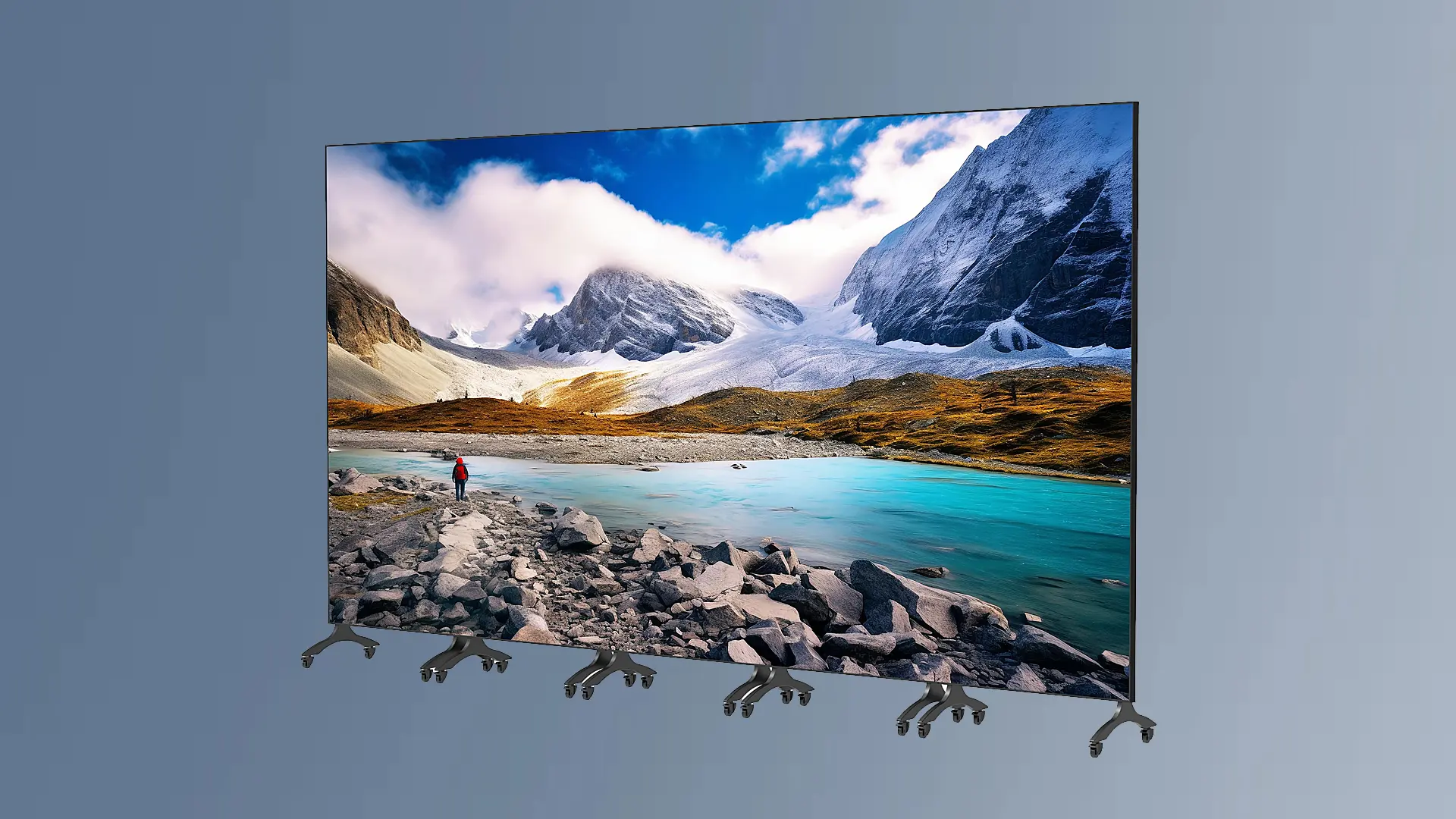

· Allows seamless display across multiple large screens
· Caters to a wide range of advertising and event needs.

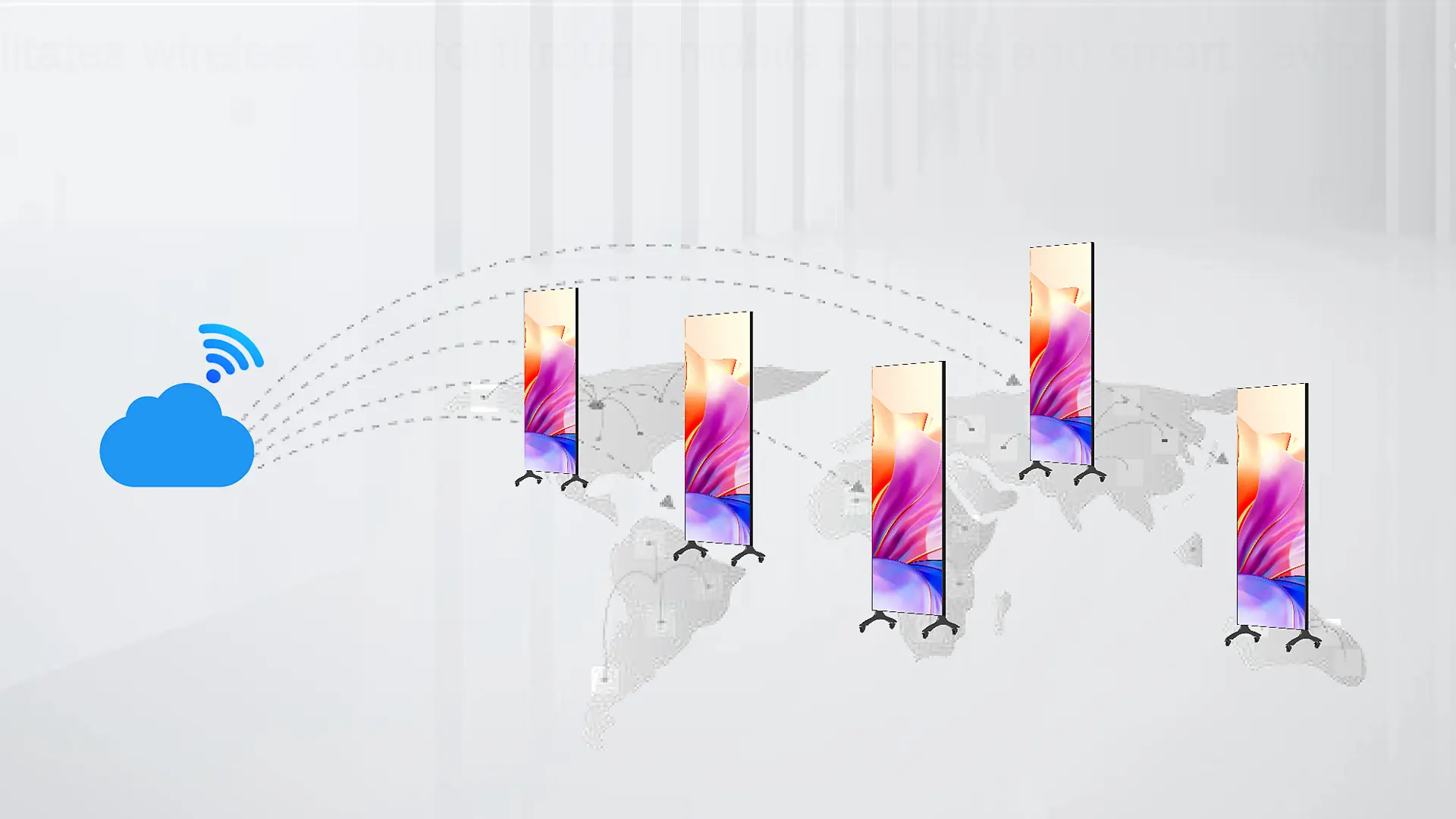

Enables remote intelligent monitoring, allows remote and scheduled screen operation, and facilitates wireless control through mobile phones and smart devices for seamless management anytime, anywhere.

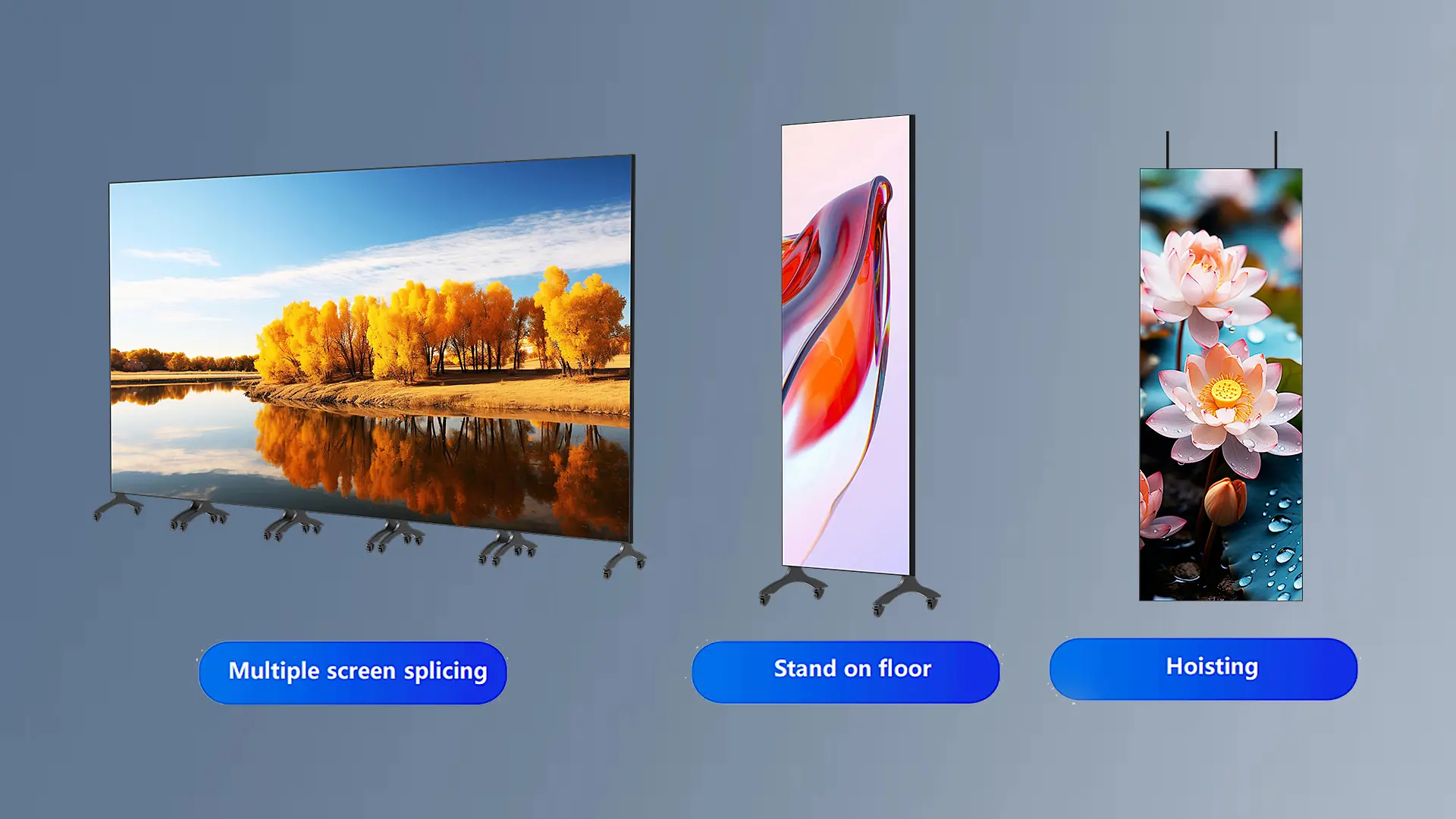

The IH-T3 series offers a variety of installation options, including multi-screen splicing, floor-standing and suspended installations, allowing it to adapt to a variety of environments and needs.

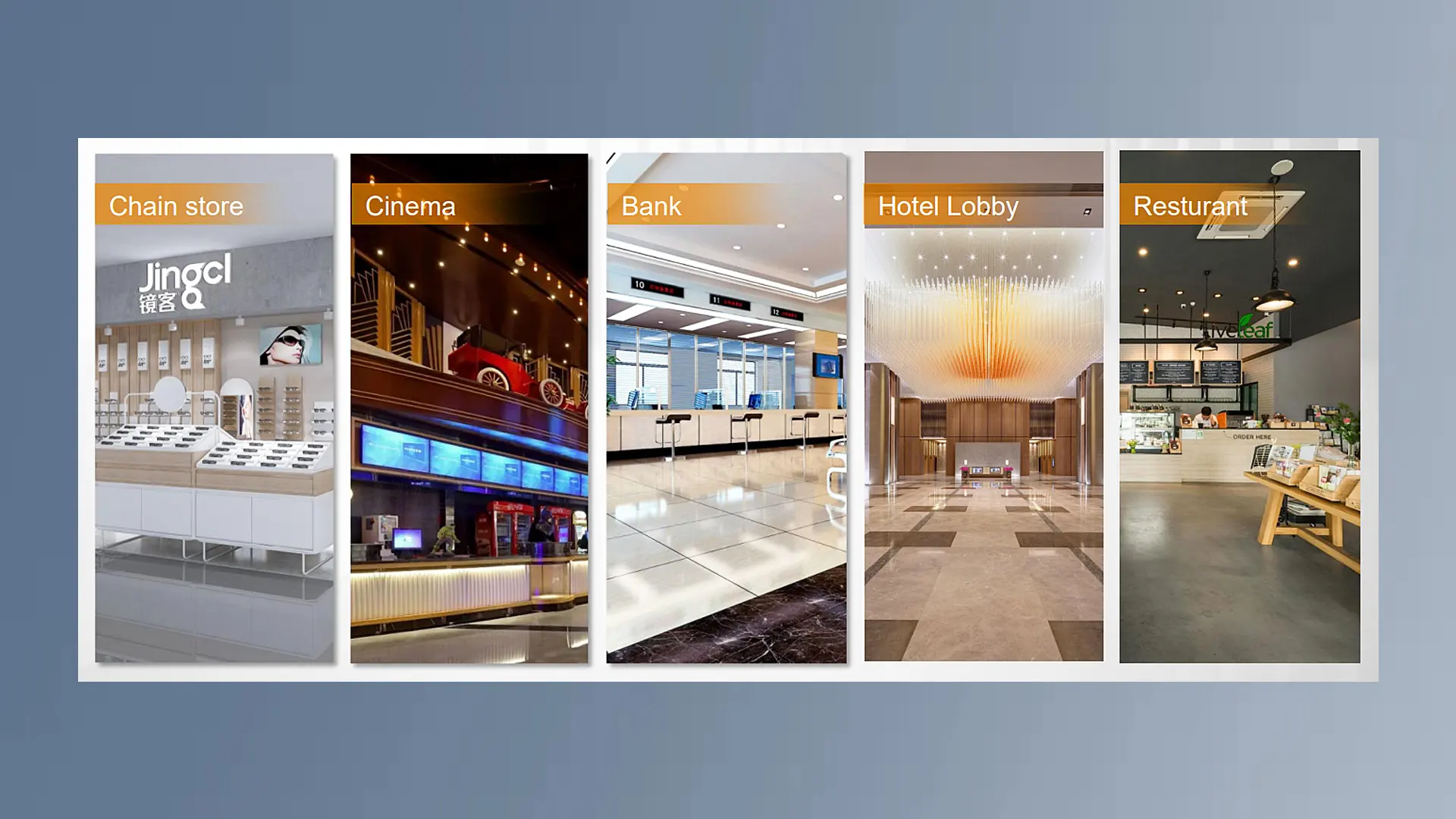

Ideal for shopping malls, transportation hubs, corporate offices, hotels, banks, and more, the IH-T3 digital LED posters provide dynamic displays for advertising and communication.
Application and Installation Videos
No videos available.
Specifications
| Pixel Pitch | P1.25 | P1.5625 | P1.95 | P2.5 |
| LED type | SMD1010(GOB) | SMD1212(GOB) | SMD1515 | SMD1515 |
| Physical Density(Dots/㎡) | 640000 | 409600 | 262144 | 160000 |
| Module resolution(dots) | 600X1600 | 480X1280 | 384X1024 | 300X800 |
| Module size(mm） | 250X250 | 250X250 | 250X250 | 250X250 |
| Display dimension(mm) | 750X2000X33 | 750X2000X33 | 750X2000X33 | 750X2000X33 |
| Weight(kg) | 39.6 | 39.6 | 39.6 | 39.6 |
| Maintenance mode | Front | Front | Front | Front |
| Materials | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | 600 | 600 | 800 | 800 |
| Color temp(K) | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |
| Viewing angle(V/H) | 170°/170° | 170°/170° | 170°/170° | 170°/170° |
| Brightness/color uniformity | ≥97% | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Frequency | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan mode | Constant,1/50Scan | Constant ,1/40scan | Constant，1/32scan | Constant,1/25scan |
| Gray scale(bit) | 14/16 optional | 14/16 optional | 14/16 optional | 14/16 optional |
| Refresh rate(Hz) | 3840 | 3840 | 3840 | 3840 |
| Max consumption(W/㎡) | 650 | 650 | 650 | 650 |
| Average consumption(W/㎡) | 100-200 | 100-200 | 100-200 | 100-200 |
| Power voltage range | AC90-264V,47-63Hz | |||
| Working temp/humidity(℃/RH) | -20~60℃/10%~85% | |||
| Stock temp/humidity(℃/RH) | -20~60℃/10%~85% | |||
| Ceitificates | CE/RoHS/EMC/ROHS/ISO9001 | |||
| Pixel Pitch | P2.604 | P2.976 | P3.91 |
| LED type | SMD1515 | SMD1515 | SMD1515 |
| Physical Density(Dots/㎡) | 147456 | 112896 | 65536 |
| Module resolution(dots) | 288X768 | 252X672 | 192X512 |
| Module size(mm） | 250X250 | 250X250 | 250X250 |
| Display dimension(mm) | 750X2000X33 | 750X2000X33 | 750X2000X33 |
| Weight(kg) | 39.6 | 39.6 | 39.6 |
| Maintenance mode | Front | Front | Front |
| Materials | Aluminum | Aluminum | Aluminum |
| Brightness(Nits) | 800 | 800 | 1000 |
| Color temp(K) | 5000-12000 Optional | 5000-12000 Optional | 5000-12000 Optional |
| Viewing angle(V/H) | 170°/170° | 170°/170° | 170°/170° |
| Brightness/color uniformity | ≥97% | ≥97% | ≥97% |
| Contrast ratio | 10000 : 1 | 10000 : 1 | 10000 : 1 |
| Frame Frequency | 50/60 | 50/60 | 50/60 |
| Scan mode | Constant，1/32scan | Constant，1/28scan | Constant，1/16scan |
| Gray scale(bit) | 14/16 optional | 14/16 optional | 14/16 optional |
| Refresh rate(Hz) | 3840 | 3840 | 3840 |
| Max consumption(W/㎡) | 650 | 650 | 650 |
| Average consumption(W/㎡) | 100-200 | 100-200 | 100-200 |
| Power voltage range | AC90-264V,47-63Hz | ||
| Working temp/humidity(℃/RH) | -20~60℃/10%~85% | ||
| Stock temp/humidity(℃/RH) | -20~60℃/10%~85% | ||
| Ceitificates | CE/RoHS/EMC/ROHS/ISO9001 | ||
* All images and content in this page are for illustrative purposes only.
