Stage LED Display

J Series

    REISSDISPLAY Stage LED Screen is suitable for every large – scale event Stage background led screen. Bring different visual effects to the event venue.


1. Die-casting aluminum , low temp-rise

2.Hard Connection, HUB card design, Without Any Cables

3. Magnetic front service or Back service with screw

4.High-efficiency cooling, No fan ,mute design, noise-free.

5. High refresh rate , low light high gray

6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm

7. Lightweight – weighs only 7kg, single person can be a single portable, and extremely easy to install;

8. Compatible – the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements;

Pixel Pitch:

RS260, RS297, RS391, RS481

J Series - Rental Stage led Panels

RS Stage background LED Wall Panels that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on – site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

IR is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Indoor and Outdoor LED displays used high quality material, the gray scale is up to 14-16bits, refresh rate  > 3840Hz and excellent white balance.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials pass strict high and low temperature.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

%name 500J Description

RS Series LED Dipalys                    Ordinary LED displays

High refresh

%name 500J Description

RS Series LED Dipalys                    Ordinary LED displays

High contrast

%name 500J Description

RS Series LED Dipalys                    Ordinary LED displays

%name 500J Description

Outdoor / Indoor Strong Cabinet, High Quality PCB

     The cabinet material is aluminum, which is stronger than regular steel material. Meanwhile, the cabinet is lighter than the steel cabinet, so installation and transportation are easier. Moreover, we have utilized the high quality PCB in the LED modules. Therefore, the LED screen works more stably than similar outdoor rental products from other factories. There are two choices for the cabinet: 500 x 500mm and 500 x 1000mm.

Perfect Cabinet Design With Each Part

Reissdisplay 500J Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

Display panel, wider viewing angle, covering more eyeballs

    Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Both 160° from horizontal & vertical for the viewing angle.
    Seeing from five directions, it would be still the natural and clear image in an LED display.

Outdoor IP65 - Safe and Reliable

Outdoor LED display supports Ip65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

Corner Protector for LED

REISSDISPLAY front service LED sign has four corner protectors in each corner to prevent LED to be damaged,
more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

Ultra lighweight, Slim design

     500*500mm / 500*1000mm standard cabinet size, Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm. For easy transport and Portable;

Slim and light weight,quick disassembly.
Weight: 7.5Kg/13Kg cabinet,one person can carry,saving time and effort.
High degree of protection,high durability.
Common good,flexible and easy to use.

Free Splicing

REISSDISPLAY 500J series and 1000J series can be installed together up and down, left and right.

Dual Service Design

Independent power box easy to set up and maintenance

Cabinet front service,it’s easy to take out the module and maintenance

Outdoor LED Display 960X960mm Series Die-cast Aluminum Panel

High Precision Curve Lock

High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.

Curve Cabinet

Seamless splicing good heat dissipation

Straight Cabinet

Rental screen installation method

Hanging and Stacking Avaiable : can meet the different demands of movable occasions with hanging bar or back brackets

%name 500J Description

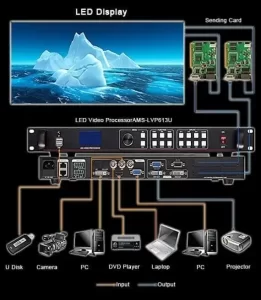

LED displays input media function

1. DVI interface

LED Processor DVI interface and digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is HD Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Multiple Application

LED display rental, rental led screen, rental led wall, hire led screen, rental video wall, rental led video wall, rental mobile led screen, stages led wall, church led wall etc

Product Parameter Description
Product Name500J / 1000J Outdoor / INDOOR Rental LED Screen
Product No.P2.604P2.976P3.91P4.81
LED LampSMD1515SMD2121SMD2121SMD2121
Chip ColorRGB (Full Color)RGB (Full Color)RGB (Full Color)RGB (Full Color)
Pixel Density147456 Pixels/m²112896 Pixels/m²65536 Pixels/m²43264 Pixels/m²
Module Resolution96*96 Pixel84*84 Pixel64*64 Pixel52*52 Pixel
Module Size250*250mm250*250mm250*250mm250*250mm
Module Weight0.35Kg0.35Kg0.35Kg0.35Kg
Cabinet Size500*500mm /500*1000mm
Cabinet Resolution192*192 Pixel / 192*384 Pixel168*168 Pixel / 168*336 Pixel128*128 Pixel / 128*256 Pixel104*104 Pixel / 104*208 Pixel
Refresh Rate1920Hz / 3840Hz1920Hz / 3840Hz1920Hz / 3840Hz1920Hz / 3840Hz
Cabinet Weight7.5Kg / 13Kg
Maintenance ModeFront / Back service
Cabinet MaterialDie-casting aluminum
Power InputAC110-240V, 50-60Hz
Cabinet InstallationGirder Hoisting / Ground stacking installation
Brightness800-5500 nits
Cabinet Handle ColorBlack, Green, Red Handle
Optimum Viewing Distance2.6m3m4m5m
