Outdoor Fixed Installation LED Display Screen

480*320mm LED Module

    Reissdisplay IP66 outdoor LED display is new genration of outdoor fix installation LED display.
High Protection Chassis Panel Design, Energy Saving LED Display, Standard size cabinet with 960*960mm dimension,
480mm*320mm module size. Ultra low heat and power consumption, saving and excellent visual experience.

Pixel Pitch:



OF25, OF30, OF40, OF50, OF60, OF60, OF80, OF100

EV960 Series

    Outdoor Advertising Led Displays is excellent seamless effect.

    EV960 series includes all the necessary functions to maximize the stability and reliability of the fixed Outdoor LED Advertising Screen.

Visual Performance

     High refresh rate: 3840Hz refresh rate for high dynamic range pictures. Eliminate scan lines and flicker on the display when the LED wall Panel is capturing the Led display.



    High Brightness: The brightness of the Advertising Led Screen can be up to 5500 – 10000nits. Even the screen is facing direct sunlight, the image still looks clear.

Installation Methods:

    Outdoor front service and post service advertising LED screens are fixed on the wall, column, vertical, etc. The system hardware includes sending card sending box, processor, receiving card, etc.

Convenient Maintenance

    Available to operate the module and power box separately

Low gray

%name 480*320mm outdoor fixed installation led display

OF Series LED               Ordinary LED

High refresh

%name 480*320mm outdoor fixed installation led display

OF Series LED               Ordinary LED

High contrast

%name 480*320mm outdoor fixed installation led display

OF Series LED               Ordinary LED

%name 480*320mm outdoor fixed installation led display

Aluminum Chassis Panel

EV960 energy saving LED display adopts Aluminum Chasis design for panel.
Aluminum chasis adopt edge lock without screwing design. full sealed design, to protect its internal components.

480*320mm LED Module

Unique panel design with Standard size cabinet with 960*960mm dimension, 480mm*320mm module size, Ultra thin thckness with 80mm design
Weight: 6.3KG/㎡
module model:P2.5, P3, P4, P5, P6, P8, P10

%name 480*320mm outdoor fixed installation led display

Outdoor Semi-waterproof cabinet

%name 480*320mm outdoor fixed installation led display

Full waterproof cabinet

Die-cast aluminum cabinet

Dual Service with Frontal and Real Maintenance

Modules and door panels can be maintained front and rear design to save you Maintenance Cost.
The LED panel can be assemble and disassemble easily and quickly.

Energy conservation

1) Maximum power consumption: 550W/sqm. The maximum power consumption of other products in the market is 800 w/sam, while that of our products is only 550 w/sqm. The dual power supply design saves half power consumption, which is superior to the traditional use.

2) Two brightness options: 6000nits and 10000nits. 6000nits brightness: the product can work properly for more than 5 years with a 2-year warranty

10000nits brightness:the screen can work properly for more than 8 years with a 5-year warranty.

Elegant Design

  Aviation plua connection, saving time and effort, 20s quick installation and removal

Energy Saving LED Display

The common cathode aluminum screen adopts the scheme of separating the lamp beads of R, G and B colors, and supplies power to them separately, which effectively reduces the power consumption and generates less heat. With the aluminum bottom shell with high heat dissipation, the heat is naturally low. , under the condition of ensuring high brightness and high contrast, the maximum energy saving is limited to 75%

Installation Methods:

    Basically, there are three ways to do it, depending on how it will be used. It can either be installed by hanging, wall mount, or standing on the floor.If you need a different installation method, don’t worry, we can provide you with a solution.

%name 480*320mm outdoor fixed installation led display

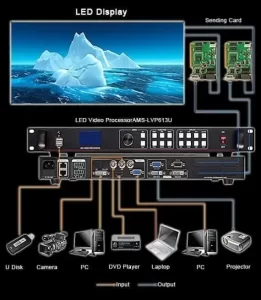

LED Screens input media function

1. DVI interface

The DVI interface is namely digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is HD Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Application Fields

Full – color LED displays are mainly used for outdoor advertising. Has been sold all over the world,Including Australia, Qatar, Saudi Arabia, Thailand, etc. These countries have strong sunlight or high humidity.This product is usually used for: shopping mall advertisement; pedestrian street; bank; shopping center;

Pixel pitch (mm): 2.5
Cabinet pixel points: 384*384 pixels
Module size: 480 x 320 mm
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight ( kg ): 6.3KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥4500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 650W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 3
Cabinet pixel points: 320 x 320 pixels
Module size: :480 x 320 mm
Cabinet size: 960 x 960 mm
material: Die -casting aluminum cabinet
weight ( kg ): 6.3KG
Contrast: 3000:1
Refresh frequency (Hz): ≥3840HZ
Brightness (cd/㎡): >4500
Horizontal viewing angle (°): >140
Vertical viewing angle (°) :>140
AC input power (W/square meter): 550W
Protection grade: IP65
Certifications: CE/EMS/ROHS/FCC/ULC

Pixel pitch (mm): 4
Cabinet pixel points: 240*240 pixels
Module size: :480*320mm
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight (kg): 6.3KG
Contrast: 3000:1
Refresh frequency (Hz): ≥3840HZ
Brightness (cd/㎡): >6000
Horizontal viewing angle (°): >140
Vertical viewing angle (°) :>140
AC input power (W/square meter): 450W
Protection grade: IP65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 5
Cabinet pixel points: 192*192 pixels
Module size: :480*320mm
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight (kg): 6.3KG
Contrast: 3000:1
Refresh frequency (Hz): ≥3840HZ
Brightness (cd/㎡): >6500
Horizontal viewing angle (°): >140
Vertical viewing angle (°) :>140
AC input power (W/square meter): 100W
Protection grade: IP66
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm):6
Cabinet pixel points: 160*160 pixels
Module size: 480*320mm
Cabinet size:960*960mm
material: Die -casting aluminum cabinet
weight ( kg ):6.3 KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 8
Cabinet pixel points: 120*120 pixels
Module size: 480*320mm
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight ( kg ): 6.3KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 450W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 8
Cabinet pixel points: 120*120 pixels
Module size: 480*320
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight ( kg ): 6.3KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip67
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 10
Cabinet pixel points: 96*96 pixels
Module size: 480*320mm
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight ( kg ): 6.3KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 450W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL

Pixel pitch (mm): 10
Cabinet pixel points: 96*96 pixels
Module size: 480*320mm
Cabinet size: 960*960mm
material: Die -casting aluminum cabinet
weight ( kg ): 6.3KG
Contrast 3000:1
Refresh frequency (Hz) ≥3840HZ
Brightness (cd/㎡): ≥6500CD/㎡
Horizontal viewing angle (°): >140
Vertical viewing angle (°): >140
AC input power (W/square meter): 550W
Protection level: Ip65
Certifications: CE/EMS/ROHS/FCC/UL
