Kinetic LED Matrix Wave Screen

FR-KM Series

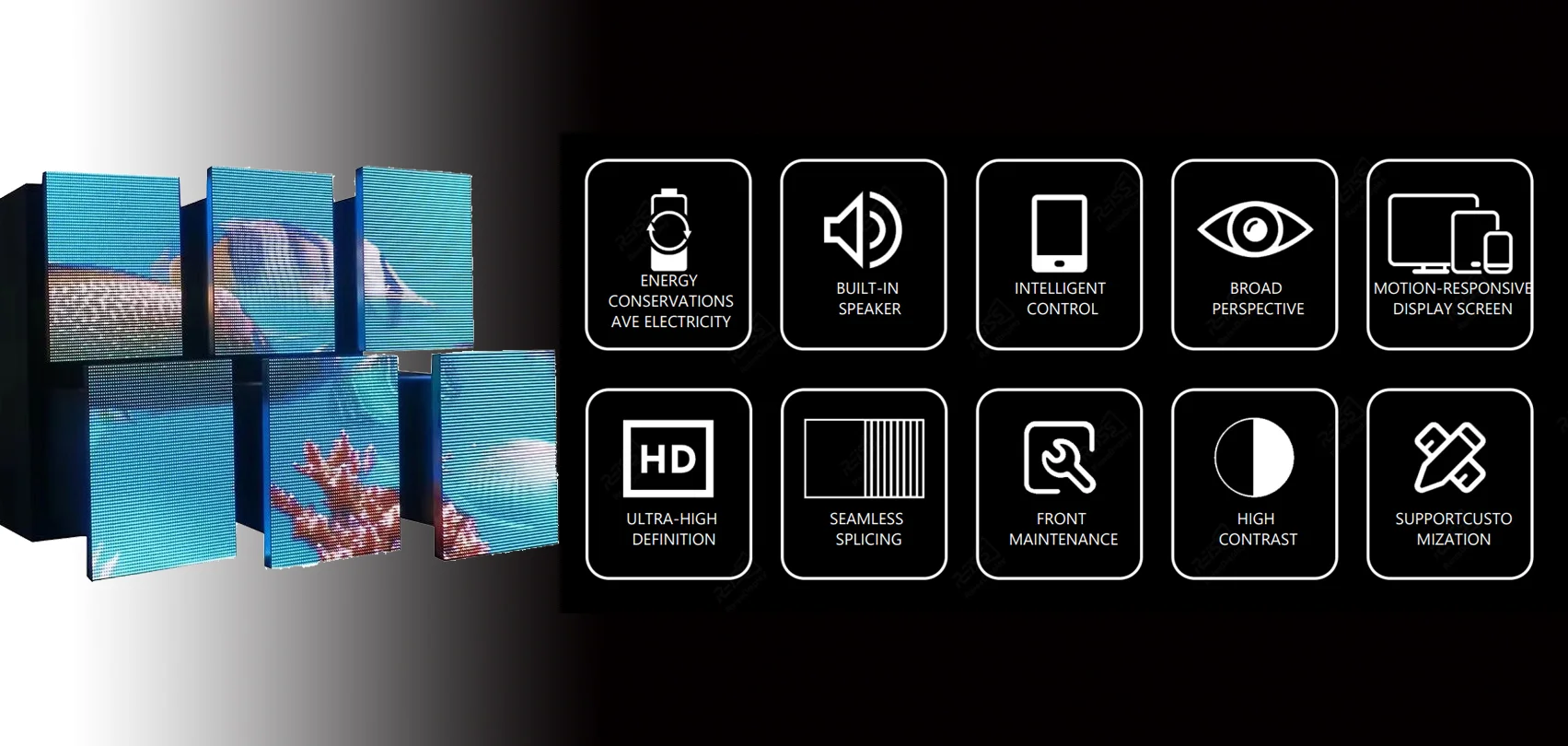

Mechanical kinetic LED matrix wave screen features modules that move independently, creating dynamic, interactive visuals. This innovative design allows the display to form waves, shapes, and other moving patterns. Fully customizable in size, it’s ideal for art installations, exhibitions, and events.

FR-KM series is a creative product REISSDISPLAY put to market that with high precision motors, catch more attentions from the audience and maximize your ROI.

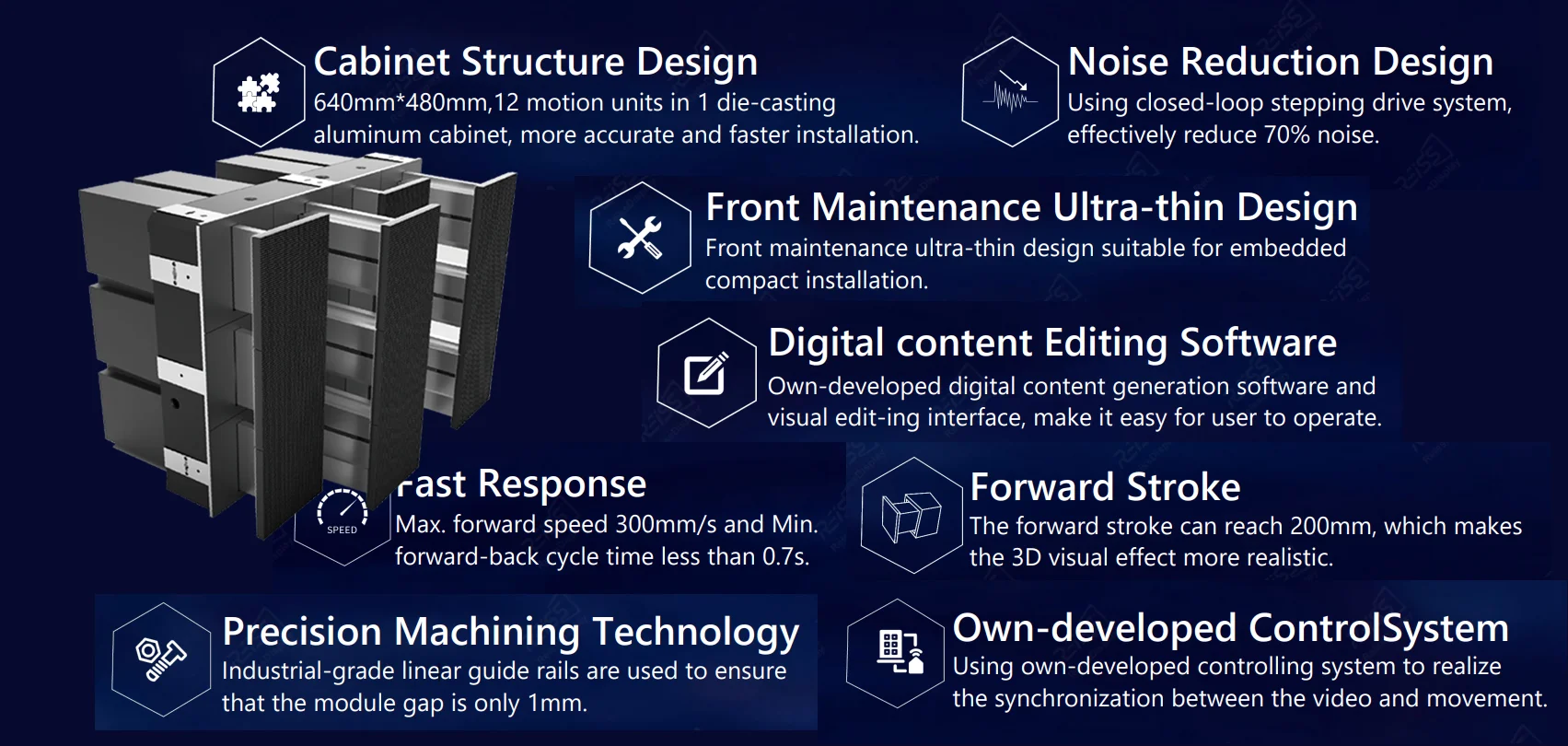

Main Features

Explore more about mechanical kinetic LED matrix wave screen

- Noise Reduction Design

- Modular Design

- Easy Maintenance

- Seamless Screen

- Foward Stroke

Quick Request
Appointment customization
Kinetic LED Matrix Wave Screen

Your current location:

The kinetic LED matrix wave screen enhances the viewing experience by adding dynamic motion to the content, providing a three-dimensional and lifelike interactive experience.

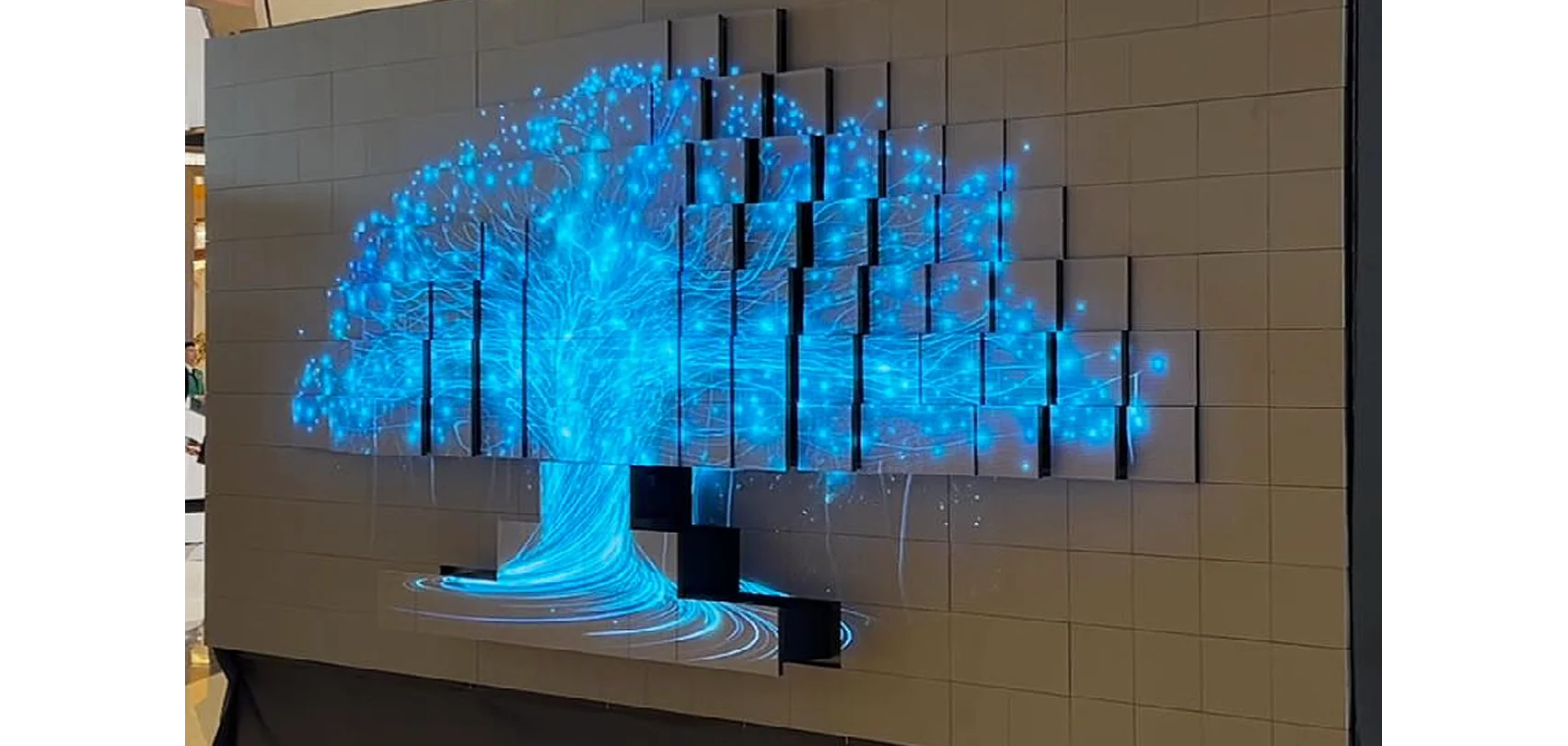

A Standalone Art Installation

The kinetic LED matrix wave screen, blending movement, content, and sound, is a true work of art. Whether in lobbies, museums, airports, or large shopping malls, it captivates audiences with its immersive experience, perfectly combining technology and art.

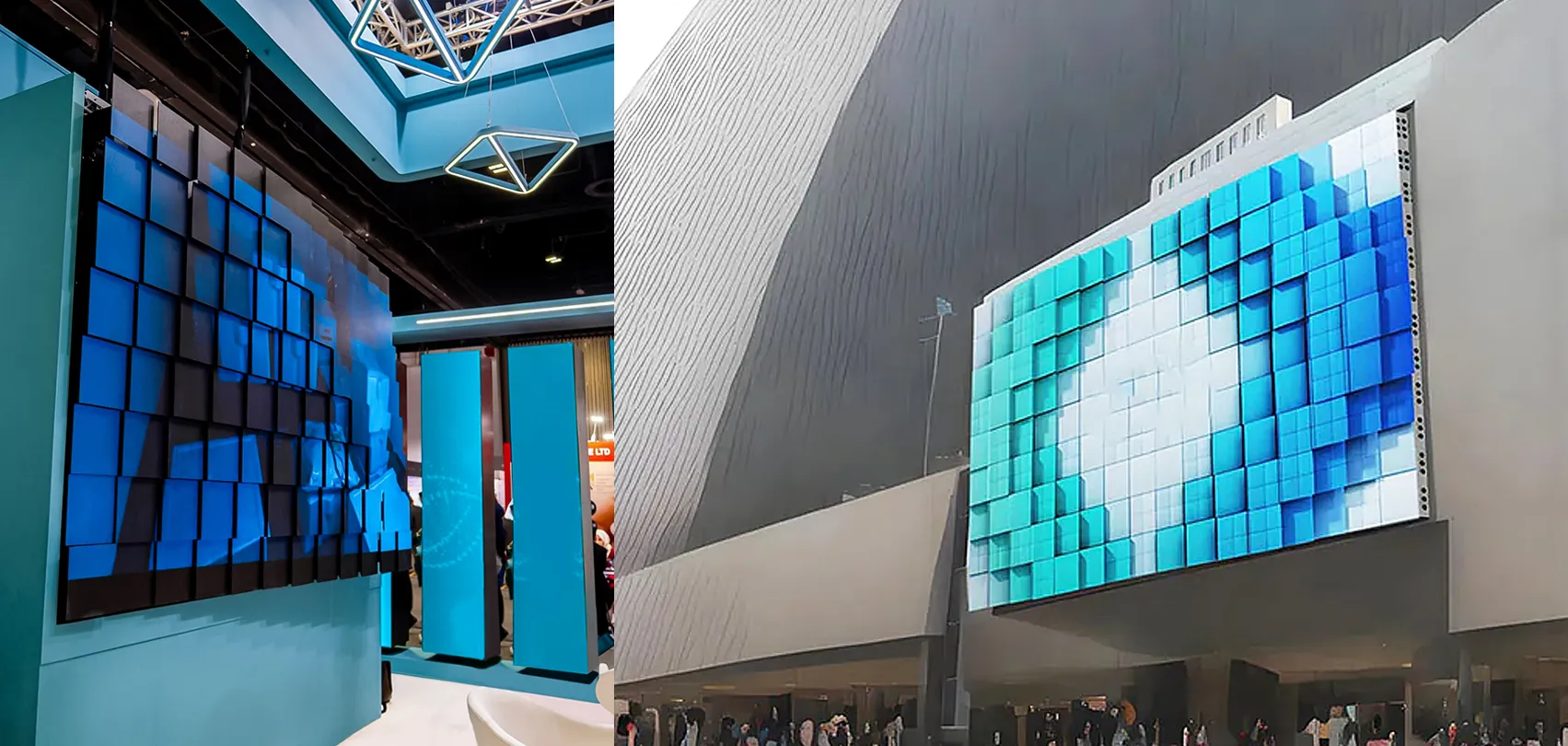

A New Form of Advertising

Dynamic LED media art surpasses the performance limits of traditional digital displays, presenting visual effects previously unimaginable. With this eye-catching presentation, space owners can create premium 3D advertising spaces, maximizing advertising revenue. The dynamic screen provides a unique platform for dynamic advertising.

Kinetic LED Matrix Wave Screen

Mechanical Kinetic LED Matrix Wave Screen, Dynamic, Customizable Digital Display Solution

The FR-KM Series advanced custom kinetic LED matrix wave screen system comprises hundreds of modular LED units, capable of controlling up to 5,000 individual display elements. Each unit is equipped with an independent sliding mechanism, allowing it to move back and forth precisely in sync with the video content, creating dynamic 3D visual effects. This system provides users with unparalleled creative freedom, enabling them to design and present breathtaking, highly immersive visual displays, while offering limitless artistic possibilities.

3D Dynamic Screen, Die-Cast Aluminum Housing Design

Quick-install and remove die-cast aluminum housing, suitable for exhibitions, events, and rentals.

Kinetic LED Matrix Wave Screen
Kinetic LED Matrix Wave Screen

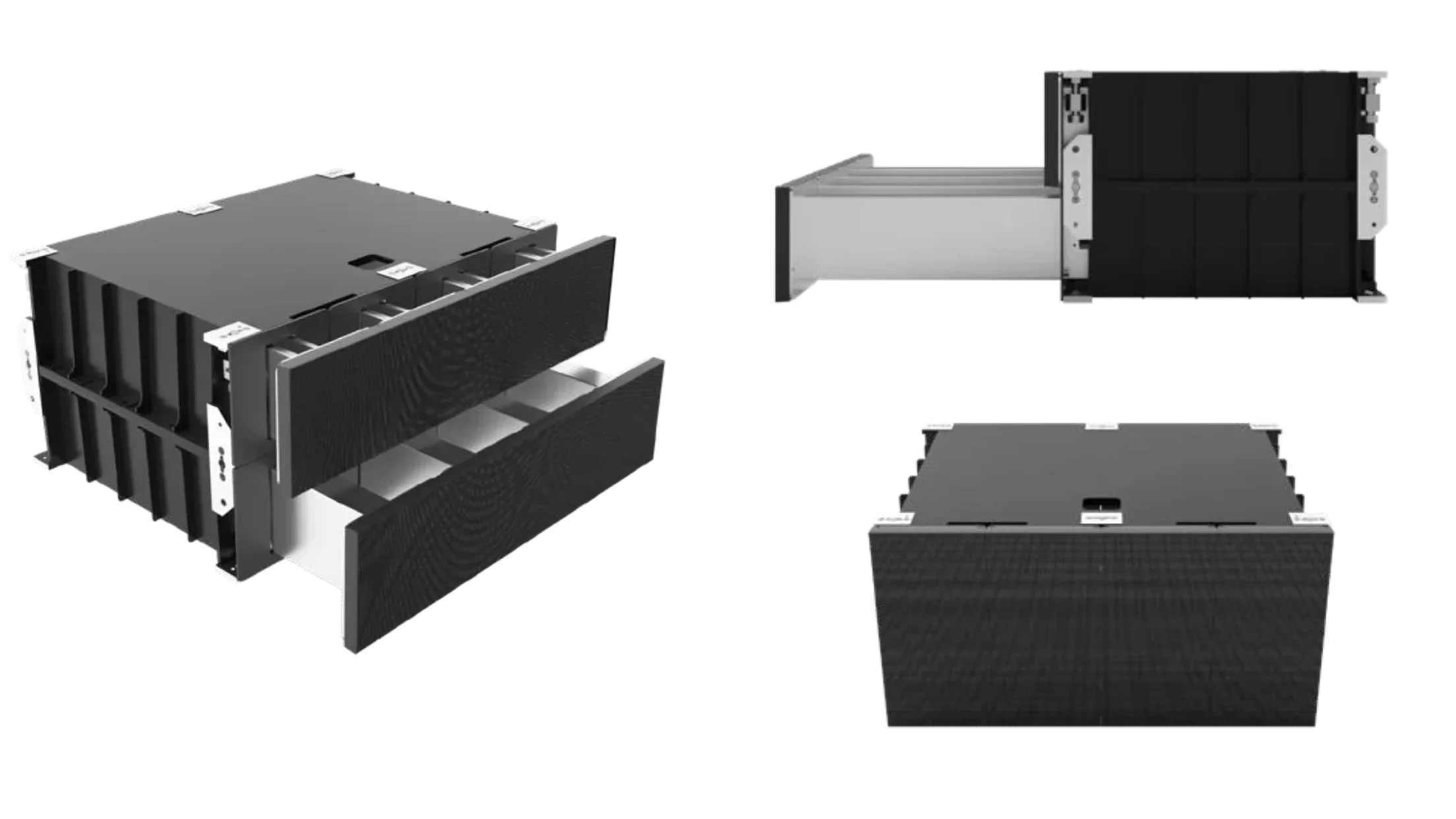

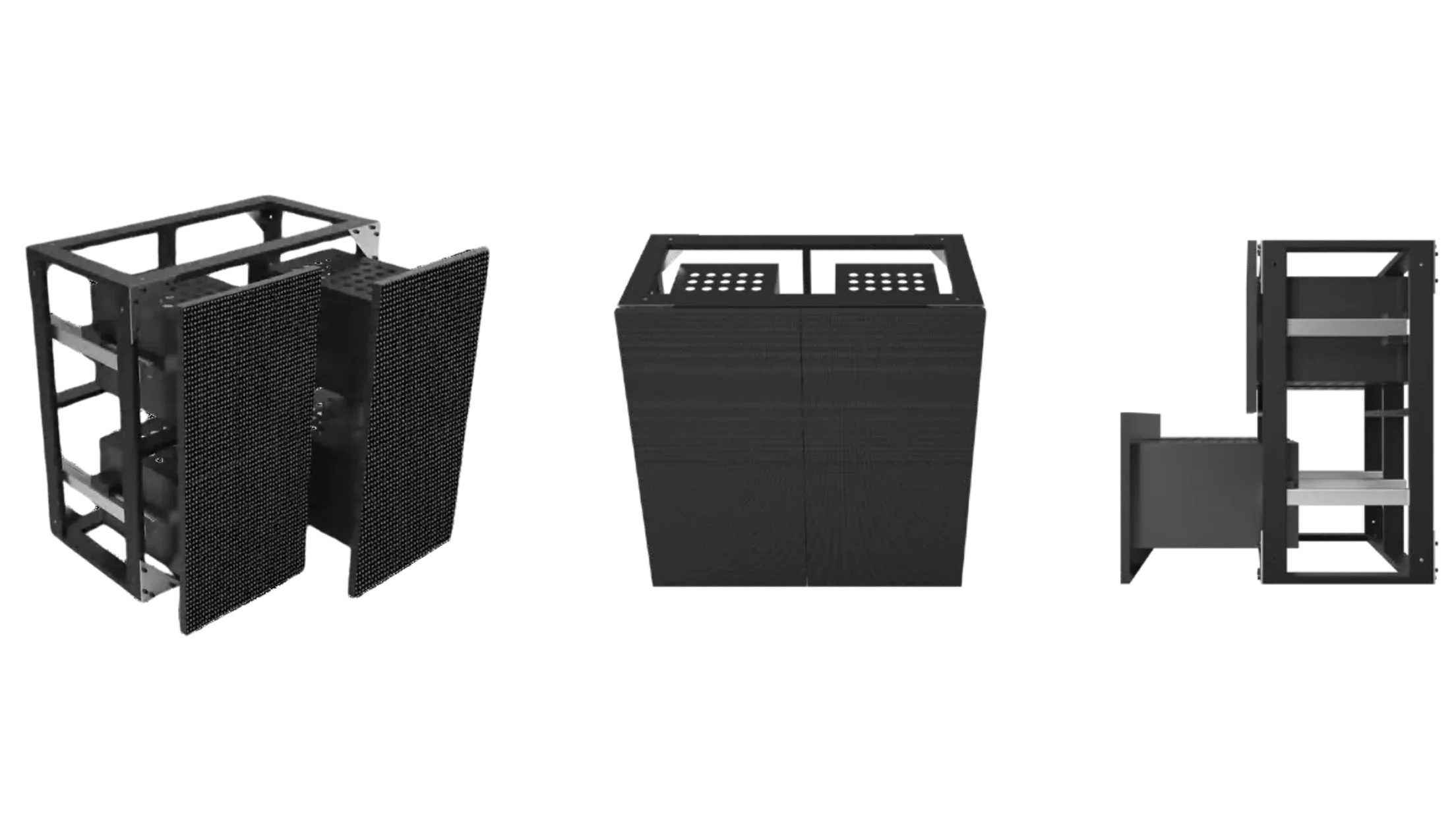

Indoor Iron Cabinet

High-precision machining technology

High-quality industrial-grade linear guides maintain a precise 0.5mm module clearance.

Extended forward motion

300mm of forward travel enables our system to produce a more immersive and realistic 3D visual experience.

Die-Cut Aluminum Sheet (Suitable for Rental)

High-Precision Machining Technology

High-quality industrial-grade linear guides maintain a precise 1mm module clearance.

Extended Forward Motion

200mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.

Kinetic LED Matrix Wave Screen
Kinetic LED Matrix Wave Screen

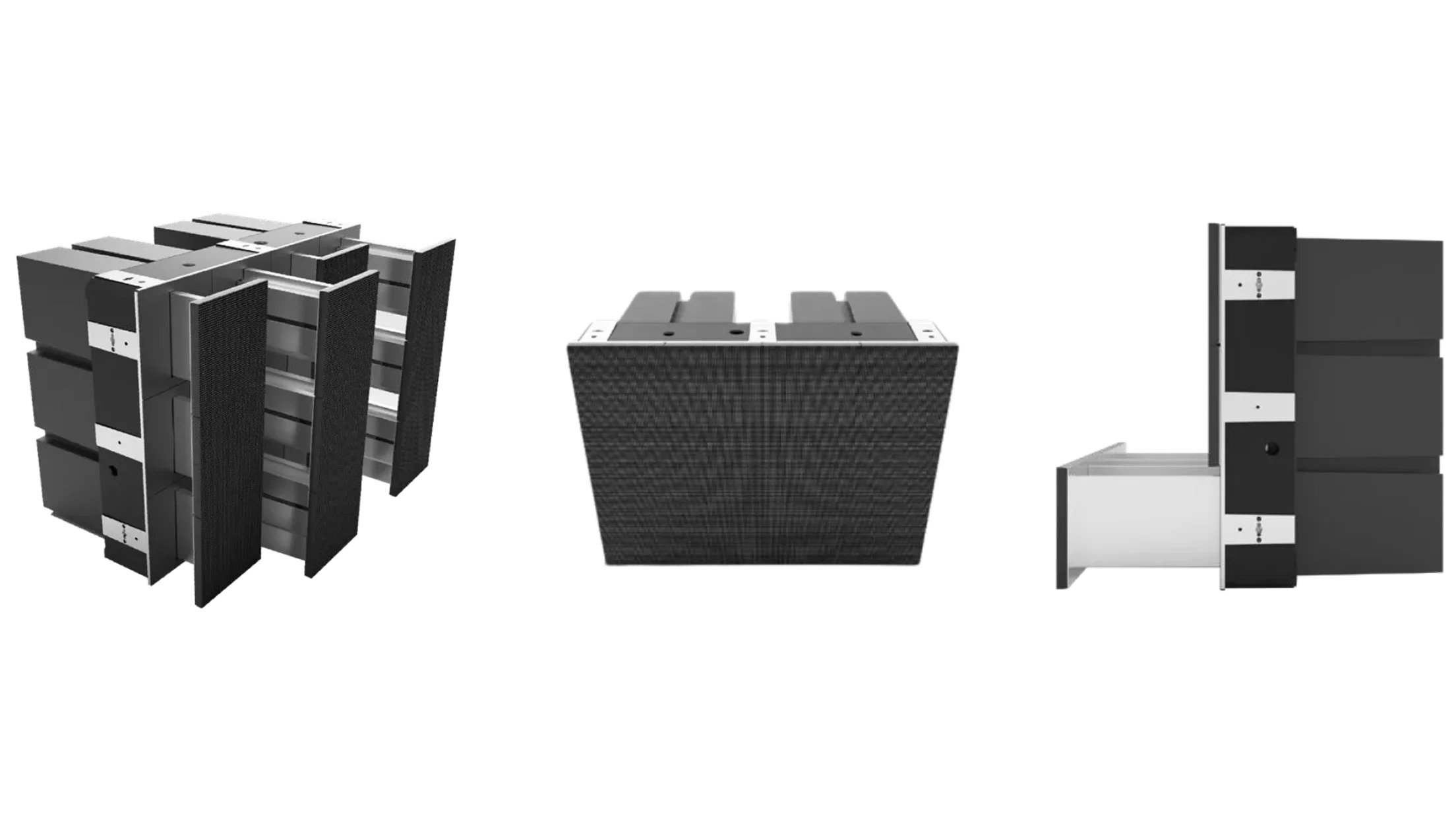

Structural Cabinet (Indoor)

High-Precision Machining Technology

300mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.

Extended Forward Motion

300mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.

Structural Cabinet (Outdoor)

High-Precision Machining Technology

High-quality industrial-grade linear guides maintain a precise 5mm module clearance.

Extended Forward Motion

A 600mm forward stroke enables our system to produce a more immersive and realistic 3D visual experience.

Kinetic LED Matrix Wave Screen
Kinetic LED Matrix Wave Screen

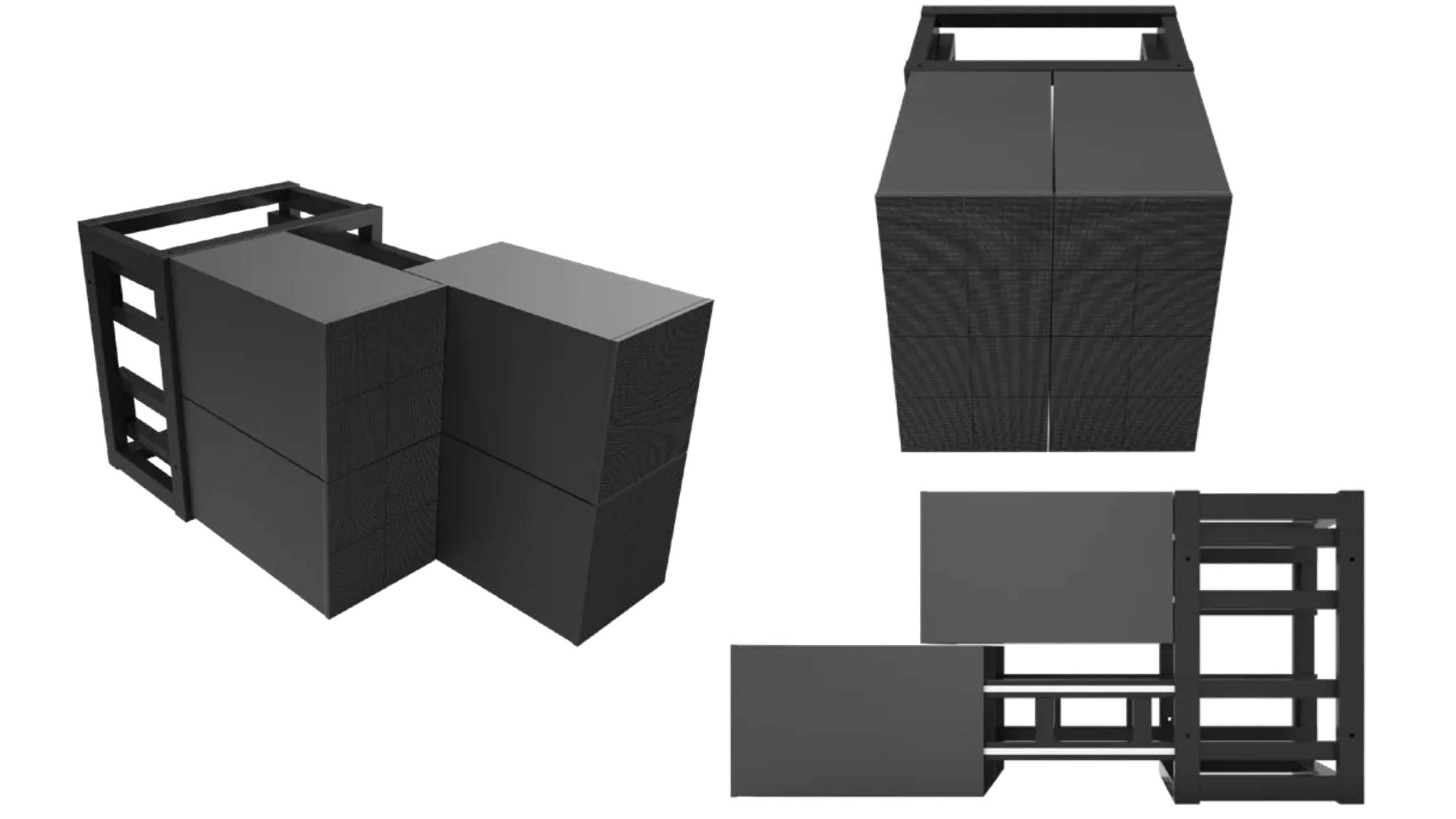

Cabinet Movement

Each cabinet can slide forward and backward sequentially according to the video content. Any creative design can be perfectly presented through the dynamic LED matrix screen, delivering a superior 3D visual effect.

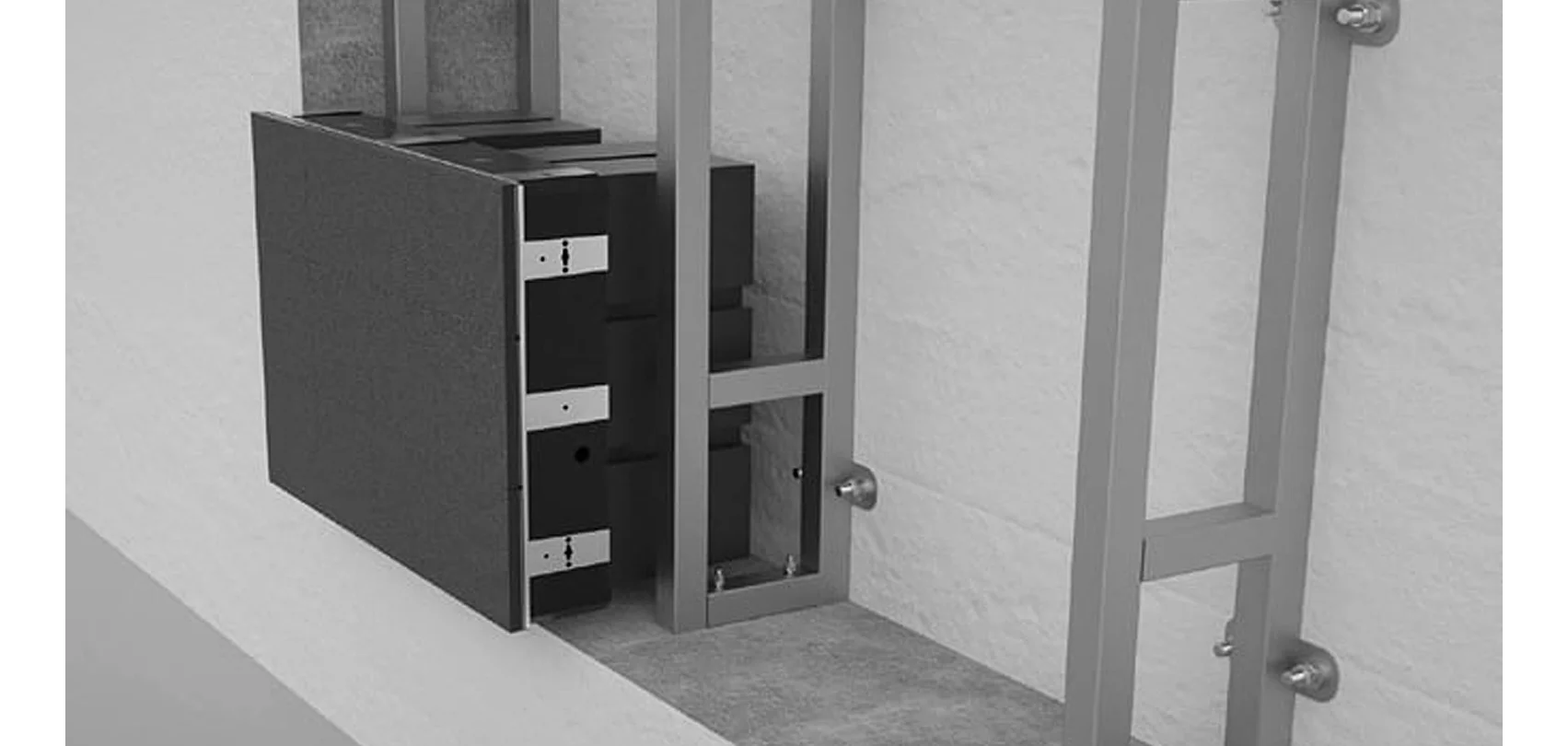

Slim and Space-saving Design

The ultra-thin dynamic LED display is only 32 cm thick and features recessed installation, saving valuable floor space in both indoor and outdoor environments.

Kinetic LED Matrix Wave Screen

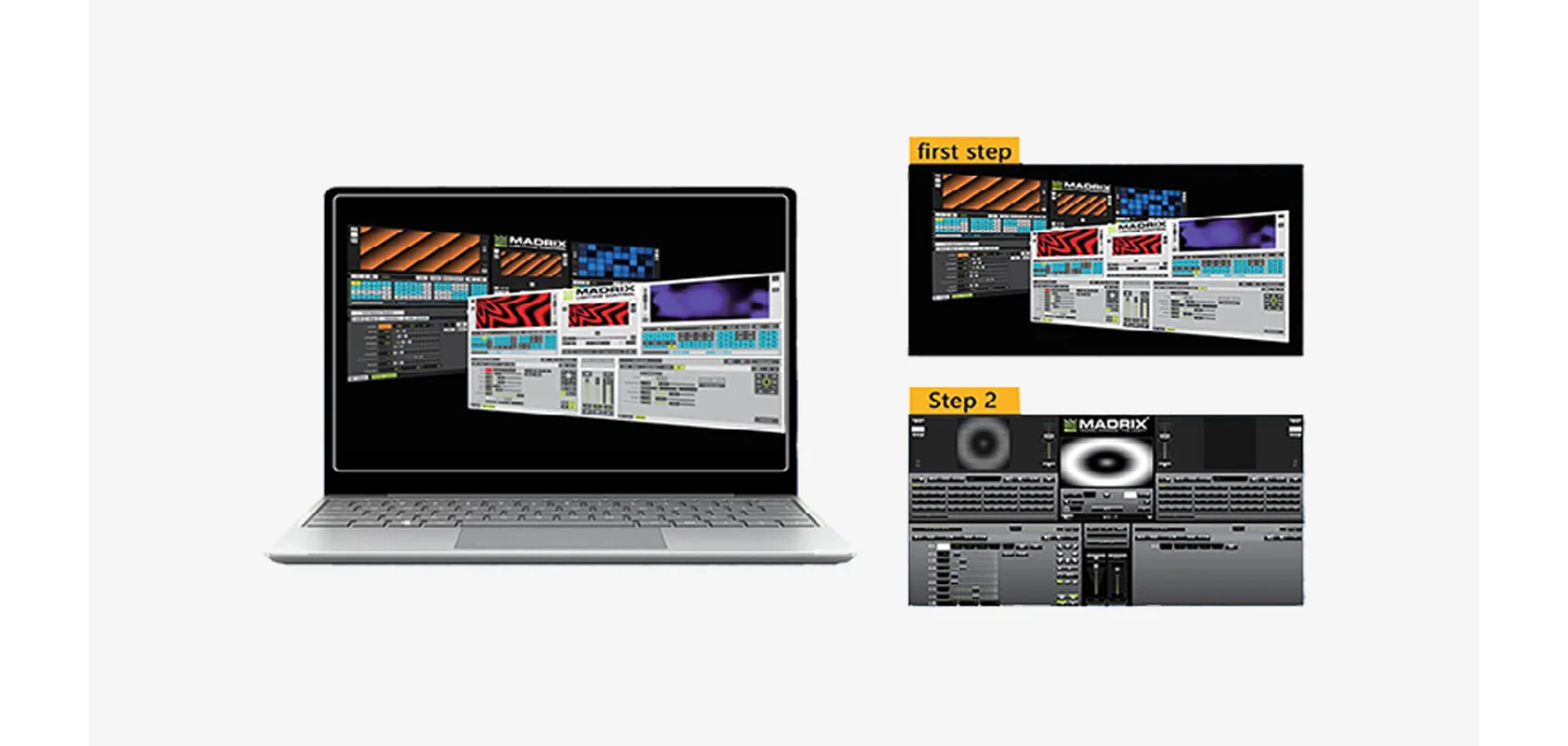

Advanced Control System for Real-time Updates

Equipped with an advanced control system, this display enables real-time updates and diverse content display, ensuring your information is always up-to-date and adaptable to various needs.

Superior Static and Dynamic Image Quality, Minimal Gaps, Ultra-Clear Image Quality

Through precise synchronization, these units deliver smooth 3D dynamic images when in motion and clear, complete images when stationary. This innovative combination of motion and stillness provides a novel and captivating viewing experience.

Module gaps ≤1mm; a precise sliding structure and minimal screen spacing effectively prevent image fragmentation, presenting more complete and clearer content.

Kinetic LED Matrix Wave Screen
Kinetic LED Matrix Wave Screen

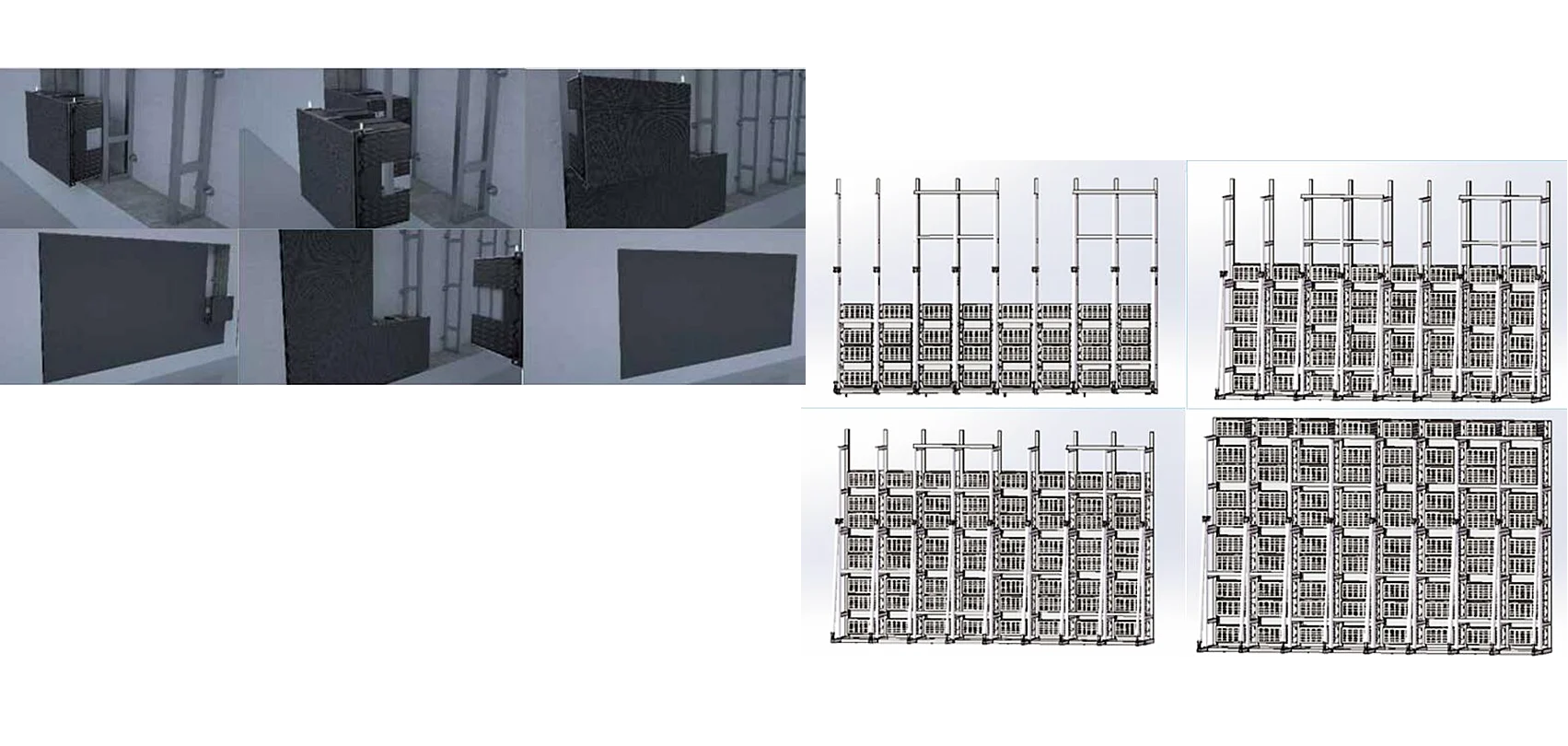

2 Type Installation

Fixed Kinetic LED matrix screenRental Kinetic LED matrix screen

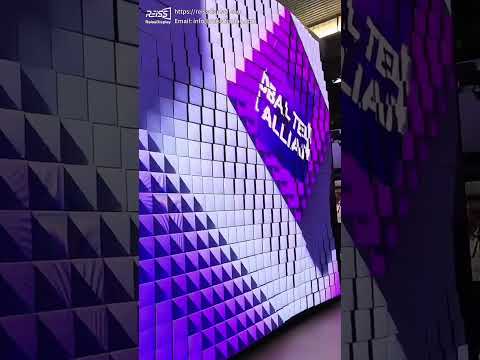

Application and Installation Videos

Kinetic LED Matrix Wave Screen – FR-KM Series

Specifications

Application   Indoor   Outdoor
Model 160x160mm 250x250mm 495x495mm
Pixel Pitch 1.98mm 1.5625mm 1.94mm 2.604mm 10mm
LED Module Dimension(WxH) 160 × 160mm 248.5 x 248.5 mm 495×245 mm
Gap between Units 1 (0.5～1.5) mm 1.5 (1.0~2.0) mm 5(3.5～6.5) mm
Motion Unit Dimension(WxH) 160×160mm (0.0256m²) 248.5 x 248.5mm (0.0618m²) 495×495 (0.25m²)
Resolution of Unit 80×80 160×160 128×128 96×96 48×48
Cabinet Dimension(Motion Units Qty) 640×480mm  (4×3) 500x500mm (2×2) 1000×1000mm (2×2)
Cabinet Thickness (Standby mode) 320mm 320mm 1400mm
Max. Forward Stroke 200mm 200mm 600mm
Max. Forward Speed 300mm/s 500mm/s 800mm/s
Min. Forward-back Cycle Time ＜0.7s 0.5s ＜1.5s
Motion Qty per Sqm 39 16 4
Weight per Sqm 80Kg/m² 52Kg/m² 180Kg/m²
Max. Power Capacity 900W/m² 720W/m² 1,500W/m²
Power Supply Requirement ≤3KW:220V Single phase ≤3KW:220V Single phase ≤3KW:220V Single phase
≥3KW:380V Three phases/Five wires ≥3KW:380V Three phases/Five wires ≥3KW:380V Three phases/Five wires
Screen Brightness ≥700 nits ≥600 nits ≥7,000 nits
Ambient Temperature 0～40℃ 0～40℃ -10～60℃
IP Rating IP40 IP40 IP65
Environmental Attentions Indoor use, no corrosive gases, no flammable gases, no oil mist and dust Indoor use, no corrosive gases, no flammable gases, no oil mist and dust Outdoor use
Heat Dissipation Open self-cooling (with fan cooling) Open self-cooling (with fan cooling) Semi-closed Self-cooling  (with fan cooling)

Related Products

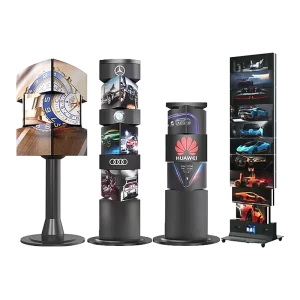

  • Kinetic Rotating LED Display – FR-KR Series
