How Much Does a LED Video Wall Cost? The 2025 Pricing Guide for Businesses

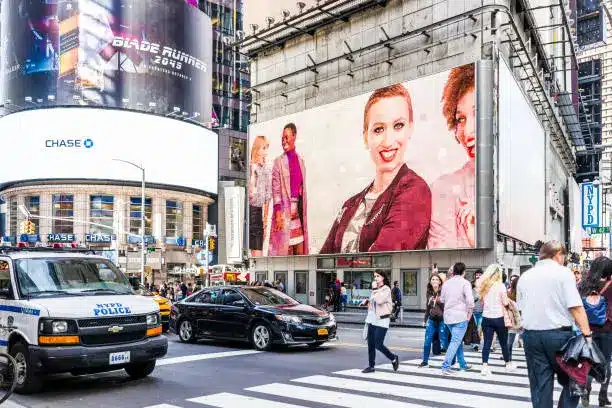

LED video walls are no longer a luxury reserved for Times Square or mega-concert stages. From sleek corporate offices to local museums, these dynamic displays are revolutionizing how organizations communicate. But with prices ranging from 10,000toover500,000, businesses need clarity to avoid budget pitfalls. This guide dives into *2024-specific cost drivers*, exposes outdated pricing myths, and reveals strategies to maximize ROI—details most competitors won’t tell you.

The 5 Core Factors Dictating Your LED Video Wall Cost

Pixel Pitch: The Resolution vs. Budget Balancing Act

Pixel pitch (e.g., P1.5, P2.9, P4) is the #1 cost determinant. Smaller pitch = tighter pixel spacing = higher resolution and price. But the “sweet spot” depends on your audience’s viewing distance:

• P1.2–P1.8 (Ultra-Fine Pitch):

  • Cost: $1,200–$4,500 per sqm

  • Best For: Boardrooms, luxury retail (viewers within 6–15 feet)

  • 2024 Trend: COB (Chip-on-Board) technology now dominates this tier, reducing dead pixels by 70% but adding 18–22% to costs.

• P2.5–P3.9 (Mid-Range):

  • Cost: $600–$1,800 per sqm

  • Best For: School lobbies, mid-sized event venues (viewers 15–40 feet away)

  • Pro Tip: Many suppliers now offer “mixed pixel pitch” configurations—using finer pitches at eye level to cut costs by 12–15%.

• P4+ (Large-Venue):

  • Cost: $300–$900 per sqm

  • Best For: Stadiums, outdoor advertising (viewers 40+ feet away)

  • Hidden Cost: Outdoor walls require IP65-rated waterproofing, adding $150–$300 per sqm.

Display Brightness: Don’t Pay for Nits You Don’t Need

Brightness (measured in nits) is critical for visibility but often oversold:

• Indoor (500–1,500 nits):

  • Offices, churches, and theaters.

  • Cost Impact: Standard brightness panels cost 20% less than high-brightness models.

• Outdoor/Sunlit (5,000+ nits):

  • Highway billboards, rooftop displays.

  • 2024 Insight: Newer “adaptive brightness” sensors can auto-adjust based on ambient light, saving 30% on energy costs over 5 years.

3. Panel Quality: SMD vs. COB vs. GOB – Which Matters?

Not all LEDs are created equal. The manufacturing tech impacts lifespan and maintenance:

• SMD (Surface-Mounted Device):

  • Price: $

  • Lifespan: 60,000–80,000 hours

  • Risk: Vulnerable to humidity; 5–8% higher failure rates in tropical climates.

• COB (Chip-on-Board):

  • Price: $$$

  • Lifespan: 100,000+ hours

  • 2024 Adoption: Now 40% of indoor installations due to lower maintenance costs.

• GOB (Glue-on-Board):

  • Price: $$

  • Niche Use: Dusty environments (factories, warehouses) with a protective resin layer.

4. Installation Complexity: The Silent Budget Killer

Most vendors quote hardware costs but omit installation. Here’s what to expect:

• Basic Wall-Mounted (Indoor):

  • Cost: $200–$500 per sqm

  • Includes: Mounting brackets, basic cabling.

• Curved/3D Configurations:

  • Cost: $700–$1,200 per sqm

  • Why?: Requires custom frames and advanced calibration.

• Outdoor/Structural:

  • Cost: $1,000–$2,500 per sqm

  • Key Factors: Wind load engineering (critical for rooftop setups), permits, and weatherproof conduits.

Case Study: A Chicago restaurant spent $28,000ona10-sqmP2.5indoorwallbutfacedasurprise$12,000 bill for reinforced wall framing and fire-rated cables.

LED Video Wall Real-World Cost Breakdowns (Including Hidden Fees)

Scenario 1: Corporate Office Lobby (Indoor)

• Size: 8 sqm (≈ 9.5’x9.5’)

• Tech Specs: P2.5 COB, 1,200 nits, 4K content support

• Costs:

  • Panels: 8 x $1,800=$14,400

  • Installation (wall-mounted): 8 x $350=$2,800

  • CMS (mid-tier): $4,500

  • Hidden Fees:

    • Color calibration: $800

    • Extended warranty (5 years): $2,200

• Total: $24,700

Scenario 2: Outdoor Stadium Display

• Size: 50 sqm (≈ 23’x23’)

• Tech Specs: P6 SMD, 5,500 nits, IP65 rating

• Costs:

  • Panels: 50 x $600=$30,000

  • Installation (structural): 50 x $1,800=$90,000

  • CMS (enterprise cloud): $12,000/year

  • Hidden Fees:

    • Permits/zoning: $3,500

    • Lightning arrestors: $2,100

• Total (Year 1): $137,600

2025-Specific Trends Impacting Your Budget

1. Tariffs & Geopolitics: Why “Made in USA” Costs 22% More

• Chinese panels still dominate 75% of the market, but U.S. tariffs added 12–18% to import costs since 2023.

• Workaround: Some EU-made panels now undercut U.S. prices by 8–10% despite shipping fees.

2. The Rise of Rental Markets: Slash Costs for Events

• Renting a 10-sqm P3 wall for a 3-day trade show now costs $2,500–$4,000 (vs. $35k+ to buy).

• Caveat: Verify insurance coverage—damaged panels can incur $400/sqm fines.

3. Energy Efficiency Rebates: New Incentives

• The U.S. DOE’s 2024 Commercial Display Tax Credit offers up to $5,000 for walls under 1.5W per sqm.

• Pro Tip: LG and Samsung now provide energy consumption reports for rebate applications.

3 Cost-Slashing Strategies Competitors Won’t Share

1. Buy Refurbished (Without the Risk):

   • Trusted vendors like Daktronics offer 2-year warranties on refurbished panels at 40% discounts.

   • Red Flag: Avoid eBay sellers lacking panel-by-pixel health reports.

2. Phase Your Rollout:

   • Install 50% of your wall now, then expand later. Newer panels are backward-compatible.

   • Savings: Delays hardware obsolescence; lets you benefit from annual 6–8% price drops.

3. Negotiate Service Contracts:

   • Bundle calibration, software updates, and repairs into a 5-year plan for 15–20% savings.

Future-Proofing Your Investment

• Avoid “Resolution Overkill”: A 4K wall is pointless if viewers are 50+ feet away.

• Demand Modular Designs: Ensure panels can be individually replaced (saves 80% vs. full upgrades).

• Pre-Plan for HDR Content: Even if unused today, HDR-ready panels prevent $15k+ swaps later.

LED video walls are a transformative tool for modern communication, but their true value lies in aligning technology with your audience’s needs and long-term goals. While upfront costs may seem daunting, a well-planned investment—one that prioritizes the right pixel pitch, energy-efficient hardware, and scalable designs—can deliver returns for decades.

As the market evolves with automation and geopolitical shifts, businesses must focus not just on today’s price tag, but on total ownership costs. By leveraging 2024-specific strategies like phased rollouts, refurbished panels, and energy rebates, you can achieve premium visual impact without overspending.
