Tri-Folding LED Poster Screen

OP-TF Series

GOB Panel Advertising Double Sided Tri Three Foldable Electronic Folding Poster Led Display Screen

1. COB design adapts to P1.86, P2.0, P2.5.SMD design adapts to P1.25, P1.53, P1.86, P2.0, P2.5, P3.076 pixle.

2. High definition and high refresh rate

3. Super slim just 1.5inch thickness.

4. Popular base with wheels for easy move.

5. Support WIFI,4G,USB,Network cable.

6. Separate working or multiple screens seamless splicing working.

7. CE, ROHS, EMC certified.

Quick Request
Appointment customization
Tri-Folding LED Poster Screen

Your current location:

◆ Patent products, exclusive technology.
◆ “One screen, two displays”, unfolded to form a large screen, folded to instantly become a double-sided screen.
◆ Private mold design, exquisite appearance, aircraft aluminum material body, good heat dissipation effect, 50mm ultra-thin body, double-sided only 110mm．78KG ultra light body.
◆ No need for professional technicians to install, can be used with power on.
The APP wirelessly publishes content, with convenient operation and one piece transmission of content.
◆ Quick lock design, easy for beginners to control, supports seamless splicing of multiple devices quickly.
◆ Supports synchronization and asynchrony, can be used for high-definition electronic posters, as well as synchronously displaying high-definition promotional videos, conference PPTs, live streaming backgrounds, etc., with a wide range of applications.
◆ The SMD lamp beads adopt the “tile level” GOB process, which is scratch resistant, anti dropurface splash resistant, moisture-proof, and more stable to use.
◆ Equipped with 4 swivel wheels, easy to move and place wherever you want.

Tri-Folding LED Poster Screen

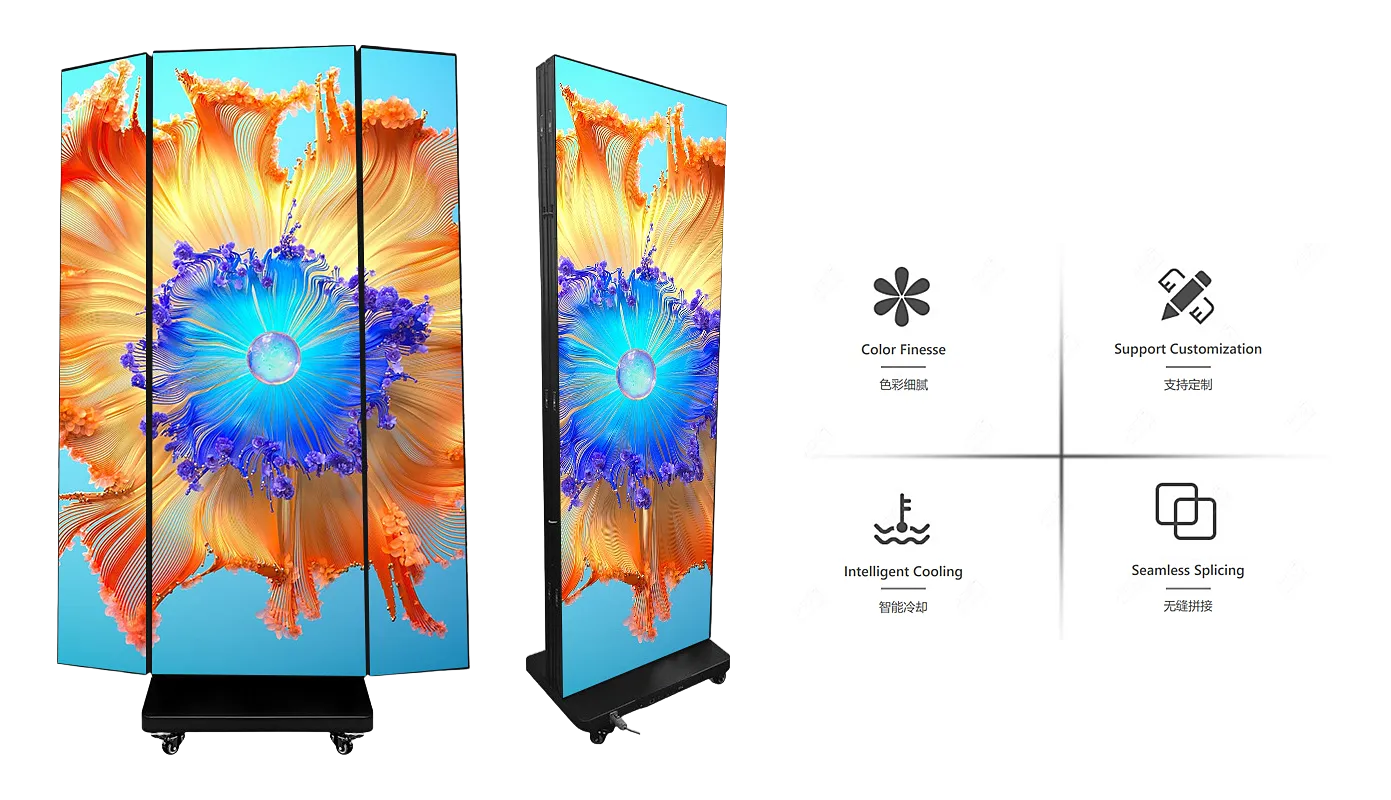

Double-side Tri-Folding Auto Splicing LED Poster Screen

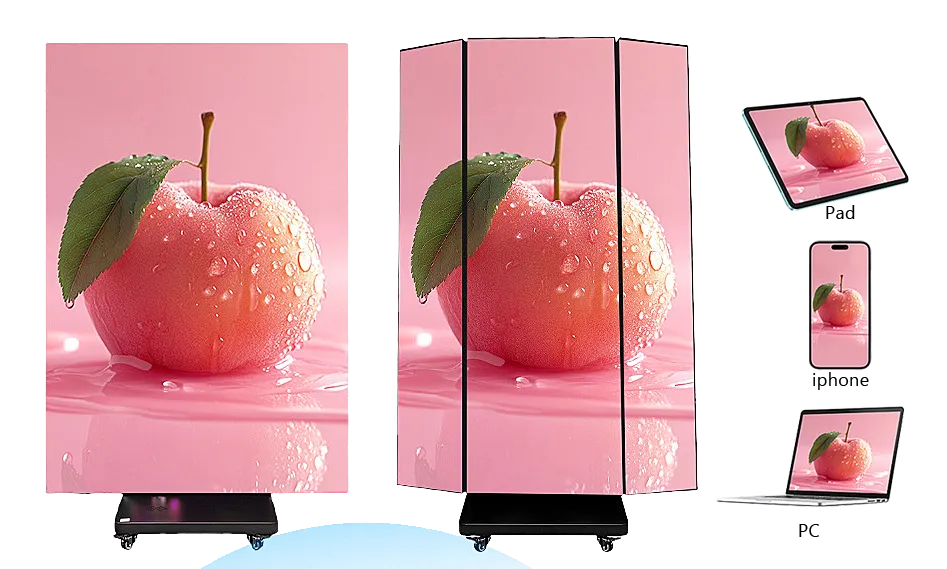

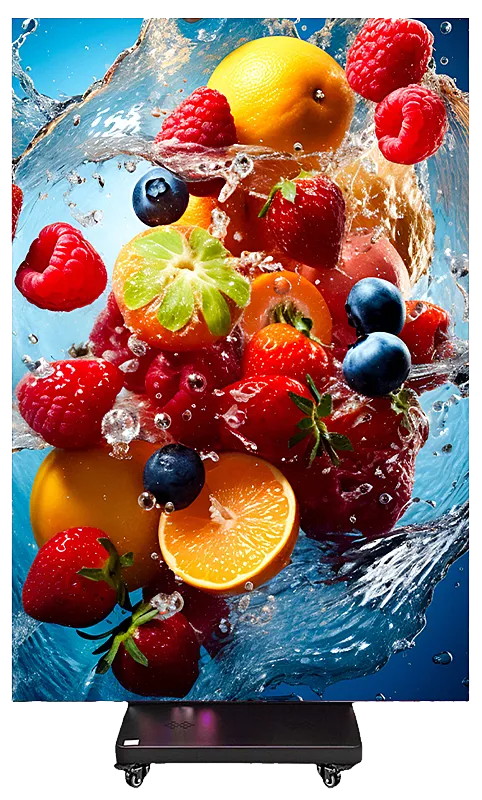

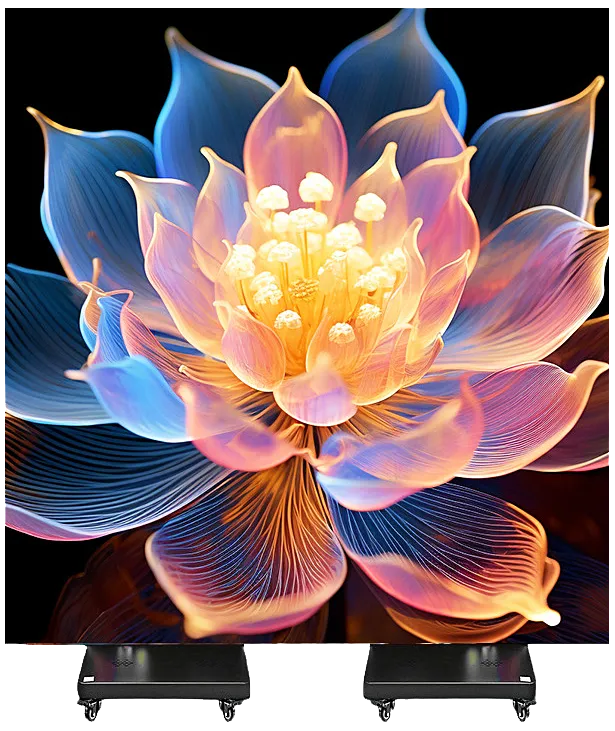

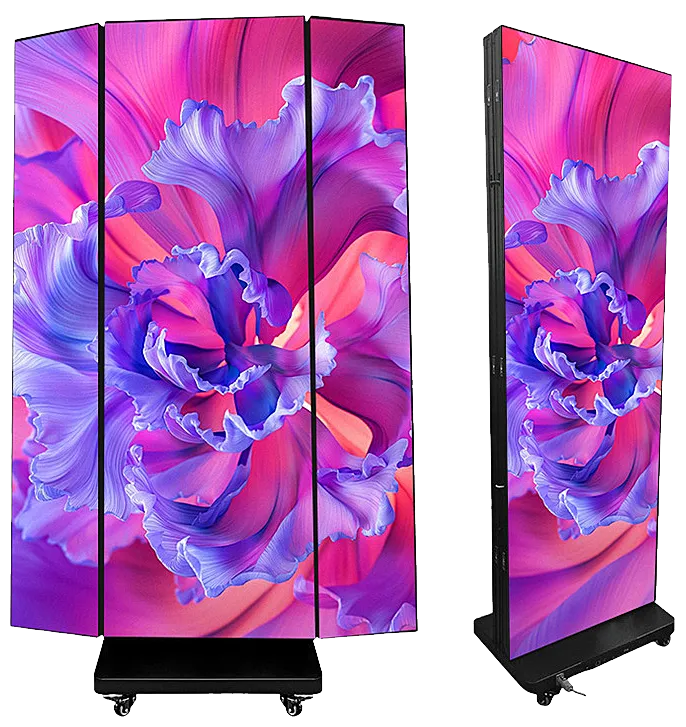

The Tri-fold foldable mobile LED poster screen can be used for two purposes. When unfolded, it is a large screen 4.2ft by 6.3ft (1280mmx1920mm). After folding the two sides back, it becomes a double-sided poster screen with a single-sided display area of 640mmx1920mm.

Portable & Plug-and-Play:Lightweight with casters for easy movement; instant setup.
Easy Content Management:Update promotions quickly via app, USB, WiFi, or optional 4G.
Brilliant & Durable:Stunning HD visuals with GOB tech for robust, long-lasting performance.

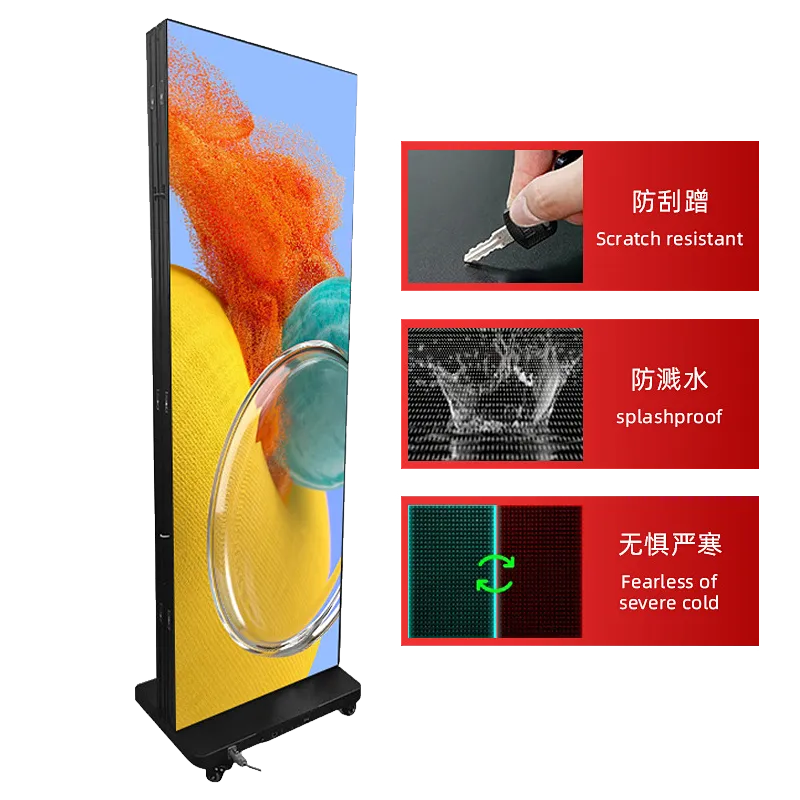

Adopting GOB Laminat Technology

Surface splash proof and anti-collision; Scratch resistant, high transparency, good stability, and better safety

Tri-Folding LED Poster Screen
Tri-Folding LED Poster Screen

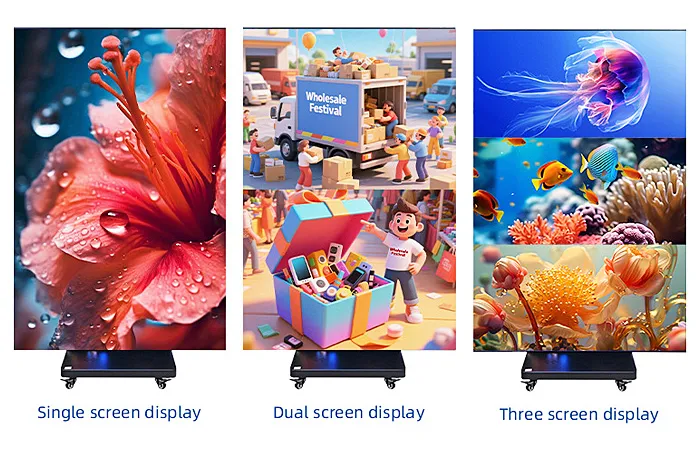

Multi Functional Split Screen

APP intelligent management, multiple screen splitting methods to choose freely

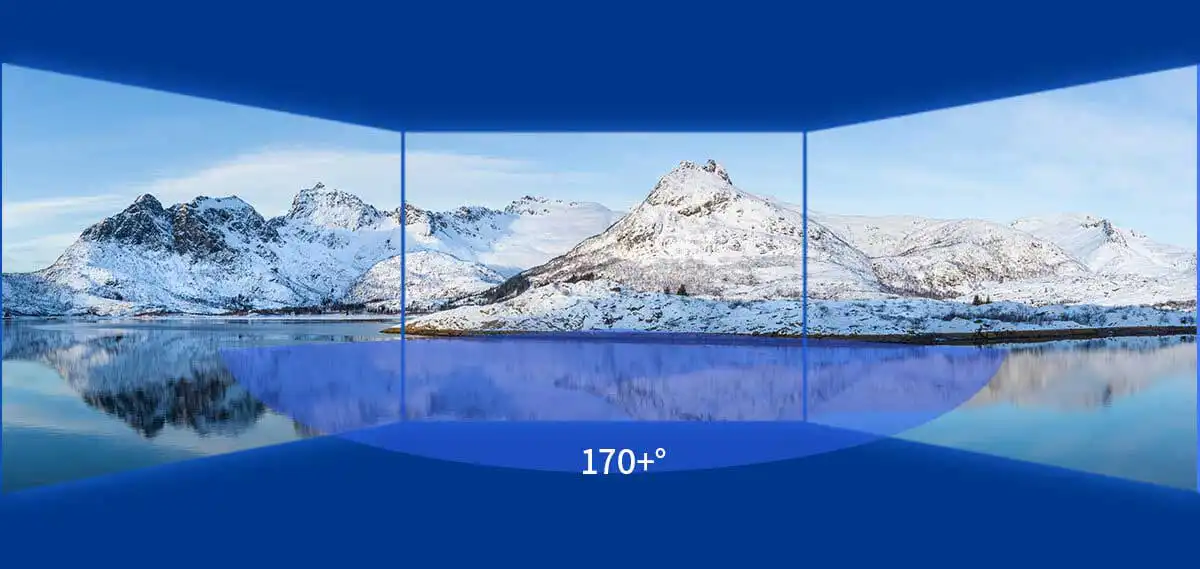

170° Super Wide Viewing Angle

Perfect presentation of images from any angle

170°-1
Tri-Folding LED Poster Screen

Universal Wheel Design

Comes with 4 swivel wheels, making it easier to move and place wherever you want

Integrated Audio Features

The integrated dual speakers deliver immediate sound playback with no additional equipment needed

Support Remote Control

Remote release of multimedia information,images, etc. to LED poster screens anytime, anywhere

Tri-Folding LED Poster Screen
Tri-Folding LED Poster Screen

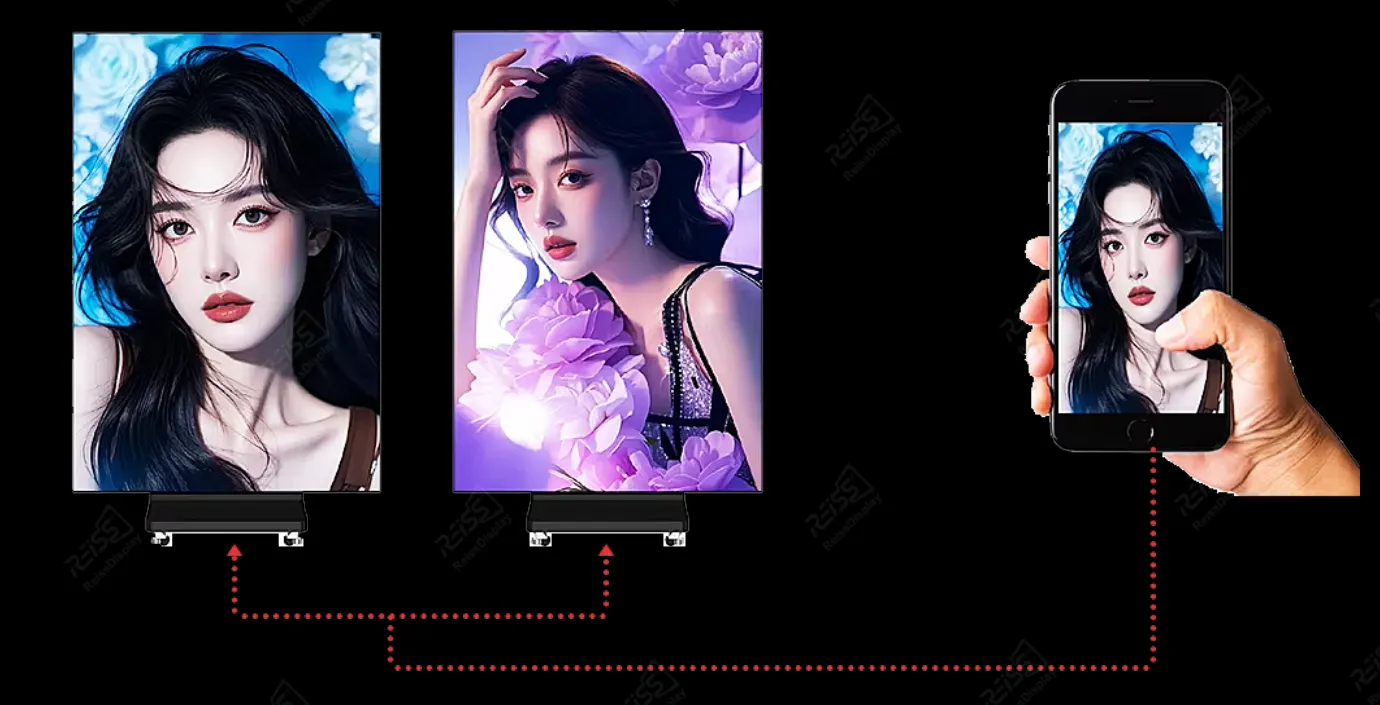

One Click Release of Mobile App

Support one click upload of content on mobile phones, a foolproof software that even beginners can easily operate

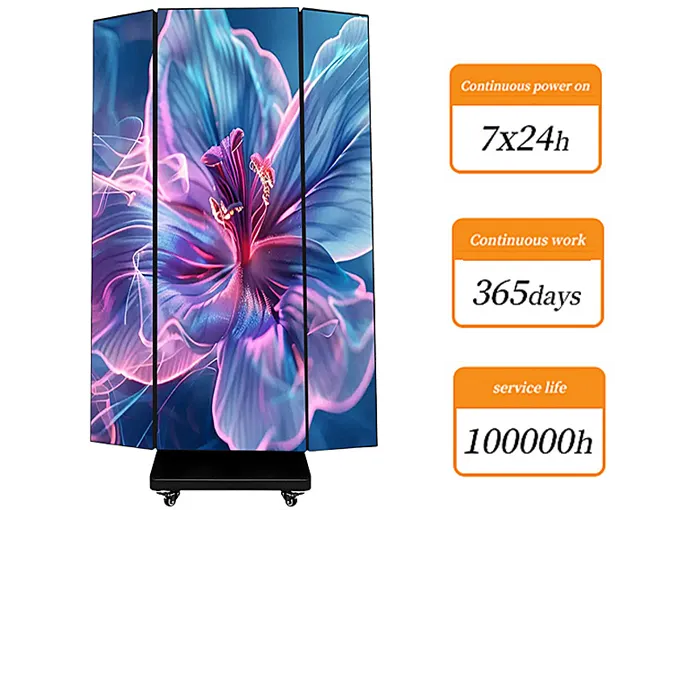

Double Side Display Three Fold Folding

Folding design, small size, easy storage, and convenient transportation

Tri-Folding LED Poster Screen
Tri-Folding LED Poster Screen

Multiple Seamless Splices

Can be used individuallyor seamlessly combined into a large screen, with a wider range of application scenarios

Ultra Clear Picture Quality

IPS hard screen, new HDR technology, fine picture quality, more natural and realisticimaging

Tri-Folding LED Poster Screen
Tri-Folding LED Poster Screen

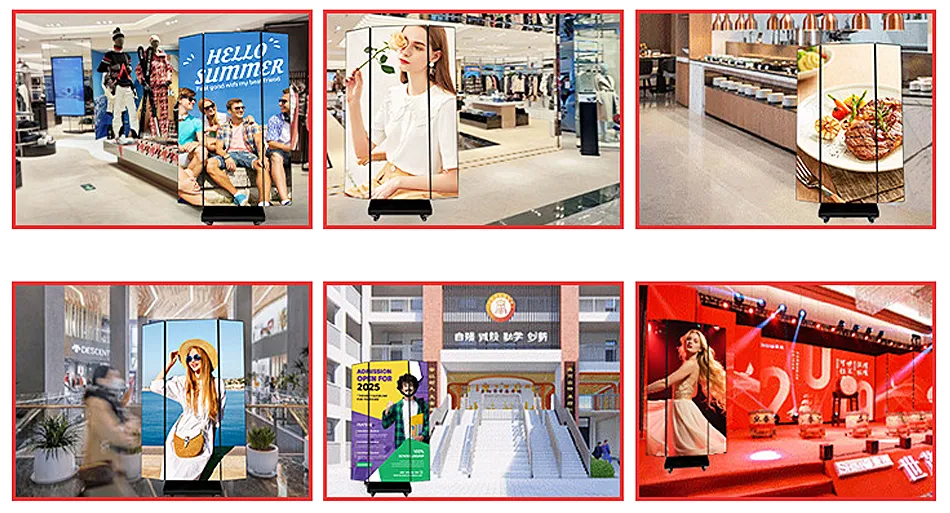

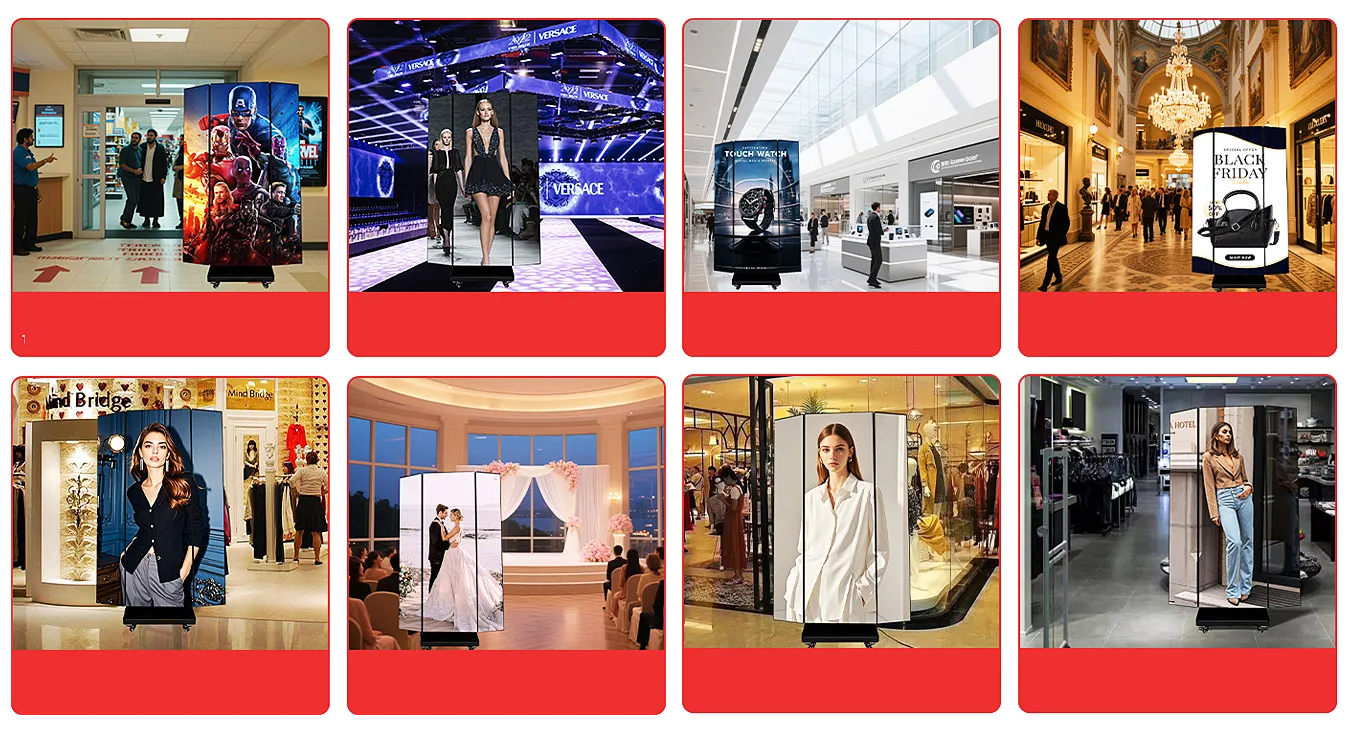

Applicable Scenes

Suitable For Various Industries Conference Halls, Supermarkets, Bars, Etc.

Low Energy Consumption and Energy Saving

Efficient and energy-saving, low loss, high conversion stronger stability, and longer lifespan

Tri-Folding LED Poster Screen
Tri-Folding LED Poster Screen

Case

Customer-Oriented, Win-Win cooperation

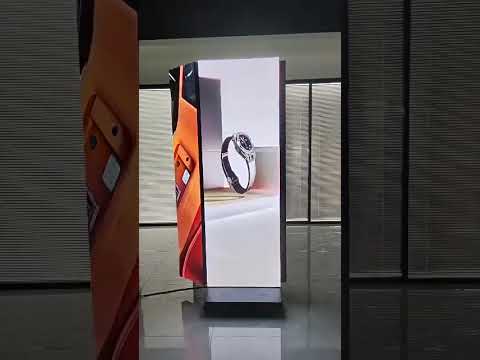

Application and Installation Videos

Tri-Folding LED Poster Screen – OP-TF Series

Specifications

Application
suitable for exhibition, shopping malls, theaters, commercial stages
Model Number
P1.53
P1.86
P2.0
P2.5
P3.076
Module size
320*160mm
320*160mm
320*160mm
320*160mm
320*160mm
Pixel configuration
GOB or SMD 1R1G1B
Pixel Pitch
1.53mm
1.86mm
2.0mm
2.5mm
3.076mm
Pixel resolution
208*104
172*86
160*80
128*64
104*52
Point density
(points/m2)
422500
288906
250000
160000
105625
Refresh frequency
3840HZ/s
1920-3840hz/s

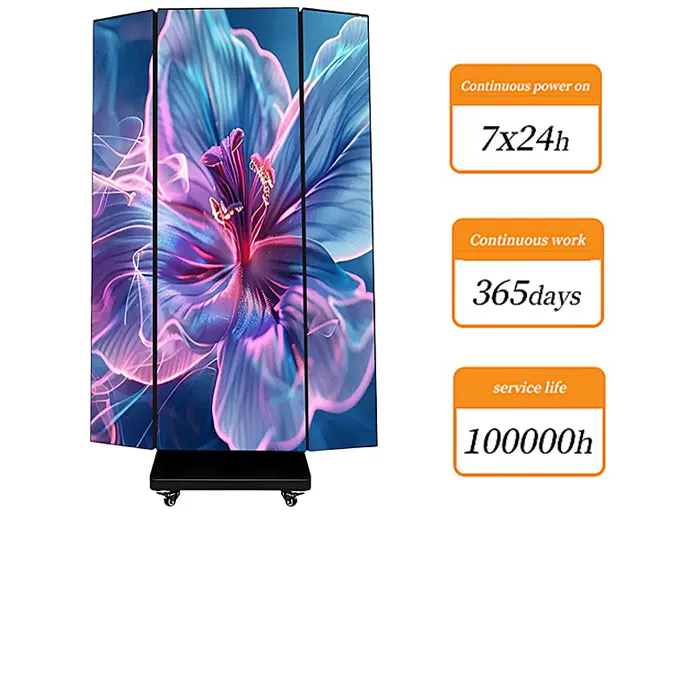

Life span
100000 Hours
Brightness
≥500cd/m2
Best viewing angle
Horizontal>170 Vertical>170
Screen size
640*1760mm or 960*1920mm or 1280*1920mm
Certificate
CE ROHS EMC
Warranty
5 Years
Cabinet material
Front service

Related Products

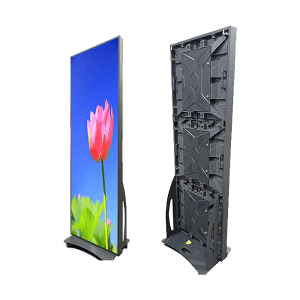

  • Outdoor LED Poster Screen – OP-MX Series

    Outdoor LED Poster Screen – OP-MX Series

    REISSDISPLAY is Your Trusted LED Poster Screen Manufacturer. The die-cast aluminum enclosure is lightweight and durable, offering excellent heat dissipation and corrosion resistance. Suitable for long-term outdoor use, it features easy installation and maintenance, with front and rear access. Its IP65 dust and water resistance rating allows it to withstand a variety of harsh weather […]

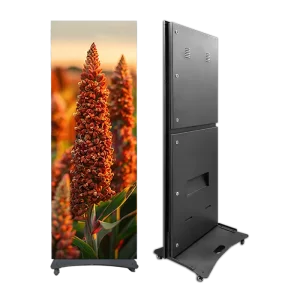

  • Outdoor/Indoor LED Poster Screen – OP-FX Series

    Outdoor/Indoor LED Poster Screen – OP-FX Series

    Outdoor indoor vertical foldable LED poster screen is a portable display for promotional purposes. OP-FX Series 640x2000mm outdoor foldable LED poster screen with a pixel pitch of 2.5mm, 3.076mm, and 4mm, and a brightness of >5000 nits. The stylish and minimalist aluminum frame of the LED poster screen, paired with a car paint finish, enhances […]

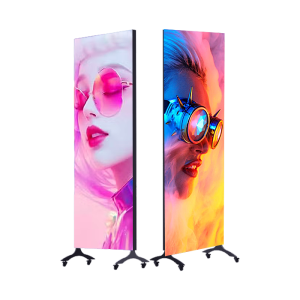

  • Double-sided Digital LED Poster – IH-T5 Series

    Double-sided Digital LED Poster – IH-T5 Series

    What Is An LED Poster Screen? LED poster screens are thin, lightweight, plug-and-play digital displays designed for high-impact visual communication. They are ideal for advertising and promotional displays in retail stores, shopping malls, and airports. They are also suitable for corporate environments, exhibitions, and events, conveying information and capturing attention in a dynamic and engaging […]

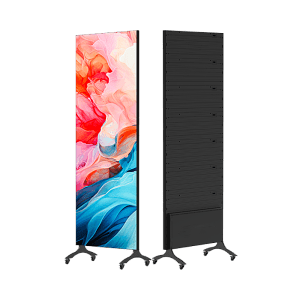

  • Single Side LED Poster – IH-T3 Series

    Single Side LED Poster – IH-T3 Series

    Excellent Picture Quality Single Side LED Poster The single side LED poster – IH-T3 series provided by ReissDisplay can attract more attention and is very suitable for retail, theaters, trade exhibitions and other places. It is lightweight and portable, easy to install, and can present amazing interactive content. Whether you are a dealer, installer, designer […]

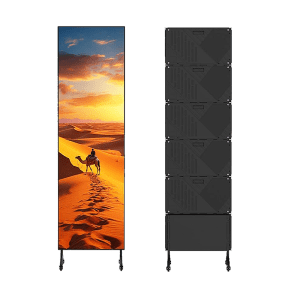

  • Single Side Poster – IH-X3 Series

    Single Side Poster – IH-X3 Series

    Ultra‑Thin LED Poster Display Collection | Smart Indoor Digital Signage – ReissDisplay The IH-X3 series single-sided poster LED display supports multiple signal inputs, allowing connection to a variety of devices, including computers, smartphones, and tablets, ensuring compatibility with diverse content formats and signal sources for your convenience. The IH-X3 series LED poster displays can be […]

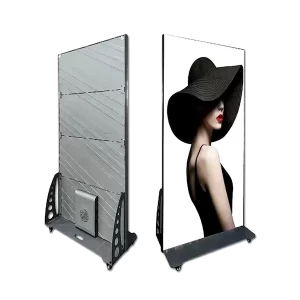

  • LED Poster Display Screen – IH-B Series
