Stage LED Display

500W Series

    REISSDISPLAY Stage LED Screen is suitable for every large – scale event Stage background led screen. Bring different visual effects to the event venue.

   LED Screen Wall team will cooperate better with our customers and provide the best solution.which can be customized in any size and model. To meet your needs.

  led screen for events led video wall we provide: We will provide professional customized services.

   Reissdisplay Every LED display Panels applications include concerts, fashion shows, concerts, music festivals, sports events, exhibitions, commercial releases, super parties and other LED display Screen solutions.

Pixel Pitch:

RS260, RS297, RS391, RS481

500W Series - Rental Stage led Panels

RS Stage background LED Wall Panels that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on – site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

IR is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Indoor and Outdoor LED displays used high quality material, the gray scale is up to 14-16bits, refresh rate  > 3840Hz and excellent white balance.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

Test aging

All raw materials pass strict high and low temperature.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

%name 500W

RS Series LED Dipalys                    Ordinary LED displays

High refresh

%name 500W

RS Series LED Dipalys                    Ordinary LED displays

High contrast

%name 500W

RS Series LED Dipalys                    Ordinary LED displays

%name 500W

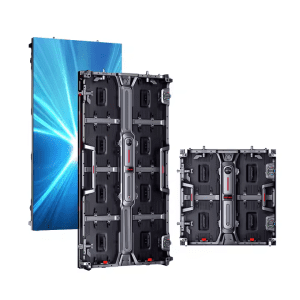

500W Outdoor / Indoor Die Casting Aluminum Cabinet Design

Reissdisplay 500W Rental LED display, The cabinet is made of aluminum alloy, which is light, strong and durable, and has high stability outer frame.

Outdoor IP65 - Safe and Reliable

Outdoor LED display supports Ip65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

LED Screen Wall cabinet design, Ultra lighweight, Slim design

    Die-casting aluminum frame, the cabinet weight is only 7.5kg

LED Display Cabinet Size

500x500mm standard cabinet size, Suitable For 250x250mm
Standard Size Modules, Ultra-Light die-casting aluminum.
Ultra-thin thickness with 80mm. For easy transport and Portable;

Display panel, wider viewing angle, covering more eyeballs

    Viewing angle is up to 160° vertical and horizontal, providing a wide viewing angle. Both 160° from horizontal & vertical for the viewing angle.
    Seeing from five directions, it would be still the natural and clear image in an LED display.

Structure Display

Reissdisplay 500PLUS Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

Corner Protection for Choose

You can choose add the corner protection, designed to protect corners in both transit and staging.

Dual Service Design

Rental LED Screen adopts Magnet Adsorption LED Panel to make the cabinet is accessed with frontal & rear design. easy installation for LED panels.

Fast lock, simply rotate the angle lock to quick switch the splicing angle, instelation speed increased by 40%. Tools free for fast maintenance and apply to all kinds of operating environment. Power box supports quick intallation. The cabinet use super slim Die-casting Aluminum, which can protect the unit structure.

Two panel sizes maximize your events possibilities

Rental LED panel has both 500*500mmand 500*1000mm sizes for options. main batch of
500*1000mm and a certain proportain proportion of 500*500mm, you can do any events
with the limited budget.

Renewed angle adjustment lock system

Rotary lock system with inner and outer arc from 0°,±2.5°,±5°,with flexible application

Inner arc and outer arc, free splicing
500*500mm & 500*1000mm cabinets can be used together freely.

Curve Cabinet

Seamless splicing good heat dissipation

Straight Cabinet

Rental screen installation method

Hanging and Stacking Avaiable : can meet the different demands of movable occasions with hanging bar or back brackets

%name 500W

LED displays input media function

1. DVI interface

LED Processor DVI interface and digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is HD Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Multiple Application

Stage, Conferences, Expo, Events, Concert, etc.

Product Parameter Description
Product Name500W Outdoor / INDOOR Rental LED Screen
Product No.P2.604P2.976P3.91P4.81
LED LampSMD1515SMD2121SMD2121SMD2121
Chip ColorRGB (Full Color)RGB (Full Color)RGB (Full Color)RGB (Full Color)
Pixel Density147456 Pixels/m²112896 Pixels/m²65536 Pixels/m²43264 Pixels/m²
Module Resolution96*96 Pixel84*84 Pixel64*64 Pixel52*52 Pixel
Module Size250*250mm250*250mm250*250mm250*250mm
Module Weight0.35Kg0.35Kg0.35Kg0.35Kg
Cabinet Size500*500mm
Cabinet Resolution192*192 Pixel168*168 Pixel128*128 Pixel104*104 Pixel
Refresh Rate1920Hz / 3840Hz1920Hz / 3840Hz1920Hz / 3840Hz1920Hz / 3840Hz
Cabinet Weight7.5Kg
Maintenance ModeFront / Back service
Cabinet MaterialDie-casting aluminum
Power InputAC110-240V, 50-60Hz
Cabinet InstallationGirder Hoisting / Ground stacking installation
Brightness800-5500 nits
Cabinet Handle ColorBlack, Green, Red Handle
Optimum Viewing Distance2.6m3m4m5m
