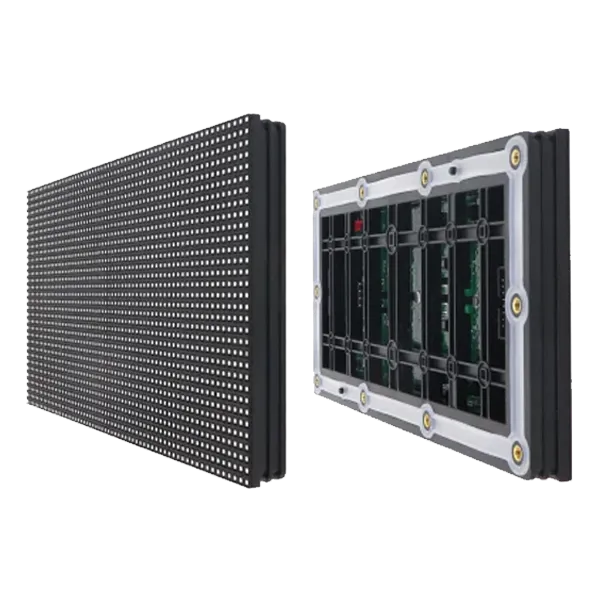

320x160mm Outdoor LED Display Module
flat cable pin fence
power cord socket
Gold-plated Module
Ordinary Module

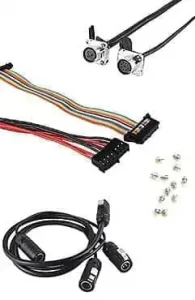

Main Material
Table Stick
REISSDISPLAY technology, using high quality raw material pro-cessing, showing effect is much better. The pixel pitch is: 3.076mm, 3.33mm, 4mm, 5mm, 6.67mm, 8mm, 10mm etc
Outdoor LED Modules-20
SMD IC

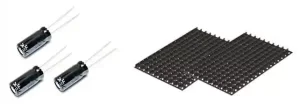

Capacitance Mask
Quality Assurance
72 Hours aging test (white balance aging (2×24 hours) and video aging (24 hours)) to improve the reliability of the indoor and Outdoor LED display modules and to eliminate broken LEDs.
High quality materials
Poor materials
High quality IC
Poor IC
Full bright
Dead lights

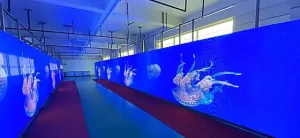

Application Cases
Application and Installation Videos
No videos available.
Specifications
| Pixel Pitch | NationStar LED | Module Size（MM） | Module Resolution | Driving Mode | Refresh Rate(Hz) | Brightness(Nits) |
|---|---|---|---|---|---|---|
| P2.5mm | SMD1415 | 320*160 | 128*64 | 1/16Scan | 3840 | ≥5,000 |
| P3.076mm | SMD1415 | 320*160 | 104*52 | 1/13Scan | 3840 | ≥5000 |
| P4mm | SMD1921 | 320*160 | 80*40 | 1/10Scan | 3840 | ≥5500 |
| P4mm | SMD2525 | 320*160 | 80*40 | 1/10Scan | 3840 | ≥5500 |
| P5mm | SMD2525 | 320*160 | 64*32 | 1/8Scan | 3840 | ≥6000 |
| P6.67mm | SMD2525 | 320*160 | 48*24 | 1/6Scan | 3840 | ≥5500 |
| P6.67mm | SMD3535 | 320*160 | 48*24 | 1/6Scan | 3840 | ≥6500 |
| P8mm | SMD3535 | 320*160 | 40*20 | 1/5Scan | 3840 | ≥6500 |
| P10mm | SMD3535 | 320*160 | 32*16 | 1/4Scan | 3840 | ≥6000 |
| P10mm | SMD3535 | 320*160 | 32*16 | 1/2Scan | 3840 | ≥7500 |
