Stage LED Display

1000K Series

    REISSDISPLAY Stage LED Screen is suitable for every large – scale event Stage background led screen. Bring different visual effects to the event venue.



    1. Die-casting aluminum , low temp-rise

    2.Hard Connection Without Any Cables

    3. Magnetic front service or Back service with screw

    4.High-efficiency cooling, No fan ,mute design, noise-free.

    5. High refresh rate , low light high gray

    6. High precision, seamless splicing, accurate to size of the electrical and mechanical processing 0.1mm

    7. Lightweight – weighs only 7kg, single person can be a single portable, and extremely easy to install;

    8. Compatible – the new structure designed to meet the lifting, stacking requirements to meet the indoor and outdoor requirements;

Pixel Pitch:

RS260, RS297, RS391, RS481

1000K Series - Rental Stage led Panels

RS Stage background LED Wall Panels that is designed for the high demands of the touring production world.

Each tile is modular in design with unique rigging & curving capabilities. Each tile is front serviceable for easy on – site maintenance. Its integrated climbing ladder allows technicians quick access to displays flown overhead.

IR is the premier rental staging product on the market.

Great gray scale, high refresh rate and excellent white balance

Indoor and Outdoor LED displays used high quality material, the gray scale is up to 14-16bits, refresh rate  > 3840Hz and excellent white balance.

Angle adjustable

Large viewing angle covers the majority of audience and cameras: Getting noticed, endless commercial value.

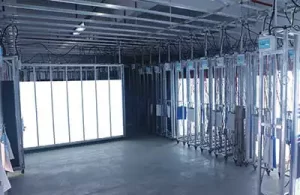

Test aging

All raw materials pass strict high and low temperature.

Easy Istallation

Equip with auxiliary installation structure, fast connect, single-person installation

Convenient Maintenance

Available to operate the module and power box separately

Low gray

%name 1000K

RS Series LED Dipalys                    Ordinary LED displays

High refresh

%name 1000K

RS Series LED Dipalys                    Ordinary LED displays

High contrast

%name 1000K

RS Series LED Dipalys                    Ordinary LED displays

%name 1000K

1000K Outdoor / Indoor Die Casting Aluminum Cabinet Design

Reissdisplay 1000K Rental LED display, Same cabinet design for variety of pixel pitch led display

INDOOR: P1.953 P2.5 P2.604 P2.976 P3.91 P4.81

OUTDOOR: P2.976 P3.91 P4.81

Slim thin design and light weight

Slim and light weight,quick disassembly.
Weight: 13kg/cabinet,one person can carry,saving time and effort.
High degree of protection,high durability.
Common good,flexible and easy to use.

Ultra lighweight, Slim design

500*1000mm standard cabinet size, Ultra-Light die-casting aluminum. ultra-thin thickness with 80mm. For easy transport and Portable;

Outdoor IP65 - Safe and Reliable

Outdoor LED display supports Ip65 dustproof and waterproof, it can resists severe weather conditions during outdoor activities. And die-cast aluminum is corrosion resistant.

Wide Viewing Angle

   Viewing angle is up to 140° vertical and horizontal, providing a wide viewing angle.
Ultra-wide viewing angle give you the largest screen viewing area. It offers you clear and natural images in all directions.

Perfect Cabinet Design With Each Part

Reissdisplay 500K Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle. cabinet fxied slot, fast lock, magnet adsorption module, module installation knob, Power& signal connector, detachable power boxing, and more

Corner Protector for LED

REISSDISPLAY 500K front service LED sign has four corner protectors in each corner to prevent LED to be damaged,
more security for transport, installation, operation, assemble & disassemble foldable design, and easy to use.

HUB Board Connection

HUB Board
* Without wires connection, signal and power can transfer more stable and reliable.
* HUB board connect modules and power supplies directly instead of wires.
* Directly take out back cover, easy to change within 5 seconds.

.

Maintenance

* Front and rear maintenance available.

* Faster and easier to install and disassembly.
* Magnetic suction installation, simple and quick maintenance for various installation environment, improve work efficiency.
* Die casting aluminum panel.

Perfect Cabinet Design With Each Part

REISSDISPLAY 1000K Rental LED display is designed with aesthetics and industrial idea. Excellent product came in all details from cabinet handle.
cabinet fxied slot, fast lock, magnet adsorption module, module installation knob,
Power& signal connector, detachable power boxing, and more

Optional size available, 500*500mm cabinet can used together with 500*1000mm cabinet.

High Precision Curve Lock

High Precision Curve Lock design (-10° to +10°) is adopted to solve the problem that the old curved lock is difficult to use before.
Rotational control, more accurate, easy to use and quickly adjust curve degree.

Curve Cabinet

Seamless splicing good heat dissipation

Straight Cabinet

Rental screen installation method

Hanging and Stacking Avaiable : can meet the different demands of movable occasions with hanging bar or back brackets

%name 1000K

LED displays input media function

1. DVI interface

LED Processor DVI interface and digital video interface.

2. VGA interface

VGA interface is a dedicated interface for computer output data using VGA standard.

3. HDMI interface

HDMI is interface standard.its full name is HD Multimedia Interface.

4. SDI interface

Adopt coaxial cable, with BNC interface as the cable standard.

5. USB interface

Universal Serial Bus.

6. WIFI function and cloud

WIFI function and cloud to remotely replace the video and picture content of the LED display through the compute

Multiple Application

Stage, Conferences, Expo, Events, Concert, etc.

Product Parameter Description
Product Name500PRO Outdoor / INDOOR Rental LED Screen
Product No.P2.604P2.976P3.91P4.81
LED LampSMD1515SMD2121SMD2121SMD2121
Chip ColorRGB (Full Color)RGB (Full Color)RGB (Full Color)RGB (Full Color)
Pixel Density147456 Pixels/m²112896 Pixels/m²65536 Pixels/m²43264 Pixels/m²
Module Resolution96*96 Pixel84*84 Pixel64*64 Pixel52*52 Pixel
Module Size250*250mm250*250mm250*250mm250*250mm
Module Weight0.35Kg0.35Kg0.35Kg0.35Kg
Cabinet Size500*500mm
Cabinet Resolution192*192 Pixel168*168 Pixel128*128 Pixel104*104 Pixel
Refresh Rate1920Hz / 3840Hz1920Hz / 3840Hz1920Hz / 3840Hz1920Hz / 3840Hz
Cabinet Weight7.5Kg
Maintenance ModeFront / Back service
Cabinet MaterialDie-casting aluminum
Power InputAC110-240V, 50-60Hz
IP GradeIP65 OUTDOOR / INDOOR IP33
Cabinet InstallationGirder Hoisting / Ground stacking installation
Brightness800-5500 nits
Cabinet Handle ColorBlack, Green, Red Handle
Optimum Viewing Distance2.6m3m4m5m
