3D Screen LED Display -3D-FA Series

Enhance your outdoor advertising with the all-aluminum alloy 3D screen LED display cabinets from REISSDISPLAY 3D-FA series.

Model: P4, P5,P6.67,P8,P10

Material: Aluminum

Cabinet Size: 960×960mm

Service Way: Front and Back

Waterproof Levle: IP66

Quality Warranty: 5 Years

CE,RoHS,FCC,ETL Approved

Quick Request
Appointment customization

המיקום הנוכחי שלך:

3D Screen LED Display Solutions

REISSDISPLAY 3D-FA series 3D screen LED display cabinets are crafted from all-aluminum alloy, ensuring both versatility and high performance in dynamic environments. With standard sizes of 960 x 640 mm and 960 x 960 mm, these cabinets provide optimal solutions for various outdoor LED advertising screens, even in adverse weather conditions.

LED billboard

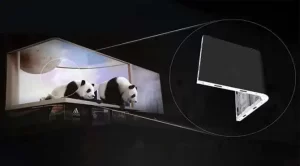

Perfect Dimension Of 3D Outdoor Screen LED Display

1: 960*960mm and 480*960mm cabinet design, aluminum material
2: Magnesium alloy material, the lightest, the module shell is also made of aluminum alloy material
3: High precision, seamless connection
4: Quick and easy installation, saving manpower
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP66

8K outdoor LED billboard

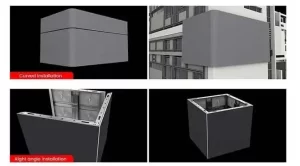

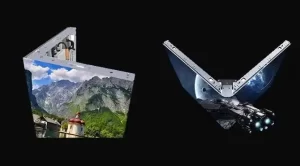

Arc Splicing and Right-Angle Splicing

D display screens can be configured using two primary splicing methods: arc splicing and right-angle splicing. Each method offers unique advantages and is suited for different applications and environments.

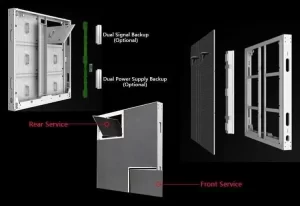

Front and rear maintenance Outdoor screen

Front Maintenance

Benefits of Front and Rear Maintenance

Outdoor LED advertising signs are engineered to endure harsh environmental conditions, whether in high or low temperatures. These displays are designed with superior accessibility and maintenance efficiency in mind, making them ideal for various advertising applications.
Outdoor led screen

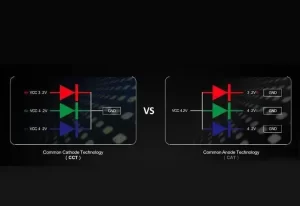

Energy-Saving Screens: Common Cathode vs. Common Anode

Energy-saving screens are primarily categorized into two configurations: common cathode and common anode. Among these, the common cathode design is recognized as the most energy-efficient and effective solution for LED displays.
Outdoor Display Screen

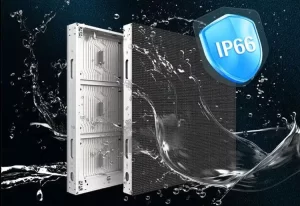

Fully Waterproof Design Function in Outdoor Displays

Ensuring its durability and reliability in a variety of environmental conditions is critical. This feature protects internal components from water ingress, dust, and other environmental factors, making it ideal for outdoor applications.

Led Outdoor led screens

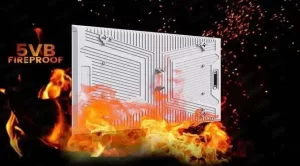

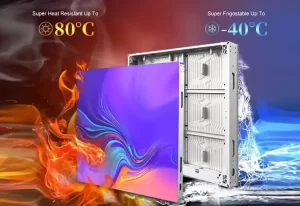

Super Cold and Heat Resistant

Outdoor application products, lP66 protection grade, integrated all-aluminum design, with corrosion resistance, high melting point, flame retardant and fire resistance, moisture resistance and salt spray resistance working temperature -40°C -80°C, can operate normally in the seaside environment for a long time, The ability to adapt to the environment is very strong, and it can work outdoors all day long.
Outdoor screens

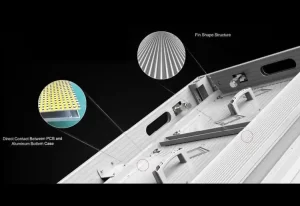

Excellent Heat Dissipation

Multiple unique heat dissipation designs; Contact thermal conductance accelerates heat dissipation; Fin Shape Structure for bigger heat dissipation area.
led screen outdoor

All-Aluminum Bottom Shell LED Display Module

all-aluminum chassis led billboard module is expertly designed for durability, lightweight construction, and enhanced thermal management. This design is particularly effective in outdoor and high-performance applications, where reliability is critical, especially in challenging conditions such as snowy and ultra-high temperature environments.
led outdoor wall screen

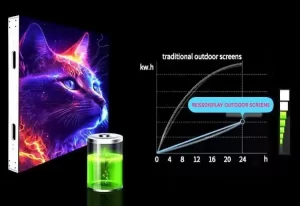

Energy-Saving 30-60%

Outdoor energy-saving LED Billboards are designed to provide high-quality visual output while minimizing energy consumption. These displays are ideal for a variety of applications, including advertising, events, and public information systems, combining efficiency with performance.
led screen outdoor

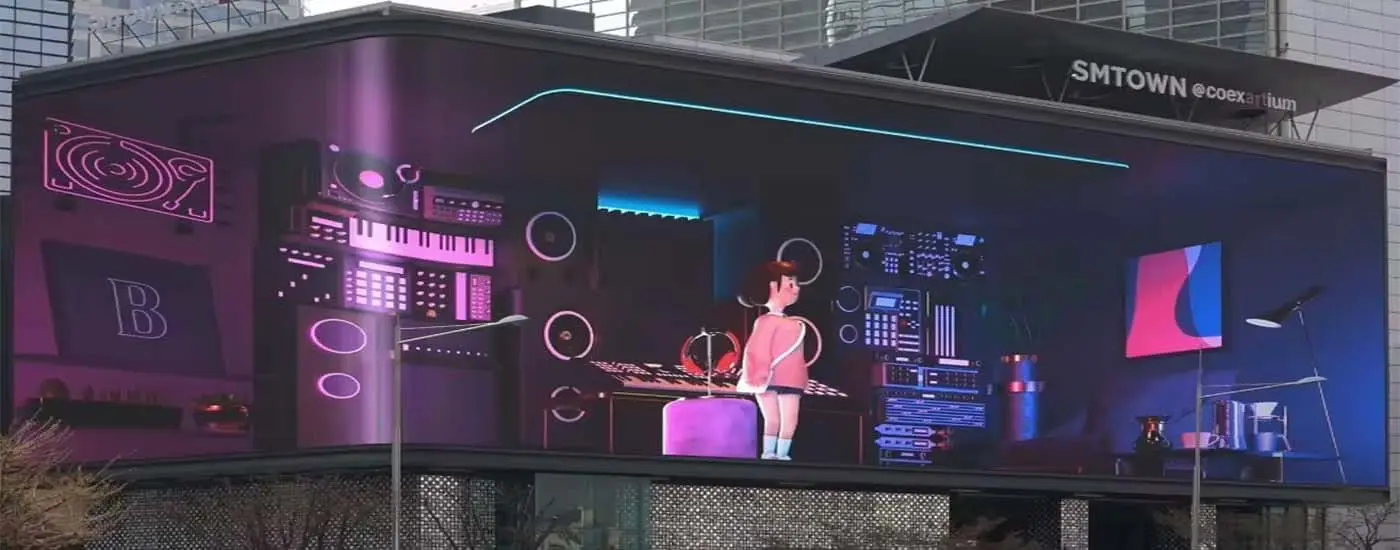

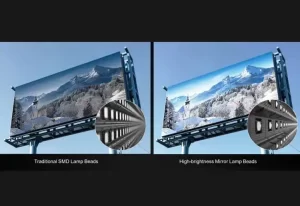

Super Brightness in 3D Screen LED Display

High brightness outdoor screen visible for a wide range of audience under strong direct sunlight.
led outdoor wall screen

Various Installation Methods for 3D Screen LED Display

3D screen led display offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.

Application Cases

How to control Outdoor Advertising Display brightness?

How to control Outdoor Advertising Display brightness?

" Customer Testimonials:

How to control the brightness of outdoor led display outdoor advertising display. REISSDISPLAY editor to help you with the process.

Application and Installation Videos

No videos available.

Specifications

3D-FA Series Specification
Model P4.4 P5.7 P6.6 P8 P10
Pitch(mm) 4.4mm 5.7mm 6.6mm 8mm 10mm
Type SMD1921 SMD2727 SMD2727 SMD2727 SMD3535
Density(dots) 50625(dots/㎡) 30628(dots/㎡) 22500(dots/㎡) 15625(dots/㎡) 10000(dots/㎡)
Module Size(mm) 480mm X 320mm 480mm X 320mm 480mm X 320mm 480mm X 320mm 480mm X 320mm
Module Resolution(dots) 108*72=7776 84*56=4704 72*48=3456 60*40=2400 48*32=1536
Module Weight(Kg) 2Kg 2Kg 2Kg 2Kg 2Kg
Cabinet Size(mm) 960×960×75 960×960×75 960×960×75 960×960×75 960×960×75
Cabinet Resolution(dots) 216×216 168×168 144×144 96×96 96×96
Cabinet Weight(Kg) 26Kg Aluminum Frame 26Kg Aluminum Frame 26Kg Aluminum Frame 26Kg Aluminum Frame 26Kg Aluminum Frame
Modules Qty/ Cabinet （W×H） 2×3 2×3 2×3 2×3 2×3
Installation Way Fixed Installation Fixed Installation Fixed Installation Fixed Installation Fixed Installation
Got Certification CE,ROHS,FCC.EMC CE,ROHS,FCC.EMC CE,ROHS,FCC.EMC CE,ROHS,FCC.EMC CE,ROHS,FCC.EMC
Cabinet Material Aluminum Frame Aluminum Frame Aluminum Frame Aluminum Frame Aluminum Frame
Cabinet Evenness(mm) ≤0.3 ≤0.3 ≤0.3 ≤0.3 ≤0.3
IC Driver 3840HZ 3840HZ 3840HZ 3840HZ 3840HZ
Scan 1/9 1/7 1/6 1/4 1/2
Brightness ≥5500-10000（cd/㎡) ≥6000-10000（cd/㎡) ≥6000-8000（cd/㎡) ≥6000-10000（cd/㎡) ≥5000-10000（cd/㎡)
Ave.Power Comsumption ≤700(W/㎡) ≤680(W/㎡) ≤700(W/㎡) ≤650(W/㎡) ≤650(W/㎡)
Max.Power Comsumption ≤250(W/㎡) ≤250(W/㎡) ≤235(W/㎡) ≤200(W/㎡) ≤200(W/㎡)
Viewing Angle Hor. 140°&Vert. 120° Hor. 140°&Vert. 120° Hor. 140°&Vert. 120° Hor. 140°&Vert. 120° Hor. 140°&Vert. 120°
Single Dot brightness adjustment YES
Single Dot Colorful adjustment YES
Input Voltage 200~240 V
Waterproof Level IP66 waterproof
Maintenance Way Front and Rear
LED Module Gap < 0.3mm
Greyscale > 65536 grayscale
Colorful Process Bit 14bit-18bit
Weight ≤28.5kg/㎡
Frame Rate ≥60Hz
Lifespan（hrs） 100,000hours
Contrast Ratio 3000:1
Control System NOVA/LINSN/MOOCELL/COLORLIGHT
Work Temperature/ Humidity （℃/RH） -10℃～50℃ / 10%RH～98%RH
Storage Temperature / Humidity（℃/RH） -40℃～85℃ / 10%RH～98%RH
