Led Stage Screen -RF-RH Series

Most cost-effective LED stage screen factory provides you with the latest LED display screens with multiple functions and flexible designs.

Model: P1.25 ，P1.5625，P1.953，P2.604，P2.976，P3.91，P4.81

Material: Die Casting Aluminum

Cabinet Size: 500×500mm and 500X1000mm

Service Way: Front and back

Waterproof Levle: IP65

Quality Warranty: 5 Years

CE,RoHS,FCC,ETL Approved

Quick Request
Appointment customization

Your current location:

REISSDSPLAY RH series rental LED stage screen cabinets are expertly designed for versatility and high performance in dynamic environments. Available in two sizes — 500 x 500 mm and 500 x 1000 mm — these cabinets provide flexible solutions for various staging needs.

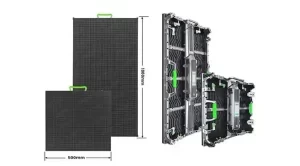

Perfect Dimension Of  Led Stage Screen

1: 500*500 and 500*1000mm cabinet design, die-cast aluminum
2: Magnesium alloy material, the lightest, only 7.5kg-13kg
3: High precision, seamless connection
4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection for modules and circuits
6: Front and rear maintenance functions. Fully waterproof IP65

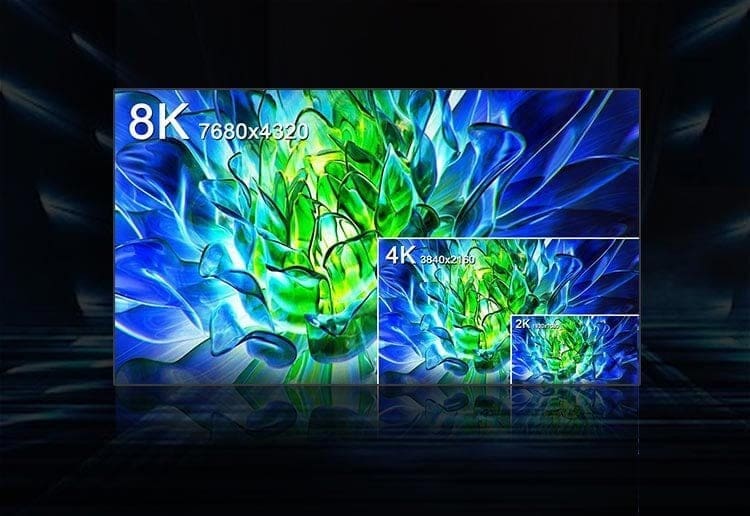

8K 4K 2K effects

8K LED Screens Resolution: 7680*4320 pixels Use Cases: Primarily used in ultra-high-end applications such as large – scale events, immersive installations, and advanced broadcasting. Incredible Detail: Offers unparalleled image clarity and detail, suitable for close viewing without pixelation. Enhanced Immersion: Ideal for virtual reality environments and immersive experiences where detail is crucial.

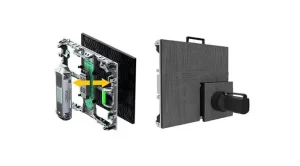

Front maintenance

Benefits of Front and Rear Maintenance Stage LED display cabinets designed for front and rear maintenance offer significant advantages in terms of accessibility and efficiency. These features are crucial for ensuring minimal downtime during events while facilitating easy servicing and upkeep of the display.

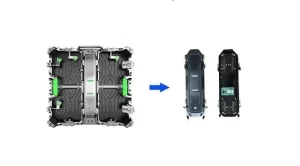

HUB Connection and Hot-Swappable Features

LED Stage Screen cabinets equipped with separated HUB connections and hot – swappable capabilities enhance flexibility and reliability in dynamic environments. These features are essential for maintaining seamless operations during live events and reducing downtime.

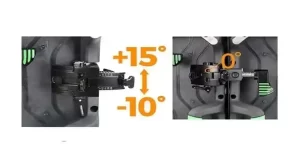

LED Stage Screen Cabinet: Rapid Arc Splicing Function

The rapid arc splicing function in stage LED display cabinets represents a significant advancement in display technology. By facilitating quick and precise connections between panels, this feature enhances the overall efficiency and quality of LED installations, making it an invaluable tool for events and productions that demand high-performance visual solutions.

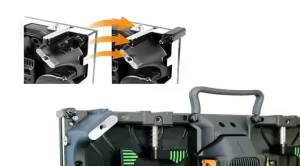

Stage LED Display Cabinet: Corner Protection Function

The corner protection function in stage LED display cabinets is designed to enhance durability and safety, especially in high – traffic environments. This feature is essential for preserving the integrity of the display during transport, setup, and operation, minimizing the risk of damage.
Indoos led screens

Creatively installed

Arc – Shaped Right-Angle SplicingThe multifunctional LED display cabinet with arc-shaped right – angle splicing capability is designed to offer flexibility and creativity in visual presentations. This innovative feature allows for the seamless integration of displays into various configurations, enhancing their aesthetic appeal and functionality.
HDR Indoor led Display

HDR Effect and High Grayscale

In the realm of  XR ( Extended Reality ) photography, stage LED displays equipped with HDR ( High Dynamic Range ) effects and high grayscale capabilities play a pivotal role in delivering stunning visual experiences. These technologies enhance the quality of imagery, making them essential for immersive environments, live performances, and creative productions.

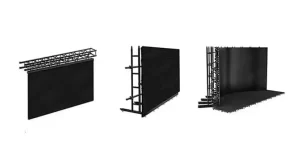

Various installation methods for stage LED displays

Stage LED displays offer a range of installation methods to accommodate different venues and event requirements. Selecting the appropriate installation method is crucial for maximizing visual impact and ensuring stability and safety.

Application Cases

How to choose high-quality rental LED screens

How to choose high-quality rental LED screens

" Customer Testimonials:

Choosing High-Quality Rental LED Screens Resolution Selecting quality LED Rental Screens requires careful consideration of key factors. Our Display Rental Solutions combine reliability with outstanding performance. Through Professional Rental Technology, we ensure exceptional event experiences. Key Points: Pixel Density: More pixels per inch mean a clearer picture. Minimum Resolution: Aim for Full HD for standard […]

How to configure a large stage LED screen

How to configure a large stage LED screen

" Customer Testimonials:

Learn how to choose the right size and resolution for a large stage LED screen that meets your event's needs and audience viewing distance.

Application and Installation Videos

Application Videos

Application Videos

Specifications

Pixel Pitch (mm) 1.5625 1.953 2.604 2.976 3.91 4.81
Operating Environment Indoor Indoor Indoor&Outdoor Indoor&Outdoor Indoor&Outdoor Indoor&Outdoor
Module Size (mm) 250*250 250*250 250*250 250*250 250*250 250*250
Cabinet Size (mm) 500*500*73 500*500*73 500*500*73 500*500*73 500*500*73 500*500*73
Cabinet Resolution (W×H) 320*320 256*256 192*192 168*168 128*128 104*104
IP Grade Front IP55Rear IP62  Front IP55 RearIP62 Front IP65 Rear IP65 Front IP65 Rear IP65 Front IP65 Rear IP65 Front IP65 Rear IP65
Weight (kg/cabinet) 7.5/12.5 7.5/12.5 7.5/12.5 7.5/12.5 7.5/12.5 7.5/12.5
White Balance Brightness (nit) 800-1100 800-1200 800-5500 800-5500 800-5500 800-5500
Horizontal / Vertical Viewing Angle 165/165 160/160 165/165 160/160 160/160 160/160
Power Consumption(W/㎡) 150-450±15%  150-450±15%  150-450±15% 150-450±15% 150-450±15% 150-450±15%
Refresh Rate(Hz) ≥7680 ≥7680 ≥7680 ≥7680 ≥7680 ≥7680
Control System Nova Nova Nova Nova Nova Nova
Certification CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL

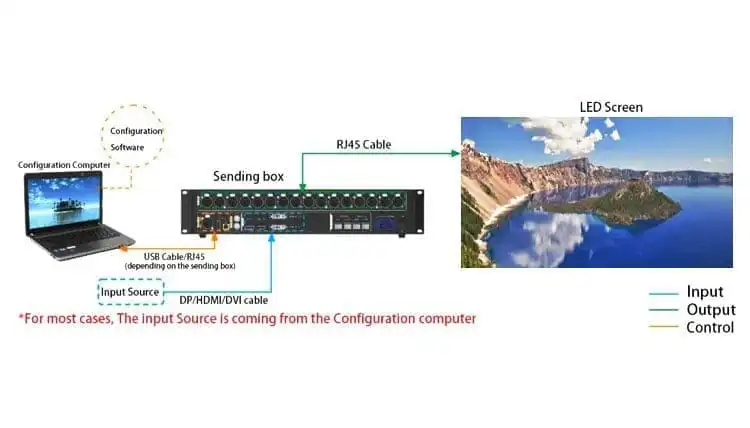

configuration

LED Display

LED Display
