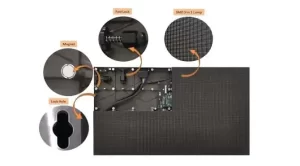

LED Display Indoor 1.6 :9 Cabinet Size Design with 600*337.50mm dimension, high flatness, easy to install anddisassemble, REISSIISPLAY Small cabinet size with 600×337.50mm, ultra-lightweight and space saving, adopting high quality high refresh rate LED display panel with 320mm*160mm. dual service from frontal side or reardifinition qualityin an HD LED Screen wall.
1: Ultra-light/ultra-thin/front maintenance, convenient and fast.
2: Magnesium alloy material, the lightest, only 5kg
3: High precision, seamless connection
4: Quick and easy installation, saving labor
5: Good heat dissipation performance, good protection of modules and circuits
Indoor LED Displays OF Front Maintenance
Front maintenance indoor LED displays are designed for easy access and serviceability, allowing for quick maintenance without requiring rear access. This feature is particularly beneficial in environments where space is limited or where installation against walls is common.

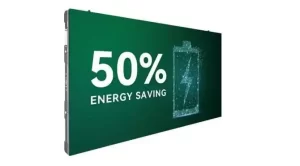

Energy-Saving LED Screens: Common Cathode vs. Common Anode
Energy-saving screens are essential in today’s environmentally conscious market, and they can be categorized into two main types: common cathode and common anode. Among these, common cathode technology has emerged as the most energy-efficient solution, maximizing performance while minimizing energy consumption .
Key Features of Easy Installation
The ease of installation of indoor LED displays makes them an attractive choice for various applications. With modular designs, lightweight construction, and user-friendly mounting systems, these displays can be set up quickly and conveniently, allowing businesses to focus on delivering impactful visual experiences without extended downtime. This efficiency not only saves time but also enhances overall project productivity.

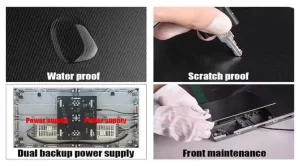

Benefits of GOB, Waterproof, and Anti-Collision Features
Physical treatment through GOB technology, waterproofing, and anti – collision features is essential for the durability and reliability of LED displays. By implementing these protective measures, manufacturers can ensure that their products withstand various environmental challenges and physical impacts, providing users with high – quality visual solutions that last.

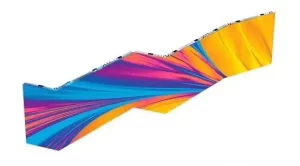

Applications of Creatively Installed Indoor LED Displays
Creatively installed indoor LED displays offer endless possibilities for enhancing visual experiences in various settings. By adopting unique designs and interactive elements, businesses and organizations can engage their audiences more effectively, making a lasting impression. The combination of innovative installation techniques and advanced technology allows for truly transformative environments.
Applications of HDR effect
HDR effect and high grayscale capability are pivotal features that elevate the performance of Indoor LED displays. By offering enhanced contrast, vibrant colors, and detailed imagery, these technologies significantly improve the viewing experience across various applications. As demand for high-quality visual content continues to grow, integrating HDR and high grayscale capabilities into LED displays will remain essential for engaging audiences and delivering impactful messages.

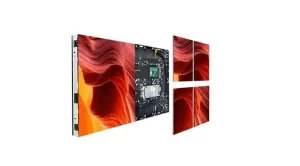

Key Features
Wall-mounted LED Video walls offer a versatile and effective way to display high-quality visuals in various settings. Their space-saving design, vibrant imagery, and ease of installation make them ideal for corporate, retail, and entertainment applications. By leveraging this technology, businesses can enhance communication, engage audiences, and create memorable experiences.
" Customer Testimonials:
Installing indoor LED display screens on the wall requires careful planning and execution. Here are the general steps to follow for a successful installation.
" Customer Testimonials:
How to install indoor LED display screen To install an indoor LED display screen, follow these steps – 1. Determine the location where you want to install the display screen. Make sure it’s suitable for the size of the screen and has a power source. 2. Measure the dimensions of the space where the screen […]
No videos available.
| Pixel Pitch (mm) | 0.937 | 1.25 | 1.538 | 1.86 | 2 | 2.5 |
| Operating Environment | Indoor | Indoor | Indoor | Indoor | Indoor | Indoor |
| Module Size (mm) | 300*168.75 | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Cabinet Size (mm) | 600*337.5*65 | 512*400*58 | 640*480*58 | 640*480*58 | 640*480*58 | 640*640*73 |
| Cabinet Resolution (W×H) | 640*360 | 344*258 | 416*312 | 344*258 | 320*240 | 256*256 |
| IP Grade | Front IP55Rear IP54 | Front IP55 Rear IP54 | Front IP55 Rear IP54 | Front IP55 Rear IP54 | Front IP55 Rear IP54 | Front IP55 Rear IP54 |
| Weight (kg/cabinet) | 5.5 | 5.5 | 5.5 | 5.8 | 5.8 | 5.8 |
| White Balance Brightness (nit) | 600-1000 | 600-1200 | 600-1000 | 600-1200 | 800-1200 | 800-1200 |
| Horizontal / Vertical Viewing Angle | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 | 160/160 |
| Power Consumption(W/㎡) | 400±15%/120±15% | 450±15%/150±15% | 400±15%/120±15% | 450±15%/150±15% | 450±15%/150±15% | 450±15%/150±15% |
| Refresh Rate(Hz) | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 | ≥7680 |
| Control System | Nova | Nova | Nova | Nova | Nova | Nova |
| Certification | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL | CE, FCC, ETL |
led-display-screen-2001
High-definition LED display [Application field]: Indoor commercial office [Pixel pitch]: P2 mm [Screen area]: 24 square meters [Related Products]: Indoor LED Video Wall [Project introduction]: 4K ultra-high-definition led display is the first 4K high-definition outdoor surface mount large screen that supports 3D effects. The project has received extensive attention since it started operation. Through this […]
