OF-SW Series semi-waterproof outdoor fixed LED display is a fixed installation P2.5, P3, P4, P3.91, P4.81, P5, P6, P8, P10, P16 pixel pitch. High definition and high refresh output, very low price. Adopting simple style iron cabinet, extremely thin thickness is only 100mm, screen weight is less than 28 KG/m2. Fully maintainable, its brightness is very high, more than 6500 nits. Iron or aluminum cabinet for your choice; strong and solid material, suitable for outdoor permanent installation, wall installation project is very cost-effective!

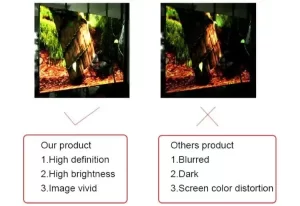

1. High Definition: Sharp and detailed visuals for crystal-clear clarity.
2. High Brightness: Vibrant and visible even in bright environments.
3. Image Vividness: Lifelike colors and deep contrasts for immersive experiences.
– 960mm×960mm cabinet standard size, support customized size.
– Front or rear maintenance optional
– Support cabinet internal wiring, beautiful and practical, with simple wiring.
– High-precision iron cabinet, high protection IP65
– SMD 3-in-1 full-color LED package.

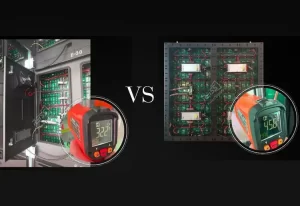

– High brightness, good heat dissipation.
– Energy-saving design.
– Seamless splicing, better flatness.

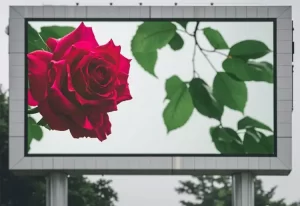

The viewing angle is up to 140° vertically and horizontally, providing a wide viewing angle.
The ultra-wide viewing angle provides you with the largest screen viewing area. It provides you with a clear and natural image.
The LED screen module uses high-quality lamp beads, precision packaging, waterproof and dustproof. When installed in outdoor areas, protection is important. Special protective devices can protect it from environmental hazards. At the same time, it saves energy by 50% and consumes less electricity.

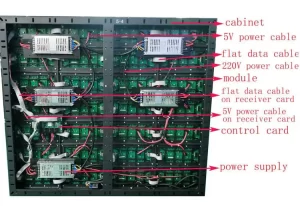

· Material: usually made of aluminum profiles or steel, lightweight and durable.
· Power module: built-in high-efficiency switching power supply, supporting wide voltage input.
· Power redundancy: some designs support dual power backup to improve reliability.
· Receiving card: built-in receiving card, supporting multiple signal inputs.
· Sending card: external sending card, connected to a computer or video source.
· Control software: matching software, supporting content editing and playback control.

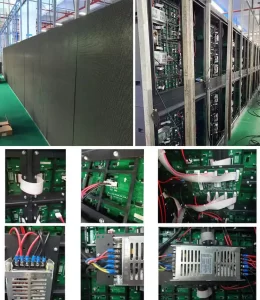

Data line: used to connect the control card and LED unit board wiring.
Transmission line: used to connect the control card with the computer.
Power line: used to connect the power supply and control card with the LED unit board, the copper core diameter of the power line connecting the unit board is not less than 1mm

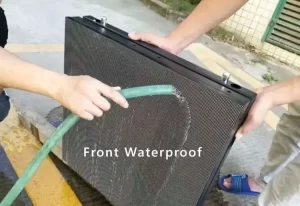

Protection level: IP65 on the front, IP45 on the back, dustproof and splashproof, waterproof on the front, but not completely waterproof on the back.
Sealing strip: There is a waterproof sealing strip at the cabinet joint to prevent water vapor from intruding.
Drainage hole: A drainage hole is designed at the bottom to prevent water accumulation.
Based on 320×160mm 256×128mm192 ×192mm 256 ×256mm module design
LED module: High-brightness LED lamp beads, with common spacing of P4, P5, P6, P8, and P10.
Driver IC: Built-in constant current driver IC to ensure stable display.
PCB board: High-precision PCB board to improve display effect.
When there are many outdoor LED displays, it will be very troublesome to update them one by one. Therefore, each outdoor LED display has a built-in LED control system that can receive signals from the cloud.
The advantage of this is that we only need to set the instructions in the cloud to update the screen content to receive signals in batches.

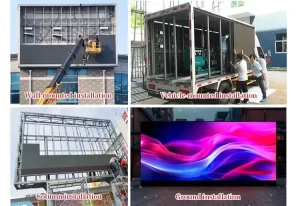

There are 5 main installation methods for outdoor LED displays, namely:
· Wall mounting
· Column mounting
· Ground mounting
· Suspension mounting
· Vehicle mounting

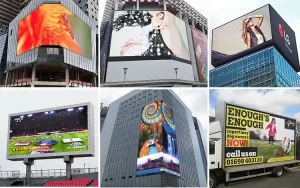

In order to adapt to various scenarios, our products are made of high-quality materials, simple and solid structure, and a variety of installation methods make it flexible and convenient to use. This product is usually used in shopping malls, street side, curtain walls, building cards, car trailers, scoreboards, outdoor digitalization.
" Customer Testimonials:
Outdoor LED display panels are transforming outdoor advertising in 2025, offering dynamic content, exceptional visibility, and advanced technology.
" Customer Testimonials:
How to Choose an Outdoor LED Display Screen?With their high brightness, excellent display quality, and strong adaptability, these screens perform exceptionally well in outdoor environments.
No videos available.
|
Model
|
P2.5
|
P3
|
P4
|
P5
|
P6
|
P8
|
P10
|
|
Pixel Pitch(mm)
|
2.5
|
3.076
|
4
|
5
|
6.67
|
8
|
10
|
|
Color
|
Full Color / 1R1G1B
|
||||||
|
LED Type
|
SMD1921
|
SMD2727
|
SMD2727
|
SMD2727
|
SMD2727
|
SMD3535
|
SMD3535
|
|
Scan
|
1/16
|
1/13
|
1/10
|
1/8
|
1/6
|
1/4
|
1/2
|
|
Pixel Density(dots/㎡)
|
160,000
|
105,625
|
62,500
|
40,000
|
22,500
|
15,625
|
10,000
|
|
Module Size(mm)
|
320*160*18
|
||||||
|
Cabinet Size(mm)
|
960*960*100
|
||||||
|
Cabinet Resolution(dots)
|
384*384
|
312*312
|
240*240
|
192*192
|
144*144
|
120*120
|
96*96
|
|
Cabinet Weight(Kg)
|
28
|
||||||
|
Cabinet Material
|
Waterproof Iron
|
||||||
|
Grey Scale
|
14 Bit-18 Bit
|
||||||
|
Refresh Rate(Hz)
|
≥3840
|
||||||
|
Brightness(cd/㎡)
|
≥6000
|
||||||
|
Viewing Angle(H/V)
|
140°/140°
|
||||||
|
Maintenance Method
|
Rear/Front
|
||||||
|
Life Span
|
100,000 Hours
|
||||||
|
Waterproof
|
IP65/IP45
|
||||||
|
Max. Power Consumption
|
≤700W/㎡
|
||||||
|
Average Power
|
≤235W/㎡
|
||||||
|
Working Temperature
|
-20-60℃
|
||||||
|
Working Humidity
|
10%-98%PH
|
||||||
