Versatile rental led panel -RF-Pro Series

Explore our versatile rental LED panels, designed for easy installation and exceptional performance in any stage setting.

Type of LED: SMD

Cabinet size: 500x500mm/500x1000mm

Module size: 250x250mm

Pixel Pitch (mm): P2.6/ P2.97/ P3.91

Maintenance: Front/ Rear Service

rotection Level: IP65

Material: Die-cast Aluminum

Technology: Common Cathode/ Common Anode（Optional）

Quality Warranty: 5 Years

CE,RoHS,FCC,ETL Approved

Quick Request
Appointment customization

Your current location:

Rental led panel Engineered for Flawless Visual Impact

– Available in multiple panel sizes 500x500mm, 500x1000mm die-cast aluminum
– Excellent Performance
– Seamless Display and Better Visual Effects
– Aluminum Cabinet, Lightweight, Safetyand – Reliability, No Distortion
– Easy to Install and Maintain
– High Performance Driving IC

Excellent Performance

Immerse yourself in a captivating visual experience with REISSDSPLAY 7680Hz display, delivering unparalleled clarity and seamless motion.
rental led wall

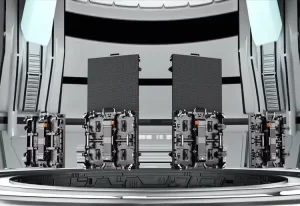

Integrated Design

Integrated design of power supply, HUB panel, and rear cover.

Aluminum alloy enclosure, featuring strong toughness, high precision, and resistanceto deformation.

Utilizing a silent control box, combining technology with excellent heat dissipation performance, ensuring zero noise during operation.

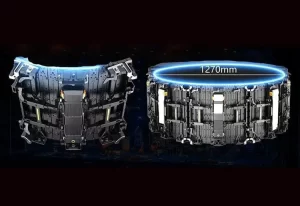

Eight Cabinets Can Form A Circle

Eight cabinets can be assembled into a circle with a diameter of 1.27 meters.

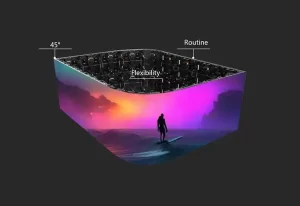

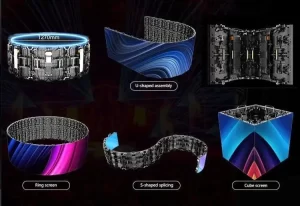

Unlock Endless Display Possibilities with REISSDSPLAY Modular Cabinet System

Normal cabinet, curved cabinet, 45°cabinet, flexible cabinet can be mixed and assembled. No disassembly tools required, quick and easy splicing. Make the screen shape more richer while saving costs.

led stage screen

Meet All Needs

The Pro series is Designed with a unique curved lock system for the inner arc & outer arc with -10° to 10°. A full function solution to meet all needs of the rental screen.

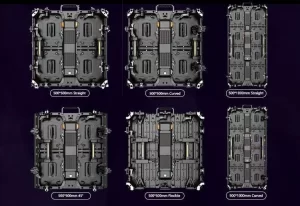

Cabinets Appearance

Safety protection design l High reliability and long life. Provide a variety of panel designs to meet all your needs

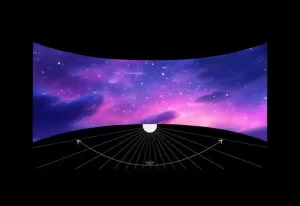

Wide Viewing Angle

With wide viewing angle capability (160° h/V) and wide visual coverage ensure optimal visibility from every vantage point.

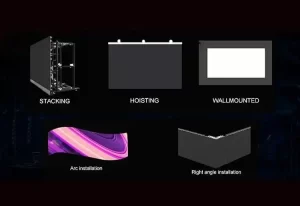

Versatile Stage LED Display Installations

Flexibility and creativity in display setups
Ability to select the appropriate method based on venue and event requirements
Creation of impactful visual experiences that captivate audiences
Ensuring stability and safety for the display

Super Frigostable & Heat Resistant

1. Unbelievable durability – Highlights the extended service lifespan to maximize the investment.
2. Overheating protection – Conveys the robust IP65/IP65 (Front/Back) rating for long-term, reliable operations.

Application Cases

How to configure a large stage LED screen

How to configure a large stage LED screen

" Customer Testimonials:

Learn how to choose the right size and resolution for a large stage LED screen that meets your event's needs and audience viewing distance.

Application and Installation Videos

Application Videos

Application Videos

Specifiche

Passo pixel (mm) 1.5625 1.953 2.604 2.976 3.91 4.81
Ambiente operativo Al chiuso Al chiuso Indoor&Outdoor Indoor&Outdoor Indoor&Outdoor Indoor&Outdoor
Dimensioni del modulo (mm) 250*250 250*250 250*250 250*250 250*250 250*250
Dimensioni del mobile (mm) 500*500*73 500*500*73 500*500*73 500*500*73 500*500*73 500*500*73
Risoluzione del gabinetto (L×A) 320*320 256*256 192*192 168*168 128*128 104*104
Grado IP Front IP55Rear IP62  Front IP55 RearIP62 Front IP65 Rear IP65 Front IP65 Rear IP65 Front IP65 Rear IP65 Front IP65 Rear IP65
Peso (kg/mobile) 7.5/12.5 7.5/12.5 7.5/12.5 7.5/12.5 7.5/12.5 7.5/12.5
Luminosità del bilanciamento del bianco (nit) 800-1100 800-1200 800-5500 800-5500 800-5500 800-5500
Angolo di visione orizzontale/verticale 165/165 160/160 165/165 160/160 160/160 160/160
Consumo energetico (W/㎡) 150-450±15%  150-450±15%  150-450±15% 150-450±15% 150-450±15% 150-450±15%
Frequenza di aggiornamento (Hz) ≥7680 ≥7680 ≥7680 ≥7680 ≥7680 ≥7680
Sistema di controllo Nuova Nuova Nuova Nuova Nuova Nuova
Certificazione CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL CE, FCC, ETL
