MIP LED display means "Micro LED in Package", which is a new packaging technology based on Nationstar Mini LED or Micro LED panels (such as P0.78125, P0.9375, P1.25 and P1.5625). The LED cabinet size is 600mmx337.5mm using a 16:9 ratio.
MIP LED display. This is a bright and energy-efficient option. It has wide viewing angles and a high refresh rate. It has the best contrast so far.
Prikaži detaljeUpto Upto 3840Hz

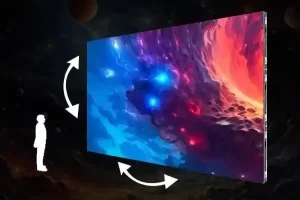

Wide Viewing Angles
Right Angle Splicing
Ultra thin thickness
Magnetic Suction Installation
Front Maintenance
Aluminum
6.5kg/pc
Technological innovation
High-quality lamp beads
Auto brightness adjustment
Energy saving
Ultra-light and thin
Multiple choices
Lower power consumption and higher contrast
MIP technology and low rework costs
Optional higher brightness and wide viewing angle
| Pixel Pitch | 0.625 mm | 0.9375 mm | 1.25 mm | 1.5625 mm |
| LED Type | MIP | MIP | MIP | MIP |
| Pixel Density | 2,560,000 dots/m2 | 1,137,777 dots/m2 | 640,000 dots/m2 | 409,600 dots/m2 |
| Cabinet Size (W x H x D) | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. | 23.6 in. x 13.3 in. x 1.5 in. |
| Cabinet Resolution | 960 (W) x 270 (H) | 640 (W) x 360 (H) | 480 (W) x 270 (H) | 384 (W) x 216 (H) |
| Cabinet Weight | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. | 11.46 lbs. |
| Calibrated Brightness (nits) | 600 nits | 1000 nits | 1000 nits | 1000 nits |
| Viewing Angle | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 | Horizontal: 160°±10 ; Vertical: 160°±10 |
| Refresh Rate (Hz) | 3840 Hz | 3840 Hz | 3840 Hz | 3840 Hz |
| Contrast Ratio | 10,000:1 | 12,000:1 | 12,000:1 | 12,000:1 |
| Input Voltage | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz | AC 100V-240V, 50/60Hz |
| Maximum Power | 70 W/Cabinet; 346 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 | 120 W/Cabinet; 592 W/m2 |
| Average Power | 25 W/Cabinet; 123 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 | 42 W/Cabinet; 207 W/m2 |

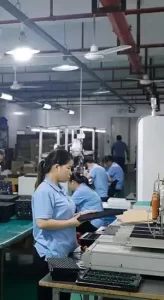

LED Module Workshop

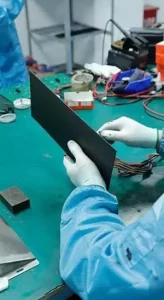

LED Module Sample Debug

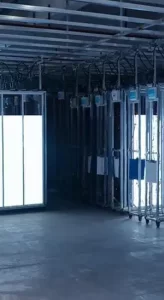

LED Module Test

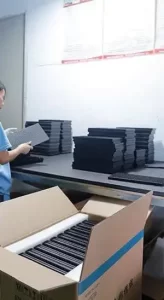

LED Module Packaging

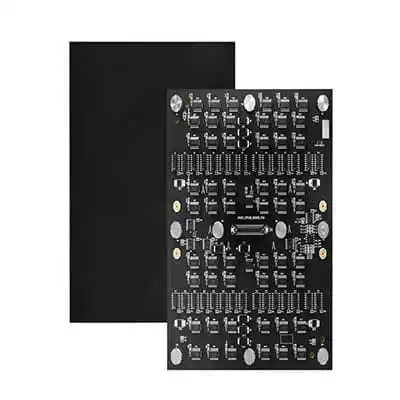

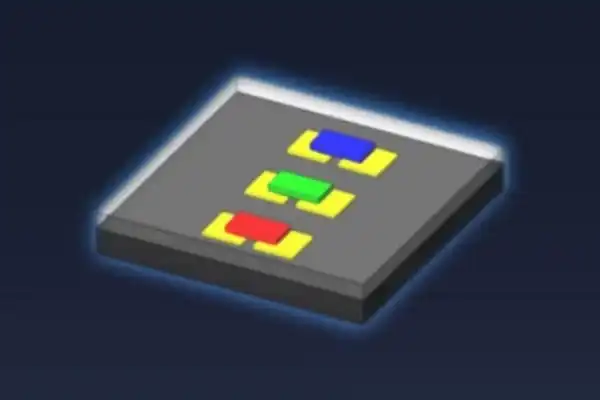

MiP stands for Micro LED in Package and is a new LED packaging technology based on Micro LED. MiP technology cuts Mini/Micro LED panels into small pieces and packages each piece individually. It increases yields and significantly reduces the cost of LED display manufacturing.
The key advantages of MIP LED display modules are their power efficiency, high visibility, simplified design, and versatility. The bistable, matrix-addressed technology provides an energy-efficient, high-performance display solution suitable for a wide range of applications.
Installing indoor LED display screens on the wall requires careful planning and execution. Here are the general steps to follow for a successful installation.
Tips for maintaining the longevity and performance of indoor LED displays include proper ventilation, regular
cleaning and dusting, monitoring ambient temperatures, avoiding direct sunlight, using climate control systems, maintaining a stable power supply, following manufacturer guidelines, and conducting regular visual inspections.VIŠE++
Indoor LED displays are widely used in the retail environment to enhance the shopping experience, attract customers, and promote products or services. Retailers can use LED displays for various purposes, including digital signage, advertising, branding, product promotion, navigation, digital menu boards, entertainment, and in-store promotions. LED displays offer a visually engaging medium to communicate with customers, showcase products, and create a memorable shopping experience. With dynamic and interactive content, retailers can strategically place LED displays to promote products, offers, and brand image. LED displays provide a flexible, cost-effective, and impactful medium to reach the target audience and drive sales with eye-catching messages. Ultimately, indoor LED displays aim to deliver an immersive, personalized, and stimulating shopping experience, resulting in increased engagement and customer satisfaction.
Learn the key differences between indoor and outdoor LED displays. Brightness level, pixel pitch, IP protection, and cost are crucial factors to consider. Indoor displays require a lower brightness level and finer pixel pitch, while outdoor displays need a higher brightness level, larger pixel pitch, and waterproof & dustproof protection. The cost varies based on size, resolution, and materials. Choose the most suitable LED display for your needs by considering these factors.VIŠE++
